Sayfa 5-10 - Isuzu EPC

5-10 — CAB MOUNTING; FRAME SIDE (#7721) — 714 parça

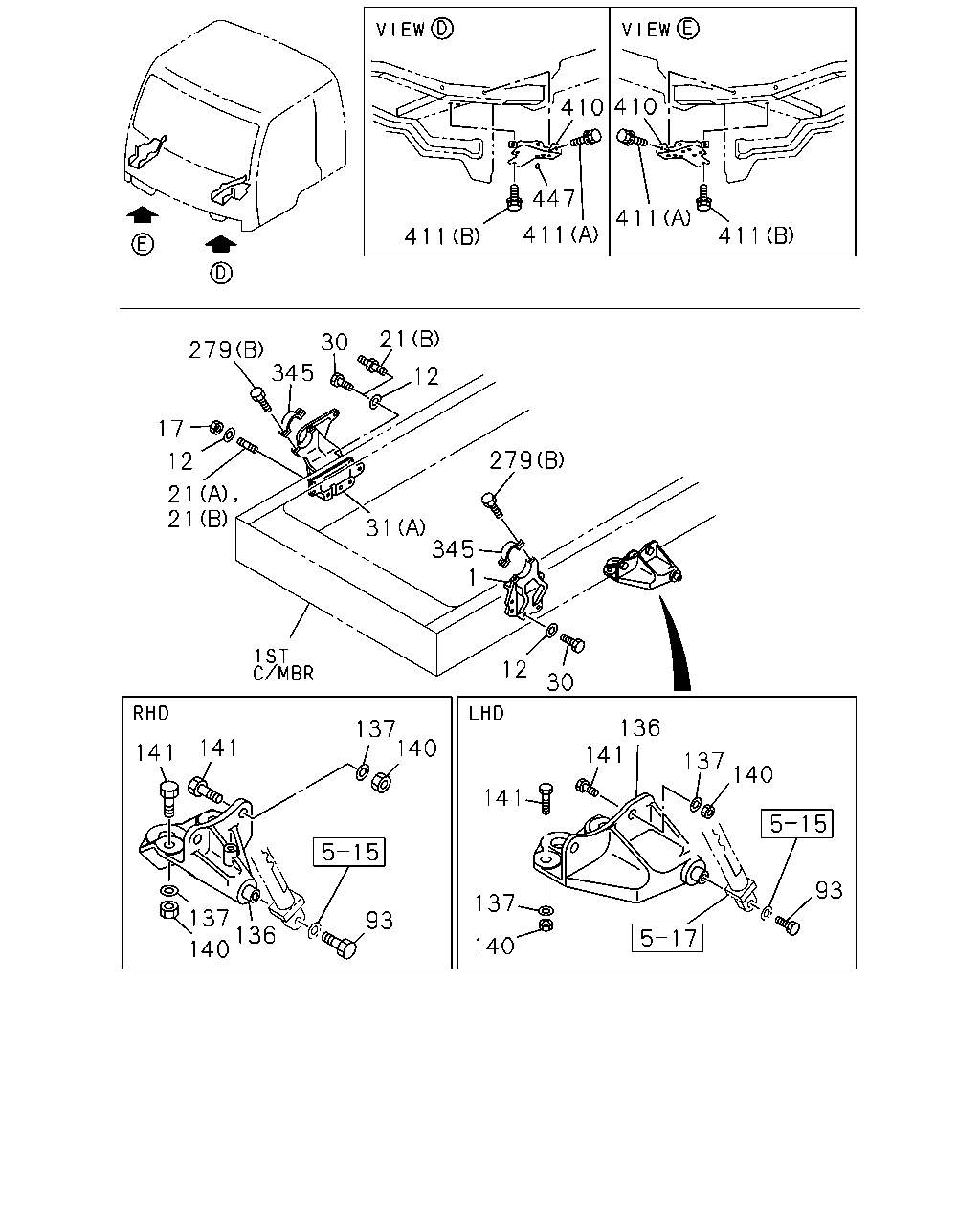

447 411 411 411 411 21 30 279 345 12 17 279 12 21 21 31 345 1 12 30 136 141 137 140 141 141 137 140 141 93 137 137 136 140 93 140 410 410

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BRACKET; CAB MTG CAB UP +110MM<TGG>	1-53453-306-1	01	1	9902-	●
1	BRACKET; CAB MTG EXC. CAB UP +110MM<TGG>	1-53453-275-1	01	1	9902-	●
1	BRACKET; CAB MTG	1-53453-246-1	01	1	0004-		●
12	WASHER; LK,BRKT CAB UP +110MM<TGG> ID=16.2	1-09503-223-0	11	1	9902-0003	●
12	WASHER; LK,BRKT CAB UP +110MM<TGG> ID=16.2	1-09503-223-0	11	1	0004-	●
12	WASHER; LK,BRKT ID=16.2	1-09503-223-0	11	1	0004-		●
12	WASHER; LK,BRKT EXC. CAB UP +110MM<TGG> ID=15	9-09651-069-0	11	1	9902-	●
17	NUT; BRKT,CAB TILT CAB UP +110MM<TGG> M16	9-99110-516-0	01	1	9902-0003	●
17	NUT; BRKT,CAB TILT CAB UP +110MM<TGG> M16	9-99110-516-0	01	1	0004-	●
17	NUT; BRKT,CAB TILT M16	9-99110-516-0	01	1	0004-		●
17	NUT; BRKT,CAB TILT EXC. CAB UP +110MM<TGG> M14	9-99110-514-0	01	1	9902-	●
21	STUD; BRKT,CAB TILT CAB UP +110MM<TGG> (A) M16X50 L=74	1-09300-117-0	01	1	9902-0003	●
21	STUD; BRKT,CAB TILT CAB UP +110MM<TGG> (A) M16X50 L=74	1-09300-117-0	01	1	0004-	●
21	STUD; BRKT,CAB TILT (A) M16X50 L=74	1-09300-117-0	01	1	0004-		●
21	STUD; BRKT,CAB TILT EXC. CAB UP +110MM<TGG> (A) M14X48 L=75	1-09300-094-0	01	1	9902-	●
21	STUD; BRKT,CAB TILT MJD7S M/T(Y2Y) TRANSMISSION OIL COOLER<C2C> CAB UP +110MM<TGG> (B) M10X20,M16X50 L=81	1-09029-069-0	02	1	9902-	●
30	BOLT; CAB FRT FOOT EXC. CAB UP +110MM<TGG> M14X45	9-92061-445-0	10	1	9902-	●
30	BOLT; CAB FRT FOOT MJD7S M/T(Y2Y) CAB UP +110MM<TGG> EXC. TRANSMISSION OIL COOLER<C2C> M16X45	9-92061-645-0	10	1	9902-0003	●
30	BOLT; CAB FRT FOOT TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) CAB UP +110MM<TGG> M16X45	9-92061-645-0	10	1	9902-0003	●
30	BOLT; CAB FRT FOOT CAB UP +110MM<TGG> ISUZU M/T<X9A> EXC. TRANSMISSION OIL COOLER<C2C> M16X45	9-92061-645-0	10	1	0004-	●
30	BOLT; CAB FRT FOOT CAB UP +110MM<TGG> ZF M/T<X9E> M16X45	9-92061-645-0	10	1	0004-	●
30	BOLT; CAB FRT FOOT M16X45	9-92061-645-0	10	1	0004-		●
30	BOLT; CAB FRT FOOT MJD7S M/T(Y2Y) TRANSMISSION OIL COOLER<C2C> CAB UP +110MM<TGG> M16X45	9-92061-645-0	08	1	9902-	●
31	BRACKET; CAB CAB UP +110MM<TGG> (A)	1-44226-156-0	01	1	9902-	●
31	BRACKET; CAB CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (B)	1-53458-673-1	01	1	9902-	●
31	BRACKET; CAB CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (C)	1-81549-016-0	01	1	9902-0003	●
31	BRACKET; CAB CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (C)	1-81549-016-0	01	1	0004-	●
31	BRACKET; CAB FULL FLOATING CAB<W16> (C)	1-81549-016-0	01	1	0004-		●
31	BRACKET; CAB CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (D)	1-53453-225-2	01	1	9902-0003	●
31	BRACKET; CAB CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (D)	1-53453-225-3	01	1	0004-	●
31	BRACKET; CAB FULL FLOATING CAB<W16> (D)	1-53453-225-3	01	1	0004-		●
31	BRACKET; CAB CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (D)	1-53453-281-1	01	1	9902-	●
31	BRACKET; CAB EXC. CAB UP +110MM<TGG> (A)	1-44226-150-0	01	1	9902-	●
31	BRACKET; CAB EXC. FULL FLOATING CAB<W16> (D)	1-53453-274-0	01	1	9902-0003	●
31	BRACKET; CAB EXC. FULL FLOATING CAB<W16> (D)	1-53453-274-1	01	1	0004-	●	●
31	BRACKET; CAB EXC. FULL FLOATING CAB<W16> (D)	1-53453-280-1	01	1	9902-	●
31	BRACKET; CAB (A)	1-44226-149-0	01	1	0004-		●
31	BRACKET; CAB FULL FLOATING CAB<W16> (B)	1-53458-374-1	01	1	0004-		●
31	BRACKET; CAB FULL FLOATING CAB<W16> (D)	1-53453-224-4	01	1	0004-		●
31	BRACKET; CAB EXC. FULL FLOATING CAB<W16> (D)	1-53453-273-1	01	1	0004-		●
93	BOLT; PIN CAB UP +110MM<TGG> M10X30	1-09000-283-0	01	1	9902-0003	●
93	BOLT; PIN CAB UP +110MM<TGG> M10X30	1-09000-283-0	01	1	0004-	●
93	BOLT; PIN M10X30	1-09000-283-0	01	1	0004-		●
93	BOLT; PIN EXC. CAB UP +110MM<TGG> M10X20 FLANGE	0-28681-020-0	01	1	9902-	●
136	BRACKET; OIL CYL	1-53458-903-0	01	1	9902-	●
136	BRACKET; OIL CYL 6WG1 TC-N(71L) WHEEL BASE 3200MM(32W)	1-53458-829-0	01	1	0004-		●
137	WASHER; PL,BRKT ID=15	9-09651-069-0	04	1	9902-0003	●
137	WASHER; PL,BRKT ID=15	9-09651-069-0	04	1	0004-	●	●
140	NUT; BRKT M14	9-99110-514-0	02	1	9902-0003	●
140	NUT; BRKT M14	9-99110-514-0	02	1	0004-	●	●
141	BOLT; BRKT M14X50	9-92061-450-0	04	1	9902-0003	●
141	BOLT; BRKT M14X50	9-92061-450-0	04	1	0004-	●	●
279	BOLT (B) M12X40 FLANGE	0-28091-240-0	04	1	9902-0003	●
279	BOLT (B) M12X40 FLANGE	0-28091-240-0	04	1	0004-	●	●
279	BOLT ANTI NOISE EQUIPMENT<SV9> (A) M8X25 FLANGE	0-28680-825-0	03	1	9902-0003	●
279	BOLT ANTI NOISE EQUIPMENT<SV9> (A) M8X25 FLANGE	0-28680-825-0	03	1	0004-	●	●
279	BOLT CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (C) M8X16 FLANGE	0-28080-816-0	04	1	9902-0003	●
279	BOLT CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (C) M8X16 FLANGE	0-28080-816-0	04	1	0004-	●
279	BOLT FULL FLOATING CAB<W16> (C) M8X16 FLANGE	0-28080-816-0	04	1	0004-		●
279	BOLT CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (E) M8X60 FLANGE	0-28080-860-0	02	1	9902-0003	●
279	BOLT CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (E) M8X60 FLANGE	0-28080-860-0	02	1	0004-	●
279	BOLT FULL FLOATING CAB<W16> (E) M8X60 FLANGE	0-28080-860-0	02	1	0004-		●
279	BOLT CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (D) M8X20 FLANGE	0-28680-820-0	09	1	9902-	●
279	BOLT CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (F) M8X25	1-09980-511-0	02	1	9902-	●
279	BOLT DELUXE CAB(W14) FULL FLOATING CAB<W16> (F) M8X25 W/LK&PL WASHER	1-09980-548-0	01	1	0004-		●
279	BOLT FULL FLOATING CAB<W16> (D) M8X20 FLANGE	0-28680-820-0	07	1	0004-		●
345	CAP; CAB	1-53458-336-3	02	1	9902-0003	●
345	CAP; CAB	1-53458-336-3	02	1	0004-	●	●
410	REINFORCEMENT; CAB TILT	1-62570-864-0	01	1	9902-0003	●
410	REINFORCEMENT; CAB TILT	1-62570-864-0	01	1	0004-	●	●
410	REINFORCEMENT; CAB TILT	1-62570-939-0	01	1	9902-	●
411	BOLT; REINFORCEMENT (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	06	1	9902-	●
411	BOLT; REINFORCEMENT (B) M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	9902-	●
411	BOLT; REINFORCEMENT (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	0004-		●
411	BOLT; REINFORCEMENT (B) M10X20 W/LK&PL WASHER	8-94279-211-0	01	1	0004-		●
447	SEAL OD=25 BLACK	1-76798-019-0	02	1	9902-	●

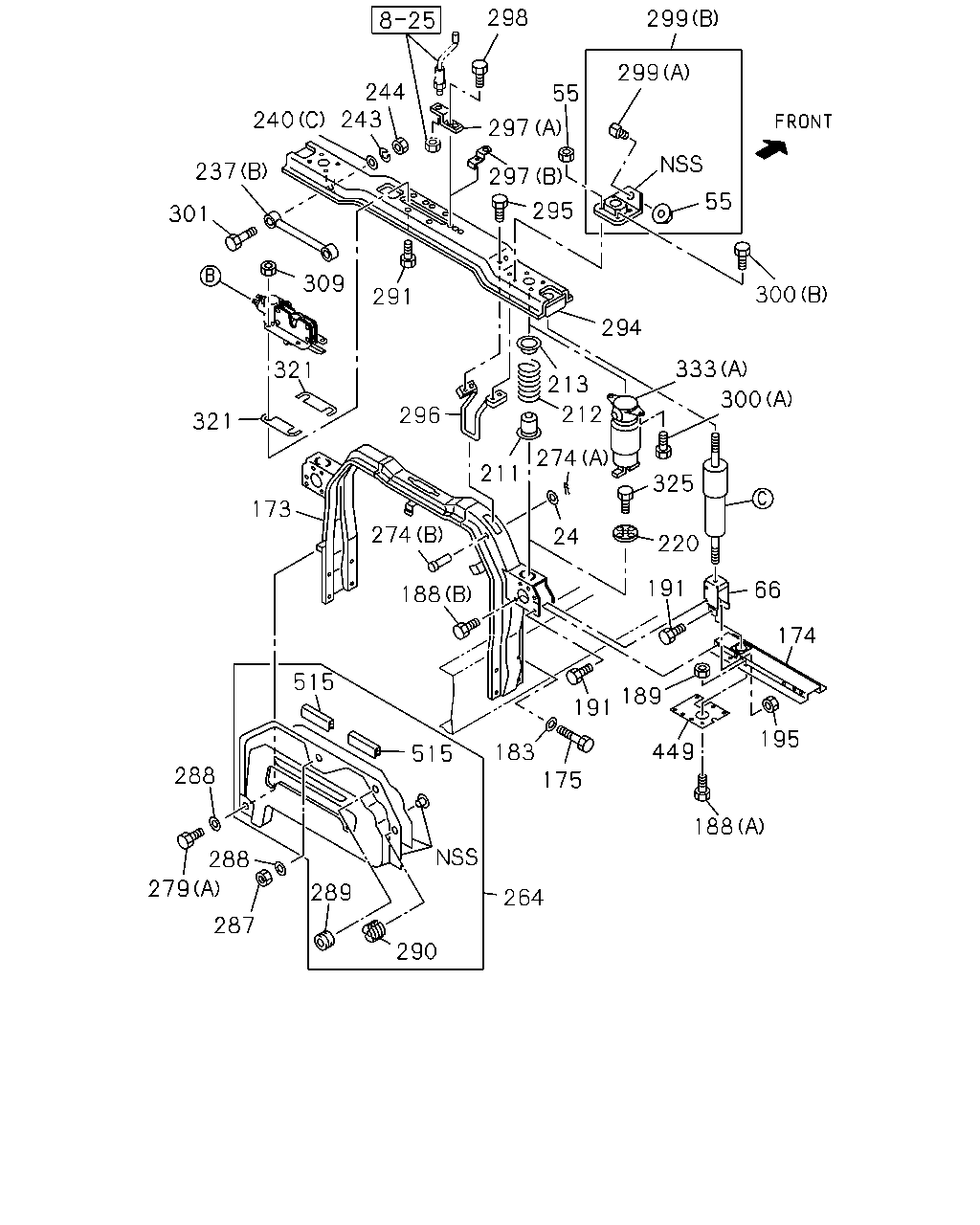

298 299 299 244 243 55 240 297 297 237 55 295 301 309 300 291 294 333 321 213 300 212 296 321 211 274 325 173 274 24 220 191 66 188 174 515 189 191 449 195 183 515 288 175 188 288 279 289 264 287 290

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	WASHER; PL ID=12.5	9-09160-512-0	01	1	9902-0003	●
24	WASHER; PL ID=12.5	9-09160-512-0	01	1	0004-	●	●
55	NUT; RUBBER M8 FLANGE	0-91150-108-0	06	1	9902-0003	●
55	NUT; RUBBER M8 FLANGE	0-91150-108-0	06	1	0004-	●	●
66	BRACKET; S/ABS CAB UP +110MM<TGG>	1-53458-755-1	01	1	9902-0003	●
66	BRACKET; S/ABS CAB UP +110MM<TGG>	1-53458-755-1	01	1	0004-	●
66	BRACKET; S/ABS	1-53458-755-1	01	1	0004-		●
66	BRACKET; S/ABS CAB UP +110MM<TGG>	1-53458-786-0	01	1	9902-0003	●
66	BRACKET; S/ABS CAB UP +110MM<TGG>	1-53458-786-0	01	1	0004-	●
66	BRACKET; S/ABS	1-53458-786-0	01	1	0004-		●
173	MEMBER; CAB MTG RR CAB UP +110MM<TGG> FULL FLOATING CAB<W16>	1-53450-594-0	01	1	9902-9903	●
173	MEMBER; CAB MTG RR CAB UP +110MM<TGG> FULL FLOATING CAB<W16>	1-53450-612-2	01	1	9904-	●
173	MEMBER; CAB MTG RR CAB UP +110MM<TGG> EXC. FULL FLOATING CAB<W16>	1-53450-595-0	01	1	9902-9903	●
173	MEMBER; CAB MTG RR CAB UP +110MM<TGG> EXC. FULL FLOATING CAB<W16>	1-53450-614-0	01	1	9904-0003	●
173	MEMBER; CAB MTG RR CAB UP +110MM<TGG> EXC. FULL FLOATING CAB<W16>	1-53450-614-2	01	1	0004-	●
173	MEMBER; CAB MTG RR EXC. FULL FLOATING CAB<W16>	1-53450-614-2	01	1	0004-		●
173	MEMBER; CAB MTG RR FULL FLOATING CAB<W16>	1-53450-560-8	01	1	0004-		●
174	OUTRIGGER	1-53456-277-2	01	1	9902-0003	●
174	OUTRIGGER	1-53456-277-3	01	1	0004-	●	●
174	OUTRIGGER	1-53456-278-2	01	1	9902-0003	●
174	OUTRIGGER	1-53456-278-3	01	1	0004-	●	●
175	BOLT; MEMBER TO FRAME M14X35	9-92061-435-0	08	1	9902-0003	●
175	BOLT; MEMBER TO FRAME M14X35	9-92061-435-0	08	1	0004-	●	●
183	WASHER; PL,MEMBER ID=15	9-09651-069-0	08	1	9902-0003	●
183	WASHER; PL,MEMBER ID=15	9-09651-069-0	08	1	0004-	●	●
188	BOLT; OUTRIGGER (B) M10X25 FLANGE	0-28681-025-0	08	1	9902-0003	●
188	BOLT; OUTRIGGER (B) M10X25 FLANGE	0-28681-025-0	08	1	0004-	●	●
188	BOLT; OUTRIGGER CAB UP +110MM<TGG> EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X20 FLANGE	0-28681-020-0	04	1	9902-0003	●
188	BOLT; OUTRIGGER CAB UP +110MM<TGG> EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X20 FLANGE	0-28681-020-0	04	1	0004-	●
188	BOLT; OUTRIGGER (A) M10X20 FLANGE	0-28681-020-0	04	1	0004-		●
188	BOLT; OUTRIGGER SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> (A) M10X20 FLANGE	0-28681-020-0	08	1	9902-	●
189	NUT; OUTRIGGER CAB UP +110MM<TGG> EXC. SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91150-210-0	04	1	9902-0003	●
189	NUT; OUTRIGGER CAB UP +110MM<TGG> EXC. SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91150-210-0	04	1	0004-	●
189	NUT; OUTRIGGER M10 FLANGE	0-91150-210-0	04	1	0004-		●
189	NUT; OUTRIGGER SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> M10 FLANGE	0-91150-210-0	08	1	9902-	●
191	BOLT; BRKT FIX CAB UP +110MM<TGG> M10X25 FLANGE	0-28681-025-0	07	1	9902-0003	●
191	BOLT; BRKT FIX CAB UP +110MM<TGG> M10X25 FLANGE	0-28681-025-0	07	1	0004-	●
191	BOLT; BRKT FIX M10X25 FLANGE	0-28681-025-0	07	1	0004-		●
195	NUT; BRKT FIX CAB UP +110MM<TGG> M10 FLANGE	0-91150-210-0	04	1	9902-0003	●
195	NUT; BRKT FIX CAB UP +110MM<TGG> M10 FLANGE	0-91150-210-0	04	1	0004-	●
195	NUT; BRKT FIX M10 FLANGE	0-91150-210-0	04	1	0004-		●
211	RUBBER; CUSHION,S/ABS EXC. FULL FLOATING CAB<W16>	1-53366-128-0	02	1	9902-0003	●
211	RUBBER; CUSHION,S/ABS EXC. FULL FLOATING CAB<W16>	1-53366-128-0	02	1	0004-	●	●
212	SPRING; COIL EXC. FULL FLOATING CAB<W16>	1-09580-515-0	02	1	9902-0003	●
212	SPRING; COIL EXC. FULL FLOATING CAB<W16>	1-09580-515-0	02	1	0004-	●	●
213	SEAT; SPR,S/ABS EXC. FULL FLOATING CAB<W16>	1-53366-132-1	02	1	9902-0003	●
213	SEAT; SPR,S/ABS EXC. FULL FLOATING CAB<W16>	1-53366-132-1	02	1	0004-	●	●
220	GUIDE; SPR CAB UP +110MM<TGG> FULL FLOATING CAB<W16>	1-53458-648-1	02	1	9902-0003	●
220	GUIDE; SPR CAB UP +110MM<TGG> FULL FLOATING CAB<W16>	1-53458-648-1	02	1	0004-	●
220	GUIDE; SPR FULL FLOATING CAB<W16>	1-53458-648-1	02	1	0004-		●
237	ROD ASM; LATERAL (B)	1-53458-343-0	01	1	9902-0003	●
237	ROD ASM; LATERAL (B)	1-53458-343-0	01	1	0004-	●	●
237	ROD ASM; LATERAL CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (C)	1-33670-407-0	01	1	9902-0003	●
237	ROD ASM; LATERAL CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (C)	1-33670-407-0	01	1	0004-	●
237	ROD ASM; LATERAL FULL FLOATING CAB<W16> (C)	1-33670-407-0	01	1	0004-		●
237	ROD ASM; LATERAL CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (A)	1-33670-773-0	01	1	9902-0003	●
237	ROD ASM; LATERAL CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (A)	1-33670-773-0	01	1	0004-	●
237	ROD ASM; LATERAL FULL FLOATING CAB<W16> (A)	1-33670-773-0	01	1	0004-		●
240	WASHER; PL,BRKT (A) ID=10.5 OD=18	1-09985-173-0	01	1	9902-0003	●
240	WASHER; PL,BRKT (A) ID=10.5 OD=18	1-09985-173-0	01	1	0004-	●	●
240	WASHER; PL,BRKT (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	9902-0003	●
240	WASHER; PL,BRKT (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0004-	●	●
240	WASHER; PL,BRKT (C) ID=12.5	9-09160-512-0	02	1	9902-0003	●
240	WASHER; PL,BRKT (C) ID=12.5	9-09160-512-0	02	1	0004-	●	●
243	WASHER; LK,LATERAL ROD ID=12.2	9-09150-512-0	02	1	9902-0003	●
243	WASHER; LK,LATERAL ROD ID=12.2	9-09150-512-0	02	1	0004-	●	●
244	NUT; LATERAL ROD M12	9-99110-512-0	02	1	9902-0003	●
244	NUT; LATERAL ROD M12	9-99110-512-0	02	1	0004-	●	●
264	PANEL; BACK ANTI NOISE EQUIPMENT<SV9>	1-53193-618-0	01	1	9902-0003	●
264	PANEL; BACK ANTI NOISE EQUIPMENT<SV9>	1-53193-618-1	01	1	0004-	●	●
274	PIN (A)	1-09987-158-1	01	1	9902-0003	●
274	PIN (A)	1-09987-158-1	01	1	0004-	●	●
274	PIN (B) OD=12 L=72	9-08234-272-0	01	1	9902-0003	●
274	PIN (B) OD=12 L=72	9-08234-272-0	01	1	0004-	●	●
279	BOLT (B) M12X40 FLANGE	0-28091-240-0	04	1	9902-0003	●
279	BOLT (B) M12X40 FLANGE	0-28091-240-0	04	1	0004-	●	●
279	BOLT ANTI NOISE EQUIPMENT<SV9> (A) M8X25 FLANGE	0-28680-825-0	03	1	9902-0003	●
279	BOLT ANTI NOISE EQUIPMENT<SV9> (A) M8X25 FLANGE	0-28680-825-0	03	1	0004-	●	●
279	BOLT CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (C) M8X16 FLANGE	0-28080-816-0	04	1	9902-0003	●
279	BOLT CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (C) M8X16 FLANGE	0-28080-816-0	04	1	0004-	●
279	BOLT FULL FLOATING CAB<W16> (C) M8X16 FLANGE	0-28080-816-0	04	1	0004-		●
279	BOLT CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (E) M8X60 FLANGE	0-28080-860-0	02	1	9902-0003	●
279	BOLT CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (E) M8X60 FLANGE	0-28080-860-0	02	1	0004-	●
279	BOLT FULL FLOATING CAB<W16> (E) M8X60 FLANGE	0-28080-860-0	02	1	0004-		●
279	BOLT CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (D) M8X20 FLANGE	0-28680-820-0	09	1	9902-	●
279	BOLT CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (F) M8X25	1-09980-511-0	02	1	9902-	●
279	BOLT DELUXE CAB(W14) FULL FLOATING CAB<W16> (F) M8X25 W/LK&PL WASHER	1-09980-548-0	01	1	0004-		●
279	BOLT FULL FLOATING CAB<W16> (D) M8X20 FLANGE	0-28680-820-0	07	1	0004-		●
287	NUT ANTI NOISE EQUIPMENT<SV9> M8 FLANGE	0-91150-108-0	01	1	9902-0003	●
287	NUT ANTI NOISE EQUIPMENT<SV9> M8 FLANGE	0-91150-108-0	01	1	0004-	●	●
288	WASHER; PL ANTI NOISE EQUIPMENT<SV9> ID=8.4 OD=26	9-09164-808-0	04	1	9902-0003	●
288	WASHER; PL ANTI NOISE EQUIPMENT<SV9> ID=8.4 OD=26	9-09164-808-0	04	1	0004-	●	●
289	GROMMET ANTI NOISE EQUIPMENT<SV9> OD=40 T=4.8	9-09576-198-0	01	1	9902-0003	●
289	GROMMET ANTI NOISE EQUIPMENT<SV9> OD=40 T=4.8	9-09576-198-0	01	1	0004-	●	●
290	RUBBER; MTG ANTI NOISE EQUIPMENT<SV9>	1-53459-702-1	04	1	9902-0003	●
290	RUBBER; MTG ANTI NOISE EQUIPMENT<SV9>	1-53459-702-1	04	1	0004-	●	●
291	BOLT; RATCH M10X25 FLANGE	0-28681-025-0	04	1	9902-0003	●
291	BOLT; RATCH M10X25 FLANGE	0-28681-025-0	04	1	0004-	●	●
294	MEMBER; FLOATING CAB UP +110MM<TGG> FULL FLOATING CAB<W16>	1-53454-737-2	01	1	9902-9903	●
294	MEMBER; FLOATING CAB UP +110MM<TGG> FULL FLOATING CAB<W16>	1-53454-828-0	01	1	9904-0003	●
294	MEMBER; FLOATING CAB UP +110MM<TGG> FULL FLOATING CAB<W16>	1-53454-828-2	01	1	0004-	●
294	MEMBER; FLOATING FULL FLOATING CAB<W16>	1-53454-828-2	01	1	0004-		●
294	MEMBER; FLOATING EXC. FULL FLOATING CAB<W16>	1-53454-740-2	01	1	9902-9903	●
294	MEMBER; FLOATING EXC. FULL FLOATING CAB<W16>	1-53454-831-0	01	1	9904-0003	●
294	MEMBER; FLOATING EXC. FULL FLOATING CAB<W16>	1-53454-831-2	01	1	0004-	●	●
295	BOLT; STOPPER,UPR M8X20 FLANGE	0-28680-820-0	04	1	9902-0003	●
295	BOLT; STOPPER,UPR M8X20 FLANGE	0-28680-820-0	04	1	0004-	●	●
296	STOPPER; UPR	1-53458-382-0	01	1	9902-0003	●
296	STOPPER; UPR	1-53458-382-0	01	1	0004-	●	●
297	BRACKET; LIMIT SW (A)	1-53458-348-0	01	1	9902-9902	●
297	BRACKET; LIMIT SW (B)	1-53458-782-0	01	1	9902-0003	●
297	BRACKET; LIMIT SW (B)	1-53458-782-0	01	1	0004-	●	●
298	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	02	1	9902-9902	●
298	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	01	1	9902-0003	●
298	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	01	1	0004-	●	●
299	RUBBER; MTG (A)	1-53366-155-0	02	1	9902-0003	●
299	RUBBER; MTG (A)	1-53366-155-0	02	1	0004-	●	●
299	RUBBER; MTG (B)	1-53366-156-0	02	1	9902-0003	●
299	RUBBER; MTG (B)	1-53366-156-0	02	1	0004-	●	●
300	BOLT; MTG RUBBER FULL FLOATING CAB<W16> (B) M8X16 FLANGE	0-28080-816-0	04	1	9902-0003	●
300	BOLT; MTG RUBBER FULL FLOATING CAB<W16> (B) M8X16 FLANGE	0-28080-816-0	04	1	0004-	●	●
300	BOLT; MTG RUBBER FULL FLOATING CAB<W16> (A) M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	9902-0003	●
300	BOLT; MTG RUBBER FULL FLOATING CAB<W16> (A) M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	0004-	●	●
300	BOLT; MTG RUBBER EXC. FULL FLOATING CAB<W16> (A) M8X25 W/LK&PL WASHER	1-09030-027-0	08	1	9902-0003	●
300	BOLT; MTG RUBBER EXC. FULL FLOATING CAB<W16> (A) M8X25 W/LK&PL WASHER	1-09030-027-0	08	1	0004-	●	●
301	PIN; LATERAL ROD M12X57.5	1-53459-498-1	02	1	9902-0003	●
301	PIN; LATERAL ROD M12X57.5	1-53459-498-1	02	1	0004-	●	●
309	NUT M10 FLANGE	0-91150-210-0	04	1	9902-0003	●
309	NUT M10 FLANGE	0-91150-210-0	04	1	0004-	●	●
321	SHIM; FRT CAB MTG	1-53458-629-1	04	1	9902-0003	●
321	SHIM; FRT CAB MTG	1-53458-629-1	04	1	0004-	●	●
325	BOLT; GUIDE NUT CAB UP +110MM<TGG> FULL FLOATING CAB<W16> M8X20 FLANGE	0-28680-820-0	02	1	9902-0003	●
325	BOLT; GUIDE NUT CAB UP +110MM<TGG> FULL FLOATING CAB<W16> M8X20 FLANGE	0-28680-820-0	02	1	0004-	●
325	BOLT; GUIDE NUT FULL FLOATING CAB<W16> M8X20 FLANGE	0-28680-820-0	02	1	0004-		●
333	SPRING CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (B)	1-52110-142-1	02	1	9902-0003	●
333	SPRING CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (B)	1-52110-142-1	02	1	0004-	●
333	SPRING FULL FLOATING CAB<W16> (B)	1-52110-142-1	02	1	0004-		●
333	SPRING CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (A)	1-52110-143-1	02	1	9902-0003	●
333	SPRING CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (A)	1-52110-143-1	02	1	0004-	●
333	SPRING FULL FLOATING CAB<W16> (A)	1-52110-143-1	02	1	0004-		●
449	BRACKET; OUTRIGGER CAB UP +110MM<TGG> EXC. SILENCER SINGLE VERTICAL<N28>	1-53456-279-0	01	1	9902-0003	●
449	BRACKET; OUTRIGGER CAB UP +110MM<TGG> EXC. SILENCER SINGLE VERTICAL<N28>	1-53456-279-0	01	1	0004-	●
449	BRACKET; OUTRIGGER	1-53456-279-0	01	1	0004-		●
449	BRACKET; OUTRIGGER SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG>	1-53456-279-0	02	1	9902-	●
515	FINISHER; BACK PANEL ANTI NOISE EQUIPMENT<SV9> L=150	1-76710-004-0	02	1	9902-0003	●
515	FINISHER; BACK PANEL ANTI NOISE EQUIPMENT<SV9> L=150	1-76710-004-0	02	1	0004-	●	●

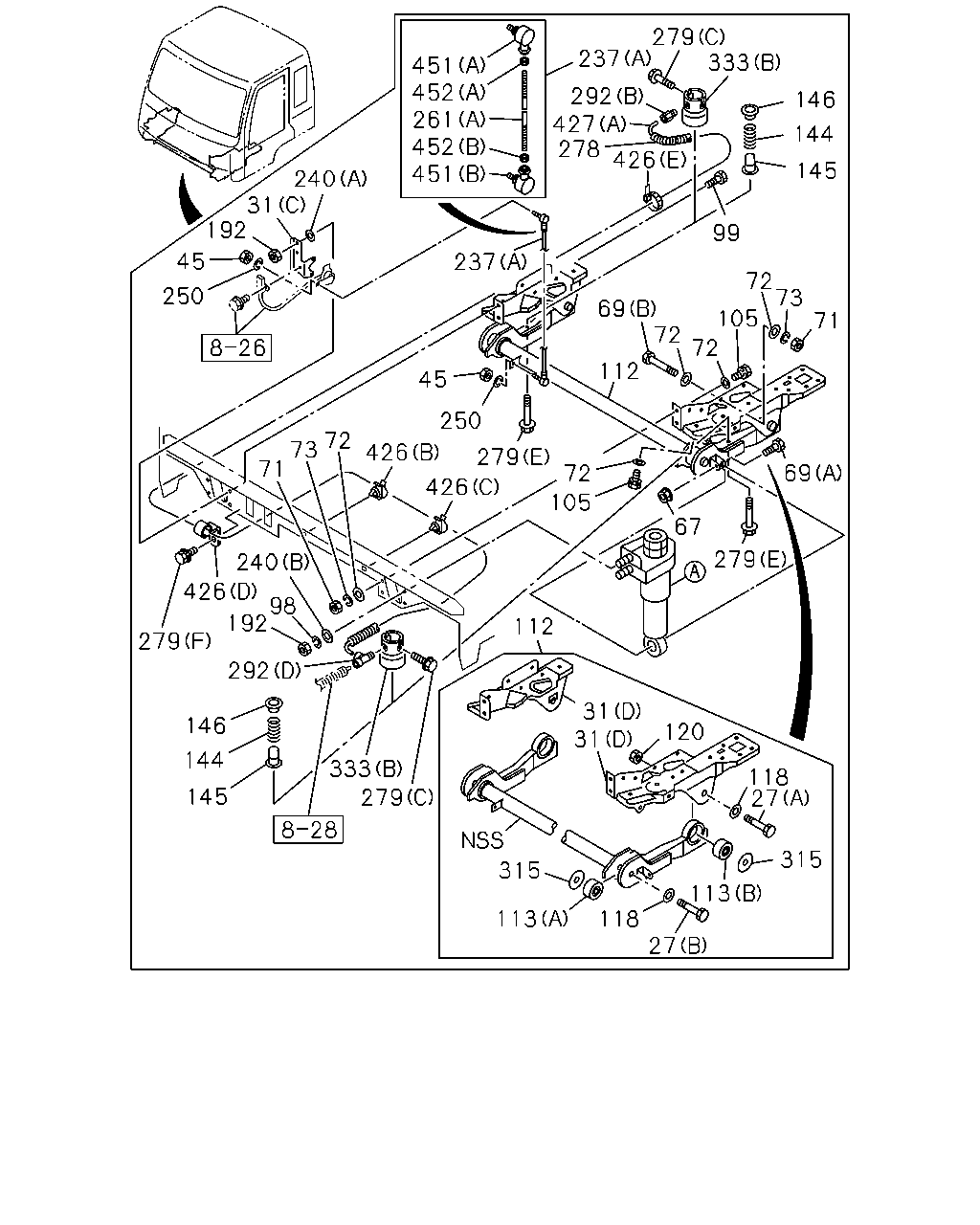

279 333 237 451 452 261 45 451 292 427 278 146 144 426 145 240 31 192 99 45 237 72 73 250 69 72 105 71 72 112 45 250 72 73 71 426 279 69 72 426 105 67 279 240 426 98 192 112 279 292 31 31 146 120 144 333 279 118 27 145 315 315 113 113 118 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
27	BOLT; BUSHING EXC. FULL FLOATING CAB<W16> (B) M18X120	1-09000-442-1	02	1	9902-0003	●
27	BOLT; BUSHING CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (B) M18X120	1-09000-442-1	02	1	9902-0003	●
27	BOLT; BUSHING EXC. FULL FLOATING CAB<W16> (B) M18X120	1-09000-442-1	02	1	0004-	●
27	BOLT; BUSHING CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (B) M18X120	1-09000-442-1	02	1	0004-	●
27	BOLT; BUSHING (B) M18X120	1-09000-442-1	02	1	0004-		●
27	BOLT; BUSHING EXC. FULL FLOATING CAB<W16> (A) M18X100	9-91066-800-0	02	1	9902-0003	●
27	BOLT; BUSHING CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (A) M18X100	9-91066-800-0	02	1	9902-0003	●
27	BOLT; BUSHING EXC. FULL FLOATING CAB<W16> (A) M18X100	9-91066-800-0	02	1	0004-	●
27	BOLT; BUSHING CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (A) M18X100	9-91066-800-0	02	1	0004-	●
27	BOLT; BUSHING (A) M18X100	9-91066-800-0	02	1	0004-		●
31	BRACKET; CAB CAB UP +110MM<TGG> (A)	1-44226-156-0	01	1	9902-	●
31	BRACKET; CAB CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (B)	1-53458-673-1	01	1	9902-	●
31	BRACKET; CAB CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (C)	1-81549-016-0	01	1	9902-0003	●
31	BRACKET; CAB CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (C)	1-81549-016-0	01	1	0004-	●
31	BRACKET; CAB FULL FLOATING CAB<W16> (C)	1-81549-016-0	01	1	0004-		●
31	BRACKET; CAB CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (D)	1-53453-225-2	01	1	9902-0003	●
31	BRACKET; CAB CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (D)	1-53453-225-3	01	1	0004-	●
31	BRACKET; CAB FULL FLOATING CAB<W16> (D)	1-53453-225-3	01	1	0004-		●
31	BRACKET; CAB CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (D)	1-53453-281-1	01	1	9902-	●
31	BRACKET; CAB EXC. CAB UP +110MM<TGG> (A)	1-44226-150-0	01	1	9902-	●
31	BRACKET; CAB EXC. FULL FLOATING CAB<W16> (D)	1-53453-274-0	01	1	9902-0003	●
31	BRACKET; CAB EXC. FULL FLOATING CAB<W16> (D)	1-53453-274-1	01	1	0004-	●	●
31	BRACKET; CAB EXC. FULL FLOATING CAB<W16> (D)	1-53453-280-1	01	1	9902-	●
31	BRACKET; CAB (A)	1-44226-149-0	01	1	0004-		●
31	BRACKET; CAB FULL FLOATING CAB<W16> (B)	1-53458-374-1	01	1	0004-		●
31	BRACKET; CAB FULL FLOATING CAB<W16> (D)	1-53453-224-4	01	1	0004-		●
31	BRACKET; CAB EXC. FULL FLOATING CAB<W16> (D)	1-53453-273-1	01	1	0004-		●
45	NUT CAB UP +110MM<TGG> FULL FLOATING CAB<W16> M5	9-99110-405-0	04	1	9902-	●
45	NUT FULL FLOATING CAB<W16> M5	9-99110-405-0	02	1	0004-		●
45	NUT FULL FLOATING CAB<W16> M5	9-99110-405-0	02	1	0004-		●
67	NUT; S/ABS,CAB FRT SUSPENSION M12 FLANGE	0-91150-212-0	02	1	9902-0003	●
67	NUT; S/ABS,CAB FRT SUSPENSION M12 FLANGE	0-91150-212-0	02	1	0004-	●	●
69	BOLT; S/ABS,CAB FRT SUSPENSION (A) M12X60	0-20801-260-0	02	1	9902-0003	●
69	BOLT; S/ABS,CAB FRT SUSPENSION (A) M12X60	0-20801-260-0	02	1	0004-	●	●
69	BOLT; S/ABS,CAB FRT SUSPENSION (B) M10X100	1-09980-547-0	08	1	9902-0003	●
69	BOLT; S/ABS,CAB FRT SUSPENSION (B) M10X100	1-09980-547-0	08	1	0004-	●	●
71	NUT; BRKT TO CAB FRAME M10	1-09984-142-0	06	1	9902-0003	●
71	NUT; BRKT TO CAB FRAME M10	1-09984-142-0	06	1	0004-	●	●
72	WASHER; PL,BRKT TO FRAME ID=10.5 OD=26 T=2.6	1-09985-184-0	28	1	9902-	●
72	WASHER; PL,BRKT TO FRAME ID=10.5 OD=26 T=2.6	1-09985-184-0	24	1	0004-		●
73	WASHER; LK,BRKT TO CAB FRAME ID=10	1-09985-185-0	12	1	9902-0003	●
73	WASHER; LK,BRKT TO CAB FRAME ID=10	1-09985-185-0	12	1	0004-	●	●
98	WASHER; LK,BRKT ID=10	1-09985-185-0	04	1	9902-0003	●
98	WASHER; LK,BRKT ID=10	1-09985-185-0	04	1	0004-	●	●
99	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	02	1	9902-	●
105	BOLT; BRKT TO CAB FRAME M10X30	1-09980-546-0	15	1	9902-	●
105	BOLT; BRKT TO CAB FRAME M10X30	1-09980-546-0	08	1	0004-		●
112	ARM ASM; LINK,CAB FRT SUSP CAB UP +110MM<TGG> FULL FLOATING CAB<W16>	1-53450-569-6	01	1	9902-	●
112	ARM ASM; LINK,CAB FRT SUSP EXC. FULL FLOATING CAB<W16>	1-53450-567-6	01	1	9902-	●
112	ARM ASM; LINK,CAB FRT SUSP FULL FLOATING CAB<W16>	1-53450-568-4	01	1	0004-		●
112	ARM ASM; LINK,CAB FRT SUSP EXC. FULL FLOATING CAB<W16>	1-53450-565-6	01	1	0004-		●
113	BUSHING; RUBBER,FLOATING LINK ARM,W/PI EXC. FULL FLOATING CAB<W16> (A)	1-53458-333-3	02	1	9902-0003	●
113	BUSHING; RUBBER,FLOATING LINK ARM,W/PI CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (A)	1-53458-333-3	02	1	9902-0003	●
113	BUSHING; RUBBER,FLOATING LINK ARM,W/PI EXC. FULL FLOATING CAB<W16> (A)	1-53458-333-3	02	1	0004-	●
113	BUSHING; RUBBER,FLOATING LINK ARM,W/PI CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (A)	1-53458-333-3	02	1	0004-	●
113	BUSHING; RUBBER,FLOATING LINK ARM,W/PI (A)	1-53458-333-3	02	1	0004-		●
113	BUSHING; RUBBER,FLOATING LINK ARM,W/PI EXC. FULL FLOATING CAB<W16> (B)	1-53458-714-0	02	1	9902-0003	●
113	BUSHING; RUBBER,FLOATING LINK ARM,W/PI CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (B)	1-53458-714-0	02	1	9902-0003	●
113	BUSHING; RUBBER,FLOATING LINK ARM,W/PI EXC. FULL FLOATING CAB<W16> (B)	1-53458-714-0	02	1	0004-	●
113	BUSHING; RUBBER,FLOATING LINK ARM,W/PI CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (B)	1-53458-714-0	02	1	0004-	●
113	BUSHING; RUBBER,FLOATING LINK ARM,W/PI (B)	1-53458-714-0	02	1	0004-		●
118	WASHER; PL,STOPPER RUBBER,LINK ARM EXC. FULL FLOATING CAB<W16> ID=19 OD=30	1-09503-279-0	04	1	9902-0003	●
118	WASHER; PL,STOPPER RUBBER,LINK ARM CAB UP +110MM<TGG> FULL FLOATING CAB<W16> ID=19 OD=30	1-09503-279-0	04	1	9902-0003	●
118	WASHER; PL,STOPPER RUBBER,LINK ARM EXC. FULL FLOATING CAB<W16> ID=19 OD=30	1-09503-279-0	04	1	0004-	●
118	WASHER; PL,STOPPER RUBBER,LINK ARM CAB UP +110MM<TGG> FULL FLOATING CAB<W16> ID=19 OD=30	1-09503-279-0	04	1	0004-	●
118	WASHER; PL,STOPPER RUBBER,LINK ARM ID=19 OD=30	1-09503-279-0	04	1	0004-		●
120	NUT; STOPPER RUBBER,LINK ARM EXC. FULL FLOATING CAB<W16> M18	9-99110-518-0	02	1	9902-0003	●
120	NUT; STOPPER RUBBER,LINK ARM CAB UP +110MM<TGG> FULL FLOATING CAB<W16> M18	9-99110-518-0	02	1	9902-0003	●
120	NUT; STOPPER RUBBER,LINK ARM EXC. FULL FLOATING CAB<W16> M18	9-99110-518-0	02	1	0004-	●
120	NUT; STOPPER RUBBER,LINK ARM CAB UP +110MM<TGG> FULL FLOATING CAB<W16> M18	9-99110-518-0	02	1	0004-	●
120	NUT; STOPPER RUBBER,LINK ARM M18	9-99110-518-0	02	1	0004-		●
144	SPRING; COIL,CAB FRT SUSPENSION EXC. FULL FLOATING CAB<W16>	1-09580-537-0	02	1	9902-0003	●
144	SPRING; COIL,CAB FRT SUSPENSION EXC. FULL FLOATING CAB<W16>	1-09580-537-0	02	1	0004-	●	●
145	RUBBER; CUSHION,CAB FRT SUSPENSION EXC. FULL FLOATING CAB<W16>	1-53366-139-0	02	1	9902-0003	●
145	RUBBER; CUSHION,CAB FRT SUSPENSION EXC. FULL FLOATING CAB<W16>	1-53366-139-0	02	1	0004-	●	●
146	SEAT; SPRING,CAB FRT SUSPENSION EXC. FULL FLOATING CAB<W16>	1-53366-138-0	02	1	9902-0003	●
146	SEAT; SPRING,CAB FRT SUSPENSION EXC. FULL FLOATING CAB<W16>	1-53366-138-0	02	1	0004-	●	●
192	NUT; BRKT FIX M10	1-09984-142-0	04	1	9902-	●
192	NUT; BRKT FIX M10	1-09984-142-0	06	1	0004-		●
237	ROD ASM; LATERAL (B)	1-53458-343-0	01	1	9902-0003	●
237	ROD ASM; LATERAL (B)	1-53458-343-0	01	1	0004-	●	●
237	ROD ASM; LATERAL CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (C)	1-33670-407-0	01	1	9902-0003	●
237	ROD ASM; LATERAL CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (C)	1-33670-407-0	01	1	0004-	●
237	ROD ASM; LATERAL FULL FLOATING CAB<W16> (C)	1-33670-407-0	01	1	0004-		●
237	ROD ASM; LATERAL CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (A)	1-33670-773-0	01	1	9902-0003	●
237	ROD ASM; LATERAL CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (A)	1-33670-773-0	01	1	0004-	●
237	ROD ASM; LATERAL FULL FLOATING CAB<W16> (A)	1-33670-773-0	01	1	0004-		●
240	WASHER; PL,BRKT (A) ID=10.5 OD=18	1-09985-173-0	01	1	9902-0003	●
240	WASHER; PL,BRKT (A) ID=10.5 OD=18	1-09985-173-0	01	1	0004-	●	●
240	WASHER; PL,BRKT (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	9902-0003	●
240	WASHER; PL,BRKT (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0004-	●	●
240	WASHER; PL,BRKT (C) ID=12.5	9-09160-512-0	02	1	9902-0003	●
240	WASHER; PL,BRKT (C) ID=12.5	9-09160-512-0	02	1	0004-	●	●
250	WASHER; LK CAB UP +110MM<TGG> FULL FLOATING CAB<W16> ID=5.1	9-09150-505-0	04	1	9902-	●
250	WASHER; LK FULL FLOATING CAB<W16> ID=5.1	9-09150-505-0	02	1	0004-		●
250	WASHER; LK FULL FLOATING CAB<W16> ID=5.1	9-09150-505-0	02	1	0004-		●
261	ROD; LINK CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (A)	9-08410-507-0	01	1	9902-0003	●
261	ROD; LINK CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (A)	9-08410-507-0	01	1	0004-	●
261	ROD; LINK FULL FLOATING CAB<W16> (A)	9-08410-507-0	01	1	0004-		●
261	ROD; LINK CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (B)	9-08410-514-0	01	1	9902-0003	●
261	ROD; LINK CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (B)	9-08410-514-0	01	1	0004-	●
261	ROD; LINK FULL FLOATING CAB<W16> (B)	9-08410-514-0	01	1	0004-		●
278	COVER CAB UP +110MM<TGG> FULL FLOATING CAB<W16> L=1200 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	9902-	●
278	COVER DELUXE CAB(W14) FULL FLOATING CAB<W16> SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0004-		●
279	BOLT (B) M12X40 FLANGE	0-28091-240-0	04	1	9902-0003	●
279	BOLT (B) M12X40 FLANGE	0-28091-240-0	04	1	0004-	●	●
279	BOLT ANTI NOISE EQUIPMENT<SV9> (A) M8X25 FLANGE	0-28680-825-0	03	1	9902-0003	●
279	BOLT ANTI NOISE EQUIPMENT<SV9> (A) M8X25 FLANGE	0-28680-825-0	03	1	0004-	●	●
279	BOLT CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (C) M8X16 FLANGE	0-28080-816-0	04	1	9902-0003	●
279	BOLT CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (C) M8X16 FLANGE	0-28080-816-0	04	1	0004-	●
279	BOLT FULL FLOATING CAB<W16> (C) M8X16 FLANGE	0-28080-816-0	04	1	0004-		●
279	BOLT CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (E) M8X60 FLANGE	0-28080-860-0	02	1	9902-0003	●
279	BOLT CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (E) M8X60 FLANGE	0-28080-860-0	02	1	0004-	●
279	BOLT FULL FLOATING CAB<W16> (E) M8X60 FLANGE	0-28080-860-0	02	1	0004-		●
279	BOLT CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (D) M8X20 FLANGE	0-28680-820-0	09	1	9902-	●
279	BOLT CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (F) M8X25	1-09980-511-0	02	1	9902-	●
279	BOLT DELUXE CAB(W14) FULL FLOATING CAB<W16> (F) M8X25 W/LK&PL WASHER	1-09980-548-0	01	1	0004-		●
279	BOLT FULL FLOATING CAB<W16> (D) M8X20 FLANGE	0-28680-820-0	07	1	0004-		●
292	CONNECTOR; CAB SUSPENSION (E) M14	1-53458-047-0	01	1	9902-9902	●
292	CONNECTOR; CAB SUSPENSION (E) M12	1-53458-941-0	01	1	9903-0003	●
292	CONNECTOR; CAB SUSPENSION (E) M12	1-53458-941-0	01	1	0004-	●	●
292	CONNECTOR; CAB SUSPENSION CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	9902-0003	●
292	CONNECTOR; CAB SUSPENSION CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0004-	●
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB<W16> (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0004-		●
292	CONNECTOR; CAB SUSPENSION CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (B) DIN6 R1/8 STRAIGHT	1-09660-759-0	01	1	9902-0003	●
292	CONNECTOR; CAB SUSPENSION CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (B) DIN6 R1/8 STRAIGHT	1-09660-759-1	01	1	0004-	●
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB<W16> (B) DIN6 R1/8 STRAIGHT	1-09660-759-1	01	1	0004-		●
292	CONNECTOR; CAB SUSPENSION CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (C) TRI LC6X4-R1/8	1-09660-760-0	01	1	9902-0003	●
292	CONNECTOR; CAB SUSPENSION CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (C) TRI LC6X4-R1/8	1-09660-760-1	01	1	0004-	●
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB<W16> (C) TRI LC6X4-R1/8	1-09660-760-1	01	1	0004-		●
292	CONNECTOR; CAB SUSPENSION CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (D) DIN6X2 & R1/8 3WAY	1-09660-761-0	01	1	9902-0003	●
292	CONNECTOR; CAB SUSPENSION CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (D) DIN6X2 & R1/8 3WAY	1-09660-761-1	01	1	0004-	●
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB<W16> (D) DIN6X2 & R1/8 3WAY	1-09660-761-1	01	1	0004-		●
292	CONNECTOR; CAB SUSPENSION CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (F) PT1/8 ELBOW	8-94338-418-1	01	1	9905-	●
315	WASHER; CAB MTG EXC. FULL FLOATING CAB<W16> ID=34.5	1-53458-281-1	04	1	9902-0003	●
315	WASHER; CAB MTG CAB UP +110MM<TGG> FULL FLOATING CAB<W16> ID=34.5	1-53458-281-1	04	1	9902-0003	●
315	WASHER; CAB MTG EXC. FULL FLOATING CAB<W16> ID=34.5	1-53458-281-1	04	1	0004-	●
315	WASHER; CAB MTG CAB UP +110MM<TGG> FULL FLOATING CAB<W16> ID=34.5	1-53458-281-1	04	1	0004-	●
315	WASHER; CAB MTG ID=34.5	1-53458-281-1	04	1	0004-		●
333	SPRING CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (B)	1-52110-142-1	02	1	9902-0003	●
333	SPRING CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (B)	1-52110-142-1	02	1	0004-	●
333	SPRING FULL FLOATING CAB<W16> (B)	1-52110-142-1	02	1	0004-		●
333	SPRING CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (A)	1-52110-143-1	02	1	9902-0003	●
333	SPRING CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (A)	1-52110-143-1	02	1	0004-	●
333	SPRING FULL FLOATING CAB<W16> (A)	1-52110-143-1	02	1	0004-		●
426	CLIP CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9902-	●
426	CLIP CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (C) ID=9 & 7 L=15 & 15	1-09700-653-0	02	1	9902-9904	●
426	CLIP CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (C) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	9905-	●
426	CLIP CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (D) ID=11 H=20 L=20	5-09700-351-0	02	1	9902-	●
426	CLIP CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (B) ID=9.5	5-09709-020-0	01	1	9902-0003	●
426	CLIP CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (B) ID=9.5	5-09709-020-0	01	1	0004-	●
426	CLIP FULL FLOATING CAB<W16> (B) ID=9.5	5-09709-020-0	01	1	0004-		●
426	CLIP FULL FLOATING CAB<W16> (E) L=140	5-09707-031-1	01	1	9902-9904	●
426	CLIP 6WA1 TC-C(55L),6WG1 TC-R(75L) FULL FLOATING CAB<W16> (E) L=140	5-09707-031-1	01	1	9905-	●
426	CLIP DELUXE CAB(W14) FULL FLOATING CAB<W16> (C) ID=5.8 L=8	8-94155-681-0	02	1	0004-		●
426	CLIP FULL FLOATING CAB<W16> (A) ID=6 H=20 L=20	1-09700-603-0	02	1	0004-		●
426	CLIP FULL FLOATING CAB<W16> (A) ID=7 L=32	9-09524-665-0	01	1	0004-		●
426	CLIP FULL FLOATING CAB<W16> (D) ID=11 L=16	9-09525-025-0	01	1	0004-		●
427	TUBE CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (B) L=400 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	9902-9904	●
427	TUBE CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (B) L=440 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	9905-	●
427	TUBE CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (A) L=1300 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	9902-0003	●
427	TUBE CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (A) L=1300 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0004-	●
427	TUBE FULL FLOATING CAB<W16> (A) L=1300 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0004-		●
427	TUBE FULL FLOATING CAB<W16> (B) L=400 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0004-		●
451	JOINT; BALL CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (A)	1-09760-103-1	02	1	9902-	●
451	JOINT; BALL CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (B)	1-09760-104-1	02	1	9902-	●
451	JOINT; BALL FULL FLOATING CAB<W16> (A)	1-09760-103-1	01	1	0004-		●
451	JOINT; BALL FULL FLOATING CAB<W16> (A)	1-09760-103-1	01	1	0004-		●
451	JOINT; BALL FULL FLOATING CAB<W16> (B)	1-09760-104-1	01	1	0004-		●
451	JOINT; BALL FULL FLOATING CAB<W16> (B)	1-09760-104-1	01	1	0004-		●
452	NUT; BALL JOINT CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (B) M5 LH THREAD	9-09840-277-0	02	1	9902-	●
452	NUT; BALL JOINT CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (A) M5	9-99110-405-0	02	1	9902-	●
452	NUT; BALL JOINT FULL FLOATING CAB<W16> (B) M5 LH THREAD	9-09840-277-0	01	1	0004-		●
452	NUT; BALL JOINT FULL FLOATING CAB<W16> (B) M5 LH THREAD	9-09840-277-0	01	1	0004-		●
452	NUT; BALL JOINT FULL FLOATING CAB<W16> (A) M5	9-99110-405-0	01	1	0004-		●
452	NUT; BALL JOINT FULL FLOATING CAB<W16> (A) M5	9-99110-405-0	01	1	0004-		●

202 202 203 69 72 204 205 70 65 204 203

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
65	ABSORBER; SHOCK,CAB FRT SUSPENSION	1-51630-603-0	02	1	9902-0003	●
65	ABSORBER; SHOCK,CAB FRT SUSPENSION	1-51630-603-0	02	1	0004-	●	●
69	BOLT; S/ABS,CAB FRT SUSPENSION (A) M12X60	0-20801-260-0	02	1	9902-0003	●
69	BOLT; S/ABS,CAB FRT SUSPENSION (A) M12X60	0-20801-260-0	02	1	0004-	●	●
69	BOLT; S/ABS,CAB FRT SUSPENSION (B) M10X100	1-09980-547-0	08	1	9902-0003	●
69	BOLT; S/ABS,CAB FRT SUSPENSION (B) M10X100	1-09980-547-0	08	1	0004-	●	●
70	BRACKET; S/ABS,CAB FRT SUSP	1-53458-493-1	01	1	9902-0003	●
70	BRACKET; S/ABS,CAB FRT SUSP	1-53458-493-1	01	1	0004-	●	●
70	BRACKET; S/ABS,CAB FRT SUSP	1-53458-492-1	01	1	9902-0003	●
70	BRACKET; S/ABS,CAB FRT SUSP	1-53458-492-1	01	1	0004-	●	●
72	WASHER; PL,BRKT TO FRAME ID=10.5 OD=26 T=2.6	1-09985-184-0	28	1	9902-	●
72	WASHER; PL,BRKT TO FRAME ID=10.5 OD=26 T=2.6	1-09985-184-0	24	1	0004-		●
202	NUT; S/ABS (C) M10 FLANGE	0-91150-110-0	02	1	9902-0003	●
202	NUT; S/ABS (C) M10 FLANGE	0-91150-110-0	02	1	0004-	●	●
202	NUT; S/ABS (A) M10	9-09110-410-0	04	1	9902-0003	●
202	NUT; S/ABS (A) M10	9-09110-410-0	04	1	0004-	●	●
202	NUT; S/ABS (B) M10	9-09111-410-0	06	1	9902-0003	●
202	NUT; S/ABS (B) M10	9-09111-410-0	06	1	0004-	●	●
203	WASHER; RUBBER,SHOCK (B)	1-51631-005-0	10	1	9902-0003	●
203	WASHER; RUBBER,SHOCK (B)	1-51631-005-0	10	1	0004-	●	●
203	WASHER; RUBBER,SHOCK (A)	1-51631-104-0	02	1	9902-0003	●
203	WASHER; RUBBER,SHOCK (A)	1-51631-104-0	02	1	0004-	●	●
204	RUBBER; CUSHION,SHOCK	1-51631-004-0	12	1	9902-0003	●
204	RUBBER; CUSHION,SHOCK	1-51631-004-0	12	1	0004-	●	●
205	WASHER; RUBBER,SHOCK	1-51631-079-0	08	1	9902-0003	●
205	WASHER; RUBBER,SHOCK	1-51631-079-0	08	1	0004-	●	●

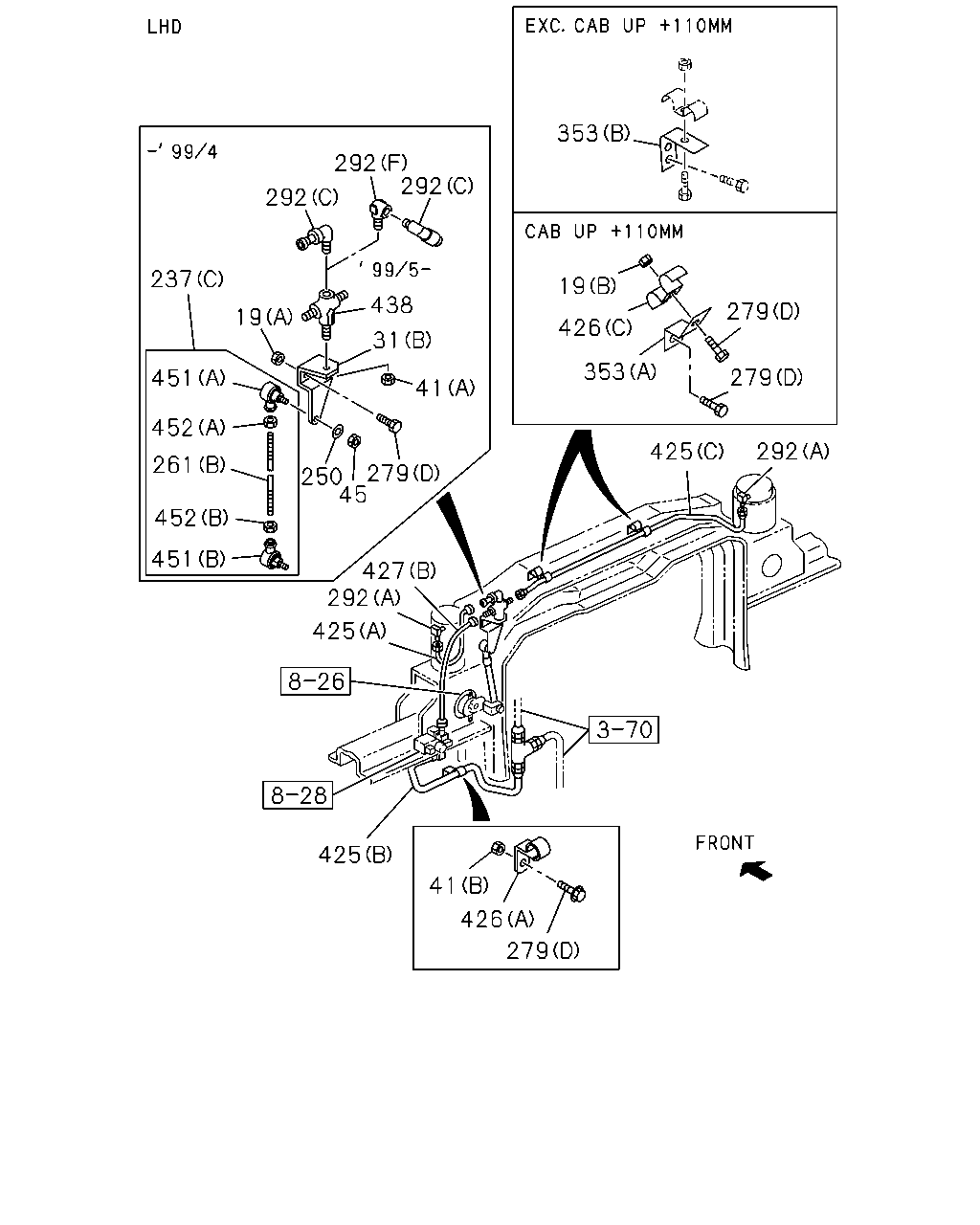

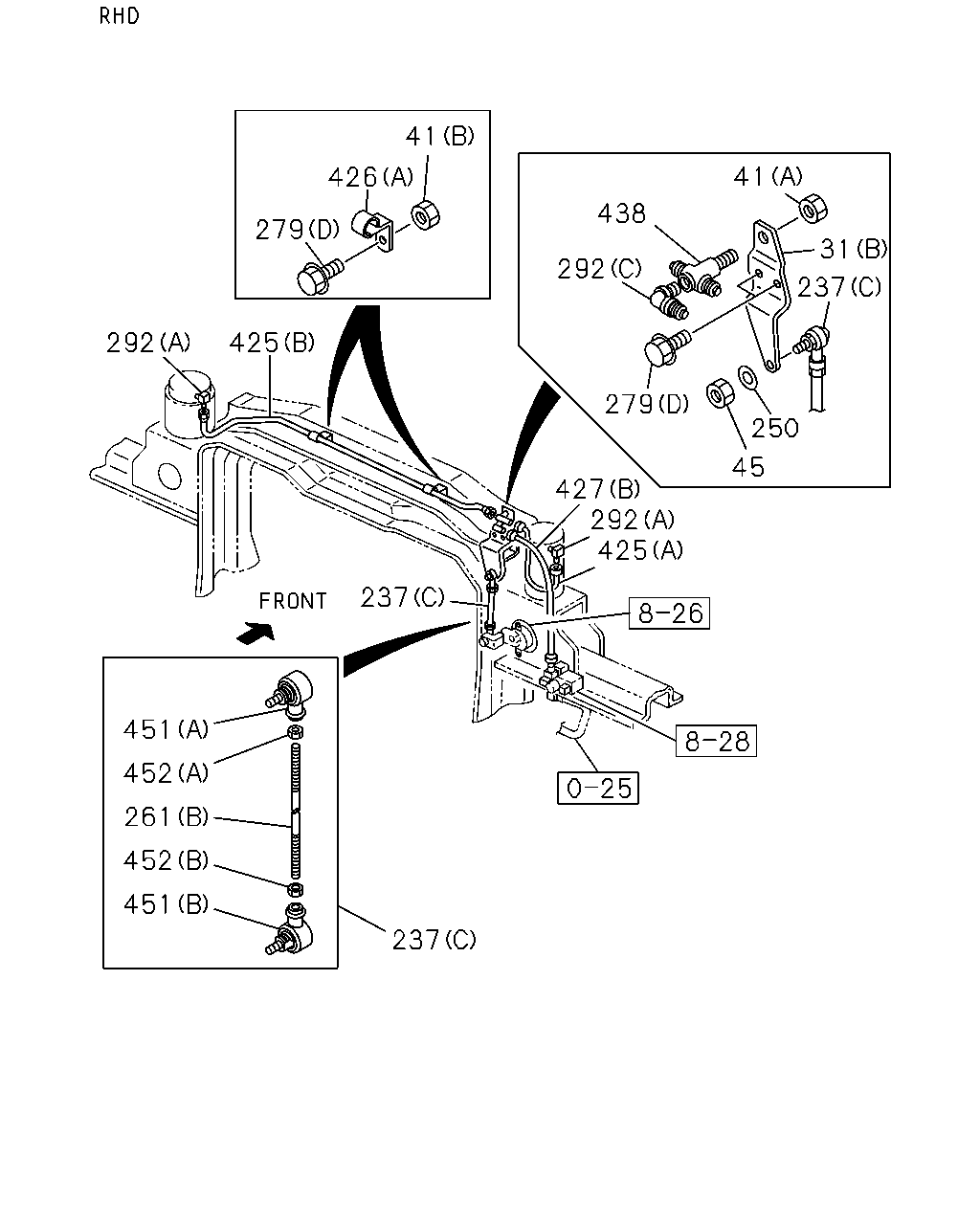

41 41 426 438 279 31 292 237 292 425 279 250 45 427 292 425 237 451 452 261 452 451 237

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	BRACKET; CAB CAB UP +110MM<TGG> (A)	1-44226-156-0	01	1	9902-	●
31	BRACKET; CAB CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (B)	1-53458-673-1	01	1	9902-	●
31	BRACKET; CAB CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (C)	1-81549-016-0	01	1	9902-0003	●
31	BRACKET; CAB CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (C)	1-81549-016-0	01	1	0004-	●
31	BRACKET; CAB FULL FLOATING CAB<W16> (C)	1-81549-016-0	01	1	0004-		●
31	BRACKET; CAB CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (D)	1-53453-225-2	01	1	9902-0003	●
31	BRACKET; CAB CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (D)	1-53453-225-3	01	1	0004-	●
31	BRACKET; CAB FULL FLOATING CAB<W16> (D)	1-53453-225-3	01	1	0004-		●
31	BRACKET; CAB CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (D)	1-53453-281-1	01	1	9902-	●
31	BRACKET; CAB EXC. CAB UP +110MM<TGG> (A)	1-44226-150-0	01	1	9902-	●
31	BRACKET; CAB EXC. FULL FLOATING CAB<W16> (D)	1-53453-274-0	01	1	9902-0003	●
31	BRACKET; CAB EXC. FULL FLOATING CAB<W16> (D)	1-53453-274-1	01	1	0004-	●	●
31	BRACKET; CAB EXC. FULL FLOATING CAB<W16> (D)	1-53453-280-1	01	1	9902-	●
31	BRACKET; CAB (A)	1-44226-149-0	01	1	0004-		●
31	BRACKET; CAB FULL FLOATING CAB<W16> (B)	1-53458-374-1	01	1	0004-		●
31	BRACKET; CAB FULL FLOATING CAB<W16> (D)	1-53453-224-4	01	1	0004-		●
31	BRACKET; CAB EXC. FULL FLOATING CAB<W16> (D)	1-53453-273-1	01	1	0004-		●
41	NUT CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (B) M8 FLANGE	0-91150-108-0	01	1	9902-0003	●
41	NUT CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (B) M8 FLANGE	0-91150-108-0	01	1	0004-	●
41	NUT FULL FLOATING CAB<W16> (B) M8 FLANGE	0-91150-108-0	01	1	0004-		●
41	NUT CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (A) M12 FLANGE	0-91150-212-0	01	1	9902-0003	●
41	NUT CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (A) M12 FLANGE	0-91150-212-0	01	1	0004-	●
41	NUT FULL FLOATING CAB<W16> (A) M12 FLANGE	0-91150-212-0	01	1	0004-		●
45	NUT CAB UP +110MM<TGG> FULL FLOATING CAB<W16> M5	9-99110-405-0	04	1	9902-	●
45	NUT FULL FLOATING CAB<W16> M5	9-99110-405-0	02	1	0004-		●
45	NUT FULL FLOATING CAB<W16> M5	9-99110-405-0	02	1	0004-		●
237	ROD ASM; LATERAL (B)	1-53458-343-0	01	1	9902-0003	●
237	ROD ASM; LATERAL (B)	1-53458-343-0	01	1	0004-	●	●
237	ROD ASM; LATERAL CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (C)	1-33670-407-0	01	1	9902-0003	●
237	ROD ASM; LATERAL CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (C)	1-33670-407-0	01	1	0004-	●
237	ROD ASM; LATERAL FULL FLOATING CAB<W16> (C)	1-33670-407-0	01	1	0004-		●
237	ROD ASM; LATERAL CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (A)	1-33670-773-0	01	1	9902-0003	●
237	ROD ASM; LATERAL CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (A)	1-33670-773-0	01	1	0004-	●
237	ROD ASM; LATERAL FULL FLOATING CAB<W16> (A)	1-33670-773-0	01	1	0004-		●
250	WASHER; LK CAB UP +110MM<TGG> FULL FLOATING CAB<W16> ID=5.1	9-09150-505-0	04	1	9902-	●
250	WASHER; LK FULL FLOATING CAB<W16> ID=5.1	9-09150-505-0	02	1	0004-		●
250	WASHER; LK FULL FLOATING CAB<W16> ID=5.1	9-09150-505-0	02	1	0004-		●
261	ROD; LINK CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (A)	9-08410-507-0	01	1	9902-0003	●
261	ROD; LINK CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (A)	9-08410-507-0	01	1	0004-	●
261	ROD; LINK FULL FLOATING CAB<W16> (A)	9-08410-507-0	01	1	0004-		●
261	ROD; LINK CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (B)	9-08410-514-0	01	1	9902-0003	●
261	ROD; LINK CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (B)	9-08410-514-0	01	1	0004-	●
261	ROD; LINK FULL FLOATING CAB<W16> (B)	9-08410-514-0	01	1	0004-		●
279	BOLT (B) M12X40 FLANGE	0-28091-240-0	04	1	9902-0003	●
279	BOLT (B) M12X40 FLANGE	0-28091-240-0	04	1	0004-	●	●
279	BOLT ANTI NOISE EQUIPMENT<SV9> (A) M8X25 FLANGE	0-28680-825-0	03	1	9902-0003	●
279	BOLT ANTI NOISE EQUIPMENT<SV9> (A) M8X25 FLANGE	0-28680-825-0	03	1	0004-	●	●
279	BOLT CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (C) M8X16 FLANGE	0-28080-816-0	04	1	9902-0003	●
279	BOLT CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (C) M8X16 FLANGE	0-28080-816-0	04	1	0004-	●
279	BOLT FULL FLOATING CAB<W16> (C) M8X16 FLANGE	0-28080-816-0	04	1	0004-		●
279	BOLT CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (E) M8X60 FLANGE	0-28080-860-0	02	1	9902-0003	●
279	BOLT CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (E) M8X60 FLANGE	0-28080-860-0	02	1	0004-	●
279	BOLT FULL FLOATING CAB<W16> (E) M8X60 FLANGE	0-28080-860-0	02	1	0004-		●
279	BOLT CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (D) M8X20 FLANGE	0-28680-820-0	09	1	9902-	●
279	BOLT CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (F) M8X25	1-09980-511-0	02	1	9902-	●
279	BOLT DELUXE CAB(W14) FULL FLOATING CAB<W16> (F) M8X25 W/LK&PL WASHER	1-09980-548-0	01	1	0004-		●
279	BOLT FULL FLOATING CAB<W16> (D) M8X20 FLANGE	0-28680-820-0	07	1	0004-		●
292	CONNECTOR; CAB SUSPENSION (E) M14	1-53458-047-0	01	1	9902-9902	●
292	CONNECTOR; CAB SUSPENSION (E) M12	1-53458-941-0	01	1	9903-0003	●
292	CONNECTOR; CAB SUSPENSION (E) M12	1-53458-941-0	01	1	0004-	●	●
292	CONNECTOR; CAB SUSPENSION CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	9902-0003	●
292	CONNECTOR; CAB SUSPENSION CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0004-	●
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB<W16> (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0004-		●
292	CONNECTOR; CAB SUSPENSION CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (B) DIN6 R1/8 STRAIGHT	1-09660-759-0	01	1	9902-0003	●
292	CONNECTOR; CAB SUSPENSION CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (B) DIN6 R1/8 STRAIGHT	1-09660-759-1	01	1	0004-	●
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB<W16> (B) DIN6 R1/8 STRAIGHT	1-09660-759-1	01	1	0004-		●
292	CONNECTOR; CAB SUSPENSION CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (C) TRI LC6X4-R1/8	1-09660-760-0	01	1	9902-0003	●
292	CONNECTOR; CAB SUSPENSION CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (C) TRI LC6X4-R1/8	1-09660-760-1	01	1	0004-	●
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB<W16> (C) TRI LC6X4-R1/8	1-09660-760-1	01	1	0004-		●
292	CONNECTOR; CAB SUSPENSION CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (D) DIN6X2 & R1/8 3WAY	1-09660-761-0	01	1	9902-0003	●
292	CONNECTOR; CAB SUSPENSION CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (D) DIN6X2 & R1/8 3WAY	1-09660-761-1	01	1	0004-	●
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB<W16> (D) DIN6X2 & R1/8 3WAY	1-09660-761-1	01	1	0004-		●
292	CONNECTOR; CAB SUSPENSION CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (F) PT1/8 ELBOW	8-94338-418-1	01	1	9905-	●
425	PIPE ASM; AIR CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (A) L=375	1-49116-899-0	01	1	9902-9904	●
425	PIPE ASM; AIR CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (A) L=357	1-49121-862-0	01	1	9905-	●
425	PIPE ASM; AIR CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (C) L=1376	1-49119-625-0	01	1	9902-	●
425	PIPE ASM; AIR CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (B) L=831	1-49121-297-0	01	1	9902-	●
425	PIPE ASM; AIR FULL FLOATING CAB<W16> EXC. CAB UP +110MM<TGG> (B) L=776	1-49121-296-0	01	1	9902-	●
425	PIPE ASM; AIR FULL FLOATING CAB<W16> (A) L=298	1-47494-961-1	01	1	0004-		●
425	PIPE ASM; AIR FULL FLOATING CAB<W16> (B)	1-49117-396-0	01	1	0004-		●
425	PIPE ASM; AIR FULL FLOATING CAB<W16> (C)	1-49122-425-0	01	1	0004-0004		●
425	PIPE ASM; AIR FULL FLOATING CAB<W16> (C)	1-49122-659-0	01	1	0005-		●
426	CLIP CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9902-	●
426	CLIP CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (C) ID=9 & 7 L=15 & 15	1-09700-653-0	02	1	9902-9904	●
426	CLIP CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (C) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	9905-	●
426	CLIP CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (D) ID=11 H=20 L=20	5-09700-351-0	02	1	9902-	●
426	CLIP CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (B) ID=9.5	5-09709-020-0	01	1	9902-0003	●
426	CLIP CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (B) ID=9.5	5-09709-020-0	01	1	0004-	●
426	CLIP FULL FLOATING CAB<W16> (B) ID=9.5	5-09709-020-0	01	1	0004-		●
426	CLIP FULL FLOATING CAB<W16> (E) L=140	5-09707-031-1	01	1	9902-9904	●
426	CLIP 6WA1 TC-C(55L),6WG1 TC-R(75L) FULL FLOATING CAB<W16> (E) L=140	5-09707-031-1	01	1	9905-	●
426	CLIP DELUXE CAB(W14) FULL FLOATING CAB<W16> (C) ID=5.8 L=8	8-94155-681-0	02	1	0004-		●
426	CLIP FULL FLOATING CAB<W16> (A) ID=6 H=20 L=20	1-09700-603-0	02	1	0004-		●
426	CLIP FULL FLOATING CAB<W16> (A) ID=7 L=32	9-09524-665-0	01	1	0004-		●
426	CLIP FULL FLOATING CAB<W16> (D) ID=11 L=16	9-09525-025-0	01	1	0004-		●
427	TUBE CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (B) L=400 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	9902-9904	●
427	TUBE CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (B) L=440 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	9905-	●
427	TUBE CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (A) L=1300 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	9902-0003	●
427	TUBE CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (A) L=1300 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0004-	●
427	TUBE FULL FLOATING CAB<W16> (A) L=1300 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0004-		●
427	TUBE FULL FLOATING CAB<W16> (B) L=400 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0004-		●
438	UNION CAB UP +110MM<TGG> FULL FLOATING CAB<W16> M12X2 & PT1/8 3WAY	1-09656-655-0	01	1	9902-0003	●
438	UNION CAB UP +110MM<TGG> FULL FLOATING CAB<W16> M12X2 & PT1/8 3WAY	1-09656-655-0	01	1	0004-	●
438	UNION FULL FLOATING CAB<W16> M12X2 & PT1/8 3WAY	1-09656-655-0	01	1	0004-		●
451	JOINT; BALL CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (A)	1-09760-103-1	02	1	9902-	●
451	JOINT; BALL CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (B)	1-09760-104-1	02	1	9902-	●
451	JOINT; BALL FULL FLOATING CAB<W16> (A)	1-09760-103-1	01	1	0004-		●
451	JOINT; BALL FULL FLOATING CAB<W16> (A)	1-09760-103-1	01	1	0004-		●
451	JOINT; BALL FULL FLOATING CAB<W16> (B)	1-09760-104-1	01	1	0004-		●
451	JOINT; BALL FULL FLOATING CAB<W16> (B)	1-09760-104-1	01	1	0004-		●
452	NUT; BALL JOINT CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (B) M5 LH THREAD	9-09840-277-0	02	1	9902-	●
452	NUT; BALL JOINT CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (A) M5	9-99110-405-0	02	1	9902-	●
452	NUT; BALL JOINT FULL FLOATING CAB<W16> (B) M5 LH THREAD	9-09840-277-0	01	1	0004-		●
452	NUT; BALL JOINT FULL FLOATING CAB<W16> (B) M5 LH THREAD	9-09840-277-0	01	1	0004-		●
452	NUT; BALL JOINT FULL FLOATING CAB<W16> (A) M5	9-99110-405-0	01	1	0004-		●
452	NUT; BALL JOINT FULL FLOATING CAB<W16> (A) M5	9-99110-405-0	01	1	0004-		●

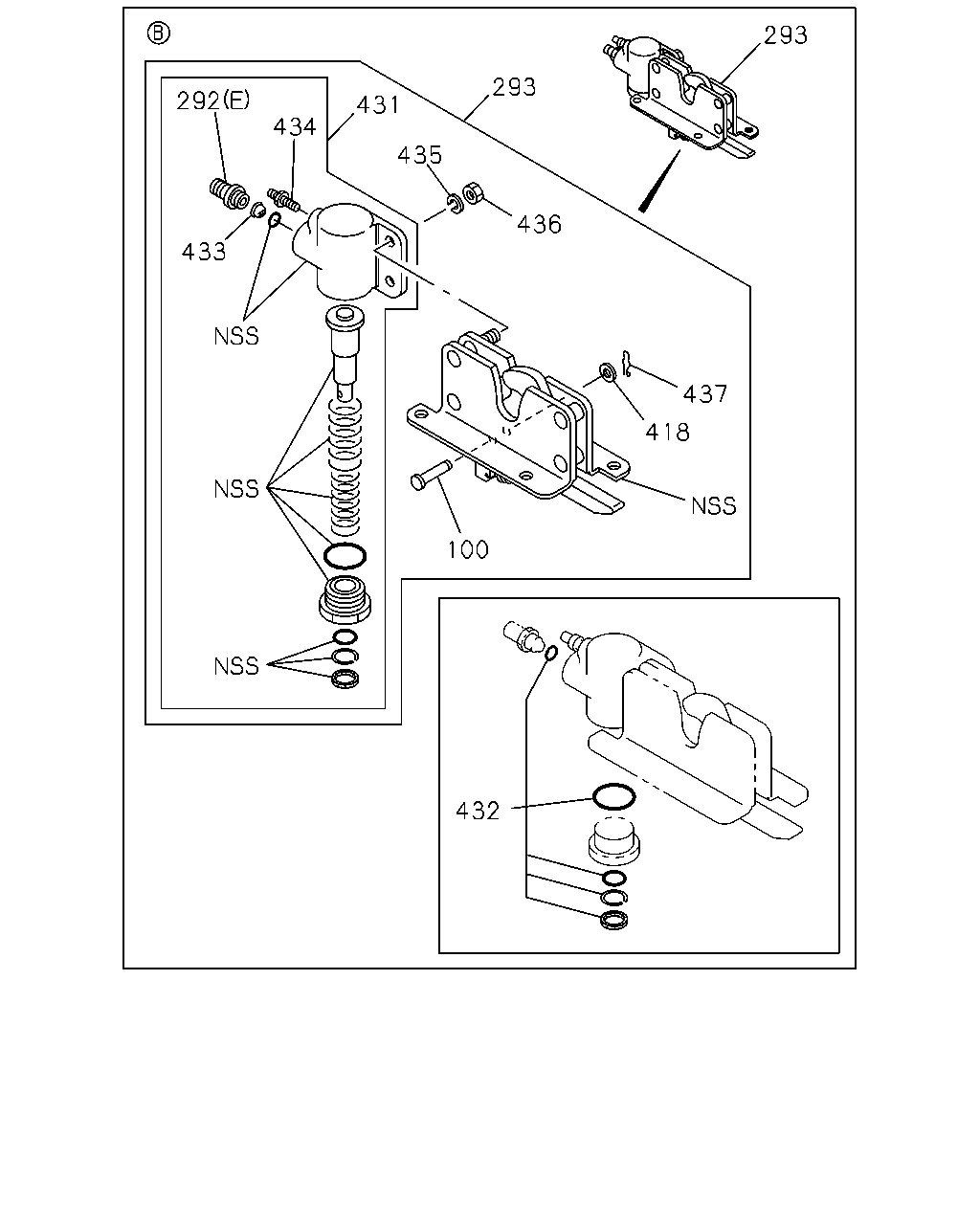

293 293 292 431 434 435 436 433 437 418 100 432

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
100	PIN; JOINT	1-53458-831-0	01	1	9902-0003	●
100	PIN; JOINT	1-53458-831-0	01	1	0004-	●	●
292	CONNECTOR; CAB SUSPENSION (E) M14	1-53458-047-0	01	1	9902-9902	●
292	CONNECTOR; CAB SUSPENSION (E) M12	1-53458-941-0	01	1	9903-0003	●
292	CONNECTOR; CAB SUSPENSION (E) M12	1-53458-941-0	01	1	0004-	●	●
292	CONNECTOR; CAB SUSPENSION CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	9902-0003	●
292	CONNECTOR; CAB SUSPENSION CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0004-	●
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB<W16> (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0004-		●
292	CONNECTOR; CAB SUSPENSION CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (B) DIN6 R1/8 STRAIGHT	1-09660-759-0	01	1	9902-0003	●
292	CONNECTOR; CAB SUSPENSION CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (B) DIN6 R1/8 STRAIGHT	1-09660-759-1	01	1	0004-	●
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB<W16> (B) DIN6 R1/8 STRAIGHT	1-09660-759-1	01	1	0004-		●
292	CONNECTOR; CAB SUSPENSION CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (C) TRI LC6X4-R1/8	1-09660-760-0	01	1	9902-0003	●
292	CONNECTOR; CAB SUSPENSION CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (C) TRI LC6X4-R1/8	1-09660-760-1	01	1	0004-	●
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB<W16> (C) TRI LC6X4-R1/8	1-09660-760-1	01	1	0004-		●
292	CONNECTOR; CAB SUSPENSION CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (D) DIN6X2 & R1/8 3WAY	1-09660-761-0	01	1	9902-0003	●
292	CONNECTOR; CAB SUSPENSION CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (D) DIN6X2 & R1/8 3WAY	1-09660-761-1	01	1	0004-	●
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB<W16> (D) DIN6X2 & R1/8 3WAY	1-09660-761-1	01	1	0004-		●
292	CONNECTOR; CAB SUSPENSION CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (F) PT1/8 ELBOW	8-94338-418-1	01	1	9905-	●
293	RATCH; CAB SUSP,RR	1-53458-826-0	01	1	9902-9902	●
293	RATCH; CAB SUSP,RR	1-53458-923-0	01	1	9903-0003	●
293	RATCH; CAB SUSP,RR	1-53458-923-0	01	1	0004-	●	●
418	WASHER; PL,PIN	1-53458-059-0	01	1	9902-0003	●
418	WASHER; PL,PIN	1-53458-059-0	01	1	0004-	●	●
431	CYLINDER; AIR,RATCH	1-53458-539-0	01	1	9902-9902	●
431	CYLINDER; AIR,RATCH	1-53457-013-0	01	1	9903-0003	●
431	CYLINDER; AIR,RATCH	1-53457-013-0	01	1	0004-	●	●
432	REPAIR KIT; AIR CYL	1-85579-052-0	01	1	9902-0003	●
432	REPAIR KIT; AIR CYL	1-85579-052-0	01	1	0004-	●	●
433	FILTER; AIR CYL	1-53458-048-0	01	1	9902-0003	●
433	FILTER; AIR CYL	1-53458-048-0	01	1	0004-	●	●
434	SCREW; AIR BLEEDER	1-53458-529-0	01	1	9902-0003	●
434	SCREW; AIR BLEEDER	1-53458-529-0	01	1	0004-	●	●
435	WASHER; LK,AIR CYL ID=10.2	9-09150-510-0	02	1	9902-0003	●
435	WASHER; LK,AIR CYL ID=10.2	9-09150-510-0	02	1	0004-	●	●
436	NUT; AIR CYL	1-53458-528-0	02	1	9902-0003	●
436	NUT; AIR CYL	1-53458-528-0	02	1	0004-	●	●
437	PIN; SNAP	1-53458-526-0	01	1	9902-0003	●
437	PIN; SNAP	1-53458-526-0	01	1	0004-	●	●

202 202 203 204 205 204 203 201 203 204 205 205 204 203 202 202

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
201	ABSORBER ASM; SHOCK,RR MTG	1-51630-607-0	02	1	9902-0003	●
201	ABSORBER ASM; SHOCK,RR MTG	1-51630-607-0	02	1	0004-	●	●
202	NUT; S/ABS (C) M10 FLANGE	0-91150-110-0	02	1	9902-0003	●
202	NUT; S/ABS (C) M10 FLANGE	0-91150-110-0	02	1	0004-	●	●
202	NUT; S/ABS (A) M10	9-09110-410-0	04	1	9902-0003	●
202	NUT; S/ABS (A) M10	9-09110-410-0	04	1	0004-	●	●
202	NUT; S/ABS (B) M10	9-09111-410-0	06	1	9902-0003	●
202	NUT; S/ABS (B) M10	9-09111-410-0	06	1	0004-	●	●
203	WASHER; RUBBER,SHOCK (B)	1-51631-005-0	10	1	9902-0003	●
203	WASHER; RUBBER,SHOCK (B)	1-51631-005-0	10	1	0004-	●	●
203	WASHER; RUBBER,SHOCK (A)	1-51631-104-0	02	1	9902-0003	●
203	WASHER; RUBBER,SHOCK (A)	1-51631-104-0	02	1	0004-	●	●
204	RUBBER; CUSHION,SHOCK	1-51631-004-0	12	1	9902-0003	●
204	RUBBER; CUSHION,SHOCK	1-51631-004-0	12	1	0004-	●	●
205	WASHER; RUBBER,SHOCK	1-51631-079-0	08	1	9902-0003	●
205	WASHER; RUBBER,SHOCK	1-51631-079-0	08	1	0004-	●	●

353 292 292 292 237 19 438 279 19 426 31 353 279 451 41 452 292 425 261 250 279 45 452 451 427 292 425 425 41 426 279

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	NUT CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (A) M8 FLANGE	0-91150-108-0	02	1	9902-	●
19	NUT CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (B) M8	9-09110-508-0	02	1	9902-	●
31	BRACKET; CAB CAB UP +110MM<TGG> (A)	1-44226-156-0	01	1	9902-	●
31	BRACKET; CAB CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (B)	1-53458-673-1	01	1	9902-	●
31	BRACKET; CAB CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (C)	1-81549-016-0	01	1	9902-0003	●
31	BRACKET; CAB CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (C)	1-81549-016-0	01	1	0004-	●
31	BRACKET; CAB FULL FLOATING CAB<W16> (C)	1-81549-016-0	01	1	0004-		●
31	BRACKET; CAB CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (D)	1-53453-225-2	01	1	9902-0003	●
31	BRACKET; CAB CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (D)	1-53453-225-3	01	1	0004-	●
31	BRACKET; CAB FULL FLOATING CAB<W16> (D)	1-53453-225-3	01	1	0004-		●
31	BRACKET; CAB CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (D)	1-53453-281-1	01	1	9902-	●
31	BRACKET; CAB EXC. CAB UP +110MM<TGG> (A)	1-44226-150-0	01	1	9902-	●
31	BRACKET; CAB EXC. FULL FLOATING CAB<W16> (D)	1-53453-274-0	01	1	9902-0003	●
31	BRACKET; CAB EXC. FULL FLOATING CAB<W16> (D)	1-53453-274-1	01	1	0004-	●	●
31	BRACKET; CAB EXC. FULL FLOATING CAB<W16> (D)	1-53453-280-1	01	1	9902-	●
31	BRACKET; CAB (A)	1-44226-149-0	01	1	0004-		●
31	BRACKET; CAB FULL FLOATING CAB<W16> (B)	1-53458-374-1	01	1	0004-		●
31	BRACKET; CAB FULL FLOATING CAB<W16> (D)	1-53453-224-4	01	1	0004-		●
31	BRACKET; CAB EXC. FULL FLOATING CAB<W16> (D)	1-53453-273-1	01	1	0004-		●
41	NUT CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (B) M8 FLANGE	0-91150-108-0	01	1	9902-0003	●
41	NUT CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (B) M8 FLANGE	0-91150-108-0	01	1	0004-	●
41	NUT FULL FLOATING CAB<W16> (B) M8 FLANGE	0-91150-108-0	01	1	0004-		●
41	NUT CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (A) M12 FLANGE	0-91150-212-0	01	1	9902-0003	●
41	NUT CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (A) M12 FLANGE	0-91150-212-0	01	1	0004-	●
41	NUT FULL FLOATING CAB<W16> (A) M12 FLANGE	0-91150-212-0	01	1	0004-		●
45	NUT CAB UP +110MM<TGG> FULL FLOATING CAB<W16> M5	9-99110-405-0	04	1	9902-	●
45	NUT FULL FLOATING CAB<W16> M5	9-99110-405-0	02	1	0004-		●
45	NUT FULL FLOATING CAB<W16> M5	9-99110-405-0	02	1	0004-		●
237	ROD ASM; LATERAL (B)	1-53458-343-0	01	1	9902-0003	●
237	ROD ASM; LATERAL (B)	1-53458-343-0	01	1	0004-	●	●
237	ROD ASM; LATERAL CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (C)	1-33670-407-0	01	1	9902-0003	●
237	ROD ASM; LATERAL CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (C)	1-33670-407-0	01	1	0004-	●
237	ROD ASM; LATERAL FULL FLOATING CAB<W16> (C)	1-33670-407-0	01	1	0004-		●
237	ROD ASM; LATERAL CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (A)	1-33670-773-0	01	1	9902-0003	●
237	ROD ASM; LATERAL CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (A)	1-33670-773-0	01	1	0004-	●
237	ROD ASM; LATERAL FULL FLOATING CAB<W16> (A)	1-33670-773-0	01	1	0004-		●
250	WASHER; LK CAB UP +110MM<TGG> FULL FLOATING CAB<W16> ID=5.1	9-09150-505-0	04	1	9902-	●
250	WASHER; LK FULL FLOATING CAB<W16> ID=5.1	9-09150-505-0	02	1	0004-		●
250	WASHER; LK FULL FLOATING CAB<W16> ID=5.1	9-09150-505-0	02	1	0004-		●
261	ROD; LINK CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (A)	9-08410-507-0	01	1	9902-0003	●
261	ROD; LINK CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (A)	9-08410-507-0	01	1	0004-	●
261	ROD; LINK FULL FLOATING CAB<W16> (A)	9-08410-507-0	01	1	0004-		●
261	ROD; LINK CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (B)	9-08410-514-0	01	1	9902-0003	●
261	ROD; LINK CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (B)	9-08410-514-0	01	1	0004-	●
261	ROD; LINK FULL FLOATING CAB<W16> (B)	9-08410-514-0	01	1	0004-		●
279	BOLT (B) M12X40 FLANGE	0-28091-240-0	04	1	9902-0003	●
279	BOLT (B) M12X40 FLANGE	0-28091-240-0	04	1	0004-	●	●
279	BOLT ANTI NOISE EQUIPMENT<SV9> (A) M8X25 FLANGE	0-28680-825-0	03	1	9902-0003	●
279	BOLT ANTI NOISE EQUIPMENT<SV9> (A) M8X25 FLANGE	0-28680-825-0	03	1	0004-	●	●
279	BOLT CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (C) M8X16 FLANGE	0-28080-816-0	04	1	9902-0003	●
279	BOLT CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (C) M8X16 FLANGE	0-28080-816-0	04	1	0004-	●
279	BOLT FULL FLOATING CAB<W16> (C) M8X16 FLANGE	0-28080-816-0	04	1	0004-		●
279	BOLT CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (E) M8X60 FLANGE	0-28080-860-0	02	1	9902-0003	●
279	BOLT CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (E) M8X60 FLANGE	0-28080-860-0	02	1	0004-	●
279	BOLT FULL FLOATING CAB<W16> (E) M8X60 FLANGE	0-28080-860-0	02	1	0004-		●
279	BOLT CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (D) M8X20 FLANGE	0-28680-820-0	09	1	9902-	●
279	BOLT CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (F) M8X25	1-09980-511-0	02	1	9902-	●
279	BOLT DELUXE CAB(W14) FULL FLOATING CAB<W16> (F) M8X25 W/LK&PL WASHER	1-09980-548-0	01	1	0004-		●
279	BOLT FULL FLOATING CAB<W16> (D) M8X20 FLANGE	0-28680-820-0	07	1	0004-		●
292	CONNECTOR; CAB SUSPENSION (E) M14	1-53458-047-0	01	1	9902-9902	●
292	CONNECTOR; CAB SUSPENSION (E) M12	1-53458-941-0	01	1	9903-0003	●
292	CONNECTOR; CAB SUSPENSION (E) M12	1-53458-941-0	01	1	0004-	●	●
292	CONNECTOR; CAB SUSPENSION CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	9902-0003	●
292	CONNECTOR; CAB SUSPENSION CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0004-	●
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB<W16> (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0004-		●
292	CONNECTOR; CAB SUSPENSION CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (B) DIN6 R1/8 STRAIGHT	1-09660-759-0	01	1	9902-0003	●
292	CONNECTOR; CAB SUSPENSION CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (B) DIN6 R1/8 STRAIGHT	1-09660-759-1	01	1	0004-	●
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB<W16> (B) DIN6 R1/8 STRAIGHT	1-09660-759-1	01	1	0004-		●
292	CONNECTOR; CAB SUSPENSION CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (C) TRI LC6X4-R1/8	1-09660-760-0	01	1	9902-0003	●
292	CONNECTOR; CAB SUSPENSION CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (C) TRI LC6X4-R1/8	1-09660-760-1	01	1	0004-	●
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB<W16> (C) TRI LC6X4-R1/8	1-09660-760-1	01	1	0004-		●
292	CONNECTOR; CAB SUSPENSION CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (D) DIN6X2 & R1/8 3WAY	1-09660-761-0	01	1	9902-0003	●
292	CONNECTOR; CAB SUSPENSION CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (D) DIN6X2 & R1/8 3WAY	1-09660-761-1	01	1	0004-	●
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB<W16> (D) DIN6X2 & R1/8 3WAY	1-09660-761-1	01	1	0004-		●
292	CONNECTOR; CAB SUSPENSION CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (F) PT1/8 ELBOW	8-94338-418-1	01	1	9905-	●
353	BRACKET CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (A)	1-47478-232-0	02	1	9902-	●
353	BRACKET FULL FLOATING CAB<W16> EXC. CAB UP +110MM<TGG> (B) L=55	1-47475-304-0	02	1	9902-	●
425	PIPE ASM; AIR CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (A) L=375	1-49116-899-0	01	1	9902-9904	●
425	PIPE ASM; AIR CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (A) L=357	1-49121-862-0	01	1	9905-	●
425	PIPE ASM; AIR CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (C) L=1376	1-49119-625-0	01	1	9902-	●
425	PIPE ASM; AIR CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (B) L=831	1-49121-297-0	01	1	9902-	●
425	PIPE ASM; AIR FULL FLOATING CAB<W16> EXC. CAB UP +110MM<TGG> (B) L=776	1-49121-296-0	01	1	9902-	●
425	PIPE ASM; AIR FULL FLOATING CAB<W16> (A) L=298	1-47494-961-1	01	1	0004-		●
425	PIPE ASM; AIR FULL FLOATING CAB<W16> (B)	1-49117-396-0	01	1	0004-		●
425	PIPE ASM; AIR FULL FLOATING CAB<W16> (C)	1-49122-425-0	01	1	0004-0004		●
425	PIPE ASM; AIR FULL FLOATING CAB<W16> (C)	1-49122-659-0	01	1	0005-		●
426	CLIP CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9902-	●
426	CLIP CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (C) ID=9 & 7 L=15 & 15	1-09700-653-0	02	1	9902-9904	●
426	CLIP CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (C) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	9905-	●
426	CLIP CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (D) ID=11 H=20 L=20	5-09700-351-0	02	1	9902-	●
426	CLIP CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (B) ID=9.5	5-09709-020-0	01	1	9902-0003	●
426	CLIP CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (B) ID=9.5	5-09709-020-0	01	1	0004-	●
426	CLIP FULL FLOATING CAB<W16> (B) ID=9.5	5-09709-020-0	01	1	0004-		●
426	CLIP FULL FLOATING CAB<W16> (E) L=140	5-09707-031-1	01	1	9902-9904	●
426	CLIP 6WA1 TC-C(55L),6WG1 TC-R(75L) FULL FLOATING CAB<W16> (E) L=140	5-09707-031-1	01	1	9905-	●
426	CLIP DELUXE CAB(W14) FULL FLOATING CAB<W16> (C) ID=5.8 L=8	8-94155-681-0	02	1	0004-		●
426	CLIP FULL FLOATING CAB<W16> (A) ID=6 H=20 L=20	1-09700-603-0	02	1	0004-		●
426	CLIP FULL FLOATING CAB<W16> (A) ID=7 L=32	9-09524-665-0	01	1	0004-		●
426	CLIP FULL FLOATING CAB<W16> (D) ID=11 L=16	9-09525-025-0	01	1	0004-		●
427	TUBE CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (B) L=400 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	9902-9904	●
427	TUBE CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (B) L=440 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	9905-	●
427	TUBE CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (A) L=1300 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	9902-0003	●
427	TUBE CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (A) L=1300 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0004-	●
427	TUBE FULL FLOATING CAB<W16> (A) L=1300 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0004-		●
427	TUBE FULL FLOATING CAB<W16> (B) L=400 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0004-		●
438	UNION CAB UP +110MM<TGG> FULL FLOATING CAB<W16> M12X2 & PT1/8 3WAY	1-09656-655-0	01	1	9902-0003	●
438	UNION CAB UP +110MM<TGG> FULL FLOATING CAB<W16> M12X2 & PT1/8 3WAY	1-09656-655-0	01	1	0004-	●
438	UNION FULL FLOATING CAB<W16> M12X2 & PT1/8 3WAY	1-09656-655-0	01	1	0004-		●
451	JOINT; BALL CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (A)	1-09760-103-1	02	1	9902-	●
451	JOINT; BALL CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (B)	1-09760-104-1	02	1	9902-	●
451	JOINT; BALL FULL FLOATING CAB<W16> (A)	1-09760-103-1	01	1	0004-		●
451	JOINT; BALL FULL FLOATING CAB<W16> (A)	1-09760-103-1	01	1	0004-		●
451	JOINT; BALL FULL FLOATING CAB<W16> (B)	1-09760-104-1	01	1	0004-		●
451	JOINT; BALL FULL FLOATING CAB<W16> (B)	1-09760-104-1	01	1	0004-		●
452	NUT; BALL JOINT CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (B) M5 LH THREAD	9-09840-277-0	02	1	9902-	●
452	NUT; BALL JOINT CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (A) M5	9-99110-405-0	02	1	9902-	●
452	NUT; BALL JOINT FULL FLOATING CAB<W16> (B) M5 LH THREAD	9-09840-277-0	01	1	0004-		●
452	NUT; BALL JOINT FULL FLOATING CAB<W16> (B) M5 LH THREAD	9-09840-277-0	01	1	0004-		●
452	NUT; BALL JOINT FULL FLOATING CAB<W16> (A) M5	9-99110-405-0	01	1	0004-		●
452	NUT; BALL JOINT FULL FLOATING CAB<W16> (A) M5	9-99110-405-0	01	1	0004-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
