4-30 — STEERING WHEEL AND COWL (#77208) — 27 parça

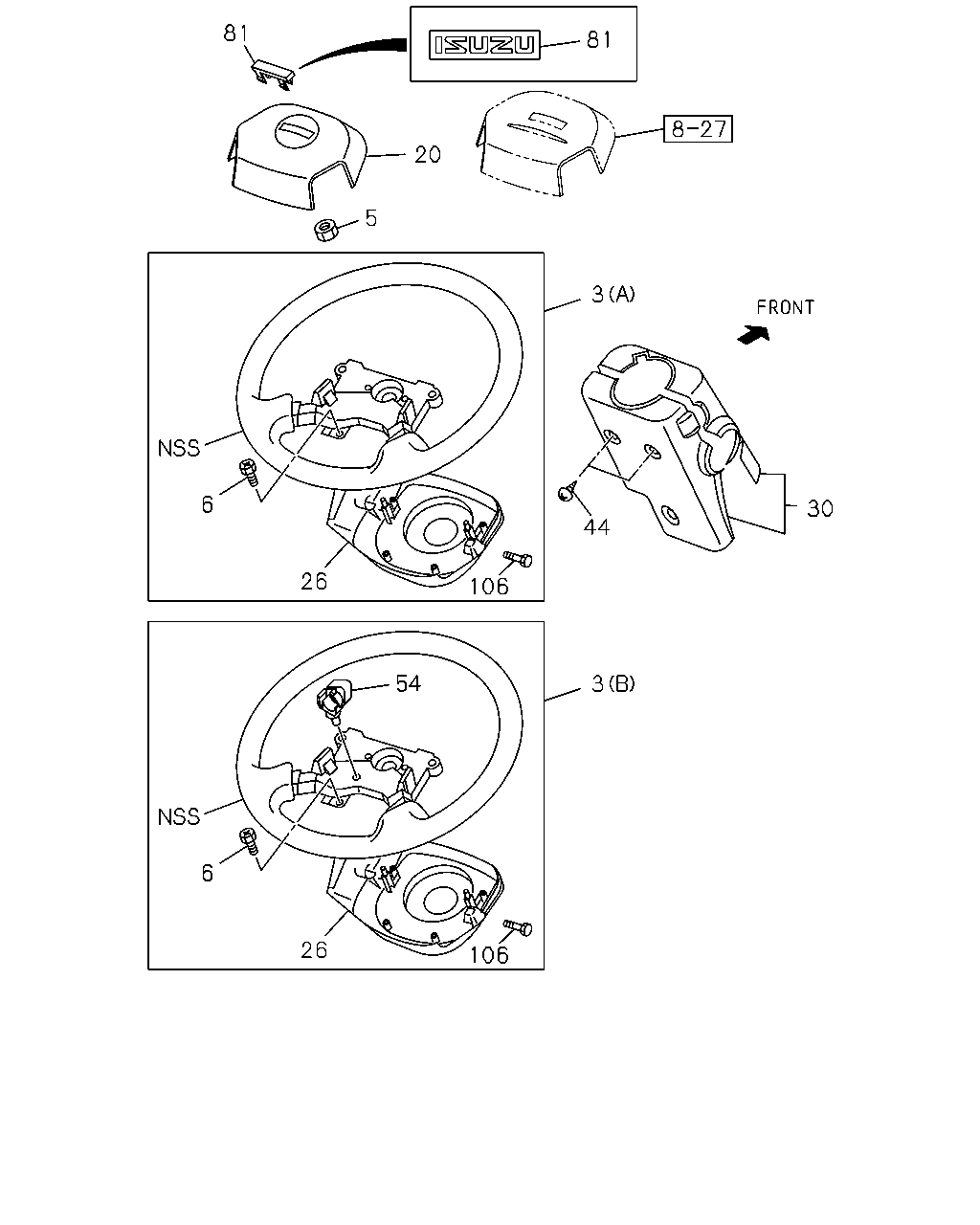

çizim 186396
81 20 5 3 81 44 30 3 54 106 26 6 6 26 106
BalonParca AdiParca NoAdetTipApplied Date A B C D
3 06.513 WHEEL; STRG
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) DARK GRAY 		8-97405-726-1 01 1 0905-0906 ● ●
3 06.513 WHEEL; STRG
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) DARK GRAY 		8-97405-726-1 01 1 0907-1006 ● ● ● ●
3 06.513 WHEEL; STRG
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) DARK GRAY 		8-97421-977-0 01 1 1007-1210 ● ● ● ●
3 06.513 WHEEL; STRG
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) DARK GRAY 		8-97423-997-0 01 1 1211- ● ● ● ●
3 06.513 WHEEL; STRG
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (A) DARK GRAY 		8-97412-556-1 01 1 0905-0906 ● ●
3 06.513 WHEEL; STRG
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (A) DARK GRAY 		8-97412-556-1 01 1 0907- ● ● ● ●
5 06.515 NUT; STRG WHEEL TO SHAFT
M14 		0-91111-514-0 01 1 0905-0906 ● ●
5 06.515 NUT; STRG WHEEL TO SHAFT
M14 		0-91111-514-0 01 1 0907- ● ● ● ●
6 02.820 SCREW; HORN SPR CONTACT
M4X12 		8-97167-588-0 04 1 0905-0906 ● ●
6 02.820 SCREW; HORN SPR CONTACT
M4X12 		8-97167-588-0 04 1 0907- ● ● ● ●
20 06.512 SHROUD; PAD,STRG WHEEL
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> DARK GRAY 		8-97405-985-1 01 1 0905-0906 ● ●
20 06.512 SHROUD; PAD,STRG WHEEL
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> DARK GRAY 		8-97405-985-1 01 1 0907- ● ● ● ●
26 06.514 COVER; STRG WHEEL,LWR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY 		8-97405-841-0 01 1 0905-0906 ● ●
26 06.514 COVER; STRG WHEEL,LWR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY 		8-97405-841-0 01 1 0907-1006 ● ● ● ●
26 06.514 COVER; STRG WHEEL,LWR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY 		8-97421-978-0 01 1 1007- ● ● ● ●
26 06.514 COVER; STRG WHEEL,LWR
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> DARK GRAY 		8-97409-275-2 01 1 0905-0906 ● ●
26 06.514 COVER; STRG WHEEL,LWR
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> DARK GRAY 		8-97409-275-2 01 1 0907- ● ● ● ●
30 06.518 COWL; STEERING
DARK GRAY 		8-97405-356-5 01 1 0905-0906 ● ●
30 06.518 COWL; STEERING
DARK GRAY 		8-97405-356-5 01 1 0907-1110 ● ● ● ●
30 06.518 COWL; STEERING
DARK GRAY 		8-97418-761-1 01 1 1111- ● ● ● ●
44 06.514 SCREW; STRG COWL
M5X12 		0-38050-512-0 03 1 0905-0906 ● ●
44 06.514 SCREW; STRG COWL
M5X12 		0-38050-512-0 03 1 0907- ● ● ● ●
54 02.559 CLIP; HARNESS
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98165-703-0 01 1 1211- ● ● ● ●
81 02.820 EMBLEM; STRG WHEEL
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> DARK GRAY 		8-97405-986-0 01 1 0905-0906 ● ●
81 02.820 EMBLEM; STRG WHEEL
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> DARK GRAY 		8-97405-986-0 01 1 0907- ● ● ● ●
106 05.453 BOLT; TORX 8-98231-397-0 02 1 0905-0906 ● ●
106 05.453 BOLT; TORX 8-98231-397-0 02 1 0907- ● ● ● ●
