4-01 — PROPELLER SHAFT (#77203) — 258 parça

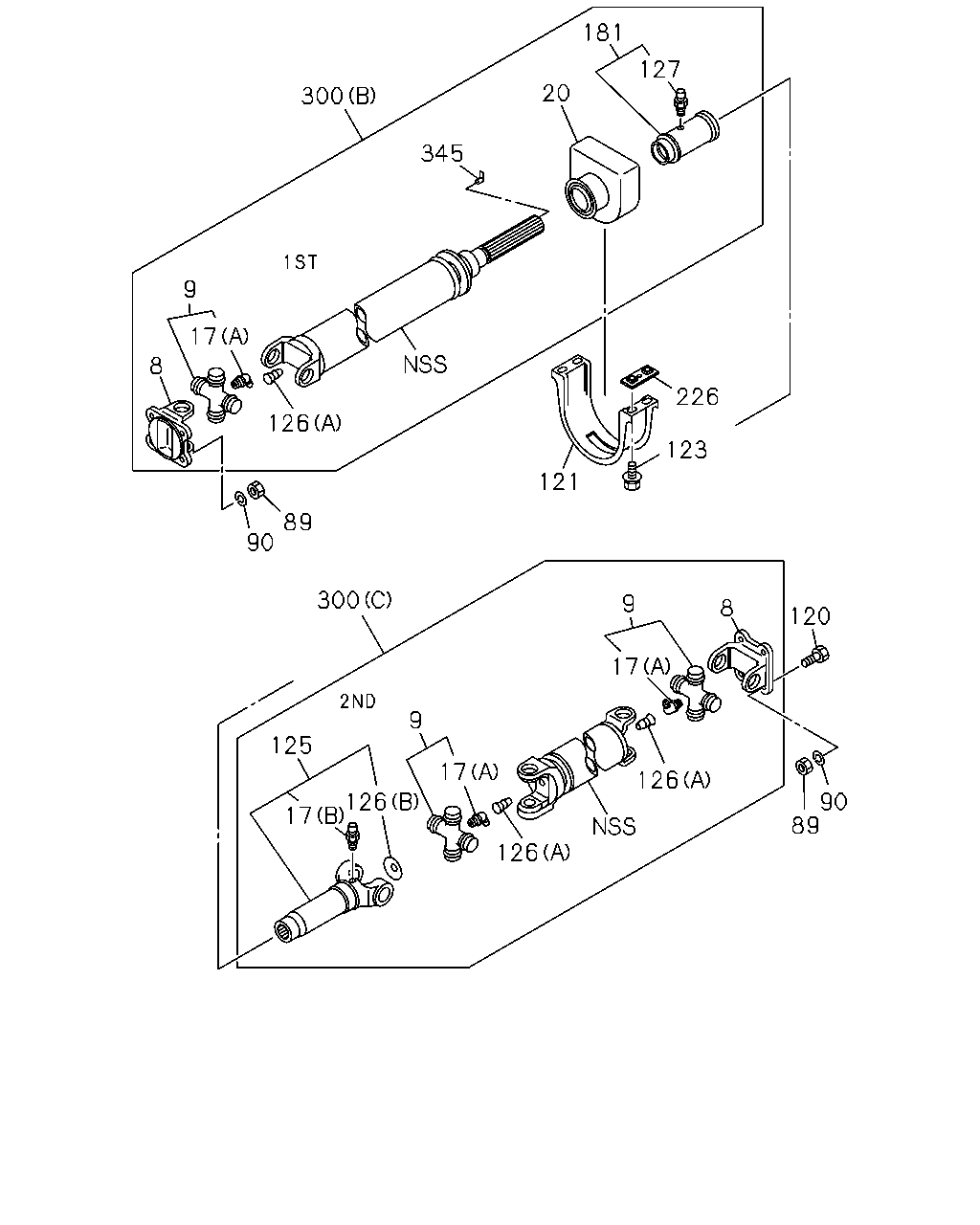

181 127 20 300 345 9 17 8 226 126 123 121 89 90 300 9 8 120 17 9 125 17 126 126 17 90 89 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
8	05.544 YOKE; FLANGE,PROP SHAFT 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) D=80	8-97322-663-0	02	1	0907-	●
8	05.544 YOKE; FLANGE,PROP SHAFT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) D=80	8-97322-663-0	01	1	0907-0908	●	●	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) D=80	8-97322-663-0	01	1	0907-0908	●	●	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) D=80	8-97322-663-0	01	1	0909-	●	●	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) D=80	8-97322-663-0	01	1	0909-	●	●	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT 4HK1-TCS ENG(RJS) D=80	1-37211-037-4	01	1	0905-		●		●
8	05.544 YOKE; FLANGE,PROP SHAFT 4HK1-TCS ENG(RJS) D=80	1-37211-037-4	02	1	0905-		●		●
9	05.548 JOURNAL ASM; PROP SHAFT 4JJ1-TCS ENG(LFB)	8-98033-605-1	02	1	0907-	●	●	●	●
9	05.548 JOURNAL ASM; PROP SHAFT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W)	8-98033-605-0	01	1	0907-0908	●	●	●	●
9	05.548 JOURNAL ASM; PROP SHAFT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W)	8-98033-605-1	01	1	0909-	●	●	●	●
9	05.548 JOURNAL ASM; PROP SHAFT 4HK1-TCS ENG(RJS)	8-98020-789-1	01	1	0905-		●		●
9	05.548 JOURNAL ASM; PROP SHAFT 4HK1-TCS ENG(RJS)	8-98020-789-1	02	1	0905-		●		●
17	05.601 NIPPLE; GREASE,PROP SHAFT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) M6 STRAIGHT	0-90301-406-0	02	1	0907-0908	●	●	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (B) M6 STRAIGHT	0-90301-406-0	02	1	0909-	●	●	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 4HK1-TCS ENG(RJS) 08.984 (A) PT1/8 ELBOW	0-90301-610-0	01	1	0905-0906		●		●
17	05.601 NIPPLE; GREASE,PROP SHAFT WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) 08.984 (A) PT1/8 ELBOW	0-90301-610-0	01	1	0907-0908	●	●	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 08.984 (A) PT1/8 ELBOW	0-90301-610-0	01	1	0909-	●	●	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 4HK1-TCS ENG(RJS) 08.984 (A) PT1/8 ELBOW	0-90301-610-0	02	1	0905-0906		●		●
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 (A) PT1/8 ELBOW	0-90301-610-0	02	1	0907-	●	●	●	●
20	05.600 BEARING ASM; CTR,PROP SHAFT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W)	8-98033-936-0	01	1	0907-0908	●	●	●	●
20	05.600 BEARING ASM; CTR,PROP SHAFT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W)	8-98033-936-0	01	1	0909-	●	●	●	●
20	05.600 BEARING ASM; CTR,PROP SHAFT 4HK1-TCS ENG(RJS)	8-98020-880-0	01	1	0905-		●		●
89	05.586 NUT; YOKE TO RR AXLE 4JJ1-TCS ENG(LFB) M12	8-97365-450-1	08	1	0907-	●	●	●	●
89	05.586 NUT; YOKE TO RR AXLE 4HK1-TCS ENG(RJS) M12	8-97365-450-1	12	1	0905-		●		●
90	05.586 WASHER; LK,YOKE TO RR AXLE 4JJ1-TCS ENG(LFB) 07.347 ID=12.2	0-91510-812-0	08	1	0907-	●	●	●	●
90	05.586 WASHER; LK,YOKE TO RR AXLE 4HK1-TCS ENG(RJS) 07.347 ID=12.2	0-91510-812-0	12	1	0905-		●		●
120	05.586 BOLT; YOKE TO RR AXLE 4JJ1-TCS ENG(LFB) M12X35	8-97365-451-1	04	1	0907-	●	●	●	●
120	05.586 BOLT; YOKE TO RR AXLE 4HK1-TCS ENG(RJS) M12X35	8-97365-451-1	08	1	0905-		●		●
121	05.598 RETAINER; CUSHION RUBBER WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W)	8-97035-623-1	01	1	0905-0908		●		●
121	05.598 RETAINER; CUSHION RUBBER WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W)	8-97035-623-1	01	1	0909-	●	●	●	●
123	05.601 BOLT; RET WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) M10X25 W/LK&PL WASHER	0-50641-025-0	04	1	0905-0908		●		●
123	05.601 BOLT; RET WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) M10X25 W/LK&PL WASHER	0-50641-025-0	04	1	0909-	●	●	●	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) L=246	8-98034-338-1	01	1	0907-	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) L=183	8-98033-647-2	01	1	0907-	●	●	●	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT 4HK1-TCS ENG(RJS) L=224	8-98044-229-0	01	1	0905-		●		●
126	05.556 PLUG; SPLINED YOKE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A)	1-09600-023-0	02	1	0907-	●	●	●	●
126	05.556 PLUG; SPLINED YOKE 4HK1-TCS ENG(RJS) (A)	1-09600-023-0	01	1	0905-0906		●		●
126	05.556 PLUG; SPLINED YOKE (A)	1-09600-023-0	01	1	0907-	●	●	●	●
126	05.556 PLUG; SPLINED YOKE 4HK1-TCS ENG(RJS) (B)	8-94366-900-0	01	1	0905-0906		●		●
126	05.556 PLUG; SPLINED YOKE (B)	8-94366-900-0	01	1	0907-	●	●	●	●
127	05.586 NIPPLE; GREASE,SPLINED YOKE 4HK1-TCS ENG(RJS) 05.601 M6 STRAIGHT	0-90301-406-0	01	1	0905-0906		●		●
127	05.586 NIPPLE; GREASE,SPLINED YOKE 05.601 M6 STRAIGHT	0-90301-406-0	01	1	0907-1304	●	●	●	●
127	05.586 NIPPLE; GREASE,SPLINED YOKE 4HK1-TCS ENG(RJS) 05.601 M6 STRAIGHT	0-90301-406-0	01	1	1305-		●		●
127	05.586 NIPPLE; GREASE,SPLINED YOKE 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 05.601 M6 STRAIGHT	0-90301-406-0	01	1	1305-	●
181	05.586 COVER; BRG,PROP SHAFT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W)	8-98046-526-0	01	1	0907-0908	●	●	●	●
181	05.586 COVER; BRG,PROP SHAFT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W)	8-98046-526-0	01	1	0909-	●	●	●	●
226	05.586 PLATE; LK,CENTER BRG WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W)	8-97371-572-0	02	1	0905-0908		●		●
226	05.586 PLATE; LK,CENTER BRG WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W)	8-97371-572-0	02	1	0909-	●	●	●	●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) REAR AXLE HEAVY DUTY 320MM(6CP) WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (C) L=1252	8-98063-805-1	01	1	0909-		●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=1179	8-97387-790-3	01	1	0907-	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=1254	8-97387-791-3	01	1	0907-	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> (C) L=1066	8-97387-806-4	01	1	0907-		●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) REAR AXLE HEAVY DUTY 320MM(6CP) WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (C) L=1066	8-97387-806-4	01	1	0907-		●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY6S(RST) REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> (C) L=1066	8-97387-806-4	01	1	0907-				●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) WHEEL BASE 3300MM(33W) (C) L=1066	8-97387-806-4	01	1	0907-	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) (C) L=1066	8-97387-806-4	01	1	0907-			●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=770	8-98039-637-1	01	1	0907-	●	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=770	8-98039-637-1	01	1	0907-			●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=845	8-98039-649-1	01	1	0907-	●	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=845	8-98039-649-1	01	1	0907-			●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1280	8-98039-639-1	01	1	0907-0908		●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1280	8-98039-639-1	01	1	0909-		●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (C) L=1076	8-97383-854-4	01	1	0907-		●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) REAR AXLE HEAVY DUTY 320MM(6CP) WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> (C) L=1061	8-98113-044-2	01	1	0907-		●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY6S(RST) REAR AXLE HEAVY DUTY 320MM(6CP) WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> (C) L=1061	8-98113-044-2	01	1	0907-				●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY6S(RST) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=715	8-98039-638-1	01	1	0907-		●		●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY6S(RST) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=785	8-98039-655-1	01	1	0907-		●		●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY6S(RST) WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1155	8-98039-640-1	01	1	0907-0908		●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY6S(RST) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1155	8-98039-640-1	01	1	0909-		●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY6S(RST) WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1225	8-98039-641-1	01	1	0907-0908		●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY6S(RST) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1225	8-98039-641-1	01	1	0909-		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) (C) L=1001	8-98024-923-1	01	1	0905-0906		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) REAR AXLE HEAVY DUTY 320MM(6CP) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (C) L=1001	8-98024-923-1	01	1	0907-		●		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=627	8-98006-983-1	01	1	0905-0906		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=627	8-98006-983-1	01	1	0907-		●		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=683	8-98006-982-1	01	1	0905-0906		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=683	8-98006-982-1	01	1	0907-		●		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3800MM(38W) (C) L=1011	8-98040-477-1	01	1	0905-0906		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) REAR AXLE HEAVY DUTY 320MM(6CP) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (C) L=1011	8-98040-477-1	01	1	0907-		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1062	8-98040-528-1	01	1	0905-0908		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1062	8-98040-528-1	01	1	0909-		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1127	8-98040-793-1	01	1	0905-0908		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1127	8-98040-793-1	01	1	0909-		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) (C) L=1302	8-98024-925-0	01	1	0905-0906		●		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) REAR AXLE HEAVY DUTY 320MM(6CP) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (C) L=1302	8-98024-925-1	01	1	0907-		●		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1302	8-98040-529-1	01	1	0905-		●		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1367	8-98019-423-1	01	1	0905-		●		●
345	05.600 PLUG; PROP SHAFT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W)	8-98042-692-0	01	1	0907-0908	●	●	●	●
345	05.600 PLUG; PROP SHAFT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W)	8-98042-692-0	01	1	0909-	●	●	●	●

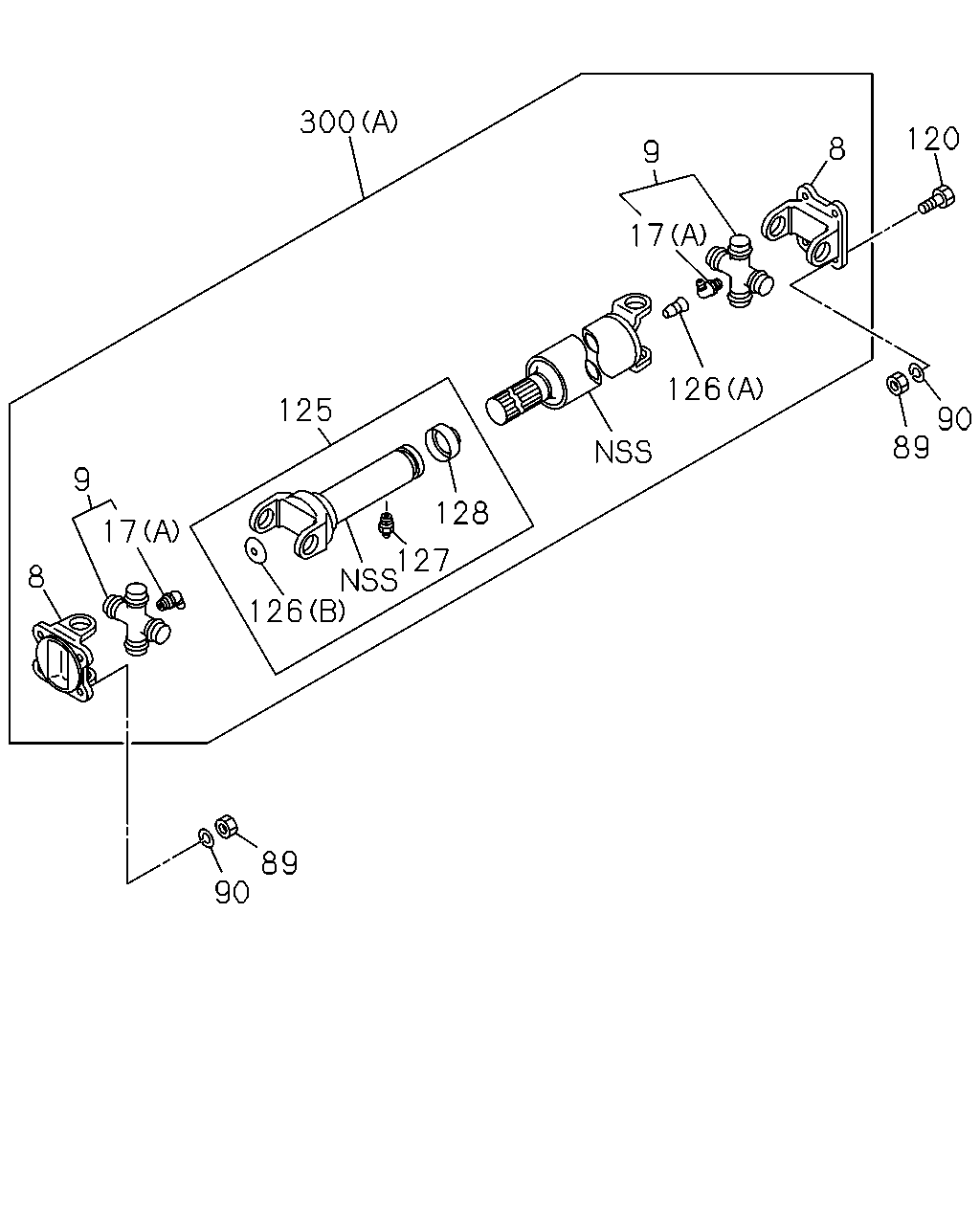

300 120 8 9 17 126 125 90 89 9 128 17 127 126 8 89 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
8	05.544 YOKE; FLANGE,PROP SHAFT 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) D=80	8-97322-663-0	02	1	0907-	●
8	05.544 YOKE; FLANGE,PROP SHAFT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) D=80	8-97322-663-0	01	1	0907-0908	●	●	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) D=80	8-97322-663-0	01	1	0907-0908	●	●	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) D=80	8-97322-663-0	01	1	0909-	●	●	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) D=80	8-97322-663-0	01	1	0909-	●	●	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT 4HK1-TCS ENG(RJS) D=80	1-37211-037-4	01	1	0905-		●		●
8	05.544 YOKE; FLANGE,PROP SHAFT 4HK1-TCS ENG(RJS) D=80	1-37211-037-4	02	1	0905-		●		●
9	05.548 JOURNAL ASM; PROP SHAFT 4JJ1-TCS ENG(LFB)	8-98033-605-1	02	1	0907-	●	●	●	●
9	05.548 JOURNAL ASM; PROP SHAFT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W)	8-98033-605-0	01	1	0907-0908	●	●	●	●
9	05.548 JOURNAL ASM; PROP SHAFT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W)	8-98033-605-1	01	1	0909-	●	●	●	●
9	05.548 JOURNAL ASM; PROP SHAFT 4HK1-TCS ENG(RJS)	8-98020-789-1	01	1	0905-		●		●
9	05.548 JOURNAL ASM; PROP SHAFT 4HK1-TCS ENG(RJS)	8-98020-789-1	02	1	0905-		●		●
17	05.601 NIPPLE; GREASE,PROP SHAFT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) M6 STRAIGHT	0-90301-406-0	02	1	0907-0908	●	●	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (B) M6 STRAIGHT	0-90301-406-0	02	1	0909-	●	●	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 4HK1-TCS ENG(RJS) 08.984 (A) PT1/8 ELBOW	0-90301-610-0	01	1	0905-0906		●		●
17	05.601 NIPPLE; GREASE,PROP SHAFT WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) 08.984 (A) PT1/8 ELBOW	0-90301-610-0	01	1	0907-0908	●	●	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 08.984 (A) PT1/8 ELBOW	0-90301-610-0	01	1	0909-	●	●	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 4HK1-TCS ENG(RJS) 08.984 (A) PT1/8 ELBOW	0-90301-610-0	02	1	0905-0906		●		●
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 (A) PT1/8 ELBOW	0-90301-610-0	02	1	0907-	●	●	●	●
89	05.586 NUT; YOKE TO RR AXLE 4JJ1-TCS ENG(LFB) M12	8-97365-450-1	08	1	0907-	●	●	●	●
89	05.586 NUT; YOKE TO RR AXLE 4HK1-TCS ENG(RJS) M12	8-97365-450-1	12	1	0905-		●		●
90	05.586 WASHER; LK,YOKE TO RR AXLE 4JJ1-TCS ENG(LFB) 07.347 ID=12.2	0-91510-812-0	08	1	0907-	●	●	●	●
90	05.586 WASHER; LK,YOKE TO RR AXLE 4HK1-TCS ENG(RJS) 07.347 ID=12.2	0-91510-812-0	12	1	0905-		●		●
120	05.586 BOLT; YOKE TO RR AXLE 4JJ1-TCS ENG(LFB) M12X35	8-97365-451-1	04	1	0907-	●	●	●	●
120	05.586 BOLT; YOKE TO RR AXLE 4HK1-TCS ENG(RJS) M12X35	8-97365-451-1	08	1	0905-		●		●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) L=246	8-98034-338-1	01	1	0907-	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) L=183	8-98033-647-2	01	1	0907-	●	●	●	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT 4HK1-TCS ENG(RJS) L=224	8-98044-229-0	01	1	0905-		●		●
126	05.556 PLUG; SPLINED YOKE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A)	1-09600-023-0	02	1	0907-	●	●	●	●
126	05.556 PLUG; SPLINED YOKE 4HK1-TCS ENG(RJS) (A)	1-09600-023-0	01	1	0905-0906		●		●
126	05.556 PLUG; SPLINED YOKE (A)	1-09600-023-0	01	1	0907-	●	●	●	●
126	05.556 PLUG; SPLINED YOKE 4HK1-TCS ENG(RJS) (B)	8-94366-900-0	01	1	0905-0906		●		●
126	05.556 PLUG; SPLINED YOKE (B)	8-94366-900-0	01	1	0907-	●	●	●	●
127	05.586 NIPPLE; GREASE,SPLINED YOKE 4HK1-TCS ENG(RJS) 05.601 M6 STRAIGHT	0-90301-406-0	01	1	0905-0906		●		●
127	05.586 NIPPLE; GREASE,SPLINED YOKE 05.601 M6 STRAIGHT	0-90301-406-0	01	1	0907-1304	●	●	●	●
127	05.586 NIPPLE; GREASE,SPLINED YOKE 4HK1-TCS ENG(RJS) 05.601 M6 STRAIGHT	0-90301-406-0	01	1	1305-		●		●
127	05.586 NIPPLE; GREASE,SPLINED YOKE 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 05.601 M6 STRAIGHT	0-90301-406-0	01	1	1305-	●
128	05.586 SEAL; SLEEVE 4HK1-TCS ENG(RJS)	8-97145-746-0	01	1	0905-0906		●		●
128	05.586 SEAL; SLEEVE 4HK1-TCS ENG(RJS)	8-97145-746-0	01	1	0907-		●		●
128	05.586 SEAL; SLEEVE 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W)	8-97145-746-0	01	1	0907-	●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) REAR AXLE HEAVY DUTY 320MM(6CP) WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (C) L=1252	8-98063-805-1	01	1	0909-		●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=1179	8-97387-790-3	01	1	0907-	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=1254	8-97387-791-3	01	1	0907-	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> (C) L=1066	8-97387-806-4	01	1	0907-		●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) REAR AXLE HEAVY DUTY 320MM(6CP) WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (C) L=1066	8-97387-806-4	01	1	0907-		●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY6S(RST) REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> (C) L=1066	8-97387-806-4	01	1	0907-				●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) WHEEL BASE 3300MM(33W) (C) L=1066	8-97387-806-4	01	1	0907-	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) (C) L=1066	8-97387-806-4	01	1	0907-			●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=770	8-98039-637-1	01	1	0907-	●	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=770	8-98039-637-1	01	1	0907-			●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=845	8-98039-649-1	01	1	0907-	●	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=845	8-98039-649-1	01	1	0907-			●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1280	8-98039-639-1	01	1	0907-0908		●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1280	8-98039-639-1	01	1	0909-		●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (C) L=1076	8-97383-854-4	01	1	0907-		●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) REAR AXLE HEAVY DUTY 320MM(6CP) WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> (C) L=1061	8-98113-044-2	01	1	0907-		●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY6S(RST) REAR AXLE HEAVY DUTY 320MM(6CP) WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> (C) L=1061	8-98113-044-2	01	1	0907-				●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY6S(RST) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=715	8-98039-638-1	01	1	0907-		●		●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY6S(RST) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=785	8-98039-655-1	01	1	0907-		●		●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY6S(RST) WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1155	8-98039-640-1	01	1	0907-0908		●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY6S(RST) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1155	8-98039-640-1	01	1	0909-		●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY6S(RST) WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1225	8-98039-641-1	01	1	0907-0908		●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY6S(RST) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1225	8-98039-641-1	01	1	0909-		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) (C) L=1001	8-98024-923-1	01	1	0905-0906		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) REAR AXLE HEAVY DUTY 320MM(6CP) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (C) L=1001	8-98024-923-1	01	1	0907-		●		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=627	8-98006-983-1	01	1	0905-0906		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=627	8-98006-983-1	01	1	0907-		●		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=683	8-98006-982-1	01	1	0905-0906		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=683	8-98006-982-1	01	1	0907-		●		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3800MM(38W) (C) L=1011	8-98040-477-1	01	1	0905-0906		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) REAR AXLE HEAVY DUTY 320MM(6CP) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (C) L=1011	8-98040-477-1	01	1	0907-		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1062	8-98040-528-1	01	1	0905-0908		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1062	8-98040-528-1	01	1	0909-		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1127	8-98040-793-1	01	1	0905-0908		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1127	8-98040-793-1	01	1	0909-		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) (C) L=1302	8-98024-925-0	01	1	0905-0906		●		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) REAR AXLE HEAVY DUTY 320MM(6CP) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (C) L=1302	8-98024-925-1	01	1	0907-		●		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1302	8-98040-529-1	01	1	0905-		●		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1367	8-98019-423-1	01	1	0905-		●		●

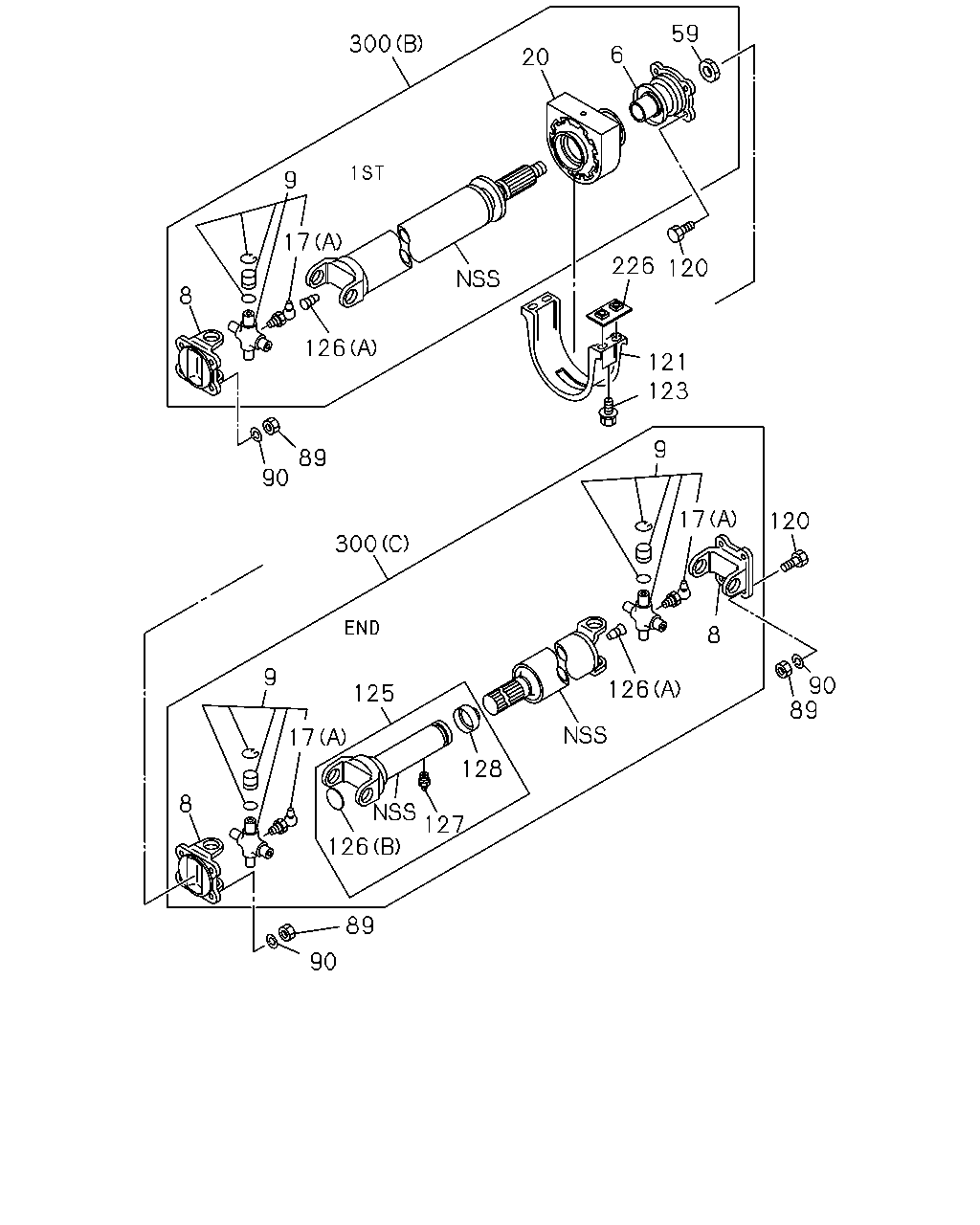

59 300 6 20 9 17 226 120 8 126 121 123 9 89 90 17 120 300 8 9 90 89 126 125 17 128 127 8 126 89 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
6	05.600 COUPLING ASM; DRIVER,PROP SHAFT 4HK1-TCS ENG(RJS)	8-98020-796-0	01	1	0905-		●		●
8	05.544 YOKE; FLANGE,PROP SHAFT 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) D=80	8-97322-663-0	02	1	0907-	●
8	05.544 YOKE; FLANGE,PROP SHAFT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) D=80	8-97322-663-0	01	1	0907-0908	●	●	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) D=80	8-97322-663-0	01	1	0907-0908	●	●	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) D=80	8-97322-663-0	01	1	0909-	●	●	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) D=80	8-97322-663-0	01	1	0909-	●	●	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT 4HK1-TCS ENG(RJS) D=80	1-37211-037-4	01	1	0905-		●		●
8	05.544 YOKE; FLANGE,PROP SHAFT 4HK1-TCS ENG(RJS) D=80	1-37211-037-4	02	1	0905-		●		●
9	05.548 JOURNAL ASM; PROP SHAFT 4JJ1-TCS ENG(LFB)	8-98033-605-1	02	1	0907-	●	●	●	●
9	05.548 JOURNAL ASM; PROP SHAFT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W)	8-98033-605-0	01	1	0907-0908	●	●	●	●
9	05.548 JOURNAL ASM; PROP SHAFT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W)	8-98033-605-1	01	1	0909-	●	●	●	●
9	05.548 JOURNAL ASM; PROP SHAFT 4HK1-TCS ENG(RJS)	8-98020-789-1	01	1	0905-		●		●
9	05.548 JOURNAL ASM; PROP SHAFT 4HK1-TCS ENG(RJS)	8-98020-789-1	02	1	0905-		●		●
17	05.601 NIPPLE; GREASE,PROP SHAFT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) M6 STRAIGHT	0-90301-406-0	02	1	0907-0908	●	●	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (B) M6 STRAIGHT	0-90301-406-0	02	1	0909-	●	●	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 4HK1-TCS ENG(RJS) 08.984 (A) PT1/8 ELBOW	0-90301-610-0	01	1	0905-0906		●		●
17	05.601 NIPPLE; GREASE,PROP SHAFT WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) 08.984 (A) PT1/8 ELBOW	0-90301-610-0	01	1	0907-0908	●	●	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 08.984 (A) PT1/8 ELBOW	0-90301-610-0	01	1	0909-	●	●	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 4HK1-TCS ENG(RJS) 08.984 (A) PT1/8 ELBOW	0-90301-610-0	02	1	0905-0906		●		●
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 (A) PT1/8 ELBOW	0-90301-610-0	02	1	0907-	●	●	●	●
20	05.600 BEARING ASM; CTR,PROP SHAFT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W)	8-98033-936-0	01	1	0907-0908	●	●	●	●
20	05.600 BEARING ASM; CTR,PROP SHAFT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W)	8-98033-936-0	01	1	0909-	●	●	●	●
20	05.600 BEARING ASM; CTR,PROP SHAFT 4HK1-TCS ENG(RJS)	8-98020-880-0	01	1	0905-		●		●
59	05.586 NUT; RET TO SUPPORT 4HK1-TCS ENG(RJS) M30	8-97160-857-0	01	1	0905-		●		●
89	05.586 NUT; YOKE TO RR AXLE 4JJ1-TCS ENG(LFB) M12	8-97365-450-1	08	1	0907-	●	●	●	●
89	05.586 NUT; YOKE TO RR AXLE 4HK1-TCS ENG(RJS) M12	8-97365-450-1	12	1	0905-		●		●
90	05.586 WASHER; LK,YOKE TO RR AXLE 4JJ1-TCS ENG(LFB) 07.347 ID=12.2	0-91510-812-0	08	1	0907-	●	●	●	●
90	05.586 WASHER; LK,YOKE TO RR AXLE 4HK1-TCS ENG(RJS) 07.347 ID=12.2	0-91510-812-0	12	1	0905-		●		●
120	05.586 BOLT; YOKE TO RR AXLE 4JJ1-TCS ENG(LFB) M12X35	8-97365-451-1	04	1	0907-	●	●	●	●
120	05.586 BOLT; YOKE TO RR AXLE 4HK1-TCS ENG(RJS) M12X35	8-97365-451-1	08	1	0905-		●		●
121	05.598 RETAINER; CUSHION RUBBER WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W)	8-97035-623-1	01	1	0905-0908		●		●
121	05.598 RETAINER; CUSHION RUBBER WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W)	8-97035-623-1	01	1	0909-	●	●	●	●
123	05.601 BOLT; RET WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) M10X25 W/LK&PL WASHER	0-50641-025-0	04	1	0905-0908		●		●
123	05.601 BOLT; RET WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) M10X25 W/LK&PL WASHER	0-50641-025-0	04	1	0909-	●	●	●	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) L=246	8-98034-338-1	01	1	0907-	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) L=183	8-98033-647-2	01	1	0907-	●	●	●	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT 4HK1-TCS ENG(RJS) L=224	8-98044-229-0	01	1	0905-		●		●
126	05.556 PLUG; SPLINED YOKE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A)	1-09600-023-0	02	1	0907-	●	●	●	●
126	05.556 PLUG; SPLINED YOKE 4HK1-TCS ENG(RJS) (A)	1-09600-023-0	01	1	0905-0906		●		●
126	05.556 PLUG; SPLINED YOKE (A)	1-09600-023-0	01	1	0907-	●	●	●	●
126	05.556 PLUG; SPLINED YOKE 4HK1-TCS ENG(RJS) (B)	8-94366-900-0	01	1	0905-0906		●		●
126	05.556 PLUG; SPLINED YOKE (B)	8-94366-900-0	01	1	0907-	●	●	●	●
127	05.586 NIPPLE; GREASE,SPLINED YOKE 4HK1-TCS ENG(RJS) 05.601 M6 STRAIGHT	0-90301-406-0	01	1	0905-0906		●		●
127	05.586 NIPPLE; GREASE,SPLINED YOKE 05.601 M6 STRAIGHT	0-90301-406-0	01	1	0907-1304	●	●	●	●
127	05.586 NIPPLE; GREASE,SPLINED YOKE 4HK1-TCS ENG(RJS) 05.601 M6 STRAIGHT	0-90301-406-0	01	1	1305-		●		●
127	05.586 NIPPLE; GREASE,SPLINED YOKE 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 05.601 M6 STRAIGHT	0-90301-406-0	01	1	1305-	●
128	05.586 SEAL; SLEEVE 4HK1-TCS ENG(RJS)	8-97145-746-0	01	1	0905-0906		●		●
128	05.586 SEAL; SLEEVE 4HK1-TCS ENG(RJS)	8-97145-746-0	01	1	0907-		●		●
128	05.586 SEAL; SLEEVE 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W)	8-97145-746-0	01	1	0907-	●
226	05.586 PLATE; LK,CENTER BRG WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W)	8-97371-572-0	02	1	0905-0908		●		●
226	05.586 PLATE; LK,CENTER BRG WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W)	8-97371-572-0	02	1	0909-	●	●	●	●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) REAR AXLE HEAVY DUTY 320MM(6CP) WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (C) L=1252	8-98063-805-1	01	1	0909-		●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=1179	8-97387-790-3	01	1	0907-	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=1254	8-97387-791-3	01	1	0907-	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> (C) L=1066	8-97387-806-4	01	1	0907-		●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) REAR AXLE HEAVY DUTY 320MM(6CP) WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (C) L=1066	8-97387-806-4	01	1	0907-		●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY6S(RST) REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> (C) L=1066	8-97387-806-4	01	1	0907-				●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) WHEEL BASE 3300MM(33W) (C) L=1066	8-97387-806-4	01	1	0907-	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) (C) L=1066	8-97387-806-4	01	1	0907-			●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=770	8-98039-637-1	01	1	0907-	●	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=770	8-98039-637-1	01	1	0907-			●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=845	8-98039-649-1	01	1	0907-	●	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=845	8-98039-649-1	01	1	0907-			●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1280	8-98039-639-1	01	1	0907-0908		●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1280	8-98039-639-1	01	1	0909-		●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (C) L=1076	8-97383-854-4	01	1	0907-		●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) REAR AXLE HEAVY DUTY 320MM(6CP) WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> (C) L=1061	8-98113-044-2	01	1	0907-		●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY6S(RST) REAR AXLE HEAVY DUTY 320MM(6CP) WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> (C) L=1061	8-98113-044-2	01	1	0907-				●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY6S(RST) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=715	8-98039-638-1	01	1	0907-		●		●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY6S(RST) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=785	8-98039-655-1	01	1	0907-		●		●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY6S(RST) WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1155	8-98039-640-1	01	1	0907-0908		●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY6S(RST) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1155	8-98039-640-1	01	1	0909-		●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY6S(RST) WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1225	8-98039-641-1	01	1	0907-0908		●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) M/T MYY6S(RST) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1225	8-98039-641-1	01	1	0909-		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) (C) L=1001	8-98024-923-1	01	1	0905-0906		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) REAR AXLE HEAVY DUTY 320MM(6CP) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (C) L=1001	8-98024-923-1	01	1	0907-		●		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=627	8-98006-983-1	01	1	0905-0906		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=627	8-98006-983-1	01	1	0907-		●		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=683	8-98006-982-1	01	1	0905-0906		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=683	8-98006-982-1	01	1	0907-		●		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3800MM(38W) (C) L=1011	8-98040-477-1	01	1	0905-0906		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) REAR AXLE HEAVY DUTY 320MM(6CP) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (C) L=1011	8-98040-477-1	01	1	0907-		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1062	8-98040-528-1	01	1	0905-0908		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1062	8-98040-528-1	01	1	0909-		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1127	8-98040-793-1	01	1	0905-0908		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1127	8-98040-793-1	01	1	0909-		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) (C) L=1302	8-98024-925-0	01	1	0905-0906		●		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) REAR AXLE HEAVY DUTY 320MM(6CP) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (C) L=1302	8-98024-925-1	01	1	0907-		●		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1302	8-98040-529-1	01	1	0905-		●		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1367	8-98019-423-1	01	1	0905-		●		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
