◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51237 - NNR/NPR(EU)-LHD EU5 ▶ 3 - Brakes, Brake System ▶ 3-60 - BRAKE PIPING; VACUUM ▶
3-60 — BRAKE PIPING; VACUUM (#77202) — 1227 parça
çizim 121205
78 108 80 66 85 66 116 66 80 66 33 33
BalonParca AdiParca NoAdetTipApplied Date A B C D
33 04.930 CLIP; VAC PIPE
POWER ASSIST CLUTCH(S2T) ID=10 H=40 		8-94462-219-0 02 1 0905-0906 ● ●
33 04.930 CLIP; VAC PIPE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) ID=10 H=40 		8-94462-219-0 02 1 0907- ● ●
33 04.930 CLIP; VAC PIPE
EXC. HYDRO BRAKE BOOSTER(7QQ) ID=10 H=40 		8-94462-219-0 02 1 0907- ● ●
33 04.930 CLIP; VAC PIPE
ID=10 H=40 		8-94462-219-0 02 1 0907- ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> ID=16 		8-94238-568-0 02 1 0907-0907 ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
ID=16 		8-94238-568-0 02 1 0907-0907 ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
ID=16 		8-94238-568-0 02 1 0907-0911 ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
03.162 ID=16 		8-98008-098-0 02 1 0912- ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
ID=16 		8-94238-568-0 08 1 0905-0906 ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
FRAME STRAIGHT TYPE<7KJ> ID=16 		8-94238-568-0 08 1 0907-0907 ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
FRAME STRAIGHT TYPE<7KJ> ID=16 		8-94238-568-0 06 1 0907-0911 ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16 		8-98008-098-0 06 1 0912- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 03.630 (H) L=130 SERVICED BY L=3000 		0-08258-300-0 01 1 0907- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) 03.630 (H) L=130 SERVICED BY L=3000 		0-08258-300-0 01 1 0907- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98092-678-0 01 1 0907-1008 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(F) 		8-98092-678-0 01 1 0907-1008 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98171-288-0 01 1 1009- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(F) 		8-98171-288-0 01 1 1009- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (G) 		8-98106-711-0 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(G) 		8-98106-711-0 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (G) 		8-97389-728-2 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(G) 		8-97389-728-2 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
POWER ASSIST CLUTCH(S2T) (B) 		8-98081-681-2 01 1 0905-0906 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98081-681-2 01 1 0907- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98081-681-2 01 1 0907- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(B) 		8-98081-681-2 01 1 0907- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(D) 		8-98034-104-4 01 1 0905-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (D) 		8-98034-104-4 01 1 0907-1103 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (D) 		8-98189-106-0 01 1 1104- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(E) 		8-98133-654-1 01 1 0905-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (E) 		8-98133-654-1 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-98034-112-4 01 1 0905-0906 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98034-112-4 01 1 0907-0909 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98136-614-0 01 1 0910- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
03.630 (E) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 0905-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> 03.630 (E) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(D) 		8-98040-702-2 01 1 0905-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (D) 		8-98040-702-2 01 1 0907-1103 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (D) 		8-98189-103-0 01 1 1104- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
04.681 (C) 		8-98096-135-0 01 1 0905-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) 04.681 (C) 		8-98096-135-0 01 1 0907- ●
80 04.930 PIPE; VAC,ENG SIDE
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FRAME STRAIGHT TYPE<7KJ> (E) 		8-98135-522-0 01 1 1205- ● ●
80 04.930 PIPE; VAC,ENG SIDE
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E) 		8-98135-522-0 01 1 1205- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98058-594-0 01 1 0907- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) (D) 		8-98058-594-0 01 1 0907- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-98103-509-0 01 1 0907-1204 ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) (E) 		8-98103-509-0 01 1 0907-1204 ● ●
80 04.930 PIPE; VAC,ENG SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-98103-509-0 01 1 1205- ● ●
80 04.930 PIPE; VAC,ENG SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (E) 		8-98103-509-0 01 1 1205- ● ●
80 04.930 PIPE; VAC,ENG SIDE
(A) 		8-98097-788-0 01 1 0905-0906 ●
80 04.930 PIPE; VAC,ENG SIDE
HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98097-788-0 01 1 0907- ●
80 04.930 PIPE; VAC,ENG SIDE
(B) 		8-98039-753-0 01 1 0905-0906 ● ●
80 04.930 PIPE; VAC,ENG SIDE
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98039-753-0 01 1 0907- ● ●
80 04.930 PIPE; VAC,ENG SIDE
(C) 		8-98092-258-1 01 1 0905-0906 ●
80 04.930 PIPE; VAC,ENG SIDE
HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98092-258-1 01 1 0907- ●
85 04.931 HOSE; VAC,ENG SIDE
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FRAME STRAIGHT TYPE<7KJ> 		8-98135-573-0 01 1 1205- ● ●
85 04.931 HOSE; VAC,ENG SIDE
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98135-573-0 01 1 1205- ● ●
85 04.931 HOSE; VAC,ENG SIDE
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97389-705-2 01 1 0907-1204 ● ●
85 04.931 HOSE; VAC,ENG SIDE 8-97389-705-2 01 1 0907-1204 ● ●
85 04.931 HOSE; VAC,ENG SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97389-705-2 01 1 1205- ● ●
85 04.931 HOSE; VAC,ENG SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-97389-705-2 01 1 1205- ● ●
108 04.931 GROMMET; PIPE
02.343 (B) ID=17 		8-94128-319-2 01 1 0905-0906 ● ●
108 04.931 GROMMET; PIPE
02.343 (B) ID=17 		8-94128-319-2 01 1 0907- ● ● ● ●
108 04.931 GROMMET; PIPE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		9-09956-353-0 01 1 0905-0906 ● ●
108 04.931 GROMMET; PIPE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		9-09956-353-0 01 1 0907-0908 ● ● ● ●
108 04.931 GROMMET; PIPE
HYDRO BRAKE BOOSTER(7QQ) EXC. POWER ASSIST CLUTCH(S2T) (A) 		9-09956-353-0 01 1 0909- ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (E) L=200 SERVICED BY L=3000 		0-08158-300-0 01 1 0907- ● ●
116 04.931 HOSE; VAC,M/VAC
(E) L=200 SERVICED BY L=3000 		0-08158-300-0 01 1 0907- ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98113-001-0 01 1 0907- ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98113-001-0 01 1 0907- ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (A) 		8-98113-000-1 01 1 0905-0906 ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (A) 		8-98113-000-1 01 1 0907- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
(D) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 0905-0906 ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (D) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 0907- ● ●
116 04.931 HOSE; VAC,M/VAC
03.630 (B) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 0905-0906 ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> 03.630 (B) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 0907- ● ●
116 04.931 HOSE; VAC,M/VAC
(C) 		8-98034-276-2 01 1 0905-0906 ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (C) 		8-98034-276-2 01 1 0907-0911 ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (C) 		8-98158-378-0 01 1 0912- ● ●
çizim 121276
12 12 127 197 128 198 12 12 12 106 12 237 236 44 238 12 12 237
BalonParca AdiParca NoAdetTipApplied Date A B C D
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (C) ID=18 L=50 		1-09700-302-1 01 1 0907- ● ● ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (D) ID=19 H=70 L=25 		1-09700-773-0 01 1 0907- ● ● ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (E) ID=16.5 & 16.5 		8-94468-380-0 01 1 0907- ● ● ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 0907- ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 0907- ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 0907- ● ●
12 04.681 CLIP; HOSE
04.930 (A) ID=15.5 		8-98008-097-0 02 1 0907- ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 0905-0906 ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 0905-0906 ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5 		8-98008-097-0 06 1 0907- ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 06 1 0907- ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) 04.930 (B) ID=16 		8-94238-568-0 02 1 0905-0906 ●
12 04.681 CLIP; HOSE
WHEEL BASE 4400MM(44W) 04.930 (B) ID=16 		8-94238-568-0 02 1 0905-0906 ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 04 1 0907-0911 ● ● ● ●
12 04.681 CLIP; HOSE
FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 04 1 0907-0911 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (B) ID=16 		8-98008-098-0 04 1 0912- ● ● ● ●
12 04.681 CLIP; HOSE
FRAME STRAIGHT TYPE<7KJ> 03.162 (B) ID=16 		8-98008-098-0 04 1 0912- ● ●
12 04.681 CLIP; HOSE
04.930 (B) ID=16 		8-94238-568-0 04 1 0905-0906 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0908 ●
12 04.681 CLIP; HOSE
WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0908 ●
12 04.681 CLIP; HOSE
WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0908 ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0908 ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 02 1 0909-0911 ●
12 04.681 CLIP; HOSE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 02 1 0909-0911 ●
12 04.681 CLIP; HOSE
WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 02 1 0909-0911 ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 04.930 (B) ID=16 		8-94238-568-0 02 1 0909-0911 ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (B) ID=16 		8-98008-098-0 02 1 0912- ●
12 04.681 CLIP; HOSE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 03.162 (B) ID=16 		8-98008-098-0 02 1 0912- ●
12 04.681 CLIP; HOSE
WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 03.162 (B) ID=16 		8-98008-098-0 02 1 0912- ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 03.162 (B) ID=16 		8-98008-098-0 02 1 0912- ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (C) 		8-98089-666-0 01 1 0907- ●
44 04.930 PIPE; VAC,MAG VLV
EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98063-777-0 01 1 0907- ●
44 04.930 PIPE; VAC,MAG VLV
(D) 		8-98063-777-0 01 1 0907- ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-98095-039-0 01 1 0907- ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) (B) 		8-98040-807-1 01 1 0905-0906 ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 4400MM(44W) (B) 		8-98040-807-1 01 1 0905-0906 ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98040-807-1 01 1 0907-0908 ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98040-807-1 01 1 0907-0908 ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98040-807-1 01 1 0909- ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98040-807-1 01 1 0909- ●
44 04.930 PIPE; VAC,MAG VLV
(A) 		8-98034-281-1 01 1 0905-0906 ●
44 04.930 PIPE; VAC,MAG VLV
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98034-281-1 01 1 0907- ●
44 04.930 PIPE; VAC,MAG VLV
(A) 		8-98040-634-0 01 1 0905-0906 ●
44 04.930 PIPE; VAC,MAG VLV
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98040-634-0 01 1 0907- ●
106 04.930 CLIP; PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) ID=10 H=40 		8-94462-219-0 01 1 0907- ●
106 04.930 CLIP; PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> ID=10 H=40 		8-94462-219-0 02 1 0907- ●
127 04.930 BOLT; CLIP
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0907- ● ● ● ●
127 04.930 BOLT; CLIP
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0907- ●
128 04.930 NUT; CLIP
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0907- ● ● ● ●
128 04.930 NUT; CLIP
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0907- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) EXC. FUEL TANK 63 LITTER<6EF> 		8-98034-371-1 01 1 0908- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98083-557-0 01 1 0908- ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EXC. FUEL TANK 63 LITTER<6EF> 		8-98083-557-0 01 1 0908- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) EXC. FUEL TANK 63 LITTER<6EF> 		8-98083-557-0 01 1 0908- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) FUEL TANK 63 LITTER<6EF> 		8-98146-249-0 01 1 0907- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) FUEL TANK 63 LITTER<6EF> 		8-98146-250-0 01 1 0907- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) FUEL TANK 63 LITTER<6EF> 		8-98146-250-0 01 1 0907- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98083-558-0 01 1 0907- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 3300MM(33W) 		8-98133-640-0 01 1 0905-0906 ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> 		8-98133-640-0 01 1 0907- ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 3800MM(38W) 		8-98133-641-0 01 1 0905-0906 ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> 		8-98133-641-0 01 1 0907-0908 ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> 		8-98133-641-0 01 1 0909- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 4400MM(44W) 		8-98133-642-0 01 1 0905-0906 ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 		8-98133-642-0 01 1 0907- ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (C) 		8-97373-197-0 01 1 0907- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98041-642-0 01 1 0907- ● ● ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 3300MM(33W) 03.630 (A) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 0905-0906 ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> 03.630 (A) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 0907- ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 3800MM(38W) 03.630 (B) L=230 SERVICED BY L=3000 		0-08258-300-0 01 1 0905-0906 ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> 03.630 (B) L=230 SERVICED BY L=3000 		0-08258-300-0 01 1 0907-0908 ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> 03.630 (B) L=230 SERVICED BY L=3000 		0-08258-300-0 01 1 0909- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 4400MM(44W) 03.630 (B) L=200 SERVICED BY L=3000 		0-08258-300-0 01 1 0905-0906 ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 03.630 (B) L=200 SERVICED BY L=3000 		0-08258-300-0 01 1 0907- ● ●
236 04.930 BOLT; PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 0907- ●
236 04.930 BOLT; PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 0907- ●
236 04.930 BOLT; PIPE
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0905-0906 ●
236 04.930 BOLT; PIPE
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0907- ● ●
236 04.930 BOLT; PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0907- ●
236 04.930 BOLT; PIPE
00.029 M10X25 FLANGE 		0-28651-025-0 01 1 0905-0906 ●
236 04.930 BOLT; PIPE
FRAME STRAIGHT TYPE<7KJ> 00.029 M10X25 FLANGE 		0-28651-025-0 01 1 0907- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 03.630 (D) L=250 SERVICED BY L=3000 		0-08258-300-0 01 1 0907- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-98034-429-0 01 1 0907- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (E) 		8-98034-429-0 01 1 0907- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98034-430-0 01 1 0907-1008 ● ● ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98171-279-0 01 1 1009- ● ● ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 03.630 (G) L=180 SERVICED BY L=3000 		0-08258-300-0 01 1 0907- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3300MM(33W) (A) 		8-97378-772-0 01 1 0905-0906 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (A) 		8-97378-772-0 01 1 0907- ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3800MM(38W) (B) 		8-97378-771-0 01 1 0905-0906 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97378-771-0 01 1 0907-0908 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97378-771-0 01 1 0909- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) (C) 		8-98040-785-1 01 1 0905-0906 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 4400MM(44W) (C) 		8-98040-785-1 01 1 0905-0906 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (C) 		8-98040-785-1 01 1 0907-0908 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (C) 		8-98040-785-1 01 1 0907-0908 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (C) 		8-98040-785-1 01 1 0909- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (C) 		8-98040-785-1 01 1 0909- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 4400MM(44W) (B) 		8-98101-554-0 01 1 0905-0906 ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98101-554-0 01 1 0907- ● ●
238 04.892 ORIFICE; VACUUM HOSE 8-97377-521-0 01 1 0905-0906 ● ●
238 04.892 ORIFICE; VACUUM HOSE 8-97377-521-0 01 1 0907- ● ● ● ●

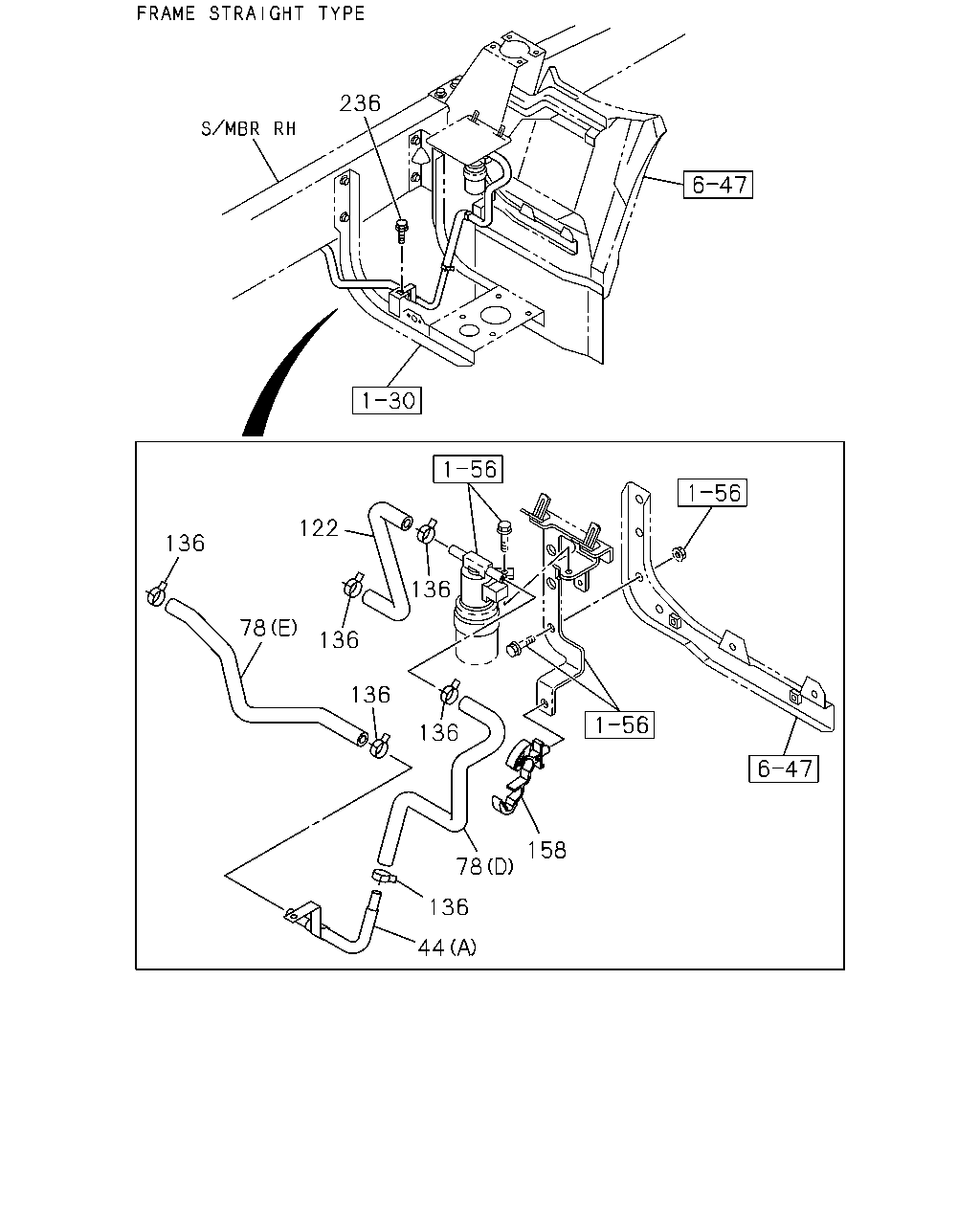

çizim 121384
236 122 136 136 78 136 136 136 158 78 136 44
BalonParca AdiParca NoAdetTipApplied Date A B C D
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (C) 		8-98089-666-0 01 1 0907- ●
44 04.930 PIPE; VAC,MAG VLV
EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98063-777-0 01 1 0907- ●
44 04.930 PIPE; VAC,MAG VLV
(D) 		8-98063-777-0 01 1 0907- ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-98095-039-0 01 1 0907- ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) (B) 		8-98040-807-1 01 1 0905-0906 ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 4400MM(44W) (B) 		8-98040-807-1 01 1 0905-0906 ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98040-807-1 01 1 0907-0908 ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98040-807-1 01 1 0907-0908 ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98040-807-1 01 1 0909- ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98040-807-1 01 1 0909- ●
44 04.930 PIPE; VAC,MAG VLV
(A) 		8-98034-281-1 01 1 0905-0906 ●
44 04.930 PIPE; VAC,MAG VLV
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98034-281-1 01 1 0907- ●
44 04.930 PIPE; VAC,MAG VLV
(A) 		8-98040-634-0 01 1 0905-0906 ●
44 04.930 PIPE; VAC,MAG VLV
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98040-634-0 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 03.630 (H) L=130 SERVICED BY L=3000 		0-08258-300-0 01 1 0907- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) 03.630 (H) L=130 SERVICED BY L=3000 		0-08258-300-0 01 1 0907- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98092-678-0 01 1 0907-1008 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(F) 		8-98092-678-0 01 1 0907-1008 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98171-288-0 01 1 1009- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(F) 		8-98171-288-0 01 1 1009- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (G) 		8-98106-711-0 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(G) 		8-98106-711-0 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (G) 		8-97389-728-2 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(G) 		8-97389-728-2 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
POWER ASSIST CLUTCH(S2T) (B) 		8-98081-681-2 01 1 0905-0906 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98081-681-2 01 1 0907- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98081-681-2 01 1 0907- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(B) 		8-98081-681-2 01 1 0907- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(D) 		8-98034-104-4 01 1 0905-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (D) 		8-98034-104-4 01 1 0907-1103 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (D) 		8-98189-106-0 01 1 1104- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(E) 		8-98133-654-1 01 1 0905-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (E) 		8-98133-654-1 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-98034-112-4 01 1 0905-0906 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98034-112-4 01 1 0907-0909 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98136-614-0 01 1 0910- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
03.630 (E) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 0905-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> 03.630 (E) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(D) 		8-98040-702-2 01 1 0905-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (D) 		8-98040-702-2 01 1 0907-1103 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (D) 		8-98189-103-0 01 1 1104- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
04.681 (C) 		8-98096-135-0 01 1 0905-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) 04.681 (C) 		8-98096-135-0 01 1 0907- ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98092-677-0 01 1 0907- ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE 8-98092-677-0 01 1 0907- ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97389-721-1 01 1 0907- ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE 8-97389-721-1 01 1 0907- ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE 8-98034-103-2 01 1 0905-0906 ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
FRAME STRAIGHT TYPE<7KJ> 		8-98034-103-2 01 1 0907-1103 ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
FRAME STRAIGHT TYPE<7KJ> 		8-98189-104-0 01 1 1104- ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE 8-98040-701-1 01 1 0905-0906 ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
FRAME STRAIGHT TYPE<7KJ> 		8-98040-701-1 01 1 0907-1103 ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
FRAME STRAIGHT TYPE<7KJ> 		8-98189-105-0 01 1 1104- ●
136 04.681 CLIP; VAC HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 ID=16 		8-94238-568-0 02 1 0907-0911 ●
136 04.681 CLIP; VAC HOSE
04.930 ID=16 		8-94238-568-0 02 1 0907-0911 ●
136 04.681 CLIP; VAC HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16 		8-98008-098-0 02 1 0912- ●
136 04.681 CLIP; VAC HOSE
03.162 ID=16 		8-98008-098-0 02 1 0912- ●
136 04.681 CLIP; VAC HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 ID=16 		8-94238-568-0 04 1 0907-0911 ● ●
136 04.681 CLIP; VAC HOSE
04.930 ID=16 		8-94238-568-0 04 1 0907-0911 ● ●
136 04.681 CLIP; VAC HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16 		8-98008-098-0 04 1 0912- ● ●
136 04.681 CLIP; VAC HOSE
03.162 ID=16 		8-98008-098-0 04 1 0912- ● ●
136 04.681 CLIP; VAC HOSE
04.930 ID=16 		8-94238-568-0 06 1 0905-0906 ● ●
136 04.681 CLIP; VAC HOSE
FRAME STRAIGHT TYPE<7KJ> 04.930 ID=16 		8-94238-568-0 06 1 0907-0911 ● ●
136 04.681 CLIP; VAC HOSE
FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16 		8-98008-098-0 06 1 0912- ● ●
158 04.681 CLIP; HOSE
02.559 ID=14-20 		8-97061-603-0 01 1 0905-0906 ●
158 04.681 CLIP; HOSE
02.559 ID=14-20 		8-97061-603-0 01 1 0907- ● ●
236 04.930 BOLT; PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 0907- ●
236 04.930 BOLT; PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 0907- ●
236 04.930 BOLT; PIPE
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0905-0906 ●
236 04.930 BOLT; PIPE
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0907- ● ●
236 04.930 BOLT; PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0907- ●
236 04.930 BOLT; PIPE
00.029 M10X25 FLANGE 		0-28651-025-0 01 1 0905-0906 ●
236 04.930 BOLT; PIPE
FRAME STRAIGHT TYPE<7KJ> 00.029 M10X25 FLANGE 		0-28651-025-0 01 1 0907- ●

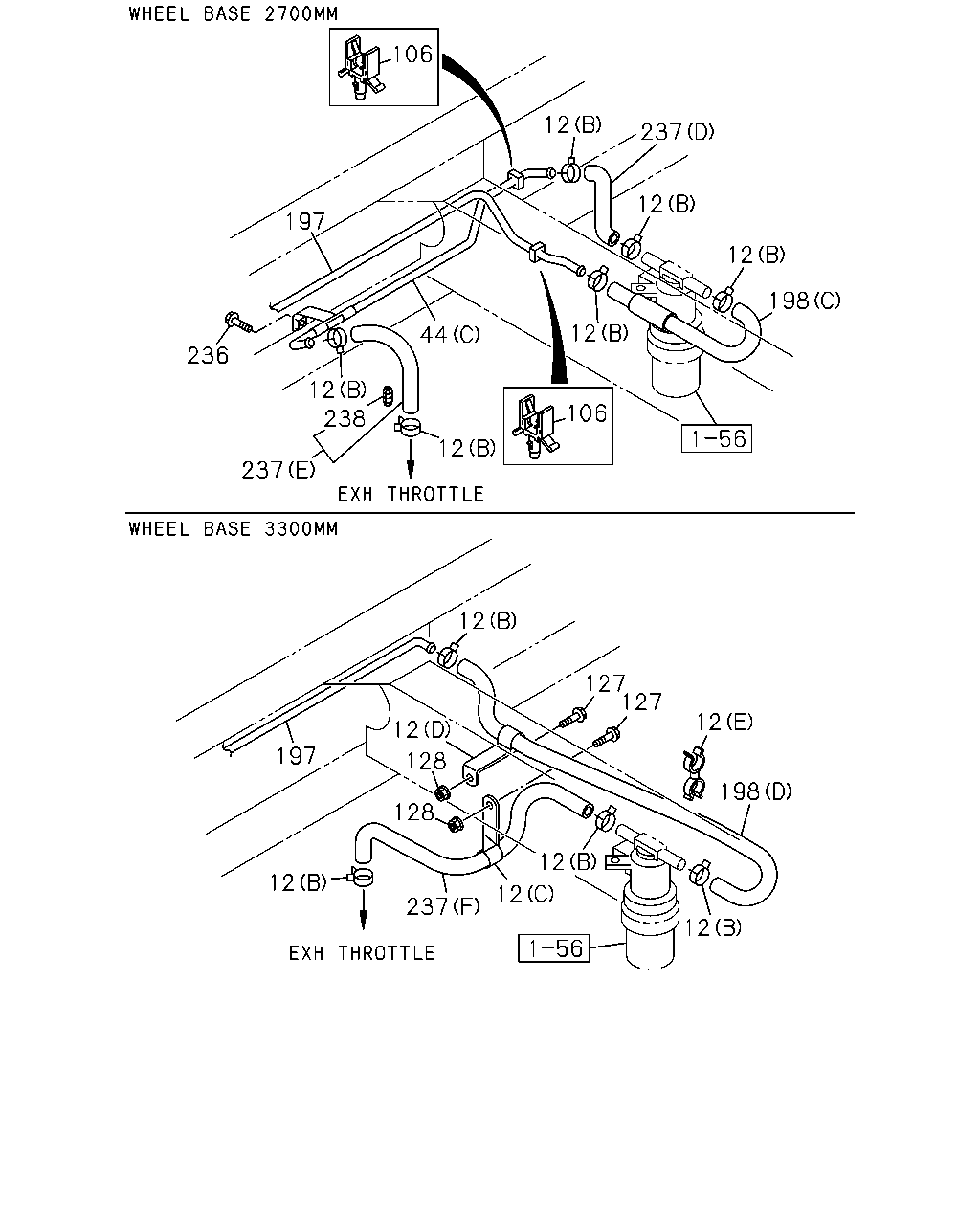

çizim 121419
197 12 198 12 237 12 238 12 12 197 198 12 12 237 228 12 44 12 237 238 12
BalonParca AdiParca NoAdetTipApplied Date A B C D
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (C) ID=18 L=50 		1-09700-302-1 01 1 0907- ● ● ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (D) ID=19 H=70 L=25 		1-09700-773-0 01 1 0907- ● ● ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (E) ID=16.5 & 16.5 		8-94468-380-0 01 1 0907- ● ● ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 0907- ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 0907- ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 0907- ● ●
12 04.681 CLIP; HOSE
04.930 (A) ID=15.5 		8-98008-097-0 02 1 0907- ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 0905-0906 ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 0905-0906 ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5 		8-98008-097-0 06 1 0907- ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 06 1 0907- ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) 04.930 (B) ID=16 		8-94238-568-0 02 1 0905-0906 ●
12 04.681 CLIP; HOSE
WHEEL BASE 4400MM(44W) 04.930 (B) ID=16 		8-94238-568-0 02 1 0905-0906 ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 04 1 0907-0911 ● ● ● ●
12 04.681 CLIP; HOSE
FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 04 1 0907-0911 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (B) ID=16 		8-98008-098-0 04 1 0912- ● ● ● ●
12 04.681 CLIP; HOSE
FRAME STRAIGHT TYPE<7KJ> 03.162 (B) ID=16 		8-98008-098-0 04 1 0912- ● ●
12 04.681 CLIP; HOSE
04.930 (B) ID=16 		8-94238-568-0 04 1 0905-0906 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0908 ●
12 04.681 CLIP; HOSE
WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0908 ●
12 04.681 CLIP; HOSE
WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0908 ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0908 ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 02 1 0909-0911 ●
12 04.681 CLIP; HOSE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 02 1 0909-0911 ●
12 04.681 CLIP; HOSE
WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 02 1 0909-0911 ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 04.930 (B) ID=16 		8-94238-568-0 02 1 0909-0911 ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (B) ID=16 		8-98008-098-0 02 1 0912- ●
12 04.681 CLIP; HOSE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 03.162 (B) ID=16 		8-98008-098-0 02 1 0912- ●
12 04.681 CLIP; HOSE
WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 03.162 (B) ID=16 		8-98008-098-0 02 1 0912- ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 03.162 (B) ID=16 		8-98008-098-0 02 1 0912- ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (C) 		8-98089-666-0 01 1 0907- ●
44 04.930 PIPE; VAC,MAG VLV
EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98063-777-0 01 1 0907- ●
44 04.930 PIPE; VAC,MAG VLV
(D) 		8-98063-777-0 01 1 0907- ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-98095-039-0 01 1 0907- ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) (B) 		8-98040-807-1 01 1 0905-0906 ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 4400MM(44W) (B) 		8-98040-807-1 01 1 0905-0906 ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98040-807-1 01 1 0907-0908 ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98040-807-1 01 1 0907-0908 ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98040-807-1 01 1 0909- ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98040-807-1 01 1 0909- ●
44 04.930 PIPE; VAC,MAG VLV
(A) 		8-98034-281-1 01 1 0905-0906 ●
44 04.930 PIPE; VAC,MAG VLV
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98034-281-1 01 1 0907- ●
44 04.930 PIPE; VAC,MAG VLV
(A) 		8-98040-634-0 01 1 0905-0906 ●
44 04.930 PIPE; VAC,MAG VLV
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98040-634-0 01 1 0907- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) EXC. FUEL TANK 63 LITTER<6EF> 		8-98034-371-1 01 1 0908- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98083-557-0 01 1 0908- ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EXC. FUEL TANK 63 LITTER<6EF> 		8-98083-557-0 01 1 0908- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) EXC. FUEL TANK 63 LITTER<6EF> 		8-98083-557-0 01 1 0908- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) FUEL TANK 63 LITTER<6EF> 		8-98146-249-0 01 1 0907- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) FUEL TANK 63 LITTER<6EF> 		8-98146-250-0 01 1 0907- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) FUEL TANK 63 LITTER<6EF> 		8-98146-250-0 01 1 0907- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98083-558-0 01 1 0907- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 3300MM(33W) 		8-98133-640-0 01 1 0905-0906 ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> 		8-98133-640-0 01 1 0907- ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 3800MM(38W) 		8-98133-641-0 01 1 0905-0906 ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> 		8-98133-641-0 01 1 0907-0908 ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> 		8-98133-641-0 01 1 0909- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 4400MM(44W) 		8-98133-642-0 01 1 0905-0906 ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 		8-98133-642-0 01 1 0907- ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (C) 		8-97373-197-0 01 1 0907- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98041-642-0 01 1 0907- ● ● ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 3300MM(33W) 03.630 (A) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 0905-0906 ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> 03.630 (A) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 0907- ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 3800MM(38W) 03.630 (B) L=230 SERVICED BY L=3000 		0-08258-300-0 01 1 0905-0906 ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> 03.630 (B) L=230 SERVICED BY L=3000 		0-08258-300-0 01 1 0907-0908 ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> 03.630 (B) L=230 SERVICED BY L=3000 		0-08258-300-0 01 1 0909- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 4400MM(44W) 03.630 (B) L=200 SERVICED BY L=3000 		0-08258-300-0 01 1 0905-0906 ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 03.630 (B) L=200 SERVICED BY L=3000 		0-08258-300-0 01 1 0907- ● ●
228 04.930 NUT; PIPE
WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0905-0906 ●
228 04.930 NUT; PIPE
WHEEL BASE 4400MM(44W) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0905-0906 ●
228 04.930 NUT; PIPE
WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0907-0908 ●
228 04.930 NUT; PIPE
WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0907-0908 ●
228 04.930 NUT; PIPE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0909- ●
228 04.930 NUT; PIPE
WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0909- ●
228 04.930 NUT; PIPE
03.162 M10 FLANGE 		0-91180-110-0 01 1 0905-0906 ●
228 04.930 NUT; PIPE
FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 0907- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 03.630 (D) L=250 SERVICED BY L=3000 		0-08258-300-0 01 1 0907- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-98034-429-0 01 1 0907- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (E) 		8-98034-429-0 01 1 0907- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98034-430-0 01 1 0907-1008 ● ● ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98171-279-0 01 1 1009- ● ● ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 03.630 (G) L=180 SERVICED BY L=3000 		0-08258-300-0 01 1 0907- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3300MM(33W) (A) 		8-97378-772-0 01 1 0905-0906 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (A) 		8-97378-772-0 01 1 0907- ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3800MM(38W) (B) 		8-97378-771-0 01 1 0905-0906 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97378-771-0 01 1 0907-0908 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97378-771-0 01 1 0909- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) (C) 		8-98040-785-1 01 1 0905-0906 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 4400MM(44W) (C) 		8-98040-785-1 01 1 0905-0906 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (C) 		8-98040-785-1 01 1 0907-0908 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (C) 		8-98040-785-1 01 1 0907-0908 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (C) 		8-98040-785-1 01 1 0909- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (C) 		8-98040-785-1 01 1 0909- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 4400MM(44W) (B) 		8-98101-554-0 01 1 0905-0906 ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98101-554-0 01 1 0907- ● ●
238 04.892 ORIFICE; VACUUM HOSE 8-97377-521-0 01 1 0905-0906 ● ●
238 04.892 ORIFICE; VACUUM HOSE 8-97377-521-0 01 1 0907- ● ● ● ●

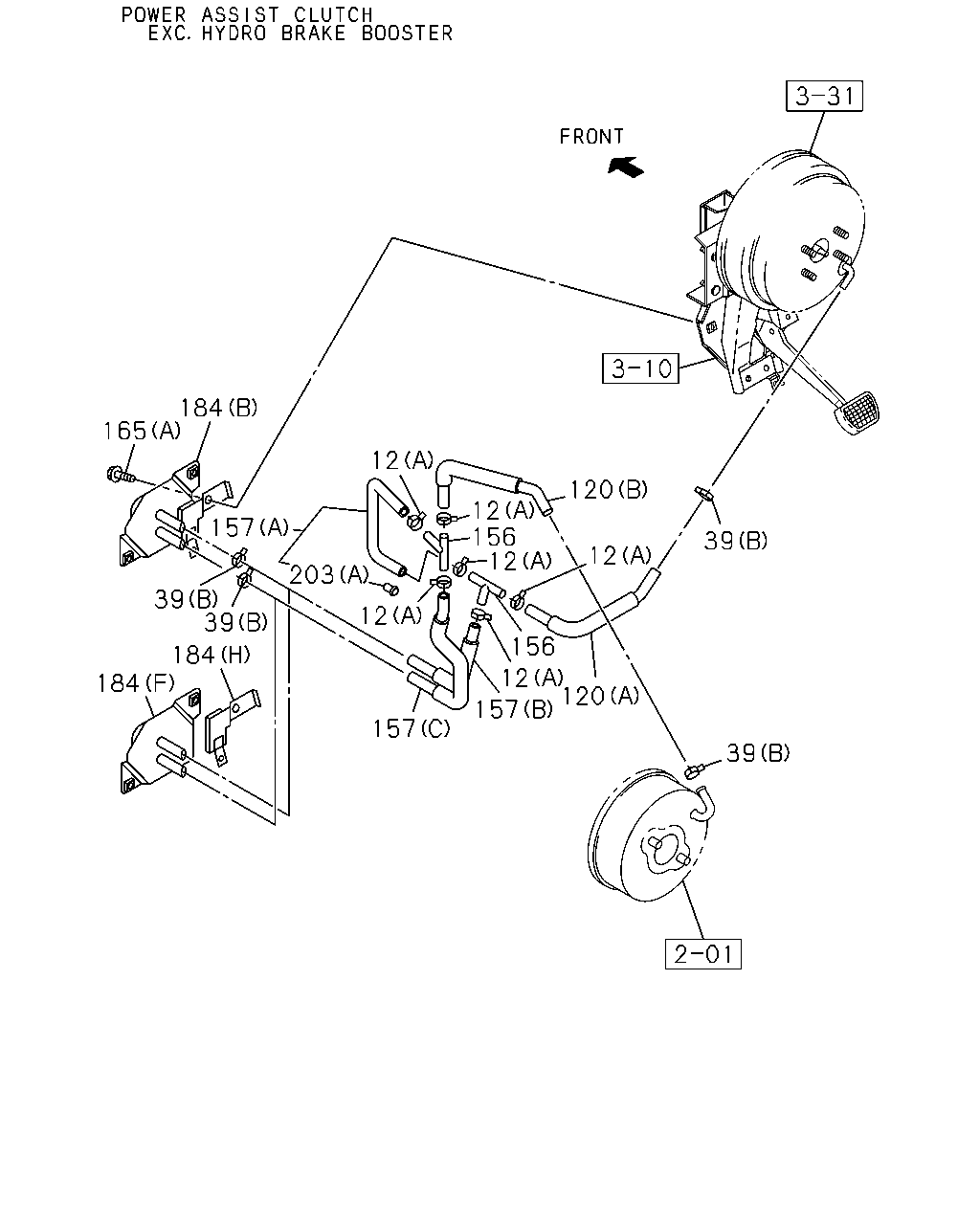

çizim 121443
184 165 12 120 12 156 12 157 39 12 203 39 39 12 156 184 184 12 120 157 157 39
BalonParca AdiParca NoAdetTipApplied Date A B C D
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (C) ID=18 L=50 		1-09700-302-1 01 1 0907- ● ● ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (D) ID=19 H=70 L=25 		1-09700-773-0 01 1 0907- ● ● ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (E) ID=16.5 & 16.5 		8-94468-380-0 01 1 0907- ● ● ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 0907- ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 0907- ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 0907- ● ●
12 04.681 CLIP; HOSE
04.930 (A) ID=15.5 		8-98008-097-0 02 1 0907- ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 0905-0906 ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 0905-0906 ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5 		8-98008-097-0 06 1 0907- ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 06 1 0907- ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) 04.930 (B) ID=16 		8-94238-568-0 02 1 0905-0906 ●
12 04.681 CLIP; HOSE
WHEEL BASE 4400MM(44W) 04.930 (B) ID=16 		8-94238-568-0 02 1 0905-0906 ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 04 1 0907-0911 ● ● ● ●
12 04.681 CLIP; HOSE
FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 04 1 0907-0911 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (B) ID=16 		8-98008-098-0 04 1 0912- ● ● ● ●
12 04.681 CLIP; HOSE
FRAME STRAIGHT TYPE<7KJ> 03.162 (B) ID=16 		8-98008-098-0 04 1 0912- ● ●
12 04.681 CLIP; HOSE
04.930 (B) ID=16 		8-94238-568-0 04 1 0905-0906 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0908 ●
12 04.681 CLIP; HOSE
WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0908 ●
12 04.681 CLIP; HOSE
WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0908 ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0908 ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 02 1 0909-0911 ●
12 04.681 CLIP; HOSE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 02 1 0909-0911 ●
12 04.681 CLIP; HOSE
WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 02 1 0909-0911 ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 04.930 (B) ID=16 		8-94238-568-0 02 1 0909-0911 ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (B) ID=16 		8-98008-098-0 02 1 0912- ●
12 04.681 CLIP; HOSE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 03.162 (B) ID=16 		8-98008-098-0 02 1 0912- ●
12 04.681 CLIP; HOSE
WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 03.162 (B) ID=16 		8-98008-098-0 02 1 0912- ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 03.162 (B) ID=16 		8-98008-098-0 02 1 0912- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 03.162 (E) ID=16 		8-98008-098-0 02 1 0912-1205 ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 (E) ID=16 		8-98008-098-0 02 1 0912-1205 ● ●
39 04.681 CLIP; HOSE,VAC
03.162 (E) ID=16 		8-98008-098-0 02 1 0912-1205 ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 01.097 (E) ID=16 		8-97329-628-0 02 1 1206- ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 01.097 (E) ID=16 		8-97329-628-0 02 1 1206- ● ●
39 04.681 CLIP; HOSE,VAC
01.097 (E) ID=16 		8-97329-628-0 02 1 1206- ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0911 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0911 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0911 ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0911 ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0912- ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0912- ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 0912- ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 0905-0906 ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 0905-0906 ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 04 1 0907- ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 0907- ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 02.559 (A) L=170.3 		1-09987-182-0 01 1 0905-0906 ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3 		1-09987-182-0 01 1 0907- ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3 		1-09987-182-0 01 1 0907- ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 0907- ● ●
39 04.681 CLIP; HOSE,VAC
04.686 (C) ID=11-19.5 		8-94426-597-0 06 1 0905-0906 ● ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) 04.686 (C) ID=11-19.5 		8-94426-597-0 06 1 0907-1005 ● ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17 		8-98173-762-1 06 1 1006- ● ●
39 04.681 CLIP; HOSE,VAC
08.846 (D) ID=21.7 		8-97203-074-0 02 1 0905-0906 ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) 08.846 (D) ID=21.7 		8-97203-074-0 02 1 0907- ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98060-856-2 01 1 0907- ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (A) 		8-98060-856-2 01 1 0907- ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (B) 		8-98060-857-2 01 1 0905-0906 ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (B) 		8-98060-857-3 01 1 0907- ● ● ● ●
156 04.931 JOINT; 3 WAY
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.681 		8-98035-106-0 02 1 0907- ● ●
156 04.931 JOINT; 3 WAY
POWER ASSIST CLUTCH(S2T) 04.681 		8-98035-106-0 02 1 0907- ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98060-858-1 01 1 0907- ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (A) 		8-98060-858-1 01 1 0907- ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98060-859-2 01 1 0907- ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (B) 		8-98060-859-2 01 1 0907- ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (C) 		8-98060-860-1 01 1 0905-0906 ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (C) 		8-98060-860-2 01 1 0907- ● ● ● ●
165 04.686 BOLT; BRKT
02.343 (A) M6X16 FLANGE 		0-28650-616-0 01 1 0905-0906 ● ●
165 04.686 BOLT; BRKT
02.343 (A) M6X16 FLANGE 		0-28650-616-0 01 1 0907- ● ● ● ●
165 04.686 BOLT; BRKT
02.762 (B) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 0905-0906 ● ●
165 04.686 BOLT; BRKT
02.762 (B) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 0907- ● ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (H) 		8-98255-541-0 01 1 1312- ● ● ● ●
184 04.685 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> EXC. HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98156-346-0 01 1 1002-1012 ● ●
184 04.685 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (F) 		8-98156-346-0 01 1 1002-1012 ● ●
184 04.685 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> EXC. HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98183-468-1 01 1 1101- ● ●
184 04.685 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (F) 		8-98183-468-1 01 1 1101- ● ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (H) 		8-98156-526-0 01 1 1002- ● ● ● ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98156-347-0 01 1 1002-1012 ● ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T) (E) 		8-98156-347-0 01 1 1002-1012 ● ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98183-469-1 01 1 1101- ● ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T) (E) 		8-98183-469-1 01 1 1101- ● ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (G) 		8-98156-316-0 01 1 1002-1012 ● ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (G) 		8-98183-474-1 01 1 1101- ● ●
184 04.685 BRACKET; UNION FIX
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98150-760-0 01 1 0909-1001 ● ●
184 04.685 BRACKET; UNION FIX
EXC. POWER ASSIST CLUTCH(S2T) (D) 		8-98150-760-0 01 1 0909-1001 ● ●
184 04.685 BRACKET; UNION FIX
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (D) 		8-98150-760-0 01 1 1002-1012 ● ●
184 04.685 BRACKET; UNION FIX
EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (D) 		8-98150-760-0 01 1 1002-1012 ● ●
184 04.685 BRACKET; UNION FIX
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (D) 		8-98183-466-1 01 1 1101-1311 ● ●
184 04.685 BRACKET; UNION FIX
EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (D) 		8-98183-466-1 01 1 1101-1311 ● ●
184 04.685 BRACKET; UNION FIX
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98255-537-0 01 1 1312- ● ●
184 04.685 BRACKET; UNION FIX
EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98255-537-0 01 1 1312- ● ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98089-763-0 01 1 0907-0908 ● ●
184 04.685 BRACKET; UNION FIX
(B) 		8-98089-763-0 01 1 0907-0908 ● ●
184 04.685 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98089-763-0 01 1 0909-1001 ● ●
184 04.685 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) (B) 		8-98089-763-0 01 1 0909-1001 ● ●
184 04.685 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98089-763-0 01 1 1002-1012 ● ●
184 04.685 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98089-763-0 01 1 1002-1012 ● ●
184 04.685 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98183-465-1 01 1 1101-1311 ● ●
184 04.685 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98183-465-1 01 1 1101-1311 ● ●
184 04.685 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (F) 		8-98255-536-0 01 1 1312- ● ●
184 04.685 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (F) 		8-98255-536-0 01 1 1312- ● ●
184 04.685 BRACKET; UNION FIX
(C) 		8-98089-764-0 01 1 0905-0906 ● ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98089-764-0 01 1 0907-1001 ● ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98089-764-0 01 1 1002-1012 ● ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98183-471-1 01 1 1101-1311 ● ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (G) 		8-98255-538-0 01 1 1312- ● ●
184 04.685 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98039-684-3 01 1 0905-0906 ● ●
184 04.685 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98039-684-3 01 1 0907-1204 ● ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98211-373-0 01 1 1205- ● ● ● ●
203 04.690 VALVE; CHECK
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-94386-540-0 01 1 0907- ● ●
203 04.690 VALVE; CHECK
(A) 		8-94386-540-0 01 1 0907- ● ●
203 04.690 VALVE; CHECK
POWER ASSIST CLUTCH(S2T) (B) 		8-94104-021-0 01 1 0905-0906 ● ●
203 04.690 VALVE; CHECK
POWER ASSIST CLUTCH(S2T) (B) 		8-94104-021-0 01 1 0907- ● ● ● ●

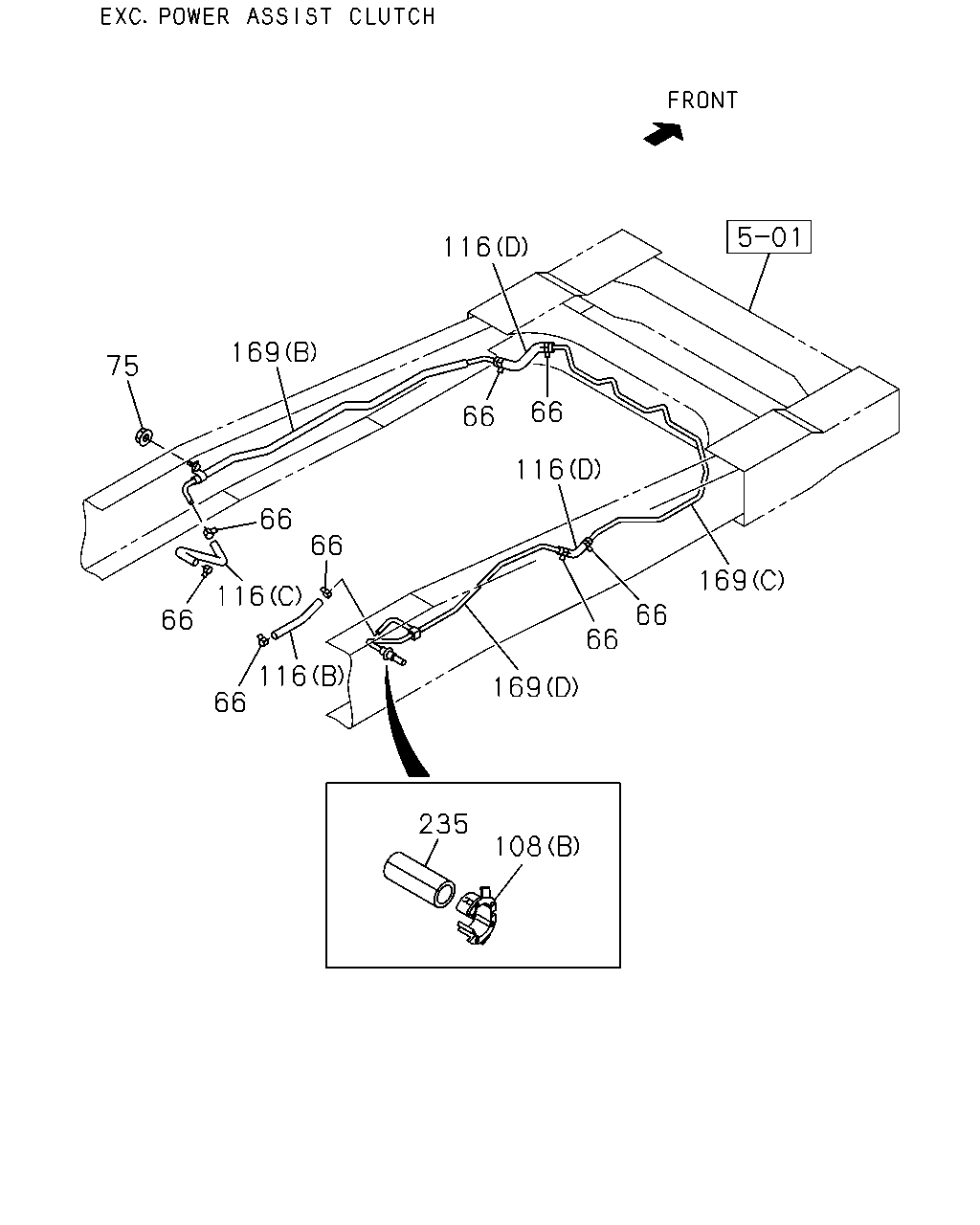

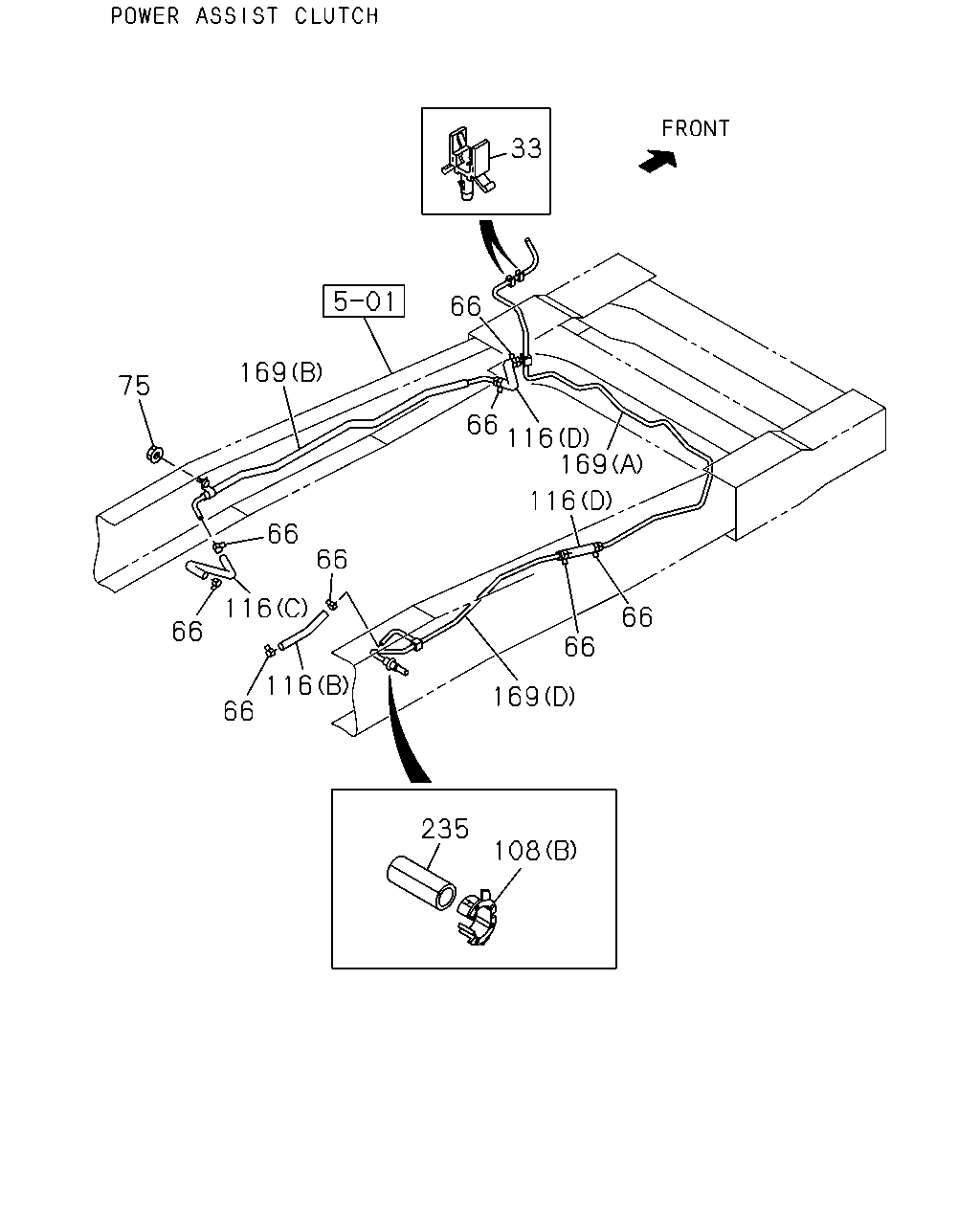

çizim 121450
116 169 75 66 66 116 66 66 169 116 66 66 66 116 169 66 235 108
BalonParca AdiParca NoAdetTipApplied Date A B C D
66 04.930 CLIP; VAC HOSE,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> ID=16 		8-94238-568-0 02 1 0907-0907 ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
ID=16 		8-94238-568-0 02 1 0907-0907 ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
ID=16 		8-94238-568-0 02 1 0907-0911 ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
03.162 ID=16 		8-98008-098-0 02 1 0912- ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
ID=16 		8-94238-568-0 08 1 0905-0906 ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
FRAME STRAIGHT TYPE<7KJ> ID=16 		8-94238-568-0 08 1 0907-0907 ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
FRAME STRAIGHT TYPE<7KJ> ID=16 		8-94238-568-0 06 1 0907-0911 ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16 		8-98008-098-0 06 1 0912- ● ●
75 04.930 NUT; CLIP,VAC HOSE
01.062 M8 FLANGE 		0-91180-108-0 01 1 0905-0906 ● ●
75 04.930 NUT; CLIP,VAC HOSE
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0907- ● ●
108 04.931 GROMMET; PIPE
02.343 (B) ID=17 		8-94128-319-2 01 1 0905-0906 ● ●
108 04.931 GROMMET; PIPE
02.343 (B) ID=17 		8-94128-319-2 01 1 0907- ● ● ● ●
108 04.931 GROMMET; PIPE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		9-09956-353-0 01 1 0905-0906 ● ●
108 04.931 GROMMET; PIPE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		9-09956-353-0 01 1 0907-0908 ● ● ● ●
108 04.931 GROMMET; PIPE
HYDRO BRAKE BOOSTER(7QQ) EXC. POWER ASSIST CLUTCH(S2T) (A) 		9-09956-353-0 01 1 0909- ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (E) L=200 SERVICED BY L=3000 		0-08158-300-0 01 1 0907- ● ●
116 04.931 HOSE; VAC,M/VAC
(E) L=200 SERVICED BY L=3000 		0-08158-300-0 01 1 0907- ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98113-001-0 01 1 0907- ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98113-001-0 01 1 0907- ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (A) 		8-98113-000-1 01 1 0905-0906 ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (A) 		8-98113-000-1 01 1 0907- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
(D) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 0905-0906 ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (D) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 0907- ● ●
116 04.931 HOSE; VAC,M/VAC
03.630 (B) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 0905-0906 ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> 03.630 (B) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 0907- ● ●
116 04.931 HOSE; VAC,M/VAC
(C) 		8-98034-276-2 01 1 0905-0906 ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (C) 		8-98034-276-2 01 1 0907-0911 ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (C) 		8-98158-378-0 01 1 0912- ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
POWER ASSIST CLUTCH(S2T) (A) 		8-98140-330-0 01 1 0905-0906 ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98140-330-0 01 1 0907- ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98140-330-0 01 1 0907- ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98033-805-0 01 1 0905-0906 ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98033-805-0 01 1 0907- ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
(D) 		8-98040-479-3 01 1 0905-0906 ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98040-479-3 01 1 0907-0907 ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98040-479-3 01 1 0907-0907 ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
FRAME STRAIGHT TYPE<7KJ> (D) 		8-98040-479-3 01 1 0907- ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
EXC. POWER ASSIST CLUTCH(S2T) 04.685 (C) 		8-98048-901-0 01 1 0905-0906 ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
HYDRO BRAKE BOOSTER(7QQ) EXC. POWER ASSIST CLUTCH(S2T) 04.685 (C) 		8-98048-901-0 01 1 0907- ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98041-052-2 01 1 0905-0906 ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98041-052-2 01 1 0907- ● ●
235 04.931 RUBBER; SUPPORT,PIPE
03.162 OD=16.5 L=50 		8-97214-235-0 01 1 0905-0906 ● ●
235 04.931 RUBBER; SUPPORT,PIPE
03.162 OD=16.5 L=50 		8-97214-235-0 01 1 0907- ● ● ● ●
çizim 121478
98 96 234 184 78 20 202 165 116 234 234 173 12 203 203 173 12 13 234 39 39 39 39 39
BalonParca AdiParca NoAdetTipApplied Date A B C D
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (C) ID=18 L=50 		1-09700-302-1 01 1 0907- ● ● ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (D) ID=19 H=70 L=25 		1-09700-773-0 01 1 0907- ● ● ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (E) ID=16.5 & 16.5 		8-94468-380-0 01 1 0907- ● ● ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 0907- ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 0907- ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 0907- ● ●
12 04.681 CLIP; HOSE
04.930 (A) ID=15.5 		8-98008-097-0 02 1 0907- ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 0905-0906 ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 0905-0906 ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5 		8-98008-097-0 06 1 0907- ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 06 1 0907- ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) 04.930 (B) ID=16 		8-94238-568-0 02 1 0905-0906 ●
12 04.681 CLIP; HOSE
WHEEL BASE 4400MM(44W) 04.930 (B) ID=16 		8-94238-568-0 02 1 0905-0906 ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 04 1 0907-0911 ● ● ● ●
12 04.681 CLIP; HOSE
FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 04 1 0907-0911 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (B) ID=16 		8-98008-098-0 04 1 0912- ● ● ● ●
12 04.681 CLIP; HOSE
FRAME STRAIGHT TYPE<7KJ> 03.162 (B) ID=16 		8-98008-098-0 04 1 0912- ● ●
12 04.681 CLIP; HOSE
04.930 (B) ID=16 		8-94238-568-0 04 1 0905-0906 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0908 ●
12 04.681 CLIP; HOSE
WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0908 ●
12 04.681 CLIP; HOSE
WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0908 ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0908 ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 02 1 0909-0911 ●
12 04.681 CLIP; HOSE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 02 1 0909-0911 ●
12 04.681 CLIP; HOSE
WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 02 1 0909-0911 ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 04.930 (B) ID=16 		8-94238-568-0 02 1 0909-0911 ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (B) ID=16 		8-98008-098-0 02 1 0912- ●
12 04.681 CLIP; HOSE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 03.162 (B) ID=16 		8-98008-098-0 02 1 0912- ●
12 04.681 CLIP; HOSE
WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 03.162 (B) ID=16 		8-98008-098-0 02 1 0912- ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 03.162 (B) ID=16 		8-98008-098-0 02 1 0912- ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 		8-98035-106-0 01 1 0905-0906 ● ●
13 04.681 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 		8-98035-106-0 01 1 0907- ● ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 		8-98035-106-0 01 1 0907- ● ●
13 04.681 JOINT; HOSE,VAC 8-98035-106-0 01 1 0907- ● ●
20 04.686 NUT; BRKT
EXC. PTO MANUAL CONTROL(6WC) 01.062 M6 FLANGE 		0-91180-106-0 01 1 0905-0906 ● ●
20 04.686 NUT; BRKT
EXC. PTO MANUAL CONTROL(6WC) 01.062 M6 FLANGE 		0-91180-106-0 01 1 0907- ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 03.162 (E) ID=16 		8-98008-098-0 02 1 0912-1205 ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 (E) ID=16 		8-98008-098-0 02 1 0912-1205 ● ●
39 04.681 CLIP; HOSE,VAC
03.162 (E) ID=16 		8-98008-098-0 02 1 0912-1205 ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 01.097 (E) ID=16 		8-97329-628-0 02 1 1206- ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 01.097 (E) ID=16 		8-97329-628-0 02 1 1206- ● ●
39 04.681 CLIP; HOSE,VAC
01.097 (E) ID=16 		8-97329-628-0 02 1 1206- ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0911 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0911 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0911 ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0911 ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0912- ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0912- ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 0912- ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 0905-0906 ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 0905-0906 ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 04 1 0907- ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 0907- ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 02.559 (A) L=170.3 		1-09987-182-0 01 1 0905-0906 ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3 		1-09987-182-0 01 1 0907- ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3 		1-09987-182-0 01 1 0907- ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 0907- ● ●
39 04.681 CLIP; HOSE,VAC
04.686 (C) ID=11-19.5 		8-94426-597-0 06 1 0905-0906 ● ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) 04.686 (C) ID=11-19.5 		8-94426-597-0 06 1 0907-1005 ● ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17 		8-98173-762-1 06 1 1006- ● ●
39 04.681 CLIP; HOSE,VAC
08.846 (D) ID=21.7 		8-97203-074-0 02 1 0905-0906 ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) 08.846 (D) ID=21.7 		8-97203-074-0 02 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 03.630 (H) L=130 SERVICED BY L=3000 		0-08258-300-0 01 1 0907- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) 03.630 (H) L=130 SERVICED BY L=3000 		0-08258-300-0 01 1 0907- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98092-678-0 01 1 0907-1008 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(F) 		8-98092-678-0 01 1 0907-1008 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98171-288-0 01 1 1009- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(F) 		8-98171-288-0 01 1 1009- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (G) 		8-98106-711-0 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(G) 		8-98106-711-0 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (G) 		8-97389-728-2 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(G) 		8-97389-728-2 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
POWER ASSIST CLUTCH(S2T) (B) 		8-98081-681-2 01 1 0905-0906 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98081-681-2 01 1 0907- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98081-681-2 01 1 0907- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(B) 		8-98081-681-2 01 1 0907- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(D) 		8-98034-104-4 01 1 0905-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (D) 		8-98034-104-4 01 1 0907-1103 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (D) 		8-98189-106-0 01 1 1104- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(E) 		8-98133-654-1 01 1 0905-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (E) 		8-98133-654-1 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-98034-112-4 01 1 0905-0906 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98034-112-4 01 1 0907-0909 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98136-614-0 01 1 0910- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
03.630 (E) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 0905-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> 03.630 (E) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(D) 		8-98040-702-2 01 1 0905-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (D) 		8-98040-702-2 01 1 0907-1103 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (D) 		8-98189-103-0 01 1 1104- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
04.681 (C) 		8-98096-135-0 01 1 0905-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) 04.681 (C) 		8-98096-135-0 01 1 0907- ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98082-322-0 01 1 0907- ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98082-322-0 01 1 0907- ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
POWER ASSIST CLUTCH(S2T) 		8-98082-321-0 01 1 0905-0906 ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 		8-98082-321-0 01 1 0907- ● ●
98 04.931 BOLT; VAC PIPE FIX
POWER ASSIST CLUTCH(S2T) 03.162 M6X12 FLANGE 		0-28050-612-0 01 1 0905-0906 ● ●
98 04.931 BOLT; VAC PIPE FIX
03.162 M6X12 FLANGE 		0-28050-612-0 01 1 0905-0906 ● ●
98 04.931 BOLT; VAC PIPE FIX
03.162 M6X12 FLANGE 		0-28050-612-0 01 1 0907- ● ● ● ●
98 04.931 BOLT; VAC PIPE FIX
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 03.162 M6X12 FLANGE 		0-28050-612-0 01 1 0907- ● ●
98 04.931 BOLT; VAC PIPE FIX
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0905-0906 ● ●
98 04.931 BOLT; VAC PIPE FIX
HYDRO BRAKE BOOSTER(7QQ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0907- ● ●
98 04.931 BOLT; VAC PIPE FIX
03.162 M6X12 FLANGE 		0-28050-612-0 02 1 0905-0906 ●
98 04.931 BOLT; VAC PIPE FIX
HYDRO BRAKE BOOSTER(7QQ) 03.162 M6X12 FLANGE 		0-28050-612-0 02 1 0907- ●
116 04.931 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (E) L=200 SERVICED BY L=3000 		0-08158-300-0 01 1 0907- ● ●
116 04.931 HOSE; VAC,M/VAC
(E) L=200 SERVICED BY L=3000 		0-08158-300-0 01 1 0907- ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98113-001-0 01 1 0907- ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98113-001-0 01 1 0907- ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (A) 		8-98113-000-1 01 1 0905-0906 ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (A) 		8-98113-000-1 01 1 0907- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
(D) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 0905-0906 ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (D) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 0907- ● ●
116 04.931 HOSE; VAC,M/VAC
03.630 (B) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 0905-0906 ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> 03.630 (B) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 0907- ● ●
116 04.931 HOSE; VAC,M/VAC
(C) 		8-98034-276-2 01 1 0905-0906 ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (C) 		8-98034-276-2 01 1 0907-0911 ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (C) 		8-98158-378-0 01 1 0912- ● ●
165 04.686 BOLT; BRKT
02.343 (A) M6X16 FLANGE 		0-28650-616-0 01 1 0905-0906 ● ●
165 04.686 BOLT; BRKT
02.343 (A) M6X16 FLANGE 		0-28650-616-0 01 1 0907- ● ● ● ●
165 04.686 BOLT; BRKT
02.762 (B) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 0905-0906 ● ●
165 04.686 BOLT; BRKT
02.762 (B) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 0907- ● ● ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98047-184-2 01 1 0907- ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) (B) 		8-98047-184-2 01 1 0907- ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98031-774-1 01 1 0907- ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98031-774-1 01 1 0907- ● ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (H) 		8-98255-541-0 01 1 1312- ● ● ● ●
184 04.685 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> EXC. HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98156-346-0 01 1 1002-1012 ● ●
184 04.685 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (F) 		8-98156-346-0 01 1 1002-1012 ● ●
184 04.685 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> EXC. HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98183-468-1 01 1 1101- ● ●
184 04.685 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (F) 		8-98183-468-1 01 1 1101- ● ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (H) 		8-98156-526-0 01 1 1002- ● ● ● ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98156-347-0 01 1 1002-1012 ● ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T) (E) 		8-98156-347-0 01 1 1002-1012 ● ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98183-469-1 01 1 1101- ● ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T) (E) 		8-98183-469-1 01 1 1101- ● ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (G) 		8-98156-316-0 01 1 1002-1012 ● ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (G) 		8-98183-474-1 01 1 1101- ● ●
184 04.685 BRACKET; UNION FIX
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98150-760-0 01 1 0909-1001 ● ●
184 04.685 BRACKET; UNION FIX
EXC. POWER ASSIST CLUTCH(S2T) (D) 		8-98150-760-0 01 1 0909-1001 ● ●
184 04.685 BRACKET; UNION FIX
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (D) 		8-98150-760-0 01 1 1002-1012 ● ●
184 04.685 BRACKET; UNION FIX
EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (D) 		8-98150-760-0 01 1 1002-1012 ● ●
184 04.685 BRACKET; UNION FIX
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (D) 		8-98183-466-1 01 1 1101-1311 ● ●
184 04.685 BRACKET; UNION FIX
EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (D) 		8-98183-466-1 01 1 1101-1311 ● ●
184 04.685 BRACKET; UNION FIX
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98255-537-0 01 1 1312- ● ●
184 04.685 BRACKET; UNION FIX
EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98255-537-0 01 1 1312- ● ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98089-763-0 01 1 0907-0908 ● ●
184 04.685 BRACKET; UNION FIX
(B) 		8-98089-763-0 01 1 0907-0908 ● ●
184 04.685 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98089-763-0 01 1 0909-1001 ● ●
184 04.685 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) (B) 		8-98089-763-0 01 1 0909-1001 ● ●
184 04.685 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98089-763-0 01 1 1002-1012 ● ●
184 04.685 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98089-763-0 01 1 1002-1012 ● ●
184 04.685 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98183-465-1 01 1 1101-1311 ● ●
184 04.685 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98183-465-1 01 1 1101-1311 ● ●
184 04.685 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (F) 		8-98255-536-0 01 1 1312- ● ●
184 04.685 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (F) 		8-98255-536-0 01 1 1312- ● ●
184 04.685 BRACKET; UNION FIX
(C) 		8-98089-764-0 01 1 0905-0906 ● ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98089-764-0 01 1 0907-1001 ● ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98089-764-0 01 1 1002-1012 ● ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98183-471-1 01 1 1101-1311 ● ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (G) 		8-98255-538-0 01 1 1312- ● ●
184 04.685 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98039-684-3 01 1 0905-0906 ● ●
184 04.685 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98039-684-3 01 1 0907-1204 ● ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98211-373-0 01 1 1205- ● ● ● ●
202 04.686 SEAL
08.845 		8-97856-616-0 02 1 0905-0906 ● ●
202 04.686 SEAL
08.845 		8-97856-616-0 02 1 0907- ● ● ● ●
203 04.690 VALVE; CHECK
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-94386-540-0 01 1 0907- ● ●
203 04.690 VALVE; CHECK
(A) 		8-94386-540-0 01 1 0907- ● ●
203 04.690 VALVE; CHECK
POWER ASSIST CLUTCH(S2T) (B) 		8-94104-021-0 01 1 0905-0906 ● ●
203 04.690 VALVE; CHECK
POWER ASSIST CLUTCH(S2T) (B) 		8-94104-021-0 01 1 0907- ● ● ● ●
234 04.685 CLAMP; PIPE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=16 		8-94238-568-0 03 1 0907- ● ●
234 04.685 CLAMP; PIPE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=16 		8-94238-568-0 03 1 0907- ● ●
234 04.685 CLAMP; PIPE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=16 		8-94238-568-0 03 1 0907- ● ●
234 04.685 CLAMP; PIPE
POWER ASSIST CLUTCH(S2T) 04.930 ID=16 		8-94238-568-0 03 1 0905-0906 ● ●
234 04.685 CLAMP; PIPE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=16 		8-94238-568-0 04 1 0907- ● ●
234 04.685 CLAMP; PIPE
POWER ASSIST CLUTCH(S2T) 04.930 ID=16 		8-94238-568-0 04 1 0907- ● ●
çizim 121504
165 108 184 184 184 184 39 162 39
BalonParca AdiParca NoAdetTipApplied Date A B C D
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 03.162 (E) ID=16 		8-98008-098-0 02 1 0912-1205 ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 (E) ID=16 		8-98008-098-0 02 1 0912-1205 ● ●
39 04.681 CLIP; HOSE,VAC
03.162 (E) ID=16 		8-98008-098-0 02 1 0912-1205 ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 01.097 (E) ID=16 		8-97329-628-0 02 1 1206- ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 01.097 (E) ID=16 		8-97329-628-0 02 1 1206- ● ●
39 04.681 CLIP; HOSE,VAC
01.097 (E) ID=16 		8-97329-628-0 02 1 1206- ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0911 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0911 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0911 ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0911 ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0912- ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0912- ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 0912- ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 0905-0906 ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 0905-0906 ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 04 1 0907- ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 0907- ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 02.559 (A) L=170.3 		1-09987-182-0 01 1 0905-0906 ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3 		1-09987-182-0 01 1 0907- ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3 		1-09987-182-0 01 1 0907- ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 0907- ● ●
39 04.681 CLIP; HOSE,VAC
04.686 (C) ID=11-19.5 		8-94426-597-0 06 1 0905-0906 ● ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) 04.686 (C) ID=11-19.5 		8-94426-597-0 06 1 0907-1005 ● ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17 		8-98173-762-1 06 1 1006- ● ●
39 04.681 CLIP; HOSE,VAC
08.846 (D) ID=21.7 		8-97203-074-0 02 1 0905-0906 ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) 08.846 (D) ID=21.7 		8-97203-074-0 02 1 0907- ●
108 04.931 GROMMET; PIPE
02.343 (B) ID=17 		8-94128-319-2 01 1 0905-0906 ● ●
108 04.931 GROMMET; PIPE
02.343 (B) ID=17 		8-94128-319-2 01 1 0907- ● ● ● ●
108 04.931 GROMMET; PIPE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		9-09956-353-0 01 1 0905-0906 ● ●
108 04.931 GROMMET; PIPE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		9-09956-353-0 01 1 0907-0908 ● ● ● ●
108 04.931 GROMMET; PIPE
HYDRO BRAKE BOOSTER(7QQ) EXC. POWER ASSIST CLUTCH(S2T) (A) 		9-09956-353-0 01 1 0909- ● ●
162 04.931 HOSE; VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 		8-98034-154-2 01 1 0907- ● ●
162 04.931 HOSE; VAC
EXC. POWER ASSIST CLUTCH(S2T) 		8-98034-154-2 01 1 0907- ● ●
165 04.686 BOLT; BRKT
02.343 (A) M6X16 FLANGE 		0-28650-616-0 01 1 0905-0906 ● ●
165 04.686 BOLT; BRKT
02.343 (A) M6X16 FLANGE 		0-28650-616-0 01 1 0907- ● ● ● ●
165 04.686 BOLT; BRKT
02.762 (B) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 0905-0906 ● ●
165 04.686 BOLT; BRKT
02.762 (B) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 0907- ● ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (H) 		8-98255-541-0 01 1 1312- ● ● ● ●
184 04.685 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> EXC. HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98156-346-0 01 1 1002-1012 ● ●
184 04.685 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (F) 		8-98156-346-0 01 1 1002-1012 ● ●
184 04.685 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> EXC. HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98183-468-1 01 1 1101- ● ●
184 04.685 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (F) 		8-98183-468-1 01 1 1101- ● ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (H) 		8-98156-526-0 01 1 1002- ● ● ● ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98156-347-0 01 1 1002-1012 ● ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T) (E) 		8-98156-347-0 01 1 1002-1012 ● ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98183-469-1 01 1 1101- ● ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T) (E) 		8-98183-469-1 01 1 1101- ● ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (G) 		8-98156-316-0 01 1 1002-1012 ● ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (G) 		8-98183-474-1 01 1 1101- ● ●
184 04.685 BRACKET; UNION FIX
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98150-760-0 01 1 0909-1001 ● ●
184 04.685 BRACKET; UNION FIX
EXC. POWER ASSIST CLUTCH(S2T) (D) 		8-98150-760-0 01 1 0909-1001 ● ●
184 04.685 BRACKET; UNION FIX
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (D) 		8-98150-760-0 01 1 1002-1012 ● ●
184 04.685 BRACKET; UNION FIX
EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (D) 		8-98150-760-0 01 1 1002-1012 ● ●
184 04.685 BRACKET; UNION FIX
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (D) 		8-98183-466-1 01 1 1101-1311 ● ●
184 04.685 BRACKET; UNION FIX
EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (D) 		8-98183-466-1 01 1 1101-1311 ● ●
184 04.685 BRACKET; UNION FIX
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98255-537-0 01 1 1312- ● ●
184 04.685 BRACKET; UNION FIX
EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98255-537-0 01 1 1312- ● ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98089-763-0 01 1 0907-0908 ● ●
184 04.685 BRACKET; UNION FIX
(B) 		8-98089-763-0 01 1 0907-0908 ● ●
184 04.685 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98089-763-0 01 1 0909-1001 ● ●
184 04.685 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) (B) 		8-98089-763-0 01 1 0909-1001 ● ●
184 04.685 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98089-763-0 01 1 1002-1012 ● ●
184 04.685 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98089-763-0 01 1 1002-1012 ● ●
184 04.685 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98183-465-1 01 1 1101-1311 ● ●
184 04.685 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98183-465-1 01 1 1101-1311 ● ●
184 04.685 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (F) 		8-98255-536-0 01 1 1312- ● ●
184 04.685 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (F) 		8-98255-536-0 01 1 1312- ● ●
184 04.685 BRACKET; UNION FIX
(C) 		8-98089-764-0 01 1 0905-0906 ● ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98089-764-0 01 1 0907-1001 ● ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98089-764-0 01 1 1002-1012 ● ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98183-471-1 01 1 1101-1311 ● ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (G) 		8-98255-538-0 01 1 1312- ● ●
184 04.685 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98039-684-3 01 1 0905-0906 ● ●
184 04.685 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98039-684-3 01 1 0907-1204 ● ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98211-373-0 01 1 1205- ● ● ● ●
çizim 121512
120 12 39 165 184 245 12 157 184 184 39
BalonParca AdiParca NoAdetTipApplied Date A B C D
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (C) ID=18 L=50 		1-09700-302-1 01 1 0907- ● ● ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (D) ID=19 H=70 L=25 		1-09700-773-0 01 1 0907- ● ● ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (E) ID=16.5 & 16.5 		8-94468-380-0 01 1 0907- ● ● ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 0907- ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 0907- ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 0907- ● ●
12 04.681 CLIP; HOSE
04.930 (A) ID=15.5 		8-98008-097-0 02 1 0907- ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 0905-0906 ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 0905-0906 ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5 		8-98008-097-0 06 1 0907- ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 06 1 0907- ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) 04.930 (B) ID=16 		8-94238-568-0 02 1 0905-0906 ●
12 04.681 CLIP; HOSE
WHEEL BASE 4400MM(44W) 04.930 (B) ID=16 		8-94238-568-0 02 1 0905-0906 ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 04 1 0907-0911 ● ● ● ●
12 04.681 CLIP; HOSE
FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 04 1 0907-0911 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (B) ID=16 		8-98008-098-0 04 1 0912- ● ● ● ●
12 04.681 CLIP; HOSE
FRAME STRAIGHT TYPE<7KJ> 03.162 (B) ID=16 		8-98008-098-0 04 1 0912- ● ●
12 04.681 CLIP; HOSE
04.930 (B) ID=16 		8-94238-568-0 04 1 0905-0906 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0908 ●
12 04.681 CLIP; HOSE
WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0908 ●
12 04.681 CLIP; HOSE
WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0908 ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0908 ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 02 1 0909-0911 ●
12 04.681 CLIP; HOSE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 02 1 0909-0911 ●
12 04.681 CLIP; HOSE
WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 02 1 0909-0911 ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 04.930 (B) ID=16 		8-94238-568-0 02 1 0909-0911 ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (B) ID=16 		8-98008-098-0 02 1 0912- ●
12 04.681 CLIP; HOSE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 03.162 (B) ID=16 		8-98008-098-0 02 1 0912- ●
12 04.681 CLIP; HOSE
WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 03.162 (B) ID=16 		8-98008-098-0 02 1 0912- ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 03.162 (B) ID=16 		8-98008-098-0 02 1 0912- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 03.162 (E) ID=16 		8-98008-098-0 02 1 0912-1205 ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 (E) ID=16 		8-98008-098-0 02 1 0912-1205 ● ●
39 04.681 CLIP; HOSE,VAC
03.162 (E) ID=16 		8-98008-098-0 02 1 0912-1205 ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 01.097 (E) ID=16 		8-97329-628-0 02 1 1206- ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 01.097 (E) ID=16 		8-97329-628-0 02 1 1206- ● ●
39 04.681 CLIP; HOSE,VAC
01.097 (E) ID=16 		8-97329-628-0 02 1 1206- ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0911 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0911 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0911 ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0911 ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0912- ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0912- ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 0912- ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 0905-0906 ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 0905-0906 ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 04 1 0907- ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 0907- ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 02.559 (A) L=170.3 		1-09987-182-0 01 1 0905-0906 ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3 		1-09987-182-0 01 1 0907- ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3 		1-09987-182-0 01 1 0907- ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 0907- ● ●
39 04.681 CLIP; HOSE,VAC
04.686 (C) ID=11-19.5 		8-94426-597-0 06 1 0905-0906 ● ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) 04.686 (C) ID=11-19.5 		8-94426-597-0 06 1 0907-1005 ● ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17 		8-98173-762-1 06 1 1006- ● ●
39 04.681 CLIP; HOSE,VAC
08.846 (D) ID=21.7 		8-97203-074-0 02 1 0905-0906 ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) 08.846 (D) ID=21.7 		8-97203-074-0 02 1 0907- ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98060-856-2 01 1 0907- ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (A) 		8-98060-856-2 01 1 0907- ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (B) 		8-98060-857-2 01 1 0905-0906 ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (B) 		8-98060-857-3 01 1 0907- ● ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98060-858-1 01 1 0907- ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (A) 		8-98060-858-1 01 1 0907- ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98060-859-2 01 1 0907- ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (B) 		8-98060-859-2 01 1 0907- ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (C) 		8-98060-860-1 01 1 0905-0906 ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (C) 		8-98060-860-2 01 1 0907- ● ● ● ●
165 04.686 BOLT; BRKT
02.343 (A) M6X16 FLANGE 		0-28650-616-0 01 1 0905-0906 ● ●
165 04.686 BOLT; BRKT
02.343 (A) M6X16 FLANGE 		0-28650-616-0 01 1 0907- ● ● ● ●
165 04.686 BOLT; BRKT
02.762 (B) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 0905-0906 ● ●
165 04.686 BOLT; BRKT
02.762 (B) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 0907- ● ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (H) 		8-98255-541-0 01 1 1312- ● ● ● ●
184 04.685 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> EXC. HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98156-346-0 01 1 1002-1012 ● ●
184 04.685 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (F) 		8-98156-346-0 01 1 1002-1012 ● ●
184 04.685 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> EXC. HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98183-468-1 01 1 1101- ● ●
184 04.685 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (F) 		8-98183-468-1 01 1 1101- ● ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (H) 		8-98156-526-0 01 1 1002- ● ● ● ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98156-347-0 01 1 1002-1012 ● ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T) (E) 		8-98156-347-0 01 1 1002-1012 ● ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98183-469-1 01 1 1101- ● ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T) (E) 		8-98183-469-1 01 1 1101- ● ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (G) 		8-98156-316-0 01 1 1002-1012 ● ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (G) 		8-98183-474-1 01 1 1101- ● ●
184 04.685 BRACKET; UNION FIX
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98150-760-0 01 1 0909-1001 ● ●
184 04.685 BRACKET; UNION FIX
EXC. POWER ASSIST CLUTCH(S2T) (D) 		8-98150-760-0 01 1 0909-1001 ● ●
184 04.685 BRACKET; UNION FIX
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (D) 		8-98150-760-0 01 1 1002-1012 ● ●
184 04.685 BRACKET; UNION FIX
EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (D) 		8-98150-760-0 01 1 1002-1012 ● ●
184 04.685 BRACKET; UNION FIX
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (D) 		8-98183-466-1 01 1 1101-1311 ● ●
184 04.685 BRACKET; UNION FIX
EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (D) 		8-98183-466-1 01 1 1101-1311 ● ●
184 04.685 BRACKET; UNION FIX
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98255-537-0 01 1 1312- ● ●
184 04.685 BRACKET; UNION FIX
EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98255-537-0 01 1 1312- ● ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98089-763-0 01 1 0907-0908 ● ●
184 04.685 BRACKET; UNION FIX
(B) 		8-98089-763-0 01 1 0907-0908 ● ●
184 04.685 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98089-763-0 01 1 0909-1001 ● ●
184 04.685 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) (B) 		8-98089-763-0 01 1 0909-1001 ● ●
184 04.685 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98089-763-0 01 1 1002-1012 ● ●
184 04.685 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98089-763-0 01 1 1002-1012 ● ●
184 04.685 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98183-465-1 01 1 1101-1311 ● ●
184 04.685 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98183-465-1 01 1 1101-1311 ● ●
184 04.685 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (F) 		8-98255-536-0 01 1 1312- ● ●
184 04.685 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (F) 		8-98255-536-0 01 1 1312- ● ●
184 04.685 BRACKET; UNION FIX
(C) 		8-98089-764-0 01 1 0905-0906 ● ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98089-764-0 01 1 0907-1001 ● ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98089-764-0 01 1 1002-1012 ● ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98183-471-1 01 1 1101-1311 ● ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (G) 		8-98255-538-0 01 1 1312- ● ●
184 04.685 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98039-684-3 01 1 0905-0906 ● ●
184 04.685 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98039-684-3 01 1 0907-1204 ● ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98211-373-0 01 1 1205- ● ● ● ●
245 04.931 JOINT; 2 WAY
POWER ASSIST CLUTCH(S2T) 04.681 		8-98048-075-0 01 1 0905-0906 ● ●
245 04.931 JOINT; 2 WAY
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.681 		8-98048-075-0 01 1 0907- ● ●
çizim 121591
39 80 78 39 39 39 39 80
BalonParca AdiParca NoAdetTipApplied Date A B C D
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 03.162 (E) ID=16 		8-98008-098-0 02 1 0912-1205 ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 (E) ID=16 		8-98008-098-0 02 1 0912-1205 ● ●
39 04.681 CLIP; HOSE,VAC
03.162 (E) ID=16 		8-98008-098-0 02 1 0912-1205 ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 01.097 (E) ID=16 		8-97329-628-0 02 1 1206- ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 01.097 (E) ID=16 		8-97329-628-0 02 1 1206- ● ●
39 04.681 CLIP; HOSE,VAC
01.097 (E) ID=16 		8-97329-628-0 02 1 1206- ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0911 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0911 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0911 ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0911 ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0912- ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0912- ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 0912- ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 0905-0906 ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 0905-0906 ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 04 1 0907- ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 0907- ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 02.559 (A) L=170.3 		1-09987-182-0 01 1 0905-0906 ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3 		1-09987-182-0 01 1 0907- ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3 		1-09987-182-0 01 1 0907- ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 0907- ● ●
39 04.681 CLIP; HOSE,VAC
04.686 (C) ID=11-19.5 		8-94426-597-0 06 1 0905-0906 ● ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) 04.686 (C) ID=11-19.5 		8-94426-597-0 06 1 0907-1005 ● ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17 		8-98173-762-1 06 1 1006- ● ●
39 04.681 CLIP; HOSE,VAC
08.846 (D) ID=21.7 		8-97203-074-0 02 1 0905-0906 ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) 08.846 (D) ID=21.7 		8-97203-074-0 02 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 03.630 (H) L=130 SERVICED BY L=3000 		0-08258-300-0 01 1 0907- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) 03.630 (H) L=130 SERVICED BY L=3000 		0-08258-300-0 01 1 0907- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98092-678-0 01 1 0907-1008 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(F) 		8-98092-678-0 01 1 0907-1008 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98171-288-0 01 1 1009- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(F) 		8-98171-288-0 01 1 1009- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (G) 		8-98106-711-0 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(G) 		8-98106-711-0 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (G) 		8-97389-728-2 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(G) 		8-97389-728-2 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
POWER ASSIST CLUTCH(S2T) (B) 		8-98081-681-2 01 1 0905-0906 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98081-681-2 01 1 0907- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98081-681-2 01 1 0907- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(B) 		8-98081-681-2 01 1 0907- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(D) 		8-98034-104-4 01 1 0905-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (D) 		8-98034-104-4 01 1 0907-1103 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (D) 		8-98189-106-0 01 1 1104- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(E) 		8-98133-654-1 01 1 0905-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (E) 		8-98133-654-1 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-98034-112-4 01 1 0905-0906 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98034-112-4 01 1 0907-0909 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98136-614-0 01 1 0910- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
03.630 (E) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 0905-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> 03.630 (E) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(D) 		8-98040-702-2 01 1 0905-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (D) 		8-98040-702-2 01 1 0907-1103 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (D) 		8-98189-103-0 01 1 1104- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
04.681 (C) 		8-98096-135-0 01 1 0905-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) 04.681 (C) 		8-98096-135-0 01 1 0907- ●
80 04.930 PIPE; VAC,ENG SIDE
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FRAME STRAIGHT TYPE<7KJ> (E) 		8-98135-522-0 01 1 1205- ● ●
80 04.930 PIPE; VAC,ENG SIDE
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E) 		8-98135-522-0 01 1 1205- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98058-594-0 01 1 0907- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) (D) 		8-98058-594-0 01 1 0907- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-98103-509-0 01 1 0907-1204 ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) (E) 		8-98103-509-0 01 1 0907-1204 ● ●
80 04.930 PIPE; VAC,ENG SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-98103-509-0 01 1 1205- ● ●
80 04.930 PIPE; VAC,ENG SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (E) 		8-98103-509-0 01 1 1205- ● ●
80 04.930 PIPE; VAC,ENG SIDE
(A) 		8-98097-788-0 01 1 0905-0906 ●
80 04.930 PIPE; VAC,ENG SIDE
HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98097-788-0 01 1 0907- ●
80 04.930 PIPE; VAC,ENG SIDE
(B) 		8-98039-753-0 01 1 0905-0906 ● ●
80 04.930 PIPE; VAC,ENG SIDE
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98039-753-0 01 1 0907- ● ●
80 04.930 PIPE; VAC,ENG SIDE
(C) 		8-98092-258-1 01 1 0905-0906 ●
80 04.930 PIPE; VAC,ENG SIDE
HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98092-258-1 01 1 0907- ●
çizim 121627
39 78 39 78 39 80 39 39 39 39 39 80
BalonParca AdiParca NoAdetTipApplied Date A B C D
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 03.162 (E) ID=16 		8-98008-098-0 02 1 0912-1205 ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 (E) ID=16 		8-98008-098-0 02 1 0912-1205 ● ●
39 04.681 CLIP; HOSE,VAC
03.162 (E) ID=16 		8-98008-098-0 02 1 0912-1205 ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 01.097 (E) ID=16 		8-97329-628-0 02 1 1206- ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 01.097 (E) ID=16 		8-97329-628-0 02 1 1206- ● ●
39 04.681 CLIP; HOSE,VAC
01.097 (E) ID=16 		8-97329-628-0 02 1 1206- ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0911 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0911 ● ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0911 ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0911 ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0912- ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0912- ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 0912- ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 0905-0906 ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 0905-0906 ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 04 1 0907- ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 0907- ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 02.559 (A) L=170.3 		1-09987-182-0 01 1 0905-0906 ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3 		1-09987-182-0 01 1 0907- ● ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3 		1-09987-182-0 01 1 0907- ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 0907- ● ●
39 04.681 CLIP; HOSE,VAC
04.686 (C) ID=11-19.5 		8-94426-597-0 06 1 0905-0906 ● ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) 04.686 (C) ID=11-19.5 		8-94426-597-0 06 1 0907-1005 ● ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17 		8-98173-762-1 06 1 1006- ● ●
39 04.681 CLIP; HOSE,VAC
08.846 (D) ID=21.7 		8-97203-074-0 02 1 0905-0906 ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) 08.846 (D) ID=21.7 		8-97203-074-0 02 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 03.630 (H) L=130 SERVICED BY L=3000 		0-08258-300-0 01 1 0907- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) 03.630 (H) L=130 SERVICED BY L=3000 		0-08258-300-0 01 1 0907- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98092-678-0 01 1 0907-1008 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(F) 		8-98092-678-0 01 1 0907-1008 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98171-288-0 01 1 1009- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(F) 		8-98171-288-0 01 1 1009- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (G) 		8-98106-711-0 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(G) 		8-98106-711-0 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (G) 		8-97389-728-2 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(G) 		8-97389-728-2 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
POWER ASSIST CLUTCH(S2T) (B) 		8-98081-681-2 01 1 0905-0906 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98081-681-2 01 1 0907- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98081-681-2 01 1 0907- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(B) 		8-98081-681-2 01 1 0907- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(D) 		8-98034-104-4 01 1 0905-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (D) 		8-98034-104-4 01 1 0907-1103 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (D) 		8-98189-106-0 01 1 1104- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(E) 		8-98133-654-1 01 1 0905-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (E) 		8-98133-654-1 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-98034-112-4 01 1 0905-0906 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98034-112-4 01 1 0907-0909 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98136-614-0 01 1 0910- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
03.630 (E) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 0905-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> 03.630 (E) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(D) 		8-98040-702-2 01 1 0905-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (D) 		8-98040-702-2 01 1 0907-1103 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (D) 		8-98189-103-0 01 1 1104- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
04.681 (C) 		8-98096-135-0 01 1 0905-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) 04.681 (C) 		8-98096-135-0 01 1 0907- ●
80 04.930 PIPE; VAC,ENG SIDE
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FRAME STRAIGHT TYPE<7KJ> (E) 		8-98135-522-0 01 1 1205- ● ●
80 04.930 PIPE; VAC,ENG SIDE
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E) 		8-98135-522-0 01 1 1205- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98058-594-0 01 1 0907- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) (D) 		8-98058-594-0 01 1 0907- ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-98103-509-0 01 1 0907-1204 ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) (E) 		8-98103-509-0 01 1 0907-1204 ● ●
80 04.930 PIPE; VAC,ENG SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-98103-509-0 01 1 1205- ● ●
80 04.930 PIPE; VAC,ENG SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (E) 		8-98103-509-0 01 1 1205- ● ●
80 04.930 PIPE; VAC,ENG SIDE
(A) 		8-98097-788-0 01 1 0905-0906 ●
80 04.930 PIPE; VAC,ENG SIDE
HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98097-788-0 01 1 0907- ●
80 04.930 PIPE; VAC,ENG SIDE
(B) 		8-98039-753-0 01 1 0905-0906 ● ●
80 04.930 PIPE; VAC,ENG SIDE
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98039-753-0 01 1 0907- ● ●
80 04.930 PIPE; VAC,ENG SIDE
(C) 		8-98092-258-1 01 1 0905-0906 ●
80 04.930 PIPE; VAC,ENG SIDE
HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98092-258-1 01 1 0907- ●
çizim 121658
106 12 237 12 197 12 198 12 44 236 12 238 106 12 237 12 127 127 12 12 197 128 198 128 12 12 12 237 12
BalonParca AdiParca NoAdetTipApplied Date A B C D
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (C) ID=18 L=50 		1-09700-302-1 01 1 0907- ● ● ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (D) ID=19 H=70 L=25 		1-09700-773-0 01 1 0907- ● ● ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (E) ID=16.5 & 16.5 		8-94468-380-0 01 1 0907- ● ● ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 0907- ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 0907- ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 0907- ● ●
12 04.681 CLIP; HOSE
04.930 (A) ID=15.5 		8-98008-097-0 02 1 0907- ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 0905-0906 ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 0905-0906 ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=15.5 		8-98008-097-0 06 1 0907- ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 06 1 0907- ● ●
12 04.681 CLIP; HOSE
WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) 04.930 (B) ID=16 		8-94238-568-0 02 1 0905-0906 ●
12 04.681 CLIP; HOSE
WHEEL BASE 4400MM(44W) 04.930 (B) ID=16 		8-94238-568-0 02 1 0905-0906 ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 04 1 0907-0911 ● ● ● ●
12 04.681 CLIP; HOSE
FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 04 1 0907-0911 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (B) ID=16 		8-98008-098-0 04 1 0912- ● ● ● ●
12 04.681 CLIP; HOSE
FRAME STRAIGHT TYPE<7KJ> 03.162 (B) ID=16 		8-98008-098-0 04 1 0912- ● ●
12 04.681 CLIP; HOSE
04.930 (B) ID=16 		8-94238-568-0 04 1 0905-0906 ● ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0908 ●
12 04.681 CLIP; HOSE
WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0908 ●
12 04.681 CLIP; HOSE
WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0908 ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0908 ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 02 1 0909-0911 ●
12 04.681 CLIP; HOSE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 02 1 0909-0911 ●
12 04.681 CLIP; HOSE
WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=16 		8-94238-568-0 02 1 0909-0911 ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 04.930 (B) ID=16 		8-94238-568-0 02 1 0909-0911 ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (B) ID=16 		8-98008-098-0 02 1 0912- ●
12 04.681 CLIP; HOSE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 03.162 (B) ID=16 		8-98008-098-0 02 1 0912- ●
12 04.681 CLIP; HOSE
WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 03.162 (B) ID=16 		8-98008-098-0 02 1 0912- ●
12 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 03.162 (B) ID=16 		8-98008-098-0 02 1 0912- ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (C) 		8-98089-666-0 01 1 0907- ●
44 04.930 PIPE; VAC,MAG VLV
EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98063-777-0 01 1 0907- ●
44 04.930 PIPE; VAC,MAG VLV
(D) 		8-98063-777-0 01 1 0907- ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-98095-039-0 01 1 0907- ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) (B) 		8-98040-807-1 01 1 0905-0906 ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 4400MM(44W) (B) 		8-98040-807-1 01 1 0905-0906 ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98040-807-1 01 1 0907-0908 ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98040-807-1 01 1 0907-0908 ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98040-807-1 01 1 0909- ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98040-807-1 01 1 0909- ●
44 04.930 PIPE; VAC,MAG VLV
(A) 		8-98034-281-1 01 1 0905-0906 ●
44 04.930 PIPE; VAC,MAG VLV
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98034-281-1 01 1 0907- ●
44 04.930 PIPE; VAC,MAG VLV
(A) 		8-98040-634-0 01 1 0905-0906 ●
44 04.930 PIPE; VAC,MAG VLV
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98040-634-0 01 1 0907- ●
106 04.930 CLIP; PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) ID=10 H=40 		8-94462-219-0 01 1 0907- ●
106 04.930 CLIP; PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> ID=10 H=40 		8-94462-219-0 02 1 0907- ●
127 04.930 BOLT; CLIP
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0907- ● ● ● ●
127 04.930 BOLT; CLIP
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0907- ●
128 04.930 NUT; CLIP
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0907- ● ● ● ●
128 04.930 NUT; CLIP
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0907- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) EXC. FUEL TANK 63 LITTER<6EF> 		8-98034-371-1 01 1 0908- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98083-557-0 01 1 0908- ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EXC. FUEL TANK 63 LITTER<6EF> 		8-98083-557-0 01 1 0908- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) EXC. FUEL TANK 63 LITTER<6EF> 		8-98083-557-0 01 1 0908- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) FUEL TANK 63 LITTER<6EF> 		8-98146-249-0 01 1 0907- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) FUEL TANK 63 LITTER<6EF> 		8-98146-250-0 01 1 0907- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) FUEL TANK 63 LITTER<6EF> 		8-98146-250-0 01 1 0907- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98083-558-0 01 1 0907- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 3300MM(33W) 		8-98133-640-0 01 1 0905-0906 ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> 		8-98133-640-0 01 1 0907- ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 3800MM(38W) 		8-98133-641-0 01 1 0905-0906 ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> 		8-98133-641-0 01 1 0907-0908 ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> 		8-98133-641-0 01 1 0909- ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 4400MM(44W) 		8-98133-642-0 01 1 0905-0906 ● ●
197 04.930 PIPE; VAC,PIPE TO MAG VLV
WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 		8-98133-642-0 01 1 0907- ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (C) 		8-97373-197-0 01 1 0907- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98041-642-0 01 1 0907- ● ● ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 3300MM(33W) 03.630 (A) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 0905-0906 ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> 03.630 (A) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 0907- ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 3800MM(38W) 03.630 (B) L=230 SERVICED BY L=3000 		0-08258-300-0 01 1 0905-0906 ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> 03.630 (B) L=230 SERVICED BY L=3000 		0-08258-300-0 01 1 0907-0908 ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> 03.630 (B) L=230 SERVICED BY L=3000 		0-08258-300-0 01 1 0909- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 4400MM(44W) 03.630 (B) L=200 SERVICED BY L=3000 		0-08258-300-0 01 1 0905-0906 ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 03.630 (B) L=200 SERVICED BY L=3000 		0-08258-300-0 01 1 0907- ● ●
236 04.930 BOLT; PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 0907- ●
236 04.930 BOLT; PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 0907- ●
236 04.930 BOLT; PIPE
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0905-0906 ●
236 04.930 BOLT; PIPE
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0907- ● ●
236 04.930 BOLT; PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0907- ●
236 04.930 BOLT; PIPE
00.029 M10X25 FLANGE 		0-28651-025-0 01 1 0905-0906 ●
236 04.930 BOLT; PIPE
FRAME STRAIGHT TYPE<7KJ> 00.029 M10X25 FLANGE 		0-28651-025-0 01 1 0907- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 03.630 (D) L=250 SERVICED BY L=3000 		0-08258-300-0 01 1 0907- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-98034-429-0 01 1 0907- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (E) 		8-98034-429-0 01 1 0907- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98034-430-0 01 1 0907-1008 ● ● ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98171-279-0 01 1 1009- ● ● ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 03.630 (G) L=180 SERVICED BY L=3000 		0-08258-300-0 01 1 0907- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3300MM(33W) (A) 		8-97378-772-0 01 1 0905-0906 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (A) 		8-97378-772-0 01 1 0907- ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3800MM(38W) (B) 		8-97378-771-0 01 1 0905-0906 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97378-771-0 01 1 0907-0908 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97378-771-0 01 1 0909- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) (C) 		8-98040-785-1 01 1 0905-0906 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 4400MM(44W) (C) 		8-98040-785-1 01 1 0905-0906 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (C) 		8-98040-785-1 01 1 0907-0908 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (C) 		8-98040-785-1 01 1 0907-0908 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (C) 		8-98040-785-1 01 1 0909- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (C) 		8-98040-785-1 01 1 0909- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 4400MM(44W) (B) 		8-98101-554-0 01 1 0905-0906 ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98101-554-0 01 1 0907- ● ●
238 04.892 ORIFICE; VACUUM HOSE 8-97377-521-0 01 1 0905-0906 ● ●
238 04.892 ORIFICE; VACUUM HOSE 8-97377-521-0 01 1 0907- ● ● ● ●
çizim 186389
33 66 169 75 66 116 169 116 66 66 116 66 66 66 116 169 66 235 108
BalonParca AdiParca NoAdetTipApplied Date A B C D
33 04.930 CLIP; VAC PIPE
POWER ASSIST CLUTCH(S2T) ID=10 H=40 		8-94462-219-0 02 1 0905-0906 ● ●
33 04.930 CLIP; VAC PIPE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) ID=10 H=40 		8-94462-219-0 02 1 0907- ● ●
33 04.930 CLIP; VAC PIPE
EXC. HYDRO BRAKE BOOSTER(7QQ) ID=10 H=40 		8-94462-219-0 02 1 0907- ● ●
33 04.930 CLIP; VAC PIPE
ID=10 H=40 		8-94462-219-0 02 1 0907- ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> ID=16 		8-94238-568-0 02 1 0907-0907 ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
ID=16 		8-94238-568-0 02 1 0907-0907 ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
ID=16 		8-94238-568-0 02 1 0907-0911 ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
03.162 ID=16 		8-98008-098-0 02 1 0912- ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
ID=16 		8-94238-568-0 08 1 0905-0906 ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
FRAME STRAIGHT TYPE<7KJ> ID=16 		8-94238-568-0 08 1 0907-0907 ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
FRAME STRAIGHT TYPE<7KJ> ID=16 		8-94238-568-0 06 1 0907-0911 ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16 		8-98008-098-0 06 1 0912- ● ●
75 04.930 NUT; CLIP,VAC HOSE
01.062 M8 FLANGE 		0-91180-108-0 01 1 0905-0906 ● ●
75 04.930 NUT; CLIP,VAC HOSE
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0907- ● ●
108 04.931 GROMMET; PIPE
02.343 (B) ID=17 		8-94128-319-2 01 1 0905-0906 ● ●
108 04.931 GROMMET; PIPE
02.343 (B) ID=17 		8-94128-319-2 01 1 0907- ● ● ● ●
108 04.931 GROMMET; PIPE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		9-09956-353-0 01 1 0905-0906 ● ●
108 04.931 GROMMET; PIPE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		9-09956-353-0 01 1 0907-0908 ● ● ● ●
108 04.931 GROMMET; PIPE
HYDRO BRAKE BOOSTER(7QQ) EXC. POWER ASSIST CLUTCH(S2T) (A) 		9-09956-353-0 01 1 0909- ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (E) L=200 SERVICED BY L=3000 		0-08158-300-0 01 1 0907- ● ●
116 04.931 HOSE; VAC,M/VAC
(E) L=200 SERVICED BY L=3000 		0-08158-300-0 01 1 0907- ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98113-001-0 01 1 0907- ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98113-001-0 01 1 0907- ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (A) 		8-98113-000-1 01 1 0905-0906 ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (A) 		8-98113-000-1 01 1 0907- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
(D) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 0905-0906 ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (D) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 0907- ● ●
116 04.931 HOSE; VAC,M/VAC
03.630 (B) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 0905-0906 ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> 03.630 (B) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 0907- ● ●
116 04.931 HOSE; VAC,M/VAC
(C) 		8-98034-276-2 01 1 0905-0906 ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (C) 		8-98034-276-2 01 1 0907-0911 ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (C) 		8-98158-378-0 01 1 0912- ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
POWER ASSIST CLUTCH(S2T) (A) 		8-98140-330-0 01 1 0905-0906 ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98140-330-0 01 1 0907- ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98140-330-0 01 1 0907- ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98033-805-0 01 1 0905-0906 ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98033-805-0 01 1 0907- ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
(D) 		8-98040-479-3 01 1 0905-0906 ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98040-479-3 01 1 0907-0907 ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98040-479-3 01 1 0907-0907 ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
FRAME STRAIGHT TYPE<7KJ> (D) 		8-98040-479-3 01 1 0907- ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
EXC. POWER ASSIST CLUTCH(S2T) 04.685 (C) 		8-98048-901-0 01 1 0905-0906 ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
HYDRO BRAKE BOOSTER(7QQ) EXC. POWER ASSIST CLUTCH(S2T) 04.685 (C) 		8-98048-901-0 01 1 0907- ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98041-052-2 01 1 0905-0906 ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98041-052-2 01 1 0907- ● ●
235 04.931 RUBBER; SUPPORT,PIPE
03.162 OD=16.5 L=50 		8-97214-235-0 01 1 0905-0906 ● ●
235 04.931 RUBBER; SUPPORT,PIPE
03.162 OD=16.5 L=50 		8-97214-235-0 01 1 0907- ● ● ● ●
çizim 186423
236 136 136 136 122 78 136 136 44 158 78 136
BalonParca AdiParca NoAdetTipApplied Date A B C D
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (C) 		8-98089-666-0 01 1 0907- ●
44 04.930 PIPE; VAC,MAG VLV
EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98063-777-0 01 1 0907- ●
44 04.930 PIPE; VAC,MAG VLV
(D) 		8-98063-777-0 01 1 0907- ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-98095-039-0 01 1 0907- ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) (B) 		8-98040-807-1 01 1 0905-0906 ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 4400MM(44W) (B) 		8-98040-807-1 01 1 0905-0906 ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98040-807-1 01 1 0907-0908 ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98040-807-1 01 1 0907-0908 ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98040-807-1 01 1 0909- ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98040-807-1 01 1 0909- ●
44 04.930 PIPE; VAC,MAG VLV
(A) 		8-98034-281-1 01 1 0905-0906 ●
44 04.930 PIPE; VAC,MAG VLV
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98034-281-1 01 1 0907- ●
44 04.930 PIPE; VAC,MAG VLV
(A) 		8-98040-634-0 01 1 0905-0906 ●
44 04.930 PIPE; VAC,MAG VLV
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98040-634-0 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 03.630 (H) L=130 SERVICED BY L=3000 		0-08258-300-0 01 1 0907- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) 03.630 (H) L=130 SERVICED BY L=3000 		0-08258-300-0 01 1 0907- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98092-678-0 01 1 0907-1008 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(F) 		8-98092-678-0 01 1 0907-1008 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98171-288-0 01 1 1009- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(F) 		8-98171-288-0 01 1 1009- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (G) 		8-98106-711-0 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(G) 		8-98106-711-0 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (G) 		8-97389-728-2 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(G) 		8-97389-728-2 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
POWER ASSIST CLUTCH(S2T) (B) 		8-98081-681-2 01 1 0905-0906 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98081-681-2 01 1 0907- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98081-681-2 01 1 0907- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(B) 		8-98081-681-2 01 1 0907- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(D) 		8-98034-104-4 01 1 0905-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (D) 		8-98034-104-4 01 1 0907-1103 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (D) 		8-98189-106-0 01 1 1104- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(E) 		8-98133-654-1 01 1 0905-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (E) 		8-98133-654-1 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-98034-112-4 01 1 0905-0906 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98034-112-4 01 1 0907-0909 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98136-614-0 01 1 0910- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
03.630 (E) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 0905-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> 03.630 (E) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 0907- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(D) 		8-98040-702-2 01 1 0905-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (D) 		8-98040-702-2 01 1 0907-1103 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (D) 		8-98189-103-0 01 1 1104- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
04.681 (C) 		8-98096-135-0 01 1 0905-0906 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) 04.681 (C) 		8-98096-135-0 01 1 0907- ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98092-677-0 01 1 0907- ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE 8-98092-677-0 01 1 0907- ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97389-721-1 01 1 0907- ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE 8-97389-721-1 01 1 0907- ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE 8-98034-103-2 01 1 0905-0906 ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
FRAME STRAIGHT TYPE<7KJ> 		8-98034-103-2 01 1 0907-1103 ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
FRAME STRAIGHT TYPE<7KJ> 		8-98189-104-0 01 1 1104- ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE 8-98040-701-1 01 1 0905-0906 ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
FRAME STRAIGHT TYPE<7KJ> 		8-98040-701-1 01 1 0907-1103 ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
FRAME STRAIGHT TYPE<7KJ> 		8-98189-105-0 01 1 1104- ●
136 04.681 CLIP; VAC HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 ID=16 		8-94238-568-0 02 1 0907-0911 ●
136 04.681 CLIP; VAC HOSE
04.930 ID=16 		8-94238-568-0 02 1 0907-0911 ●
136 04.681 CLIP; VAC HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16 		8-98008-098-0 02 1 0912- ●
136 04.681 CLIP; VAC HOSE
03.162 ID=16 		8-98008-098-0 02 1 0912- ●
136 04.681 CLIP; VAC HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 ID=16 		8-94238-568-0 04 1 0907-0911 ● ●
136 04.681 CLIP; VAC HOSE
04.930 ID=16 		8-94238-568-0 04 1 0907-0911 ● ●
136 04.681 CLIP; VAC HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16 		8-98008-098-0 04 1 0912- ● ●
136 04.681 CLIP; VAC HOSE
03.162 ID=16 		8-98008-098-0 04 1 0912- ● ●
136 04.681 CLIP; VAC HOSE
04.930 ID=16 		8-94238-568-0 06 1 0905-0906 ● ●
136 04.681 CLIP; VAC HOSE
FRAME STRAIGHT TYPE<7KJ> 04.930 ID=16 		8-94238-568-0 06 1 0907-0911 ● ●
136 04.681 CLIP; VAC HOSE
FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16 		8-98008-098-0 06 1 0912- ● ●
158 04.681 CLIP; HOSE
02.559 ID=14-20 		8-97061-603-0 01 1 0905-0906 ●
158 04.681 CLIP; HOSE
02.559 ID=14-20 		8-97061-603-0 01 1 0907- ● ●
236 04.930 BOLT; PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 0907- ●
236 04.930 BOLT; PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 0907- ●
236 04.930 BOLT; PIPE
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0905-0906 ●
236 04.930 BOLT; PIPE
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0907- ● ●
236 04.930 BOLT; PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0907- ●
236 04.930 BOLT; PIPE
00.029 M10X25 FLANGE 		0-28651-025-0 01 1 0905-0906 ●
236 04.930 BOLT; PIPE
FRAME STRAIGHT TYPE<7KJ> 00.029 M10X25 FLANGE 		0-28651-025-0 01 1 0907- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
