5-01 — FRAME AND OTHER PARTS (#7720) — 66 parça

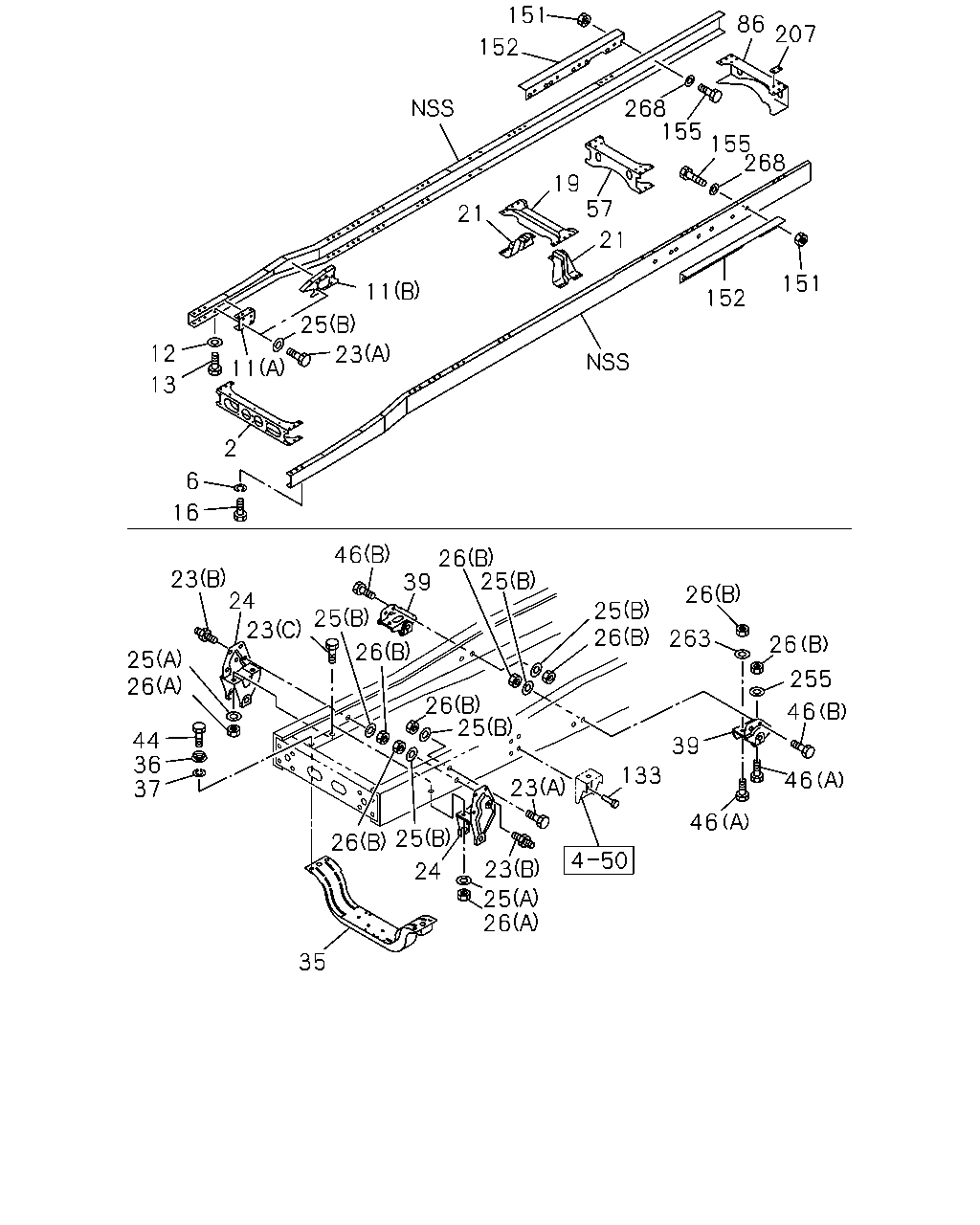

çizim 9675
151 86 207 152 268 155 155 268 19 57 21 21 151 11 152 25 12 23 11 13 2 6 16 46 26 39 25 23 24 26 25 26 25 26 23 263 26 25 26 255 26 25 46 44 36 37 39 133 46 23 46 25 26 23 24 25 26 35
BalonParca AdiParca NoAdetTipApplied Date A B
2 MEMBER; CROSS,1ST 1-53181-710-0 01 1 9902-9902 ● ●
2 MEMBER; CROSS,1ST 1-53181-526-4 01 1 9903- ● ●
6 WASHER; LK,1ST C/MBR
EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG> ID=16.2 		9-09150-616-0 02 1 9905- ●
6 WASHER; LK,1ST C/MBR
SHORT CHASSIS&LHD(EXR6MC) EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG> ID=16.2 		9-09150-616-0 02 1 9905- ●
11 BRACKET; ENG MTG
(A) 		1-53219-784-1 01 1 9902- ● ●
11 BRACKET; ENG MTG
(B) 		1-53219-868-1 01 1 9902- ● ●
11 BRACKET; ENG MTG
(A) 		1-53219-783-1 01 1 9902- ● ●
11 BRACKET; ENG MTG
(B) 		1-53219-867-0 01 1 9902- ● ●
12 WASHER; PL,BRKT,ENG MTG
ID=15 		9-09651-069-0 02 1 9902- ● ●
13 BOLT; BRKT,ENG MTG
M14X40 		9-92061-440-0 02 1 9902- ● ●
16 BOLT; 1ST C/MBR TO S/MBR
EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG> M16X40 		0-20801-640-0 02 1 9905- ●
16 BOLT; 1ST C/MBR TO S/MBR
SHORT CHASSIS&LHD(EXR6MC) EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG> M16X40 		0-20801-640-0 02 1 9905- ●
19 MEMBER; CROSS,2ND 1-53174-231-1 01 1 9902- ● ●
21 GUSSET; 2ND CROSS 1-53164-212-0 02 1 9902- ● ●
23 BOLT; BRKT,SPR
(B) M12X35,M14X45 L=100 		1-09029-075-0 04 1 9902- ● ●
23 BOLT; BRKT,SPR
(A) M14X40 		9-92061-440-0 04 1 9902- ● ●
23 BOLT; BRKT,SPR
(C) M16X50 		9-92061-650-0 04 1 9902- ● ●
24 BRACKET; FRT SPR,FRT 1-53351-220-0 01 1 9902- ● ●
24 BRACKET; FRT SPR,FRT 1-53351-219-0 01 1 9902- ● ●
25 WASHER; PL,BRKT
(A) ID=16.2 		1-09503-223-0 08 1 9902- ● ●
25 WASHER; PL,BRKT
(B) ID=15 		9-09651-069-0 32 1 9902- ● ●
26 NUT; BRKT,SPR
(B) M14 		9-99110-514-0 08 1 9902-9912 ● ●
26 NUT; BRKT,SPR
(B) M14 		9-99110-514-0 12 1 0001- ● ●
26 NUT; BRKT,SPR
(A) M16 		9-99110-516-0 04 1 9902- ● ●
35 MEMBER; UNDER 1-53174-263-2 01 1 9902- ● ●
36 WASHER; PL,UNDER MBR
ID=17 		9-09164-516-0 04 1 9902- ● ●
37 WASHER; LK,UNDER MBR
ID=16.2 		9-09150-816-0 04 1 9902- ● ●
39 BRACKET; FRT SPR,RR 1-53352-147-0 01 1 9902- ● ●
39 BRACKET; FRT SPR,RR 1-53352-146-0 01 1 9902- ● ●
44 BOLT; UNDER MBR
M16X45 		9-92061-645-0 04 1 9902- ● ●
46 BOLT; BRKT FIX
(B) M14X40 		9-92061-440-0 04 1 9902- ● ●
46 BOLT; BRKT FIX
(A) M14X50 		9-92061-450-0 04 1 9902- ● ●
57 MEMBER; CROSS,RR SUSP FRT 1-53181-319-8 01 1 9902- ● ●
86 MEMBER; CROSS,RR SUSP RR 1-53181-319-8 01 1 9902- ● ●
133 RIVET; BRKT
D13X36 PLATED TAPER END 		9-06771-336-0 08 1 9902- ● ●
151 NUT; OUTRIGGER
M16 		9-99110-516-0 20 1 9902- ● ●
152 OUTRIGGER 1-53456-298-2 01 1 9902- ● ●
152 OUTRIGGER 1-53456-299-2 01 1 9902- ● ●
155 BOLT; OUTRIGGER
M16X50 		9-92061-650-0 20 1 9902- ● ●
207 SPACER; 4TH C/MBR 1-53168-171-1 02 1 9902- ● ●
255 WASHER; PL,BRKT
ID=15 		9-09651-069-0 12 1 9902-9912 ● ●
255 WASHER; PL,BRKT
ID=15 		9-09651-069-0 24 1 0001- ● ●
263 WASHER; PL,SUB FRAME
ID=15 		9-09651-069-0 04 1 9902- ● ●
268 WASHER; PL,OUTRIGGER
ID=17 OD=30 		9-09851-935-0 20 1 9902- ● ●

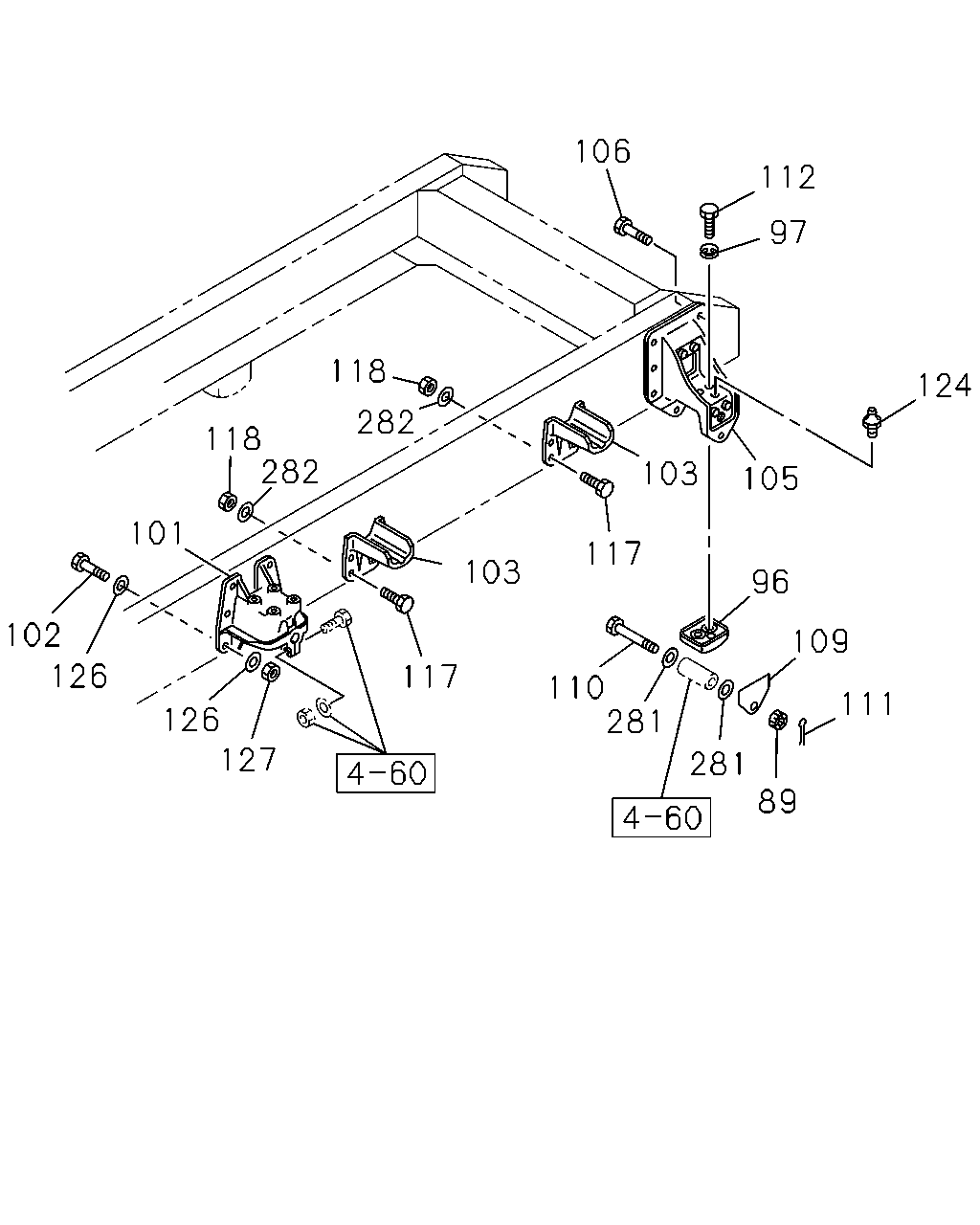

çizim 44583
106 112 97 118 124 282 118 282 103 101 117 103 96 102 109 126 117 110 281 111 126 127 281 89 105
BalonParca AdiParca NoAdetTipApplied Date A B
89 NUT; LEAF SPR STOPPER
M14 		9-99116-414-0 02 1 9902- ● ●
96 PAD; RR SPR 1-53359-047-0 02 1 9902- ● ●
97 WASHER; LK,PAD
ID=14.2 		9-09150-514-0 04 1 9902- ● ●
101 BRACKET; RR SPR,FRT 1-53353-081-2 02 1 9902- ● ●
102 BOLT; BRKT,RR SPR
M14X40 		9-92061-440-0 12 1 9902-9912 ● ●
102 BOLT; BRKT,RR SPR
M14X50 		9-92061-450-0 12 1 0001- ● ●
103 STOPPER; SUB SPR 1-53356-057-0 04 1 9902- ● ●
105 BRACKET; RR SPR,RR 1-53354-066-2 02 1 9902- ● ●
106 BOLT; BRKT
M14X40 		9-92061-440-0 12 1 9902-9912 ● ●
106 BOLT; BRKT
M14X50 		9-92061-450-0 12 1 0001- ● ●
109 SHIM; RR SPR
T=4.5 		1-53359-061-1 02 1 9902- ● ●
109 SHIM; RR SPR
T=3.2 		1-53359-062-1 02 1 9902- ● ●
110 BOLT; LEAF SPR STOPPER 1-09000-007-0 02 1 9902- ● ●
111 PIN; SPLIT,LEAF SPR STOPPER
OD=2.8 L=28 		9-08113-028-0 02 1 9902- ● ●
112 BOLT; PAD
M14X35 		9-92061-435-0 04 1 9902- ● ●
117 BOLT; STOPPER
M14X40 		9-92061-440-0 16 1 9902- ● ●
118 NUT; STOPPER
M14 		9-99110-514-0 16 1 9902- ● ●
124 NIPPLE; GREASE
PT1/8 ELBOW 		9-09031-210-0 02 1 9902- ● ●
126 WASHER; PL,BRKT
ID=15 		9-09651-069-0 24 1 9902- ● ●
127 NUT; BRKT
M14 		9-99110-514-0 24 1 9902- ● ●
281 WASHER; LEAF SPR STOPPER
ID=15 OD=30 		9-09160-614-0 04 1 9902- ● ●
282 WASHER; PL,STOPPER
ID=15 		9-09651-069-0 16 1 9902- ● ●
