◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51237 - NNR/NPR(EU)-LHD EU5 ▶ 3 - Brakes, Brake System ▶ 3-11 - PARKING BRAKE CONTROL ▶
3-11 — PARKING BRAKE CONTROL (#77192) — 327 parça

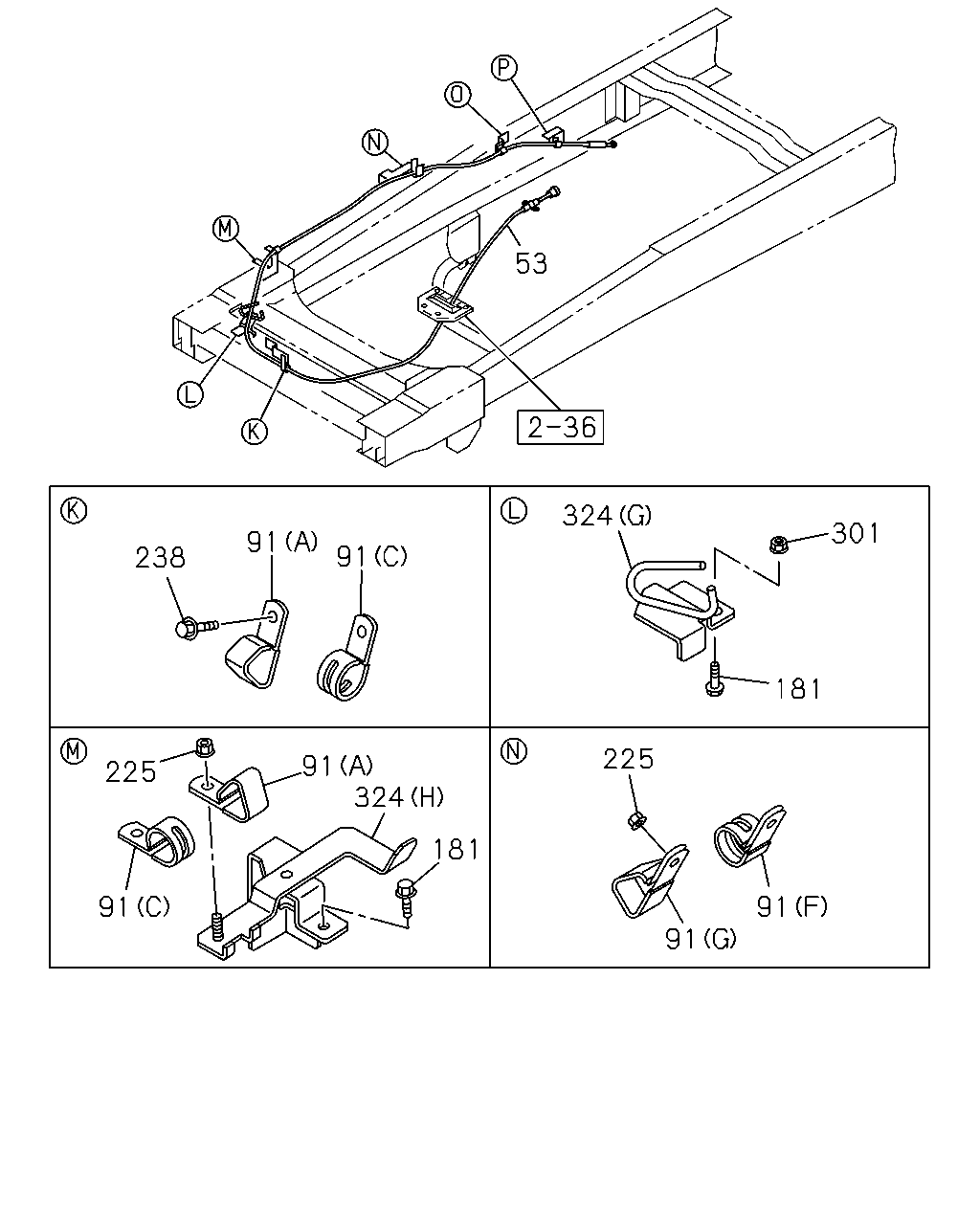

çizim 115399
53 324 301 91 91 238 181 225 91 324 225 181 91 91 91
BalonParca AdiParca NoAdetTipApplied Date A B C D
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98100-229-1 01 1 1511- ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98057-120-3 01 1 0907- ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98057-120-3 01 1 0907- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98057-119-1 01 1 0907- ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY5T(RSM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98057-119-1 01 1 0907- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98144-781-1 01 1 0907- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98060-996-3 01 1 0907- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98057-121-3 01 1 0907- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98049-096-1 01 1 0907- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98049-097-4 01 1 0905-0906 ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98049-097-4 01 1 0907- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MZZ6F(RSR) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98057-441-3 01 1 0905-0906 ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98057-441-3 01 1 0907- ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (F) ID=24 L=40 		1-09701-139-0 01 1 0907- ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) (F) ID=24 L=40 		1-09701-139-0 01 1 0907- ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (G) 		8-97036-332-1 01 1 0907- ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (G) 		8-97036-332-1 01 1 0907- ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (C) ID=13 L=28 		0-95235-255-0 01 1 0905-0906 ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (C) ID=13 L=28 		0-95235-255-0 01 1 0905-0906 ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (C) ID=13 L=28 		0-95235-255-0 01 1 0907- ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (C) ID=13 L=28 		0-95235-255-0 01 1 0907- ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 06.672 (B) ID=16 L=28 		0-95235-556-0 01 1 0905-0906 ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 06.672 (B) ID=16 L=28 		0-95235-556-0 01 1 0907- ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-98023-698-0 01 1 0905-0906 ● ●
91 04.785 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-98023-698-0 01 1 0907- ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (A) 		8-97036-333-1 01 1 0905-0906 ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (A) 		8-97036-333-1 01 1 0905-0906 ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (A) 		8-97036-333-1 01 1 0905-0906 ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (A) 		8-97036-333-1 01 1 0907- ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (A) 		8-97036-333-1 01 1 0907- ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (A) 		8-97036-333-1 01 1 0907- ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (D) 		8-98023-697-0 01 1 0905-0906 ● ●
91 04.785 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (D) 		8-98023-697-0 01 1 0907- ● ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0905-0906 ● ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0907- ● ● ● ●
181 04.785 BOLT; BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0907- ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0907- ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 03 1 0905-0906 ● ●
181 04.785 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 03 1 0907- ● ●
225 04.785 NUT; CABLE CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0907- ● ● ● ●
225 04.785 NUT; CABLE CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0907- ● ● ● ●
225 04.785 NUT; CABLE CLIP
EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0907- ● ● ● ●
225 04.785 NUT; CABLE CLIP
M/T MYY5T(RSM),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0907- ● ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 02 1 0905-0906 ● ●
225 04.785 NUT; CABLE CLIP
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0907- ● ●
238 04.785 BOLT; CLIP TO BRKT
M/T MZZ6F(RSR) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0905-0906 ● ●
238 04.785 BOLT; CLIP TO BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0907- ● ● ● ●
238 04.785 BOLT; CLIP TO BRKT
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0907- ● ●
238 04.785 BOLT; CLIP TO BRKT
M/T MYY5T(RSM),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0907- ● ●
238 04.785 BOLT; CLIP TO BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 03 1 0905-0906 ● ●
238 04.785 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 03 1 0907- ● ●
238 04.785 BOLT; CLIP TO BRKT
00.029 M10X30 FLANGE 		0-28651-030-0 01 1 0905-0906 ● ●
238 04.785 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 0907- ● ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
01.062 M8 FLANGE 		0-91180-108-0 01 1 0905-0906 ● ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
01.062 M8 FLANGE 		0-91180-108-0 01 1 0905-0906 ● ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
01.062 M8 FLANGE 		0-91180-108-0 01 1 0907- ● ● ● ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0907- ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
01.062 M8 FLANGE 		0-91180-108-0 01 1 0907- ●
324 04.785 BRACKET
4JJ1-TCS ENG(LFB) (H) 		8-98091-693-0 01 1 0907- ● ● ● ●
324 04.785 BRACKET
4JJ1-TCS ENG(LFB) (G) 		8-98101-848-0 01 1 0907-1110 ● ● ● ●
324 04.785 BRACKET
4JJ1-TCS ENG(LFB) 04.047 (G) 		8-98189-805-0 01 1 1111- ● ● ● ●
324 04.785 BRACKET
EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98014-921-0 01 1 0907- ●
324 04.785 BRACKET
(F) 		8-98014-921-0 01 1 0907- ●
324 04.785 BRACKET
04.047 (E) 		8-98034-185-1 01 1 0905-0906 ● ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> 04.047 (E) 		8-98034-185-1 01 1 0907- ● ●
324 04.785 BRACKET
4HK1-TCS ENG(RJS) 04.047 (B) 		8-98061-626-1 01 1 0905- ● ●
324 04.785 BRACKET
(C) 		8-98087-330-1 01 1 0905-0906 ● ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> (C) 		8-98087-330-1 01 1 0907- ● ●
324 04.785 BRACKET
4HK1-TCS ENG(RJS) (D) 		8-98094-197-0 01 1 0905-1110 ● ●
324 04.785 BRACKET
4HK1-TCS ENG(RJS) 04.010 (D) 		8-98189-804-0 01 1 1111- ● ●
324 04.785 BRACKET
(A) 		8-98099-516-0 01 1 0905-0906 ● ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98099-516-0 01 1 0907-1508 ● ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98216-763-1 01 1 1509- ● ●

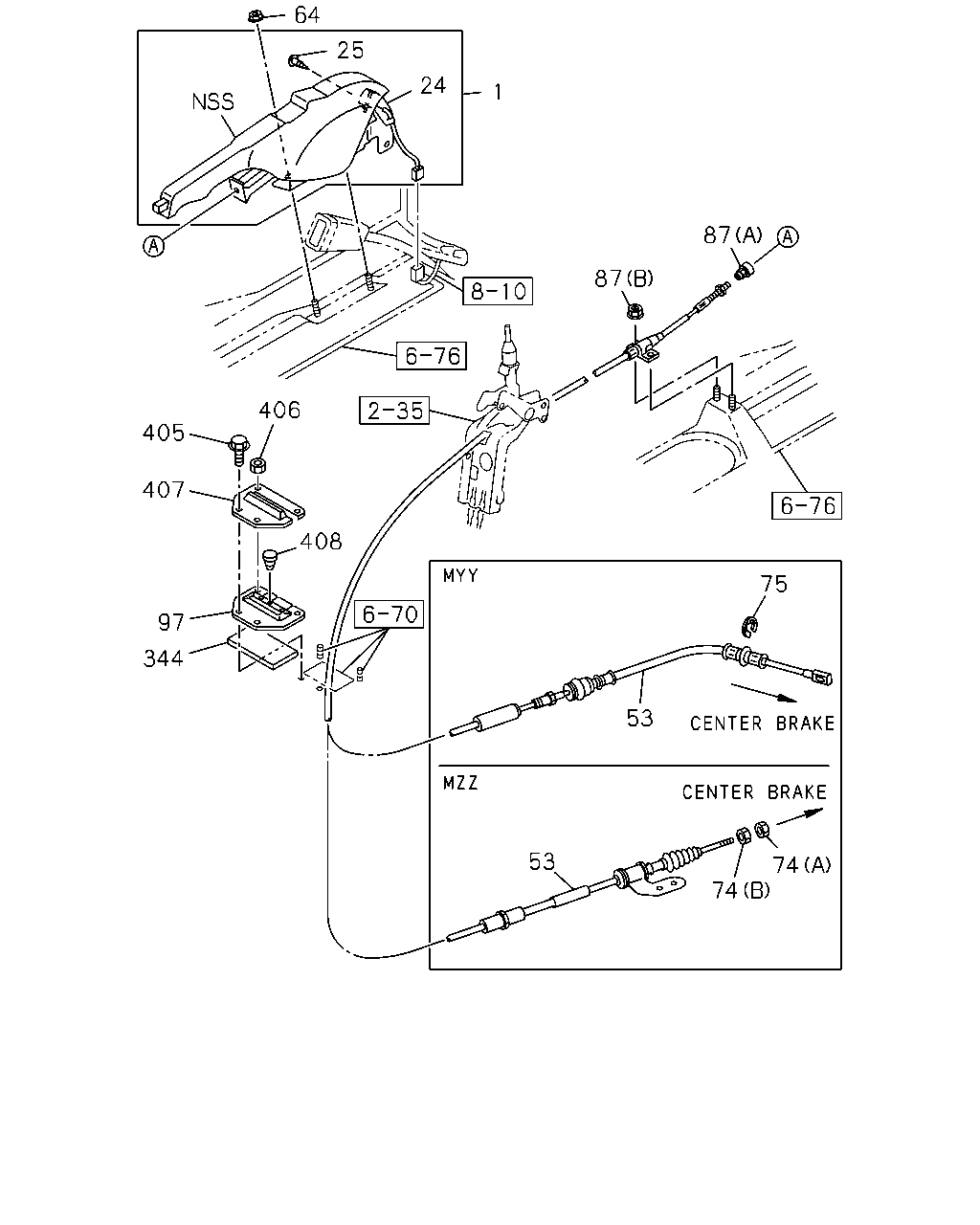

çizim 115464
64 25 24 1 87 87 406 405 407 408 75 97 344 53 53 74 74
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 04.592 STEM ASM; PARKING BRK
GRAY 		8-97406-006-0 01 1 0905-0906 ● ●
1 04.592 STEM ASM; PARKING BRK
GRAY 		8-97406-006-0 01 1 0907-1303 ● ● ● ●
1 04.592 STEM ASM; PARKING BRK
GRAY 		8-97426-514-0 01 1 1304- ● ● ● ●
24 04.589 SWITCH ASM; PARK BRK 8-97995-828-1 01 1 0905-0906 ● ●
24 04.589 SWITCH ASM; PARK BRK 8-97995-828-1 01 1 0907-1303 ● ● ● ●
24 04.589 SWITCH ASM; PARK BRK 8-98238-611-0 01 1 1304- ● ● ● ●
25 04.589 SCREW; SW,PARKING BRK 8-98152-463-0 01 1 0905-0906 ● ●
25 04.589 SCREW; SW,PARKING BRK 8-98152-463-0 01 1 0907- ● ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98100-229-1 01 1 1511- ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98057-120-3 01 1 0907- ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98057-120-3 01 1 0907- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98057-119-1 01 1 0907- ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY5T(RSM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98057-119-1 01 1 0907- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98144-781-1 01 1 0907- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98060-996-3 01 1 0907- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98057-121-3 01 1 0907- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98049-096-1 01 1 0907- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98049-097-4 01 1 0905-0906 ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98049-097-4 01 1 0907- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MZZ6F(RSR) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98057-441-3 01 1 0905-0906 ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98057-441-3 01 1 0907- ● ●
64 04.595 NUT; PARKING BRK
16.682 M8 LOCK NUT FLANGE 		0-91380-008-0 02 1 0905-0906 ● ●
64 04.595 NUT; PARKING BRK
16.682 M8 LOCK NUT FLANGE 		0-91380-008-0 02 1 0907- ● ● ● ●
74 04.785 NUT; CONT WIRE
M/T MZZ6F(RSR) 02.334 (A) M8 		0-91110-508-0 01 1 0905-0906 ● ●
74 04.785 NUT; CONT WIRE
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> 02.334 (A) M8 		0-91110-508-0 01 1 0907- ● ●
74 04.785 NUT; CONT WIRE
M/T MZZ6F(RSR) (B) M8 FLANGE 		9-46259-016-0 01 1 0905-0906 ● ●
74 04.785 NUT; CONT WIRE
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> (B) M8 FLANGE 		9-46259-016-0 01 1 0907- ● ●
75 04.790 RING; SNAP,HAND BRK CABLE
M/T MYY5T(RSM),M/T MYY6S(RST) ID=12 		0-91805-512-0 01 1 0907- ● ● ● ●
87 04.785 NUT
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 0907- ● ● ● ●
87 04.785 NUT
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 0907- ● ●
87 04.785 NUT
01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 0905-0906 ● ●
87 04.785 NUT
01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 0907- ● ● ● ●
87 04.785 NUT
(A) M6 		8-98034-313-1 01 1 0905-0906 ● ●
87 04.785 NUT
(A) M6 		8-98034-313-1 01 1 0907- ● ● ● ●
97 04.785 GROMMET; PARKING BRK CABLE
04.010 		8-97091-890-0 01 1 0905-0906 ● ●
97 04.785 GROMMET; PARKING BRK CABLE
04.010 		8-97091-890-0 01 1 0907- ● ● ● ●
344 04.595 GASKET; DASH LWR
MANUAL TILT CAB<RWZ> 04.047 		8-97096-753-0 01 1 0905-0906 ●
344 04.595 GASKET; DASH LWR
MANUAL TILT CAB<RWZ> 04.047 		8-97096-753-0 01 1 0907- ● ●
405 04.785 BOLT; GROMMET
00.785 M6X20 FLANGE 		0-28450-620-0 02 1 0905-0906 ● ●
405 04.785 BOLT; GROMMET
00.785 M6X20 FLANGE 		0-28450-620-0 02 1 0907- ● ● ● ●
406 04.785 NUT; GROMMET
01.062 M6 FLANGE 		0-91180-106-0 02 1 0905-0906 ● ●
406 04.785 NUT; GROMMET
01.062 M6 FLANGE 		0-91180-106-0 02 1 0907- ● ● ● ●
407 04.785 RETAINER; GROMMET
04.047 		1-33657-674-0 01 1 0905-0906 ● ●
407 04.785 RETAINER; GROMMET
04.047 		1-33657-674-0 01 1 0907- ● ● ● ●
408 04.785 CAP; GROMMET
TRANSMISSION CONTROL-SMOOTHER(8GF) 04.010 		8-97371-108-0 02 1 0905-0906 ● ●
408 04.785 CAP; GROMMET
TRANSMISSION CONTROL-SMOOTHER(8GF) 04.010 		8-97371-108-0 02 1 0907- ● ● ● ●
çizim 115539
181 324 301 241 87 85 225 237 235 368 223
BalonParca AdiParca NoAdetTipApplied Date A B C D
85 04.785 CLIP; BRKT
EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) ID=14.5 L=20 		1-09701-012-0 01 1 0907- ● ● ● ●
85 04.785 CLIP; BRKT
M/T MYY5T(RSM),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> ID=14.5 L=20 		1-09701-012-0 01 1 0907- ● ●
85 04.785 CLIP; BRKT
M/T MZZ6F(RSR) ID=13 L=20 		0-95235-236-0 01 1 0905-0906 ● ●
85 04.785 CLIP; BRKT
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> ID=13 L=20 		0-95235-236-0 01 1 0907- ● ●
87 04.785 NUT
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 0907- ● ● ● ●
87 04.785 NUT
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 0907- ● ●
87 04.785 NUT
01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 0905-0906 ● ●
87 04.785 NUT
01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 0907- ● ● ● ●
87 04.785 NUT
(A) M6 		8-98034-313-1 01 1 0905-0906 ● ●
87 04.785 NUT
(A) M6 		8-98034-313-1 01 1 0907- ● ● ● ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0905-0906 ● ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0907- ● ● ● ●
181 04.785 BOLT; BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0907- ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0907- ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 03 1 0905-0906 ● ●
181 04.785 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 03 1 0907- ● ●
223 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 00.799 ID=13 L=20 		1-09701-138-1 01 1 0907- ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 00.799 ID=13 L=20 		1-09701-138-1 01 1 0907- ● ●
225 04.785 NUT; CABLE CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0907- ● ● ● ●
225 04.785 NUT; CABLE CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0907- ● ● ● ●
225 04.785 NUT; CABLE CLIP
EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0907- ● ● ● ●
225 04.785 NUT; CABLE CLIP
M/T MYY5T(RSM),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0907- ● ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 02 1 0905-0906 ● ●
225 04.785 NUT; CABLE CLIP
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0907- ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98034-410-3 01 1 0907- ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98034-410-3 01 1 0907- ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MYY5T(RSM),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98087-322-0 01 1 0907- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98087-322-0 01 1 0907- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MZZ6F(RSR) (B) 		8-98033-907-0 01 1 0905-0906 ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98033-907-0 01 1 0907- ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MYY5T(RSM),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98033-907-0 01 1 0907- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98033-907-0 01 1 0907- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
(A) 		8-98074-995-0 01 1 0905-0906 ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98074-995-0 01 1 0907- ● ●
237 04.785 NUT; BRKT TO FRAME
M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0905-0906 ● ●
237 04.785 NUT; BRKT TO FRAME
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0907- ● ●
237 04.785 NUT; BRKT TO FRAME
03.162 M10 FLANGE 		0-91180-110-0 01 1 0905-0906 ● ●
237 04.785 NUT; BRKT TO FRAME
03.162 M10 FLANGE 		0-91180-110-0 01 1 0905-0906 ●
237 04.785 NUT; BRKT TO FRAME
EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE 		0-91180-110-0 01 1 0907- ● ● ● ●
237 04.785 NUT; BRKT TO FRAME
FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 0907- ● ●
237 04.785 NUT; BRKT TO FRAME
4HK1-TCS ENG(RJS) EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 M10 FLANGE 		0-91180-110-0 01 1 0907- ● ●
237 04.785 NUT; BRKT TO FRAME
FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 0907- ●
241 04.785 NUT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0907- ● ● ● ●
241 04.785 NUT; BRKT
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0907- ● ●
241 04.785 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 02 1 0905-0906 ● ●
241 04.785 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0907- ● ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
01.062 M8 FLANGE 		0-91180-108-0 01 1 0905-0906 ● ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
01.062 M8 FLANGE 		0-91180-108-0 01 1 0905-0906 ● ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
01.062 M8 FLANGE 		0-91180-108-0 01 1 0907- ● ● ● ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0907- ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
01.062 M8 FLANGE 		0-91180-108-0 01 1 0907- ●
324 04.785 BRACKET
4JJ1-TCS ENG(LFB) (H) 		8-98091-693-0 01 1 0907- ● ● ● ●
324 04.785 BRACKET
4JJ1-TCS ENG(LFB) (G) 		8-98101-848-0 01 1 0907-1110 ● ● ● ●
324 04.785 BRACKET
4JJ1-TCS ENG(LFB) 04.047 (G) 		8-98189-805-0 01 1 1111- ● ● ● ●
324 04.785 BRACKET
EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98014-921-0 01 1 0907- ●
324 04.785 BRACKET
(F) 		8-98014-921-0 01 1 0907- ●
324 04.785 BRACKET
04.047 (E) 		8-98034-185-1 01 1 0905-0906 ● ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> 04.047 (E) 		8-98034-185-1 01 1 0907- ● ●
324 04.785 BRACKET
4HK1-TCS ENG(RJS) 04.047 (B) 		8-98061-626-1 01 1 0905- ● ●
324 04.785 BRACKET
(C) 		8-98087-330-1 01 1 0905-0906 ● ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> (C) 		8-98087-330-1 01 1 0907- ● ●
324 04.785 BRACKET
4HK1-TCS ENG(RJS) (D) 		8-98094-197-0 01 1 0905-1110 ● ●
324 04.785 BRACKET
4HK1-TCS ENG(RJS) 04.010 (D) 		8-98189-804-0 01 1 1111- ● ●
324 04.785 BRACKET
(A) 		8-98099-516-0 01 1 0905-0906 ● ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98099-516-0 01 1 0907-1508 ● ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98216-763-1 01 1 1509- ● ●
368 04.785 BRACKET; T/M SIDE
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97372-863-1 01 1 0907- ● ●
368 04.785 BRACKET; T/M SIDE
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97372-863-1 01 1 0907- ● ●
çizim 186382
237 53 236 74 235 74
BalonParca AdiParca NoAdetTipApplied Date A B C D
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98100-229-1 01 1 1511- ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98057-120-3 01 1 0907- ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98057-120-3 01 1 0907- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98057-119-1 01 1 0907- ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY5T(RSM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98057-119-1 01 1 0907- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98144-781-1 01 1 0907- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98060-996-3 01 1 0907- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98057-121-3 01 1 0907- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98049-096-1 01 1 0907- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98049-097-4 01 1 0905-0906 ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98049-097-4 01 1 0907- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MZZ6F(RSR) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98057-441-3 01 1 0905-0906 ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98057-441-3 01 1 0907- ● ●
74 04.785 NUT; CONT WIRE
M/T MZZ6F(RSR) 02.334 (A) M8 		0-91110-508-0 01 1 0905-0906 ● ●
74 04.785 NUT; CONT WIRE
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> 02.334 (A) M8 		0-91110-508-0 01 1 0907- ● ●
74 04.785 NUT; CONT WIRE
M/T MZZ6F(RSR) (B) M8 FLANGE 		9-46259-016-0 01 1 0905-0906 ● ●
74 04.785 NUT; CONT WIRE
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> (B) M8 FLANGE 		9-46259-016-0 01 1 0907- ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98034-410-3 01 1 0907- ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98034-410-3 01 1 0907- ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MYY5T(RSM),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98087-322-0 01 1 0907- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98087-322-0 01 1 0907- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MZZ6F(RSR) (B) 		8-98033-907-0 01 1 0905-0906 ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98033-907-0 01 1 0907- ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MYY5T(RSM),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98033-907-0 01 1 0907- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98033-907-0 01 1 0907- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
(A) 		8-98074-995-0 01 1 0905-0906 ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98074-995-0 01 1 0907- ● ●
236 04.785 BOLT; BRKT TO FRAME
4HK1-TCS ENG(RJS) 00.029 (A) M10X25 FLANGE 		0-28651-025-0 01 1 0905- ● ●
236 04.785 BOLT; BRKT TO FRAME
M/T MZZ6F(RSR) 00.029 (B) M10X30 FLANGE 		0-28651-030-0 02 1 0905-0906 ● ●
236 04.785 BOLT; BRKT TO FRAME
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> 00.029 (B) M10X30 FLANGE 		0-28651-030-0 02 1 0907- ● ●
237 04.785 NUT; BRKT TO FRAME
M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0905-0906 ● ●
237 04.785 NUT; BRKT TO FRAME
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0907- ● ●
237 04.785 NUT; BRKT TO FRAME
03.162 M10 FLANGE 		0-91180-110-0 01 1 0905-0906 ● ●
237 04.785 NUT; BRKT TO FRAME
03.162 M10 FLANGE 		0-91180-110-0 01 1 0905-0906 ●
237 04.785 NUT; BRKT TO FRAME
EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE 		0-91180-110-0 01 1 0907- ● ● ● ●
237 04.785 NUT; BRKT TO FRAME
FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 0907- ● ●
237 04.785 NUT; BRKT TO FRAME
4HK1-TCS ENG(RJS) EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 M10 FLANGE 		0-91180-110-0 01 1 0907- ● ●
237 04.785 NUT; BRKT TO FRAME
FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 0907- ●

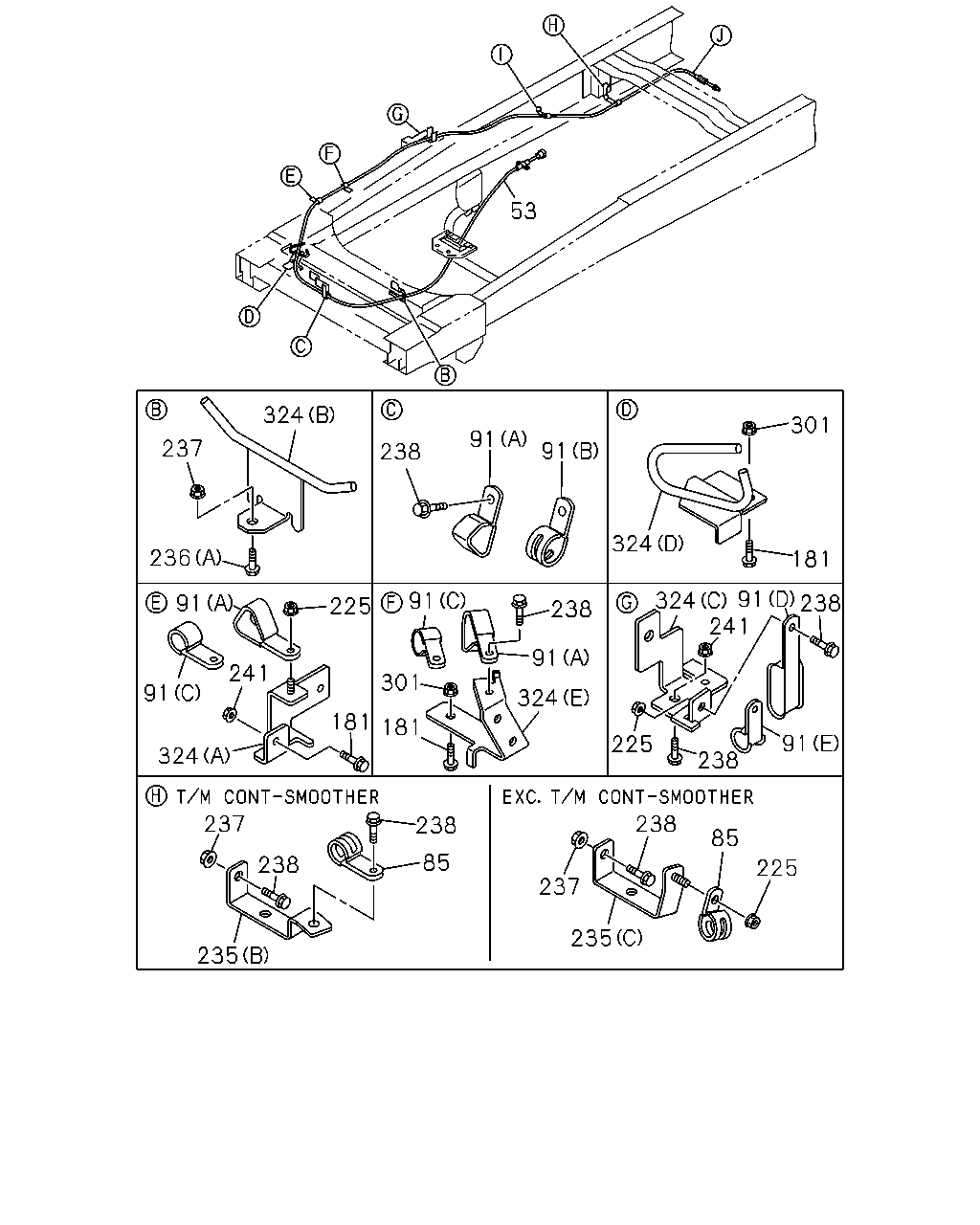

çizim 186385
53 324 301 91 237 91 238 324 236 181 238 241 91 91 225 238 91 241 301 91 324 181 181 91 225 324 238 237 238 238 85 85 238 225 237 235 235 324 91
BalonParca AdiParca NoAdetTipApplied Date A B C D
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98100-229-1 01 1 1511- ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98057-120-3 01 1 0907- ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98057-120-3 01 1 0907- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98057-119-1 01 1 0907- ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY5T(RSM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98057-119-1 01 1 0907- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98144-781-1 01 1 0907- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98060-996-3 01 1 0907- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98057-121-3 01 1 0907- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98049-096-1 01 1 0907- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98049-097-4 01 1 0905-0906 ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98049-097-4 01 1 0907- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MZZ6F(RSR) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98057-441-3 01 1 0905-0906 ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98057-441-3 01 1 0907- ● ●
85 04.785 CLIP; BRKT
EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) ID=14.5 L=20 		1-09701-012-0 01 1 0907- ● ● ● ●
85 04.785 CLIP; BRKT
M/T MYY5T(RSM),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> ID=14.5 L=20 		1-09701-012-0 01 1 0907- ● ●
85 04.785 CLIP; BRKT
M/T MZZ6F(RSR) ID=13 L=20 		0-95235-236-0 01 1 0905-0906 ● ●
85 04.785 CLIP; BRKT
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> ID=13 L=20 		0-95235-236-0 01 1 0907- ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (F) ID=24 L=40 		1-09701-139-0 01 1 0907- ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) (F) ID=24 L=40 		1-09701-139-0 01 1 0907- ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (G) 		8-97036-332-1 01 1 0907- ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (G) 		8-97036-332-1 01 1 0907- ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (C) ID=13 L=28 		0-95235-255-0 01 1 0905-0906 ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (C) ID=13 L=28 		0-95235-255-0 01 1 0905-0906 ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (C) ID=13 L=28 		0-95235-255-0 01 1 0907- ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (C) ID=13 L=28 		0-95235-255-0 01 1 0907- ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 06.672 (B) ID=16 L=28 		0-95235-556-0 01 1 0905-0906 ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 06.672 (B) ID=16 L=28 		0-95235-556-0 01 1 0907- ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-98023-698-0 01 1 0905-0906 ● ●
91 04.785 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-98023-698-0 01 1 0907- ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (A) 		8-97036-333-1 01 1 0905-0906 ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (A) 		8-97036-333-1 01 1 0905-0906 ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (A) 		8-97036-333-1 01 1 0905-0906 ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (A) 		8-97036-333-1 01 1 0907- ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (A) 		8-97036-333-1 01 1 0907- ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (A) 		8-97036-333-1 01 1 0907- ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (D) 		8-98023-697-0 01 1 0905-0906 ● ●
91 04.785 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (D) 		8-98023-697-0 01 1 0907- ● ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0905-0906 ● ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0907- ● ● ● ●
181 04.785 BOLT; BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0907- ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0907- ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 03 1 0905-0906 ● ●
181 04.785 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 03 1 0907- ● ●
225 04.785 NUT; CABLE CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0907- ● ● ● ●
225 04.785 NUT; CABLE CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0907- ● ● ● ●
225 04.785 NUT; CABLE CLIP
EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0907- ● ● ● ●
225 04.785 NUT; CABLE CLIP
M/T MYY5T(RSM),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0907- ● ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 02 1 0905-0906 ● ●
225 04.785 NUT; CABLE CLIP
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0907- ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98034-410-3 01 1 0907- ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98034-410-3 01 1 0907- ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MYY5T(RSM),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98087-322-0 01 1 0907- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98087-322-0 01 1 0907- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MZZ6F(RSR) (B) 		8-98033-907-0 01 1 0905-0906 ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98033-907-0 01 1 0907- ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MYY5T(RSM),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98033-907-0 01 1 0907- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98033-907-0 01 1 0907- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
(A) 		8-98074-995-0 01 1 0905-0906 ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98074-995-0 01 1 0907- ● ●
236 04.785 BOLT; BRKT TO FRAME
4HK1-TCS ENG(RJS) 00.029 (A) M10X25 FLANGE 		0-28651-025-0 01 1 0905- ● ●
236 04.785 BOLT; BRKT TO FRAME
M/T MZZ6F(RSR) 00.029 (B) M10X30 FLANGE 		0-28651-030-0 02 1 0905-0906 ● ●
236 04.785 BOLT; BRKT TO FRAME
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> 00.029 (B) M10X30 FLANGE 		0-28651-030-0 02 1 0907- ● ●
237 04.785 NUT; BRKT TO FRAME
M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0905-0906 ● ●
237 04.785 NUT; BRKT TO FRAME
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0907- ● ●
237 04.785 NUT; BRKT TO FRAME
03.162 M10 FLANGE 		0-91180-110-0 01 1 0905-0906 ● ●
237 04.785 NUT; BRKT TO FRAME
03.162 M10 FLANGE 		0-91180-110-0 01 1 0905-0906 ●
237 04.785 NUT; BRKT TO FRAME
EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE 		0-91180-110-0 01 1 0907- ● ● ● ●
237 04.785 NUT; BRKT TO FRAME
FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 0907- ● ●
237 04.785 NUT; BRKT TO FRAME
4HK1-TCS ENG(RJS) EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 M10 FLANGE 		0-91180-110-0 01 1 0907- ● ●
237 04.785 NUT; BRKT TO FRAME
FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 0907- ●
238 04.785 BOLT; CLIP TO BRKT
M/T MZZ6F(RSR) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0905-0906 ● ●
238 04.785 BOLT; CLIP TO BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0907- ● ● ● ●
238 04.785 BOLT; CLIP TO BRKT
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0907- ● ●
238 04.785 BOLT; CLIP TO BRKT
M/T MYY5T(RSM),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0907- ● ●
238 04.785 BOLT; CLIP TO BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 03 1 0905-0906 ● ●
238 04.785 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 03 1 0907- ● ●
238 04.785 BOLT; CLIP TO BRKT
00.029 M10X30 FLANGE 		0-28651-030-0 01 1 0905-0906 ● ●
238 04.785 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 0907- ● ●
241 04.785 NUT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0907- ● ● ● ●
241 04.785 NUT; BRKT
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0907- ● ●
241 04.785 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 02 1 0905-0906 ● ●
241 04.785 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0907- ● ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
01.062 M8 FLANGE 		0-91180-108-0 01 1 0905-0906 ● ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
01.062 M8 FLANGE 		0-91180-108-0 01 1 0905-0906 ● ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
01.062 M8 FLANGE 		0-91180-108-0 01 1 0907- ● ● ● ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0907- ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
01.062 M8 FLANGE 		0-91180-108-0 01 1 0907- ●
324 04.785 BRACKET
4JJ1-TCS ENG(LFB) (H) 		8-98091-693-0 01 1 0907- ● ● ● ●
324 04.785 BRACKET
4JJ1-TCS ENG(LFB) (G) 		8-98101-848-0 01 1 0907-1110 ● ● ● ●
324 04.785 BRACKET
4JJ1-TCS ENG(LFB) 04.047 (G) 		8-98189-805-0 01 1 1111- ● ● ● ●
324 04.785 BRACKET
EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98014-921-0 01 1 0907- ●
324 04.785 BRACKET
(F) 		8-98014-921-0 01 1 0907- ●
324 04.785 BRACKET
04.047 (E) 		8-98034-185-1 01 1 0905-0906 ● ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> 04.047 (E) 		8-98034-185-1 01 1 0907- ● ●
324 04.785 BRACKET
4HK1-TCS ENG(RJS) 04.047 (B) 		8-98061-626-1 01 1 0905- ● ●
324 04.785 BRACKET
(C) 		8-98087-330-1 01 1 0905-0906 ● ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> (C) 		8-98087-330-1 01 1 0907- ● ●
324 04.785 BRACKET
4HK1-TCS ENG(RJS) (D) 		8-98094-197-0 01 1 0905-1110 ● ●
324 04.785 BRACKET
4HK1-TCS ENG(RJS) 04.010 (D) 		8-98189-804-0 01 1 1111- ● ●
324 04.785 BRACKET
(A) 		8-98099-516-0 01 1 0905-0906 ● ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98099-516-0 01 1 0907-1508 ● ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98216-763-1 01 1 1509- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
