Sayfa 3-08 - Isuzu EPC

3-08 — PARKING BRAKE (#77190) — 58 parça

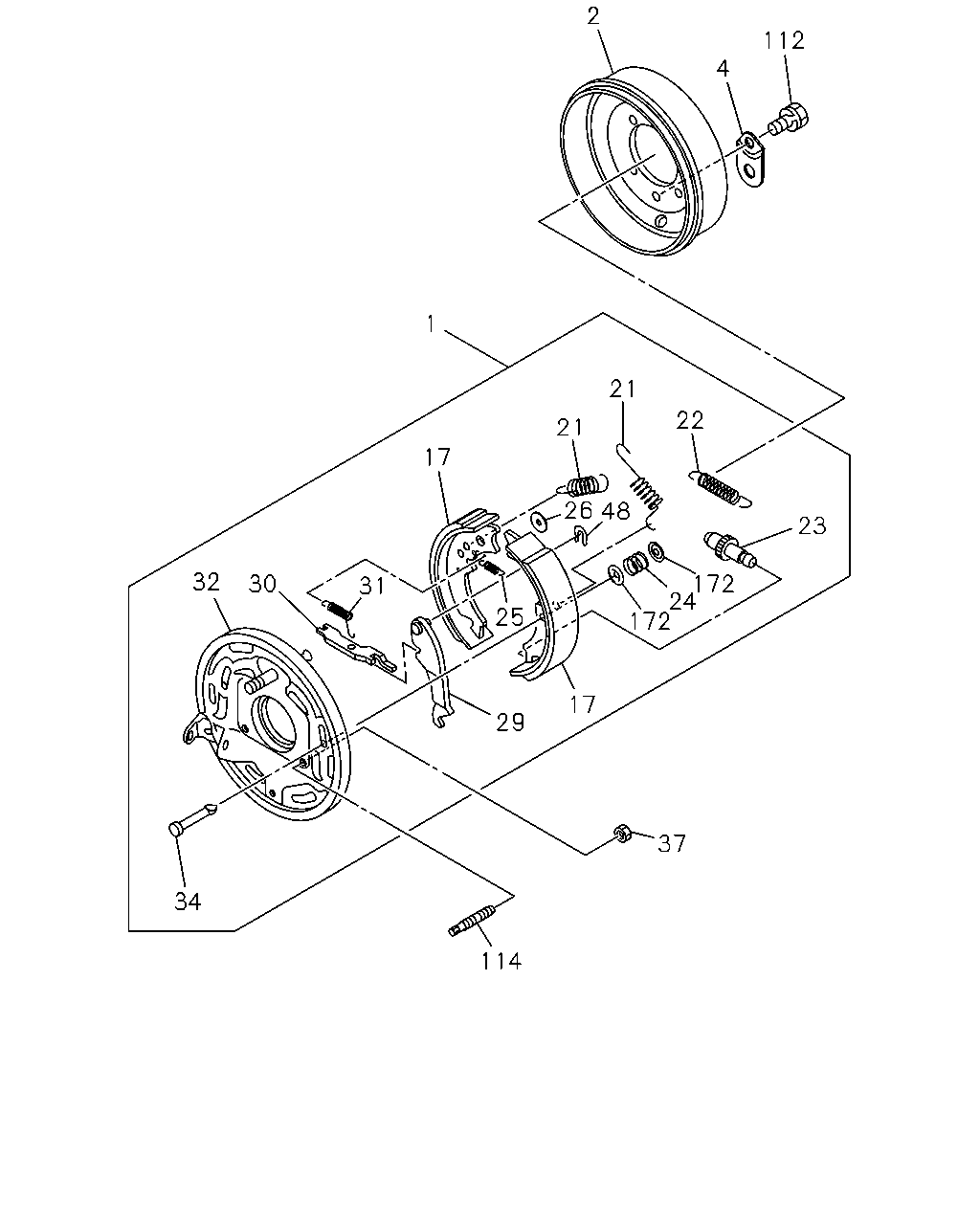

2 112 4 1 21 22 21 17 23 32 31 30 172 24 172 25 17 29 37 34 114 48 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	05.610 BRAKE ASM; CENTER,PARKING M/T MYY5T(RSM),M/T MYY6S(RST)	8-98029-922-0	01	1	0907-	●	●	●	●
2	05.605 DRUM; PARKING BRK M/T MYY5T(RSM),M/T MYY6S(RST)	8-97033-989-1	01	1	0907-	●	●	●	●
2	05.605 DRUM; PARKING BRK M/T MZZ6F(RSR)	1-46211-057-1	01	1	0905-		●		●
4	05.606 COVER; ADJ HOLE M/T MYY5T(RSM),M/T MYY6S(RST)	8-98029-820-0	01	1	0907-	●	●	●	●
17	05.606 SHOE; PARKING BRK M/T MYY5T(RSM),M/T MYY6S(RST)	8-97020-250-2	02	1	0907-	●	●	●	●
17	05.606 SHOE; PARKING BRK M/T MZZ6F(RSR)	8-97042-934-1	02	1	0905-		●		●
21	05.606 SPRING; RETURN,PARKING BRK SHOE M/T MYY5T(RSM),M/T MYY6S(RST) 05.605	8-94132-157-0	02	1	0907-	●	●	●	●
21	05.606 SPRING; RETURN,PARKING BRK SHOE M/T MZZ6F(RSR)	1-09583-280-0	01	1	0905-		●		●
22	05.606 SPRING; ADJ SCREW,PARKING BRK M/T MYY5T(RSM),M/T MYY6S(RST) 05.605	8-94107-618-0	01	1	0907-	●	●	●	●
23	05.615 SCREW; ADJ,PARKING BRK SHOE M/T MYY5T(RSM),M/T MYY6S(RST)	8-98043-954-0	01	1	0907-	●	●	●	●
23	05.615 SCREW; ADJ,PARKING BRK SHOE M/T MZZ6F(RSR)	8-98043-963-0	01	1	0905-		●		●
24	05.605 SPRING; BRK SHOE M/T MYY5T(RSM),M/T MYY6S(RST)	8-94132-155-1	02	1	0907-	●	●	●	●
25	05.605 SPRING; SHOE ALIGNMENT M/T MYY5T(RSM),M/T MYY6S(RST)	8-94132-156-0	01	1	0907-	●	●	●	●
26	05.605 PLATE; SHOE GUIDE M/T MYY5T(RSM),M/T MYY6S(RST)	8-98043-959-0	01	1	0907-	●	●	●	●
29	04.591 LEVER; PARKING BRK M/T MYY5T(RSM),M/T MYY6S(RST)	8-98043-949-0	01	1	0907-	●	●	●	●
30	05.605 STRUT; PARKING BRK M/T MYY5T(RSM),M/T MYY6S(RST)	8-98043-953-0	01	1	0907-	●	●	●	●
31	05.605 SPRING; SHOE TO STRUT M/T MYY5T(RSM),M/T MYY6S(RST)	8-94132-158-0	01	1	0907-	●	●	●	●
32	05.610 PLATE; SUPPORT,PARKING BRK M/T MYY5T(RSM),M/T MYY6S(RST)	8-97308-176-0	01	1	0907-	●	●	●	●
32	05.610 PLATE; SUPPORT,PARKING BRK M/T MZZ6F(RSR)	1-46213-069-0	01	1	0905-		●		●
34	05.605 PIN; BRK SHOE M/T MYY5T(RSM),M/T MYY6S(RST)	8-98043-955-0	02	1	0907-	●	●	●	●
37	05.610 NUT; SUPPORT PLATE M/T MYY5T(RSM),M/T MYY6S(RST) M12 LOCK NUT	8-98029-927-0	04	1	0907-	●	●	●	●
37	05.610 NUT; SUPPORT PLATE M/T MZZ6F(RSR) M14 FLANGE	8-97365-444-0	04	1	0905-		●		●
48	05.605 RETAINER; PIN,PARKING BRK M/T MYY5T(RSM),M/T MYY6S(RST)	8-98043-958-0	01	1	0907-	●	●	●	●
112	05.606 BOLT; COVER TO BRK DRUM M/T MYY5T(RSM),M/T MYY6S(RST) 00.662 M6X16 W/LK WASHER	0-50540-616-0	01	1	0907-	●	●	●	●
114	05.605 STUD; SUPPORT PLATE M/T MYY5T(RSM),M/T MYY6S(RST)	8-98029-929-0	04	1	0907-	●	●	●	●
114	05.605 STUD; SUPPORT PLATE M/T MZZ6F(RSR) M14X22.5 L=42.5	8-97365-445-0	04	1	0905-		●		●
172	05.605 CUP; SHOE HOLD M/T MYY5T(RSM),M/T MYY6S(RST)	8-98043-956-0	04	1	0907-	●	●	●	●

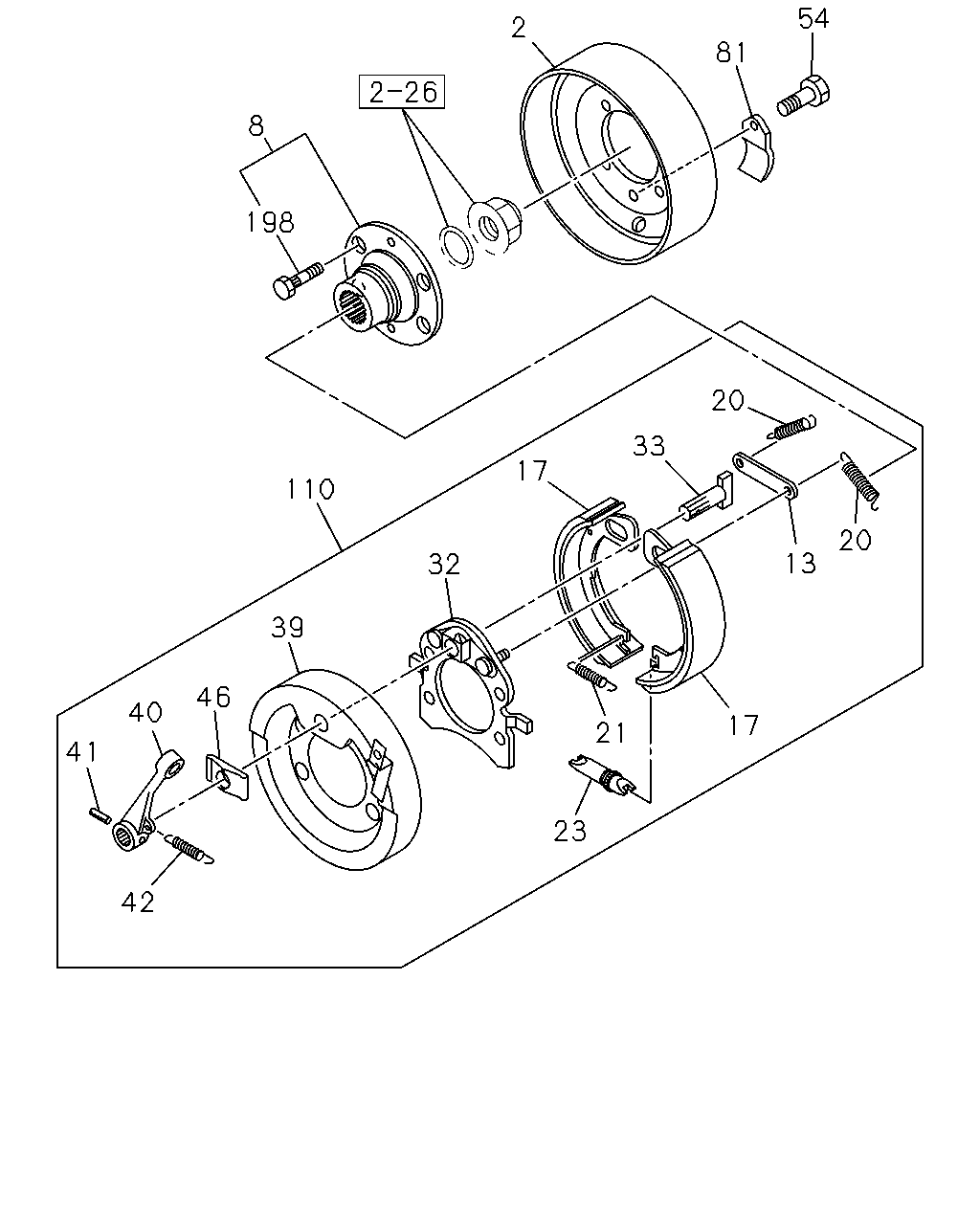

54 2 81 8 198 20 33 17 110 20 13 32 39 46 40 17 21 41 23 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	05.605 DRUM; PARKING BRK M/T MYY5T(RSM),M/T MYY6S(RST)	8-97033-989-1	01	1	0907-	●	●	●	●
2	05.605 DRUM; PARKING BRK M/T MZZ6F(RSR)	1-46211-057-1	01	1	0905-		●		●
8	05.605 FLANGE; PARKING BRK M/T MZZ6F(RSR)	8-98044-142-0	01	1	0905-		●		●
13	05.615 BRACE; PARKING BRK M/T MZZ6F(RSR)	1-46239-003-0	01	1	0905-		●		●
17	05.606 SHOE; PARKING BRK M/T MYY5T(RSM),M/T MYY6S(RST)	8-97020-250-2	02	1	0907-	●	●	●	●
17	05.606 SHOE; PARKING BRK M/T MZZ6F(RSR)	8-97042-934-1	02	1	0905-		●		●
20	05.606 SPRING; RETURN,SECONDARY,PARKING M/T MZZ6F(RSR)	1-09586-002-0	02	1	0905-		●		●
21	05.606 SPRING; RETURN,PARKING BRK SHOE M/T MYY5T(RSM),M/T MYY6S(RST) 05.605	8-94132-157-0	02	1	0907-	●	●	●	●
21	05.606 SPRING; RETURN,PARKING BRK SHOE M/T MZZ6F(RSR)	1-09583-280-0	01	1	0905-		●		●
23	05.615 SCREW; ADJ,PARKING BRK SHOE M/T MYY5T(RSM),M/T MYY6S(RST)	8-98043-954-0	01	1	0907-	●	●	●	●
23	05.615 SCREW; ADJ,PARKING BRK SHOE M/T MZZ6F(RSR)	8-98043-963-0	01	1	0905-		●		●
32	05.610 PLATE; SUPPORT,PARKING BRK M/T MYY5T(RSM),M/T MYY6S(RST)	8-97308-176-0	01	1	0907-	●	●	●	●
32	05.610 PLATE; SUPPORT,PARKING BRK M/T MZZ6F(RSR)	1-46213-069-0	01	1	0905-		●		●
33	05.605 SHAFT; CAM,PARKING BRK M/T MZZ6F(RSR)	8-98043-961-0	01	1	0905-		●		●
39	05.610 COVER; DUST,PARKING BRK M/T MZZ6F(RSR)	1-46213-075-0	01	1	0905-		●		●
40	05.605 LEVER; CM/SHF,PARKING BRK M/T MZZ6F(RSR)	8-98047-550-0	01	1	0905-		●		●
41	05.605 PIN; KNOCK,LEVER M/T MZZ6F(RSR)	9-09878-594-0	01	1	0905-		●		●
42	05.605 SPRING; RETURN,LEVER M/T MZZ6F(RSR)	1-09583-041-0	01	1	0905-		●		●
46	05.605 WASHER; LEVER M/T MZZ6F(RSR)	1-09509-057-0	01	1	0905-		●		●
54	05.606 BOLT; COVER M/T MZZ6F(RSR) 03.403 M8X20 W/LK&PL WASHER	0-50640-820-0	02	1	0905-		●		●
81	05.606 COVER; CHECK HOLE,PARKING BRK M/T MZZ6F(RSR)	8-98031-861-0	02	1	0905-		●		●
110	05.610 BRAKE ASM; PARKING M/T MZZ6F(RSR)	8-98034-305-0	01	1	0905-		●		●
198	05.605 BOLT; KNURL M/T MZZ6F(RSR) M12X39	8-97365-446-0	04	1	0905-		●		●

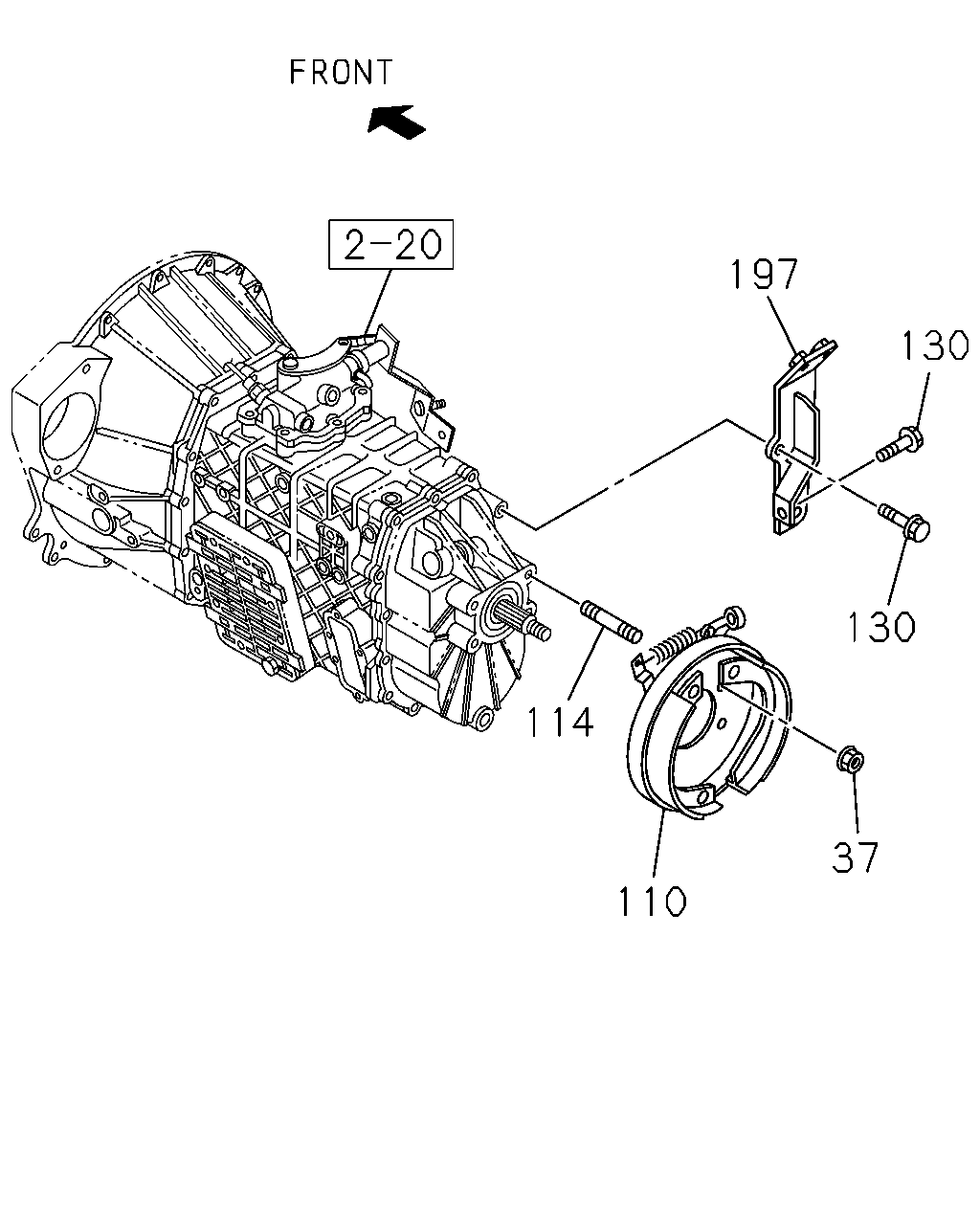

197 130 130 114 37 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
37	05.610 NUT; SUPPORT PLATE M/T MYY5T(RSM),M/T MYY6S(RST) M12 LOCK NUT	8-98029-927-0	04	1	0907-	●	●	●	●
37	05.610 NUT; SUPPORT PLATE M/T MZZ6F(RSR) M14 FLANGE	8-97365-444-0	04	1	0905-		●		●
110	05.610 BRAKE ASM; PARKING M/T MZZ6F(RSR)	8-98034-305-0	01	1	0905-		●		●
114	05.605 STUD; SUPPORT PLATE M/T MYY5T(RSM),M/T MYY6S(RST)	8-98029-929-0	04	1	0907-	●	●	●	●
114	05.605 STUD; SUPPORT PLATE M/T MZZ6F(RSR) M14X22.5 L=42.5	8-97365-445-0	04	1	0905-		●		●
130	05.605 BOLT; BRKT M/T MZZ6F(RSR) 02.042 M10X25 FLANGE	0-28151-025-0	03	1	0905-		●		●
197	05.605 BRACKET; CENTER BRAKE CABLE M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97304-238-0	01	1	0905-		●		●
197	05.605 BRACKET; CENTER BRAKE CABLE M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97244-812-0	01	1	0905-		●		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
