◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51237 - NNR/NPR(EU)-LHD EU5 ▶ 3 - Brakes, Brake System ▶ 3-01 - FRONT WHEEL BRAKE ▶
3-01 — FRONT WHEEL BRAKE (#77186) — 174 parça

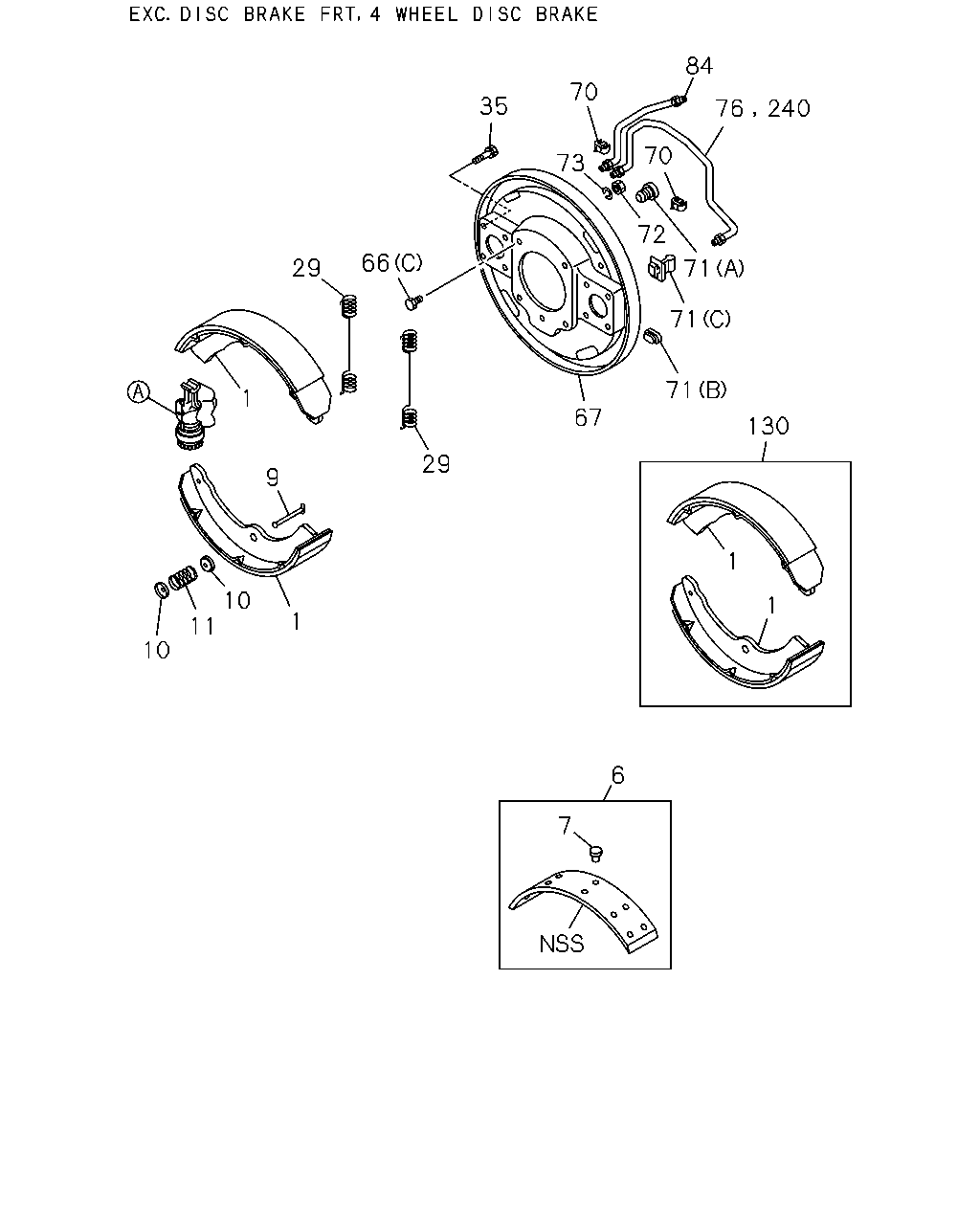

çizim 114456
84 70 35 70 73 72 66 29 71 71 71 1 67 130 29 9 1 10 1 1 11 10 6 7 76 240
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 05.017 SHOE; BRK,FRT
G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> 		8-97287-778-0 04 1 1205- ● ●
1 05.017 SHOE; BRK,FRT
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> 		8-97188-455-0 04 1 0907- ● ●
6 05.018 LINING KIT; FRT BRK
G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> 		5-87831-801-0 01 1 1205- ● ●
6 05.018 LINING KIT; FRT BRK
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> 		5-87831-692-0 01 1 0907- ● ●
6 05.018 LINING KIT; FRT BRK
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> BEST VALUE PARTS 		5-87610-119-0 01 1 0907- ● ●
6 05.018 LINING KIT; FRT BRK
G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> BEST VALUE PARTS 		5-87610-121-0 01 1 1205- ● ●
7 05.019 RIVET; LINING,FRT BRK
G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> 		1-09732-029-0 40 1 1205- ● ●
7 05.019 RIVET; LINING,FRT BRK
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> 		1-09732-029-0 64 1 0907- ● ●
9 05.026 PIN; SHOE HOLDER
G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> 05.043 		5-47162-001-0 04 1 1205- ● ●
9 05.026 PIN; SHOE HOLDER
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> 05.043 		8-97122-870-0 04 1 0907- ● ●
10 05.043 CUP; SHOE HOLDING
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> 		9-47165-096-0 08 1 0907-1204 ● ●
10 05.043 CUP; SHOE HOLDING
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> 		9-47165-096-0 08 1 1205- ● ●
11 05.027 SPRING; SHOE HOLDING
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> 05.043 		5-09580-101-1 04 1 0907-1204 ● ●
11 05.027 SPRING; SHOE HOLDING
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> 05.043 		5-09580-101-1 04 1 1205- ● ●
29 05.026 SPRING; RETURN,FRT BRK SHOE
G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> 		5-09583-118-0 04 1 1205- ● ●
29 05.026 SPRING; RETURN,FRT BRK SHOE
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> 		8-97122-869-0 04 1 0907- ● ●
35 04.665 BOLT; FRT WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> 		5-09030-016-1 16 1 1205- ● ●
35 04.665 BOLT; FRT WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> 		8-97081-305-0 16 1 0907- ● ●
66 05.815 BOLT; OIL SHIELD COVER
G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> (C) M12X33 		8-98009-493-2 08 1 1205- ● ●
66 05.815 BOLT; OIL SHIELD COVER
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> 05.002 (C) M14X40 		8-98007-879-0 08 1 0907- ● ●
66 05.815 BOLT; OIL SHIELD COVER
(B) M14X43 		8-97168-638-1 06 1 0905-0906 ● ●
66 05.815 BOLT; OIL SHIELD COVER
(B) M14X43 		8-97168-638-1 06 1 0907-0907 ● ● ● ●
66 05.815 BOLT; OIL SHIELD COVER
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) (B) M14X43 		8-97168-638-1 06 1 0907-1111 ● ●
66 05.815 BOLT; OIL SHIELD COVER
G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) (B) M14X43 		8-97168-638-1 06 1 0907-1111 ● ●
66 05.815 BOLT; OIL SHIELD COVER
(B) M14X43 		8-97168-638-1 06 1 0907-1111 ● ●
66 05.815 BOLT; OIL SHIELD COVER
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) (B) M14X43 		8-97168-638-1 06 1 1112- ● ●
66 05.815 BOLT; OIL SHIELD COVER
G.V.W. 5.0-5.5TON(RPT) (B) M14X43 		8-97168-638-1 06 1 1112- ●
66 05.815 BOLT; OIL SHIELD COVER
(B) M14X43 		8-97168-638-1 06 1 1112- ● ●
66 05.815 BOLT; OIL SHIELD COVER
(A) M14X23.5 		8-97359-814-0 02 1 0905-0906 ● ●
66 05.815 BOLT; OIL SHIELD COVER
(A) M14X23.5 		8-97359-814-0 02 1 0907-0907 ● ● ● ●
66 05.815 BOLT; OIL SHIELD COVER
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) (A) M14X23.5 		8-97359-814-0 02 1 0907-1111 ● ●
66 05.815 BOLT; OIL SHIELD COVER
G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) (A) M14X23.5 		8-97359-814-0 02 1 0907-1111 ● ●
66 05.815 BOLT; OIL SHIELD COVER
(A) M14X23.5 		8-97359-814-0 02 1 0907-1111 ● ●
66 05.815 BOLT; OIL SHIELD COVER
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) (A) M14X23.5 		8-97359-814-0 02 1 1112- ● ●
66 05.815 BOLT; OIL SHIELD COVER
G.V.W. 5.0-5.5TON(RPT) (A) M14X23.5 		8-97359-814-0 02 1 1112- ●
66 05.815 BOLT; OIL SHIELD COVER
(A) M14X23.5 		8-97359-814-0 02 1 1112- ● ●
67 05.001 PLATE; BACK,FRT BRK
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52>, HYDRO BRAKE BOOSTER(7QQ) 		8-97122-858-0 01 1 1411- ● ●
67 05.001 PLATE; BACK,FRT BRK
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52>, HYDRO BRAKE BOOSTER(7QQ) 		8-97122-859-0 01 1 1411- ● ●
67 05.001 PLATE; BACK,FRT BRK
G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> 		8-97302-588-0 01 1 1205- ● ●
67 05.001 PLATE; BACK,FRT BRK
G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> 		8-97302-589-0 01 1 1205- ● ●
67 05.001 PLATE; BACK,FRT BRK
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97160-410-0 01 1 1112-1402 ● ●
67 05.001 PLATE; BACK,FRT BRK
G.V.W. 7.5-8.0TON(RPY) HYDRO BRAKE BOOSTER(7QQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97160-410-0 01 1 1403- ● ●
67 05.001 PLATE; BACK,FRT BRK
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97160-411-0 01 1 1112-1402 ● ●
67 05.001 PLATE; BACK,FRT BRK
G.V.W. 7.5-8.0TON(RPY) HYDRO BRAKE BOOSTER(7QQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97160-411-0 01 1 1403- ● ●
67 05.001 PLATE; BACK,FRT BRK
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> 		8-97358-868-0 01 1 0907-1111 ● ●
67 05.001 PLATE; BACK,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> 		8-97358-868-0 01 1 1112- ● ●
67 05.001 PLATE; BACK,FRT BRK
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> 		8-97358-869-0 01 1 0907-1111 ● ●
67 05.001 PLATE; BACK,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> 		8-97358-869-0 01 1 1112- ● ●
70 04.685 CLIP; PIPE HOLD
G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> 		8-94128-306-0 02 1 1205- ● ●
70 04.685 CLIP; PIPE HOLD
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> 		8-97022-086-0 04 1 0907- ● ●
71 05.002 GROMMET; CHECK HOLE
G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> (B) 		8-94171-287-0 02 1 1205- ● ●
71 05.002 GROMMET; CHECK HOLE
G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> (C) 		9-09756-034-0 04 1 1205- ● ●
71 05.002 GROMMET; CHECK HOLE
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) 		8-97017-507-0 02 1 1112- ● ●
71 05.002 GROMMET; CHECK HOLE
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (C) 		8-97044-742-1 04 1 1112- ● ●
71 05.002 GROMMET; CHECK HOLE
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> 04.670 (A) 		1-47154-008-0 04 1 0907-1111 ● ●
71 05.002 GROMMET; CHECK HOLE
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> 04.670 (A) 		1-47154-008-0 04 1 1112- ● ●
71 05.002 GROMMET; CHECK HOLE
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> (B) 		8-97017-507-0 06 1 0907-1111 ● ●
71 05.002 GROMMET; CHECK HOLE
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> (B) 		8-97017-507-0 06 1 1112- ● ●
72 05.815 NUT; OIL SHIELD COVER
G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> 05.002 M12 		0-91110-512-0 08 1 1205- ● ●
72 05.815 NUT; OIL SHIELD COVER
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> 07.833 M14 		0-91110-514-0 08 1 0907- ● ●
72 05.815 NUT; OIL SHIELD COVER 8-97359-815-0 06 1 0905-0906 ● ●
72 05.815 NUT; OIL SHIELD COVER 8-97359-815-0 06 1 0907-0907 ● ● ● ●
72 05.815 NUT; OIL SHIELD COVER
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) 		8-97359-815-0 06 1 0907-1111 ● ●
72 05.815 NUT; OIL SHIELD COVER
G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) 		8-97359-815-0 06 1 0907-1111 ● ●
72 05.815 NUT; OIL SHIELD COVER 8-97359-815-0 06 1 0907-1111 ● ●
72 05.815 NUT; OIL SHIELD COVER
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) 		8-97359-815-0 06 1 1112- ● ●
72 05.815 NUT; OIL SHIELD COVER
G.V.W. 5.0-5.5TON(RPT) 		8-97359-815-0 06 1 1112- ●
72 05.815 NUT; OIL SHIELD COVER 8-97359-815-0 06 1 1112- ● ●
73 05.815 WASHER; LK,OIL SHIELD COVER
G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> 07.347 ID=12.2 		0-91510-812-0 08 1 1205- ● ●
73 05.815 WASHER; LK,OIL SHIELD COVER
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> 06.174 ID=14.2 		0-91510-814-0 08 1 0907- ● ●
76 04.685 PIPE; OIL,BACKWARD,FRT BRK
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97079-847-0 02 1 1112- ● ●
84 04.685 PIPE; BRK,WHEEL CYL TO HOSE
G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> 		8-94154-917-0 01 1 1205- ● ●
84 04.685 PIPE; BRK,WHEEL CYL TO HOSE
G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> 		8-94154-918-0 01 1 1205- ● ●
84 04.685 PIPE; BRK,WHEEL CYL TO HOSE
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> 		8-97039-676-0 01 1 0907- ● ●
84 04.685 PIPE; BRK,WHEEL CYL TO HOSE
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> 		8-97039-677-0 01 1 0907- ● ●
130 05.017 SHOE KIT; BRK,FRT
G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> 		5-87832-047-0 01 1 1205- ● ●
130 05.017 SHOE KIT; BRK,FRT
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> 		5-87831-693-0 01 1 0907- ● ●
240 04.685 PIPE; OIL,FRT BRK
G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> 		8-94154-916-0 02 1 1205- ● ●
240 04.685 PIPE; OIL,FRT BRK
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> 		8-97079-847-0 02 1 0907-1111 ● ●
240 04.685 PIPE; OIL,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> 		8-97079-847-0 02 1 1112- ● ●
çizim 114846
15 15 26 17 17 16 16 18 19 255 302 254 24 253 25 24 25 252
BalonParca AdiParca NoAdetTipApplied Date A B C D
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52>, HYDRO BRAKE BOOSTER(7QQ) (B) REAR 		8-97144-795-0 01 1 1411- ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52>, HYDRO BRAKE BOOSTER(7QQ) (B) REAR 		8-97144-796-0 01 1 1411- ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52>, HYDRO BRAKE BOOSTER(7QQ) (B) FRONT 		8-97144-797-0 01 1 1411- ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52>, HYDRO BRAKE BOOSTER(7QQ) (B) FRONT 		8-97144-798-0 01 1 1411- ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> (B) FRONT 		8-97170-950-0 01 1 1205- ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> (B) FRONT 		8-97170-951-0 01 1 1205- ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> (B) REAR 		8-97170-952-0 01 1 1205- ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> (B) REAR 		8-97170-953-0 01 1 1205- ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) FRONT 		8-97353-573-0 01 1 1112-1402 ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 7.5-8.0TON(RPY) HYDRO BRAKE BOOSTER(7QQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) FRONT 		8-97353-573-0 01 1 1403- ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) FRONT 		8-97353-574-0 01 1 1112-1402 ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 7.5-8.0TON(RPY) HYDRO BRAKE BOOSTER(7QQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) FRONT 		8-97353-574-0 01 1 1403- ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) REAR 		8-97353-575-0 01 1 1112-1402 ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 7.5-8.0TON(RPY) HYDRO BRAKE BOOSTER(7QQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) REAR 		8-97353-575-0 01 1 1403- ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) REAR 		8-97353-576-0 01 1 1112-1402 ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 7.5-8.0TON(RPY) HYDRO BRAKE BOOSTER(7QQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) REAR 		8-97353-576-0 01 1 1403- ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> (A) FRONT 		8-98081-290-0 01 1 0907-1111 ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> (A) FRONT 		8-98081-290-0 01 1 1112- ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> (A) FRONT 		8-98081-291-0 01 1 0907-1111 ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> (A) FRONT 		8-98081-291-0 01 1 1112- ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> (A) REAR 		8-98081-292-0 01 1 0907-1111 ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> (A) REAR 		8-98081-292-0 01 1 1112- ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> (A) REAR 		8-98081-293-0 01 1 0907-1111 ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> (A) REAR 		8-98081-293-0 01 1 1112- ● ●
16 04.666 SCREW; BLEEDER,FRT BRK
G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> 		8-98050-476-0 02 1 1205- ● ●
16 04.666 SCREW; BLEEDER,FRT BRK
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> 		8-98050-477-0 02 1 0907- ● ●
17 04.666 CAP; BLEEDER,FRT WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> 		8-98050-479-0 02 1 0907-1204 ● ●
17 04.666 CAP; BLEEDER,FRT WHEEL CYL
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> 		8-98050-479-0 02 1 1205- ● ●
18 05.107 STOPPER; ADJ SCREW
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-94128-486-0 04 1 1112-1204 ● ●
18 05.107 STOPPER; ADJ SCREW
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-94128-486-0 04 1 1205- ● ●
19 05.107 SCREW; STOPPER SETTING
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-94128-727-0 04 1 1112-1204 ● ●
19 05.107 SCREW; STOPPER SETTING
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-94128-727-0 04 1 1205- ● ●
24 04.668 PISTON; FRT WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52>, HYDRO BRAKE BOOSTER(7QQ) 		8-94414-700-1 04 1 1411- ● ●
24 04.668 PISTON; FRT WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> 		8-97078-621-0 04 1 1205- ● ●
24 04.668 PISTON; FRT WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97353-579-0 04 1 1112-1402 ● ●
24 04.668 PISTON; FRT WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) HYDRO BRAKE BOOSTER(7QQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97353-579-0 04 1 1403- ● ●
24 04.668 PISTON; FRT WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> 		8-97349-731-0 02 1 0907-1111 ● ●
24 04.668 PISTON; FRT WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> 		8-97349-731-0 02 1 1112- ● ●
24 04.668 PISTON; FRT WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> 		8-97349-732-0 02 1 0907-1111 ● ●
24 04.668 PISTON; FRT WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> 		8-97349-732-0 02 1 1112- ● ●
25 05.110 SCREW; ADJ,FRT WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> 		8-97078-623-0 04 1 1205- ● ●
25 05.110 SCREW; ADJ,FRT WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 04.666 		8-94414-702-0 04 1 1112- ● ●
25 05.110 SCREW; ADJ,FRT WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> 04.666 		8-97349-741-0 02 1 0907-1111 ● ●
25 05.110 SCREW; ADJ,FRT WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> 04.666 		8-97349-741-0 02 1 1112- ● ●
25 05.110 SCREW; ADJ,FRT WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> 04.666 		8-97349-742-0 02 1 0907-1111 ● ●
25 05.110 SCREW; ADJ,FRT WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> 04.666 		8-97349-742-0 02 1 1112- ● ●
26 04.667 CUP SET; FRT WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52>, HYDRO BRAKE BOOSTER(7QQ) 04.665 		5-87831-598-0 01 1 1411- ● ●
26 04.667 CUP SET; FRT WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> 		5-87831-602-0 01 1 1205- ● ●
26 04.667 CUP SET; FRT WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 04.665 		5-87832-080-0 01 1 1112-1402 ● ●
26 04.667 CUP SET; FRT WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) HYDRO BRAKE BOOSTER(7QQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 04.665 		5-87832-080-0 01 1 1403- ● ●
26 04.667 CUP SET; FRT WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> 04.665 		5-87832-051-0 01 1 0907-1111 ● ●
26 04.667 CUP SET; FRT WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> 04.665 		5-87832-051-0 01 1 1112- ● ●
252 04.665 GEAR; ADJ,FRT WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> 		8-97358-894-0 02 1 0907-1111 ● ●
252 04.665 GEAR; ADJ,FRT WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> 		8-97358-894-0 02 1 1112- ● ●
252 04.665 GEAR; ADJ,FRT WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> 		8-97358-895-0 02 1 0907-1111 ● ●
252 04.665 GEAR; ADJ,FRT WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> 		8-97358-895-0 02 1 1112- ● ●
253 04.665 WASHER; THRUST
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> 05.110 		8-97349-736-0 04 1 0907-1111 ● ●
253 04.665 WASHER; THRUST
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> 05.110 		8-97349-736-0 04 1 1112- ● ●
254 04.665 SPRING; ADJ LEVER
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> 05.107 		8-97349-745-0 04 1 0907-1111 ● ●
254 04.665 SPRING; ADJ LEVER
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> 05.107 		8-97349-745-0 04 1 1112- ● ●
255 04.665 LEVER; ADJ
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> 05.103 		8-97349-743-0 02 1 0907-1111 ● ●
255 04.665 LEVER; ADJ
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> 05.103 		8-97349-743-0 02 1 1112- ● ●
255 04.665 LEVER; ADJ
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> 05.103 		8-97349-744-0 02 1 0907-1111 ● ●
255 04.665 LEVER; ADJ
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> 05.103 		8-97349-744-0 02 1 1112- ● ●
302 04.665 SCREW; ADJ LEVER
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> 04.666 		8-97349-747-0 04 1 0907-1111 ● ●
302 04.665 SCREW; ADJ LEVER
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> 04.666 		8-97349-747-0 04 1 1112- ● ●
çizim 186436
66 66 72
BalonParca AdiParca NoAdetTipApplied Date A B C D
66 05.815 BOLT; OIL SHIELD COVER
G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> (C) M12X33 		8-98009-493-2 08 1 1205- ● ●
66 05.815 BOLT; OIL SHIELD COVER
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> 05.002 (C) M14X40 		8-98007-879-0 08 1 0907- ● ●
66 05.815 BOLT; OIL SHIELD COVER
(B) M14X43 		8-97168-638-1 06 1 0905-0906 ● ●
66 05.815 BOLT; OIL SHIELD COVER
(B) M14X43 		8-97168-638-1 06 1 0907-0907 ● ● ● ●
66 05.815 BOLT; OIL SHIELD COVER
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) (B) M14X43 		8-97168-638-1 06 1 0907-1111 ● ●
66 05.815 BOLT; OIL SHIELD COVER
G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) (B) M14X43 		8-97168-638-1 06 1 0907-1111 ● ●
66 05.815 BOLT; OIL SHIELD COVER
(B) M14X43 		8-97168-638-1 06 1 0907-1111 ● ●
66 05.815 BOLT; OIL SHIELD COVER
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) (B) M14X43 		8-97168-638-1 06 1 1112- ● ●
66 05.815 BOLT; OIL SHIELD COVER
G.V.W. 5.0-5.5TON(RPT) (B) M14X43 		8-97168-638-1 06 1 1112- ●
66 05.815 BOLT; OIL SHIELD COVER
(B) M14X43 		8-97168-638-1 06 1 1112- ● ●
66 05.815 BOLT; OIL SHIELD COVER
(A) M14X23.5 		8-97359-814-0 02 1 0905-0906 ● ●
66 05.815 BOLT; OIL SHIELD COVER
(A) M14X23.5 		8-97359-814-0 02 1 0907-0907 ● ● ● ●
66 05.815 BOLT; OIL SHIELD COVER
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) (A) M14X23.5 		8-97359-814-0 02 1 0907-1111 ● ●
66 05.815 BOLT; OIL SHIELD COVER
G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) (A) M14X23.5 		8-97359-814-0 02 1 0907-1111 ● ●
66 05.815 BOLT; OIL SHIELD COVER
(A) M14X23.5 		8-97359-814-0 02 1 0907-1111 ● ●
66 05.815 BOLT; OIL SHIELD COVER
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) (A) M14X23.5 		8-97359-814-0 02 1 1112- ● ●
66 05.815 BOLT; OIL SHIELD COVER
G.V.W. 5.0-5.5TON(RPT) (A) M14X23.5 		8-97359-814-0 02 1 1112- ●
66 05.815 BOLT; OIL SHIELD COVER
(A) M14X23.5 		8-97359-814-0 02 1 1112- ● ●
72 05.815 NUT; OIL SHIELD COVER
G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> 05.002 M12 		0-91110-512-0 08 1 1205- ● ●
72 05.815 NUT; OIL SHIELD COVER
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> 07.833 M14 		0-91110-514-0 08 1 0907- ● ●
72 05.815 NUT; OIL SHIELD COVER 8-97359-815-0 06 1 0905-0906 ● ●
72 05.815 NUT; OIL SHIELD COVER 8-97359-815-0 06 1 0907-0907 ● ● ● ●
72 05.815 NUT; OIL SHIELD COVER
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) 		8-97359-815-0 06 1 0907-1111 ● ●
72 05.815 NUT; OIL SHIELD COVER
G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) 		8-97359-815-0 06 1 0907-1111 ● ●
72 05.815 NUT; OIL SHIELD COVER 8-97359-815-0 06 1 0907-1111 ● ●
72 05.815 NUT; OIL SHIELD COVER
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) 		8-97359-815-0 06 1 1112- ● ●
72 05.815 NUT; OIL SHIELD COVER
G.V.W. 5.0-5.5TON(RPT) 		8-97359-815-0 06 1 1112- ●
72 05.815 NUT; OIL SHIELD COVER 8-97359-815-0 06 1 1112- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
