4-65 — REAR LEAF SPRING (#7718) — 158 parça

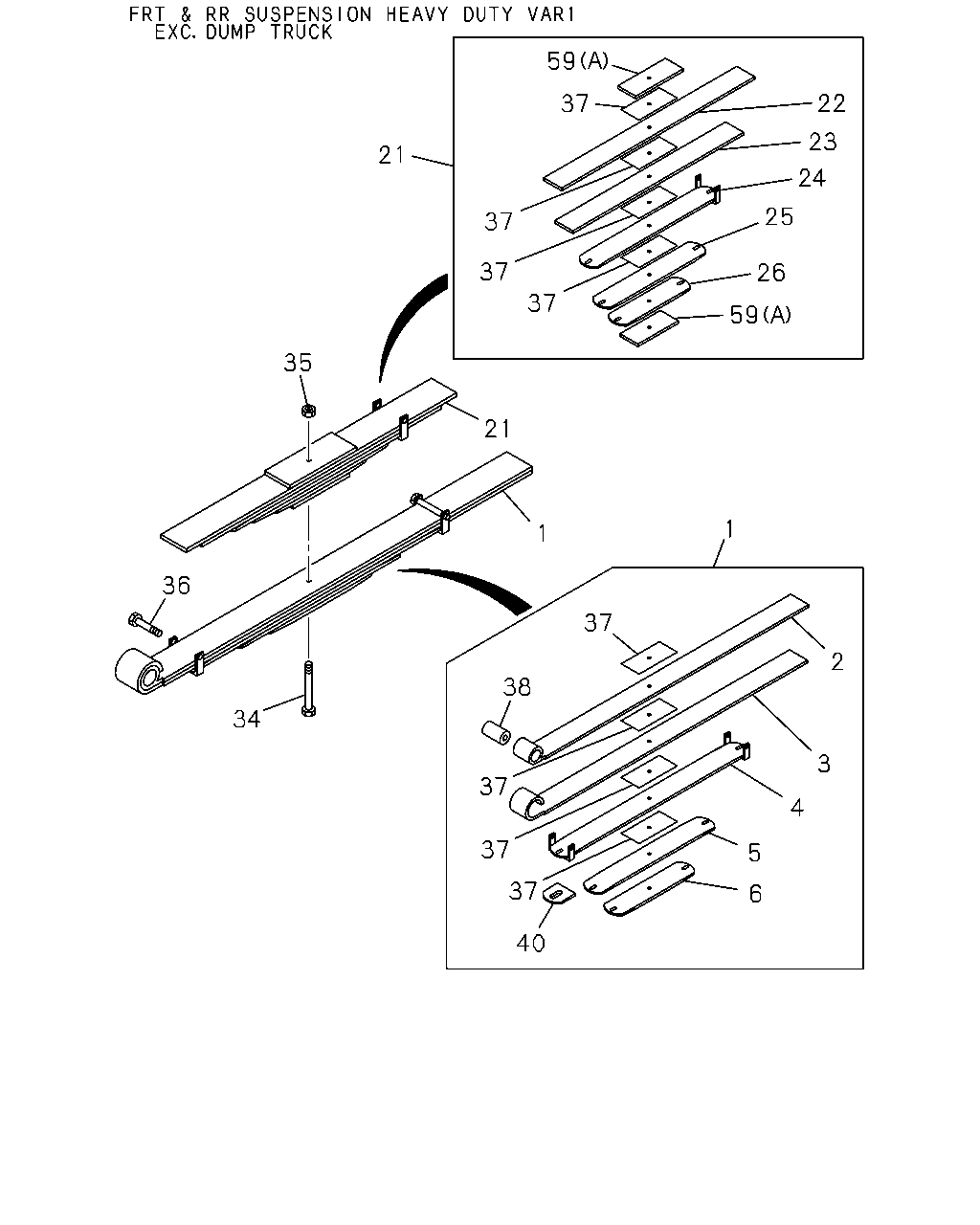

59 22 37 21 23 24 25 37 37 26 37 35 39 21 52 1 1 37 36 2 38 3 34 37 4 37 5 6 39 39 39 39 39 39 39 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING ASM; LEAF,RR MAIN ASM PART: A = 1-51300-566-0, B = 1-51300-592-0	1-51410-155-0	01	1	-
1	SPRING ASM; LEAF,RR MAIN ASM PART: C = 1-51300-593-0	1-51410-213-0	01	1	-
1	SPRING ASM; LEAF,RR MAIN ASM PART: D = 1-51300-606-0	1-51410-252-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: A = 1-51300-566-0, B = 1-51300-592-0	1-51411-155-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: C = 1-51300-593-0	1-51411-213-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: D = 1-51300-606-0	1-51411-252-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: A = 1-51300-566-0, B = 1-51300-592-0	1-51412-155-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: C = 1-51300-593-0	1-51412-213-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: D = 1-51300-606-0	1-51412-252-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN W/CLIP ASM PART: A = 1-51300-566-0, B = 1-51300-592-0	1-51413-155-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: C = 1-51300-593-0	1-51413-213-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: D = 1-51300-606-0	1-51413-252-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: A = 1-51300-566-0, B = 1-51300-592-0	1-51414-155-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: C = 1-51300-593-0	1-51414-213-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: D = 1-51300-606-0	1-51414-252-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: A = 1-51300-566-0, B = 1-51300-592-0	1-51415-155-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: C = 1-51300-593-0	1-51415-213-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: D = 1-51300-606-0	1-51415-252-0	01	1	-
21	SPRING ASM; LEAF,RR SUB ASM PART: A = 1-51300-566-0, B = 1-51300-592-0	1-51340-644-0	01	1	-
21	SPRING ASM; LEAF,RR SUB ASM PART: C = 1-51300-593-0	1-51340-660-0	01	1	-
21	SPRING ASM; LEAF,RR SUB ASM PART: D = 1-51300-606-0	1-51340-671-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: A = 1-51300-566-0, B = 1-51300-592-0	1-51341-644-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: C = 1-51300-593-0	1-51341-660-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: D = 1-51300-606-0	1-51341-671-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB ASM PART: A = 1-51300-566-0, B = 1-51300-592-0	1-51342-644-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB ASM PART: C = 1-51300-593-0	1-51342-660-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB ASM PART: D = 1-51300-606-0	1-51342-671-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB W/CLIP ASM PART: A = 1-51300-566-0, B = 1-51300-592-0	1-51343-644-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB ASM PART: C = 1-51300-593-0	1-51343-660-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB ASM PART: D = 1-51300-606-0	1-51343-671-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB ASM PART: A = 1-51300-566-0, B = 1-51300-592-0	1-51344-644-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB ASM PART: C = 1-51300-593-0	1-51344-660-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB ASM PART: D = 1-51300-606-0	1-51344-671-0	01	1	-
26	SPRING; LEAF,NO 5,RR SUB ASM PART: A = 1-51300-566-0, B = 1-51300-592-0	1-51345-644-0	01	1	-
26	SPRING; LEAF,NO 5,RR SUB ASM PART: C = 1-51300-593-0	1-51345-660-0	01	1	-
26	SPRING; LEAF,NO 5,RR SUB ASM PART: D = 1-51300-606-0	1-51345-671-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=265 ASM PART: B = 1-51300-592-0	1-51356-165-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=200 ASM PART: A = 1-51300-566-0, C = 1-51300-593-0	1-51356-213-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=255 ASM PART: D = 1-51300-606-0	1-51356-359-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M16 ASM PART: A = 1-51300-566-0, B = 1-51300-592-0, C = 1-51300-593-0, D = 1-51300-606-0	1-09400-054-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR M10X117 ASM PART: B = 1-51300-592-0, C = 1-51300-593-0	1-09000-334-0	03	1	-
36	BOLT; CLIP,LEAF SPR,RR M10X117 ASM PART: A = 1-51300-566-0, D = 1-51300-606-0	1-09000-334-0	02	1	-
37	SPACER; CENTER,LEAF SPR,RR T=1 ASM PART: A = 1-51300-566-0, B = 1-51300-592-0	1-51377-159-0	07	1	-
37	SPACER; CENTER,LEAF SPR,RR T=1 ASM PART: C = 1-51300-593-0, D = 1-51300-606-0	1-51377-159-0	08	1	-
38	BUSHING; LEAF SPR,RR ASM PART: A = 1-51300-566-0, B = 1-51300-592-0, C = 1-51300-593-0, D = 1-51300-606-0	1-51351-010-0	01	1	-
39	SEAT; LEAF SPR,RR MAIN (A), T=10 ASM PART: D = 1-51300-606-0	1-51377-118-0	02	1	-
39	SEAT; LEAF SPR,RR MAIN (A), T=10 ASM PART: A = 1-51300-566-0, B = 1-51300-592-0	1-51377-118-0	03	1	-
39	SEAT; LEAF SPR,RR MAIN (B), T=13 ASM PART: B = 1-51300-592-0, D = 1-51300-606-0	1-51377-241-0	05	1	-
40	LINER; LEAF SPR,RR ASM PART: A = 1-51300-566-0, B = 1-51300-592-0, C = 1-51300-593-0, D = 1-51300-606-0	1-51159-024-0	06	1	-
52	BOLT; CLIP,LEAF SPR,RR SUB M10X117 ASM PART: A = 1-51300-566-0, D = 1-51300-606-0	1-09000-334-0	01	1	-
59	SEAT; RR SPRING,SUB (A), T=10 ASM PART: D = 1-51300-606-0	1-51377-118-0	02	1	-
59	SEAT; RR SPRING,SUB (A), T=10 ASM PART: C = 1-51300-593-0	1-51377-118-0	05	1	-
59	SEAT; RR SPRING,SUB (A), T=10 ASM PART: A = 1-51300-566-0	1-51377-118-0	01	1	-
59	SEAT; RR SPRING,SUB (B), T=13 ASM PART: A = 1-51300-566-0, B = 1-51300-592-0	1-51377-260-0	01	1	-

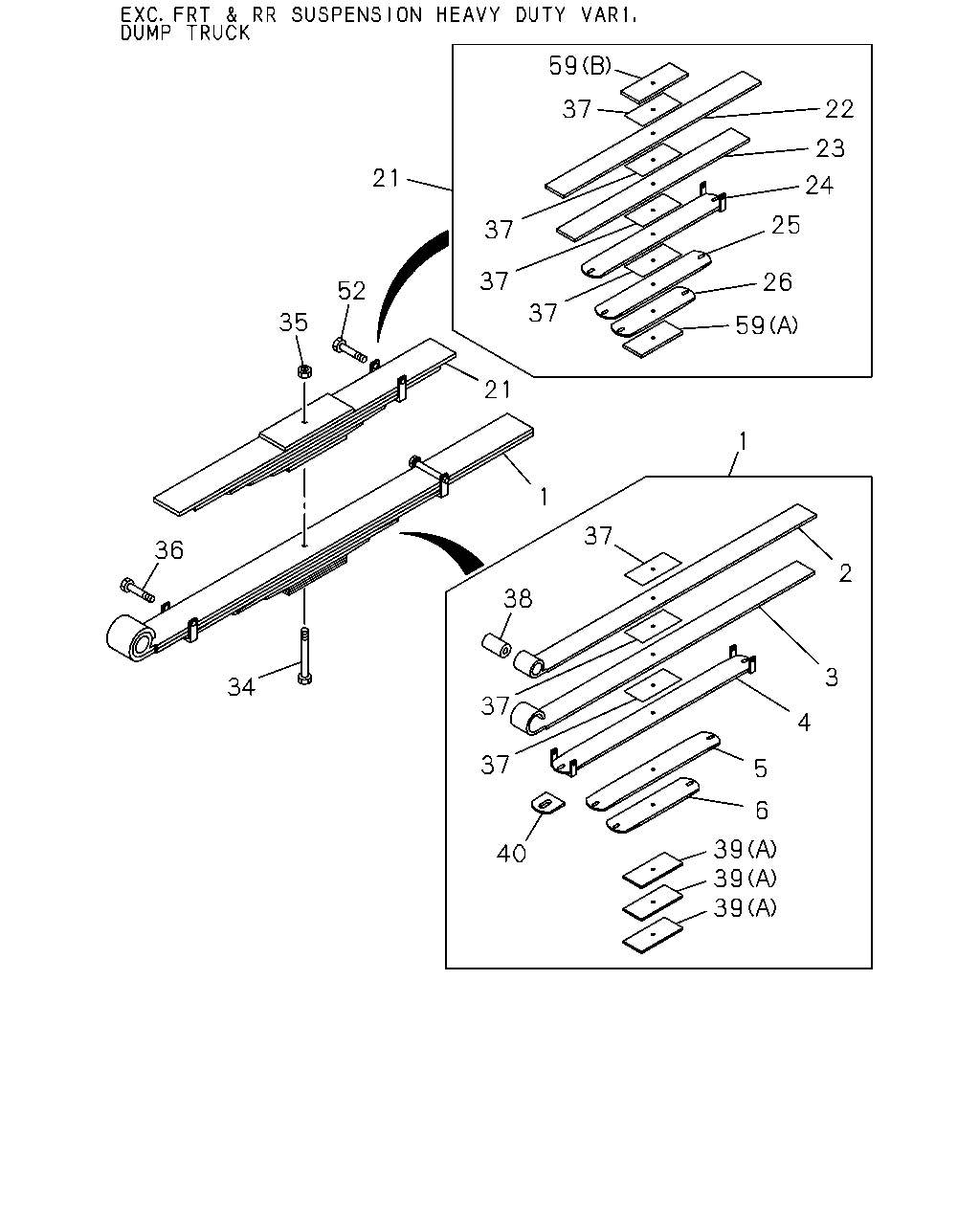

59 22 37 23 21 24 25 37 37 26 52 37 35 59 21 1 1 37 36 2 38 3 34 37 4 37 5 6 39 39 39 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING ASM; LEAF,RR MAIN ASM PART: A = 1-51300-566-0, B = 1-51300-592-0	1-51410-155-0	01	1	-
1	SPRING ASM; LEAF,RR MAIN ASM PART: C = 1-51300-593-0	1-51410-213-0	01	1	-
1	SPRING ASM; LEAF,RR MAIN ASM PART: D = 1-51300-606-0	1-51410-252-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: A = 1-51300-566-0, B = 1-51300-592-0	1-51411-155-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: C = 1-51300-593-0	1-51411-213-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: D = 1-51300-606-0	1-51411-252-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: A = 1-51300-566-0, B = 1-51300-592-0	1-51412-155-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: C = 1-51300-593-0	1-51412-213-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: D = 1-51300-606-0	1-51412-252-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN W/CLIP ASM PART: A = 1-51300-566-0, B = 1-51300-592-0	1-51413-155-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: C = 1-51300-593-0	1-51413-213-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: D = 1-51300-606-0	1-51413-252-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: A = 1-51300-566-0, B = 1-51300-592-0	1-51414-155-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: C = 1-51300-593-0	1-51414-213-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: D = 1-51300-606-0	1-51414-252-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: A = 1-51300-566-0, B = 1-51300-592-0	1-51415-155-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: C = 1-51300-593-0	1-51415-213-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: D = 1-51300-606-0	1-51415-252-0	01	1	-
21	SPRING ASM; LEAF,RR SUB ASM PART: A = 1-51300-566-0, B = 1-51300-592-0	1-51340-644-0	01	1	-
21	SPRING ASM; LEAF,RR SUB ASM PART: C = 1-51300-593-0	1-51340-660-0	01	1	-
21	SPRING ASM; LEAF,RR SUB ASM PART: D = 1-51300-606-0	1-51340-671-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: A = 1-51300-566-0, B = 1-51300-592-0	1-51341-644-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: C = 1-51300-593-0	1-51341-660-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: D = 1-51300-606-0	1-51341-671-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB ASM PART: A = 1-51300-566-0, B = 1-51300-592-0	1-51342-644-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB ASM PART: C = 1-51300-593-0	1-51342-660-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB ASM PART: D = 1-51300-606-0	1-51342-671-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB W/CLIP ASM PART: A = 1-51300-566-0, B = 1-51300-592-0	1-51343-644-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB ASM PART: C = 1-51300-593-0	1-51343-660-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB ASM PART: D = 1-51300-606-0	1-51343-671-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB ASM PART: A = 1-51300-566-0, B = 1-51300-592-0	1-51344-644-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB ASM PART: C = 1-51300-593-0	1-51344-660-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB ASM PART: D = 1-51300-606-0	1-51344-671-0	01	1	-
26	SPRING; LEAF,NO 5,RR SUB ASM PART: A = 1-51300-566-0, B = 1-51300-592-0	1-51345-644-0	01	1	-
26	SPRING; LEAF,NO 5,RR SUB ASM PART: C = 1-51300-593-0	1-51345-660-0	01	1	-
26	SPRING; LEAF,NO 5,RR SUB ASM PART: D = 1-51300-606-0	1-51345-671-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=265 ASM PART: B = 1-51300-592-0	1-51356-165-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=200 ASM PART: A = 1-51300-566-0, C = 1-51300-593-0	1-51356-213-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=255 ASM PART: D = 1-51300-606-0	1-51356-359-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M16 ASM PART: A = 1-51300-566-0, B = 1-51300-592-0, C = 1-51300-593-0, D = 1-51300-606-0	1-09400-054-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR M10X117 ASM PART: B = 1-51300-592-0, C = 1-51300-593-0	1-09000-334-0	03	1	-
36	BOLT; CLIP,LEAF SPR,RR M10X117 ASM PART: A = 1-51300-566-0, D = 1-51300-606-0	1-09000-334-0	02	1	-
37	SPACER; CENTER,LEAF SPR,RR T=1 ASM PART: A = 1-51300-566-0, B = 1-51300-592-0	1-51377-159-0	07	1	-
37	SPACER; CENTER,LEAF SPR,RR T=1 ASM PART: C = 1-51300-593-0, D = 1-51300-606-0	1-51377-159-0	08	1	-
38	BUSHING; LEAF SPR,RR ASM PART: A = 1-51300-566-0, B = 1-51300-592-0, C = 1-51300-593-0, D = 1-51300-606-0	1-51351-010-0	01	1	-
39	SEAT; LEAF SPR,RR MAIN (A), T=10 ASM PART: D = 1-51300-606-0	1-51377-118-0	02	1	-
39	SEAT; LEAF SPR,RR MAIN (A), T=10 ASM PART: A = 1-51300-566-0, B = 1-51300-592-0	1-51377-118-0	03	1	-
39	SEAT; LEAF SPR,RR MAIN (B), T=13 ASM PART: B = 1-51300-592-0, D = 1-51300-606-0	1-51377-241-0	05	1	-
40	LINER; LEAF SPR,RR ASM PART: A = 1-51300-566-0, B = 1-51300-592-0, C = 1-51300-593-0, D = 1-51300-606-0	1-51159-024-0	06	1	-
52	BOLT; CLIP,LEAF SPR,RR SUB M10X117 ASM PART: A = 1-51300-566-0, D = 1-51300-606-0	1-09000-334-0	01	1	-
59	SEAT; RR SPRING,SUB (A), T=10 ASM PART: D = 1-51300-606-0	1-51377-118-0	02	1	-
59	SEAT; RR SPRING,SUB (A), T=10 ASM PART: C = 1-51300-593-0	1-51377-118-0	05	1	-
59	SEAT; RR SPRING,SUB (A), T=10 ASM PART: A = 1-51300-566-0	1-51377-118-0	01	1	-
59	SEAT; RR SPRING,SUB (B), T=13 ASM PART: A = 1-51300-566-0, B = 1-51300-592-0	1-51377-260-0	01	1	-

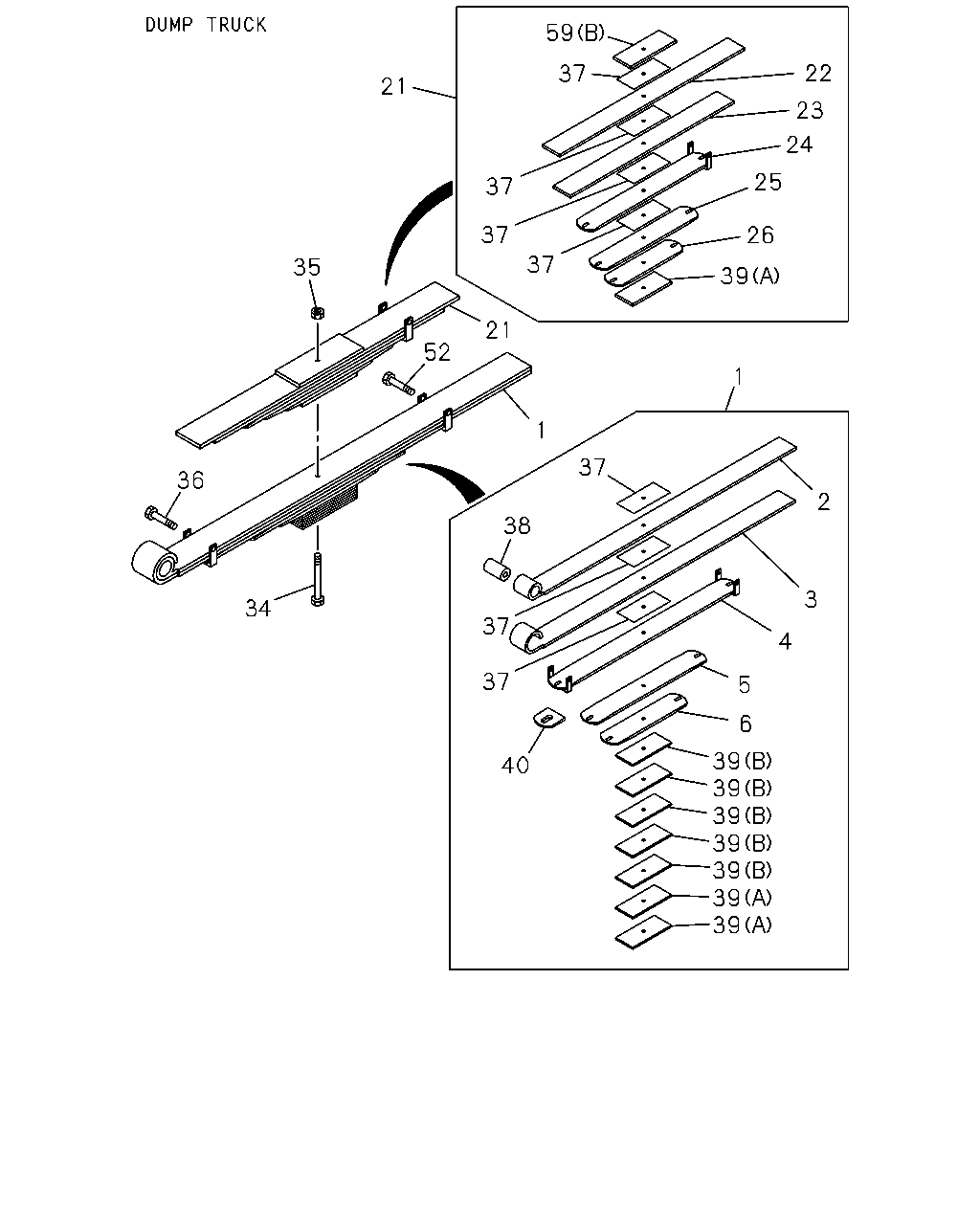

59 22 37 23 21 24 25 37 37 26 37 59 35 21 1 1 36 37 2 38 34 3 37 4 37 5 37 6 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING ASM; LEAF,RR MAIN ASM PART: A = 1-51300-566-0, B = 1-51300-592-0	1-51410-155-0	01	1	-
1	SPRING ASM; LEAF,RR MAIN ASM PART: C = 1-51300-593-0	1-51410-213-0	01	1	-
1	SPRING ASM; LEAF,RR MAIN ASM PART: D = 1-51300-606-0	1-51410-252-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: A = 1-51300-566-0, B = 1-51300-592-0	1-51411-155-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: C = 1-51300-593-0	1-51411-213-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: D = 1-51300-606-0	1-51411-252-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: A = 1-51300-566-0, B = 1-51300-592-0	1-51412-155-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: C = 1-51300-593-0	1-51412-213-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: D = 1-51300-606-0	1-51412-252-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN W/CLIP ASM PART: A = 1-51300-566-0, B = 1-51300-592-0	1-51413-155-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: C = 1-51300-593-0	1-51413-213-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: D = 1-51300-606-0	1-51413-252-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: A = 1-51300-566-0, B = 1-51300-592-0	1-51414-155-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: C = 1-51300-593-0	1-51414-213-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: D = 1-51300-606-0	1-51414-252-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: A = 1-51300-566-0, B = 1-51300-592-0	1-51415-155-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: C = 1-51300-593-0	1-51415-213-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: D = 1-51300-606-0	1-51415-252-0	01	1	-
21	SPRING ASM; LEAF,RR SUB ASM PART: A = 1-51300-566-0, B = 1-51300-592-0	1-51340-644-0	01	1	-
21	SPRING ASM; LEAF,RR SUB ASM PART: C = 1-51300-593-0	1-51340-660-0	01	1	-
21	SPRING ASM; LEAF,RR SUB ASM PART: D = 1-51300-606-0	1-51340-671-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: A = 1-51300-566-0, B = 1-51300-592-0	1-51341-644-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: C = 1-51300-593-0	1-51341-660-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: D = 1-51300-606-0	1-51341-671-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB ASM PART: A = 1-51300-566-0, B = 1-51300-592-0	1-51342-644-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB ASM PART: C = 1-51300-593-0	1-51342-660-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB ASM PART: D = 1-51300-606-0	1-51342-671-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB W/CLIP ASM PART: A = 1-51300-566-0, B = 1-51300-592-0	1-51343-644-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB ASM PART: C = 1-51300-593-0	1-51343-660-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB ASM PART: D = 1-51300-606-0	1-51343-671-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB ASM PART: A = 1-51300-566-0, B = 1-51300-592-0	1-51344-644-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB ASM PART: C = 1-51300-593-0	1-51344-660-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB ASM PART: D = 1-51300-606-0	1-51344-671-0	01	1	-
26	SPRING; LEAF,NO 5,RR SUB ASM PART: A = 1-51300-566-0, B = 1-51300-592-0	1-51345-644-0	01	1	-
26	SPRING; LEAF,NO 5,RR SUB ASM PART: C = 1-51300-593-0	1-51345-660-0	01	1	-
26	SPRING; LEAF,NO 5,RR SUB ASM PART: D = 1-51300-606-0	1-51345-671-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=265 ASM PART: B = 1-51300-592-0	1-51356-165-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=200 ASM PART: A = 1-51300-566-0, C = 1-51300-593-0	1-51356-213-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=255 ASM PART: D = 1-51300-606-0	1-51356-359-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M16 ASM PART: A = 1-51300-566-0, B = 1-51300-592-0, C = 1-51300-593-0, D = 1-51300-606-0	1-09400-054-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR M10X117 ASM PART: B = 1-51300-592-0, C = 1-51300-593-0	1-09000-334-0	03	1	-
36	BOLT; CLIP,LEAF SPR,RR M10X117 ASM PART: A = 1-51300-566-0, D = 1-51300-606-0	1-09000-334-0	02	1	-
37	SPACER; CENTER,LEAF SPR,RR T=1 ASM PART: A = 1-51300-566-0, B = 1-51300-592-0	1-51377-159-0	07	1	-
37	SPACER; CENTER,LEAF SPR,RR T=1 ASM PART: C = 1-51300-593-0, D = 1-51300-606-0	1-51377-159-0	08	1	-
38	BUSHING; LEAF SPR,RR ASM PART: A = 1-51300-566-0, B = 1-51300-592-0, C = 1-51300-593-0, D = 1-51300-606-0	1-51351-010-0	01	1	-
40	LINER; LEAF SPR,RR ASM PART: A = 1-51300-566-0, B = 1-51300-592-0, C = 1-51300-593-0, D = 1-51300-606-0	1-51159-024-0	06	1	-
59	SEAT; RR SPRING,SUB (A), T=10 ASM PART: D = 1-51300-606-0	1-51377-118-0	02	1	-
59	SEAT; RR SPRING,SUB (A), T=10 ASM PART: C = 1-51300-593-0	1-51377-118-0	05	1	-
59	SEAT; RR SPRING,SUB (A), T=10 ASM PART: A = 1-51300-566-0	1-51377-118-0	01	1	-
59	SEAT; RR SPRING,SUB (B), T=13 ASM PART: A = 1-51300-566-0, B = 1-51300-592-0	1-51377-260-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
