◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51237 - NNR/NPR(EU)-LHD EU5 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-07 - CLUTCH BOOSTER; MINIPACK ▶
2-07 — CLUTCH BOOSTER; MINIPACK (#77172) — 6 parça

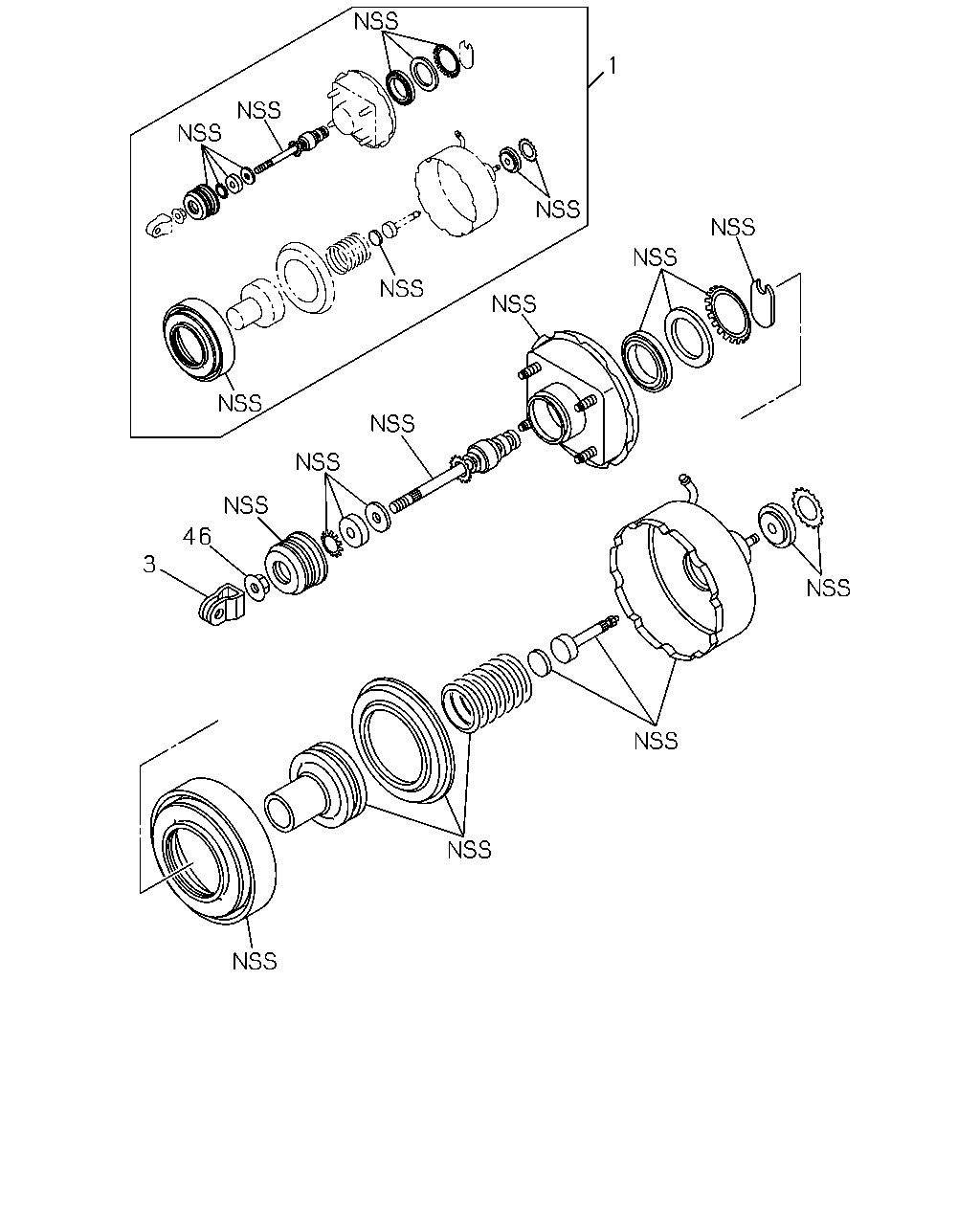

çizim 186372
1 46 3
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.775 REPAIR KIT; CLU BOOSTER
4JJ1-TCS ENG(LFB) POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98049-385-0 01 1 0907- ● ●
1 00.775 REPAIR KIT; CLU BOOSTER
4HK1-TCS ENG(RJS) POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98049-386-0 01 1 0905- ●
3 00.787 CLEVIS; PUSH ROD,CLU BOOSTER
4HK1-TCS ENG(RJS) POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97174-147-0 01 1 0905-0906 ●
3 00.787 CLEVIS; PUSH ROD,CLU BOOSTER
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97174-147-0 01 1 0907- ● ● ●
46 00.787 NUT; PUSH ROD,CLU BOOSTER
4HK1-TCS ENG(RJS) POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97174-148-0 01 1 0905-0906 ●
46 00.787 NUT; PUSH ROD,CLU BOOSTER
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97174-148-0 01 1 0907- ● ● ●
