◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51237 - NNR/NPR(EU)-LHD EU5 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-05 - CLUTCH PIPING ▶
2-05 — CLUTCH PIPING (#77170) — 42 parça

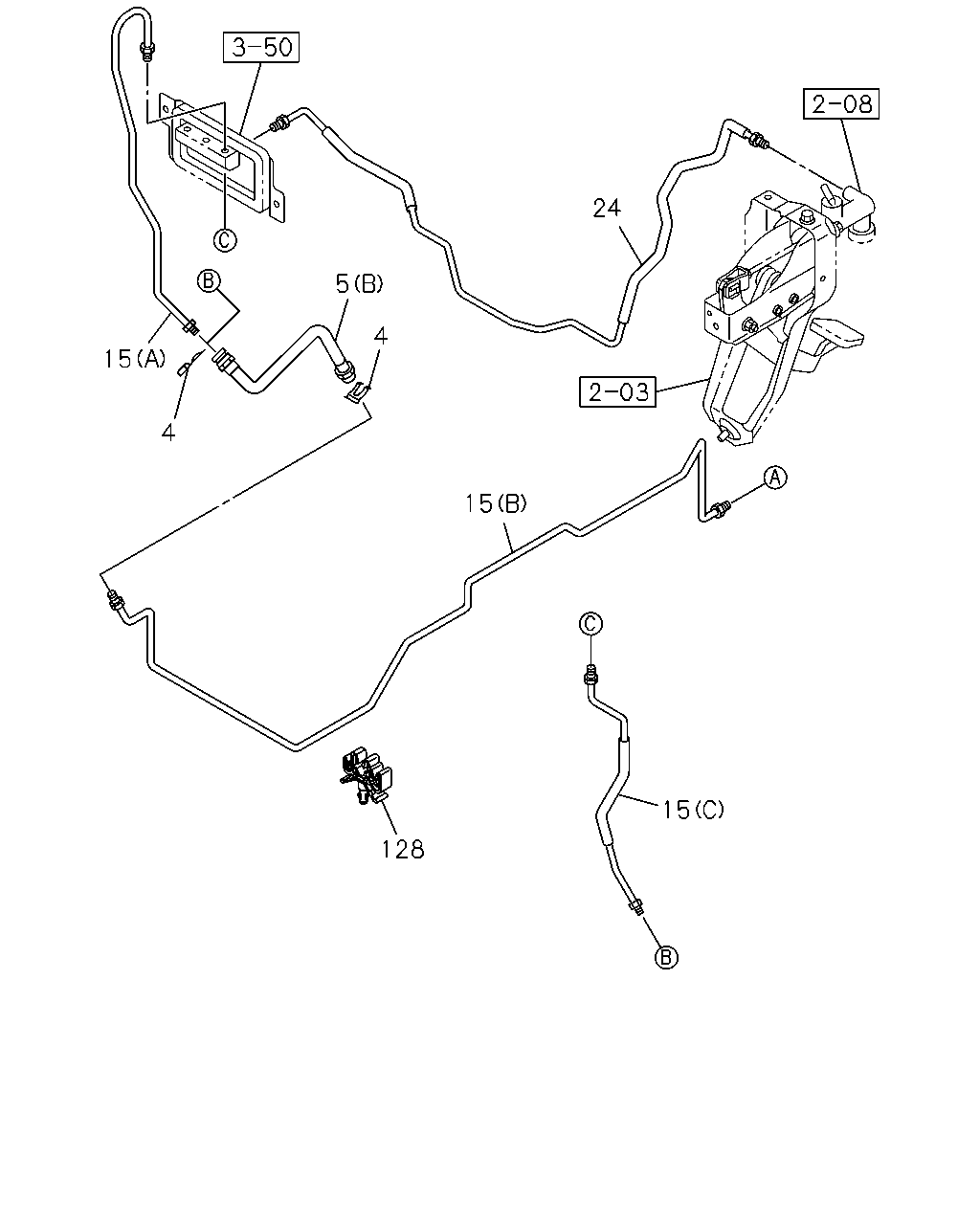

çizim 102054
24 5 4 15 4 15 15 128
BalonParca AdiParca NoAdetTipApplied Date A B C
4 00.785 CLIP; FLEX HOSE,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.681 		8-97365-304-0 02 1 0905-0906 ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.681 		8-97365-304-0 02 1 0907- ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HK1-TCS ENG(RJS) CLUTCH SYSTEM AUTO ADJUSTER<8BG> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98089-665-2 01 1 0905- ●
5 00.785 HOSE; FLEX,CLU PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98083-907-0 01 1 0905-0906 ●
5 00.785 HOSE; FLEX,CLU PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98083-907-0 01 1 0907- ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-98077-611-1 01 1 0905-0906 ●
5 00.785 HOSE; FLEX,CLU PIPE
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-98077-611-2 01 1 0907- ●
5 00.785 HOSE; FLEX,CLU PIPE
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98077-611-2 01 1 0907- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98046-883-0 01 1 0907- ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
EXC. HYDRO BRAKE BOOSTER(7QQ), TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98100-910-0 01 1 0907- ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98041-742-3 01 1 0905-0906 ●
15 00.785 PIPE; CLU,FLEX HOSE
FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98041-742-3 01 1 0907- ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98047-202-3 01 1 0905-0906 ●
15 00.785 PIPE; CLU,FLEX HOSE
HYDRO BRAKE BOOSTER(7QQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98047-202-3 01 1 0907- ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98061-594-2 01 1 0905-0906 ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98061-594-2 01 1 0907- ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH(S2T), TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98070-236-2 01 1 0905-0906 ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH(S2T), TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98070-236-2 01 1 0907- ● ● ●
128 00.785 CLIP; AIR PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.686 ID=12 & 6.35 & 4.76 		8-97202-954-1 01 1 0905-0906 ●
128 00.785 CLIP; AIR PIPE
FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.686 ID=12 & 6.35 & 4.76 		8-97202-954-1 01 1 0907- ● ● ●
çizim 102419
2 3 3 3 2 5 3 7 42 18 20 17 42 7 20 183
BalonParca AdiParca NoAdetTipApplied Date A B C
2 00.782 BOLT; EYE,SLAVE CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.681 M10X22 		8-97381-454-0 02 1 0905-0905 ●
2 00.782 BOLT; EYE,SLAVE CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.681 M10X22 		8-98014-005-0 02 1 0906-0906 ●
2 00.782 BOLT; EYE,SLAVE CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.681 M10X22 		8-98014-005-0 02 1 0907- ● ● ●
3 00.785 GASKET; FLEX HOSE,CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 0905-0906 ●
3 00.785 GASKET; FLEX HOSE,CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 0907- ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HK1-TCS ENG(RJS) CLUTCH SYSTEM AUTO ADJUSTER<8BG> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98089-665-2 01 1 0905- ●
5 00.785 HOSE; FLEX,CLU PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98083-907-0 01 1 0905-0906 ●
5 00.785 HOSE; FLEX,CLU PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98083-907-0 01 1 0907- ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-98077-611-1 01 1 0905-0906 ●
5 00.785 HOSE; FLEX,CLU PIPE
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-98077-611-2 01 1 0907- ●
5 00.785 HOSE; FLEX,CLU PIPE
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98077-611-2 01 1 0907- ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.837 M10 		8-98034-487-1 01 1 0907- ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0905- ●
17 00.785 BOLT; BRKT
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0905- ●
18 00.830 DAMPER ASM; CLU OIL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98077-610-1 01 1 0905-0906 ●
18 00.830 DAMPER ASM; CLU OIL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98077-610-1 01 1 0907- ● ● ●
20 00.837 NUT; CLU OIL DAMPER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0905-0906 ●
20 00.837 NUT; CLU OIL DAMPER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0907- ● ● ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98041-450-0 01 1 0907- ● ● ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98082-472-2 01 1 0905- ●
183 00.785 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) 		8-98047-185-0 01 1 0905-0906 ●
183 00.785 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) 		8-98047-185-0 01 1 0907- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
