2-03 — CLUTCH PEDAL AND CONTROL (#77169) — 74 parça

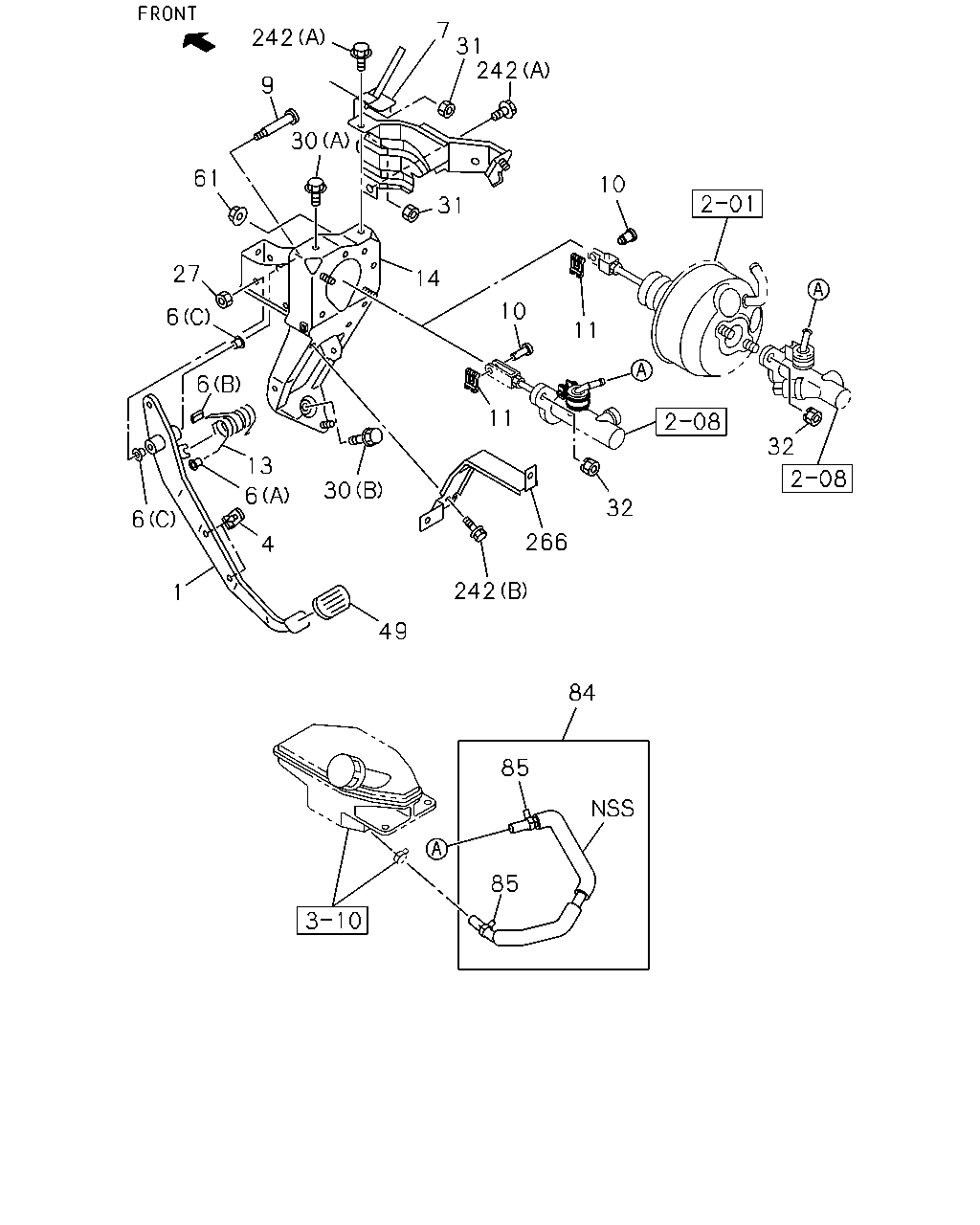

çizim 98546
7 31 242 242 9 30 61 10 31 27 14 6 10 11 6 11 32 13 30 6 32 6 266 4 242 1 49 84 85 85
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.830 PEDAL; CLU
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		8-98034-752-0 01 1 0907- ● ● ● ●
1 00.830 PEDAL; CLU
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98002-484-0 01 1 0905-0906 ● ●
1 00.830 PEDAL; CLU
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98002-484-0 01 1 0907-1204 ● ● ● ●
1 00.830 PEDAL; CLU
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98002-484-0 01 1 1205- ● ●
1 00.830 PEDAL; CLU
4JJ1-TCS ENG(LFB) POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98002-484-0 01 1 1205- ● ●
1 00.830 PEDAL; CLU
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		8-98034-754-0 01 1 0905- ● ●
4 00.829 STOPPER; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97853-534-1 02 1 0905-0906 ● ●
4 00.829 STOPPER; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97853-534-1 02 1 0907- ● ● ● ●
6 00.831 BUSHING; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.792 (C) 		8-94238-596-0 02 1 0905-0906 ● ●
6 00.831 BUSHING; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.792 (C) 		8-94238-596-0 02 1 0907- ● ● ● ●
6 00.831 BUSHING; CLU PEDAL
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-97853-619-0 02 1 0905-0906 ● ●
6 00.831 BUSHING; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-97853-619-0 02 1 0907- ● ● ● ●
6 00.831 BUSHING; CLU PEDAL
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97853-620-0 01 1 0905-0906 ● ●
6 00.831 BUSHING; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97853-620-0 01 1 0907- ● ● ● ●
7 00.829 BRACKET; CLU PEDAL
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98062-632-3 01 1 0905-0906 ● ●
7 00.829 BRACKET; CLU PEDAL
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98062-632-3 01 1 0907-1204 ● ● ● ●
7 00.829 BRACKET; CLU PEDAL
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98062-632-3 01 1 1205-1409 ● ●
7 00.829 BRACKET; CLU PEDAL
4JJ1-TCS ENG(LFB) POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98062-632-3 01 1 1205-1409 ● ●
7 00.829 BRACKET; CLU PEDAL
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98222-746-0 01 1 1410- ● ●
7 00.829 BRACKET; CLU PEDAL
4JJ1-TCS ENG(LFB) POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98222-746-0 01 1 1410- ● ●
7 00.829 BRACKET; CLU PEDAL
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		8-98111-112-0 01 1 0905-0906 ● ●
7 00.829 BRACKET; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		8-98111-112-1 01 1 0907-1409 ● ● ● ●
7 00.829 BRACKET; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		8-98222-745-0 01 1 1410- ● ● ● ●
9 00.833 PIN; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.634 		8-97866-667-0 01 1 0905-0906 ● ●
9 00.833 PIN; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.634 		8-97866-667-0 01 1 0907- ● ● ● ●
10 00.833 PIN; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.634 		8-97387-230-0 01 1 0905-0906 ● ●
10 00.833 PIN; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.634 		8-97387-230-0 01 1 0907-1007 ● ● ● ●
10 00.833 PIN; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.634 		8-98147-657-0 01 1 1008- ● ● ● ●
11 00.833 PIN; SNAP,PUSH ROD TO PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98007-161-0 01 1 0905-0906 ● ●
11 00.833 PIN; SNAP,PUSH ROD TO PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98007-161-0 01 1 0907- ● ● ● ●
13 00.844 SPRING; ASSIST,CLU PEDAL
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98023-621-1 01 1 0905-0906 ● ●
13 00.844 SPRING; ASSIST,CLU PEDAL
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98023-621-1 01 1 0907-1204 ● ● ● ●
13 00.844 SPRING; ASSIST,CLU PEDAL
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98023-621-1 01 1 1205- ● ●
13 00.844 SPRING; ASSIST,CLU PEDAL
4JJ1-TCS ENG(LFB) POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98023-621-1 01 1 1205- ● ●
13 00.844 SPRING; ASSIST,CLU PEDAL
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		8-98034-014-0 01 1 0905-0906 ● ●
13 00.844 SPRING; ASSIST,CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		8-98034-014-0 01 1 0907- ● ● ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98054-876-0 01 1 0905-0906 ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98054-876-0 01 1 0907-1204 ● ● ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98054-876-0 01 1 1205- ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
4JJ1-TCS ENG(LFB) POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98054-876-0 01 1 1205- ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		8-98054-878-0 01 1 0905-0906 ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		8-98054-878-0 01 1 0907- ● ● ● ●
27 00.833 NUT; FULCRUM PIN
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.634 M10 LOCK NUT FLANGE 		0-91380-010-0 01 1 0905-0906 ● ●
27 00.833 NUT; FULCRUM PIN
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.634 M10 LOCK NUT FLANGE 		0-91380-010-0 01 1 0907- ● ● ● ●
30 00.829 BOLT; CLU MTG BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 07.833 (A) M10X25 FLANGE 		0-28661-025-0 01 1 0905-0906 ● ●
30 00.829 BOLT; CLU MTG BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 07.833 (A) M10X25 FLANGE 		0-28661-025-0 01 1 0907-1204 ● ● ● ●
30 00.829 BOLT; CLU MTG BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 07.833 (A) M10X25 FLANGE 		0-28661-025-0 01 1 1205- ● ● ● ●
30 00.829 BOLT; CLU MTG BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.833 (B) M10X22 W/PL WASHER 		8-97313-188-0 01 1 0905-0906 ● ●
30 00.829 BOLT; CLU MTG BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.833 (B) M10X22 W/PL WASHER 		8-97313-188-0 01 1 0907-1204 ● ● ● ●
30 00.829 BOLT; CLU MTG BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.833 (B) M10X22 W/PL WASHER 		8-97313-188-0 01 1 1205- ● ● ● ●
31 01.153 NUT; MTG BRKT TO BODY
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.777 M8 W/LK WASHER 		8-94279-050-0 02 1 0905-0906 ● ●
31 01.153 NUT; MTG BRKT TO BODY
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.777 M8 W/LK WASHER 		8-94279-050-0 02 1 0907-1204 ● ● ● ●
31 01.153 NUT; MTG BRKT TO BODY
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.777 M8 W/LK WASHER 		8-94279-050-0 02 1 1205- ● ● ● ●
32 00.777 NUT; BRKT TO CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 W/LK WASHER 		8-94279-050-0 02 1 0905-0906 ● ●
32 00.777 NUT; BRKT TO CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 W/LK WASHER 		8-94279-050-0 02 1 0907- ● ● ● ●
49 00.829 RUBBER; PAD,CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97853-413-2 01 1 0905-0906 ● ●
49 00.829 RUBBER; PAD,CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97853-413-2 01 1 0907- ● ● ● ●
61 00.777 NUT; BOOSTER TO BRKT
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 W/LK WASHER 		8-94279-050-0 04 1 0905-0906 ● ●
61 00.777 NUT; BOOSTER TO BRKT
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 W/LK WASHER 		8-94279-050-0 04 1 0907- ● ● ● ●
84 00.785 HOSE; RUBBER,CLU LINE
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98023-512-1 01 1 0905-0906 ● ●
84 00.785 HOSE; RUBBER,CLU LINE
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98023-512-1 01 1 0907-1208 ● ● ● ●
84 00.785 HOSE; RUBBER,CLU LINE
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98218-209-1 01 1 1209- ● ● ● ●
84 00.785 HOSE; RUBBER,CLU LINE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		8-98025-423-1 01 1 0905-0906 ● ●
84 00.785 HOSE; RUBBER,CLU LINE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		8-98025-423-1 01 1 0907-1208 ● ● ● ●
84 00.785 HOSE; RUBBER,CLU LINE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		8-98218-210-1 01 1 1209- ● ● ● ●
85 00.785 CLIP; HOSE TO M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.681 		8-98031-178-0 02 1 0905-0906 ● ●
85 00.785 CLIP; HOSE TO M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.681 		8-98031-178-0 02 1 0907-1208 ● ● ● ●
85 00.785 CLIP; HOSE TO M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98168-080-0 02 1 1209- ● ● ● ●
242 00.785 BOLT; BRKT,CLUTCH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) M6X12 FLANGE 		0-28050-612-0 01 1 0905-0906 ● ●
242 00.785 BOLT; BRKT,CLUTCH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) M6X12 FLANGE 		0-28050-612-0 01 1 0907- ● ● ● ●
242 00.785 BOLT; BRKT,CLUTCH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.604 (A) M8X16 FLANGE 		0-28450-816-0 02 1 0905-0906 ● ●
242 00.785 BOLT; BRKT,CLUTCH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.604 (A) M8X16 FLANGE 		0-28450-816-0 02 1 0907- ● ● ● ●
266 04.054 BRACKET; CLU SWITCH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98078-745-4 01 1 0905-0906 ● ●
266 04.054 BRACKET; CLU SWITCH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98078-745-4 01 1 0907- ● ● ● ●
