4-60 — REAR SUSPENSION (#7716) — 94 parça

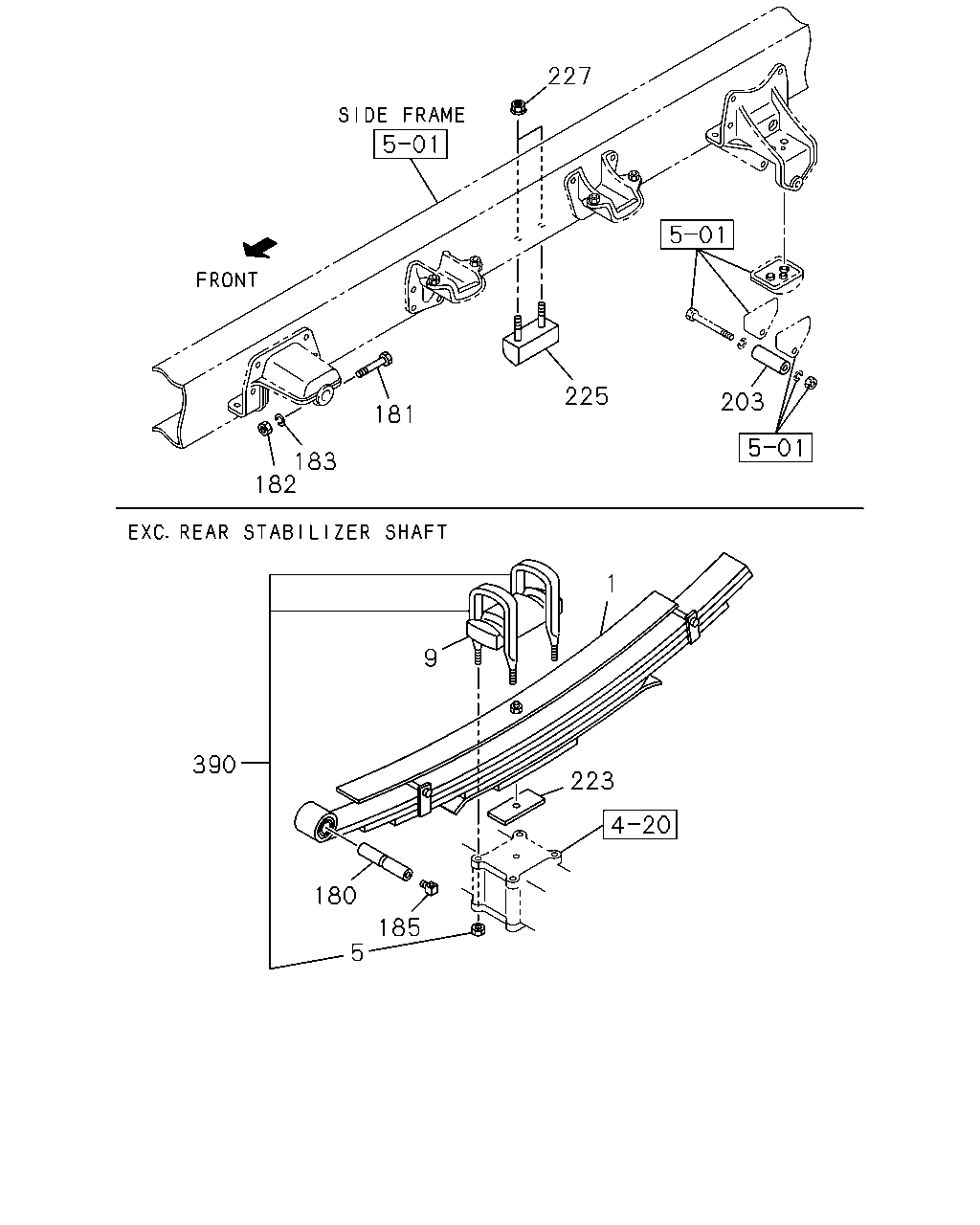

227 225 203 181 183 182 1 9 390 223 180 185 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. DUMP TRUCK<RA1>	1-51300-592-0	02	1	9905-9906	●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. DUMP TRUCK<RA1>	1-51300-606-0	02	1	9907-	●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40)	1-51300-593-0	02	1	9902-9904	●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) EXC. DUMP TRUCK<RA1>	1-51300-593-0	02	1	9905-0003	●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) EXC. DUMP TRUCK<RA1>	1-51300-593-0	02	1	0004-	●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40)	1-51300-593-0	02	1	0004-		●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40)	1-51300-566-0	02	1	9902-9904	●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40), DUMPTRUCK<RA1>	1-51300-566-0	02	1	9905-0003	●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40), DUMPTRUCK<RA1>	1-51300-566-0	02	1	0004-	●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40)	1-51300-566-0	02	1	0004-		●
5	NUT; U-BOLT,RR SPR M24	9-99112-824-0	08	1	9902-0003	●
5	NUT; U-BOLT,RR SPR M24	9-99112-824-0	08	1	0004-	●	●
9	PAD; U BOLT,RR SPR	1-51372-030-0	02	1	9902-0003	●
9	PAD; U BOLT,RR SPR	1-51372-030-0	02	1	0004-	●	●
180	PIN; RR SPR	1-51361-020-0	02	1	9902-0003	●
180	PIN; RR SPR	1-51361-020-0	02	1	0004-	●	●
181	BOLT; SPR & SHACKLE M14X80	0-10806-480-0	02	1	9902-0003	●
181	BOLT; SPR & SHACKLE M14X80	0-10806-480-0	02	1	0004-	●	●
182	NUT; PIN,RR SPR M14	9-99110-414-0	02	1	9902-0003	●
182	NUT; PIN,RR SPR M14	9-99110-414-0	02	1	0004-	●	●
183	WASHER; LK,PIN,RR SPR ID=14.2	9-09150-514-0	02	1	9902-0003	●
183	WASHER; LK,PIN,RR SPR ID=14.2	9-09150-514-0	02	1	0004-	●	●
185	NIPPLE; GREASE,PIN,RR SPR PT1/8 STRAIGHT	9-09031-010-0	02	1	9902-0003	●
185	NIPPLE; GREASE,PIN,RR SPR PT1/8 STRAIGHT	9-09031-010-0	02	1	0004-	●	●
203	COLLAR; LEAF SPR STOPPER	1-53359-004-0	02	1	9902-0003	●
203	COLLAR; LEAF SPR STOPPER	1-53359-004-0	02	1	0004-	●	●
223	SPACER; U BOLT,RR SPR	1-51377-369-0	02	1	9902-0003	●
223	SPACER; U BOLT,RR SPR	1-51377-369-1	02	1	0004-	●	●
225	RUBBER; CUSHION,RR SPR	1-53366-067-3	02	1	9902-9904	●
225	RUBBER; CUSHION,RR SPR EXC. DUMP TRUCK<RA1>	1-53366-067-3	02	1	9905-0003	●
225	RUBBER; CUSHION,RR SPR EXC. DUMP TRUCK<RA1>	1-53366-067-3	02	1	0004-	●
225	RUBBER; CUSHION,RR SPR	1-53366-067-3	02	1	0004-		●
225	RUBBER; CUSHION,RR SPR DUMP TRUCK<RA1>	1-53366-029-1	02	1	9905-	●
227	NUT; CUSHION RUBBER M12 FLANGE	0-91150-212-0	04	1	9902-0003	●
227	NUT; CUSHION RUBBER M12 FLANGE	0-91150-212-0	04	1	0004-	●	●
390	U-BOLT SET; RR SPRING L=470	1-87870-017-3	04	1	9902-9904	●
390	U-BOLT SET; RR SPRING EXC. DUMP TRUCK<RA1> L=470	1-87870-017-3	04	1	9905-0003	●
390	U-BOLT SET; RR SPRING EXC. DUMP TRUCK<RA1> L=470	1-87870-017-3	04	1	0004-	●
390	U-BOLT SET; RR SPRING DUMP TRUCK<RA1> L=510	1-87870-422-0	04	1	9905-	●
390	U-BOLT SET; RR SPRING L=490	1-87870-299-0	04	1	0004-		●

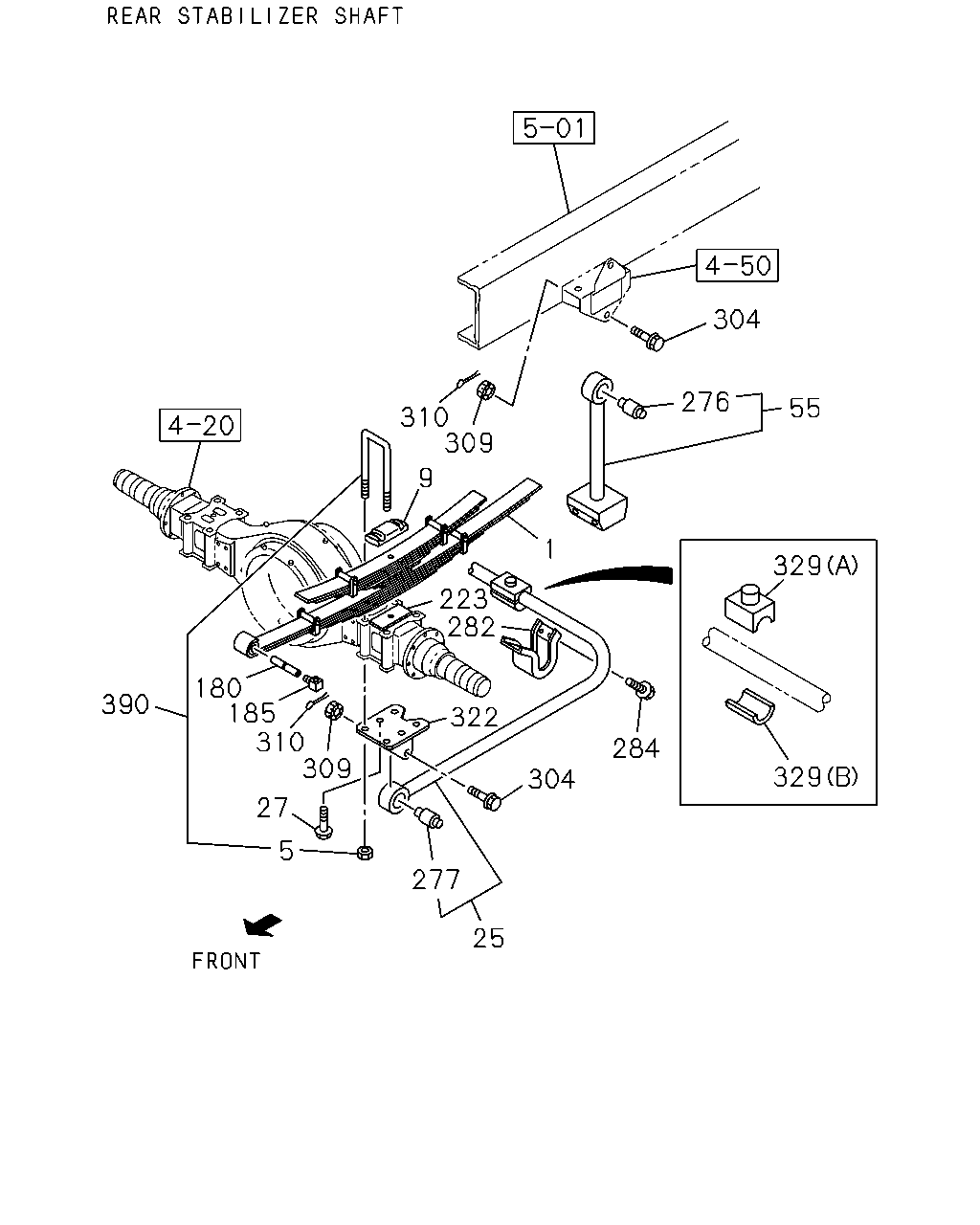

304 276 55 310 309 9 1 329 223 282 180 185 310 309 390 322 284 329 304 27 5 277 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. DUMP TRUCK<RA1>	1-51300-592-0	02	1	9905-9906	●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. DUMP TRUCK<RA1>	1-51300-606-0	02	1	9907-	●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40)	1-51300-593-0	02	1	9902-9904	●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) EXC. DUMP TRUCK<RA1>	1-51300-593-0	02	1	9905-0003	●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) EXC. DUMP TRUCK<RA1>	1-51300-593-0	02	1	0004-	●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40)	1-51300-593-0	02	1	0004-		●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40)	1-51300-566-0	02	1	9902-9904	●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40), DUMPTRUCK<RA1>	1-51300-566-0	02	1	9905-0003	●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40), DUMPTRUCK<RA1>	1-51300-566-0	02	1	0004-	●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40)	1-51300-566-0	02	1	0004-		●
5	NUT; U-BOLT,RR SPR M24	9-99112-824-0	08	1	9902-0003	●
5	NUT; U-BOLT,RR SPR M24	9-99112-824-0	08	1	0004-	●	●
9	PAD; U BOLT,RR SPR	1-51372-030-0	02	1	9902-0003	●
9	PAD; U BOLT,RR SPR	1-51372-030-0	02	1	0004-	●	●
25	BAR ASM; STAB,RR SUSP REAR STABILIZER SHAFT<F61>	1-51770-030-2	01	1	9902-0003	●
25	BAR ASM; STAB,RR SUSP REAR STABILIZER SHAFT<F61>	1-51770-030-2	01	1	0004-	●	●
27	BOLT; STAB REAR STABILIZER SHAFT<F61> M10X20 FLANGE	0-28081-020-0	04	1	9902-0003	●
27	BOLT; STAB REAR STABILIZER SHAFT<F61> M10X20 FLANGE	0-28081-020-0	04	1	0004-	●	●
55	ROD; STAB REAR STABILIZER SHAFT<F61>	1-51770-024-1	02	1	9902-9904	●
55	ROD; STAB REAR STABILIZER SHAFT<F61> EXC. DUMP TRUCK<RA1>	1-51770-024-1	02	1	9905-0003	●
55	ROD; STAB REAR STABILIZER SHAFT<F61> EXC. DUMP TRUCK<RA1>	1-51770-024-1	02	1	0004-	●
55	ROD; STAB REAR STABILIZER SHAFT<F61>	1-51770-024-1	02	1	0004-		●
55	ROD; STAB REAR STABILIZER SHAFT<F61> DUMP TRUCK<RA1>	1-51770-035-1	02	1	9905-	●
180	PIN; RR SPR	1-51361-020-0	02	1	9902-0003	●
180	PIN; RR SPR	1-51361-020-0	02	1	0004-	●	●
185	NIPPLE; GREASE,PIN,RR SPR PT1/8 STRAIGHT	9-09031-010-0	02	1	9902-0003	●
185	NIPPLE; GREASE,PIN,RR SPR PT1/8 STRAIGHT	9-09031-010-0	02	1	0004-	●	●
223	SPACER; U BOLT,RR SPR	1-51377-369-0	02	1	9902-0003	●
223	SPACER; U BOLT,RR SPR	1-51377-369-1	02	1	0004-	●	●
276	BUSHING; STAB ROD REAR STABILIZER SHAFT<F61>	1-51779-019-0	04	1	9902-0003	●
276	BUSHING; STAB ROD REAR STABILIZER SHAFT<F61>	1-51779-019-0	04	1	0004-	●	●
277	BUSHING; STAB,RR UPR REAR STABILIZER SHAFT<F61>	1-51779-067-0	02	1	9902-0003	●
277	BUSHING; STAB,RR UPR REAR STABILIZER SHAFT<F61>	1-51779-067-0	02	1	0004-	●	●
282	RETAINER; STAB BAR REAR STABILIZER SHAFT<F61>	1-51789-015-2	02	1	9902-0003	●
282	RETAINER; STAB BAR REAR STABILIZER SHAFT<F61>	1-51789-015-2	02	1	0004-	●	●
284	BOLT; RET TO RET REAR STABILIZER SHAFT<F61> M10X25	8-94463-351-0	08	1	9902-0003	●
284	BOLT; RET TO RET REAR STABILIZER SHAFT<F61> M10X25	8-94463-351-0	08	1	0004-	●	●
304	PIN; STAB ROD REAR STABILIZER SHAFT<F61>	1-51789-020-1	04	1	9902-0003	●
304	PIN; STAB ROD REAR STABILIZER SHAFT<F61>	1-51789-020-2	04	1	0004-	●	●
309	NUT; STAB ROD REAR STABILIZER SHAFT<F61> M24	9-99116-424-0	04	1	9902-0003	●
309	NUT; STAB ROD REAR STABILIZER SHAFT<F61> M24	9-99116-424-0	04	1	0004-	●	●
310	PIN; SPLIT,STAB ROD REAR STABILIZER SHAFT<F61> OD=4.6 L=45	9-08115-045-0	04	1	9902-0003	●
310	PIN; SPLIT,STAB ROD REAR STABILIZER SHAFT<F61> OD=4.6 L=45	9-08115-045-0	04	1	0004-	●	●
322	BRACKET; STAB BAR TO RR AXLE REAR STABILIZER SHAFT<F61>	1-51781-102-0	02	1	9902-0003	●
322	BRACKET; STAB BAR TO RR AXLE REAR STABILIZER SHAFT<F61>	1-51781-102-0	02	1	0004-	●	●
329	BUSHING; STAB ROD REAR STABILIZER SHAFT<F61> (A)	1-51789-051-1	02	1	9902-0003	●
329	BUSHING; STAB ROD REAR STABILIZER SHAFT<F61> (A)	1-51789-051-1	02	1	0004-	●	●
329	BUSHING; STAB ROD REAR STABILIZER SHAFT<F61> (B)	1-51789-052-0	02	1	9902-0003	●
329	BUSHING; STAB ROD REAR STABILIZER SHAFT<F61> (B)	1-51789-052-0	02	1	0004-	●	●
390	U-BOLT SET; RR SPRING L=470	1-87870-017-3	04	1	9902-9904	●
390	U-BOLT SET; RR SPRING EXC. DUMP TRUCK<RA1> L=470	1-87870-017-3	04	1	9905-0003	●
390	U-BOLT SET; RR SPRING EXC. DUMP TRUCK<RA1> L=470	1-87870-017-3	04	1	0004-	●
390	U-BOLT SET; RR SPRING DUMP TRUCK<RA1> L=510	1-87870-422-0	04	1	9905-	●
390	U-BOLT SET; RR SPRING L=490	1-87870-299-0	04	1	0004-		●
