0-60 — ENGINE ELECTRICAL CONTROL PARTS (#77151) — 185 parça

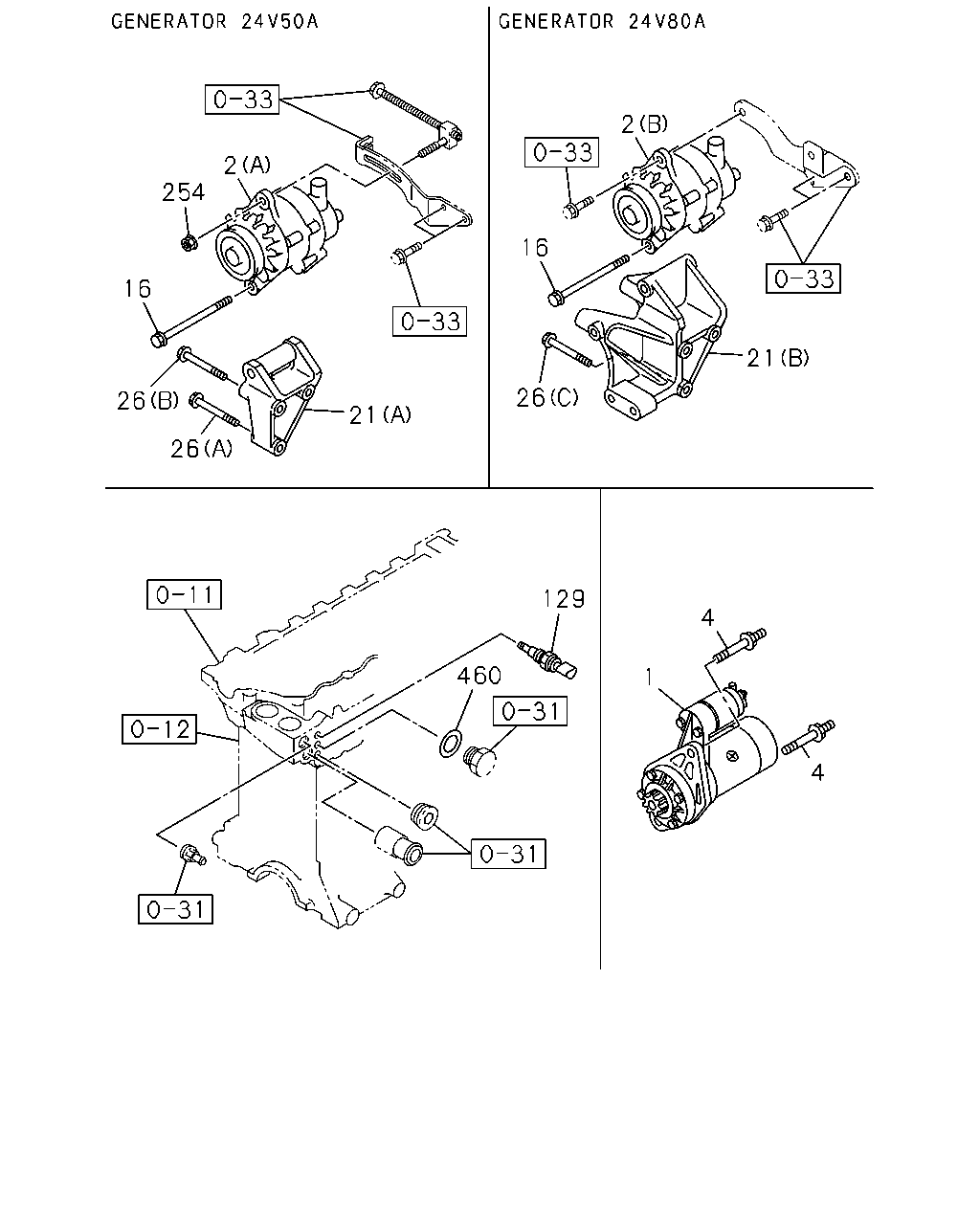

çizim 72564
2 2 254 16 16 21 26 26 21 26 129 4 460 1 4
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98055-279-1 01 1 0907-1006 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98055-279-1 01 1 1007-1207 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI 		8-98055-279-1 01 1 1007-1207 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98222-018-2 01 1 1208- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI 		8-98222-018-2 01 1 1208- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-97323-935-4 01 1 0905-1010 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98179-204-1 01 1 1011-1207 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98222-021-0 01 1 1208-1310 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98245-258-0 01 1 1311- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98054-984-0 01 1 0905-0906 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98054-984-0 01 1 0907-1006 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) (C) 24V 50A 		8-98029-887-2 01 1 0907- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V80A(7YN) (C) 24V 80A 		8-98029-889-2 01 1 0907- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) (A) 24V 50A 		8-98075-026-0 01 1 0905- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V80A(7YN) (B) 24V 80A 		8-98029-892-2 01 1 0905- ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 0905-0906 ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 0907- ● ●
16 02.277 BOLT; GEN
M10X120 FLANGE 		0-28056-012-0 01 1 0905-0906 ●
16 02.277 BOLT; GEN
M10X120 FLANGE 		0-28056-012-0 01 1 0907- ● ●
21 02.277 BRACKET; GEN
GENERATOR 24V50A(6QN) (A) 		8-97075-884-2 01 1 0905- ●
21 02.277 BRACKET; GEN
GENERATOR 24V80A(7YN) (B) 		8-98036-551-0 01 1 0905- ●
26 02.277 BOLT; GEN BRKT
GENERATOR 24V50A(6QN) 02.042 (A) M10X50 FLANGE 		0-28151-050-0 01 1 0905- ●
26 02.277 BOLT; GEN BRKT
GENERATOR 24V50A(6QN) (B) M10X70 FLANGE 		0-28151-070-0 02 1 0905- ●
26 02.277 BOLT; GEN BRKT
GENERATOR 24V80A(7YN) 01.062 (C) M10X90 FLANGE 		0-28151-090-0 03 1 0905- ●
129 01.150 SENSOR; GLOW PLUG,THERMO
NIPPON THERMOSTAT 		8-98023-717-0 01 1 0907- ●
129 01.150 SENSOR; GLOW PLUG,THERMO
MITSUBISHI 		8-98023-883-0 01 1 0905-1503 ●
129 01.150 SENSOR; GLOW PLUG,THERMO
NISHIDA 		8-98260-257-0 01 1 1504- ●
254 02.277 NUT; GEN BRKT
NPR(NP***N) EXC. GENERATOR 24V80A(7YN) 01.540 M8 FLANGE 		0-91180-208-0 01 1 0905- ●
460 02.363 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). 04.868 ID=16.2 		1-09630-086-0 01 1 0905- ●

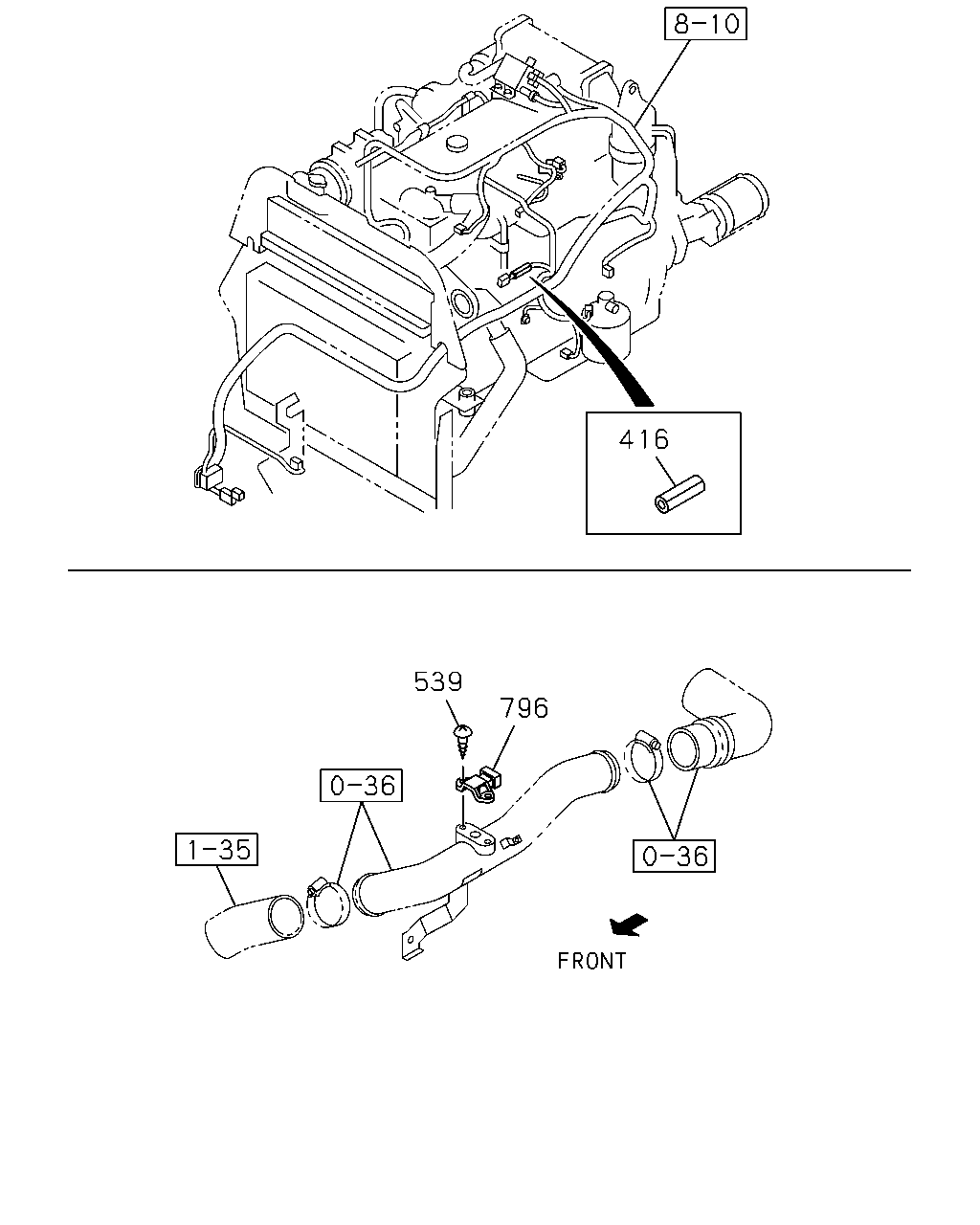

çizim 72705
416 539 796
BalonParca AdiParca NoAdetTipApplied Date A B
416 02.530 SLEEVE; RUBBER
ID=10 OD=14 L=30 		9-09956-682-0 01 1 1010- ●
416 02.530 SLEEVE; RUBBER
04.342 ID=17 OD=21 L=40 		1-09337-012-0 01 1 0905- ●
539 02.510 SCREW; SENSOR
M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 0905-0906 ●
539 02.510 SCREW; SENSOR
M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 0907- ● ●
796 01.150 SENSOR; MAP 8-98009-418-0 01 1 0905-0906 ●
796 01.150 SENSOR; MAP 8-98009-418-0 01 1 0907- ● ●
çizim 73378
10 46
BalonParca AdiParca NoAdetTipApplied Date A B
10 02.100 RELAY; STARTER
24V 50A 		8-97264-947-0 01 1 0905-0906 ●
10 02.100 RELAY; STARTER
24V 50A 		8-97264-947-0 01 1 0907- ● ●
46 02.510 RELAY; GLOW PLUG
24V 50A 		8-97173-947-0 01 1 0905-0906 ●
46 02.510 RELAY; GLOW PLUG
24V 50A 		8-97173-947-0 01 1 0907- ● ●

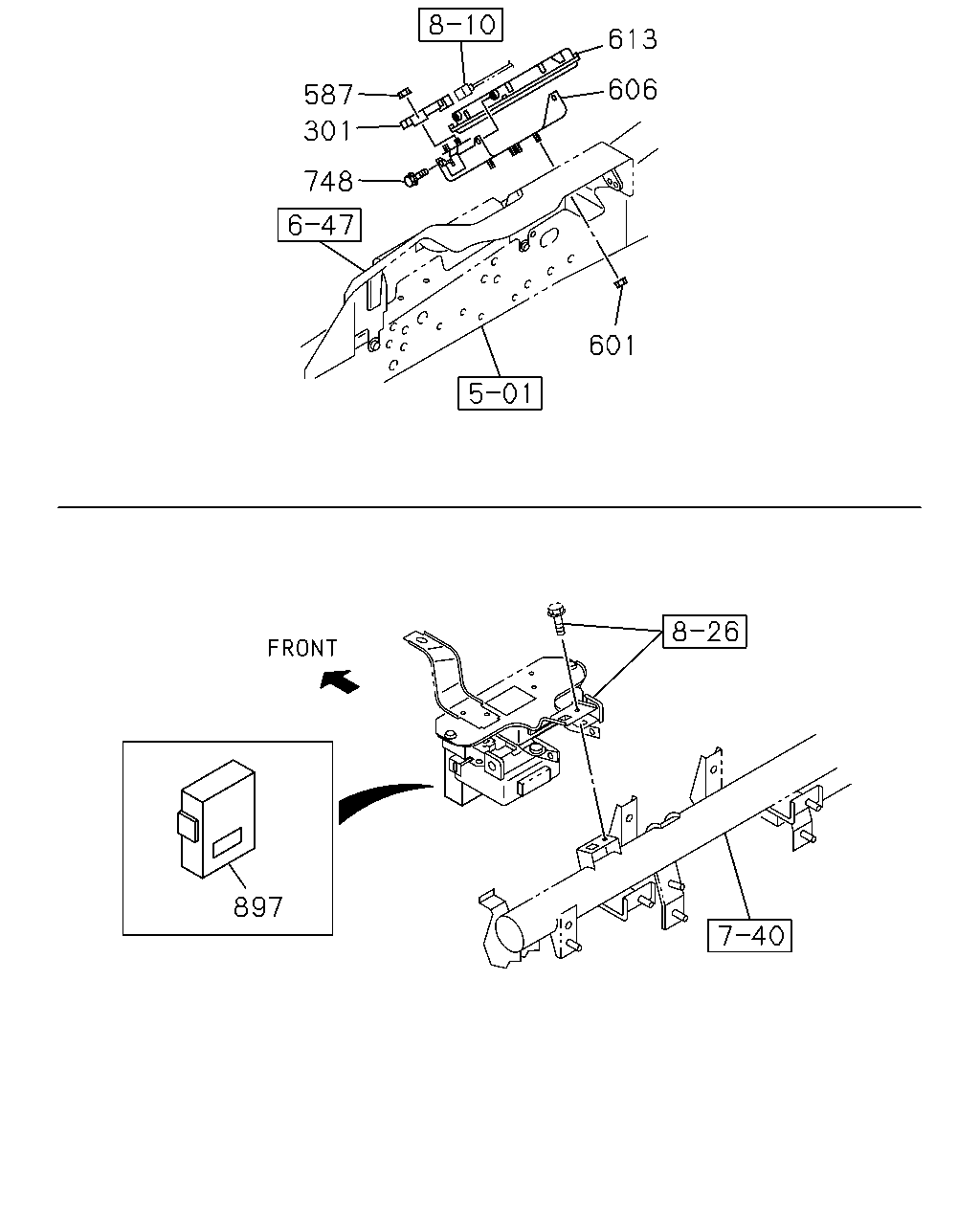

çizim 73422
613 606 587 301 748 601 897
BalonParca AdiParca NoAdetTipApplied Date A B
301 02.510 RESISTOR; DROPPING 8-97357-613-0 01 1 0905-0906 ●
301 02.510 RESISTOR; DROPPING 8-97357-613-0 01 1 0907- ● ●
587 03.671 NUT; RESISTOR & RELAY
01.062 M6 FLANGE 		0-91180-106-0 02 1 0905-0906 ●
587 03.671 NUT; RESISTOR & RELAY
01.062 M6 FLANGE 		0-91180-106-0 02 1 0907- ● ●
601 03.670 NUT; UNIT
04.115 M6 W/DISHED WASHER 		8-98029-921-0 04 1 0905-0906 ●
601 03.670 NUT; UNIT
04.115 M6 W/DISHED WASHER 		8-98029-921-0 04 1 0907- ● ●
606 03.680 BRACKET; CONT UNIT 8-98114-583-2 01 1 0907- ●
606 03.680 BRACKET; CONT UNIT 8-98145-011-2 01 1 0905- ●
613 03.670 CONTROL UNIT; ENG
ISRAEL COUNTRY(CV4) EGR COOLER LH POSITION<KCC> SPEED LIMITER 90KM(NMJ) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98251-548-0 01 1 1401-1505 ●
613 03.670 CONTROL UNIT; ENG
ISRAEL COUNTRY(CV4) EGR COOLER LH POSITION<KCC> SPEED LIMITER 90KM(NMJ) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98307-753-0 01 1 1506- ●
613 03.670 CONTROL UNIT; ENG
SGL CAB(NP**S*) 4 WHEEL ANTI LOCK BRAKE<JE5> IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEED LIMITER 90KM(NMJ) 		8-98122-105-5 01 1 0907-1111 ●
613 03.670 CONTROL UNIT; ENG
SGL CAB(NP**S*) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEED LIMITER 90KM(NMJ) 		8-98122-105-5 01 1 1112- ●
613 03.670 CONTROL UNIT; ENG
SGL CAB(NP**S*) 4 WHEEL ANTI LOCK BRAKE<JE5> IMMOBILIZER SYSTEM(7KC) EXC. SPEED LIMITER 90KM(NMJ), TRANSMISSIONCONTROL-SMOOTHER(8GF) 		8-98122-099-4 01 1 0907-1111 ●
613 03.670 CONTROL UNIT; ENG
SGL CAB(NP**S*) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. SPEED LIMITER 90KM(NMJ), TRANSMISSIONCONTROL-SMOOTHER(8GF) 		8-98122-099-4 01 1 1112- ●
613 03.670 CONTROL UNIT; ENG
SGL CAB(NP**S*) IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,SPEED LIMITER 90KM(NMJ) 		8-98122-108-5 01 1 0907-1111 ●
613 03.670 CONTROL UNIT; ENG
SGL CAB(NP**S*) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,SPEED LIMITER 90KM(NMJ) 		8-98122-108-5 01 1 1112- ●
613 03.670 CONTROL UNIT; ENG
SGL CAB(NP**S*) IMMOBILIZER SYSTEM(7KC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,SPEED LIMITER 90KM(NMJ),TRANSMISSION CONTROL-SMO OTHER(8GF) 		8-98122-102-4 01 1 0907-1111 ●
613 03.670 CONTROL UNIT; ENG
SGL CAB(NP**S*) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,SPEED LIMITER 90KM(NMJ),TRANSMISSION CONTROL-SMO OTHER(8GF) 		8-98122-102-4 01 1 1112- ●
613 03.670 CONTROL UNIT; ENG
SGL CAB(NP**S*) SPEED LIMITER 90KM(NMJ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98122-104-5 01 1 0907-1111 ●
613 03.670 CONTROL UNIT; ENG
NPR SGL CAB(NP**SN) 4 WHEEL ANTI LOCK BRAKE<JE5> SPEED LIMITER 90KM(NMJ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98122-104-5 01 1 1112- ●
613 03.670 CONTROL UNIT; ENG
SGL CAB(NP**S*) SPEED LIMITER 90KM(NMJ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98122-098-4 01 1 0907-1111 ●
613 03.670 CONTROL UNIT; ENG
NPR SGL CAB(NP**SN) 4 WHEEL ANTI LOCK BRAKE<JE5> SPEED LIMITER 90KM(NMJ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98122-098-4 01 1 1112- ●
613 03.670 CONTROL UNIT; ENG
DBL CAB(NP**W*) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEED LIMITER 90KM(NMJ) 		8-98122-117-5 01 1 0907- ●
613 03.670 CONTROL UNIT; ENG
DBL CAB(NP**W*) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. SPEED LIMITER 90KM(NMJ), TRANSMISSIONCONTROL-SMOOTHER(8GF) 		8-98122-111-4 01 1 0907- ●
613 03.670 CONTROL UNIT; ENG
DBL CAB(NP**W*) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,SPEED LIMITER 90KM(NMJ) 		8-98122-120-5 01 1 0907- ●
613 03.670 CONTROL UNIT; ENG
DBL CAB(NP**W*) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,SPEED LIMITER 90KM(NMJ),TRANSMISSION CONTROL-SMO OTHER(8GF) 		8-98122-114-4 01 1 0907- ●
613 03.670 CONTROL UNIT; ENG
DBL CAB(NP**W*) SPEED LIMITER 90KM(NMJ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98122-116-5 01 1 0907-1111 ●
613 03.670 CONTROL UNIT; ENG
NPR DBL CAB(NP**WN) 4 WHEEL ANTI LOCK BRAKE<JE5> SPEED LIMITER 90KM(NMJ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98122-116-5 01 1 1112- ●
613 03.670 CONTROL UNIT; ENG
DBL CAB(NP**W*) SPEED LIMITER 90KM(NMJ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98122-110-4 01 1 0907-1111 ●
613 03.670 CONTROL UNIT; ENG
NPR DBL CAB(NP**WN) 4 WHEEL ANTI LOCK BRAKE<JE5> SPEED LIMITER 90KM(NMJ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98122-110-4 01 1 1112- ●
613 03.670 CONTROL UNIT; ENG
SGL CAB(NP**S*) SPEED LIMITER 90KM(NMJ) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98121-303-6 01 1 0905-1312 ●
613 03.670 CONTROL UNIT; ENG
SGL CAB(NP**S*) SPEED LIMITER 90KM(NMJ) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. EGR COOLER LH POSITION<KCC> 		8-98121-303-6 01 1 1401-1505 ●
613 03.670 CONTROL UNIT; ENG
SGL CAB(NP**S*) SPEED LIMITER 90KM(NMJ) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. EGR COOLER LH POSITION<KCC> 		8-98307-750-0 01 1 1506- ●
613 03.670 CONTROL UNIT; ENG
SGL CAB(NP**S*) SPEED LIMITER 90KM(NMJ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98121-302-6 01 1 0905-1505 ●
613 03.670 CONTROL UNIT; ENG
SGL CAB(NP**S*) SPEED LIMITER 90KM(NMJ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98307-749-0 01 1 1506- ●
613 03.670 CONTROL UNIT; ENG
SGL CAB(NP**S*) SPEED LIMITER 90KM(NMJ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98121-295-6 01 1 0905-1505 ●
613 03.670 CONTROL UNIT; ENG
SGL CAB(NP**S*) SPEED LIMITER 90KM(NMJ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98307-730-0 01 1 1506- ●
613 03.670 CONTROL UNIT; ENG
SGL CAB(NP**S*) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEED LIMITER 90KM(NMJ) 		8-98121-299-6 01 1 0905-1505 ●
613 03.670 CONTROL UNIT; ENG
SGL CAB(NP**S*) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEED LIMITER 90KM(NMJ) 		8-98307-735-0 01 1 1506- ●
613 03.670 CONTROL UNIT; ENG
SGL CAB(NP**S*) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEED LIMITER 90KM(NMJ),MULTI INFORMATION DISPLAY<7NY> 		8-98121-298-6 01 1 0905-1505 ●
613 03.670 CONTROL UNIT; ENG
SGL CAB(NP**S*) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEED LIMITER 90KM(NMJ),MULTI INFORMATION DISPLAY<7NY> 		8-98307-734-0 01 1 1506- ●
613 03.670 CONTROL UNIT; ENG
SGL CAB(NP**S*) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. SPEED LIMITER 90KM(NMJ),MULTI INFORMATION DISPLAY<7NY> 		8-98121-294-6 01 1 0905-1505 ●
613 03.670 CONTROL UNIT; ENG
SGL CAB(NP**S*) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. SPEED LIMITER 90KM(NMJ),MULTI INFORMATION DISPLAY<7NY> 		8-98307-722-0 01 1 1506- ●
613 03.670 CONTROL UNIT; ENG
DBL CAB(NP**W*) SPEED LIMITER 90KM(NMJ) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98121-305-6 01 1 0905-1505 ●
613 03.670 CONTROL UNIT; ENG
DBL CAB(NP**W*) SPEED LIMITER 90KM(NMJ) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98307-752-0 01 1 1506- ●
613 03.670 CONTROL UNIT; ENG
DBL CAB(NP**W*) SPEED LIMITER 90KM(NMJ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98121-304-6 01 1 0905-1505 ●
613 03.670 CONTROL UNIT; ENG
DBL CAB(NP**W*) SPEED LIMITER 90KM(NMJ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98307-751-0 01 1 1506- ●
613 03.670 CONTROL UNIT; ENG
DBL CAB(NP**W*) SPEED LIMITER 90KM(NMJ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98121-297-6 01 1 0905-1505 ●
613 03.670 CONTROL UNIT; ENG
DBL CAB(NP**W*) SPEED LIMITER 90KM(NMJ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98307-731-0 01 1 1506- ●
613 03.670 CONTROL UNIT; ENG
DBL CAB(NP**W*) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEED LIMITER 90KM(NMJ) 		8-98121-301-6 01 1 0905-1505 ●
613 03.670 CONTROL UNIT; ENG
DBL CAB(NP**W*) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEED LIMITER 90KM(NMJ) 		8-98307-737-0 01 1 1506- ●
613 03.670 CONTROL UNIT; ENG
DBL CAB(NP**W*) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEED LIMITER 90KM(NMJ),MULTI INFORMATION DISPLAY<7NY> 		8-98121-300-6 01 1 0905-1505 ●
613 03.670 CONTROL UNIT; ENG
DBL CAB(NP**W*) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEED LIMITER 90KM(NMJ),MULTI INFORMATION DISPLAY<7NY> 		8-98307-736-0 01 1 1506- ●
613 03.670 CONTROL UNIT; ENG
DBL CAB(NP**W*) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. SPEED LIMITER 90KM(NMJ),MULTI INFORMATION DISPLAY<7NY> 		8-98121-296-6 01 1 0905-1505 ●
613 03.670 CONTROL UNIT; ENG
DBL CAB(NP**W*) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. SPEED LIMITER 90KM(NMJ),MULTI INFORMATION DISPLAY<7NY> 		8-98307-723-0 01 1 1506- ●
748 02.500 BOLT; CONT UNIT
03.162 M6X12 FLANGE 		0-28050-612-0 03 1 0905-0906 ●
748 02.500 BOLT; CONT UNIT
03.162 M6X12 FLANGE 		0-28050-612-0 03 1 0907- ● ●
897 02.510 DRM
DBL CAB(NP**W*) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98082-814-1 01 1 0905-0906 ●
897 02.510 DRM
DBL CAB(NP**W*) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98082-814-7 01 1 0907- ● ●

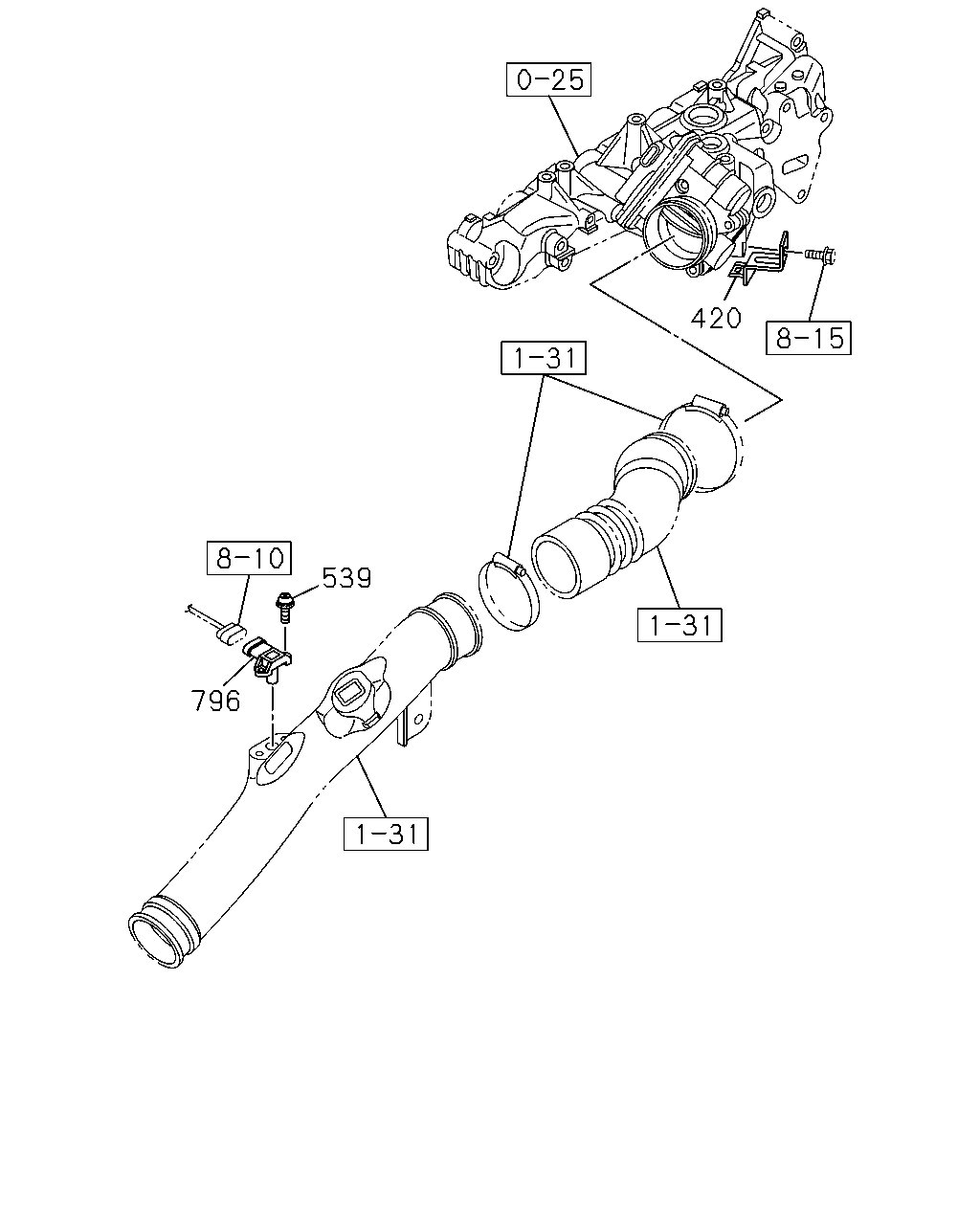

çizim 73613
420 539 796
BalonParca AdiParca NoAdetTipApplied Date A B
420 02.183 BRACKET; HARNESS 8-98064-159-0 01 1 0907- ●
539 02.510 SCREW; SENSOR
M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 0905-0906 ●
539 02.510 SCREW; SENSOR
M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 0907- ● ●
796 01.150 SENSOR; MAP 8-98009-418-0 01 1 0905-0906 ●
796 01.150 SENSOR; MAP 8-98009-418-0 01 1 0907- ● ●

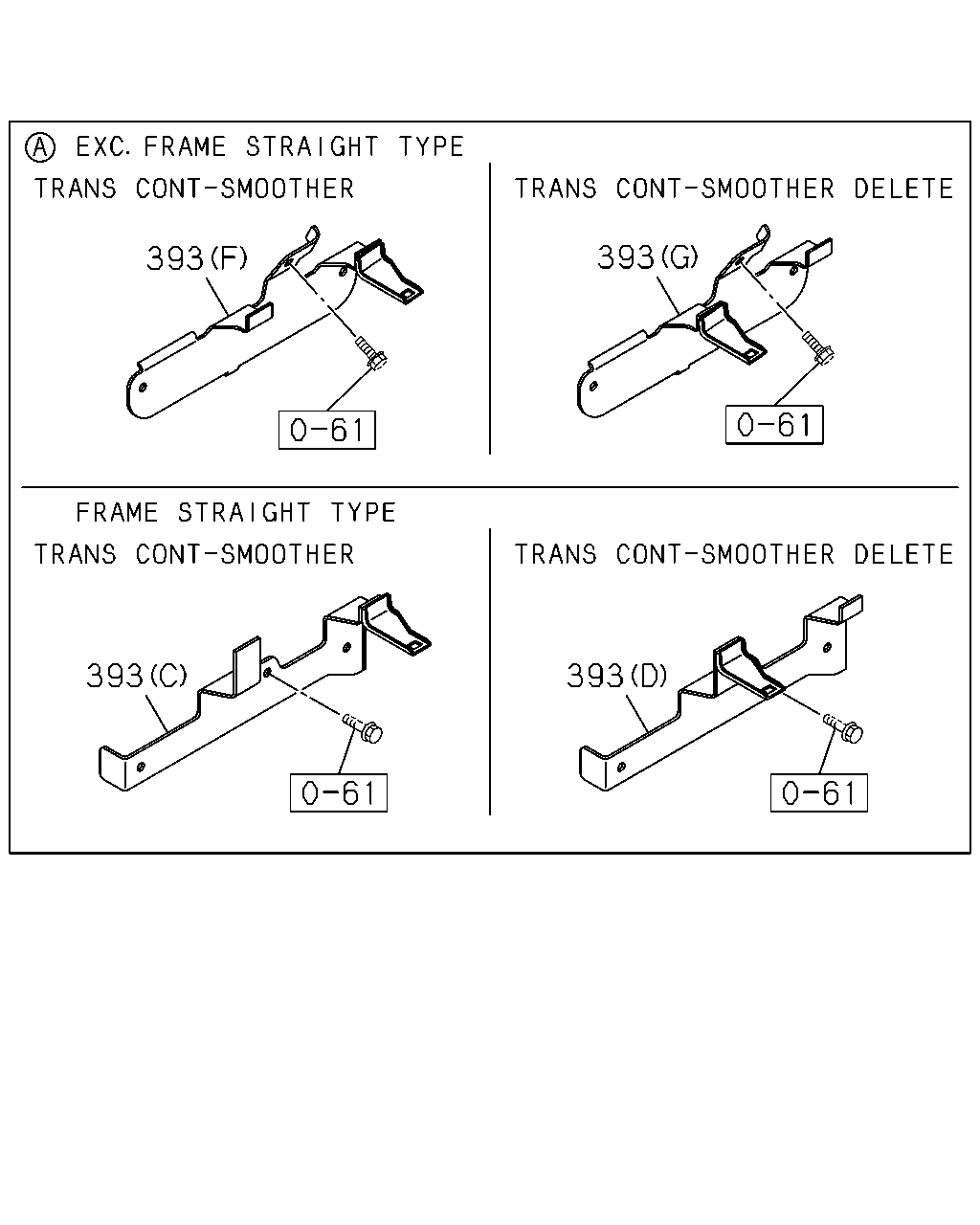

çizim 186332
393 393 393 393
BalonParca AdiParca NoAdetTipApplied Date A B
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (H) 		8-98136-192-0 02 1 0907-1308 ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (H) 		8-98245-494-0 02 1 1309- ●
393 02.343 BRACKET; HARNESS TO BODY
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>,BATTERY 115E41L<8MA> (F) 		8-98030-139-2 01 1 0907- ● ●
393 02.343 BRACKET; HARNESS TO BODY
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ>,BATTERY 115E41L<8MA> (G) 		8-98030-138-2 01 1 0907- ● ●
393 02.343 BRACKET; HARNESS TO BODY
M/T MYY5T(RSM),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98041-947-1 01 1 0907- ● ●
393 02.343 BRACKET; HARNESS TO BODY
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> (D) 		8-98041-946-1 01 1 0905-0906 ●
393 02.343 BRACKET; HARNESS TO BODY
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> (D) 		8-98041-946-1 01 1 0907- ●
393 02.343 BRACKET; HARNESS TO BODY
M/T MYY5T(RSM),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-98041-946-1 01 1 0907- ●
393 02.343 BRACKET; HARNESS TO BODY
BATTERY 115E41L<8MA> (B) 		8-98018-894-1 01 1 0905- ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) BATTERY 115E41L<8MA> 02.483 (E) 		8-98018-251-1 02 1 0905- ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) EXC. BATTERY 115E41L<8MA> 02.483 (E) 		8-98018-251-1 02 1 0905- ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) EXC. BATTERY 115E41L<8MA> 02.483 (E) 		8-98018-251-1 01 1 0905-1101 ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) EXC. BATTERY 115E41L<8MA> 02.483 (E) 		8-98018-251-1 01 1 1102- ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) BATTERY 115E41L<8MA> 02.483 (E) 		8-98018-251-1 01 1 1102- ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) EXC. BATTERY 115E41L<8MA> (A) 		8-98018-903-0 01 1 0905-0906 ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) EXC. BATTERY 115E41L<8MA> (A) 		8-98018-903-0 01 1 0907-1103 ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 2700MM(27W) (A) 		8-98018-903-0 01 1 0907-1103 ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) EXC. BATTERY 115E41L<8MA> (I) 		8-98123-872-0 01 1 1104- ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 2700MM(27W) (I) 		8-98123-872-0 01 1 1104- ●

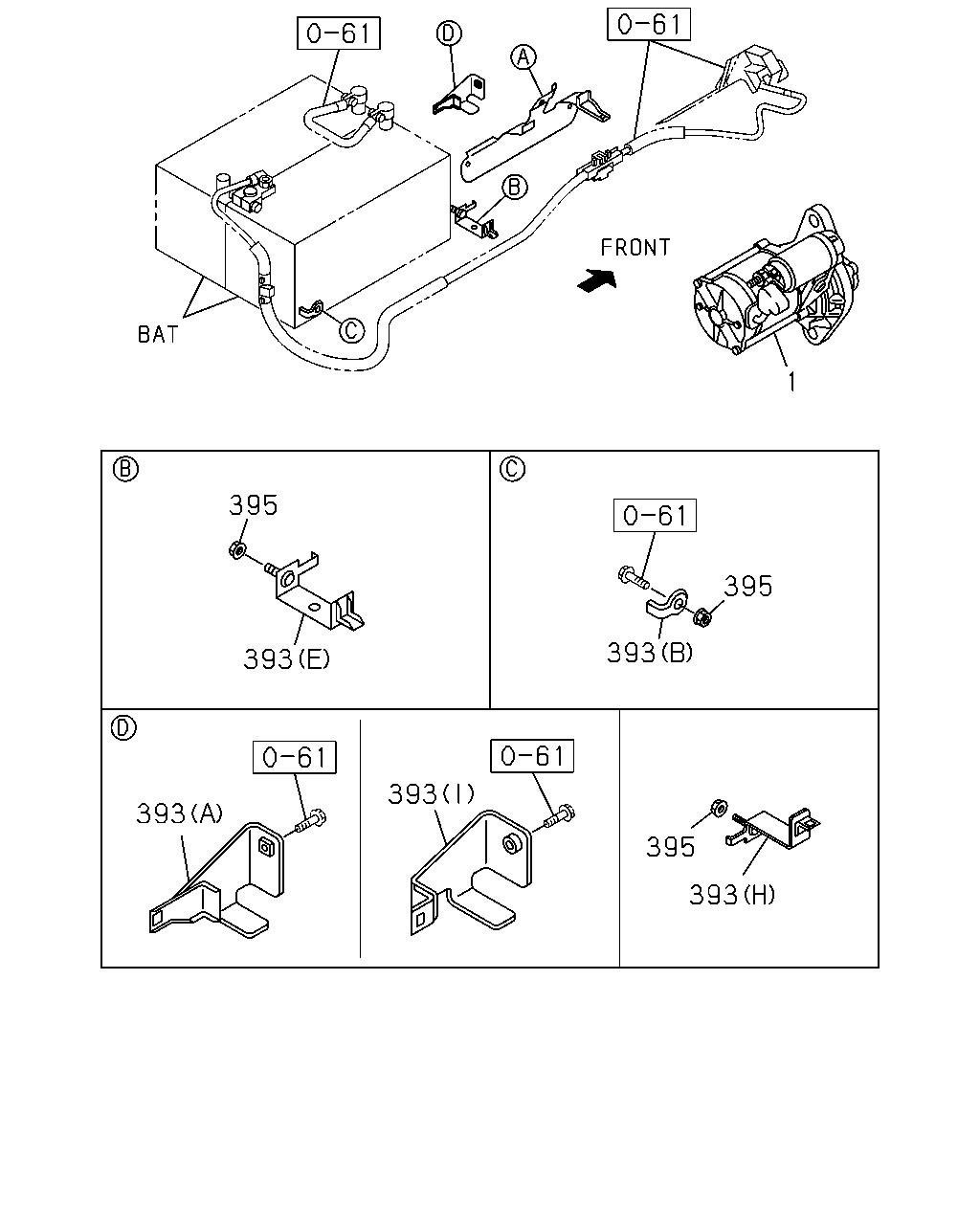

çizim 186334
1 395 395 393 393 393 393 395 393
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98055-279-1 01 1 0907-1006 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98055-279-1 01 1 1007-1207 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI 		8-98055-279-1 01 1 1007-1207 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98222-018-2 01 1 1208- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI 		8-98222-018-2 01 1 1208- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-97323-935-4 01 1 0905-1010 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98179-204-1 01 1 1011-1207 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98222-021-0 01 1 1208-1310 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98245-258-0 01 1 1311- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98054-984-0 01 1 0905-0906 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98054-984-0 01 1 0907-1006 ● ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (H) 		8-98136-192-0 02 1 0907-1308 ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (H) 		8-98245-494-0 02 1 1309- ●
393 02.343 BRACKET; HARNESS TO BODY
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>,BATTERY 115E41L<8MA> (F) 		8-98030-139-2 01 1 0907- ● ●
393 02.343 BRACKET; HARNESS TO BODY
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ>,BATTERY 115E41L<8MA> (G) 		8-98030-138-2 01 1 0907- ● ●
393 02.343 BRACKET; HARNESS TO BODY
M/T MYY5T(RSM),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98041-947-1 01 1 0907- ● ●
393 02.343 BRACKET; HARNESS TO BODY
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> (D) 		8-98041-946-1 01 1 0905-0906 ●
393 02.343 BRACKET; HARNESS TO BODY
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> (D) 		8-98041-946-1 01 1 0907- ●
393 02.343 BRACKET; HARNESS TO BODY
M/T MYY5T(RSM),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-98041-946-1 01 1 0907- ●
393 02.343 BRACKET; HARNESS TO BODY
BATTERY 115E41L<8MA> (B) 		8-98018-894-1 01 1 0905- ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) BATTERY 115E41L<8MA> 02.483 (E) 		8-98018-251-1 02 1 0905- ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) EXC. BATTERY 115E41L<8MA> 02.483 (E) 		8-98018-251-1 02 1 0905- ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) EXC. BATTERY 115E41L<8MA> 02.483 (E) 		8-98018-251-1 01 1 0905-1101 ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) EXC. BATTERY 115E41L<8MA> 02.483 (E) 		8-98018-251-1 01 1 1102- ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) BATTERY 115E41L<8MA> 02.483 (E) 		8-98018-251-1 01 1 1102- ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) EXC. BATTERY 115E41L<8MA> (A) 		8-98018-903-0 01 1 0905-0906 ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) EXC. BATTERY 115E41L<8MA> (A) 		8-98018-903-0 01 1 0907-1103 ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 2700MM(27W) (A) 		8-98018-903-0 01 1 0907-1103 ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) EXC. BATTERY 115E41L<8MA> (I) 		8-98123-872-0 01 1 1104- ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 2700MM(27W) (I) 		8-98123-872-0 01 1 1104- ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) BATTERY 115E41L<8MA> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0905-0906 ●
395 02.343 NUT; BRKT FIX
DBL CAB(NP**W*) EXC. BATTERY 115E41L<8MA> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0905-0906 ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) BATTERY 115E41L<8MA> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0907- ●
395 02.343 NUT; BRKT FIX
DBL CAB(NP**W*) EXC. BATTERY 115E41L<8MA> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0907- ●
395 02.343 NUT; BRKT FIX
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. BATTERY 115E41L<8MA> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0907- ●
395 02.343 NUT; BRKT FIX
01.062 M8 FLANGE 		0-91180-108-0 01 1 0905-1101 ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1102- ●
395 02.343 NUT; BRKT FIX
DBL CAB(NP**W*) BATTERY 115E41L<8MA> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1102- ●

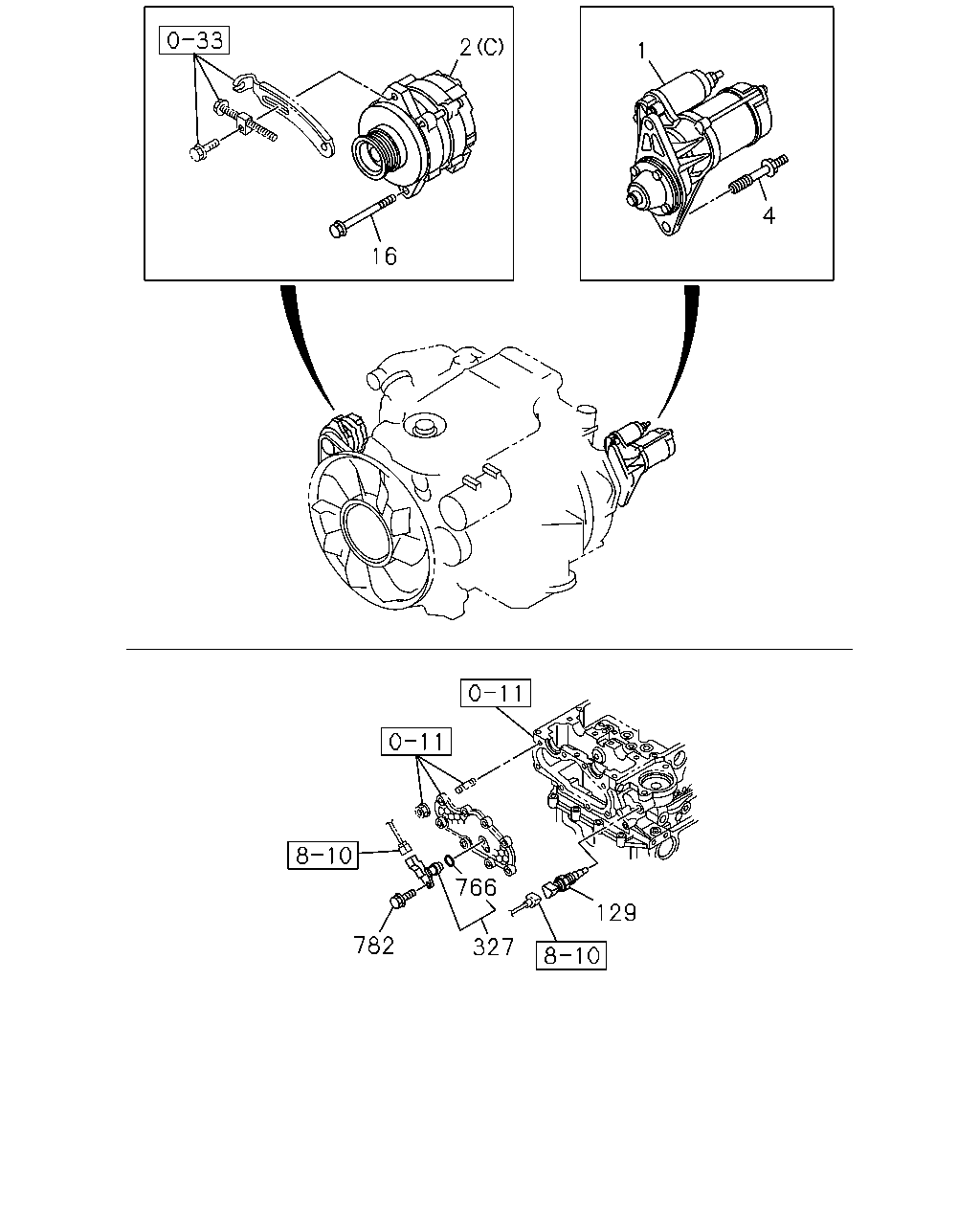

çizim 186356
2 1 4 16 766 129 782 327
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98055-279-1 01 1 0907-1006 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98055-279-1 01 1 1007-1207 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI 		8-98055-279-1 01 1 1007-1207 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98222-018-2 01 1 1208- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI 		8-98222-018-2 01 1 1208- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-97323-935-4 01 1 0905-1010 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98179-204-1 01 1 1011-1207 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98222-021-0 01 1 1208-1310 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98245-258-0 01 1 1311- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98054-984-0 01 1 0905-0906 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98054-984-0 01 1 0907-1006 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) (C) 24V 50A 		8-98029-887-2 01 1 0907- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V80A(7YN) (C) 24V 80A 		8-98029-889-2 01 1 0907- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) (A) 24V 50A 		8-98075-026-0 01 1 0905- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V80A(7YN) (B) 24V 80A 		8-98029-892-2 01 1 0905- ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 0905-0906 ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 0907- ● ●
16 02.277 BOLT; GEN
M10X120 FLANGE 		0-28056-012-0 01 1 0905-0906 ●
16 02.277 BOLT; GEN
M10X120 FLANGE 		0-28056-012-0 01 1 0907- ● ●
129 01.150 SENSOR; GLOW PLUG,THERMO
NIPPON THERMOSTAT 		8-98023-717-0 01 1 0907- ●
129 01.150 SENSOR; GLOW PLUG,THERMO
MITSUBISHI 		8-98023-883-0 01 1 0905-1503 ●
129 01.150 SENSOR; GLOW PLUG,THERMO
NISHIDA 		8-98260-257-0 01 1 1504- ●
327 02.361 SENSOR; CAMSHAFT POSITION 8-97312-108-1 01 1 0907- ●
766 02.363 GASKET; SENSOR
00.724 ID=14.2 OD=18.8 		8-97369-404-0 01 1 0907- ●
782 02.510 BOLT; SENSOR
09.242 M6X16 FLANGE 		0-28050-616-0 01 1 0907- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
