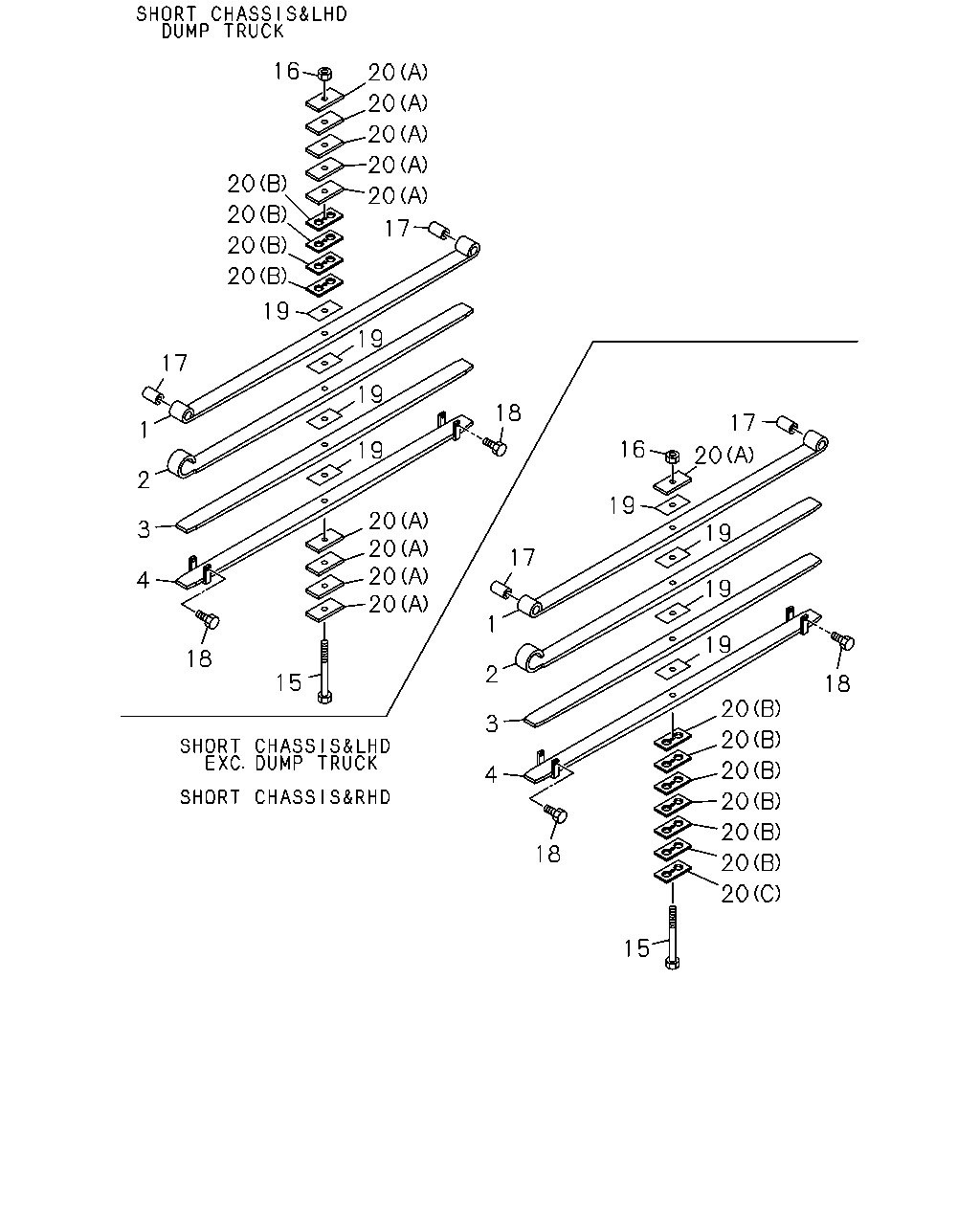

4-55 — FRONT LEAF SPRING (#7715) — 25 parça

16 20 20 20 20 20 20 20 17 20 20 19 19 17 19 18 17 1 16 19 20 2 19 20 20 20 20 3 19 17 4 19 1 19 18 2 15 18 20 3 20 20 4 20 20 18 20 20 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT ASM PART: A = 1-51130-312-0	1-51131-312-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: B = 1-51130-314-0	1-51131-314-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: C = 1-51130-649-0	1-51131-649-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: A = 1-51130-312-0	1-51132-312-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: B = 1-51130-314-0	1-51132-314-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: C = 1-51130-649-0	1-51132-649-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: A = 1-51130-312-0	1-51133-312-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: B = 1-51130-314-0	1-51133-314-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: C = 1-51130-649-0	1-51133-649-0	01	1	-
4	SPRING; LEAF,NO 4,FRT W/CLIP ASM PART: A = 1-51130-312-0	1-51134-312-0	01	1	-
4	SPRING; LEAF,NO 4,FRT W/CLIP ASM PART: B = 1-51130-314-0	1-51134-314-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: C = 1-51130-649-0	1-51134-649-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=190 ASM PART: A = 1-51130-312-0	1-51156-342-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=180 ASM PART: B = 1-51130-314-0	1-51156-343-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=245 ASM PART: C = 1-51130-649-0	1-51156-396-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M16 ASM PART: A = 1-51130-312-0, B = 1-51130-314-0, C = 1-51130-649-0	1-09400-054-0	01	1	-
17	BUSHING; LEAF SPR,FRT OD=38 ASM PART: A = 1-51130-312-0, B = 1-51130-314-0, C = 1-51130-649-0	1-51351-009-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT M10X99 ASM PART: A = 1-51130-312-0, B = 1-51130-314-0, C = 1-51130-649-0	1-09000-328-0	02	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: A = 1-51130-312-0, B = 1-51130-314-0, C = 1-51130-649-0	1-51177-071-0	04	1	-
20	SEAT; LEAF SPR,FRT (A), T=12 ASM PART: A = 1-51130-312-0, B = 1-51130-314-0	1-51177-107-0	01	1	-
20	SEAT; LEAF SPR,FRT (A), T=9 ASM PART: C = 1-51130-649-0	1-51177-114-0	09	1	-
20	SEAT; LEAF SPR,FRT (B), T=13 ASM PART: C = 1-51130-649-0	1-51177-181-0	04	1	-
20	SEAT; LEAF SPR,FRT (C), T=6 ASM PART: A = 1-51130-312-0	1-51177-307-0	01	1	-
20	SEAT; LEAF SPR,FRT (C), T=7 ASM PART: B = 1-51130-314-0	1-51177-308-0	01	1	-
20	SEAT; LEAF SPR,FRT (B), T=10 ASM PART: A = 1-51130-312-0, B = 1-51130-314-0	1-51177-309-0	06	1	-
