Isuzu WW
▶
TRUCKS
▶
NNR
▶
51237 - NNR/NPR(EU)-LHD EU5
▶
0 - Engine, Emission, Engine Electrical
▶
0-42 - FUEL PUMP AND PIPE
▶

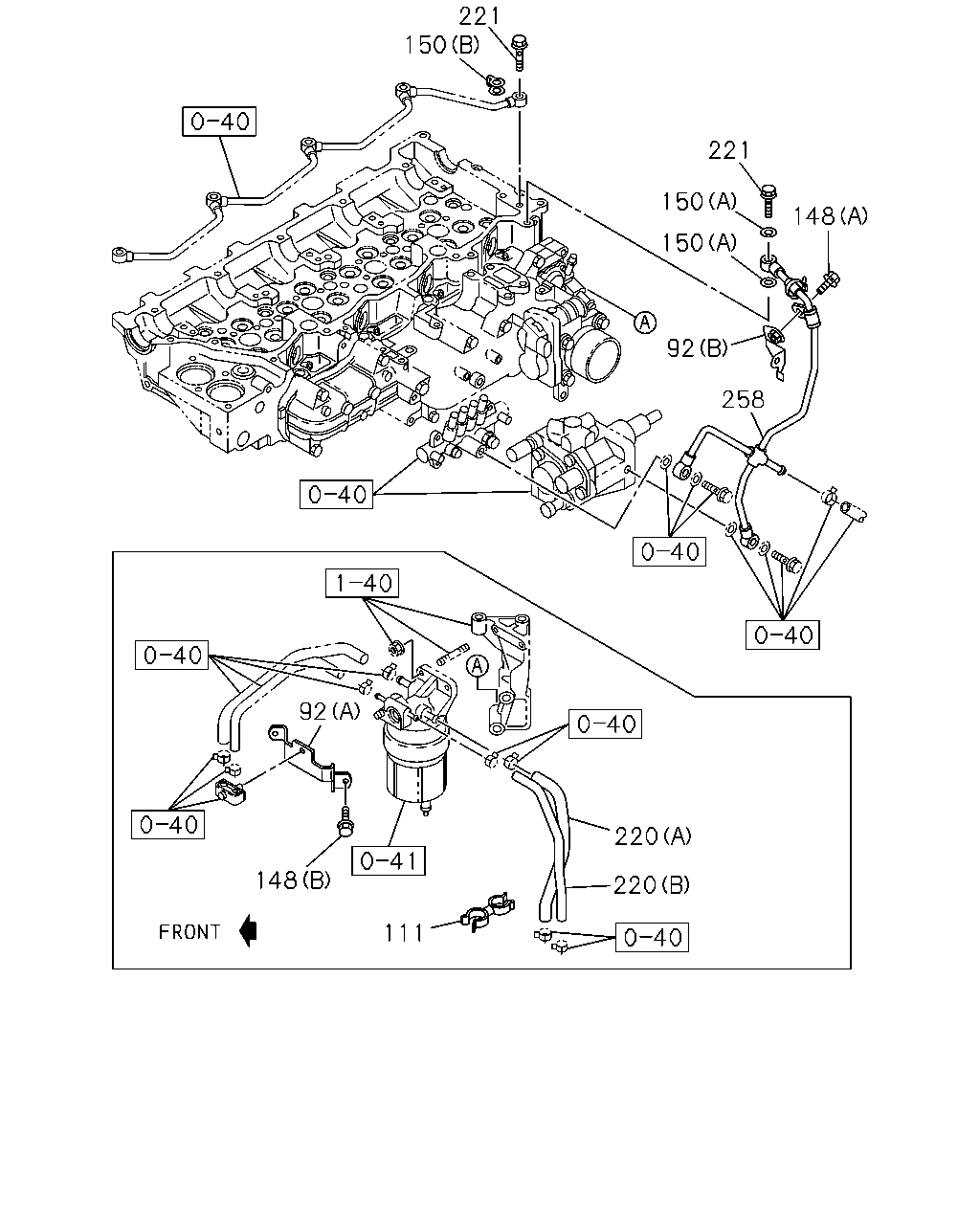

0-42 — FUEL PUMP AND PIPE
(#77146) — 12 parça
221
150
221
150
148
150
92
258
92
220
148
220
111
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
92
03.162 BRACKET; FUEL PIPE
(B)
8-98045-008-1
01
1
0905-
92
03.162 BRACKET; FUEL PIPE
(A)
8-98087-938-1
01
1
0905-
111
03.162 CLIP; FUEL PIPE
02.589 ID=13 & 16.5
8-94169-028-0
03
1
0905-
148
03.162 BOLT; BRKT
(A) M6X12 FLANGE
0-28050-612-0
02
1
0905-
148
03.162 BOLT; BRKT
00.724 (B) M8X16 FLANGE
0-28060-816-0
02
1
0905-
150
03.162 GASKET; FUEL PIPE
01.531 (A) ID=10.2 OD=15.2
1-09630-083-0
02
1
0905-
150
03.162 GASKET; FUEL PIPE
01.531 (B) ID=10.6
8-97240-975-0
01
1
0905-0908
150
03.162 GASKET; FUEL PIPE
(B) ID=10.2 OD=17
8-98079-755-0
01
1
0909-
220
03.163 HOSE; FUEL
(A)
8-98036-180-3
01
1
0905-
220
03.163 HOSE; FUEL
(B)
8-98036-181-2
01
1
0905-
221
03.163 BOLT; FUEL PIPE
01.531 M10X21 FLANGE
8-94396-711-0
02
1
0905-
258
03.163 PIPE ASM; FUEL,LEAK OFF
8-98096-205-0
01
1
0905-
