◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51237 - NNR/NPR(EU)-LHD EU5 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-41 - FUEL FILTER AND BRACKET ▶
0-41 — FUEL FILTER AND BRACKET (#77145) — 100 parça

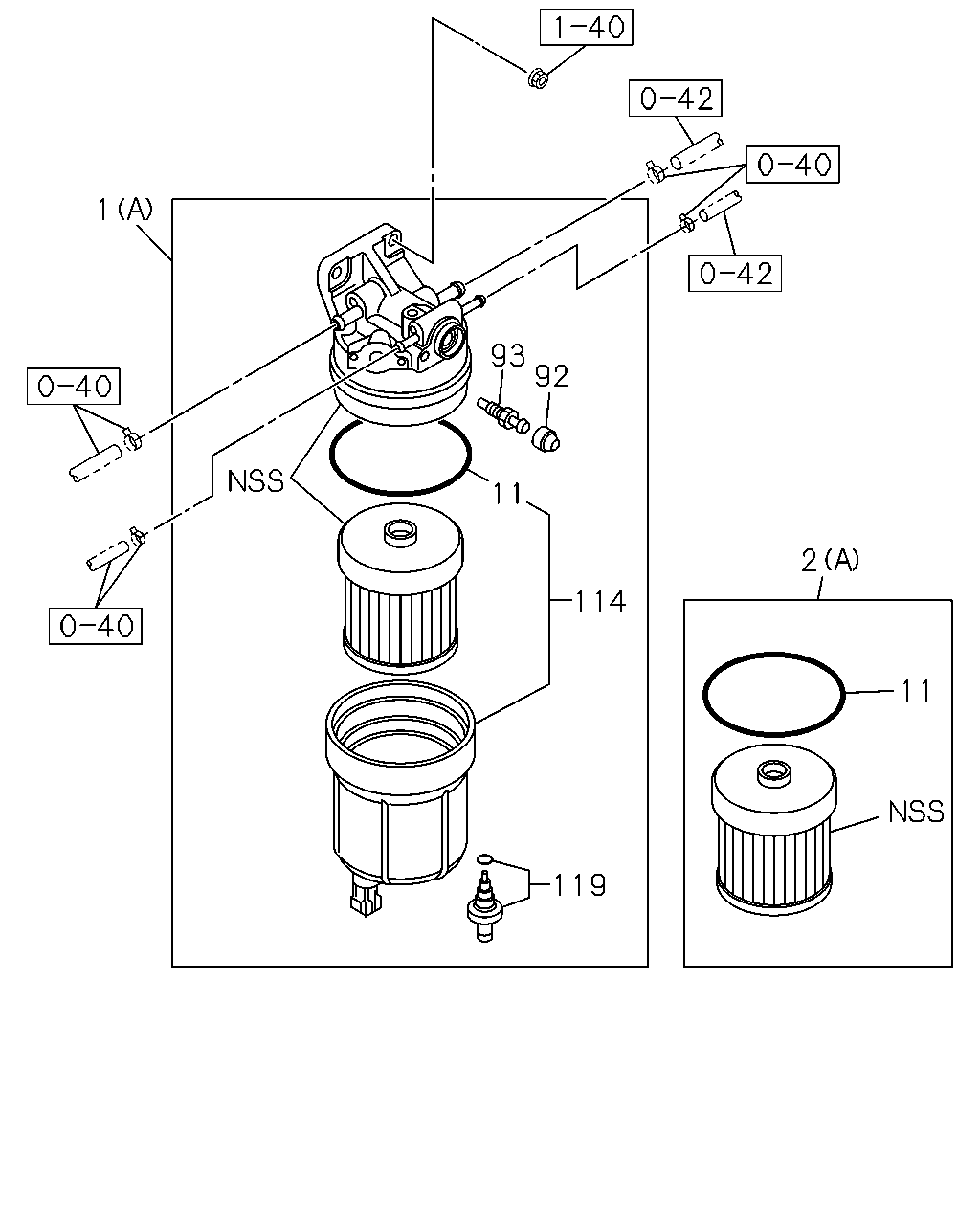

çizim 63880
1 93 92 11 2 114 11 119
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.890 FILTER ASM; FUEL
(A) 		8-98162-903-0 01 1 1001-1002 ●
1 03.890 FILTER ASM; FUEL
(A) 		8-98162-903-3 01 1 1003- ● ●
1 03.890 FILTER ASM; FUEL
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98095-980-0 01 1 0905-0906 ●
1 03.890 FILTER ASM; FUEL
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98095-980-1 01 1 0907- ● ●
1 03.890 FILTER ASM; FUEL
(A) 		8-98060-050-1 01 1 0905-0906 ●
1 03.890 FILTER ASM; FUEL
(A) 		8-98060-050-1 01 1 0907-0912 ● ●
1 03.890 FILTER ASM; FUEL
(A) 		8-98060-050-1 01 1 1001-1002 ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) 		8-98203-599-0 01 1 1201-1201 ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) 		8-98203-599-0 01 1 1201- ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) 		8-98162-897-0 01 1 1001-1002 ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) 		8-98162-897-0 01 1 1003-1112 ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) 		8-98162-897-0 01 1 1201-1201 ●
2 03.890 ELEMENT KIT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98095-983-0 01 1 0905-0906 ●
2 03.890 ELEMENT KIT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98095-983-0 01 1 0907- ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) 		8-98037-011-0 01 1 0905-0906 ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) 		8-98037-011-0 01 1 0907-0912 ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) 		8-98037-011-0 01 1 1001-1002 ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) BEST VALUE PARTS 		1-87610-093-1 01 1 1201-1201 ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) BEST VALUE PARTS 		1-87610-093-1 01 1 1201- ● ●
11 03.890 GASKET; CASE TO BODY,FUEL FILTER 8-98203-600-0 01 1 1201-1201 ●
11 03.890 GASKET; CASE TO BODY,FUEL FILTER 8-98203-600-0 01 1 1201- ● ●
11 03.890 GASKET; CASE TO BODY,FUEL FILTER 8-98037-015-0 01 1 0905-0906 ●
11 03.890 GASKET; CASE TO BODY,FUEL FILTER 8-98037-015-0 01 1 0907-1112 ● ●
11 03.890 GASKET; CASE TO BODY,FUEL FILTER 8-98037-015-0 01 1 1201-1201 ●
92 03.417 CAP; FUEL FILTER 8-98034-314-0 01 1 0905-0906 ●
92 03.417 CAP; FUEL FILTER 8-98034-314-0 01 1 0907- ● ●
93 03.890 CONNECTOR; FUEL FILTER
M8X10 		8-98034-312-0 01 1 0905-0906 ●
93 03.890 CONNECTOR; FUEL FILTER
M8X10 		8-98034-312-0 01 1 0907- ● ●
114 03.890 CASE ASM; FUEL FILTER 8-98039-987-0 01 1 0905-0906 ●
114 03.890 CASE ASM; FUEL FILTER 8-98039-987-1 01 1 0907- ● ●
119 03.890 PLUG; DRAIN,FUEL FILTER 8-98037-095-0 01 1 0905-0906 ●
119 03.890 PLUG; DRAIN,FUEL FILTER 8-98037-095-0 01 1 0907- ● ●

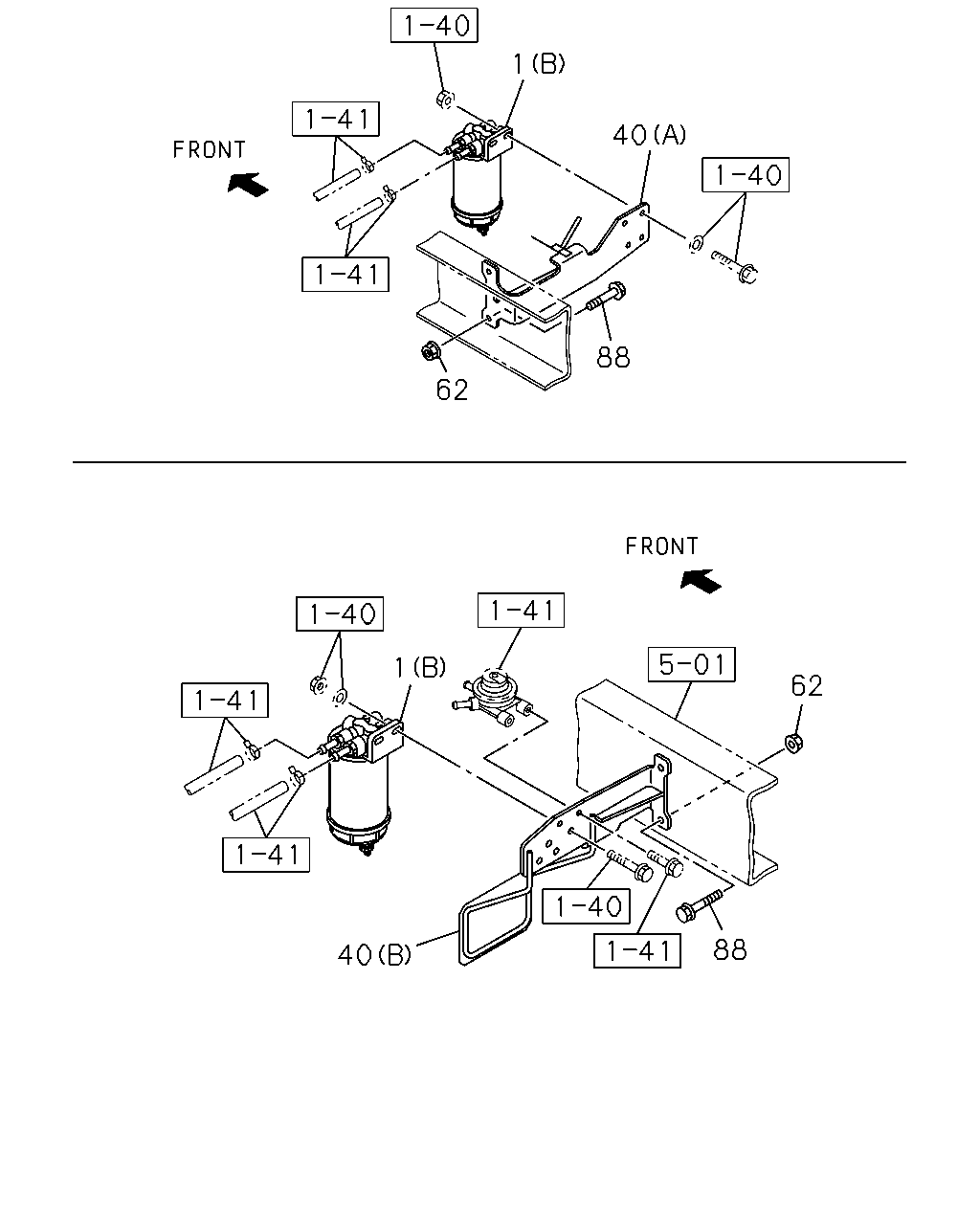

çizim 63965
1 88 40 62 1 40 88 62
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.890 FILTER ASM; FUEL
(A) 		8-98162-903-0 01 1 1001-1002 ●
1 03.890 FILTER ASM; FUEL
(A) 		8-98162-903-3 01 1 1003- ● ●
1 03.890 FILTER ASM; FUEL
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98095-980-0 01 1 0905-0906 ●
1 03.890 FILTER ASM; FUEL
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98095-980-1 01 1 0907- ● ●
1 03.890 FILTER ASM; FUEL
(A) 		8-98060-050-1 01 1 0905-0906 ●
1 03.890 FILTER ASM; FUEL
(A) 		8-98060-050-1 01 1 0907-0912 ● ●
1 03.890 FILTER ASM; FUEL
(A) 		8-98060-050-1 01 1 1001-1002 ●
40 03.890 BRACKET; FUEL FILTER
M/T MYY5T(RSM) WHEEL BASE 2700MM(27W) (A) 		8-98121-708-0 01 1 0907-0907 ●
40 03.890 BRACKET; FUEL FILTER
NNR SGL CAB(NP**SE) WHEEL BASE 2700MM(27W) (A) 		8-98121-708-0 01 1 0907- ● ●
40 03.890 BRACKET; FUEL FILTER
M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) POOR QUALITY DIESEL FUEL(KF0) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98107-354-3 01 1 0905-0906 ●
40 03.890 BRACKET; FUEL FILTER
NPR SGL CAB(NP**SN) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98107-354-3 01 1 0907-0907 ●
40 03.890 BRACKET; FUEL FILTER
NPR DBL CAB(NP**WN) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98107-354-3 01 1 0907-0907 ●
40 03.890 BRACKET; FUEL FILTER
NNR SGL CAB(NP**SE) M/T MYY5T(RSM) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98107-354-3 01 1 0907-0907 ●
40 03.890 BRACKET; FUEL FILTER
NPR SGL CAB(NP**SN) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) POOR QUALITY DIESEL FUEL(KF0) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98107-354-3 01 1 0907-0907 ●
40 03.890 BRACKET; FUEL FILTER
NNR DBL CAB(NP**WE) M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98107-354-3 01 1 0907-0907 ●
40 03.890 BRACKET; FUEL FILTER
NPR DBL CAB(NP**WN) M/T MYY6S(RST) WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98107-354-3 01 1 0907-0907 ●
40 03.890 BRACKET; FUEL FILTER
NNR SGL CAB(NP**SE) WHEEL BASE 3300MM(33W) (B) 		8-98107-354-3 01 1 0907-0908 ● ●
40 03.890 BRACKET; FUEL FILTER
NPR SGL CAB(NP**SN) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98107-354-3 01 1 0907-0908 ● ●
40 03.890 BRACKET; FUEL FILTER
NNR DBL CAB(NP**WE) (B) 		8-98107-354-3 01 1 0907-0908 ● ●
40 03.890 BRACKET; FUEL FILTER
NPR DBL CAB(NP**WN) WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98107-354-3 01 1 0907-0908 ● ●
40 03.890 BRACKET; FUEL FILTER
NPR SGL CAB(NP**SN) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) POOR QUALITY DIESEL FUEL(KF0) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98107-354-3 01 1 0907-0908 ● ●
40 03.890 BRACKET; FUEL FILTER
NPR DBL CAB(NP**WN) WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98107-354-3 01 1 0907-0908 ● ●
40 03.890 BRACKET; FUEL FILTER
NNR SGL CAB(NP**SE) WHEEL BASE 3300MM(33W) (B) 		8-98107-354-3 01 1 0909- ● ●
40 03.890 BRACKET; FUEL FILTER
NPR SGL CAB(NP**SN) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 44 00MM(44W) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98107-354-3 01 1 0909- ● ●
40 03.890 BRACKET; FUEL FILTER
NNR DBL CAB(NP**WE) (B) 		8-98107-354-3 01 1 0909- ● ●
40 03.890 BRACKET; FUEL FILTER
NPR DBL CAB(NP**WN) WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98107-354-3 01 1 0909- ● ●
40 03.890 BRACKET; FUEL FILTER
NPR SGL CAB(NP**SN) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) POOR QUALITY DIESEL FUEL(KF0) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98107-354-3 01 1 0909- ● ●
40 03.890 BRACKET; FUEL FILTER
NPR DBL CAB(NP**WN) WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98107-354-3 01 1 0909- ● ●
62 03.895 NUT; FUEL FILTER
M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) POOR QUALITY DIESEL FUEL(KF0) NOISE PACK FOR REGULATION VAR.2<7TF> 03.162 M10 FLANGE 		0-91180-110-0 02 1 0907-0907 ●
62 03.895 NUT; FUEL FILTER
NNR SGL CAB(NP**SE) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0907- ● ●
62 03.895 NUT; FUEL FILTER
NPR SGL CAB(NP**SN) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) POOR QUALITY DIESEL FUEL(KF0) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 02 1 0907- ● ●
62 03.895 NUT; FUEL FILTER
NNR DBL CAB(NP**WE) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0907- ● ●
62 03.895 NUT; FUEL FILTER
NPR DBL CAB(NP**WN) WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 02 1 0907- ● ●
88 03.895 BOLT; BRKT,FUEL FILTER
M/T MZZ6F(RSR) POOR QUALITY DIESEL FUEL(KF0) TRANSMISSION CONTROL-SMOOTHER(8GF) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 0905-0906 ●
88 03.895 BOLT; BRKT,FUEL FILTER
NPR SGL CAB(NP**SN) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 0907-0907 ●
88 03.895 BOLT; BRKT,FUEL FILTER
NPR DBL CAB(NP**WN) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 0907-0907 ●
88 03.895 BOLT; BRKT,FUEL FILTER
NNR SGL CAB(NP**SE) M/T MYY5T(RSM) WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 0907-0907 ●
88 03.895 BOLT; BRKT,FUEL FILTER
NNR SGL CAB(NP**SE) WHEEL BASE 2700MM(27W) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 0907-0908 ● ●
88 03.895 BOLT; BRKT,FUEL FILTER
NPR SGL CAB(NP**SN) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 0907-0908 ● ●
88 03.895 BOLT; BRKT,FUEL FILTER
NPR DBL CAB(NP**WN) WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 0907-0908 ● ●
88 03.895 BOLT; BRKT,FUEL FILTER
NNR SGL CAB(NP**SE) WHEEL BASE 2700MM(27W) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 0909- ● ●
88 03.895 BOLT; BRKT,FUEL FILTER
NPR SGL CAB(NP**SN) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 44 00MM(44W) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 0909- ● ●
88 03.895 BOLT; BRKT,FUEL FILTER
NPR DBL CAB(NP**WN) WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 0909- ● ●

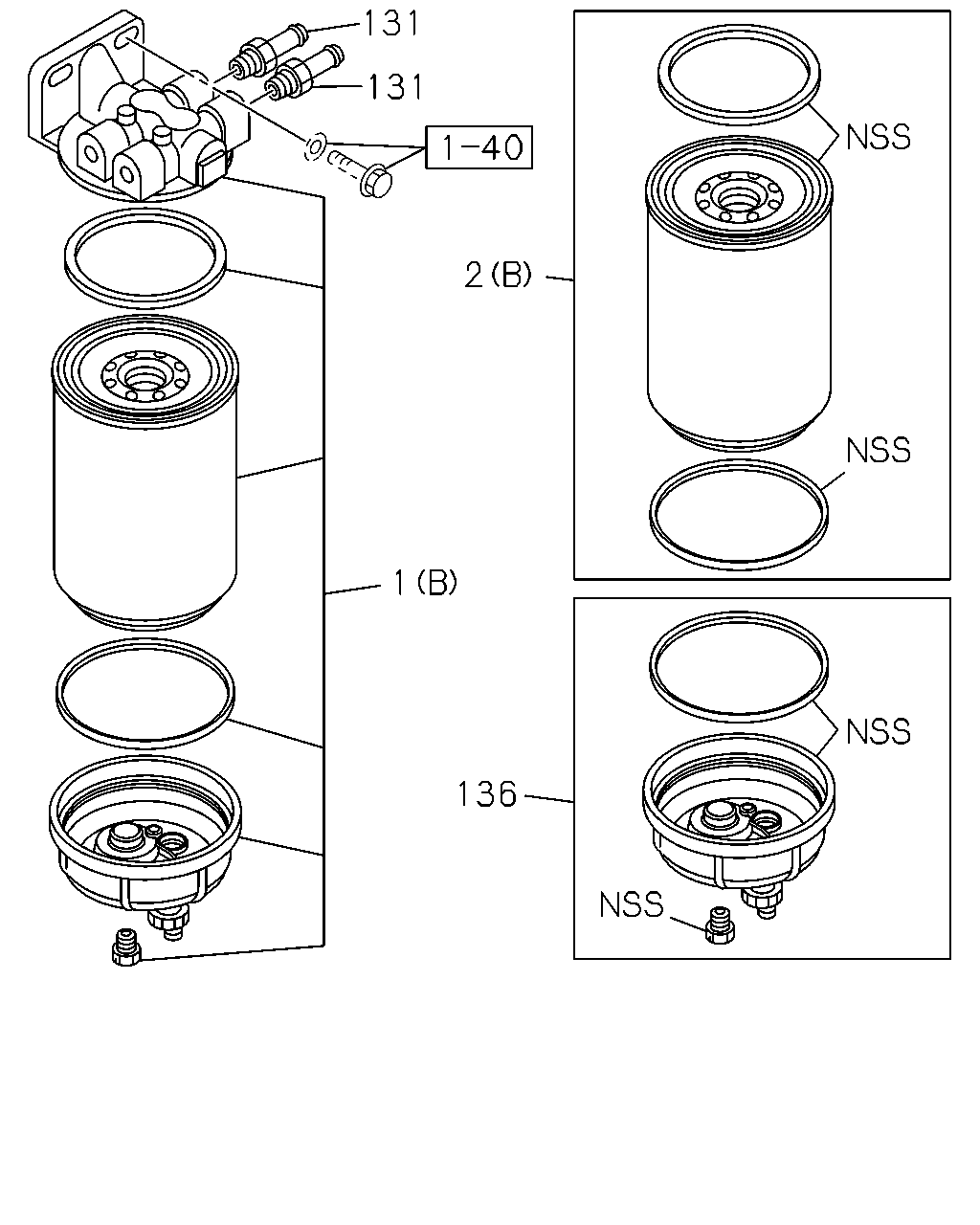

çizim 186354
131 131 2 1 136
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.890 FILTER ASM; FUEL
(A) 		8-98162-903-0 01 1 1001-1002 ●
1 03.890 FILTER ASM; FUEL
(A) 		8-98162-903-3 01 1 1003- ● ●
1 03.890 FILTER ASM; FUEL
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98095-980-0 01 1 0905-0906 ●
1 03.890 FILTER ASM; FUEL
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98095-980-1 01 1 0907- ● ●
1 03.890 FILTER ASM; FUEL
(A) 		8-98060-050-1 01 1 0905-0906 ●
1 03.890 FILTER ASM; FUEL
(A) 		8-98060-050-1 01 1 0907-0912 ● ●
1 03.890 FILTER ASM; FUEL
(A) 		8-98060-050-1 01 1 1001-1002 ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) 		8-98203-599-0 01 1 1201-1201 ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) 		8-98203-599-0 01 1 1201- ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) 		8-98162-897-0 01 1 1001-1002 ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) 		8-98162-897-0 01 1 1003-1112 ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) 		8-98162-897-0 01 1 1201-1201 ●
2 03.890 ELEMENT KIT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98095-983-0 01 1 0905-0906 ●
2 03.890 ELEMENT KIT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98095-983-0 01 1 0907- ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) 		8-98037-011-0 01 1 0905-0906 ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) 		8-98037-011-0 01 1 0907-0912 ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) 		8-98037-011-0 01 1 1001-1002 ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) BEST VALUE PARTS 		1-87610-093-1 01 1 1201-1201 ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) BEST VALUE PARTS 		1-87610-093-1 01 1 1201- ● ●
131 03.890 PIPE; FILTER
POOR QUALITY DIESEL FUEL(KF0) 01.153 		8-97358-699-0 02 1 0905-0906 ●
131 03.890 PIPE; FILTER
POOR QUALITY DIESEL FUEL(KF0) 01.153 		8-97358-699-0 02 1 0907-0908 ● ●
131 03.890 PIPE; FILTER
POOR QUALITY DIESEL FUEL(KF0) NPTF3/8-18 OD=10 		8-98122-953-0 02 1 0909- ● ●
136 03.890 CAP KIT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) 		8-98096-004-0 01 1 0905-0906 ●
136 03.890 CAP KIT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) 		8-98096-004-0 01 1 0907-1408 ● ●
136 03.890 CAP KIT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) 		8-98279-324-0 01 1 1409- ● ●
