◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10807 - EXR FUEL TANK 400L ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#7714) — 89 parça

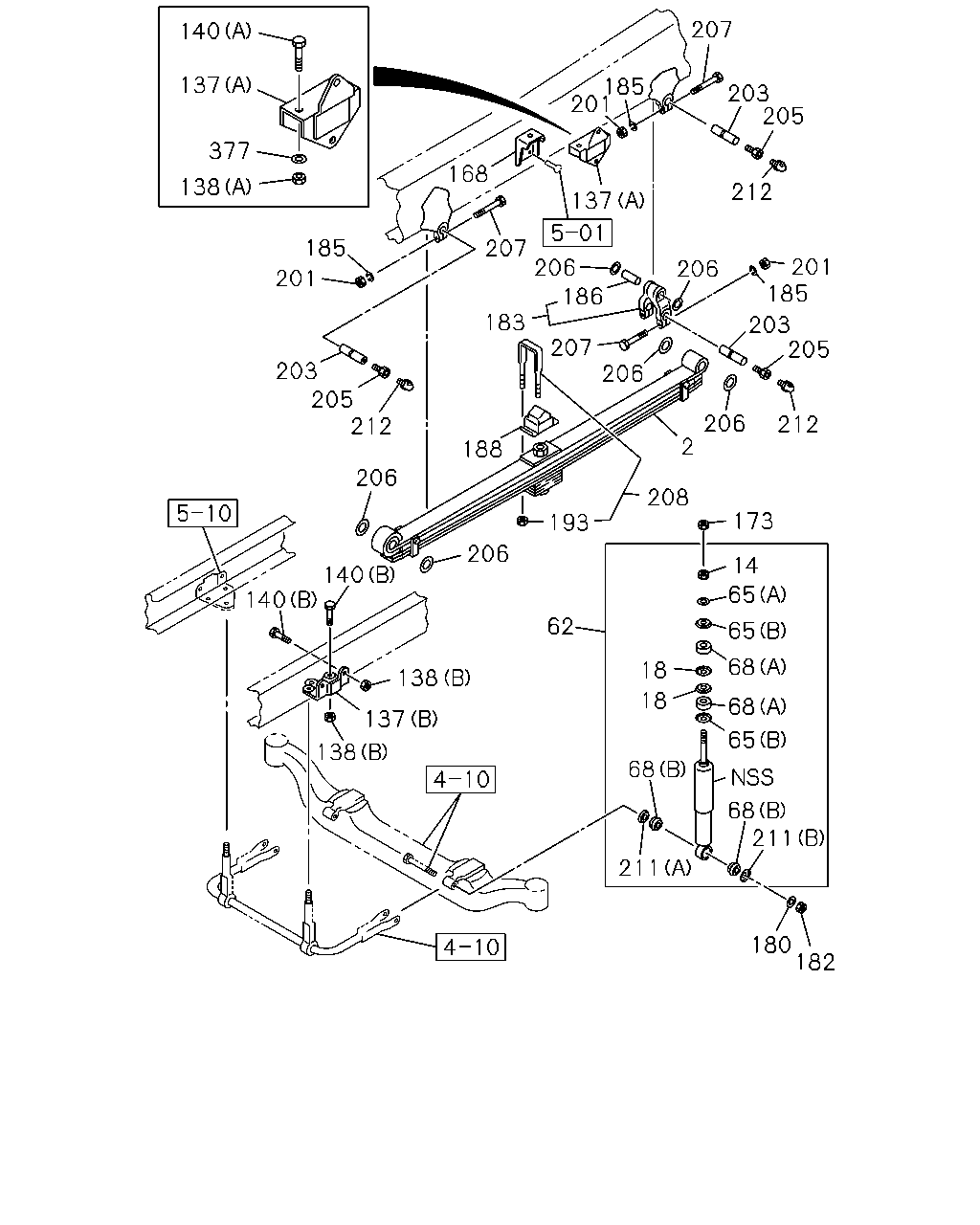

çizim 10987
207 140 185 201 137 203 205 377 168 138 212 137 185 207 206 201 185 206 201 186 183 203 205 207 203 206 205 212 206 2 212 188 206 208 173 193 206 14 140 140 65 62 65 68 18 138 18 68 137 65 138 68 68 211 211 180 182
BalonParca AdiParca NoAdetTipApplied Date A B
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. DUMP TRUCK<RA1> 		1-51130-649-0 02 1 9905- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) 		1-51130-312-0 02 1 9902-9904 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) EXC. DUMP TRUCK<RA1> 		1-51130-312-0 02 1 9905-0003 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) EXC. DUMP TRUCK<RA1> 		1-51130-312-0 02 1 0004- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) 		1-51130-312-0 02 1 0004- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) 		1-51130-314-0 02 1 9902-9904 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40), DUMPTRUCK<RA1> 		1-51130-314-0 02 1 9905-0003 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40), DUMPTRUCK<RA1> 		1-51130-314-0 02 1 0004- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) 		1-51130-314-0 02 1 0004- ●
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 9902-0003 ●
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 0004- ● ●
18 WASHER; CENTERING,S/ABS
ID=24 		1-51631-067-0 04 1 9902-0003 ●
18 WASHER; CENTERING,S/ABS
ID=24 		1-51631-067-0 04 1 0004- ● ●
62 ABSORBER ASM; SHOCK,FRT 1-51600-418-0 02 1 9902-0003 ●
62 ABSORBER ASM; SHOCK,FRT 1-51600-418-0 02 1 0004- ● ●
65 WASHER; S/ABS
(A) ID=16.5 		1-09503-266-0 02 1 9902-0003 ●
65 WASHER; S/ABS
(A) ID=16.5 		1-09503-266-0 02 1 0004- ● ●
65 WASHER; S/ABS
(B) ID=16.5 		1-51631-068-0 04 1 9902-0003 ●
65 WASHER; S/ABS
(B) ID=16.5 		1-51631-068-0 04 1 0004- ● ●
68 BUSHING; S/ABS
(A) ID=16 T=25 		1-51631-069-0 04 1 9902-0003 ●
68 BUSHING; S/ABS
(A) ID=16 T=25 		1-51631-069-0 04 1 0004- ● ●
68 BUSHING; S/ABS
(B) 		9-51631-026-0 04 1 9902-0003 ●
68 BUSHING; S/ABS
(B) 		9-51631-026-0 04 1 0004- ● ●
137 BRACKET; STAB BAR TO FRAME
(B) 		1-51781-112-0 01 1 9902- ●
137 BRACKET; STAB BAR TO FRAME
REAR STABILIZER SHAFT<F61> (A) 		1-51781-074-0 02 1 9902-0003 ●
137 BRACKET; STAB BAR TO FRAME
REAR STABILIZER SHAFT<F61> (A) 		1-51781-074-0 02 1 0004- ● ●
137 BRACKET; STAB BAR TO FRAME
(B) 		1-51781-111-0 01 1 0004- ●
138 NUT; BRKT
REAR STABILIZER SHAFT<F61> (A) M14 		9-99110-514-0 08 1 9902-0003 ●
138 NUT; BRKT
REAR STABILIZER SHAFT<F61> (A) M14 		9-99110-514-0 08 1 0004- ● ●
138 NUT; BRKT
EXC. REAR STABILIZER SHAFT<F61> (B) M14 		9-99110-514-0 02 1 9902-0003 ●
138 NUT; BRKT
EXC. REAR STABILIZER SHAFT<F61> (B) M14 		9-99110-514-0 02 1 0004- ● ●
140 BOLT; BRKT
(B) M14X50 		9-92061-450-0 04 1 9902-0003 ●
140 BOLT; BRKT
(B) M14X50 		9-92061-450-0 04 1 0004- ● ●
140 BOLT; BRKT
REAR STABILIZER SHAFT<F61> (A) M14X40 		9-92061-440-0 06 1 9902-0003 ●
140 BOLT; BRKT
REAR STABILIZER SHAFT<F61> (A) M14X40 		9-92061-440-0 06 1 0004- ● ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-616-0 02 1 9902-0003 ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-616-0 02 1 0004- ● ●
173 NUT; S/ABS
M14 		9-99111-414-0 02 1 9902-0003 ●
173 NUT; S/ABS
M14 		9-99111-414-0 02 1 0004- ● ●
180 WASHER; PL,PIN
ID=21 		9-09160-520-0 02 1 9902-0003 ●
180 WASHER; PL,PIN
ID=21 		9-09160-520-0 02 1 0004- ● ●
182 NUT; S/ABS LWR
M20 		9-99110-420-0 02 1 9902-0003 ●
182 NUT; S/ABS LWR
M20 		9-99110-420-0 02 1 0004- ● ●
183 SHACKLE; FRT SUSP 1-51162-029-4 02 1 9902-0003 ●
183 SHACKLE; FRT SUSP 1-51162-029-4 02 1 0004- ● ●
185 WASHER; LK,PIN
ID=12.2 		9-09150-612-0 12 1 9902-0003 ●
185 WASHER; LK,PIN
ID=12.2 		9-09150-612-0 12 1 0004- ● ●
186 BUSHING; SHACKLE
OD=38 		1-51351-009-0 02 1 9902-0003 ●
186 BUSHING; SHACKLE
OD=38 		1-51351-009-0 02 1 0004- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-088-0 02 1 9902-0003 ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-088-0 02 1 0004- ● ●
193 NUT; U BOLT
M22 		9-09112-822-0 08 1 9902-0003 ●
193 NUT; U BOLT
M22 		9-09112-822-0 08 1 0004- ● ●
201 NUT; PIN LK
M12 		9-99110-512-0 12 1 9902-0003 ●
201 NUT; PIN LK
M12 		9-99110-512-0 12 1 0004- ● ●
203 PIN; SPR TO SHACKLE 1-51161-031-0 06 1 9902-0003 ●
203 PIN; SPR TO SHACKLE 1-51161-031-0 06 1 0004- ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 9902-0003 ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 0004- ● ●
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 12 1 9902-0003 ●
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 12 1 0004- ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 12 1 9902-0003 ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 12 1 0004- ● ●
208 U-BOLT SET; FRT SPRING
DUMP TRUCK<RA1> L=315 		1-87870-421-0 04 1 9905- ●
208 U-BOLT SET; FRT SPRING
FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) L=270 		1-87870-327-0 04 1 9902-9904 ●
208 U-BOLT SET; FRT SPRING
FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) EXC. DUMP TRUCK<RA1> L=270 		1-87870-327-0 04 1 9905-0003 ●
208 U-BOLT SET; FRT SPRING
FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) EXC. DUMP TRUCK<RA1> L=270 		1-87870-327-0 04 1 0004- ●
208 U-BOLT SET; FRT SPRING
FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) L=270 		1-87870-327-0 04 1 0004- ●
208 U-BOLT SET; FRT SPRING
EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) L=250 		1-87870-343-0 04 1 9902-9904 ●
208 U-BOLT SET; FRT SPRING
EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40), DUMPTRUCK<RA1> L=250 		1-87870-343-0 04 1 9905-0003 ●
208 U-BOLT SET; FRT SPRING
EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40), DUMPTRUCK<RA1> L=250 		1-87870-343-0 04 1 0004- ●
208 U-BOLT SET; FRT SPRING
EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) L=250 		1-87870-343-0 04 1 0004- ●
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 9902-0003 ●
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 0004- ● ●
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 9902-0003 ●
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 0004- ● ●
212 NIPPLE; GREASE,ELBOW
PT1/8 ELBOW 		9-09031-210-0 06 1 9902-9902 ●
212 NIPPLE; GREASE,ELBOW
PT1/8 ELBOW 		9-09031-210-0 02 1 9903-9904 ●
212 NIPPLE; GREASE,ELBOW
EXC. EXH SILENCER BOX TYPE<NAS> PT1/8 ELBOW 		9-09031-210-0 02 1 9905- ●
212 NIPPLE; GREASE,ELBOW
PT1/8 STRAIGHT 		9-09031-010-0 04 1 9903-9904 ●
212 NIPPLE; GREASE,ELBOW
EXC. EXH SILENCER BOX TYPE<NAS> PT1/8 STRAIGHT 		9-09031-010-0 04 1 9905- ●
212 NIPPLE; GREASE,ELBOW
EXH SILENCER BOX TYPE<NAS> PT1/8 STRAIGHT 		9-09031-010-0 02 1 9905-0003 ●
212 NIPPLE; GREASE,ELBOW
EXH SILENCER BOX TYPE<NAS> PT1/8 STRAIGHT 		9-09031-010-0 02 1 0004- ●
212 NIPPLE; GREASE,ELBOW
PT1/8 STRAIGHT 		9-09031-010-0 02 1 0004- ●
212 NIPPLE; GREASE,ELBOW
EXH SILENCER BOX TYPE<NAS> PT1/8 ELBOW 		9-09031-210-0 04 1 9905-0003 ●
212 NIPPLE; GREASE,ELBOW
EXH SILENCER BOX TYPE<NAS> PT1/8 ELBOW 		9-09031-210-0 04 1 0004- ●
212 NIPPLE; GREASE,ELBOW
PT1/8 ELBOW 		9-09031-210-0 04 1 0004- ●
377 WASHER; LK,BRKT
REAR STABILIZER SHAFT<F61> ID=15 		9-09651-069-0 06 1 9902-0003 ●
377 WASHER; LK,BRKT
REAR STABILIZER SHAFT<F61> ID=15 		9-09651-069-0 06 1 0004- ● ●
