0-31 — THERMOSTAT AND HOUSING (#77139) — 37 parça

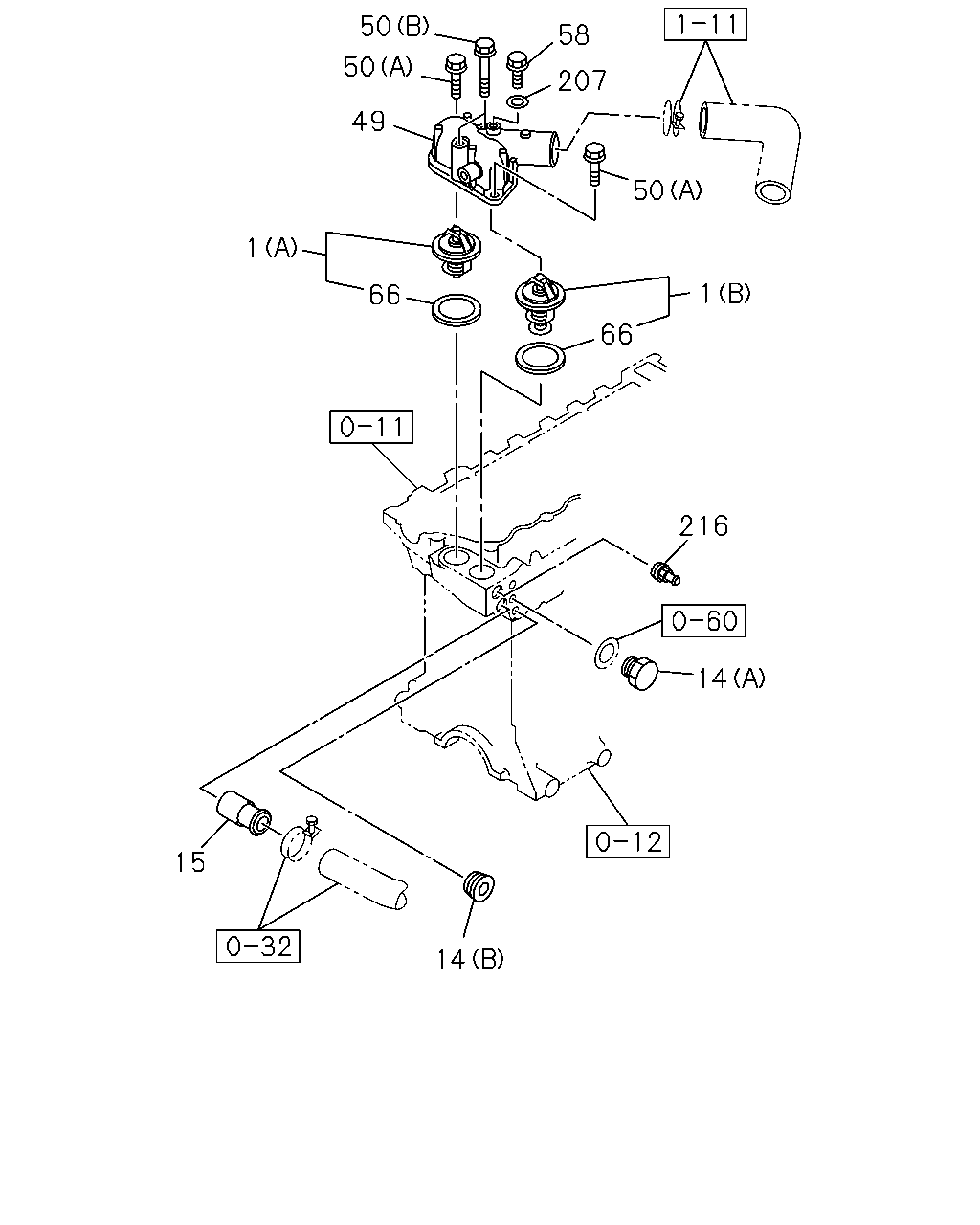

çizim 41822
50 50 49 1 66 15 14 14 216 1 66 50 207 58
BalonParca AdiParca NoAdetTipApplied Date A B
1 01.246 THERMOSTAT
(C) 85 CELSIUS 		8-98017-027-2 01 1 0907- ●
1 01.246 THERMOSTAT
(A) 85 CELSIUS 		8-97300-787-3 01 1 0905- ●
1 01.246 THERMOSTAT
(B) 82 CELSIUS 		8-97300-790-3 01 1 0905- ●
14 01.252 PLUG; SW
01.073 (B) PT3/8 		5-09605-005-0 01 1 0905- ●
14 01.252 PLUG; SW
04.520 (A) M16X8 PLUG 		9-09661-005-0 01 1 0905- ●
15 01.251 PIPE; BYPASS
01.153 		8-94342-574-0 01 1 0905- ●
49 01.153 PIPE; WATER OUTLET 8-98074-754-0 01 1 0907-1404 ●
49 01.153 PIPE; WATER OUTLET 8-98159-913-0 01 1 1405- ●
49 01.153 PIPE; WATER OUTLET 8-97329-914-0 01 1 0905- ●
50 01.252 BOLT; OUTLET PIPE
03.403 (C) M8X30 FLANGE 		0-28650-830-0 02 1 0907- ●
50 01.252 BOLT; OUTLET PIPE
06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 0905- ●
50 01.252 BOLT; OUTLET PIPE
01.097 (B) M8X65 FLANGE 		1-09044-072-1 02 1 0905- ●
58 00.073 PLUG; WATER OUTLET PIPE
01.837 PT1/8 		8-97369-552-1 02 1 0907- ●
58 00.073 PLUG; WATER OUTLET PIPE
M8X16 		8-97021-211-1 01 1 0905- ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98114-587-0 01 1 0907- ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-97300-793-0 02 1 0905-1501 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-98280-281-0 02 1 1502- ●
207 08.845 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 ID=8.2 OD=13.2 		1-09630-082-0 01 1 0905-0906 ●
207 08.845 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 ID=8.2 OD=13.2 		1-09630-082-0 01 1 0907- ● ●
216 01.153 PIPE ASM; WATER,TURBOCHARGER RET 8-97358-699-0 01 1 0905- ●

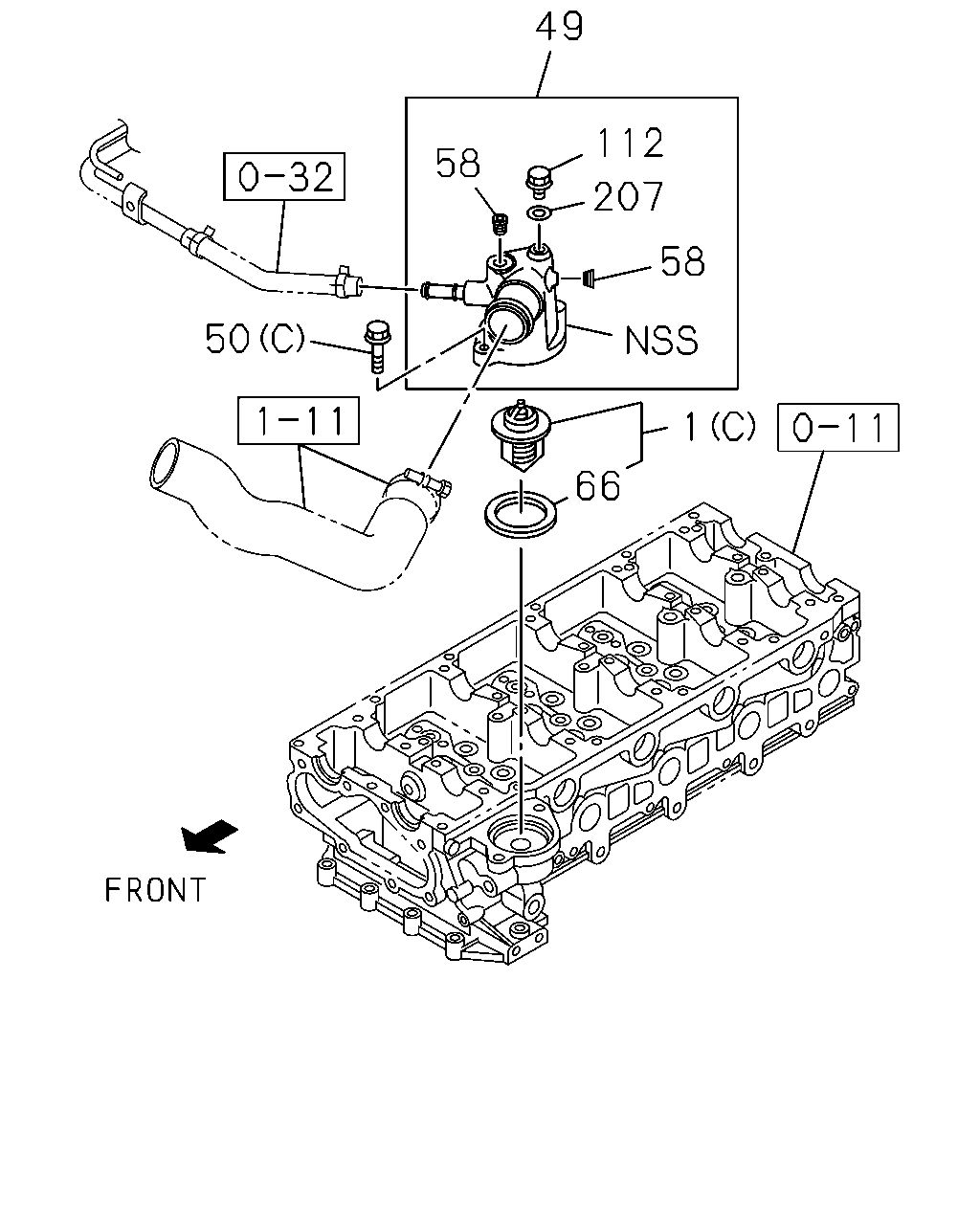

çizim 43069
49 112 58 207 58 50 1 66
BalonParca AdiParca NoAdetTipApplied Date A B
1 01.246 THERMOSTAT
(C) 85 CELSIUS 		8-98017-027-2 01 1 0907- ●
1 01.246 THERMOSTAT
(A) 85 CELSIUS 		8-97300-787-3 01 1 0905- ●
1 01.246 THERMOSTAT
(B) 82 CELSIUS 		8-97300-790-3 01 1 0905- ●
49 01.153 PIPE; WATER OUTLET 8-98074-754-0 01 1 0907-1404 ●
49 01.153 PIPE; WATER OUTLET 8-98159-913-0 01 1 1405- ●
49 01.153 PIPE; WATER OUTLET 8-97329-914-0 01 1 0905- ●
50 01.252 BOLT; OUTLET PIPE
03.403 (C) M8X30 FLANGE 		0-28650-830-0 02 1 0907- ●
50 01.252 BOLT; OUTLET PIPE
06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 0905- ●
50 01.252 BOLT; OUTLET PIPE
01.097 (B) M8X65 FLANGE 		1-09044-072-1 02 1 0905- ●
58 00.073 PLUG; WATER OUTLET PIPE
01.837 PT1/8 		8-97369-552-1 02 1 0907- ●
58 00.073 PLUG; WATER OUTLET PIPE
M8X16 		8-97021-211-1 01 1 0905- ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98114-587-0 01 1 0907- ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-97300-793-0 02 1 0905-1501 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-98280-281-0 02 1 1502- ●
112 01.251 PLUG
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 0907- ●
207 08.845 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 ID=8.2 OD=13.2 		1-09630-082-0 01 1 0905-0906 ●
207 08.845 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 ID=8.2 OD=13.2 		1-09630-082-0 01 1 0907- ● ●
