9-33 — REAR BODY; GATE AND SIDE GUARD (#77124) — 634 parça

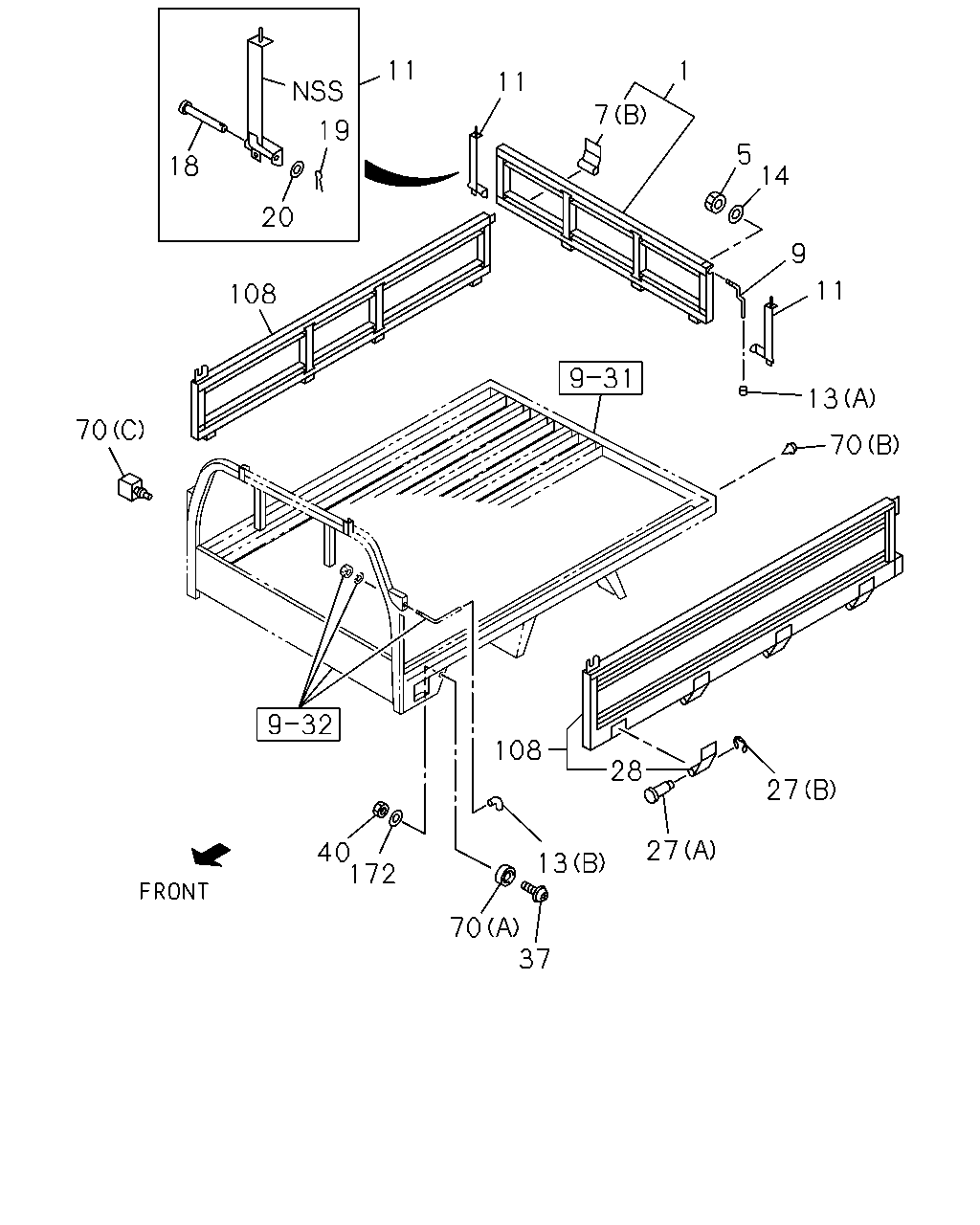

çizim 144358
11 1 11 7 19 5 14 18 20 9 11 108 13 70 70 108 28 27 27 40 172 13 70 37
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> 		8-97236-656-4 01 1 0810- ● ●
1 17.185 GATE ASM; RR
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 		8-97356-501-0 01 1 0810- ●
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> 		8-98000-573-0 01 1 0808-0809 ● ●
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> 		8-98000-573-0 01 1 0810- ● ● ● ●
5 17.204 NUT; LATCH HANDLE
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 04.439 M12 		0-91111-512-0 04 1 0810- ●
7 17.208 HINGE ASM; RR GATE
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) (B) 		8-94197-074-0 04 1 0810- ●
7 17.208 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL(E63) BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> (A) 		8-98057-097-0 01 1 0808-0809 ● ●
7 17.208 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL(E63) BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> (A) 		8-98057-097-0 01 1 0810- ● ● ● ● ● ●
7 17.208 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL(E63) BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> (A) 		8-98057-098-0 01 1 0808-0809 ● ●
7 17.208 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL(E63) BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> (A) 		8-98057-098-0 01 1 0810- ● ● ● ● ● ●
9 17.204 HANDLE; LATCH,RR GATE
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 		8-94197-049-0 01 1 0810- ●
9 17.204 HANDLE; LATCH,RR GATE
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 		8-94197-050-0 01 1 0810- ●
11 17.198 LOCK ASM; VERTICAL
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 		8-97356-577-1 01 1 0810- ●
11 17.198 LOCK ASM; VERTICAL
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 		8-97356-578-1 01 1 0810- ●
13 17.615 RUBBER; GATE HANDLE,RR BODY
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) (A) 		8-97354-210-0 02 1 0810- ●
13 17.615 RUBBER; GATE HANDLE,RR BODY
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) (B) 		8-97354-213-0 02 1 0810- ●
14 17.204 WASHER; PL,HANDLE
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 06.172 ID=12.5 		9-09164-512-0 02 1 0810-0902 ●
14 17.204 WASHER; PL,HANDLE
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) ID=12.5 		0-91614-512-0 02 1 0903-0909 ●
14 17.204 WASHER; PL,HANDLE
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 06.172 ID=12.5 		9-09164-512-0 02 1 0910- ●
18 17.198 PIN; VERTICAL LOCK
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 		8-97353-379-0 02 1 0810- ●
19 17.198 PIN; SPLIT,VERTICAL LOCK
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 04.439 OD=2.8 L=18 		0-81123-018-0 02 1 0810- ●
20 17.198 WASHER; PL,VERTICAL LOCK
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) ID=10.5 		0-91610-510-0 02 1 0810- ●
27 17.208 PIN; HINGE,SIDE GATE
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) (A) 		8-94197-062-0 12 1 0810- ●
27 17.208 PIN; HINGE,SIDE GATE
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) (B) ID=6 		9-09185-006-0 12 1 0810- ●
28 17.208 HINGE; UPR,SIDE GATE
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 		8-94197-074-0 08 1 0810- ●
37 17.202 SCREW
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) M6X30 W/PL WASHER 		0-36210-630-0 06 1 0810- ●
40 17.202 NUT; STOPPER RUBBER
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 		8-97239-506-0 06 1 0810- ●
70 17.490 RUBBER; BUMPER
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) (A) 		8-97354-204-0 06 1 0810- ●
70 17.490 RUBBER; BUMPER
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) (B) 		8-97354-205-0 02 1 0810- ●
70 17.490 RUBBER; BUMPER
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) (C) 		8-97354-209-0 02 1 0810- ●
108 17.505 GATE ASM; SIDE
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 		8-97354-890-0 01 1 0810- ●
108 17.505 GATE ASM; SIDE
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 		8-97354-891-0 01 1 0810- ●
172 17.447 WASHER; PL,STOPPER,TAIL GATE
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 00.413 ID=6.4 		0-91610-606-0 06 1 0810- ●

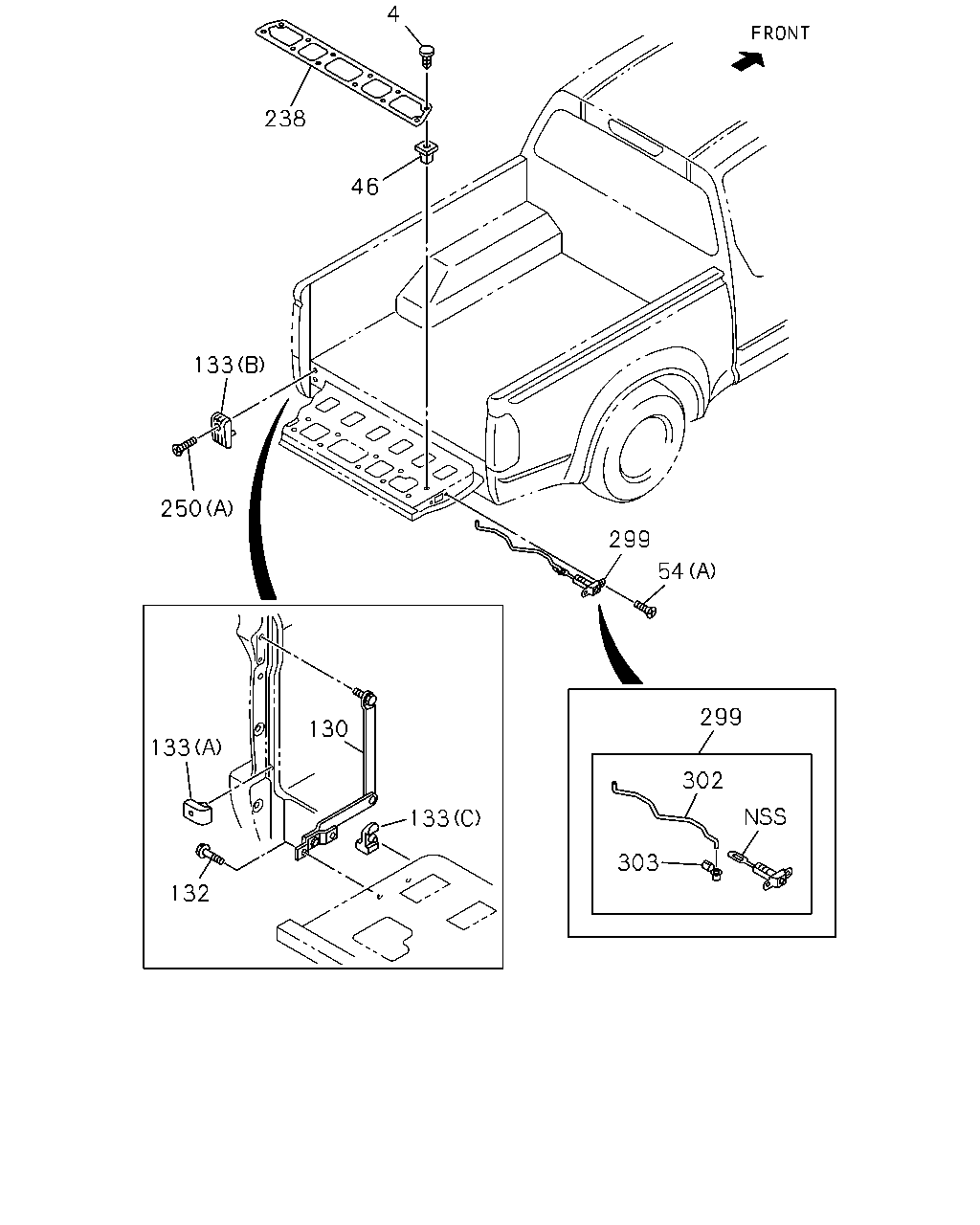

çizim 144408
4 238 46 133 250 299 54 299 130 133 302 133 303 132
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
4 17.185 SCREW; PANEL,RR GATE
REAR BODY DBL WALL CTR PULL(E63) M4X10 		8-97043-528-0 12 1 0808-0809 ● ●
4 17.185 SCREW; PANEL,RR GATE
REAR BODY DBL WALL CTR PULL(E63) M4X10 		8-97043-528-0 12 1 0810- ● ● ● ●
46 17.507 GROMMET; SCREW,TAIL GATE HOLE CO
REAR BODY DBL WALL CTR PULL(E63) 02.708 M4 		5-09470-002-0 12 1 0808-0809 ● ●
46 17.507 GROMMET; SCREW,TAIL GATE HOLE CO
REAR BODY DBL WALL CTR PULL(E63) 02.708 M4 		5-09470-002-0 12 1 0810- ● ● ● ●
54 17.208 SCREW; TAIL GATE LOCK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) M8X22 		8-98050-437-0 02 1 0810- ● ●
54 17.208 SCREW; TAIL GATE LOCK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) M8X20 		8-97247-699-0 04 1 0808-0809 ● ●
54 17.208 SCREW; TAIL GATE LOCK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) M8X20 		8-97247-699-0 04 1 0810- ● ● ● ●
130 17.225 LINK ASM; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-98050-467-0 02 1 0810-1005 ● ● ● ● ● ●
130 17.225 LINK ASM; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-98174-086-0 02 1 1006- ● ● ● ● ● ●
130 17.225 LINK ASM; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98084-431-0 02 1 0808-0809 ● ●
130 17.225 LINK ASM; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) PLANT - ISUZU,THAILAND<8KX> 		8-98084-431-0 02 1 0810-1005 ● ● ● ● ● ●
130 17.225 LINK ASM; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) PLANT - ISUZU,THAILAND<8KX> 		8-98174-085-0 02 1 1006- ● ● ● ● ● ●
132 17.635 BOLT; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 01.531 M8X20 FLANGE 		0-28650-820-0 04 1 0808-0809 ● ●
132 17.635 BOLT; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) PLANT - ISUZU,THAILAND<8KX> 01.531 M8X20 FLANGE 		0-28650-820-0 04 1 0810- ● ● ● ● ● ●
133 17.225 STOPPER; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-97302-184-1 02 1 0808-0809 ● ●
133 17.225 STOPPER; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-97302-184-1 02 1 0810- ● ● ● ● ● ●
133 17.225 STOPPER; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-97302-185-2 02 1 0808-0809 ● ●
133 17.225 STOPPER; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-97302-185-2 02 1 0810- ● ● ● ● ● ●
133 17.225 STOPPER; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6),REAR STEPBUMPER CHROME(V42) (B) 		8-97234-914-2 02 1 0808-0809 ● ●
133 17.225 STOPPER; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6),REAR STEPBUMPER CHROME(V42) (B) 		8-97234-914-2 02 1 0810- ● ● ● ● ● ●
238 17.185 COVER; RR GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-97234-909-1 01 1 0808-0809 ● ●
238 17.185 COVER; RR GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-97234-909-1 01 1 0810- ● ● ● ●
250 17.505 BOLT; STOPPER
REAR BODY DBL WALL CTR PULL(E63) BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> 17.208 (B) M8X22 		8-98050-437-0 02 1 0810- ● ●
250 17.505 BOLT; STOPPER
REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6),REAR STEPBUMPER CHROME(V42) (A) M6X18 		8-98056-280-0 02 1 0808-0809 ● ●
250 17.505 BOLT; STOPPER
REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6),REAR STEPBUMPER CHROME(V42) (A) M6X18 		8-98056-280-0 02 1 0810- ● ● ● ● ● ●
299 17.204 LATCH; END GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98050-279-0 01 1 0808-0809 ● ●
299 17.204 LATCH; END GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98050-279-0 01 1 0810- ● ● ● ●
299 17.204 LATCH; END GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98050-281-0 01 1 0808-0809 ● ●
299 17.204 LATCH; END GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98050-281-0 01 1 0810- ● ● ● ●
302 17.204 LINK; LATCH,END GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98056-777-0 01 1 0808-0809 ● ●
302 17.204 LINK; LATCH,END GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98056-777-0 01 1 0810- ● ● ● ●
302 17.204 LINK; LATCH,END GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98056-778-0 01 1 0808-0809 ● ●
302 17.204 LINK; LATCH,END GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98056-778-0 01 1 0810- ● ● ● ●
303 17.204 SNAP; LATCH,END GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-97381-276-0 01 1 0808-0809 ● ●
303 17.204 SNAP; LATCH,END GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-97381-276-0 01 1 0810- ● ● ● ●
303 17.204 SNAP; LATCH,END GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-97381-277-0 01 1 0808-0809 ● ●
303 17.204 SNAP; LATCH,END GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-97381-277-0 01 1 0810- ● ● ● ●

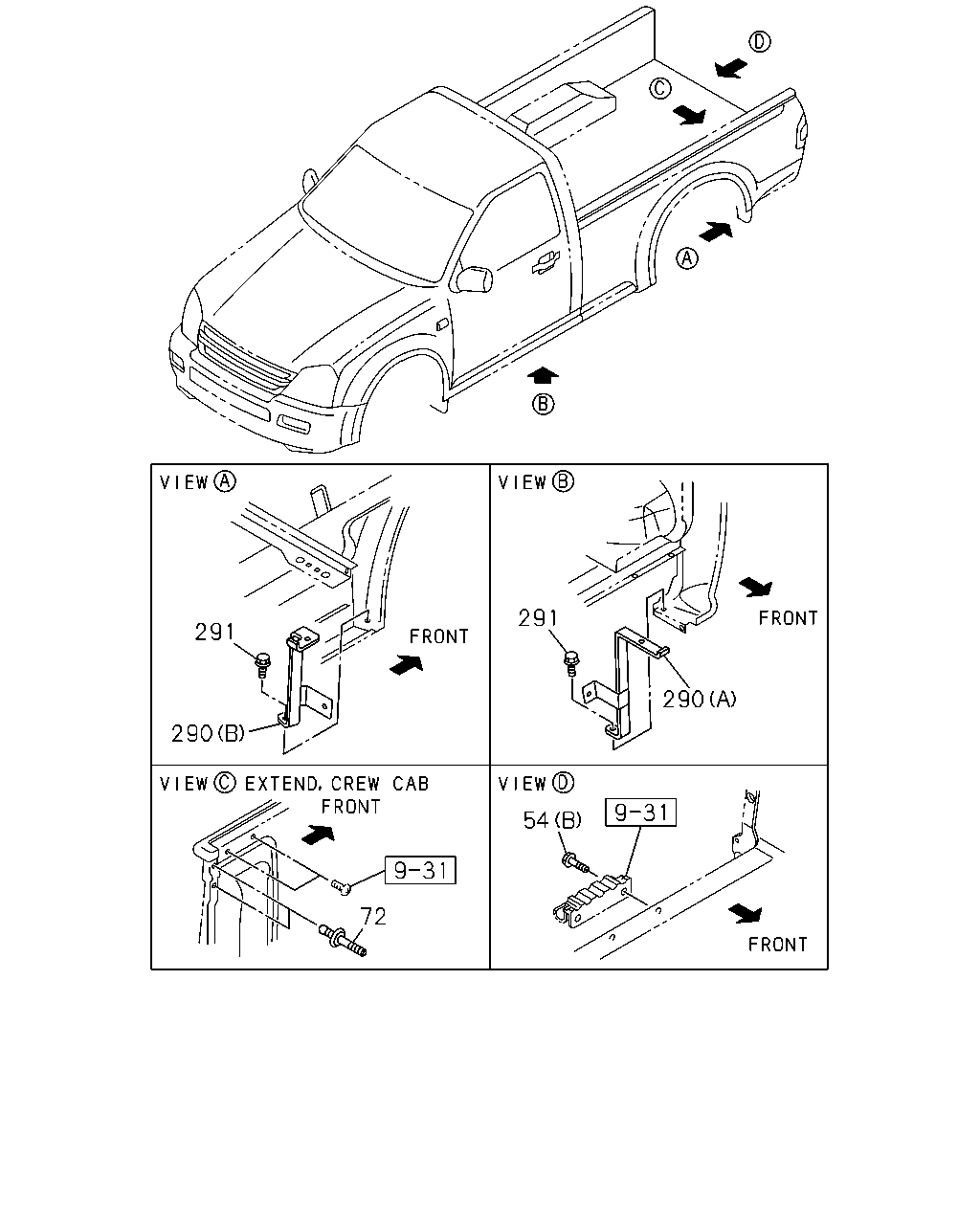

çizim 144457
291 291 290 290 54 72
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
54 17.208 SCREW; TAIL GATE LOCK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) M8X22 		8-98050-437-0 02 1 0810- ● ●
54 17.208 SCREW; TAIL GATE LOCK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) M8X20 		8-97247-699-0 04 1 0808-0809 ● ●
54 17.208 SCREW; TAIL GATE LOCK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) M8X20 		8-97247-699-0 04 1 0810- ● ● ● ●
72 17.490 PIN; HINGE,CENTER POST
REAR BODY DBL WALL CTR PULL(E63) 		8-98057-864-0 04 1 0808-0809 ● ●
72 17.490 PIN; HINGE,CENTER POST
REAR BODY DBL WALL CTR PULL(E63) 		8-98057-864-0 04 1 0810- ● ● ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98027-494-0 01 1 0810- ● ● ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98027-495-0 01 1 0810- ● ● ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-97357-449-0 01 1 0808-0809 ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-97357-449-0 01 1 0810- ● ● ● ● ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-97357-450-0 01 1 0808-0809 ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-97357-450-0 01 1 0810- ● ● ● ● ● ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 0810- ● ● ● ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0808- ● ●

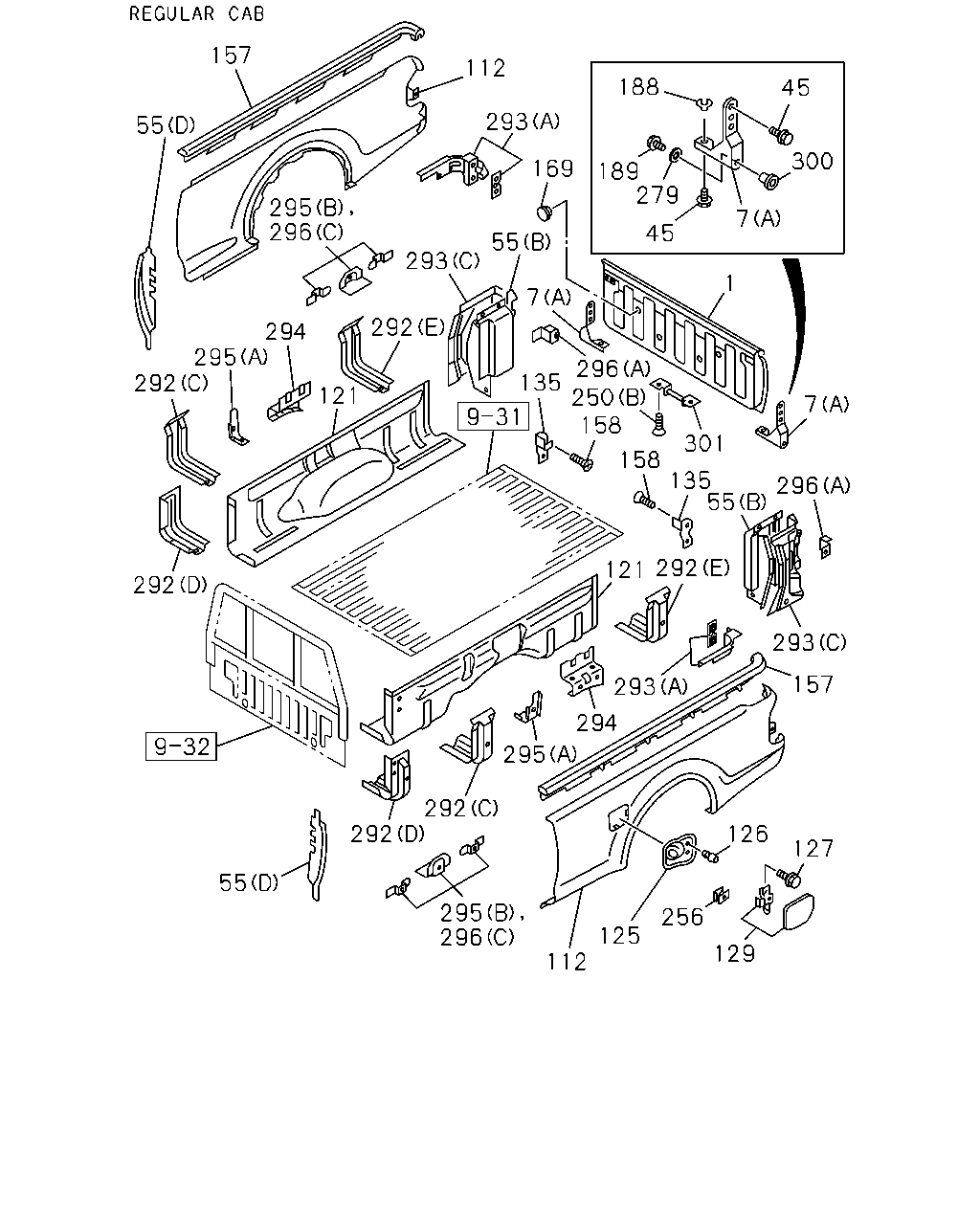

çizim 186217
157 112 188 45 293 55 300 169 189 279 295 296 7 45 55 293 1 7 292 294 295 292 296 250 158 135 121 7 301 158 135 296 55 292 121 292 293 157 293 294 295 292 292 126 127 55 295 296 256 125 129 112
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> 		8-97236-656-4 01 1 0810- ● ●
1 17.185 GATE ASM; RR
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 		8-97356-501-0 01 1 0810- ●
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> 		8-98000-573-0 01 1 0808-0809 ● ●
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> 		8-98000-573-0 01 1 0810- ● ● ● ●
7 17.208 HINGE ASM; RR GATE
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) (B) 		8-94197-074-0 04 1 0810- ●
7 17.208 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL(E63) BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> (A) 		8-98057-097-0 01 1 0808-0809 ● ●
7 17.208 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL(E63) BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> (A) 		8-98057-097-0 01 1 0810- ● ● ● ● ● ●
7 17.208 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL(E63) BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> (A) 		8-98057-098-0 01 1 0808-0809 ● ●
7 17.208 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL(E63) BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> (A) 		8-98057-098-0 01 1 0810- ● ● ● ● ● ●
45 17.208 BOLT; TAIL GATE TO RR BODY
REAR BODY DBL WALL CTR PULL(E63) BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> 17.400 M8X16.5 		8-98058-001-0 06 1 0808-0809 ● ●
45 17.208 BOLT; TAIL GATE TO RR BODY
REAR BODY DBL WALL CTR PULL(E63) BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> 17.400 M8X16.5 		8-98058-001-0 06 1 0810- ● ● ● ● ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (B) 		8-97362-208-1 01 1 0810- ● ● ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (B) 		8-97362-209-1 01 1 0810- ● ● ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (C) 		8-97387-342-1 01 1 0810- ● ● ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (C) 		8-97387-343-1 01 1 0810- ● ● ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (D) 		8-97236-320-6 01 1 0810- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (D) 		8-97236-629-6 01 1 0810- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (D) 		8-97236-319-5 01 1 0810- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (D) 		8-97236-628-5 01 1 0810- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (B) 		8-97362-210-1 01 1 0810- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (B) 		8-97362-211-1 01 1 0810- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-93293-138-2 01 1 0808- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-93293-139-2 01 1 0808- ● ●

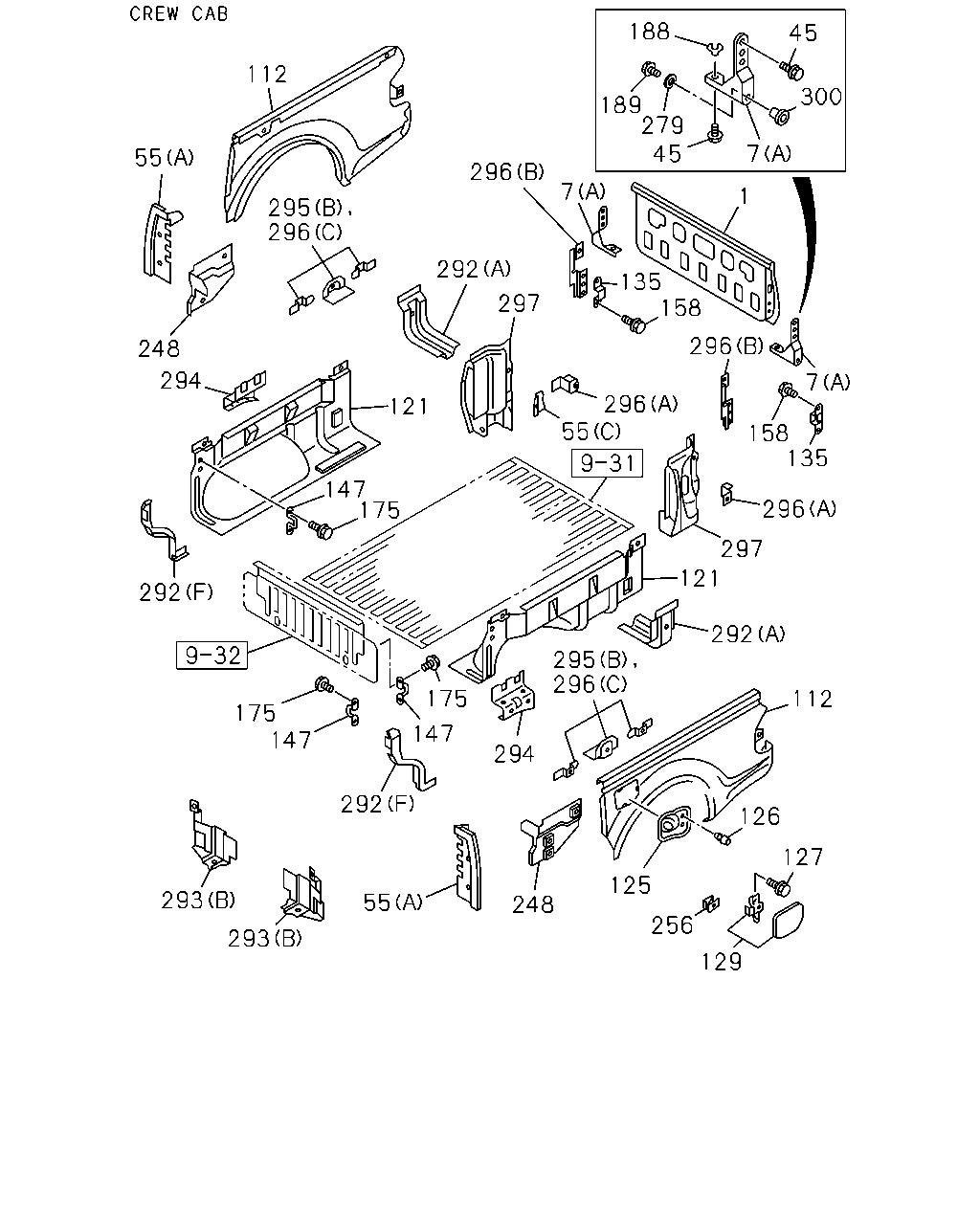

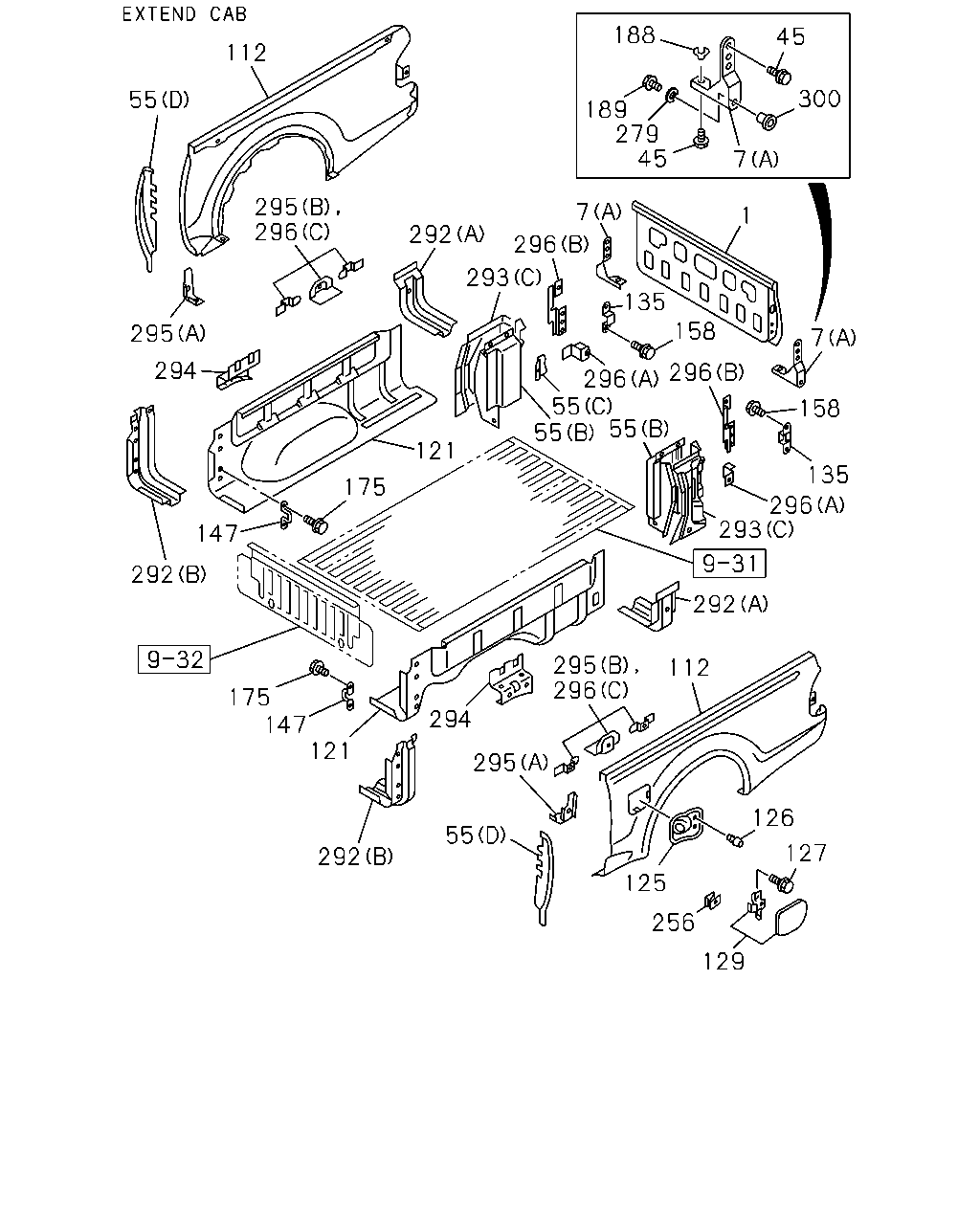

112 17.455 PANEL; SIDE GATE
BODY SIDE MOLDING(B84) REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,PLANT - ISUZU, THAILAND<8KX> 		8-93327-380-3 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 CREW CAB LONG(TFS*WF) BODY SIDE MOLDING(B84) REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,PLANT - ISUZU, THAILAND<8KX> 		8-93327-380-3 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
BODY SIDE MOLDING(B84) REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,PLANT - ISUZU, THAILAND<8KX> 		8-93327-637-5 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 CREW CAB LONG(TFS*WF) BODY SIDE MOLDING(B84) REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,PLANT - ISUZU, THAILAND<8KX> 		8-93327-637-5 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) EXC. BODY SIDE MOLDING(B84),PLANT - ISUZU,THAILAND<8KX> 		8-97236-307-2 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 REGULAR CAB LONG(TFS*SF) OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) EXC. BODY SIDE MOLDING(B84),PLANT - ISUZU,THAILAND<8KX> 		8-97236-307-2 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,BODY SIDE MOLDING(B84),PLANT - ISUZU,THAILAND<8KX> 		8-97252-094-2 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 REGULAR CAB LONG(TFS*SF) REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,BODY SIDE MOLDING(B84),PLANT - ISUZU,THAILAND<8KX> 		8-97252-094-2 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97236-313-6 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 REGULAR CAB LONG(TFS*SF) REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97236-313-6 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
BODY SIDE MOLDING(B84) REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,PLANT - ISUZU, THAILAND<8KX> 		8-97256-601-6 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 REGULAR CAB LONG(TFS*SF) BODY SIDE MOLDING(B84) REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,PLANT - ISUZU, THAILAND<8KX> 		8-97256-601-6 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
BODY SIDE MOLDING(B84) REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,PLANT - ISUZU, THAILAND<8KX> 		8-97256-602-6 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 REGULAR CAB LONG(TFS*SF) BODY SIDE MOLDING(B84) REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,PLANT - ISUZU, THAILAND<8KX> 		8-97256-602-6 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> BODY SIDE MOLDING(B84) REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97256-607-6 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 REGULAR CAB LONG(TFS*SF) OVER FENDER<B74> BODY SIDE MOLDING(B84) REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97256-607-6 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> BODY SIDE MOLDING(B84) REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97256-608-6 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 REGULAR CAB LONG(TFS*SF) OVER FENDER<B74> BODY SIDE MOLDING(B84) REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97256-608-6 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
BODY SIDE MOLDING(B84) REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,PLANT - ISUZU, THAILAND<8KX> 		8-97305-541-2 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 REGULAR CAB LONG(TFS*SF) BODY SIDE MOLDING(B84) REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,PLANT - ISUZU, THAILAND<8KX> 		8-97305-541-2 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> BODY SIDE MOLDING(B84) REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97305-543-2 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 REGULAR CAB LONG(TFS*SF) OVER FENDER<B74> BODY SIDE MOLDING(B84) REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97305-543-2 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) EXC. BODY SIDE MOLDING(B84),PLANT - ISUZU,THAILAND<8KX> 		8-97373-020-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 REGULAR CAB LONG(TFS*SF) OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) EXC. BODY SIDE MOLDING(B84),PLANT - ISUZU,THAILAND<8KX> 		8-97373-020-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,BODY SIDE MOLDING(B84),PLANT - ISUZU,THAILAND<8KX> 		8-97373-019-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 REGULAR CAB LONG(TFS*SF) REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,BODY SIDE MOLDING(B84),PLANT - ISUZU,THAILAND<8KX> 		8-97373-019-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
BODY SIDE MOLDING(B84) REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,PLANT - ISUZU, THAILAND<8KX> 		8-97373-018-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 REGULAR CAB LONG(TFS*SF) BODY SIDE MOLDING(B84) REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,PLANT - ISUZU, THAILAND<8KX> 		8-97373-018-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> BODY SIDE MOLDING(B84) REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97373-013-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 REGULAR CAB LONG(TFS*SF) OVER FENDER<B74> BODY SIDE MOLDING(B84) REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97373-013-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97236-617-6 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 REGULAR CAB LONG(TFS*SF) REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97236-617-6 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) EXC. BODY SIDE MOLDING(B84),PLANT - ISUZU,THAILAND<8KX> 		8-97387-304-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 CREW CAB LONG(TFS*WF) OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) EXC. BODY SIDE MOLDING(B84),PLANT - ISUZU,THAILAND<8KX> 		8-97387-304-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) PLANT - ISUZU,THAILAND<8KX> 		8-97387-304-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 CREW CAB LONG(TFS*WF) OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) PLANT - ISUZU,THAILAND<8KX> 		8-97387-304-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) EXC. BODY SIDE MOLDING(B84),PLANT - ISUZU,THAILAND<8KX> 		8-97387-309-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 CREW CAB LONG(TFS*WF) OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) EXC. BODY SIDE MOLDING(B84),PLANT - ISUZU,THAILAND<8KX> 		8-97387-309-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) PLANT - ISUZU,THAILAND<8KX> 		8-97387-309-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 CREW CAB LONG(TFS*WF) OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) PLANT - ISUZU,THAILAND<8KX> 		8-97387-309-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,BODY SIDE MOLDING(B84),PLANT - ISUZU,THAILAND<8KX> 		8-97387-310-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 CREW CAB LONG(TFS*WF) REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,BODY SIDE MOLDING(B84),PLANT - ISUZU,THAILAND<8KX> 		8-97387-310-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) PLANT - ISUZU,THAILAND<8KX> EXC. OVER FENDER<B74> 		8-97387-310-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 CREW CAB LONG(TFS*WF) REAR BODY DBL WALL CTR PULL(E63) PLANT - ISUZU,THAILAND<8KX> EXC. OVER FENDER<B74> 		8-97387-310-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,BODY SIDE MOLDING(B84),PLANT - ISUZU,THAILAND<8KX> 		8-97387-311-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 CREW CAB LONG(TFS*WF) REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,BODY SIDE MOLDING(B84),PLANT - ISUZU,THAILAND<8KX> 		8-97387-311-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) PLANT - ISUZU,THAILAND<8KX> EXC. OVER FENDER<B74> 		8-97387-311-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 CREW CAB LONG(TFS*WF) REAR BODY DBL WALL CTR PULL(E63) PLANT - ISUZU,THAILAND<8KX> EXC. OVER FENDER<B74> 		8-97387-311-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97387-332-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 CREW CAB LONG(TFS*WF) REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97387-332-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97387-333-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 CREW CAB LONG(TFS*WF) REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97387-333-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97387-332-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 CREW CAB LONG(TFS*WF) OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97387-332-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97387-333-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 CREW CAB LONG(TFS*WF) OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97387-333-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-98098-363-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 EXTEND CAB LONG(TFS*CF) OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-98098-363-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,PLANT - ISUZU, THAILAND<8KX> 		8-98098-361-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 EXTEND CAB LONG(TFS*CF) REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,PLANT - ISUZU, THAILAND<8KX> 		8-98098-361-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-98098-364-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 EXTEND CAB LONG(TFS*CF) OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-98098-364-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,PLANT - ISUZU, THAILAND<8KX> 		8-98098-362-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 EXTEND CAB LONG(TFS*CF) REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,PLANT - ISUZU, THAILAND<8KX> 		8-98098-362-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-98098-356-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 EXTEND CAB LONG(TFS*CF) OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-98098-356-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-98098-357-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 EXTEND CAB LONG(TFS*CF) OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-98098-357-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-98098-358-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 EXTEND CAB LONG(TFS*CF) REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-98098-358-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-98098-359-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 EXTEND CAB LONG(TFS*CF) REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-98098-359-0 01 1 0808- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97234-843-9 01 1 0810- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97234-844-8 01 1 0810- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97236-324-4 01 1 0810- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97368-104-0 01 1 0810- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-93290-853-3 01 1 0808- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-93290-854-3 01 1 0808- ● ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97387-334-0 01 1 0810- ● ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97369-819-0 01 1 0810- ● ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-97387-335-0 01 1 0808- ● ●
126 17.507 RUBBER; STOPPER,FUEL FILLER LID
REAR BODY DBL WALL CTR PULL(E63) 		8-97166-112-0 02 1 0808-0809 ● ●
126 17.507 RUBBER; STOPPER,FUEL FILLER LID
REAR BODY DBL WALL CTR PULL(E63) 		8-97166-112-0 02 1 0810- ● ● ● ● ● ●
127 17.507 BOLT; FUEL FILLER LID
REAR BODY DBL WALL CTR PULL(E63) M6X16 		8-98056-287-0 02 1 0808-0809 ● ●
127 17.507 BOLT; FUEL FILLER LID
REAR BODY DBL WALL CTR PULL(E63) M6X16 		8-98056-287-0 02 1 0810- ● ● ● ● ● ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-97387-395-0 01 1 0810- ● ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-97234-860-5 01 1 0810- ● ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-97387-396-0 01 1 0808- ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98050-672-0 01 1 0810- ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98050-673-0 01 1 0810- ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98050-333-0 01 1 0808-0809 ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98050-333-0 01 1 0810- ● ● ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98050-334-0 01 1 0808-0809 ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98050-334-0 01 1 0810- ● ● ● ●
157 17.505 RAIL ASM; SIDE PANEL UPR,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97236-438-2 01 1 0810- ● ●
157 17.505 RAIL ASM; SIDE PANEL UPR,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97236-440-2 01 1 0810- ● ●
158 17.185 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) 17.208 M8X22 		8-98050-437-0 04 1 0810- ● ●
158 17.185 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) 01.531 M8X20 FLANGE 		0-28650-820-0 04 1 0808-0809 ● ●
158 17.185 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) 01.531 M8X20 FLANGE 		0-28650-820-0 04 1 0810- ● ● ● ●
169 17.185 GROMMET; TAIL GATE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-97166-110-0 04 1 0810- ● ●
188 17.208 PLATE; HINGE UPR,RR GATE
REAR BODY DBL WALL CTR PULL(E63) BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> 		8-97329-277-1 AR 1 0808-0809 ● ●
188 17.208 PLATE; HINGE UPR,RR GATE
REAR BODY DBL WALL CTR PULL(E63) BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> 		8-97329-277-1 AR 1 0810- ● ● ● ● ● ●
189 17.208 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) M10X35 W/LK&PL WASHER 		0-50641-035-0 02 1 0808-0809 ● ●
189 17.208 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) M10X35 W/LK&PL WASHER 		0-50641-035-0 02 1 0810- ● ● ● ● ● ●
250 17.505 BOLT; STOPPER
REAR BODY DBL WALL CTR PULL(E63) BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> 17.208 (B) M8X22 		8-98050-437-0 02 1 0810- ● ●
250 17.505 BOLT; STOPPER
REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6),REAR STEPBUMPER CHROME(V42) (A) M6X18 		8-98056-280-0 02 1 0808-0809 ● ●
250 17.505 BOLT; STOPPER
REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6),REAR STEPBUMPER CHROME(V42) (A) M6X18 		8-98056-280-0 02 1 0810- ● ● ● ● ● ●
256 17.505 SPRING; LID,FUEL FILLER
REAR BODY DBL WALL CTR PULL(E63) 		8-97251-180-1 01 1 0808-0809 ● ●
256 17.505 SPRING; LID,FUEL FILLER
REAR BODY DBL WALL CTR PULL(E63) 		8-97251-180-1 01 1 0810- ● ● ● ● ● ●
279 17.505 SPACER
REAR BODY DBL WALL CTR PULL(E63) 		8-97357-403-0 02 1 0808-0809 ● ●
279 17.505 SPACER
REAR BODY DBL WALL CTR PULL(E63) 		8-97357-403-0 02 1 0810- ● ● ● ● ● ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (B) 		8-97236-368-9 01 1 0810- ● ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (B) 		8-97236-371-9 01 1 0810- ● ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (D) 		8-97236-367-6 01 1 0810- ● ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (D) 		8-97236-370-6 01 1 0810- ● ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (E) 		8-97236-382-5 01 1 0810- ● ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (C) 		8-97236-680-6 02 1 0810- ● ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (E) 		8-97308-978-4 01 1 0810- ● ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (F) 		8-93291-076-3 01 1 0808-0910 ● ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) PLANT - ISUZU,THAILAND<8KX> (F) 		8-93291-076-3 01 1 0911- ● ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (F) 		8-93291-077-3 01 1 0808-0910 ● ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) PLANT - ISUZU,THAILAND<8KX> (F) 		8-93291-077-3 01 1 0911- ● ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) PLANT - ISUZU,THAILAND<8KX> (A) 		8-97236-383-7 02 1 0808-0809 ● ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (A) 		8-97236-383-7 02 1 0810- ● ● ● ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (C) 		8-97236-748-6 01 1 0810- ● ● ● ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (C) 		8-97236-750-6 01 1 0810- ● ● ● ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (C) 		8-97236-525-5 01 1 0810- ● ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (C) 		8-97236-527-5 01 1 0810- ● ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (A) 		8-97251-646-2 01 1 0810- ● ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (A) 		8-97260-383-2 01 1 0810- ● ●
293 17.442 REINFORCEMENT; RR BODY
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) EXC. BODY SIDE MOLDING(B84),PLANT - ISUZU,THAILAND<8KX> (B) 		8-93332-593-3 01 1 0810- ● ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,PLANT - ISUZU, THAILAND<8KX> (B) 		8-93332-593-3 01 1 0810- ● ●
293 17.442 REINFORCEMENT; RR BODY
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) EXC. BODY SIDE MOLDING(B84),PLANT - ISUZU,THAILAND<8KX> (B) 		8-93332-594-3 01 1 0810- ● ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,PLANT - ISUZU, THAILAND<8KX> (B) 		8-93332-594-3 01 1 0810- ● ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) PLANT - ISUZU,THAILAND<8KX> (B) 		8-93332-593-3 01 1 0808- ● ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) PLANT - ISUZU,THAILAND<8KX> (B) 		8-93332-594-3 01 1 0808- ● ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97236-418-3 01 1 0810- ● ● ● ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-97236-418-3 01 1 0810- ● ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) PLANT - ISUZU,THAILAND<8KX> 		8-97236-418-3 01 1 0808-0809 ● ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97236-418-3 01 1 0810-1007 ● ● ● ●
294 17.445 PANEL; OUTER,RR BODY
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) EXC. BODY SIDE MOLDING(B84),PLANT - ISUZU,THAILAND<8KX> 		8-97236-418-3 01 1 0810-1007 ● ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,PLANT - ISUZU, THAILAND<8KX> 		8-97236-418-3 01 1 0810-1007 ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97236-418-3 AR 1 1008- ● ● ● ●
294 17.445 PANEL; OUTER,RR BODY
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) EXC. BODY SIDE MOLDING(B84),PLANT - ISUZU,THAILAND<8KX> 		8-97236-418-3 AR 1 1008- ● ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,PLANT - ISUZU, THAILAND<8KX> 		8-97236-418-3 AR 1 1008- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) PLANT - ISUZU,THAILAND<8KX> 		8-97236-420-3 01 1 0808-0809 ● ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97236-420-3 01 1 0810- ● ● ● ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-97236-420-3 01 1 0810- ● ●
295 17.505 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 17.442 (B) 		8-97305-529-1 02 1 0810- ● ● ● ● ● ●
295 17.505 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (A) 		8-97236-732-3 02 1 0810- ● ● ● ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (A) 		8-97251-626-4 01 1 0810- ● ● ● ● ● ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (A) 		8-97251-631-4 01 1 0810- ● ● ● ● ● ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (B) 		8-97263-907-2 01 1 0810- ● ● ● ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (B) 		8-97263-908-2 01 1 0810- ● ● ● ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) PLANT - ISUZU,THAILAND<8KX> (C) 		8-97305-529-1 02 1 0808- ● ●
300 17.204 COLLAR; GATE HINGE
REAR BODY DBL WALL CTR PULL(E63) 		8-98057-114-0 02 1 0808-0809 ● ●
300 17.204 COLLAR; GATE HINGE
REAR BODY DBL WALL CTR PULL(E63) 		8-98057-114-0 02 1 0810- ● ● ● ● ● ●
301 17.204 SUPPORT; TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> 		8-98053-899-0 01 1 0810- ● ●
çizim 186218
188 45 112 300 189 279 45 7 55 296 7 1 295 296 292 135 158 297 296 248 7 294 296 55 121 158 135 147 175 296 297 121 292 292 295 296 175 112 175 147 147 294 292 126 127 125 293 55 248 256 293 129
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> 		8-97236-656-4 01 1 0810- ● ●
1 17.185 GATE ASM; RR
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 		8-97356-501-0 01 1 0810- ●
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> 		8-98000-573-0 01 1 0808-0809 ● ●
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> 		8-98000-573-0 01 1 0810- ● ● ● ●
7 17.208 HINGE ASM; RR GATE
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) (B) 		8-94197-074-0 04 1 0810- ●
7 17.208 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL(E63) BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> (A) 		8-98057-097-0 01 1 0808-0809 ● ●
7 17.208 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL(E63) BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> (A) 		8-98057-097-0 01 1 0810- ● ● ● ● ● ●
7 17.208 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL(E63) BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> (A) 		8-98057-098-0 01 1 0808-0809 ● ●
7 17.208 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL(E63) BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> (A) 		8-98057-098-0 01 1 0810- ● ● ● ● ● ●
45 17.208 BOLT; TAIL GATE TO RR BODY
REAR BODY DBL WALL CTR PULL(E63) BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> 17.400 M8X16.5 		8-98058-001-0 06 1 0808-0809 ● ●
45 17.208 BOLT; TAIL GATE TO RR BODY
REAR BODY DBL WALL CTR PULL(E63) BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> 17.400 M8X16.5 		8-98058-001-0 06 1 0810- ● ● ● ● ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (B) 		8-97362-208-1 01 1 0810- ● ● ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (B) 		8-97362-209-1 01 1 0810- ● ● ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (C) 		8-97387-342-1 01 1 0810- ● ● ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (C) 		8-97387-343-1 01 1 0810- ● ● ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (D) 		8-97236-320-6 01 1 0810- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (D) 		8-97236-629-6 01 1 0810- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (D) 		8-97236-319-5 01 1 0810- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (D) 		8-97236-628-5 01 1 0810- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (B) 		8-97362-210-1 01 1 0810- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (B) 		8-97362-211-1 01 1 0810- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-93293-138-2 01 1 0808- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-93293-139-2 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
BODY SIDE MOLDING(B84) REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,PLANT - ISUZU, THAILAND<8KX> 		8-93327-380-3 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 CREW CAB LONG(TFS*WF) BODY SIDE MOLDING(B84) REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,PLANT - ISUZU, THAILAND<8KX> 		8-93327-380-3 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
BODY SIDE MOLDING(B84) REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,PLANT - ISUZU, THAILAND<8KX> 		8-93327-637-5 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 CREW CAB LONG(TFS*WF) BODY SIDE MOLDING(B84) REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,PLANT - ISUZU, THAILAND<8KX> 		8-93327-637-5 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) EXC. BODY SIDE MOLDING(B84),PLANT - ISUZU,THAILAND<8KX> 		8-97236-307-2 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 REGULAR CAB LONG(TFS*SF) OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) EXC. BODY SIDE MOLDING(B84),PLANT - ISUZU,THAILAND<8KX> 		8-97236-307-2 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,BODY SIDE MOLDING(B84),PLANT - ISUZU,THAILAND<8KX> 		8-97252-094-2 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 REGULAR CAB LONG(TFS*SF) REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,BODY SIDE MOLDING(B84),PLANT - ISUZU,THAILAND<8KX> 		8-97252-094-2 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97236-313-6 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 REGULAR CAB LONG(TFS*SF) REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97236-313-6 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
BODY SIDE MOLDING(B84) REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,PLANT - ISUZU, THAILAND<8KX> 		8-97256-601-6 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 REGULAR CAB LONG(TFS*SF) BODY SIDE MOLDING(B84) REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,PLANT - ISUZU, THAILAND<8KX> 		8-97256-601-6 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
BODY SIDE MOLDING(B84) REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,PLANT - ISUZU, THAILAND<8KX> 		8-97256-602-6 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 REGULAR CAB LONG(TFS*SF) BODY SIDE MOLDING(B84) REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,PLANT - ISUZU, THAILAND<8KX> 		8-97256-602-6 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> BODY SIDE MOLDING(B84) REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97256-607-6 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 REGULAR CAB LONG(TFS*SF) OVER FENDER<B74> BODY SIDE MOLDING(B84) REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97256-607-6 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> BODY SIDE MOLDING(B84) REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97256-608-6 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 REGULAR CAB LONG(TFS*SF) OVER FENDER<B74> BODY SIDE MOLDING(B84) REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97256-608-6 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
BODY SIDE MOLDING(B84) REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,PLANT - ISUZU, THAILAND<8KX> 		8-97305-541-2 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 REGULAR CAB LONG(TFS*SF) BODY SIDE MOLDING(B84) REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,PLANT - ISUZU, THAILAND<8KX> 		8-97305-541-2 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> BODY SIDE MOLDING(B84) REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97305-543-2 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 REGULAR CAB LONG(TFS*SF) OVER FENDER<B74> BODY SIDE MOLDING(B84) REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97305-543-2 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) EXC. BODY SIDE MOLDING(B84),PLANT - ISUZU,THAILAND<8KX> 		8-97373-020-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 REGULAR CAB LONG(TFS*SF) OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) EXC. BODY SIDE MOLDING(B84),PLANT - ISUZU,THAILAND<8KX> 		8-97373-020-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,BODY SIDE MOLDING(B84),PLANT - ISUZU,THAILAND<8KX> 		8-97373-019-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 REGULAR CAB LONG(TFS*SF) REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,BODY SIDE MOLDING(B84),PLANT - ISUZU,THAILAND<8KX> 		8-97373-019-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
BODY SIDE MOLDING(B84) REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,PLANT - ISUZU, THAILAND<8KX> 		8-97373-018-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 REGULAR CAB LONG(TFS*SF) BODY SIDE MOLDING(B84) REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,PLANT - ISUZU, THAILAND<8KX> 		8-97373-018-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> BODY SIDE MOLDING(B84) REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97373-013-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 REGULAR CAB LONG(TFS*SF) OVER FENDER<B74> BODY SIDE MOLDING(B84) REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97373-013-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97236-617-6 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 REGULAR CAB LONG(TFS*SF) REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97236-617-6 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) EXC. BODY SIDE MOLDING(B84),PLANT - ISUZU,THAILAND<8KX> 		8-97387-304-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 CREW CAB LONG(TFS*WF) OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) EXC. BODY SIDE MOLDING(B84),PLANT - ISUZU,THAILAND<8KX> 		8-97387-304-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) PLANT - ISUZU,THAILAND<8KX> 		8-97387-304-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 CREW CAB LONG(TFS*WF) OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) PLANT - ISUZU,THAILAND<8KX> 		8-97387-304-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) EXC. BODY SIDE MOLDING(B84),PLANT - ISUZU,THAILAND<8KX> 		8-97387-309-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 CREW CAB LONG(TFS*WF) OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) EXC. BODY SIDE MOLDING(B84),PLANT - ISUZU,THAILAND<8KX> 		8-97387-309-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) PLANT - ISUZU,THAILAND<8KX> 		8-97387-309-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 CREW CAB LONG(TFS*WF) OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) PLANT - ISUZU,THAILAND<8KX> 		8-97387-309-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,BODY SIDE MOLDING(B84),PLANT - ISUZU,THAILAND<8KX> 		8-97387-310-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 CREW CAB LONG(TFS*WF) REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,BODY SIDE MOLDING(B84),PLANT - ISUZU,THAILAND<8KX> 		8-97387-310-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) PLANT - ISUZU,THAILAND<8KX> EXC. OVER FENDER<B74> 		8-97387-310-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 CREW CAB LONG(TFS*WF) REAR BODY DBL WALL CTR PULL(E63) PLANT - ISUZU,THAILAND<8KX> EXC. OVER FENDER<B74> 		8-97387-310-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,BODY SIDE MOLDING(B84),PLANT - ISUZU,THAILAND<8KX> 		8-97387-311-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 CREW CAB LONG(TFS*WF) REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,BODY SIDE MOLDING(B84),PLANT - ISUZU,THAILAND<8KX> 		8-97387-311-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) PLANT - ISUZU,THAILAND<8KX> EXC. OVER FENDER<B74> 		8-97387-311-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 CREW CAB LONG(TFS*WF) REAR BODY DBL WALL CTR PULL(E63) PLANT - ISUZU,THAILAND<8KX> EXC. OVER FENDER<B74> 		8-97387-311-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97387-332-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 CREW CAB LONG(TFS*WF) REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97387-332-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97387-333-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 CREW CAB LONG(TFS*WF) REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97387-333-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97387-332-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 CREW CAB LONG(TFS*WF) OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97387-332-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97387-333-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 CREW CAB LONG(TFS*WF) OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97387-333-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-98098-363-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 EXTEND CAB LONG(TFS*CF) OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-98098-363-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,PLANT - ISUZU, THAILAND<8KX> 		8-98098-361-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 EXTEND CAB LONG(TFS*CF) REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,PLANT - ISUZU, THAILAND<8KX> 		8-98098-361-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-98098-364-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 EXTEND CAB LONG(TFS*CF) OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-98098-364-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,PLANT - ISUZU, THAILAND<8KX> 		8-98098-362-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 EXTEND CAB LONG(TFS*CF) REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,PLANT - ISUZU, THAILAND<8KX> 		8-98098-362-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-98098-356-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 EXTEND CAB LONG(TFS*CF) OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-98098-356-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-98098-357-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 EXTEND CAB LONG(TFS*CF) OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-98098-357-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-98098-358-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 EXTEND CAB LONG(TFS*CF) REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-98098-358-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-98098-359-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 EXTEND CAB LONG(TFS*CF) REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-98098-359-0 01 1 0808- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97234-843-9 01 1 0810- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97234-844-8 01 1 0810- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97236-324-4 01 1 0810- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97368-104-0 01 1 0810- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-93290-853-3 01 1 0808- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-93290-854-3 01 1 0808- ● ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97387-334-0 01 1 0810- ● ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97369-819-0 01 1 0810- ● ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-97387-335-0 01 1 0808- ● ●
126 17.507 RUBBER; STOPPER,FUEL FILLER LID
REAR BODY DBL WALL CTR PULL(E63) 		8-97166-112-0 02 1 0808-0809 ● ●
126 17.507 RUBBER; STOPPER,FUEL FILLER LID
REAR BODY DBL WALL CTR PULL(E63) 		8-97166-112-0 02 1 0810- ● ● ● ● ● ●
127 17.507 BOLT; FUEL FILLER LID
REAR BODY DBL WALL CTR PULL(E63) M6X16 		8-98056-287-0 02 1 0808-0809 ● ●
127 17.507 BOLT; FUEL FILLER LID
REAR BODY DBL WALL CTR PULL(E63) M6X16 		8-98056-287-0 02 1 0810- ● ● ● ● ● ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-97387-395-0 01 1 0810- ● ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-97234-860-5 01 1 0810- ● ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-97387-396-0 01 1 0808- ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98050-672-0 01 1 0810- ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98050-673-0 01 1 0810- ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98050-333-0 01 1 0808-0809 ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98050-333-0 01 1 0810- ● ● ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98050-334-0 01 1 0808-0809 ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98050-334-0 01 1 0810- ● ● ● ●
147 17.505 HOOK ASM; ROPE,FRT
REAR BODY DBL WALL CTR PULL(E63) 		8-97264-487-0 04 1 0808-0809 ● ●
147 17.505 HOOK ASM; ROPE,FRT
REAR BODY DBL WALL CTR PULL(E63) 		8-97264-487-0 04 1 0810- ● ● ● ●
158 17.185 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) 17.208 M8X22 		8-98050-437-0 04 1 0810- ● ●
158 17.185 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) 01.531 M8X20 FLANGE 		0-28650-820-0 04 1 0808-0809 ● ●
158 17.185 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) 01.531 M8X20 FLANGE 		0-28650-820-0 04 1 0810- ● ● ● ●
175 17.505 BOLT; SET,RR GATE HOOK
REAR BODY DBL WALL CTR PULL(E63) 17.400 M8X16.5 		8-98058-001-0 08 1 0808-0809 ● ●
175 17.505 BOLT; SET,RR GATE HOOK
REAR BODY DBL WALL CTR PULL(E63) 17.400 M8X16.5 		8-98058-001-0 08 1 0810- ● ● ● ●
188 17.208 PLATE; HINGE UPR,RR GATE
REAR BODY DBL WALL CTR PULL(E63) BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> 		8-97329-277-1 AR 1 0808-0809 ● ●
188 17.208 PLATE; HINGE UPR,RR GATE
REAR BODY DBL WALL CTR PULL(E63) BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> 		8-97329-277-1 AR 1 0810- ● ● ● ● ● ●
189 17.208 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) M10X35 W/LK&PL WASHER 		0-50641-035-0 02 1 0808-0809 ● ●
189 17.208 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) M10X35 W/LK&PL WASHER 		0-50641-035-0 02 1 0810- ● ● ● ● ● ●
248 17.442 PATCH; CARGO RR
REAR BODY DBL WALL CTR PULL(E63) 		8-93332-582-3 01 1 0808- ● ●
248 17.442 PATCH; CARGO RR
REAR BODY DBL WALL CTR PULL(E63) 		8-93332-584-3 01 1 0808- ● ●
256 17.505 SPRING; LID,FUEL FILLER
REAR BODY DBL WALL CTR PULL(E63) 		8-97251-180-1 01 1 0808-0809 ● ●
256 17.505 SPRING; LID,FUEL FILLER
REAR BODY DBL WALL CTR PULL(E63) 		8-97251-180-1 01 1 0810- ● ● ● ● ● ●
279 17.505 SPACER
REAR BODY DBL WALL CTR PULL(E63) 		8-97357-403-0 02 1 0808-0809 ● ●
279 17.505 SPACER
REAR BODY DBL WALL CTR PULL(E63) 		8-97357-403-0 02 1 0810- ● ● ● ● ● ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (B) 		8-97236-368-9 01 1 0810- ● ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (B) 		8-97236-371-9 01 1 0810- ● ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (D) 		8-97236-367-6 01 1 0810- ● ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (D) 		8-97236-370-6 01 1 0810- ● ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (E) 		8-97236-382-5 01 1 0810- ● ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (C) 		8-97236-680-6 02 1 0810- ● ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (E) 		8-97308-978-4 01 1 0810- ● ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (F) 		8-93291-076-3 01 1 0808-0910 ● ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) PLANT - ISUZU,THAILAND<8KX> (F) 		8-93291-076-3 01 1 0911- ● ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (F) 		8-93291-077-3 01 1 0808-0910 ● ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) PLANT - ISUZU,THAILAND<8KX> (F) 		8-93291-077-3 01 1 0911- ● ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) PLANT - ISUZU,THAILAND<8KX> (A) 		8-97236-383-7 02 1 0808-0809 ● ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (A) 		8-97236-383-7 02 1 0810- ● ● ● ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (C) 		8-97236-748-6 01 1 0810- ● ● ● ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (C) 		8-97236-750-6 01 1 0810- ● ● ● ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (C) 		8-97236-525-5 01 1 0810- ● ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (C) 		8-97236-527-5 01 1 0810- ● ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (A) 		8-97251-646-2 01 1 0810- ● ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (A) 		8-97260-383-2 01 1 0810- ● ●
293 17.442 REINFORCEMENT; RR BODY
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) EXC. BODY SIDE MOLDING(B84),PLANT - ISUZU,THAILAND<8KX> (B) 		8-93332-593-3 01 1 0810- ● ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,PLANT - ISUZU, THAILAND<8KX> (B) 		8-93332-593-3 01 1 0810- ● ●
293 17.442 REINFORCEMENT; RR BODY
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) EXC. BODY SIDE MOLDING(B84),PLANT - ISUZU,THAILAND<8KX> (B) 		8-93332-594-3 01 1 0810- ● ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,PLANT - ISUZU, THAILAND<8KX> (B) 		8-93332-594-3 01 1 0810- ● ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) PLANT - ISUZU,THAILAND<8KX> (B) 		8-93332-593-3 01 1 0808- ● ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) PLANT - ISUZU,THAILAND<8KX> (B) 		8-93332-594-3 01 1 0808- ● ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97236-418-3 01 1 0810- ● ● ● ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-97236-418-3 01 1 0810- ● ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) PLANT - ISUZU,THAILAND<8KX> 		8-97236-418-3 01 1 0808-0809 ● ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97236-418-3 01 1 0810-1007 ● ● ● ●
294 17.445 PANEL; OUTER,RR BODY
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) EXC. BODY SIDE MOLDING(B84),PLANT - ISUZU,THAILAND<8KX> 		8-97236-418-3 01 1 0810-1007 ● ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,PLANT - ISUZU, THAILAND<8KX> 		8-97236-418-3 01 1 0810-1007 ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97236-418-3 AR 1 1008- ● ● ● ●
294 17.445 PANEL; OUTER,RR BODY
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) EXC. BODY SIDE MOLDING(B84),PLANT - ISUZU,THAILAND<8KX> 		8-97236-418-3 AR 1 1008- ● ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,PLANT - ISUZU, THAILAND<8KX> 		8-97236-418-3 AR 1 1008- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) PLANT - ISUZU,THAILAND<8KX> 		8-97236-420-3 01 1 0808-0809 ● ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97236-420-3 01 1 0810- ● ● ● ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-97236-420-3 01 1 0810- ● ●
295 17.505 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 17.442 (B) 		8-97305-529-1 02 1 0810- ● ● ● ● ● ●
295 17.505 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (A) 		8-97236-732-3 02 1 0810- ● ● ● ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (A) 		8-97251-626-4 01 1 0810- ● ● ● ● ● ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (A) 		8-97251-631-4 01 1 0810- ● ● ● ● ● ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (B) 		8-97263-907-2 01 1 0810- ● ● ● ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (B) 		8-97263-908-2 01 1 0810- ● ● ● ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) PLANT - ISUZU,THAILAND<8KX> (C) 		8-97305-529-1 02 1 0808- ● ●
297 17.445 PANEL; CORNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) PLANT - ISUZU,THAILAND<8KX> 		8-97387-340-1 01 1 0808- ● ●
297 17.445 PANEL; CORNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) PLANT - ISUZU,THAILAND<8KX> 		8-97387-341-1 01 1 0808- ● ●
300 17.204 COLLAR; GATE HINGE
REAR BODY DBL WALL CTR PULL(E63) 		8-98057-114-0 02 1 0808-0809 ● ●
300 17.204 COLLAR; GATE HINGE
REAR BODY DBL WALL CTR PULL(E63) 		8-98057-114-0 02 1 0810- ● ● ● ● ● ●
çizim 186219
188 45 112 300 55 189 279 45 7 295 296 7 1 292 296 293 135 158 295 7 294 296 296 55 55 55 158 121 135 175 296 293 147 292 292 295 296 112 175 147 121 294 295 126 55 127 292 125 256 129
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> 		8-97236-656-4 01 1 0810- ● ●
1 17.185 GATE ASM; RR
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 		8-97356-501-0 01 1 0810- ●
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> 		8-98000-573-0 01 1 0808-0809 ● ●
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> 		8-98000-573-0 01 1 0810- ● ● ● ●
7 17.208 HINGE ASM; RR GATE
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) (B) 		8-94197-074-0 04 1 0810- ●
7 17.208 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL(E63) BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> (A) 		8-98057-097-0 01 1 0808-0809 ● ●
7 17.208 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL(E63) BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> (A) 		8-98057-097-0 01 1 0810- ● ● ● ● ● ●
7 17.208 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL(E63) BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> (A) 		8-98057-098-0 01 1 0808-0809 ● ●
7 17.208 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL(E63) BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> (A) 		8-98057-098-0 01 1 0810- ● ● ● ● ● ●
45 17.208 BOLT; TAIL GATE TO RR BODY
REAR BODY DBL WALL CTR PULL(E63) BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> 17.400 M8X16.5 		8-98058-001-0 06 1 0808-0809 ● ●
45 17.208 BOLT; TAIL GATE TO RR BODY
REAR BODY DBL WALL CTR PULL(E63) BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> 17.400 M8X16.5 		8-98058-001-0 06 1 0810- ● ● ● ● ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (B) 		8-97362-208-1 01 1 0810- ● ● ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (B) 		8-97362-209-1 01 1 0810- ● ● ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (C) 		8-97387-342-1 01 1 0810- ● ● ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (C) 		8-97387-343-1 01 1 0810- ● ● ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (D) 		8-97236-320-6 01 1 0810- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (D) 		8-97236-629-6 01 1 0810- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (D) 		8-97236-319-5 01 1 0810- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (D) 		8-97236-628-5 01 1 0810- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (B) 		8-97362-210-1 01 1 0810- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (B) 		8-97362-211-1 01 1 0810- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-93293-138-2 01 1 0808- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-93293-139-2 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
BODY SIDE MOLDING(B84) REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,PLANT - ISUZU, THAILAND<8KX> 		8-93327-380-3 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 CREW CAB LONG(TFS*WF) BODY SIDE MOLDING(B84) REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,PLANT - ISUZU, THAILAND<8KX> 		8-93327-380-3 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
BODY SIDE MOLDING(B84) REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,PLANT - ISUZU, THAILAND<8KX> 		8-93327-637-5 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 CREW CAB LONG(TFS*WF) BODY SIDE MOLDING(B84) REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,PLANT - ISUZU, THAILAND<8KX> 		8-93327-637-5 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) EXC. BODY SIDE MOLDING(B84),PLANT - ISUZU,THAILAND<8KX> 		8-97236-307-2 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 REGULAR CAB LONG(TFS*SF) OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) EXC. BODY SIDE MOLDING(B84),PLANT - ISUZU,THAILAND<8KX> 		8-97236-307-2 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,BODY SIDE MOLDING(B84),PLANT - ISUZU,THAILAND<8KX> 		8-97252-094-2 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 REGULAR CAB LONG(TFS*SF) REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,BODY SIDE MOLDING(B84),PLANT - ISUZU,THAILAND<8KX> 		8-97252-094-2 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97236-313-6 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 REGULAR CAB LONG(TFS*SF) REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97236-313-6 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
BODY SIDE MOLDING(B84) REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,PLANT - ISUZU, THAILAND<8KX> 		8-97256-601-6 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 REGULAR CAB LONG(TFS*SF) BODY SIDE MOLDING(B84) REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,PLANT - ISUZU, THAILAND<8KX> 		8-97256-601-6 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
BODY SIDE MOLDING(B84) REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,PLANT - ISUZU, THAILAND<8KX> 		8-97256-602-6 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 REGULAR CAB LONG(TFS*SF) BODY SIDE MOLDING(B84) REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,PLANT - ISUZU, THAILAND<8KX> 		8-97256-602-6 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> BODY SIDE MOLDING(B84) REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97256-607-6 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 REGULAR CAB LONG(TFS*SF) OVER FENDER<B74> BODY SIDE MOLDING(B84) REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97256-607-6 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> BODY SIDE MOLDING(B84) REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97256-608-6 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 REGULAR CAB LONG(TFS*SF) OVER FENDER<B74> BODY SIDE MOLDING(B84) REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97256-608-6 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
BODY SIDE MOLDING(B84) REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,PLANT - ISUZU, THAILAND<8KX> 		8-97305-541-2 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 REGULAR CAB LONG(TFS*SF) BODY SIDE MOLDING(B84) REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,PLANT - ISUZU, THAILAND<8KX> 		8-97305-541-2 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> BODY SIDE MOLDING(B84) REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97305-543-2 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 REGULAR CAB LONG(TFS*SF) OVER FENDER<B74> BODY SIDE MOLDING(B84) REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97305-543-2 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) EXC. BODY SIDE MOLDING(B84),PLANT - ISUZU,THAILAND<8KX> 		8-97373-020-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 REGULAR CAB LONG(TFS*SF) OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) EXC. BODY SIDE MOLDING(B84),PLANT - ISUZU,THAILAND<8KX> 		8-97373-020-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,BODY SIDE MOLDING(B84),PLANT - ISUZU,THAILAND<8KX> 		8-97373-019-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 REGULAR CAB LONG(TFS*SF) REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,BODY SIDE MOLDING(B84),PLANT - ISUZU,THAILAND<8KX> 		8-97373-019-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
BODY SIDE MOLDING(B84) REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,PLANT - ISUZU, THAILAND<8KX> 		8-97373-018-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 REGULAR CAB LONG(TFS*SF) BODY SIDE MOLDING(B84) REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,PLANT - ISUZU, THAILAND<8KX> 		8-97373-018-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> BODY SIDE MOLDING(B84) REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97373-013-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 REGULAR CAB LONG(TFS*SF) OVER FENDER<B74> BODY SIDE MOLDING(B84) REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97373-013-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97236-617-6 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 REGULAR CAB LONG(TFS*SF) REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97236-617-6 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) EXC. BODY SIDE MOLDING(B84),PLANT - ISUZU,THAILAND<8KX> 		8-97387-304-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 CREW CAB LONG(TFS*WF) OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) EXC. BODY SIDE MOLDING(B84),PLANT - ISUZU,THAILAND<8KX> 		8-97387-304-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) PLANT - ISUZU,THAILAND<8KX> 		8-97387-304-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 CREW CAB LONG(TFS*WF) OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) PLANT - ISUZU,THAILAND<8KX> 		8-97387-304-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) EXC. BODY SIDE MOLDING(B84),PLANT - ISUZU,THAILAND<8KX> 		8-97387-309-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 CREW CAB LONG(TFS*WF) OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) EXC. BODY SIDE MOLDING(B84),PLANT - ISUZU,THAILAND<8KX> 		8-97387-309-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) PLANT - ISUZU,THAILAND<8KX> 		8-97387-309-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 CREW CAB LONG(TFS*WF) OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) PLANT - ISUZU,THAILAND<8KX> 		8-97387-309-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,BODY SIDE MOLDING(B84),PLANT - ISUZU,THAILAND<8KX> 		8-97387-310-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 CREW CAB LONG(TFS*WF) REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,BODY SIDE MOLDING(B84),PLANT - ISUZU,THAILAND<8KX> 		8-97387-310-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) PLANT - ISUZU,THAILAND<8KX> EXC. OVER FENDER<B74> 		8-97387-310-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 CREW CAB LONG(TFS*WF) REAR BODY DBL WALL CTR PULL(E63) PLANT - ISUZU,THAILAND<8KX> EXC. OVER FENDER<B74> 		8-97387-310-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,BODY SIDE MOLDING(B84),PLANT - ISUZU,THAILAND<8KX> 		8-97387-311-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 CREW CAB LONG(TFS*WF) REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,BODY SIDE MOLDING(B84),PLANT - ISUZU,THAILAND<8KX> 		8-97387-311-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) PLANT - ISUZU,THAILAND<8KX> EXC. OVER FENDER<B74> 		8-97387-311-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 CREW CAB LONG(TFS*WF) REAR BODY DBL WALL CTR PULL(E63) PLANT - ISUZU,THAILAND<8KX> EXC. OVER FENDER<B74> 		8-97387-311-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97387-332-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 CREW CAB LONG(TFS*WF) REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97387-332-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97387-333-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 CREW CAB LONG(TFS*WF) REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97387-333-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97387-332-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 CREW CAB LONG(TFS*WF) OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97387-332-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97387-333-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 CREW CAB LONG(TFS*WF) OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97387-333-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-98098-363-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 EXTEND CAB LONG(TFS*CF) OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-98098-363-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,PLANT - ISUZU, THAILAND<8KX> 		8-98098-361-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 EXTEND CAB LONG(TFS*CF) REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,PLANT - ISUZU, THAILAND<8KX> 		8-98098-361-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-98098-364-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 EXTEND CAB LONG(TFS*CF) OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-98098-364-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,PLANT - ISUZU, THAILAND<8KX> 		8-98098-362-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 EXTEND CAB LONG(TFS*CF) REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,PLANT - ISUZU, THAILAND<8KX> 		8-98098-362-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-98098-356-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 EXTEND CAB LONG(TFS*CF) OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-98098-356-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-98098-357-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 EXTEND CAB LONG(TFS*CF) OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-98098-357-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-98098-358-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 EXTEND CAB LONG(TFS*CF) REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-98098-358-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-98098-359-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
4X4 EXTEND CAB LONG(TFS*CF) REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-98098-359-0 01 1 0808- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97234-843-9 01 1 0810- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97234-844-8 01 1 0810- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97236-324-4 01 1 0810- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97368-104-0 01 1 0810- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-93290-853-3 01 1 0808- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-93290-854-3 01 1 0808- ● ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97387-334-0 01 1 0810- ● ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97369-819-0 01 1 0810- ● ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-97387-335-0 01 1 0808- ● ●
126 17.507 RUBBER; STOPPER,FUEL FILLER LID
REAR BODY DBL WALL CTR PULL(E63) 		8-97166-112-0 02 1 0808-0809 ● ●
126 17.507 RUBBER; STOPPER,FUEL FILLER LID
REAR BODY DBL WALL CTR PULL(E63) 		8-97166-112-0 02 1 0810- ● ● ● ● ● ●
127 17.507 BOLT; FUEL FILLER LID
REAR BODY DBL WALL CTR PULL(E63) M6X16 		8-98056-287-0 02 1 0808-0809 ● ●
127 17.507 BOLT; FUEL FILLER LID
REAR BODY DBL WALL CTR PULL(E63) M6X16 		8-98056-287-0 02 1 0810- ● ● ● ● ● ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-97387-395-0 01 1 0810- ● ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-97234-860-5 01 1 0810- ● ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-97387-396-0 01 1 0808- ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98050-672-0 01 1 0810- ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98050-673-0 01 1 0810- ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98050-333-0 01 1 0808-0809 ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98050-333-0 01 1 0810- ● ● ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98050-334-0 01 1 0808-0809 ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98050-334-0 01 1 0810- ● ● ● ●
147 17.505 HOOK ASM; ROPE,FRT
REAR BODY DBL WALL CTR PULL(E63) 		8-97264-487-0 04 1 0808-0809 ● ●
147 17.505 HOOK ASM; ROPE,FRT
REAR BODY DBL WALL CTR PULL(E63) 		8-97264-487-0 04 1 0810- ● ● ● ●
158 17.185 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) 17.208 M8X22 		8-98050-437-0 04 1 0810- ● ●
158 17.185 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) 01.531 M8X20 FLANGE 		0-28650-820-0 04 1 0808-0809 ● ●
158 17.185 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) 01.531 M8X20 FLANGE 		0-28650-820-0 04 1 0810- ● ● ● ●
175 17.505 BOLT; SET,RR GATE HOOK
REAR BODY DBL WALL CTR PULL(E63) 17.400 M8X16.5 		8-98058-001-0 08 1 0808-0809 ● ●
175 17.505 BOLT; SET,RR GATE HOOK
REAR BODY DBL WALL CTR PULL(E63) 17.400 M8X16.5 		8-98058-001-0 08 1 0810- ● ● ● ●
188 17.208 PLATE; HINGE UPR,RR GATE
REAR BODY DBL WALL CTR PULL(E63) BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> 		8-97329-277-1 AR 1 0808-0809 ● ●
188 17.208 PLATE; HINGE UPR,RR GATE
REAR BODY DBL WALL CTR PULL(E63) BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> 		8-97329-277-1 AR 1 0810- ● ● ● ● ● ●
189 17.208 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) M10X35 W/LK&PL WASHER 		0-50641-035-0 02 1 0808-0809 ● ●
189 17.208 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) M10X35 W/LK&PL WASHER 		0-50641-035-0 02 1 0810- ● ● ● ● ● ●
256 17.505 SPRING; LID,FUEL FILLER
REAR BODY DBL WALL CTR PULL(E63) 		8-97251-180-1 01 1 0808-0809 ● ●
256 17.505 SPRING; LID,FUEL FILLER
REAR BODY DBL WALL CTR PULL(E63) 		8-97251-180-1 01 1 0810- ● ● ● ● ● ●
279 17.505 SPACER
REAR BODY DBL WALL CTR PULL(E63) 		8-97357-403-0 02 1 0808-0809 ● ●
279 17.505 SPACER
REAR BODY DBL WALL CTR PULL(E63) 		8-97357-403-0 02 1 0810- ● ● ● ● ● ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (B) 		8-97236-368-9 01 1 0810- ● ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (B) 		8-97236-371-9 01 1 0810- ● ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (D) 		8-97236-367-6 01 1 0810- ● ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (D) 		8-97236-370-6 01 1 0810- ● ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (E) 		8-97236-382-5 01 1 0810- ● ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (C) 		8-97236-680-6 02 1 0810- ● ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (E) 		8-97308-978-4 01 1 0810- ● ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (F) 		8-93291-076-3 01 1 0808-0910 ● ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) PLANT - ISUZU,THAILAND<8KX> (F) 		8-93291-076-3 01 1 0911- ● ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (F) 		8-93291-077-3 01 1 0808-0910 ● ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) PLANT - ISUZU,THAILAND<8KX> (F) 		8-93291-077-3 01 1 0911- ● ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) PLANT - ISUZU,THAILAND<8KX> (A) 		8-97236-383-7 02 1 0808-0809 ● ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (A) 		8-97236-383-7 02 1 0810- ● ● ● ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (C) 		8-97236-748-6 01 1 0810- ● ● ● ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (C) 		8-97236-750-6 01 1 0810- ● ● ● ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (C) 		8-97236-525-5 01 1 0810- ● ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (C) 		8-97236-527-5 01 1 0810- ● ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (A) 		8-97251-646-2 01 1 0810- ● ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (A) 		8-97260-383-2 01 1 0810- ● ●
293 17.442 REINFORCEMENT; RR BODY
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) EXC. BODY SIDE MOLDING(B84),PLANT - ISUZU,THAILAND<8KX> (B) 		8-93332-593-3 01 1 0810- ● ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,PLANT - ISUZU, THAILAND<8KX> (B) 		8-93332-593-3 01 1 0810- ● ●
293 17.442 REINFORCEMENT; RR BODY
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) EXC. BODY SIDE MOLDING(B84),PLANT - ISUZU,THAILAND<8KX> (B) 		8-93332-594-3 01 1 0810- ● ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,PLANT - ISUZU, THAILAND<8KX> (B) 		8-93332-594-3 01 1 0810- ● ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) PLANT - ISUZU,THAILAND<8KX> (B) 		8-93332-593-3 01 1 0808- ● ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) PLANT - ISUZU,THAILAND<8KX> (B) 		8-93332-594-3 01 1 0808- ● ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97236-418-3 01 1 0810- ● ● ● ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-97236-418-3 01 1 0810- ● ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) PLANT - ISUZU,THAILAND<8KX> 		8-97236-418-3 01 1 0808-0809 ● ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97236-418-3 01 1 0810-1007 ● ● ● ●
294 17.445 PANEL; OUTER,RR BODY
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) EXC. BODY SIDE MOLDING(B84),PLANT - ISUZU,THAILAND<8KX> 		8-97236-418-3 01 1 0810-1007 ● ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,PLANT - ISUZU, THAILAND<8KX> 		8-97236-418-3 01 1 0810-1007 ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97236-418-3 AR 1 1008- ● ● ● ●
294 17.445 PANEL; OUTER,RR BODY
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) EXC. BODY SIDE MOLDING(B84),PLANT - ISUZU,THAILAND<8KX> 		8-97236-418-3 AR 1 1008- ● ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,PLANT - ISUZU, THAILAND<8KX> 		8-97236-418-3 AR 1 1008- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) PLANT - ISUZU,THAILAND<8KX> 		8-97236-420-3 01 1 0808-0809 ● ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97236-420-3 01 1 0810- ● ● ● ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-97236-420-3 01 1 0810- ● ●
295 17.505 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 17.442 (B) 		8-97305-529-1 02 1 0810- ● ● ● ● ● ●
295 17.505 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (A) 		8-97236-732-3 02 1 0810- ● ● ● ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (A) 		8-97251-626-4 01 1 0810- ● ● ● ● ● ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (A) 		8-97251-631-4 01 1 0810- ● ● ● ● ● ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (B) 		8-97263-907-2 01 1 0810- ● ● ● ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (B) 		8-97263-908-2 01 1 0810- ● ● ● ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) PLANT - ISUZU,THAILAND<8KX> (C) 		8-97305-529-1 02 1 0808- ● ●
300 17.204 COLLAR; GATE HINGE
REAR BODY DBL WALL CTR PULL(E63) 		8-98057-114-0 02 1 0808-0809 ● ●
300 17.204 COLLAR; GATE HINGE
REAR BODY DBL WALL CTR PULL(E63) 		8-98057-114-0 02 1 0810- ● ● ● ● ● ●
çizim 186289
170 50 170 215 53
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
50 17.204 LOCK ASM; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98061-099-0 02 1 0810- ● ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
OUTSIDE HANDLE CHROME<E20> REAR BODY DBL WALL CTR PULL(E63) EXC. LOCK END GATE<8CW> 		8-98079-020-0 01 1 0808-0809 ● ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
OUTSIDE HANDLE CHROME<E20> REAR BODY DBL WALL CTR PULL(E63) EXC. LOCK END GATE<8CW> 		8-98079-020-0 01 1 0810- ● ● ● ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) LOCK END GATE<8CW> 		8-98079-232-0 01 1 0808- ● ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTSIDE HANDLE CHROME<E20>, LOCKEND GATE<8CW> 		8-98079-019-0 01 1 0808-0809 ● ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTSIDE HANDLE CHROME<E20>, LOCKEND GATE<8CW> 		8-98079-019-0 01 1 0810- ● ● ● ●
170 17.635 BOLT; TAIL GATE LOCK
REAR BODY DBL WALL CTR PULL(E63) 09.744 M6X20 W/WASHER 		8-98056-282-0 04 1 0810- ● ●
170 17.635 BOLT; TAIL GATE LOCK
REAR BODY DBL WALL CTR PULL(E63) LOCK END GATE<8CW> M6X16 FLANGE 		8-98062-139-0 01 1 0808- ● ●
215 17.455 BOLT; HANDLE TO GUARD FRAME
REAR BODY DBL WALL CTR PULL(E63) M6X14 FLANGE 		8-97247-698-0 02 1 0808-0809 ● ●
215 17.455 BOLT; HANDLE TO GUARD FRAME
REAR BODY DBL WALL CTR PULL(E63) M6X14 FLANGE 		8-97247-698-0 02 1 0810- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
