9-32 — REAR BODY; GUARD FRAME (#77123) — 75 parça

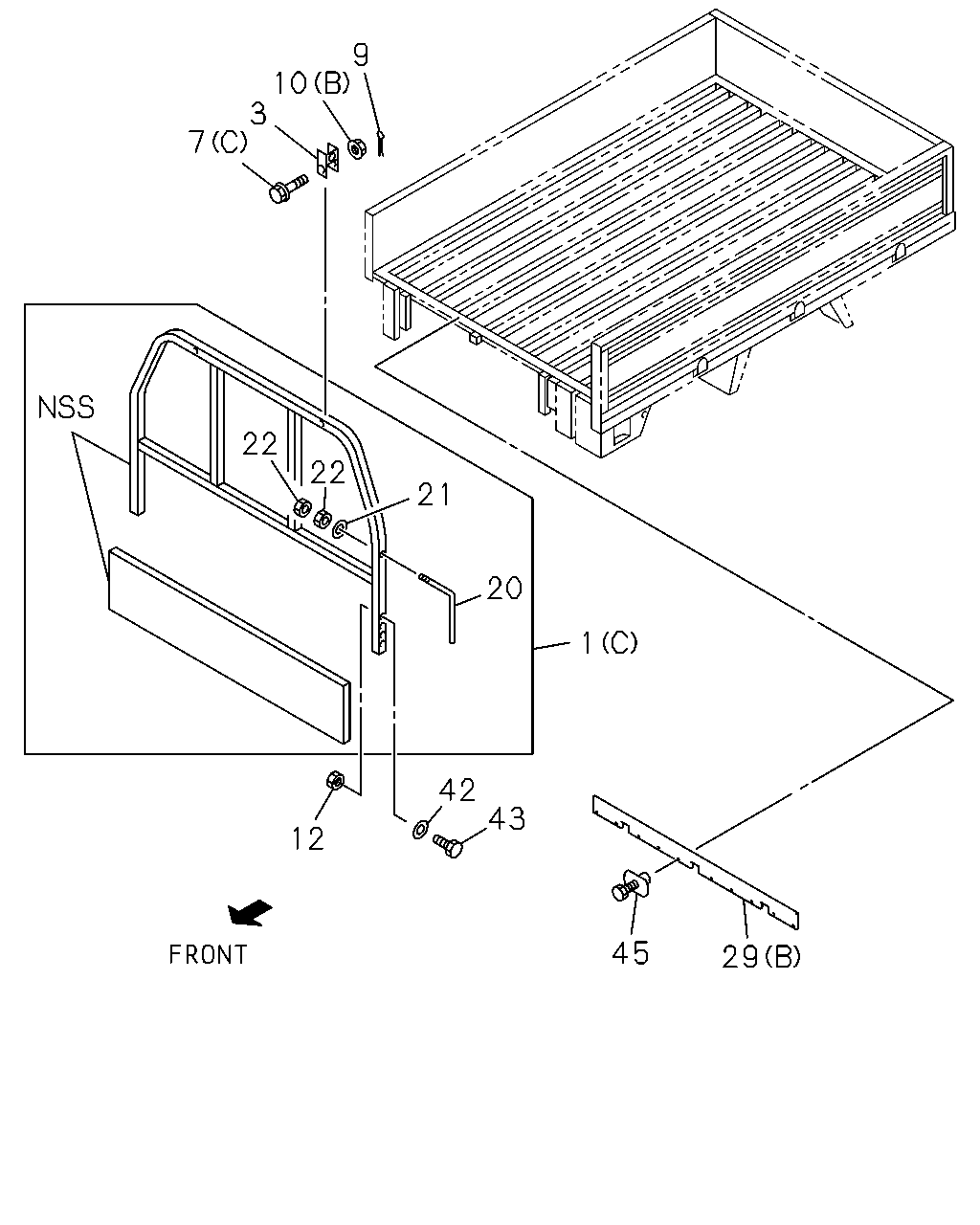

çizim 144393
9 10 3 7 22 22 21 20 1 42 43 12 45 9
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 17.455 FRAME; GUARD,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (A) 		8-97236-678-5 01 1 0810- ● ●
1 17.455 FRAME; GUARD,RR BODY
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) (C) 		8-97356-791-0 01 1 0810- ●
1 17.455 FRAME; GUARD,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (B) 		8-97310-075-2 01 1 0808-0809 ● ●
1 17.455 FRAME; GUARD,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (B) 		8-97310-075-2 01 1 0810- ● ● ● ●
3 17.447 STOPPER; GUARD FRAME,RR BODY
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 		8-97354-208-0 02 1 0810- ●
3 17.447 STOPPER; GUARD FRAME,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-97352-624-0 02 1 0808-0809 ● ●
3 17.447 STOPPER; GUARD FRAME,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-97352-624-1 02 1 0810- ● ● ● ● ● ●
7 17.447 BOLT; GUARD FRAME STOPPER,RR BOD
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) (C) M10X60 		8-94197-069-0 02 1 0810- ●
7 17.447 BOLT; GUARD FRAME STOPPER,RR BOD
REAR BODY DBL WALL CTR PULL(E63) 17.400 (A) M8X16.5 		8-98058-001-0 06 1 0808-0809 ● ●
7 17.447 BOLT; GUARD FRAME STOPPER,RR BOD
REAR BODY DBL WALL CTR PULL(E63) 17.400 (A) M8X16.5 		8-98058-001-0 06 1 0810- ● ● ● ●
7 17.447 BOLT; GUARD FRAME STOPPER,RR BOD
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 17.400 (A) M8X16.5 		8-98058-001-0 06 1 0810- ● ●
7 17.447 BOLT; GUARD FRAME STOPPER,RR BOD
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (B) M6X45 		8-98056-129-0 02 1 0808-0809 ● ●
7 17.447 BOLT; GUARD FRAME STOPPER,RR BOD
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (B) M6X45 		8-98056-129-0 02 1 0810- ● ● ● ● ● ●
9 17.447 PIN; SPLIT,GUARD FRAME
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) OD=1.8 L=20 		0-81122-020-0 02 1 0810- ●
10 17.447 NUT; GUARD FRAME STOPPER
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) (B) M10 		8-94197-072-0 02 1 0810- ●
10 17.447 NUT; GUARD FRAME STOPPER
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (A) M6 		8-98056-127-0 02 1 0808-0809 ● ●
10 17.447 NUT; GUARD FRAME STOPPER
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (A) M6 		8-98056-127-0 02 1 0810- ● ● ● ● ● ●
12 17.455 NUT; GUARD FRAME
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) M10 FLANGE 		8-97065-439-0 08 1 0810- ●
20 17.455 HANDLE; FRT,RR BODY
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 		8-94197-048-0 02 1 0810- ●
21 17.455 WASHER; LK,FRT HANDLE
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 06.172 ID=12.5 		9-09164-512-0 02 1 0810-0902 ●
21 17.455 WASHER; LK,FRT HANDLE
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 17.204 ID=12.5 		0-91614-512-0 02 1 0903-0909 ●
21 17.455 WASHER; LK,FRT HANDLE
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 06.172 ID=12.5 		9-09164-512-0 02 1 0910- ●
22 17.455 NUT; FRT HANDLE
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 04.439 M12 		0-91111-512-0 04 1 1008- ●
22 17.455 NUT; FRT HANDLE
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 04.439 M12 		0-91111-512-0 01 1 0810- ●
42 17.447 WASHER; PL
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 17.455 		8-97065-438-0 12 1 0810- ●
43 17.447 BOLT; GUARD FRAME,RR BODY
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 06.216 M8X25 FLANGE 		0-28650-825-0 07 1 0810- ●
43 17.447 BOLT; GUARD FRAME,RR BODY
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 17.455 M10X22 FLANGE 		8-97065-440-0 12 1 0810- ●
45 08.131 RIVET; DUST SHIELD COVER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 08.154 		8-94221-150-0 12 1 1008- ●
45 08.131 RIVET; DUST SHIELD COVER,RR BODY
4X4 EXTEND CAB LONG(TFS*CF) REAR BODY DBL WALL CTR PULL(E63) 08.154 		8-94221-150-0 12 1 1008- ●
45 08.131 RIVET; DUST SHIELD COVER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 08.154 		8-94221-150-0 14 1 1008- ●
45 08.131 RIVET; DUST SHIELD COVER,RR BODY
4X4 REGULAR CAB LONG(TFS*SF) REAR BODY DBL WALL CTR PULL(E63) 08.154 		8-94221-150-0 14 1 1008- ●
45 08.131 RIVET; DUST SHIELD COVER,RR BODY
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 08.154 		8-94221-150-0 10 1 0810-1007 ●
45 08.131 RIVET; DUST SHIELD COVER,RR BODY
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 08.154 		8-94221-150-0 10 1 1008- ●
45 08.131 RIVET; DUST SHIELD COVER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 08.154 		8-94221-150-0 10 1 1008- ●
45 08.131 RIVET; DUST SHIELD COVER,RR BODY
4X4 CREW CAB LONG(TFS*WF) REAR BODY DBL WALL CTR PULL(E63) 08.154 		8-94221-150-0 10 1 1008- ●
çizim 144446
1 7 3 5 37 10 7 7 1 3 5 10 37 7 34 67 34 61 61 55 68 68 29 29
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 17.455 FRAME; GUARD,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (A) 		8-97236-678-5 01 1 0810- ● ●
1 17.455 FRAME; GUARD,RR BODY
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) (C) 		8-97356-791-0 01 1 0810- ●
1 17.455 FRAME; GUARD,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (B) 		8-97310-075-2 01 1 0808-0809 ● ●
1 17.455 FRAME; GUARD,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (B) 		8-97310-075-2 01 1 0810- ● ● ● ●
3 17.447 STOPPER; GUARD FRAME,RR BODY
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 		8-97354-208-0 02 1 0810- ●
3 17.447 STOPPER; GUARD FRAME,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-97352-624-0 02 1 0808-0809 ● ●
3 17.447 STOPPER; GUARD FRAME,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-97352-624-1 02 1 0810- ● ● ● ● ● ●
5 17.447 WASHER; PL,GUARD FRAME STOPPER
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98056-308-0 02 1 0808-0809 ● ●
5 17.447 WASHER; PL,GUARD FRAME STOPPER
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98056-308-0 02 1 0810- ● ● ● ● ● ●
7 17.447 BOLT; GUARD FRAME STOPPER,RR BOD
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) (C) M10X60 		8-94197-069-0 02 1 0810- ●
7 17.447 BOLT; GUARD FRAME STOPPER,RR BOD
REAR BODY DBL WALL CTR PULL(E63) 17.400 (A) M8X16.5 		8-98058-001-0 06 1 0808-0809 ● ●
7 17.447 BOLT; GUARD FRAME STOPPER,RR BOD
REAR BODY DBL WALL CTR PULL(E63) 17.400 (A) M8X16.5 		8-98058-001-0 06 1 0810- ● ● ● ●
7 17.447 BOLT; GUARD FRAME STOPPER,RR BOD
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 17.400 (A) M8X16.5 		8-98058-001-0 06 1 0810- ● ●
7 17.447 BOLT; GUARD FRAME STOPPER,RR BOD
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (B) M6X45 		8-98056-129-0 02 1 0808-0809 ● ●
7 17.447 BOLT; GUARD FRAME STOPPER,RR BOD
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (B) M6X45 		8-98056-129-0 02 1 0810- ● ● ● ● ● ●
10 17.447 NUT; GUARD FRAME STOPPER
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) (B) M10 		8-94197-072-0 02 1 0810- ●
10 17.447 NUT; GUARD FRAME STOPPER
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (A) M6 		8-98056-127-0 02 1 0808-0809 ● ●
10 17.447 NUT; GUARD FRAME STOPPER
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (A) M6 		8-98056-127-0 02 1 0810- ● ● ● ● ● ●
29 17.455 COVER; GUARD FRAME
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) (B) 		8-97354-207-0 01 1 0810- ●
29 17.455 COVER; GUARD FRAME
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-97918-416-0 02 1 0808-0809 ● ●
29 17.455 COVER; GUARD FRAME
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-97918-416-0 02 1 0810- ● ● ● ● ● ●
34 17.455 PANEL; FRT,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (A) 		8-97373-643-1 01 1 0810- ● ●
34 17.455 PANEL; FRT,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (A) 		8-97369-725-1 01 1 0810- ● ●
34 17.455 PANEL; FRT,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (B) 		8-97369-723-1 01 1 0810- ● ●
34 17.455 PANEL; FRT,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (A) 		8-97373-644-1 01 1 0808- ● ●
34 17.455 PANEL; FRT,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (A) 		8-97369-727-1 01 1 0808- ● ●
37 17.455 BOLT; GUARD FRAME
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 03.162 M6X12 FLANGE 		0-28050-612-0 07 1 0808-0809 ● ●
37 17.455 BOLT; GUARD FRAME
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> AUSTRALIA EQUIPMENT(B13) IMMOBILIZER SYSTEM<7KC> ISUZU BRAND<7WL> LOCK END GATE<8CW> EXC. REMOTE CONT DOOR LOCK<AP5>, FUELTANK CAP W/LOCK<N05>,ANTI THEFT SYS TEM SPARE TIRE<8CF> 03.162 M6X12 FLANGE 		0-28050-612-0 07 1 0810- ● ● ● ● ● ● ●
55 17.070 NUT; MEMBER
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 16.545 M6 		9-09114-086-0 05 1 0808-0809 ● ●
55 17.070 NUT; MEMBER
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 16.545 M6 		9-09114-086-0 05 1 0810- ● ● ● ●
61 17.447 BAR ASM
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (B) 		8-97252-308-2 01 1 0810- ● ●
61 17.447 BAR ASM
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (A) 		8-97326-371-0 01 1 0808-0809 ● ●
61 17.447 BAR ASM
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (A) 		8-97326-371-0 01 1 0810- ● ● ● ●
61 17.447 BAR ASM
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (A) 		8-97236-715-0 01 1 0808-0809 ● ●
61 17.447 BAR ASM
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (A) 		8-97236-715-0 01 1 0810- ● ● ● ●
67 17.455 PLATE; RR BODY FRONT
REAR BODY DBL WALL CTR PULL(E63) 		8-93326-173-1 02 1 0808-0910 ●
67 17.455 PLATE; RR BODY FRONT
4X4 CREW CAB LONG(TFS*WF) REAR BODY DBL WALL CTR PULL(E63) 		8-93326-173-1 02 1 0808-0910 ●
67 17.455 PLATE; RR BODY FRONT
REAR BODY DBL WALL CTR PULL(E63) 		8-93326-173-1 02 1 0911- ● ●
68 17.455 EXTENSION; FRONT,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-97287-178-1 01 1 0810- ● ●
68 17.455 EXTENSION; FRONT,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-97287-179-1 01 1 0810- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
