9-31 — REAR BODY; FLOOR AND FENDER (#77122) — 112 parça

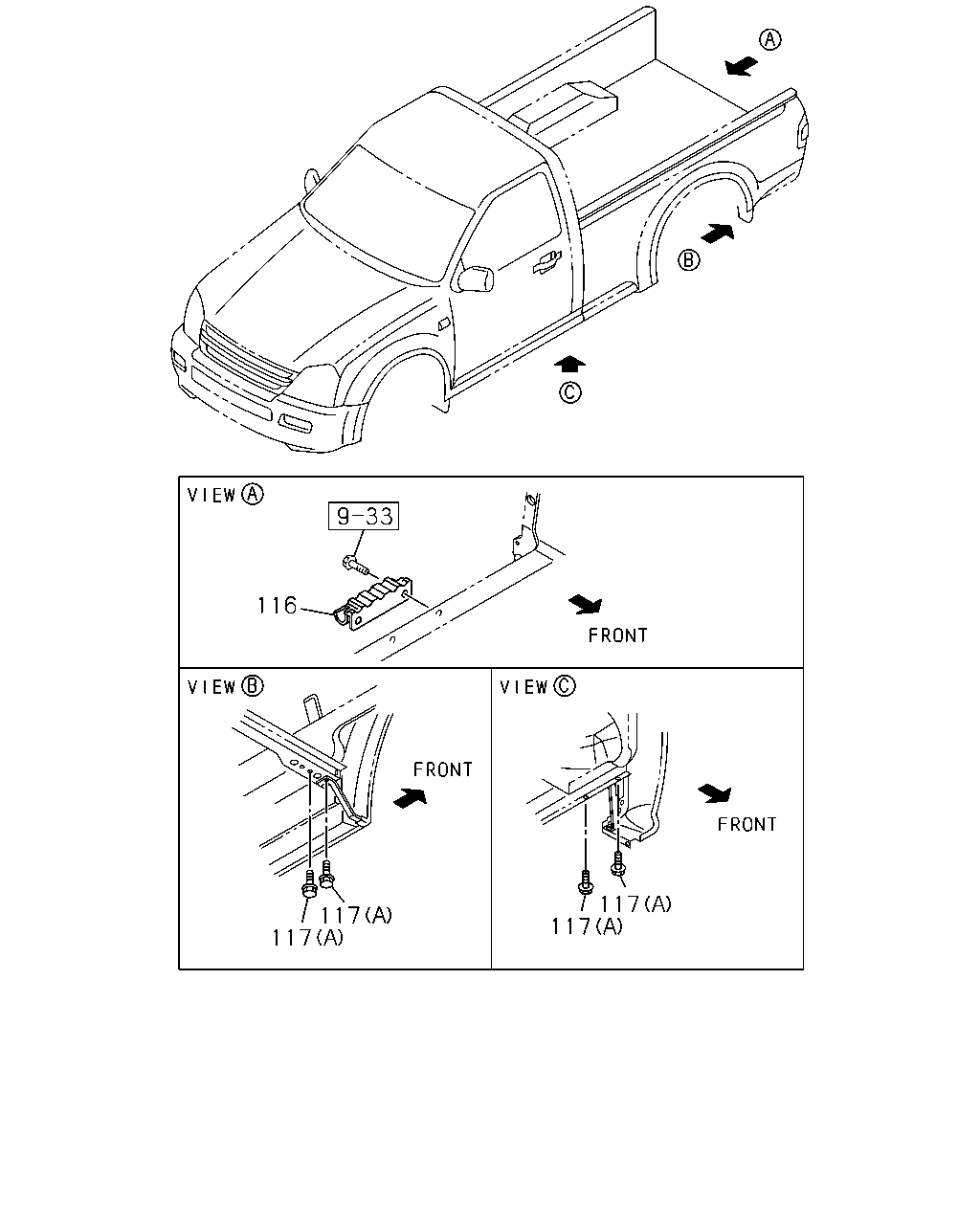

çizim 5357
116 117 117 117 117
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
116 17.400 SUPPORT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) 		8-98053-898-0 01 1 0810- ● ●
117 17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 0810- ● ●
117 17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 04 1 0808-0809 ● ●
117 17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 04 1 0810- ● ● ● ● ● ●
117 17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 04 1 0810- ● ● ● ●
117 17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) (B) M8X16.5 		8-98058-001-0 04 1 0808-0809 ● ●
117 17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) (B) M8X16.5 		8-98058-001-0 04 1 0810- ● ● ● ● ● ●

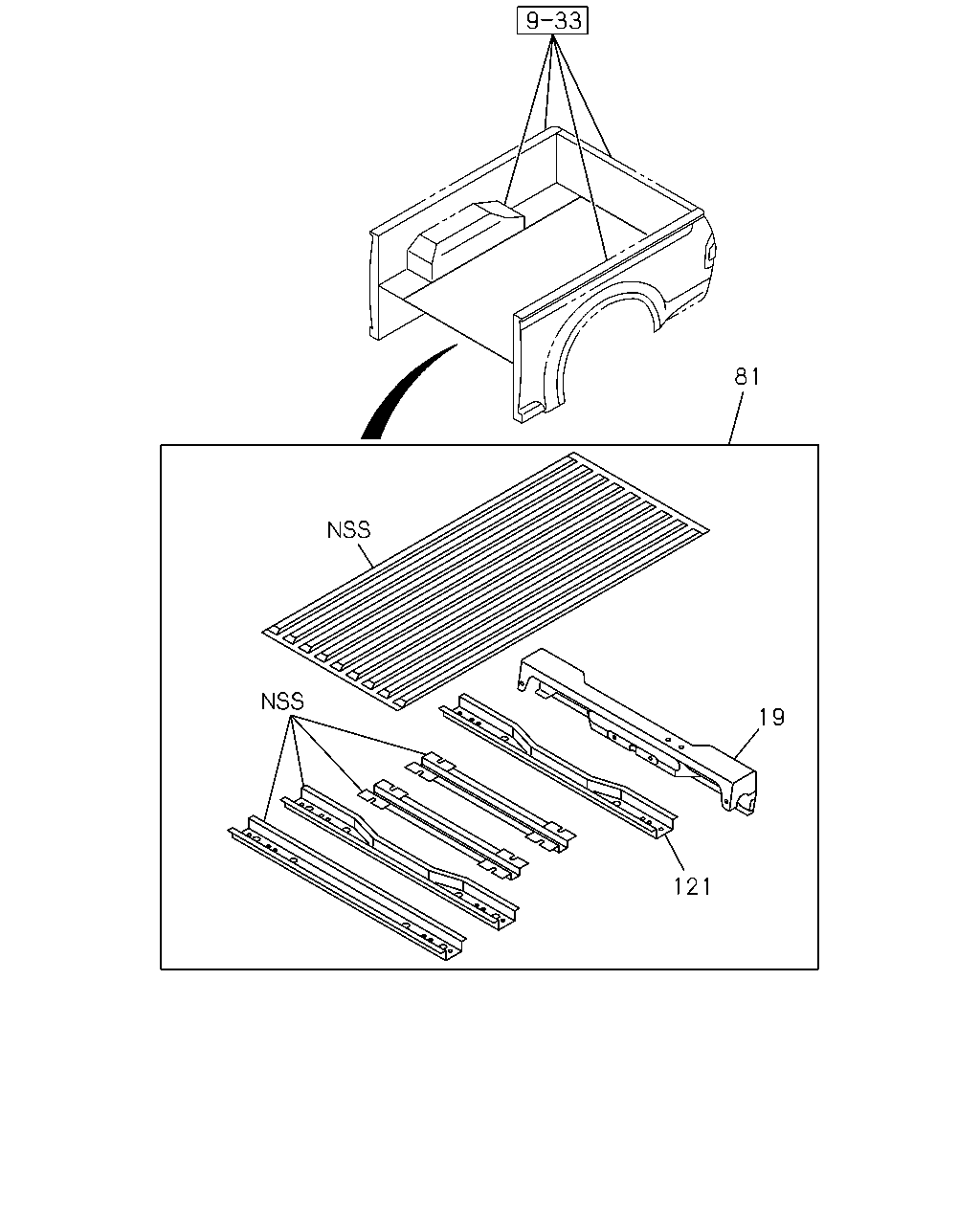

çizim 5487
81 19 121
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
19 17.208 BOLSTER; RR END,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-97251-570-7 01 1 0810- ● ●
19 17.208 BOLSTER; RR END,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-97236-648-7 01 1 0808-0809 ● ●
19 17.208 BOLSTER; RR END,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-97236-648-7 01 1 0810- ● ● ● ●
81 17.400 FLOOR ASM; RR BODY
REAR BODY DBL WALL CTR PULL(E63) SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97236-640-5 01 1 0810-1003 ● ●
81 17.400 FLOOR ASM; RR BODY
REAR BODY DBL WALL CTR PULL(E63) PLANT - ISUZU,THAILAND<8KX> 		8-97236-640-5 01 1 0810-1003 ● ●
81 17.400 FLOOR ASM; RR BODY
REAR BODY DBL WALL CTR PULL(E63) PLANT - ISUZU,THAILAND<8KX> 		8-97236-640-5 01 1 1004-1007 ● ●
81 17.400 FLOOR ASM; RR BODY
REAR BODY DBL WALL CTR PULL(E63) SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97236-640-5 01 1 1008- ● ●
81 17.400 FLOOR ASM; RR BODY
REAR BODY DBL WALL CTR PULL(E63) PLANT - ISUZU,THAILAND<8KX> 		8-97236-640-5 01 1 1008- ● ●
81 17.400 FLOOR ASM; RR BODY
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR BODY DBL WALL CTR PULL(E63) REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97236-639-5 01 1 0810-1003 ● ●
81 17.400 FLOOR ASM; RR BODY
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR BODY DBL WALL CTR PULL(E63) REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) PLANT - ISUZU,THAILAND<8KX> 		8-97236-639-5 01 1 0810-1003 ● ●
81 17.400 FLOOR ASM; RR BODY
REAR BODY DBL WALL CTR PULL(E63) SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. HONG KONG EQUIPMENT(B14), SINGAPORE EQUIPMENT(2G0),PLANT - ISUZU,THA ILAND<8KX> 		8-97236-639-5 01 1 0810-1003 ● ●
81 17.400 FLOOR ASM; RR BODY
REAR BODY DBL WALL CTR PULL(E63) PLANT - ISUZU,THAILAND<8KX> EXC. HONG KONG EQUIPMENT(B14), SINGAPORE EQUIPMENT(2G0) 		8-97236-639-5 01 1 0810-1003 ● ●
81 17.400 FLOOR ASM; RR BODY
REAR BODY DBL WALL CTR PULL(E63) REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) PLANT - ISUZU,THAILAND<8KX> 		8-97236-639-5 01 1 1004-1007 ● ●
81 17.400 FLOOR ASM; RR BODY
REAR BODY DBL WALL CTR PULL(E63) PLANT - ISUZU,THAILAND<8KX> EXC. HONG KONG EQUIPMENT(B14), SINGAPORE EQUIPMENT(2G0) 		8-97236-639-5 01 1 1004-1007 ● ●
81 17.400 FLOOR ASM; RR BODY
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR BODY DBL WALL CTR PULL(E63) REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97236-639-5 01 1 1008- ● ●
81 17.400 FLOOR ASM; RR BODY
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR BODY DBL WALL CTR PULL(E63) REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) PLANT - ISUZU,THAILAND<8KX> 		8-97236-639-5 01 1 1008- ● ●
81 17.400 FLOOR ASM; RR BODY
REAR BODY DBL WALL CTR PULL(E63) SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. HONG KONG EQUIPMENT(B14), SINGAPORE EQUIPMENT(2G0),PLANT - ISUZU,THA ILAND<8KX> 		8-97236-639-5 01 1 1008- ● ●
81 17.400 FLOOR ASM; RR BODY
REAR BODY DBL WALL CTR PULL(E63) PLANT - ISUZU,THAILAND<8KX> EXC. HONG KONG EQUIPMENT(B14), SINGAPORE EQUIPMENT(2G0) 		8-97236-639-5 01 1 1008- ● ●
81 17.400 FLOOR ASM; RR BODY
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR BODY DBL WALL CTR PULL(E63) SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. REAR STEP BUMPER(VF6),REAR STEPBUMPER CHROME(V42),PLANT - ISUZU,TH AILAND<8KX> 		8-97236-639-5 01 1 0810-1003 ● ●
81 17.400 FLOOR ASM; RR BODY
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR BODY DBL WALL CTR PULL(E63) PLANT - ISUZU,THAILAND<8KX> EXC. REAR STEP BUMPER(VF6),REAR STEPBUMPER CHROME(V42) 		8-97236-639-5 01 1 0810-1003 ● ●
81 17.400 FLOOR ASM; RR BODY
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR BODY DBL WALL CTR PULL(E63) PLANT - ISUZU,THAILAND<8KX> EXC. REAR STEP BUMPER(VF6),REAR STEPBUMPER CHROME(V42) 		8-97236-639-5 01 1 1004-1007 ● ●
81 17.400 FLOOR ASM; RR BODY
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR BODY DBL WALL CTR PULL(E63) SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. REAR STEP BUMPER(VF6),REAR STEPBUMPER CHROME(V42),PLANT - ISUZU,TH AILAND<8KX> 		8-97236-639-5 01 1 1008- ● ●
81 17.400 FLOOR ASM; RR BODY
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR BODY DBL WALL CTR PULL(E63) PLANT - ISUZU,THAILAND<8KX> EXC. REAR STEP BUMPER(VF6),REAR STEPBUMPER CHROME(V42) 		8-97236-639-5 01 1 1008- ● ●
81 17.400 FLOOR ASM; RR BODY
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 		8-97244-823-2 01 1 0810- ●
81 17.400 FLOOR ASM; RR BODY
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR BODY DBL WALL CTR PULL(E63) SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. REAR STEP BUMPER(VF6),REAR STEPBUMPER CHROME(V42),PLANT - ISUZU,TH AILAND<8KX> 		8-93333-729-7 01 1 0810-1003 ● ●
81 17.400 FLOOR ASM; RR BODY
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR BODY DBL WALL CTR PULL(E63) PLANT - ISUZU,THAILAND<8KX> EXC. REAR STEP BUMPER(VF6),REAR STEPBUMPER CHROME(V42) 		8-93333-729-7 01 1 0810-1003 ● ●
81 17.400 FLOOR ASM; RR BODY
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR BODY DBL WALL CTR PULL(E63) PLANT - ISUZU,THAILAND<8KX> EXC. REAR STEP BUMPER(VF6),REAR STEPBUMPER CHROME(V42) 		8-93333-729-7 01 1 1004-1007 ● ●
81 17.400 FLOOR ASM; RR BODY
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR BODY DBL WALL CTR PULL(E63) SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. REAR STEP BUMPER(VF6),REAR STEPBUMPER CHROME(V42),PLANT - ISUZU,TH AILAND<8KX> 		8-93333-729-7 01 1 1008- ● ●
81 17.400 FLOOR ASM; RR BODY
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR BODY DBL WALL CTR PULL(E63) PLANT - ISUZU,THAILAND<8KX> EXC. REAR STEP BUMPER(VF6),REAR STEPBUMPER CHROME(V42) 		8-93333-729-7 01 1 1008- ● ●
81 17.400 FLOOR ASM; RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-93333-729-7 01 1 0808-0809 ● ●
81 17.400 FLOOR ASM; RR BODY
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR BODY DBL WALL CTR PULL(E63) REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. PLANT - ISUZU,THAILAND<8KX> 		8-93333-729-7 01 1 0810-1003 ● ●
81 17.400 FLOOR ASM; RR BODY
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR BODY DBL WALL CTR PULL(E63) REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) PLANT - ISUZU,THAILAND<8KX> 		8-93333-729-7 01 1 0810-1003 ● ●
81 17.400 FLOOR ASM; RR BODY
REAR BODY DBL WALL CTR PULL(E63) SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. HONG KONG EQUIPMENT(B14), SINGAPORE EQUIPMENT(2G0),PLANT - ISUZU,THA ILAND<8KX> 		8-93333-729-7 01 1 0810-1003 ● ●
81 17.400 FLOOR ASM; RR BODY
REAR BODY DBL WALL CTR PULL(E63) PLANT - ISUZU,THAILAND<8KX> EXC. HONG KONG EQUIPMENT(B14), SINGAPORE EQUIPMENT(2G0) 		8-93333-729-7 01 1 0810-1003 ● ●
81 17.400 FLOOR ASM; RR BODY
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR BODY DBL WALL CTR PULL(E63) REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) PLANT - ISUZU,THAILAND<8KX> 		8-93333-729-7 01 1 1004-1007 ● ●
81 17.400 FLOOR ASM; RR BODY
REAR BODY DBL WALL CTR PULL(E63) PLANT - ISUZU,THAILAND<8KX> EXC. HONG KONG EQUIPMENT(B14), SINGAPORE EQUIPMENT(2G0) 		8-93333-729-7 01 1 1004-1007 ● ●
81 17.400 FLOOR ASM; RR BODY
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR BODY DBL WALL CTR PULL(E63) REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. PLANT - ISUZU,THAILAND<8KX> 		8-93333-729-7 01 1 1008- ● ●
81 17.400 FLOOR ASM; RR BODY
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR BODY DBL WALL CTR PULL(E63) REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) PLANT - ISUZU,THAILAND<8KX> 		8-93333-729-7 01 1 1008- ● ●
81 17.400 FLOOR ASM; RR BODY
REAR BODY DBL WALL CTR PULL(E63) SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. HONG KONG EQUIPMENT(B14), SINGAPORE EQUIPMENT(2G0),PLANT - ISUZU,THA ILAND<8KX> 		8-93333-729-7 01 1 1008- ● ●
81 17.400 FLOOR ASM; RR BODY
REAR BODY DBL WALL CTR PULL(E63) PLANT - ISUZU,THAILAND<8KX> EXC. HONG KONG EQUIPMENT(B14), SINGAPORE EQUIPMENT(2G0) 		8-93333-729-7 01 1 1008- ● ●
81 17.400 FLOOR ASM; RR BODY
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6),SHIPPING EQUIPMENT SPECIAL VAR1<VK5>,REAR STEP BUMPER CHROME(V42),PLANT - ISUZU,T HAILAND<8KX> 		8-97236-639-5 01 1 0810- ● ●
81 17.400 FLOOR ASM; RR BODY
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6),SHIPPING EQUIPMENT SPECIAL VAR1<VK5>,REAR STEP BUMPER CHROME(V42),PLANT - ISUZU,T HAILAND<8KX> 		8-93333-729-7 01 1 0810- ● ●
121 17.208 BOLSTER; RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-97236-647-2 01 1 0808-0809 ● ●
121 17.208 BOLSTER; RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-97236-647-2 01 1 0810- ● ● ● ● ● ●

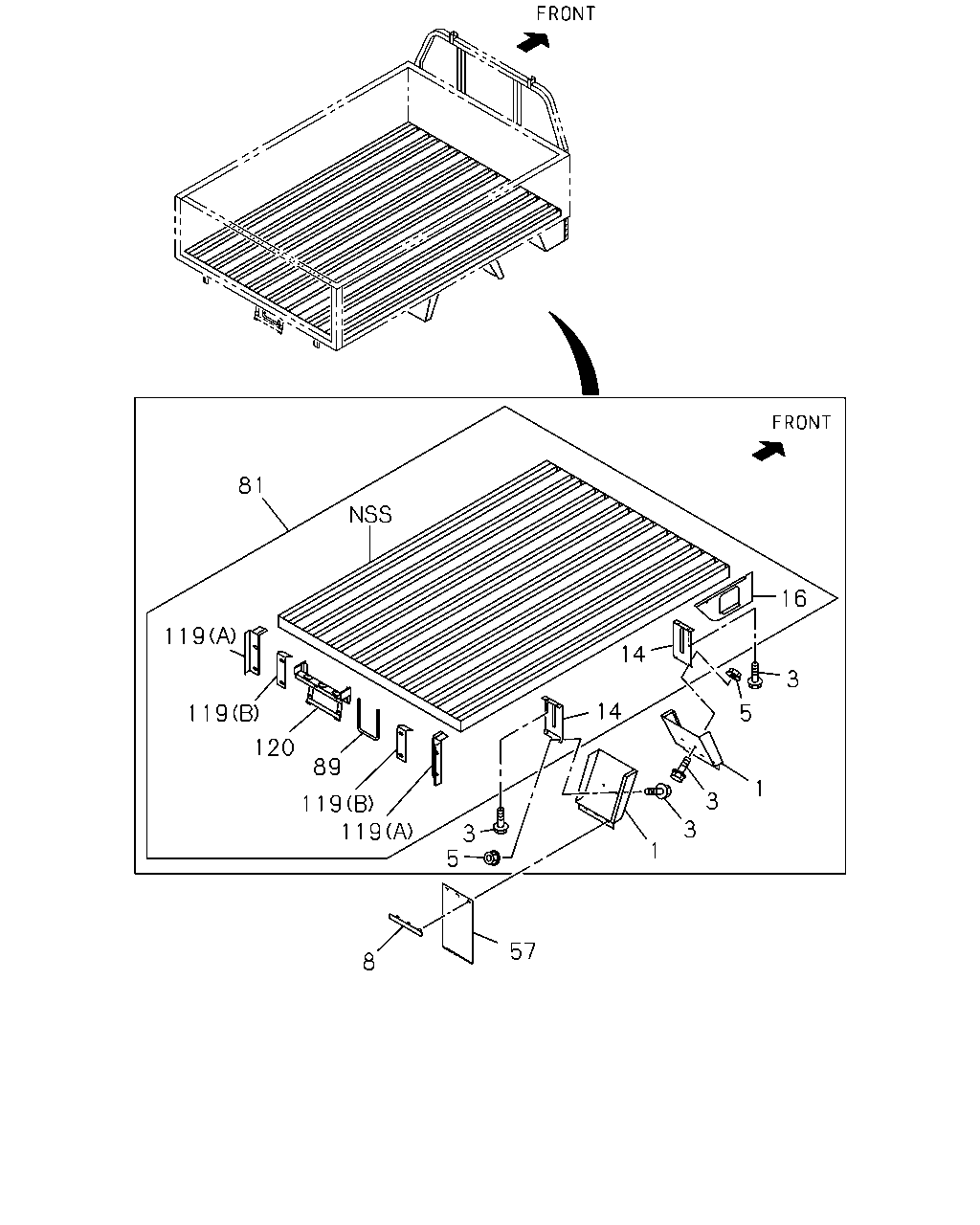

çizim 144382
81 16 119 14 3 14 5 119 120 89 1 3 3 119 119 3 5 1 57 8
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 08.203 FENDER; RR,RR BODY
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) FRONT 		8-97263-540-2 01 1 0810- ●
1 08.203 FENDER; RR,RR BODY
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) FRONT 		8-97263-541-2 01 1 0810- ●
1 08.203 FENDER; RR,RR BODY
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) REAR 		8-97263-542-3 01 1 0810- ●
1 08.203 FENDER; RR,RR BODY
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) REAR 		8-97263-543-3 01 1 0810- ●
3 08.203 BOLT; FENDER TO RR BODY
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 17.208 M6X12 W/LK&PL WASHER 		8-94197-192-0 16 1 0810- ●
5 17.447 NUT; FENDER TO BRKT
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 17.208 M6 FLANGE 		8-94197-193-0 08 1 0810- ●
8 08.212 HOLDER; FLAP RUBBER
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 		8-97354-203-0 02 1 0810- ●
14 08.212 SUPPORT; RR FENDER
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 		8-97356-079-0 04 1 0810- ●
16 17.455 CONNECTOR; GUARD FRAME
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 		8-97245-189-1 01 1 0810- ●
16 17.455 CONNECTOR; GUARD FRAME
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 		8-97245-190-1 01 1 0810- ●
57 08.214 RUBBER; FLAP RR
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 		8-97354-206-0 02 1 0810- ●
81 17.400 FLOOR ASM; RR BODY
REAR BODY DBL WALL CTR PULL(E63) SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97236-640-5 01 1 0810-1003 ● ●
81 17.400 FLOOR ASM; RR BODY
REAR BODY DBL WALL CTR PULL(E63) PLANT - ISUZU,THAILAND<8KX> 		8-97236-640-5 01 1 0810-1003 ● ●
81 17.400 FLOOR ASM; RR BODY
REAR BODY DBL WALL CTR PULL(E63) PLANT - ISUZU,THAILAND<8KX> 		8-97236-640-5 01 1 1004-1007 ● ●
81 17.400 FLOOR ASM; RR BODY
REAR BODY DBL WALL CTR PULL(E63) SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97236-640-5 01 1 1008- ● ●
81 17.400 FLOOR ASM; RR BODY
REAR BODY DBL WALL CTR PULL(E63) PLANT - ISUZU,THAILAND<8KX> 		8-97236-640-5 01 1 1008- ● ●
81 17.400 FLOOR ASM; RR BODY
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR BODY DBL WALL CTR PULL(E63) REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97236-639-5 01 1 0810-1003 ● ●
81 17.400 FLOOR ASM; RR BODY
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR BODY DBL WALL CTR PULL(E63) REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) PLANT - ISUZU,THAILAND<8KX> 		8-97236-639-5 01 1 0810-1003 ● ●
81 17.400 FLOOR ASM; RR BODY
REAR BODY DBL WALL CTR PULL(E63) SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. HONG KONG EQUIPMENT(B14), SINGAPORE EQUIPMENT(2G0),PLANT - ISUZU,THA ILAND<8KX> 		8-97236-639-5 01 1 0810-1003 ● ●
81 17.400 FLOOR ASM; RR BODY
REAR BODY DBL WALL CTR PULL(E63) PLANT - ISUZU,THAILAND<8KX> EXC. HONG KONG EQUIPMENT(B14), SINGAPORE EQUIPMENT(2G0) 		8-97236-639-5 01 1 0810-1003 ● ●
81 17.400 FLOOR ASM; RR BODY
REAR BODY DBL WALL CTR PULL(E63) REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) PLANT - ISUZU,THAILAND<8KX> 		8-97236-639-5 01 1 1004-1007 ● ●
81 17.400 FLOOR ASM; RR BODY
REAR BODY DBL WALL CTR PULL(E63) PLANT - ISUZU,THAILAND<8KX> EXC. HONG KONG EQUIPMENT(B14), SINGAPORE EQUIPMENT(2G0) 		8-97236-639-5 01 1 1004-1007 ● ●
81 17.400 FLOOR ASM; RR BODY
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR BODY DBL WALL CTR PULL(E63) REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97236-639-5 01 1 1008- ● ●
81 17.400 FLOOR ASM; RR BODY
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR BODY DBL WALL CTR PULL(E63) REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) PLANT - ISUZU,THAILAND<8KX> 		8-97236-639-5 01 1 1008- ● ●
81 17.400 FLOOR ASM; RR BODY
REAR BODY DBL WALL CTR PULL(E63) SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. HONG KONG EQUIPMENT(B14), SINGAPORE EQUIPMENT(2G0),PLANT - ISUZU,THA ILAND<8KX> 		8-97236-639-5 01 1 1008- ● ●
81 17.400 FLOOR ASM; RR BODY
REAR BODY DBL WALL CTR PULL(E63) PLANT - ISUZU,THAILAND<8KX> EXC. HONG KONG EQUIPMENT(B14), SINGAPORE EQUIPMENT(2G0) 		8-97236-639-5 01 1 1008- ● ●
81 17.400 FLOOR ASM; RR BODY
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR BODY DBL WALL CTR PULL(E63) SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. REAR STEP BUMPER(VF6),REAR STEPBUMPER CHROME(V42),PLANT - ISUZU,TH AILAND<8KX> 		8-97236-639-5 01 1 0810-1003 ● ●
81 17.400 FLOOR ASM; RR BODY
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR BODY DBL WALL CTR PULL(E63) PLANT - ISUZU,THAILAND<8KX> EXC. REAR STEP BUMPER(VF6),REAR STEPBUMPER CHROME(V42) 		8-97236-639-5 01 1 0810-1003 ● ●
81 17.400 FLOOR ASM; RR BODY
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR BODY DBL WALL CTR PULL(E63) PLANT - ISUZU,THAILAND<8KX> EXC. REAR STEP BUMPER(VF6),REAR STEPBUMPER CHROME(V42) 		8-97236-639-5 01 1 1004-1007 ● ●
81 17.400 FLOOR ASM; RR BODY
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR BODY DBL WALL CTR PULL(E63) SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. REAR STEP BUMPER(VF6),REAR STEPBUMPER CHROME(V42),PLANT - ISUZU,TH AILAND<8KX> 		8-97236-639-5 01 1 1008- ● ●
81 17.400 FLOOR ASM; RR BODY
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR BODY DBL WALL CTR PULL(E63) PLANT - ISUZU,THAILAND<8KX> EXC. REAR STEP BUMPER(VF6),REAR STEPBUMPER CHROME(V42) 		8-97236-639-5 01 1 1008- ● ●
81 17.400 FLOOR ASM; RR BODY
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 		8-97244-823-2 01 1 0810- ●
81 17.400 FLOOR ASM; RR BODY
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR BODY DBL WALL CTR PULL(E63) SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. REAR STEP BUMPER(VF6),REAR STEPBUMPER CHROME(V42),PLANT - ISUZU,TH AILAND<8KX> 		8-93333-729-7 01 1 0810-1003 ● ●
81 17.400 FLOOR ASM; RR BODY
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR BODY DBL WALL CTR PULL(E63) PLANT - ISUZU,THAILAND<8KX> EXC. REAR STEP BUMPER(VF6),REAR STEPBUMPER CHROME(V42) 		8-93333-729-7 01 1 0810-1003 ● ●
81 17.400 FLOOR ASM; RR BODY
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR BODY DBL WALL CTR PULL(E63) PLANT - ISUZU,THAILAND<8KX> EXC. REAR STEP BUMPER(VF6),REAR STEPBUMPER CHROME(V42) 		8-93333-729-7 01 1 1004-1007 ● ●
81 17.400 FLOOR ASM; RR BODY
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR BODY DBL WALL CTR PULL(E63) SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. REAR STEP BUMPER(VF6),REAR STEPBUMPER CHROME(V42),PLANT - ISUZU,TH AILAND<8KX> 		8-93333-729-7 01 1 1008- ● ●
81 17.400 FLOOR ASM; RR BODY
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR BODY DBL WALL CTR PULL(E63) PLANT - ISUZU,THAILAND<8KX> EXC. REAR STEP BUMPER(VF6),REAR STEPBUMPER CHROME(V42) 		8-93333-729-7 01 1 1008- ● ●
81 17.400 FLOOR ASM; RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-93333-729-7 01 1 0808-0809 ● ●
81 17.400 FLOOR ASM; RR BODY
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR BODY DBL WALL CTR PULL(E63) REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. PLANT - ISUZU,THAILAND<8KX> 		8-93333-729-7 01 1 0810-1003 ● ●
81 17.400 FLOOR ASM; RR BODY
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR BODY DBL WALL CTR PULL(E63) REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) PLANT - ISUZU,THAILAND<8KX> 		8-93333-729-7 01 1 0810-1003 ● ●
81 17.400 FLOOR ASM; RR BODY
REAR BODY DBL WALL CTR PULL(E63) SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. HONG KONG EQUIPMENT(B14), SINGAPORE EQUIPMENT(2G0),PLANT - ISUZU,THA ILAND<8KX> 		8-93333-729-7 01 1 0810-1003 ● ●
81 17.400 FLOOR ASM; RR BODY
REAR BODY DBL WALL CTR PULL(E63) PLANT - ISUZU,THAILAND<8KX> EXC. HONG KONG EQUIPMENT(B14), SINGAPORE EQUIPMENT(2G0) 		8-93333-729-7 01 1 0810-1003 ● ●
81 17.400 FLOOR ASM; RR BODY
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR BODY DBL WALL CTR PULL(E63) REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) PLANT - ISUZU,THAILAND<8KX> 		8-93333-729-7 01 1 1004-1007 ● ●
81 17.400 FLOOR ASM; RR BODY
REAR BODY DBL WALL CTR PULL(E63) PLANT - ISUZU,THAILAND<8KX> EXC. HONG KONG EQUIPMENT(B14), SINGAPORE EQUIPMENT(2G0) 		8-93333-729-7 01 1 1004-1007 ● ●
81 17.400 FLOOR ASM; RR BODY
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR BODY DBL WALL CTR PULL(E63) REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. PLANT - ISUZU,THAILAND<8KX> 		8-93333-729-7 01 1 1008- ● ●
81 17.400 FLOOR ASM; RR BODY
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR BODY DBL WALL CTR PULL(E63) REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) PLANT - ISUZU,THAILAND<8KX> 		8-93333-729-7 01 1 1008- ● ●
81 17.400 FLOOR ASM; RR BODY
REAR BODY DBL WALL CTR PULL(E63) SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. HONG KONG EQUIPMENT(B14), SINGAPORE EQUIPMENT(2G0),PLANT - ISUZU,THA ILAND<8KX> 		8-93333-729-7 01 1 1008- ● ●
81 17.400 FLOOR ASM; RR BODY
REAR BODY DBL WALL CTR PULL(E63) PLANT - ISUZU,THAILAND<8KX> EXC. HONG KONG EQUIPMENT(B14), SINGAPORE EQUIPMENT(2G0) 		8-93333-729-7 01 1 1008- ● ●
81 17.400 FLOOR ASM; RR BODY
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6),SHIPPING EQUIPMENT SPECIAL VAR1<VK5>,REAR STEP BUMPER CHROME(V42),PLANT - ISUZU,T HAILAND<8KX> 		8-97236-639-5 01 1 0810- ● ●
81 17.400 FLOOR ASM; RR BODY
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6),SHIPPING EQUIPMENT SPECIAL VAR1<VK5>,REAR STEP BUMPER CHROME(V42),PLANT - ISUZU,T HAILAND<8KX> 		8-93333-729-7 01 1 0810- ● ●
89 17.400 STEP; RR
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 		8-97262-129-0 01 1 0810- ●
119 02.662 BRACKET; COMB LAMP
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) (A) 		8-97263-708-0 01 1 0810- ●
119 02.662 BRACKET; COMB LAMP
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) (A) 		8-97263-709-0 01 1 0810- ●
119 02.662 BRACKET; COMB LAMP
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) (B) 		8-97322-728-0 02 1 0810- ●
120 07.800 BRACKET; NUMBER PLATE
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 		8-97263-719-0 01 1 0810- ●

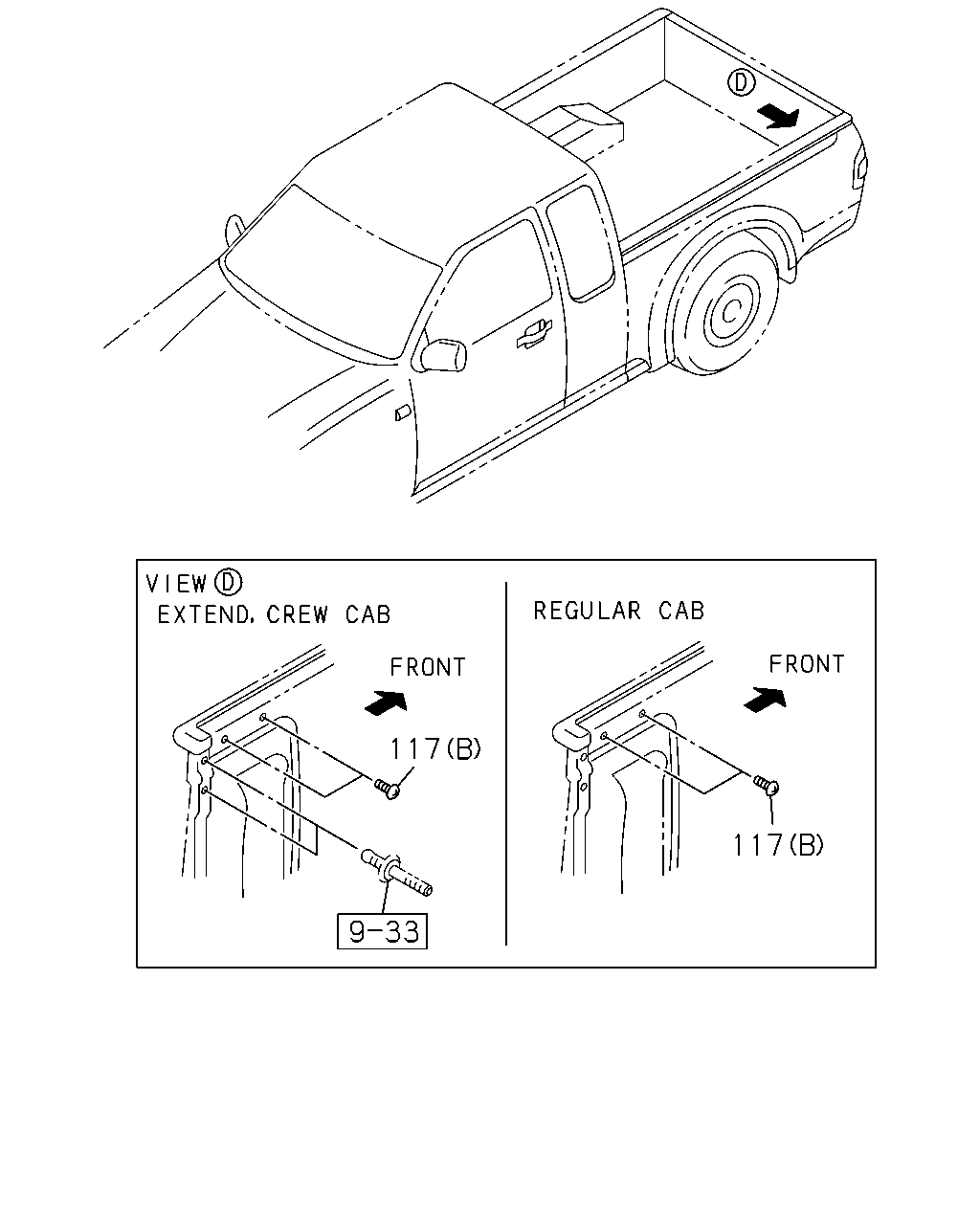

çizim 186214
117 117
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
117 17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 0810- ● ●
117 17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 04 1 0808-0809 ● ●
117 17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 04 1 0810- ● ● ● ● ● ●
117 17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 04 1 0810- ● ● ● ●
117 17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) (B) M8X16.5 		8-98058-001-0 04 1 0808-0809 ● ●
117 17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) (B) M8X16.5 		8-98058-001-0 04 1 0810- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
