9-30 — REAR BODY ASM AND MOUNTING (#77121) — 88 parça

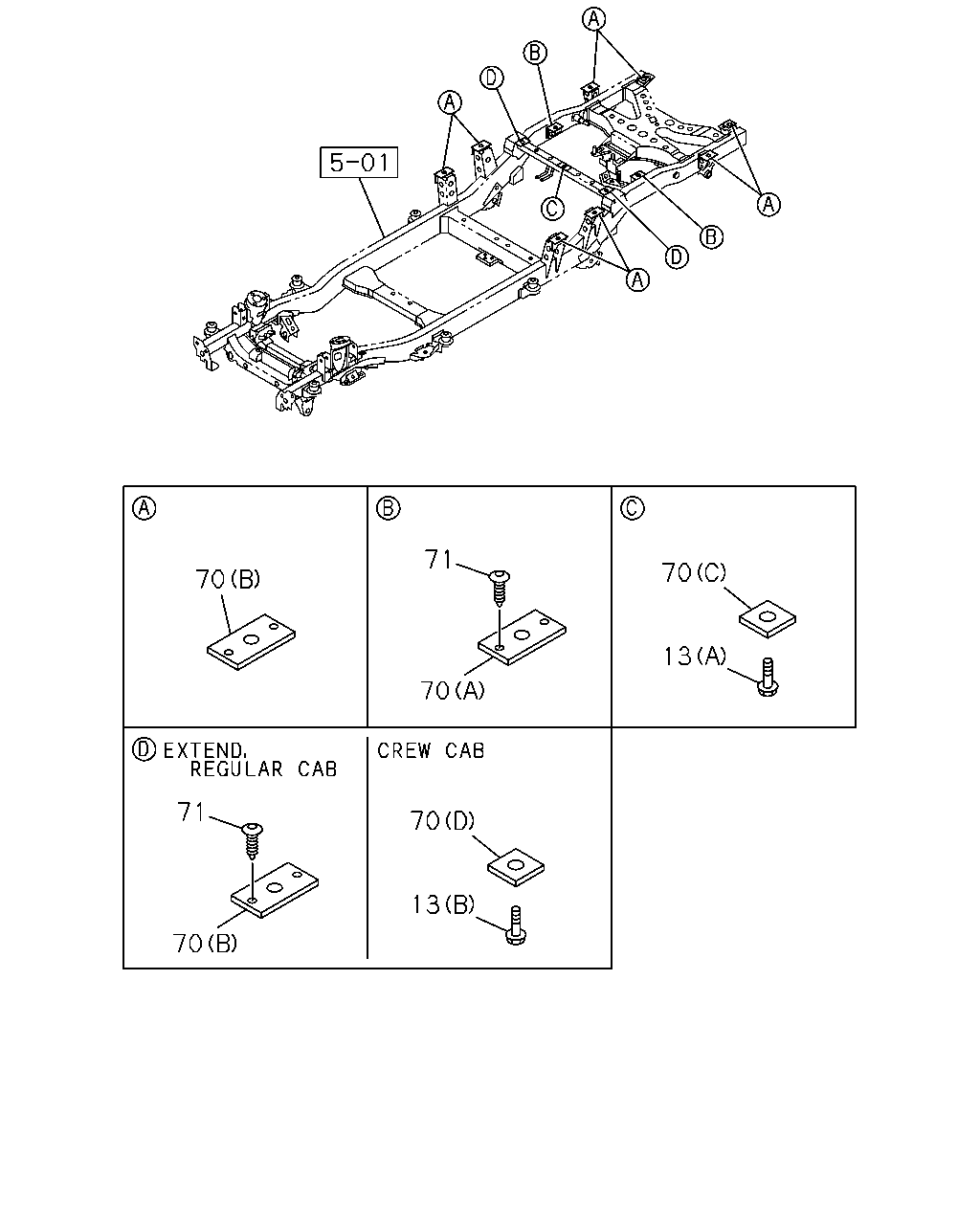

çizim 4714
71 70 70 13 70 71 70 13 70
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
13 09.008 BOLT; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) (A) M12X50 FLANGE 		8-98030-678-0 06 1 0810- ●
13 09.008 BOLT; RR BODY MTG
4X4 EXTEND CAB LONG(TFS*CF) REAR BODY DBL WALL CTR PULL(E63) (A) M12X50 FLANGE 		8-98030-678-0 06 1 0810- ●
13 09.008 BOLT; RR BODY MTG
REAR BODY FLAT BED(E39) (C) M12X40 W/PL WASHER 		8-98056-124-0 06 1 0810- ●
13 09.008 BOLT; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) (A) M12X50 FLANGE 		8-98030-678-0 08 1 0810- ● ●
13 09.008 BOLT; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) (A) M12X50 FLANGE 		8-98030-678-0 04 1 0808-0910 ●
13 09.008 BOLT; RR BODY MTG
4X4 CREW CAB LONG(TFS*WF) REAR BODY DBL WALL CTR PULL(E63) (A) M12X50 FLANGE 		8-98030-678-0 04 1 0808-0910 ●
13 09.008 BOLT; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) (A) M12X50 FLANGE 		8-98030-678-0 04 1 0911- ● ●
13 09.008 BOLT; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) (B) M12X35 FLANGE 		8-98056-126-0 02 1 0808-0910 ●
13 09.008 BOLT; RR BODY MTG
4X4 CREW CAB LONG(TFS*WF) REAR BODY DBL WALL CTR PULL(E63) (B) M12X35 FLANGE 		8-98056-126-0 02 1 0808-0910 ●
13 09.008 BOLT; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) (B) M12X35 FLANGE 		8-98056-126-0 02 1 0911- ● ●
70 08.214 CUSHION; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98090-512-0 03 1 0810- ● ●
70 08.214 CUSHION; RR BODY MTG
4X4 EXTEND CAB LONG(TFS*CF) REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98090-512-0 03 1 0810- ●
70 08.214 CUSHION; RR BODY MTG
4X4 REGULAR CAB LONG(TFS*SF) REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98090-512-0 03 1 0810- ●
70 08.214 CUSHION; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98090-511-0 06 1 0810- ●
70 08.214 CUSHION; RR BODY MTG
4X4 EXTEND CAB LONG(TFS*CF) REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98090-511-0 06 1 0810- ●
70 08.214 CUSHION; RR BODY MTG
REAR BODY FLAT BED(E39),REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98090-511-0 08 1 0810-1401 ●
70 08.214 CUSHION; RR BODY MTG
4X4 REGULAR CAB LONG(TFS*SF) REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98090-511-0 08 1 0810-1401 ●
70 08.214 CUSHION; RR BODY MTG
REAR BODY FLAT BED(E39) (B) 		8-98090-511-0 08 1 1402-1404 ●
70 08.214 CUSHION; RR BODY MTG
REAR BODY FLAT BED(E39),REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98090-511-0 08 1 1402-1404 ●
70 08.214 CUSHION; RR BODY MTG
4X4 REGULAR CAB LONG(TFS*SF) REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98090-511-0 08 1 1402-1404 ●
70 08.214 CUSHION; RR BODY MTG
REAR BODY FLAT BED(E39),REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98090-511-0 08 1 1405- ●
70 08.214 CUSHION; RR BODY MTG
4X4 REGULAR CAB LONG(TFS*SF) REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98090-511-0 08 1 1405- ●
70 08.214 CUSHION; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) (D) 		8-98090-510-0 02 1 0808-0910 ●
70 08.214 CUSHION; RR BODY MTG
4X4 CREW CAB LONG(TFS*WF) REAR BODY DBL WALL CTR PULL(E63) (D) 		8-98090-510-0 02 1 0808-0910 ●
70 08.214 CUSHION; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) (D) 		8-98090-510-0 02 1 0911- ● ●
70 08.214 CUSHION; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98090-511-0 04 1 0808-0910 ●
70 08.214 CUSHION; RR BODY MTG
4X4 CREW CAB LONG(TFS*WF) REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98090-511-0 04 1 0808-0910 ●
70 08.214 CUSHION; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98090-511-0 04 1 0911- ● ●
70 08.214 CUSHION; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98090-512-0 01 1 0808-0910 ●
70 08.214 CUSHION; RR BODY MTG
4X4 CREW CAB LONG(TFS*WF) REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98090-512-0 01 1 0808-0910 ●
70 08.214 CUSHION; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98090-512-0 01 1 0911- ● ●
70 08.214 CUSHION; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98090-513-0 02 1 0808-0809 ● ●
70 08.214 CUSHION; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98090-513-0 02 1 0810- ● ● ● ● ● ●
71 08.214 CLIP; CUSHION
REAR BODY DBL WALL CTR PULL(E63) 03.023 ID=6 OD=16 L=18 		8-94178-705-0 06 1 0810- ● ●
71 08.214 CLIP; CUSHION
4X4 EXTEND CAB LONG(TFS*CF) REAR BODY DBL WALL CTR PULL(E63) 03.023 ID=6 OD=16 L=18 		8-94178-705-0 06 1 0810- ●
71 08.214 CLIP; CUSHION
4X4 REGULAR CAB LONG(TFS*SF) REAR BODY DBL WALL CTR PULL(E63) 03.023 ID=6 OD=16 L=18 		8-94178-705-0 06 1 0810- ●
71 08.214 CLIP; CUSHION
REAR BODY DBL WALL CTR PULL(E63) 03.023 ID=6 OD=16 L=18 		8-94178-705-0 04 1 0808-0910 ●
71 08.214 CLIP; CUSHION
4X4 CREW CAB LONG(TFS*WF) REAR BODY DBL WALL CTR PULL(E63) 03.023 ID=6 OD=16 L=18 		8-94178-705-0 04 1 0808-0910 ●
71 08.214 CLIP; CUSHION
REAR BODY DBL WALL CTR PULL(E63) 03.023 ID=6 OD=16 L=18 		8-94178-705-0 04 1 0911- ● ●

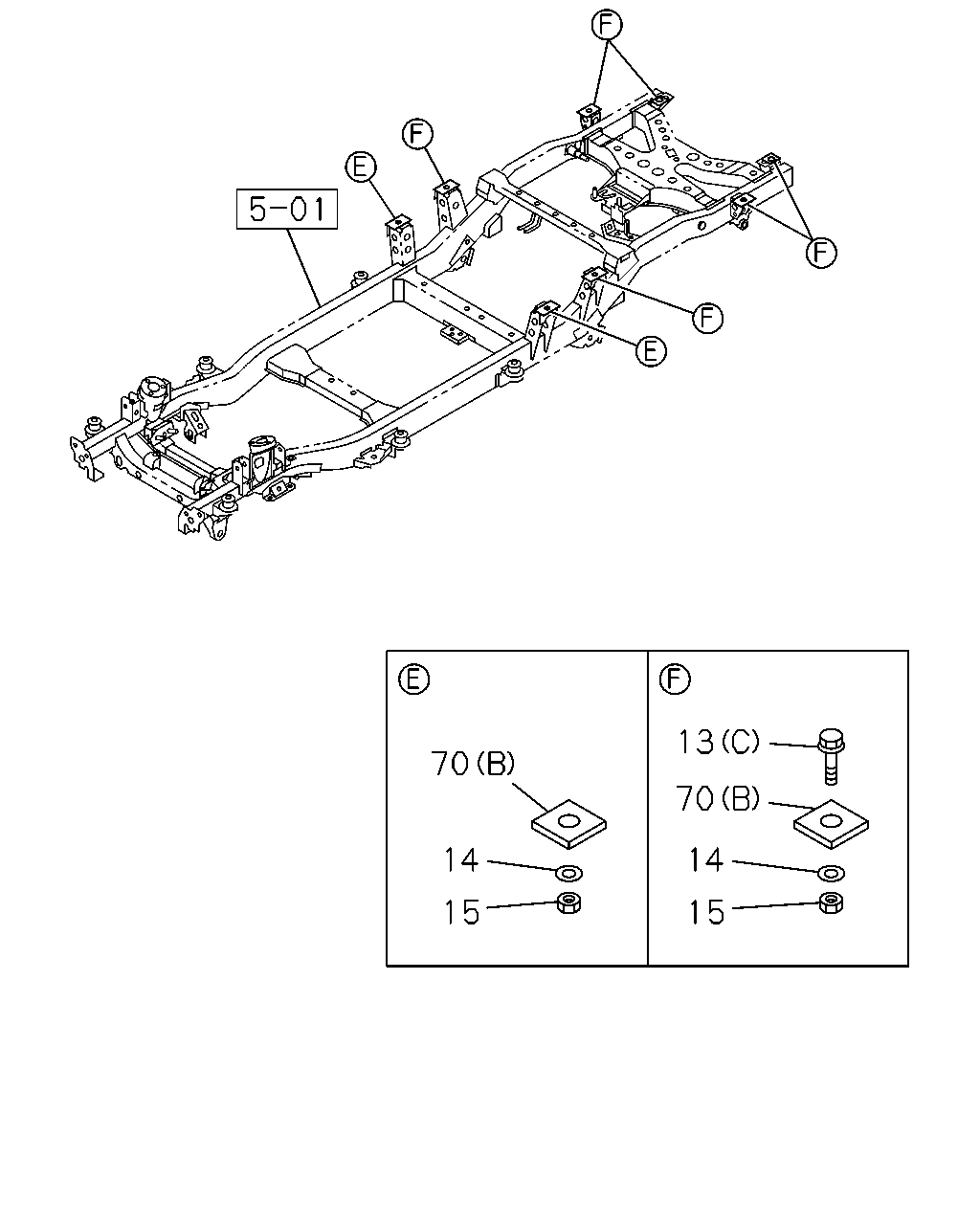

çizim 186215
13 70 70 14 14 15 15
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
13 09.008 BOLT; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) (A) M12X50 FLANGE 		8-98030-678-0 06 1 0810- ●
13 09.008 BOLT; RR BODY MTG
4X4 EXTEND CAB LONG(TFS*CF) REAR BODY DBL WALL CTR PULL(E63) (A) M12X50 FLANGE 		8-98030-678-0 06 1 0810- ●
13 09.008 BOLT; RR BODY MTG
REAR BODY FLAT BED(E39) (C) M12X40 W/PL WASHER 		8-98056-124-0 06 1 0810- ●
13 09.008 BOLT; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) (A) M12X50 FLANGE 		8-98030-678-0 08 1 0810- ● ●
13 09.008 BOLT; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) (A) M12X50 FLANGE 		8-98030-678-0 04 1 0808-0910 ●
13 09.008 BOLT; RR BODY MTG
4X4 CREW CAB LONG(TFS*WF) REAR BODY DBL WALL CTR PULL(E63) (A) M12X50 FLANGE 		8-98030-678-0 04 1 0808-0910 ●
13 09.008 BOLT; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) (A) M12X50 FLANGE 		8-98030-678-0 04 1 0911- ● ●
13 09.008 BOLT; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) (B) M12X35 FLANGE 		8-98056-126-0 02 1 0808-0910 ●
13 09.008 BOLT; RR BODY MTG
4X4 CREW CAB LONG(TFS*WF) REAR BODY DBL WALL CTR PULL(E63) (B) M12X35 FLANGE 		8-98056-126-0 02 1 0808-0910 ●
13 09.008 BOLT; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) (B) M12X35 FLANGE 		8-98056-126-0 02 1 0911- ● ●
14 09.011 WASHER; PL,RR BODY MTG
REAR BODY FLAT BED(E39) 07.874 ID=12.5 		5-09503-093-0 08 1 0810- ●
15 09.011 NUT; RR BODY MTG
REAR BODY FLAT BED(E39) M12 FLANGE 		8-97028-764-0 08 1 0810- ●
70 08.214 CUSHION; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98090-512-0 03 1 0810- ● ●
70 08.214 CUSHION; RR BODY MTG
4X4 EXTEND CAB LONG(TFS*CF) REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98090-512-0 03 1 0810- ●
70 08.214 CUSHION; RR BODY MTG
4X4 REGULAR CAB LONG(TFS*SF) REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98090-512-0 03 1 0810- ●
70 08.214 CUSHION; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98090-511-0 06 1 0810- ●
70 08.214 CUSHION; RR BODY MTG
4X4 EXTEND CAB LONG(TFS*CF) REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98090-511-0 06 1 0810- ●
70 08.214 CUSHION; RR BODY MTG
REAR BODY FLAT BED(E39),REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98090-511-0 08 1 0810-1401 ●
70 08.214 CUSHION; RR BODY MTG
4X4 REGULAR CAB LONG(TFS*SF) REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98090-511-0 08 1 0810-1401 ●
70 08.214 CUSHION; RR BODY MTG
REAR BODY FLAT BED(E39) (B) 		8-98090-511-0 08 1 1402-1404 ●
70 08.214 CUSHION; RR BODY MTG
REAR BODY FLAT BED(E39),REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98090-511-0 08 1 1402-1404 ●
70 08.214 CUSHION; RR BODY MTG
4X4 REGULAR CAB LONG(TFS*SF) REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98090-511-0 08 1 1402-1404 ●
70 08.214 CUSHION; RR BODY MTG
REAR BODY FLAT BED(E39),REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98090-511-0 08 1 1405- ●
70 08.214 CUSHION; RR BODY MTG
4X4 REGULAR CAB LONG(TFS*SF) REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98090-511-0 08 1 1405- ●
70 08.214 CUSHION; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) (D) 		8-98090-510-0 02 1 0808-0910 ●
70 08.214 CUSHION; RR BODY MTG
4X4 CREW CAB LONG(TFS*WF) REAR BODY DBL WALL CTR PULL(E63) (D) 		8-98090-510-0 02 1 0808-0910 ●
70 08.214 CUSHION; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) (D) 		8-98090-510-0 02 1 0911- ● ●
70 08.214 CUSHION; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98090-511-0 04 1 0808-0910 ●
70 08.214 CUSHION; RR BODY MTG
4X4 CREW CAB LONG(TFS*WF) REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98090-511-0 04 1 0808-0910 ●
70 08.214 CUSHION; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98090-511-0 04 1 0911- ● ●
70 08.214 CUSHION; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98090-512-0 01 1 0808-0910 ●
70 08.214 CUSHION; RR BODY MTG
4X4 CREW CAB LONG(TFS*WF) REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98090-512-0 01 1 0808-0910 ●
70 08.214 CUSHION; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98090-512-0 01 1 0911- ● ●
70 08.214 CUSHION; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98090-513-0 02 1 0808-0809 ● ●
70 08.214 CUSHION; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98090-513-0 02 1 0810- ● ● ● ● ● ●

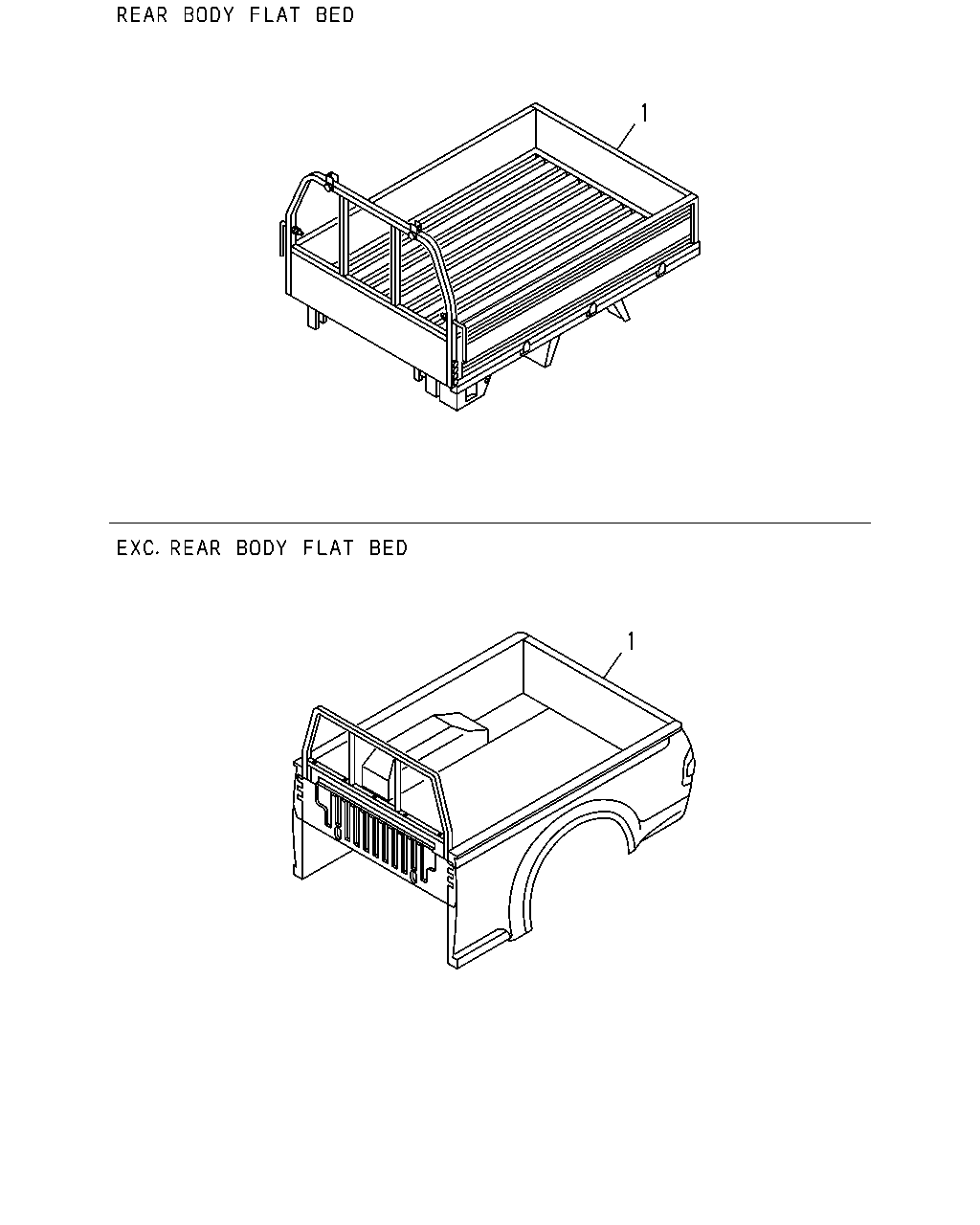

çizim 186288
1 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 17.090 BODY ASM; REAR
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98090-600-0 01 1 0810- ● ●
1 17.090 BODY ASM; REAR
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98090-595-0 01 1 0810- ● ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. OVER FENDER<B74> 		8-98090-601-0 01 1 0810- ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98090-596-0 01 1 0810- ●
1 17.090 BODY ASM; REAR
OVER FENDER<B74> BODY SIDE MOLDING(B84) REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98098-137-0 01 1 0810- ● ●
1 17.090 BODY ASM; REAR
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. BODY SIDE MOLDING(B84) 		8-98098-136-0 01 1 0810- ● ●
1 17.090 BODY ASM; REAR
BODY SIDE MOLDING(B84) REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. OVER FENDER<B74> 		8-98098-135-0 01 1 0810- ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. OVER FENDER<B74>,BODY SIDE MOLDING(B84) 		8-98098-134-0 01 1 0810- ●
1 17.090 BODY ASM; REAR
BODY COLOR ALPINE WHITE(877) REAR BODY FLAT BED(E39) WHITE 		8-97364-139-0 01 1 0810- ●
1 17.090 BODY ASM; REAR
BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) SILVER 		8-97416-142-0 01 1 0810- ●
1 17.090 BODY ASM; REAR
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98090-614-0 01 1 0808- ● ●
1 17.090 BODY ASM; REAR
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98090-610-0 01 1 0808- ● ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. OVER FENDER<B74> 		8-98090-611-0 01 1 0808- ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) EXC. OVER FENDER<B74>,GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98090-606-0 01 1 0808- ●
