◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51194 - TFR/TFS-RHD ▶ 9 - Tools ▶ 9-01 - TOOLS ▶
9-01 — TOOLS (#77120) — 141 parça

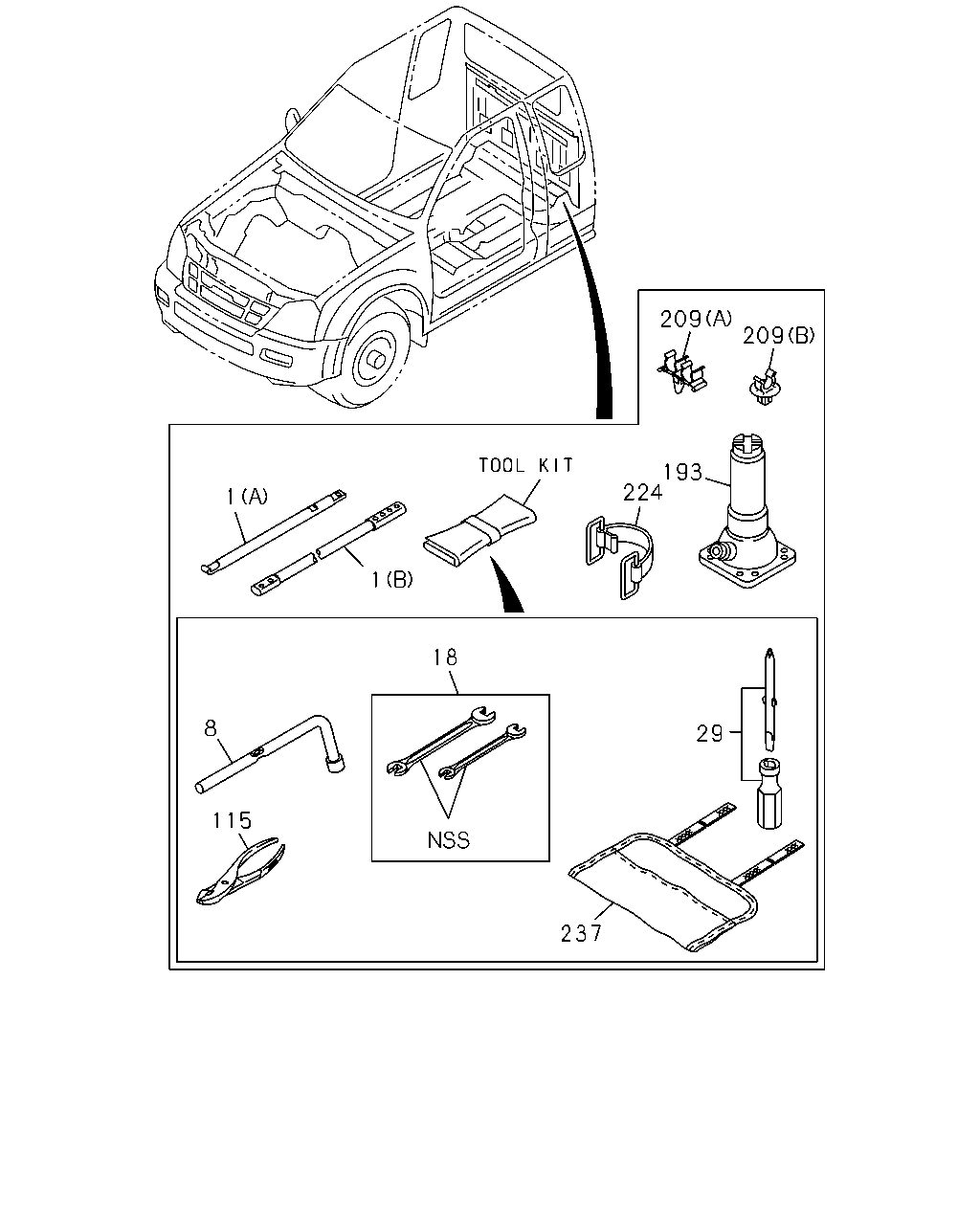

çizim 14365
209 209 193 224 1 1 18 8 29 115 237
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 07.629 HANDLE; SPARE TIRE CARRIER
4JJ1-TCX ENG(LS0) (A) 		8-97215-330-0 01 1 0808-0809 ● ● ●
1 07.629 HANDLE; SPARE TIRE CARRIER
EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) (A) 		8-97215-330-0 01 1 0808-0809 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) (A) 		8-97215-330-0 01 1 0808-0809 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) (A) 		8-97215-330-0 01 1 0810- ● ● ● ● ● ● ●
1 07.629 HANDLE; SPARE TIRE CARRIER
4JJ1-TCX ENG(LS0) (B) 		8-97215-332-0 03 1 0808-0809 ● ● ●
1 07.629 HANDLE; SPARE TIRE CARRIER
EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) (B) 		8-97215-332-0 03 1 0808-0809 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) (B) 		8-97215-332-0 03 1 0808-0809 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) (B) 		8-97215-332-0 03 1 0810- ● ● ● ● ● ● ●
8 08.821 WRENCH; WHEEL
4JJ1-TCX ENG(LS0) L=19 		8-98027-834-0 01 1 0808-0809 ● ● ●
8 08.821 WRENCH; WHEEL
EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) L=19 		8-98027-834-0 01 1 0808-0809 ●
8 08.821 WRENCH; WHEEL
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) L=19 		8-98027-834-0 01 1 0808-0809 ●
8 08.821 WRENCH; WHEEL
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) L=19 		8-98027-834-0 01 1 0810- ● ● ● ● ● ● ●
18 08.821 WRENCH KIT
4JJ1-TCX ENG(LS0) 8X10,12X14 		8-97945-273-0 01 1 0808-0809 ● ● ●
18 08.821 WRENCH KIT
EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) 8X10,12X14 		8-97945-273-0 01 1 0808-0809 ●
18 08.821 WRENCH KIT
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) 8X10,12X14 		8-97945-273-0 01 1 0808-0809 ●
18 08.821 WRENCH KIT
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 8X10,12X14 		8-97945-273-0 01 1 0810- ● ● ● ● ● ● ●
29 08.821 DRIVER; SCREW
4JJ1-TCX ENG(LS0) 		8-98027-833-0 01 1 0808-0809 ● ● ●
29 08.821 DRIVER; SCREW
EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) 		8-98027-833-0 01 1 0808-0809 ●
29 08.821 DRIVER; SCREW
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) 		8-98027-833-0 01 1 0808-0809 ●
29 08.821 DRIVER; SCREW
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 		8-98027-833-0 01 1 0810- ● ● ● ● ● ● ●
115 08.821 PLIER
IDENTIFICATION LABEL FOR KD<6UT> 		8-98099-659-0 01 1 1003-1003 ● ● ● ● ●
115 08.821 PLIER
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 		8-98099-659-0 01 1 1004- ● ● ● ● ● ● ●
115 08.821 PLIER
4JJ1-TCX ENG(LS0) 		8-98027-832-0 01 1 0808-0809 ● ● ●
115 08.821 PLIER
EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) 		8-98027-832-0 01 1 0808-0809 ●
115 08.821 PLIER
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) 		8-98027-832-0 01 1 0808-0809 ●
115 08.821 PLIER
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 		8-98027-832-0 01 1 0810-1002 ● ● ● ● ● ● ●
115 08.821 PLIER
EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98027-832-0 01 1 1003-1003 ● ● ● ● ● ● ●
193 08.820 JACK ASM
4JJ1-TCX ENG(LS0) 		8-97217-789-1 01 1 0808-0809 ●
193 08.820 JACK ASM
4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) 		8-97217-789-1 01 1 0808-0809 ●
193 08.820 JACK ASM
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) 		8-97217-789-1 01 1 0810-1002 ● ● ● ●
193 08.820 JACK ASM
EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97217-789-1 01 1 1003-1003 ● ● ●
193 08.820 JACK ASM 8-97217-789-1 01 1 1003-1003 ●
193 08.820 JACK ASM
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) 		8-97217-789-1 01 1 1004- ● ● ● ●
193 08.820 JACK ASM
4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) 		8-97217-788-1 01 1 0808-0809 ●
193 08.820 JACK ASM
EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) 		8-97217-788-1 01 1 0808-0809 ●
193 08.820 JACK ASM
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) 		8-97217-788-1 01 1 0808-0809 ●
193 08.820 JACK ASM
4JJ1-TCX ENG(LS0) 		8-97217-788-1 01 1 0808-0809 ●
193 08.820 JACK ASM
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) 		8-97217-788-1 01 1 0810-1002 ●
193 08.820 JACK ASM
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) 		8-97217-788-1 01 1 0810-1002 ● ●
193 08.820 JACK ASM
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 		8-97217-788-1 01 1 0810-1002 ● ● ●
193 08.820 JACK ASM
IDENTIFICATION LABEL FOR KD<6UT> 		8-97217-788-1 01 1 1003-1003 ● ● ●
193 08.820 JACK ASM 8-97217-788-1 01 1 1003-1003 ● ● ●
193 08.820 JACK ASM
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) 		8-97217-788-1 01 1 1004- ●
193 08.820 JACK ASM
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) 		8-97217-788-1 01 1 1004- ● ●
193 08.820 JACK ASM
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 		8-97217-788-1 01 1 1004- ● ● ●
209 08.820 CLIP; JACK HANDLE
EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) (A) 		8-97264-777-0 04 1 0808-0809 ●
209 08.820 CLIP; JACK HANDLE
(A) 		8-97264-777-0 04 1 0810- ● ●
209 08.820 CLIP; JACK HANDLE
EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) (B) 		8-97264-782-0 02 1 0808-0809 ●
209 08.820 CLIP; JACK HANDLE
(B) 		8-97264-782-0 02 1 0810- ● ●
224 08.821 BAND; RUBBER,JACK
4JJ1-TCX ENG(LS0) 		8-98027-837-0 01 1 0808-0809 ● ● ●
224 08.821 BAND; RUBBER,JACK
EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) 		8-98027-837-0 01 1 0808-0809 ●
224 08.821 BAND; RUBBER,JACK
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) 		8-98027-837-0 01 1 0808-0809 ●
224 08.821 BAND; RUBBER,JACK
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 		8-98027-837-0 01 1 0810- ● ● ● ● ● ● ●
237 08.821 BAG; TOOL
4JJ1-TCX ENG(LS0) 		8-97945-395-0 01 1 0808-0809 ● ● ●
237 08.821 BAG; TOOL
EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) 		8-97945-395-0 01 1 0808-0809 ●
237 08.821 BAG; TOOL
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) 		8-97945-395-0 01 1 0808-0809 ●
237 08.821 BAG; TOOL
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 		8-97945-395-0 01 1 0810- ● ● ● ● ● ● ●

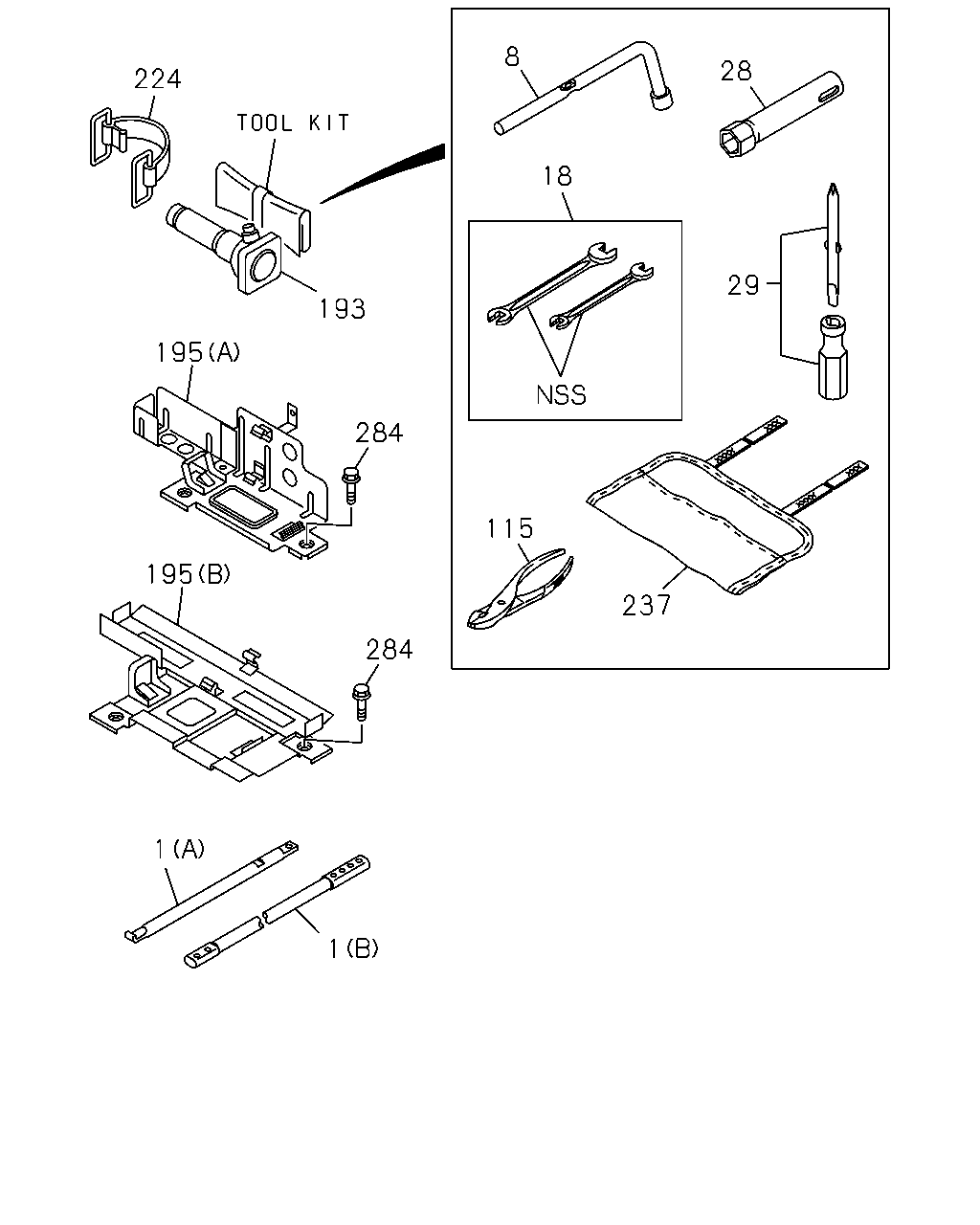

çizim 14404
8 28 224 18 29 193 195 284 115 195 237 284 1 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 07.629 HANDLE; SPARE TIRE CARRIER
4JJ1-TCX ENG(LS0) (A) 		8-97215-330-0 01 1 0808-0809 ● ● ●
1 07.629 HANDLE; SPARE TIRE CARRIER
EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) (A) 		8-97215-330-0 01 1 0808-0809 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) (A) 		8-97215-330-0 01 1 0808-0809 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) (A) 		8-97215-330-0 01 1 0810- ● ● ● ● ● ● ●
1 07.629 HANDLE; SPARE TIRE CARRIER
4JJ1-TCX ENG(LS0) (B) 		8-97215-332-0 03 1 0808-0809 ● ● ●
1 07.629 HANDLE; SPARE TIRE CARRIER
EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) (B) 		8-97215-332-0 03 1 0808-0809 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) (B) 		8-97215-332-0 03 1 0808-0809 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) (B) 		8-97215-332-0 03 1 0810- ● ● ● ● ● ● ●
8 08.821 WRENCH; WHEEL
4JJ1-TCX ENG(LS0) L=19 		8-98027-834-0 01 1 0808-0809 ● ● ●
8 08.821 WRENCH; WHEEL
EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) L=19 		8-98027-834-0 01 1 0808-0809 ●
8 08.821 WRENCH; WHEEL
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) L=19 		8-98027-834-0 01 1 0808-0809 ●
8 08.821 WRENCH; WHEEL
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) L=19 		8-98027-834-0 01 1 0810- ● ● ● ● ● ● ●
18 08.821 WRENCH KIT
4JJ1-TCX ENG(LS0) 8X10,12X14 		8-97945-273-0 01 1 0808-0809 ● ● ●
18 08.821 WRENCH KIT
EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) 8X10,12X14 		8-97945-273-0 01 1 0808-0809 ●
18 08.821 WRENCH KIT
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) 8X10,12X14 		8-97945-273-0 01 1 0808-0809 ●
18 08.821 WRENCH KIT
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 8X10,12X14 		8-97945-273-0 01 1 0810- ● ● ● ● ● ● ●
28 08.821 WRENCH; SPARK PLUG
C24SE ENG(LG1) 		8-98027-835-0 01 1 0810- ● ● ● ●
29 08.821 DRIVER; SCREW
4JJ1-TCX ENG(LS0) 		8-98027-833-0 01 1 0808-0809 ● ● ●
29 08.821 DRIVER; SCREW
EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) 		8-98027-833-0 01 1 0808-0809 ●
29 08.821 DRIVER; SCREW
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) 		8-98027-833-0 01 1 0808-0809 ●
29 08.821 DRIVER; SCREW
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 		8-98027-833-0 01 1 0810- ● ● ● ● ● ● ●
115 08.821 PLIER
IDENTIFICATION LABEL FOR KD<6UT> 		8-98099-659-0 01 1 1003-1003 ● ● ● ● ●
115 08.821 PLIER
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 		8-98099-659-0 01 1 1004- ● ● ● ● ● ● ●
115 08.821 PLIER
4JJ1-TCX ENG(LS0) 		8-98027-832-0 01 1 0808-0809 ● ● ●
115 08.821 PLIER
EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) 		8-98027-832-0 01 1 0808-0809 ●
115 08.821 PLIER
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) 		8-98027-832-0 01 1 0808-0809 ●
115 08.821 PLIER
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 		8-98027-832-0 01 1 0810-1002 ● ● ● ● ● ● ●
115 08.821 PLIER
EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98027-832-0 01 1 1003-1003 ● ● ● ● ● ● ●
193 08.820 JACK ASM
4JJ1-TCX ENG(LS0) 		8-97217-789-1 01 1 0808-0809 ●
193 08.820 JACK ASM
4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) 		8-97217-789-1 01 1 0808-0809 ●
193 08.820 JACK ASM
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) 		8-97217-789-1 01 1 0810-1002 ● ● ● ●
193 08.820 JACK ASM
EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97217-789-1 01 1 1003-1003 ● ● ●
193 08.820 JACK ASM 8-97217-789-1 01 1 1003-1003 ●
193 08.820 JACK ASM
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) 		8-97217-789-1 01 1 1004- ● ● ● ●
193 08.820 JACK ASM
4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) 		8-97217-788-1 01 1 0808-0809 ●
193 08.820 JACK ASM
EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) 		8-97217-788-1 01 1 0808-0809 ●
193 08.820 JACK ASM
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) 		8-97217-788-1 01 1 0808-0809 ●
193 08.820 JACK ASM
4JJ1-TCX ENG(LS0) 		8-97217-788-1 01 1 0808-0809 ●
193 08.820 JACK ASM
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) 		8-97217-788-1 01 1 0810-1002 ●
193 08.820 JACK ASM
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) 		8-97217-788-1 01 1 0810-1002 ● ●
193 08.820 JACK ASM
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 		8-97217-788-1 01 1 0810-1002 ● ● ●
193 08.820 JACK ASM
IDENTIFICATION LABEL FOR KD<6UT> 		8-97217-788-1 01 1 1003-1003 ● ● ●
193 08.820 JACK ASM 8-97217-788-1 01 1 1003-1003 ● ● ●
193 08.820 JACK ASM
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) 		8-97217-788-1 01 1 1004- ●
193 08.820 JACK ASM
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) 		8-97217-788-1 01 1 1004- ● ●
193 08.820 JACK ASM
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 		8-97217-788-1 01 1 1004- ● ● ●
195 08.820 BRACKET; JACK
4JJ1-TCX ENG(LS0) (A) 		8-97249-692-2 01 1 0808-0809 ●
195 08.820 BRACKET; JACK
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) (A) 		8-97249-692-2 01 1 0808-0809 ●
195 08.820 BRACKET; JACK
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) (A) 		8-97249-692-2 01 1 0810- ● ● ●
195 08.820 BRACKET; JACK
4JJ1-TCX ENG(LS0) (B) 		8-97249-698-2 01 1 0808-0809 ● ●
195 08.820 BRACKET; JACK
(B) 		8-97249-698-2 01 1 0810- ● ●
195 08.820 BRACKET; JACK
EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) (C) 		8-97249-694-5 01 1 0808-0809 ●
195 08.820 BRACKET; JACK
(C) 		8-97249-694-5 01 1 0810- ● ●
224 08.821 BAND; RUBBER,JACK
4JJ1-TCX ENG(LS0) 		8-98027-837-0 01 1 0808-0809 ● ● ●
224 08.821 BAND; RUBBER,JACK
EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) 		8-98027-837-0 01 1 0808-0809 ●
224 08.821 BAND; RUBBER,JACK
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) 		8-98027-837-0 01 1 0808-0809 ●
224 08.821 BAND; RUBBER,JACK
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 		8-98027-837-0 01 1 0810- ● ● ● ● ● ● ●
237 08.821 BAG; TOOL
4JJ1-TCX ENG(LS0) 		8-97945-395-0 01 1 0808-0809 ● ● ●
237 08.821 BAG; TOOL
EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) 		8-97945-395-0 01 1 0808-0809 ●
237 08.821 BAG; TOOL
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) 		8-97945-395-0 01 1 0808-0809 ●
237 08.821 BAG; TOOL
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 		8-97945-395-0 01 1 0810- ● ● ● ● ● ● ●
284 08.821 BOLT; TOOL BOX
M6X16 W/PL WASHER 		8-98049-085-0 03 1 0808-0809 ●
284 08.821 BOLT; TOOL BOX
EXTEND CAB EXTRA LONG(TF**CK) M6X16 W/PL WASHER 		8-98049-085-0 03 1 0808-0809 ●
284 08.821 BOLT; TOOL BOX
4X4 REGULAR CAB EXTRA LONG(TFS*SK) M6X16 W/PL WASHER 		8-98049-085-0 03 1 0808-0809 ●
284 08.821 BOLT; TOOL BOX
M6X16 W/PL WASHER 		8-98049-085-0 03 1 0810- ● ● ● ● ●
284 08.821 BOLT; TOOL BOX
M6X16 W/PL WASHER 		8-98049-085-0 02 1 0808- ● ●

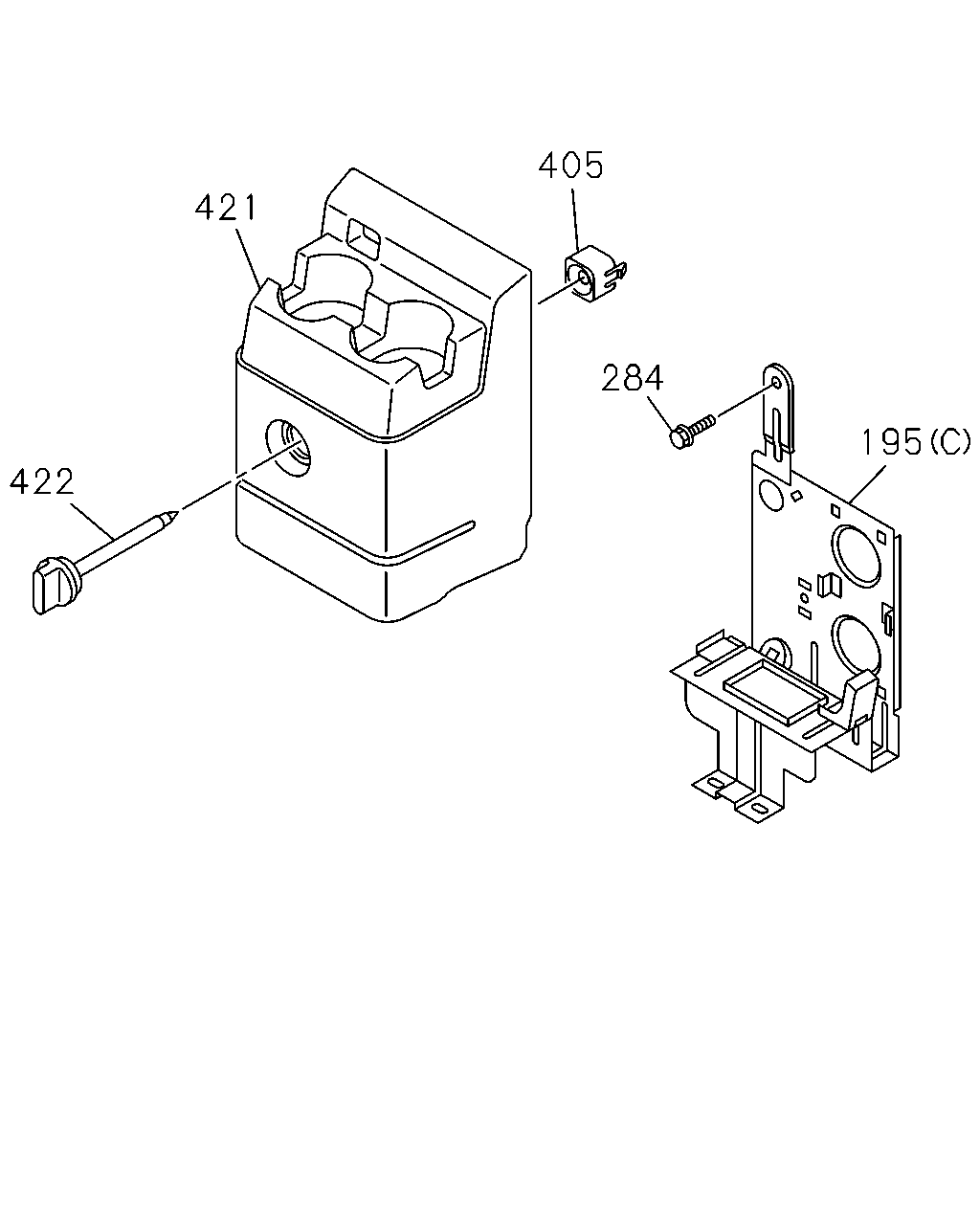

çizim 14553
405 421 284 195 422
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
195 08.820 BRACKET; JACK
4JJ1-TCX ENG(LS0) (A) 		8-97249-692-2 01 1 0808-0809 ●
195 08.820 BRACKET; JACK
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) (A) 		8-97249-692-2 01 1 0808-0809 ●
195 08.820 BRACKET; JACK
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) (A) 		8-97249-692-2 01 1 0810- ● ● ●
195 08.820 BRACKET; JACK
4JJ1-TCX ENG(LS0) (B) 		8-97249-698-2 01 1 0808-0809 ● ●
195 08.820 BRACKET; JACK
(B) 		8-97249-698-2 01 1 0810- ● ●
195 08.820 BRACKET; JACK
EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) (C) 		8-97249-694-5 01 1 0808-0809 ●
195 08.820 BRACKET; JACK
(C) 		8-97249-694-5 01 1 0810- ● ●
284 08.821 BOLT; TOOL BOX
M6X16 W/PL WASHER 		8-98049-085-0 03 1 0808-0809 ●
284 08.821 BOLT; TOOL BOX
EXTEND CAB EXTRA LONG(TF**CK) M6X16 W/PL WASHER 		8-98049-085-0 03 1 0808-0809 ●
284 08.821 BOLT; TOOL BOX
4X4 REGULAR CAB EXTRA LONG(TFS*SK) M6X16 W/PL WASHER 		8-98049-085-0 03 1 0808-0809 ●
284 08.821 BOLT; TOOL BOX
M6X16 W/PL WASHER 		8-98049-085-0 03 1 0810- ● ● ● ● ●
284 08.821 BOLT; TOOL BOX
M6X16 W/PL WASHER 		8-98049-085-0 02 1 0808- ● ●
405 08.821 GUIDE; COUNTER
EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) 		8-97328-053-0 01 1 0808-0809 ●
405 08.821 GUIDE; COUNTER 8-97328-053-0 01 1 0810- ● ●
421 08.820 COVER; JACK
EXTEND CAB EXTRA LONG(TF**CK) DARK GRAY 		8-97409-188-0 01 1 0808-0809 ●
421 08.820 COVER; JACK
DARK GRAY 		8-97409-188-1 01 1 0810- ● ●
422 08.820 RETAINER; JACK
EXTEND CAB EXTRA LONG(TF**CK) DARK GRAY 		8-97409-189-0 01 1 0808-0809 ●
422 08.820 RETAINER; JACK
DARK GRAY 		8-97409-189-0 01 1 0810- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
