4-40 — STEERING UNIT (#7712) — 124 parça

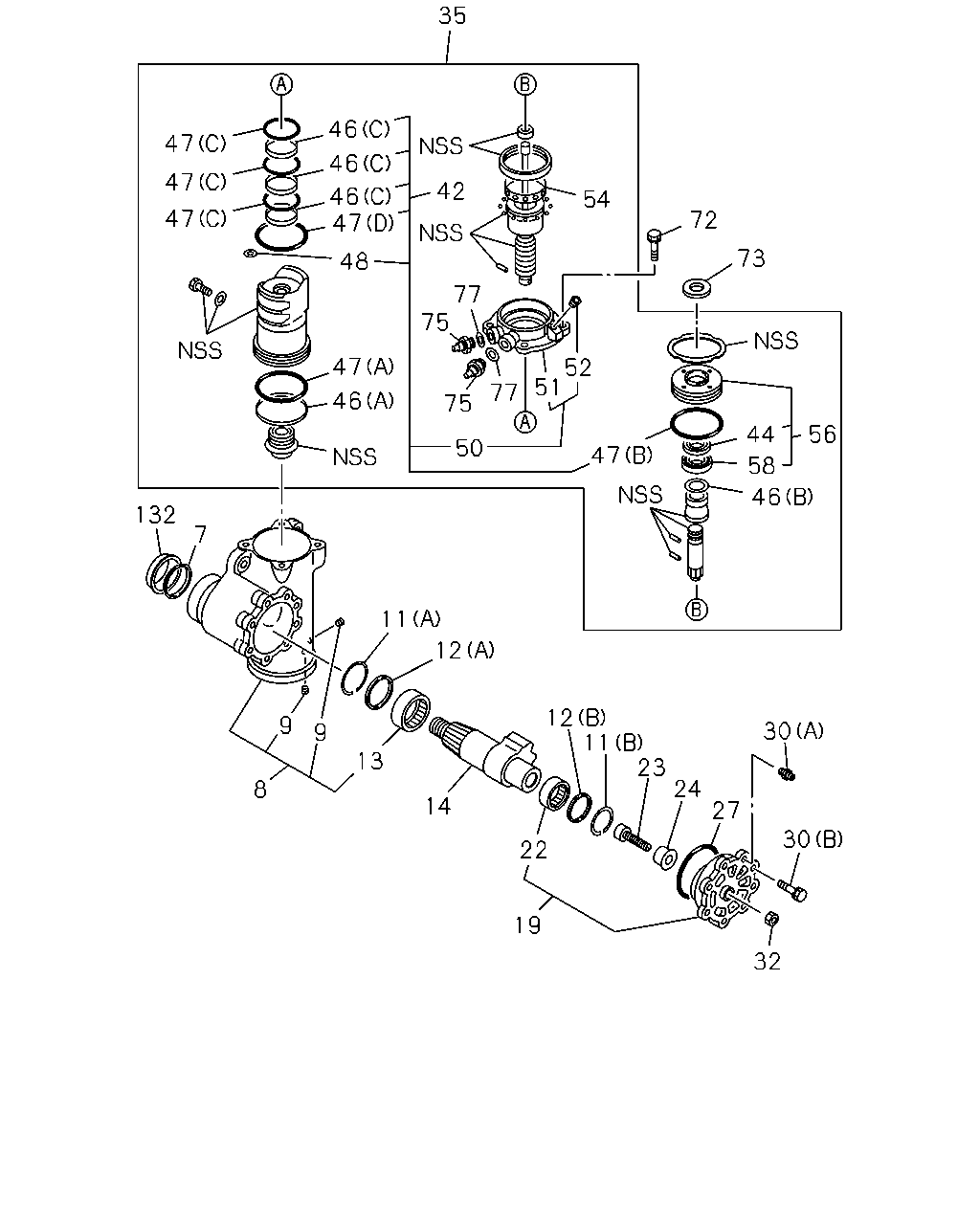

çizim 7146
35 46 47 46 47 42 46 47 54 47 72 73 48 77 75 47 52 51 77 46 75 56 44 50 47 58 46 132 7 11 12 12 11 23 24 9 30 9 13 8 14 27 30 22 19 32
BalonParca AdiParca NoAdetTipApplied Date
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44249-041-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: B = 1-44000-863-1 		1-44240-102-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: A = 1-44000-861-2 		1-44240-114-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: A = 1-44000-861-2 		1-44519-071-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: B = 1-44000-863-1 		1-44519-071-0 02 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44249-075-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44519-252-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44249-076-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44519-265-0 01 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44249-072-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44321-035-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44260-021-0 01 1 -
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44519-234-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44277-003-1 01 1 -
24 RETAINER; STRG UNIT
ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44279-011-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44269-035-0 01 1 -
30 BOLT; COVER STRG UNIT
(A) ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-19519-121-0 03 1 -
30 BOLT; COVER STRG UNIT
(B) ASM PART: A = 1-44000-861-2 		1-44279-012-0 05 1 0202-
30 BOLT; COVER STRG UNIT
(B) ASM PART: B = 1-44000-863-1 		1-44279-012-0 05 1 -
30 BOLT; COVER STRG UNIT
(B) ASM PART: A = 1-44000-861-2 		1-44569-103-0 05 1 -0201
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44269-007-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 1-44000-861-2 		1-44150-084-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: B = 1-44000-863-1 		1-44150-085-0 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44560-080-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44259-036-1 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44159-170-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44519-255-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44159-163-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44519-260-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44519-261-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44519-262-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44560-076-0 01 1 -
51 HOUSING; VALVE STRG UNIT
ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44561-020-0 01 1 -
52 PLUG; HSG STRG UNIT
ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44519-071-0 01 1 -
54 CASE; BEARING STRG UNIT
ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44241-088-0 01 1 -
56 PLUG & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44250-006-1 01 1 -
58 BEARING; HSG STRG UNIT
ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44259-029-0 01 1 -
72 BOLT; HSG FIX STRG UNIT
ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44259-017-0 04 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44519-114-0 01 1 -
75 CONNECTOR; HSG STRG UNIT
M22X1.5 ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44259-035-1 02 1 -
77 GASKET; CONNECTOR,STRG UNIT
ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		9-89970-787-0 02 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44519-227-0 01 1 -

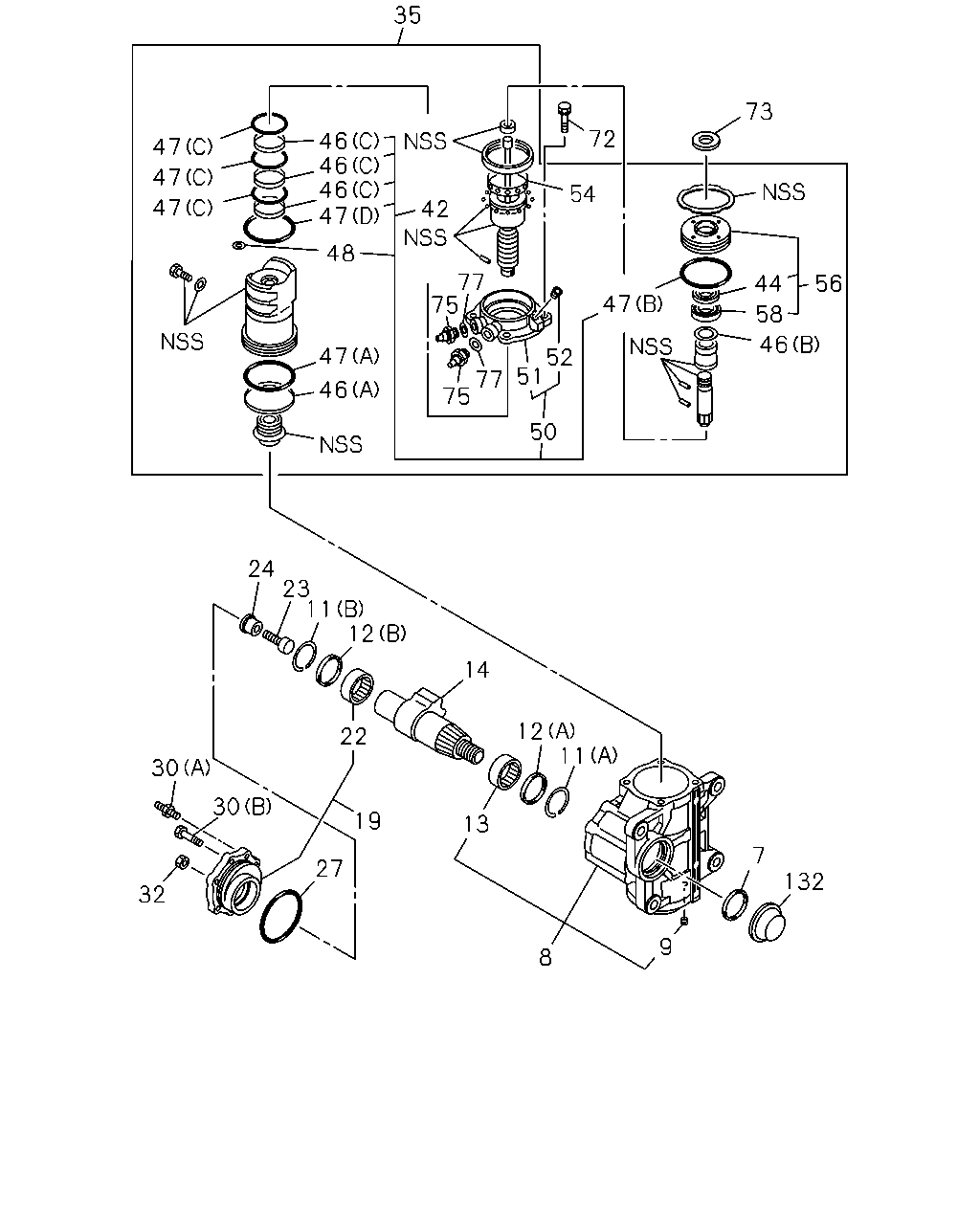

çizim 8356
35 73 72 46 46 46 47 47 47 54 47 42 48 77 75 56 44 47 58 46 47 52 51 77 75 46 50 24 23 11 12 14 12 11 22 30 30 19 13 7 27 132 32 9 8
BalonParca AdiParca NoAdetTipApplied Date
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44249-041-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: B = 1-44000-863-1 		1-44240-102-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: A = 1-44000-861-2 		1-44240-114-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: A = 1-44000-861-2 		1-44519-071-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: B = 1-44000-863-1 		1-44519-071-0 02 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44249-075-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44519-252-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44249-076-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44519-265-0 01 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44249-072-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44321-035-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44260-021-0 01 1 -
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44519-234-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44277-003-1 01 1 -
24 RETAINER; STRG UNIT
ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44279-011-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44269-035-0 01 1 -
30 BOLT; COVER STRG UNIT
(A) ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-19519-121-0 03 1 -
30 BOLT; COVER STRG UNIT
(B) ASM PART: A = 1-44000-861-2 		1-44279-012-0 05 1 0202-
30 BOLT; COVER STRG UNIT
(B) ASM PART: B = 1-44000-863-1 		1-44279-012-0 05 1 -
30 BOLT; COVER STRG UNIT
(B) ASM PART: A = 1-44000-861-2 		1-44569-103-0 05 1 -0201
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44269-007-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 1-44000-861-2 		1-44150-084-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: B = 1-44000-863-1 		1-44150-085-0 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44560-080-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44259-036-1 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44159-170-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44519-255-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44159-163-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44519-260-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44519-261-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44519-262-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44560-076-0 01 1 -
51 HOUSING; VALVE STRG UNIT
ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44561-020-0 01 1 -
52 PLUG; HSG STRG UNIT
ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44519-071-0 01 1 -
54 CASE; BEARING STRG UNIT
ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44241-088-0 01 1 -
56 PLUG & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44250-006-1 01 1 -
58 BEARING; HSG STRG UNIT
ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44259-029-0 01 1 -
72 BOLT; HSG FIX STRG UNIT
ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44259-017-0 04 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44519-114-0 01 1 -
75 CONNECTOR; HSG STRG UNIT
M22X1.5 ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44259-035-1 02 1 -
77 GASKET; CONNECTOR,STRG UNIT
ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		9-89970-787-0 02 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44519-227-0 01 1 -

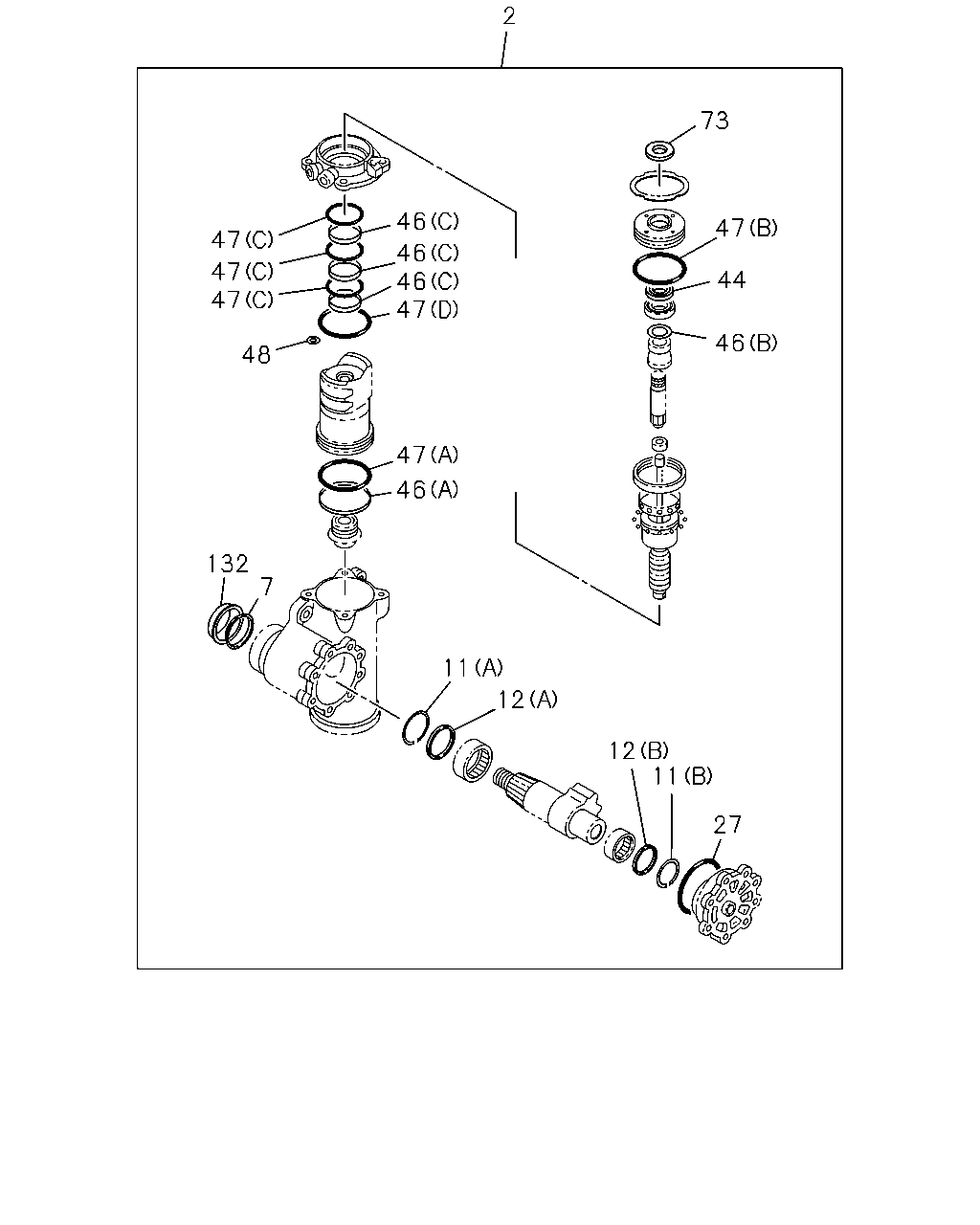

çizim 44435
2 73 46 47 47 46 46 47 47 47 44 46 48 47 46 132 7 11 12 12 11 27
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; STRG UNIT,2 YEAR
2 YEAR ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-85574-052-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44249-041-0 01 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44249-075-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44519-252-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44249-076-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44519-265-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44269-035-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44259-036-1 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44159-170-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44519-255-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44159-163-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44519-260-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44519-261-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44519-262-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44519-114-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44519-227-0 01 1 -

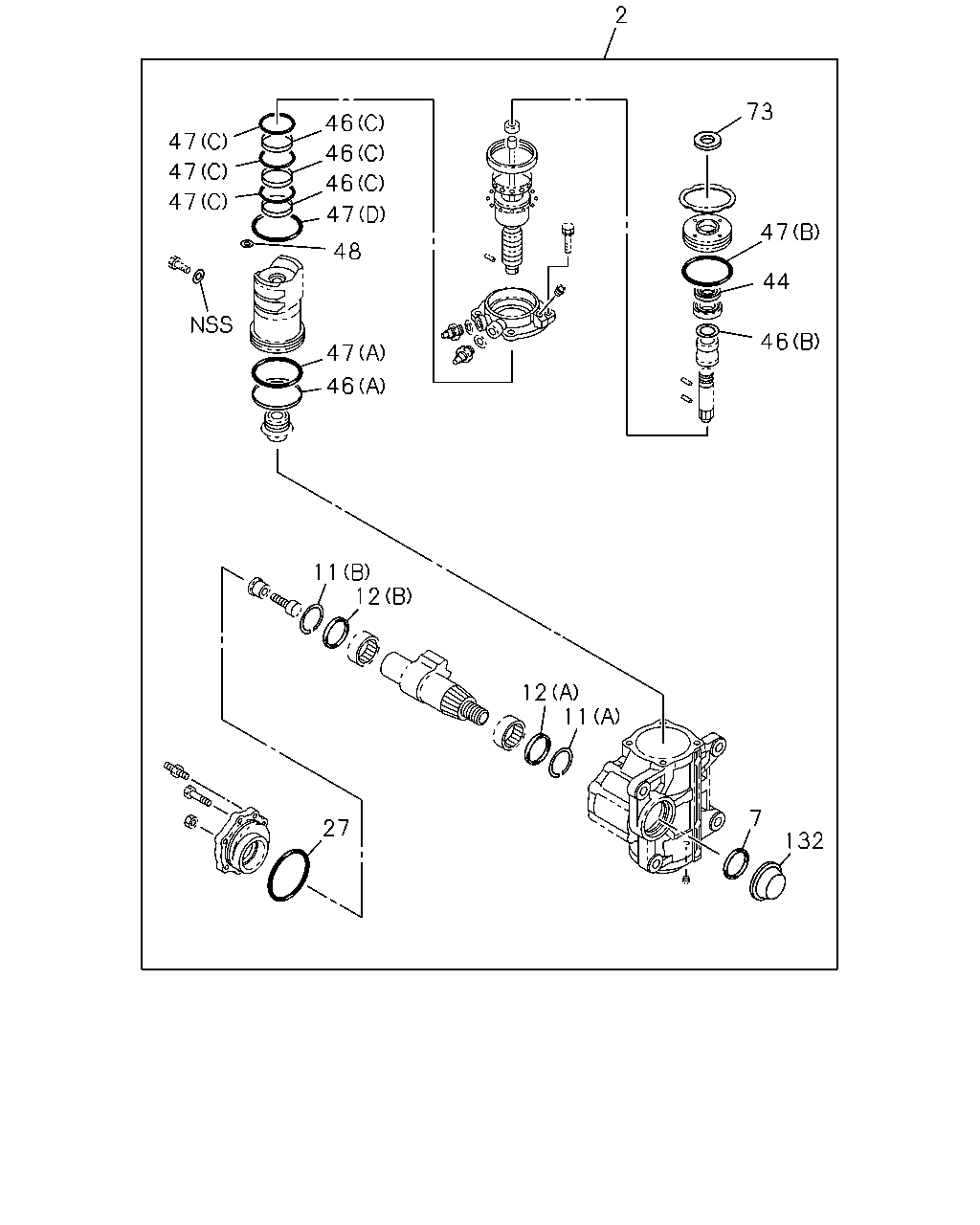

çizim 45177
2 73 46 47 46 47 46 47 47 47 48 44 46 47 46 11 12 12 11 7 27 132
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; STRG UNIT,2 YEAR
2 YEAR ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-85574-052-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44249-041-0 01 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44249-075-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44519-252-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44249-076-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44519-265-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44269-035-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44259-036-1 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44159-170-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44519-255-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44159-163-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44519-260-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44519-261-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44519-262-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44519-114-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-861-2, B = 1-44000-863-1 		1-44519-227-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
