Sayfa 8-90 - Isuzu EPC

8-90 — RADIO AND TV (#77119) — 178 parça

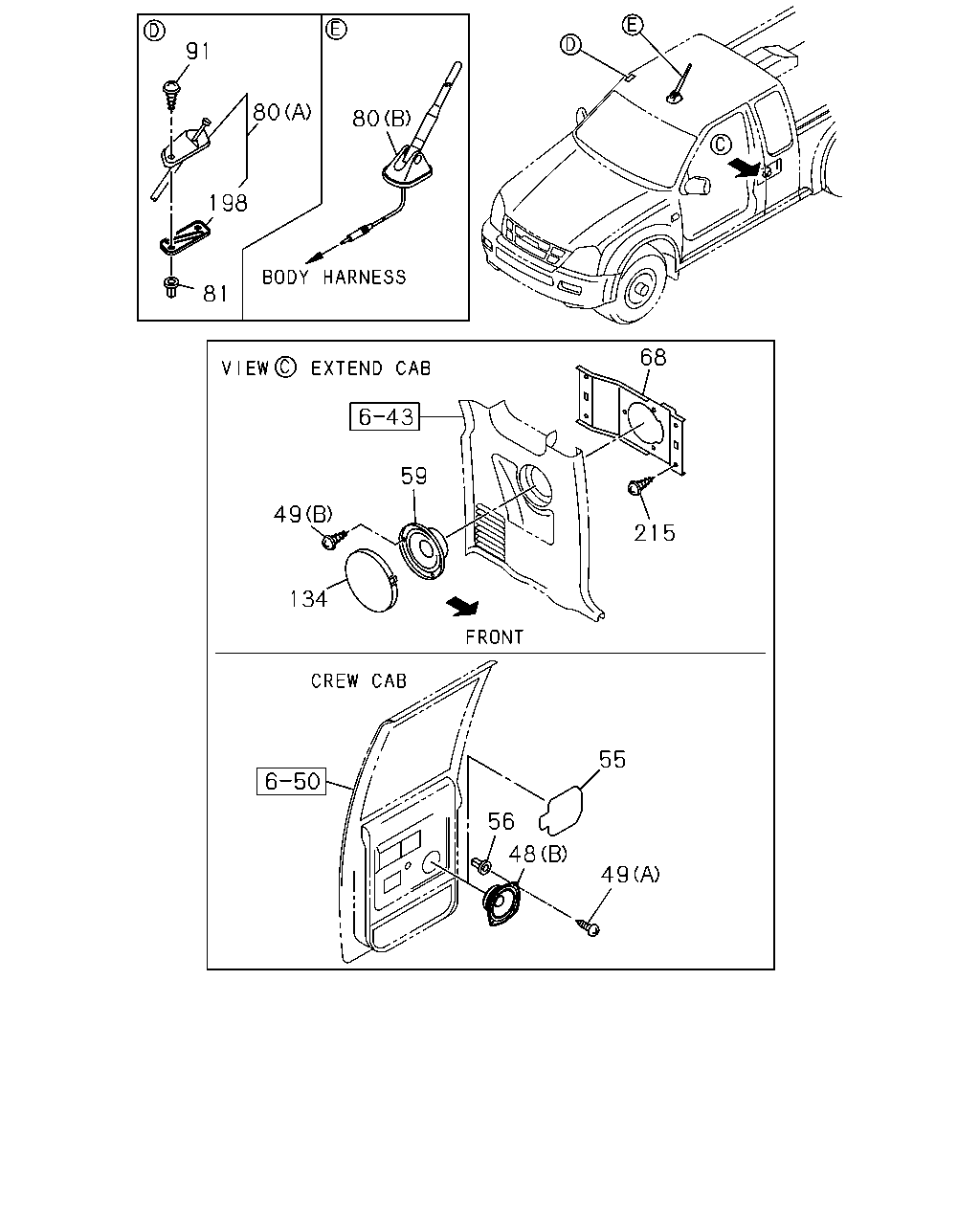

91 80 80 198 81 68 59 49 215 134 55 56 48 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
48	09.650 SPEAKER; AUDIO 4-SPEAKER SYSTEM BASE<UQ4> (C)	8-98061-044-0	01	1	0808-0809	●
48	09.650 SPEAKER; AUDIO 6-SPEAKER SYSTEM BASE<UW5> (C)	8-98061-044-0	01	1	0808-0809		●	●
48	09.650 SPEAKER; AUDIO EXTEND CAB EXTRA LONG(TF**CK) 6-SPEAKER SYSTEM BASE<UW5> (C)	8-98061-044-0	01	1	0808-0809				●
48	09.650 SPEAKER; AUDIO 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4-SPEAKER SYSTEM BASE<UQ4> (C)	8-98061-044-0	01	1	0808-0809					●
48	09.650 SPEAKER; AUDIO 6-SPEAKER SYSTEM BASE<UW5> (C)	8-98061-044-0	01	1	0810-		●	●	●		●
48	09.650 SPEAKER; AUDIO 4-SPEAKER SYSTEM BASE<UQ4> (C)	8-98061-044-0	01	1	0810-	●				●		●
48	09.650 SPEAKER; AUDIO 4-SPEAKER SYSTEM BASE<UQ4> (C)	8-98061-045-0	01	1	0808-0809	●
48	09.650 SPEAKER; AUDIO 6-SPEAKER SYSTEM BASE<UW5> (C)	8-98061-045-0	01	1	0808-0809		●	●
48	09.650 SPEAKER; AUDIO EXTEND CAB EXTRA LONG(TF**CK) 6-SPEAKER SYSTEM BASE<UW5> (C)	8-98061-045-0	01	1	0808-0809				●
48	09.650 SPEAKER; AUDIO 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4-SPEAKER SYSTEM BASE<UQ4> (C)	8-98061-045-0	01	1	0808-0809					●
48	09.650 SPEAKER; AUDIO 6-SPEAKER SYSTEM BASE<UW5> (C)	8-98061-045-0	01	1	0810-		●	●	●		●
48	09.650 SPEAKER; AUDIO 4-SPEAKER SYSTEM BASE<UQ4> (C)	8-98061-045-0	01	1	0810-	●				●		●
48	09.650 SPEAKER; AUDIO 4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKERSYSTEM BASE<UW5>,2-SPEAKER SYSTEM B ASE<U95> (A)	8-98061-046-0	02	1	0808-0809	●	●	●	●	●
48	09.650 SPEAKER; AUDIO 4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKERSYSTEM BASE<UW5>,2-SPEAKER SYSTEM B ASE<U95> (A)	8-98061-046-0	02	1	0810-		●	●	●		●
48	09.650 SPEAKER; AUDIO 4-SPEAKER SYSTEM BASE<UQ4>, 2-SPEAKERSYSTEM BASE<U95> (A)	8-98061-046-0	02	1	0810-	●				●		●
48	09.650 SPEAKER; AUDIO 4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKERSYSTEM BASE<UW5> (B)	8-98061-047-0	02	1	0808-		●	●
49	09.655 SCREW; SPEAKER 4-SPEAKER SYSTEM BASE<UQ4> (C) M4X10	0-34218-410-0	06	1	0808-0809	●
49	09.655 SCREW; SPEAKER 6-SPEAKER SYSTEM BASE<UW5> (C) M4X10	0-34218-410-0	06	1	0808-0809		●	●
49	09.655 SCREW; SPEAKER EXTEND CAB EXTRA LONG(TF**CK) 6-SPEAKER SYSTEM BASE<UW5> (C) M4X10	0-34218-410-0	06	1	0808-0809				●
49	09.655 SCREW; SPEAKER 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4-SPEAKER SYSTEM BASE<UQ4> (C) M4X10	0-34218-410-0	06	1	0808-0809					●
49	09.655 SCREW; SPEAKER 6-SPEAKER SYSTEM BASE<UW5> (C) M4X10	0-34218-410-0	06	1	0810-		●	●	●		●
49	09.655 SCREW; SPEAKER 4-SPEAKER SYSTEM BASE<UQ4> (C) M4X10	0-34218-410-0	06	1	0810-	●				●		●
49	09.655 SCREW; SPEAKER 4-SPEAKER SYSTEM BASE<UQ4>, 2-SPEAKERSYSTEM BASE<U95> 12.182 (A) M5X14	8-94152-495-0	02	1	0808-0809	●
49	09.655 SCREW; SPEAKER 4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKERSYSTEM BASE<UW5>,2-SPEAKER SYSTEM B ASE<U95> 12.182 (A) M5X14	8-94152-495-0	02	1	0808-0809		●	●
49	09.655 SCREW; SPEAKER 4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKERSYSTEM BASE<UW5> 12.182 (A) M5X14	8-94152-495-0	02	1	0808-0809		●	●
49	09.655 SCREW; SPEAKER EXTEND CAB EXTRA LONG(TF**CK) 4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKERSYSTEM BASE<UW5>,2-SPEAKER SYSTEM B ASE<U95> 12.182 (A) M5X14	8-94152-495-0	02	1	0808-0809				●
49	09.655 SCREW; SPEAKER 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4-SPEAKER SYSTEM BASE<UQ4>, 2-SPEAKERSYSTEM BASE<U95> 12.182 (A) M5X14	8-94152-495-0	02	1	0808-0809					●
49	09.655 SCREW; SPEAKER 4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKERSYSTEM BASE<UW5>,2-SPEAKER SYSTEM B ASE<U95> 12.182 (A) M5X14	8-94152-495-0	02	1	0810-		●	●	●		●
49	09.655 SCREW; SPEAKER 4-SPEAKER SYSTEM BASE<UQ4>, 2-SPEAKERSYSTEM BASE<U95> 12.182 (A) M5X14	8-94152-495-0	02	1	0810-	●				●		●
49	09.655 SCREW; SPEAKER 4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKERSYSTEM BASE<UW5> 12.182 (A) M5X14	8-94152-495-0	02	1	0810-		●	●
49	09.655 SCREW; SPEAKER EXTEND CAB EXTRA LONG(TF**CK) 4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKERSYSTEM BASE<UW5> 08.083 (B) M5X16 TAPPING	8-98061-685-0	06	1	0808-0809				●
49	09.655 SCREW; SPEAKER 4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKERSYSTEM BASE<UW5> 08.083 (B) M5X16 TAPPING	8-98061-685-0	06	1	0810-1004				●		●
49	09.655 SCREW; SPEAKER 4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKERSYSTEM BASE<UW5> 08.083 (B) M5X16 TAPPING	8-98167-449-0	06	1	1005-				●		●
55	09.650 COVER; SPEAKER HOLE EXC. 4-SPEAKER SYSTEM BASE<UQ4>, 2-SPEAKER SYSTEM BASE<U95>	8-97238-485-1	02	1	0808-0809	●
55	09.650 COVER; SPEAKER HOLE EXC. 4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKER SYSTEM BASE<UW5>,2-SPEAKER SYSTEM BASE<U95>	8-97238-485-1	02	1	0808-0809		●	●
55	09.650 COVER; SPEAKER HOLE EXC. 4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKER SYSTEM BASE<UW5>	8-97238-485-1	02	1	0808-0809		●	●
55	09.650 COVER; SPEAKER HOLE EXTEND CAB EXTRA LONG(TF**CK) EXC. 4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKER SYSTEM BASE<UW5>,2-SPEAKER SYS TEM BASE<U95>	8-97238-485-1	02	1	0808-0809				●
55	09.650 COVER; SPEAKER HOLE 4X4 REGULAR CAB EXTRA LONG(TFS*SK) EXC. 4-SPEAKER SYSTEM BASE<UQ4>, 2-SPEAKER SYSTEM BASE<U95>	8-97238-485-1	02	1	0808-0809					●
55	09.650 COVER; SPEAKER HOLE EXC. 4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKER SYSTEM BASE<UW5>,2-SPEAKER SYSTEM BASE<U95>	8-97238-485-1	02	1	0810-		●	●	●		●
55	09.650 COVER; SPEAKER HOLE EXC. 4-SPEAKER SYSTEM BASE<UQ4>, 2-SPEAKER SYSTEM BASE<U95>	8-97238-485-1	02	1	0810-	●				●		●
55	09.650 COVER; SPEAKER HOLE EXC. 4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKER SYSTEM BASE<UW5>	8-97238-485-1	02	1	0810-		●	●
56	09.655 NUT; SPEAKER,RADIO OR STEREO 4-SPEAKER SYSTEM BASE<UQ4>, 2-SPEAKERSYSTEM BASE<U95> 10.565	8-94152-494-0	02	1	0808-0809	●
56	09.655 NUT; SPEAKER,RADIO OR STEREO 4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKERSYSTEM BASE<UW5>,2-SPEAKER SYSTEM B ASE<U95> 10.565	8-94152-494-0	02	1	0808-0809		●	●
56	09.655 NUT; SPEAKER,RADIO OR STEREO 4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKERSYSTEM BASE<UW5> 10.565	8-94152-494-0	02	1	0808-0809		●	●
56	09.655 NUT; SPEAKER,RADIO OR STEREO EXTEND CAB EXTRA LONG(TF**CK) 4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKERSYSTEM BASE<UW5>,2-SPEAKER SYSTEM B ASE<U95> 10.565	8-94152-494-0	02	1	0808-0809				●
56	09.655 NUT; SPEAKER,RADIO OR STEREO 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4-SPEAKER SYSTEM BASE<UQ4>, 2-SPEAKERSYSTEM BASE<U95> 10.565	8-94152-494-0	02	1	0808-0809					●
56	09.655 NUT; SPEAKER,RADIO OR STEREO 4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKERSYSTEM BASE<UW5>,2-SPEAKER SYSTEM B ASE<U95> 10.565	8-94152-494-0	02	1	0810-		●	●	●		●
56	09.655 NUT; SPEAKER,RADIO OR STEREO 4-SPEAKER SYSTEM BASE<UQ4>, 2-SPEAKERSYSTEM BASE<U95> 10.565	8-94152-494-0	02	1	0810-	●				●		●
56	09.655 NUT; SPEAKER,RADIO OR STEREO 4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKERSYSTEM BASE<UW5> 10.565	8-94152-494-0	02	1	0810-		●	●
59	09.665 SPEAKER; AUDIO EXTEND CAB EXTRA LONG(TF**CK) 4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKERSYSTEM BASE<UW5>	8-98061-043-0	02	1	0808-0809				●
59	09.665 SPEAKER; AUDIO 4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKERSYSTEM BASE<UW5>	8-98061-043-0	02	1	0810-				●		●
68	09.667 BRACKET; RR SPEAKER EXTEND CAB EXTRA LONG(TF**CK) 4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKERSYSTEM BASE<UW5>	8-97238-486-1	02	1	0808-0809				●
68	09.667 BRACKET; RR SPEAKER 4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKERSYSTEM BASE<UW5>	8-97238-486-1	02	1	0810-				●		●
80	09.645 ANTENNA (A)	8-98044-180-0	01	1	0808-0809	●
80	09.645 ANTENNA EXC. ROOF RADIO ANTENNA<U71> (A)	8-98044-180-0	01	1	0808-0809		●
80	09.645 ANTENNA EXTEND CAB EXTRA LONG(TF**CK) (A)	8-98044-180-0	01	1	0808-0809				●
80	09.645 ANTENNA 4X4 REGULAR CAB EXTRA LONG(TFS*SK) (A)	8-98044-180-0	01	1	0808-0809					●
80	09.645 ANTENNA 4X4 CREW CAB LONG(TFS*WF) EXC. ROOF RADIO ANTENNA<U71> (A)	8-98044-180-0	01	1	0808-0809			●
80	09.645 ANTENNA CREW CAB EXTRA LONG(TF**WK) (A)	8-98044-180-0	01	1	0808-0809			●
80	09.645 ANTENNA EXC. ROOF RADIO ANTENNA<U71> (A)	8-98044-180-0	01	1	0810-	●	●	●	●	●	●	●
80	09.645 ANTENNA ROOF RADIO ANTENNA<U71> (B)	8-98053-513-0	01	1	0808-0809		●
80	09.645 ANTENNA 4X4 CREW CAB LONG(TFS*WF) ROOF RADIO ANTENNA<U71> (B)	8-98053-513-0	01	1	0808-0809			●
80	09.645 ANTENNA ROOF RADIO ANTENNA<U71> (B)	8-98053-513-0	01	1	0810-		●	●	●		●
81	09.647 NUT; ANTENNA POLE M5 POP NUT	8-97249-574-0	02	1	0808-0809	●
81	09.647 NUT; ANTENNA POLE EXC. ROOF RADIO ANTENNA<U71> M5 POP NUT	8-97249-574-0	02	1	0808-0809		●
81	09.647 NUT; ANTENNA POLE EXTEND CAB EXTRA LONG(TF**CK) M5 POP NUT	8-97249-574-0	02	1	0808-0809				●
81	09.647 NUT; ANTENNA POLE 4X4 REGULAR CAB EXTRA LONG(TFS*SK) M5 POP NUT	8-97249-574-0	02	1	0808-0809					●
81	09.647 NUT; ANTENNA POLE 4X4 CREW CAB LONG(TFS*WF) EXC. ROOF RADIO ANTENNA<U71> M5 POP NUT	8-97249-574-0	02	1	0808-0809			●
81	09.647 NUT; ANTENNA POLE CREW CAB EXTRA LONG(TF**WK) M5 POP NUT	8-97249-574-0	02	1	0808-0809			●
81	09.647 NUT; ANTENNA POLE EXC. ROOF RADIO ANTENNA<U71> M5 POP NUT	8-97249-574-0	02	1	0810-	●	●	●	●	●	●	●
91	09.663 BOLT; ANTENNA M5X16	8-97375-569-0	02	1	0808-0809	●
91	09.663 BOLT; ANTENNA EXC. ROOF RADIO ANTENNA<U71> M5X16	8-97375-569-0	02	1	0808-0809		●
91	09.663 BOLT; ANTENNA EXTEND CAB EXTRA LONG(TF**CK) M5X16	8-97375-569-0	02	1	0808-0809				●
91	09.663 BOLT; ANTENNA 4X4 REGULAR CAB EXTRA LONG(TFS*SK) M5X16	8-97375-569-0	02	1	0808-0809					●
91	09.663 BOLT; ANTENNA 4X4 CREW CAB LONG(TFS*WF) EXC. ROOF RADIO ANTENNA<U71> M5X16	8-97375-569-0	02	1	0808-0809			●
91	09.663 BOLT; ANTENNA CREW CAB EXTRA LONG(TF**WK) M5X16	8-97375-569-0	02	1	0808-0809			●
91	09.663 BOLT; ANTENNA EXC. ROOF RADIO ANTENNA<U71> M5X16	8-97375-569-0	02	1	0810-	●	●	●	●	●	●	●
134	09.665 GRILLE; SPEAKER,RR EXTEND CAB EXTRA LONG(TF**CK) DARK GRAY	8-97403-886-1	02	1	0808-0809				●
134	09.665 GRILLE; SPEAKER,RR DARK GRAY	8-97403-886-1	02	1	0810-				●		●
198	09.647 SHEET; ANTENNA	8-97354-772-0	01	1	0808-0809	●
198	09.647 SHEET; ANTENNA EXC. ROOF RADIO ANTENNA<U71>	8-97354-772-0	01	1	0808-0809		●
198	09.647 SHEET; ANTENNA EXTEND CAB EXTRA LONG(TF**CK)	8-97354-772-0	01	1	0808-0809				●
198	09.647 SHEET; ANTENNA 4X4 REGULAR CAB EXTRA LONG(TFS*SK)	8-97354-772-0	01	1	0808-0809					●
198	09.647 SHEET; ANTENNA 4X4 CREW CAB LONG(TFS*WF) EXC. ROOF RADIO ANTENNA<U71>	8-97354-772-0	01	1	0808-0809			●
198	09.647 SHEET; ANTENNA CREW CAB EXTRA LONG(TF**WK)	8-97354-772-0	01	1	0808-0809			●
198	09.647 SHEET; ANTENNA EXC. ROOF RADIO ANTENNA<U71>	8-97354-772-0	01	1	0810-	●	●	●	●	●	●	●
215	09.645 SCREW; BRKT,SPEAKER EXTEND CAB EXTRA LONG(TF**CK) 4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKERSYSTEM BASE<UW5> 09.242 M6X12	9-09829-330-1	08	1	0808-0809				●
215	09.645 SCREW; BRKT,SPEAKER 4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKERSYSTEM BASE<UW5> 09.242 M6X12	9-09829-330-1	08	1	0810-				●		●

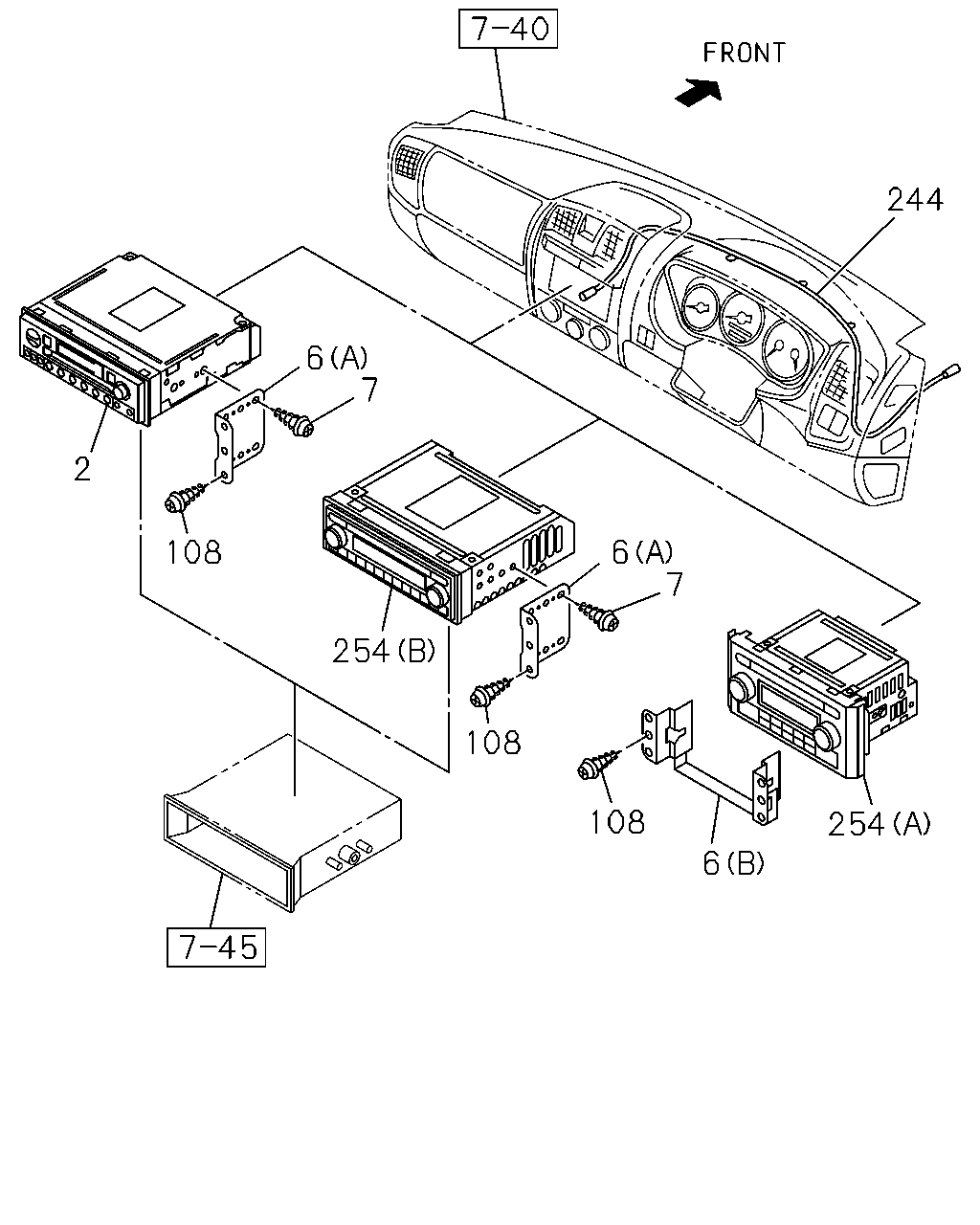

244 6 7 2 108 6 7 254 108 108 254 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
2	09.645 RADIO & CASSETTE DECK ASM AM/FM W/CASSETTE 2 SPEAKERS(UN6)	8-97369-698-0	01	1	0810-0910		●	●	●	●	●	●
6	09.645 BRACKET; RADIO TO PANEL RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) (A)	8-98007-736-0	02	1	0808-0809	●	●	●
6	09.645 BRACKET; RADIO TO PANEL EXTEND CAB EXTRA LONG(TF**CK) RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) (A)	8-98007-736-0	02	1	0808-0809				●
6	09.645 BRACKET; RADIO TO PANEL 4X4 REGULAR CAB EXTRA LONG(TFS*SK) RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) (A)	8-98007-736-0	02	1	0808-0809					●
6	09.645 BRACKET; RADIO TO PANEL RADIO DELETE(UL5),AM/FM W/CASSETTE 2SPEAKERS(UN6),RADIO AM/FM STEREO,SE EK/SCAN,CD(UT3),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) (A)	8-98007-736-0	02	1	0810-0910	●	●	●	●	●	●	●
6	09.645 BRACKET; RADIO TO PANEL RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3),RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C) (A)	8-98007-736-0	02	1	0911-	●	●	●	●	●	●	●
6	09.645 BRACKET; RADIO TO PANEL RADIO AM/FM W/CD,W/MP3(ULA) (B)	8-98004-773-0	01	1	0808-0809		●
6	09.645 BRACKET; RADIO TO PANEL 4X4 CREW CAB LONG(TFS*WF) RADIO AM/FM W/CD,W/MP3(ULA) (B)	8-98004-773-0	01	1	0808-0809			●
6	09.645 BRACKET; RADIO TO PANEL RADIO AM/FM W/CD,W/MP3(ULA) (B)	8-98004-773-0	01	1	0810-		●	●	●	●	●	●
7	09.650 SCREW; RADIO RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) 03.680 M5X10 W/LK+PL WASHER	0-36230-510-0	04	1	0808-0809	●	●	●
7	09.650 SCREW; RADIO EXTEND CAB EXTRA LONG(TF**CK) RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) 03.680 M5X10 W/LK+PL WASHER	0-36230-510-0	04	1	0808-0809				●
7	09.650 SCREW; RADIO 4X4 REGULAR CAB EXTRA LONG(TFS*SK) RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) 03.680 M5X10 W/LK+PL WASHER	0-36230-510-0	04	1	0808-0809					●
7	09.650 SCREW; RADIO AM/FM W/CASSETTE 2 SPEAKERS(UN6), RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3), RADIO AM/FM STEREO,SEEK/SCAN,CD, CLOCK(U1C) 03.680 M5X10 W/LK+PL WASHER	0-36230-510-0	04	1	0810-0910	●	●	●	●	●	●	●
7	09.650 SCREW; RADIO RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) ,RADIO AM/FM STEREO,SEEK/SCAN,CD, CLOCK(U1C) 03.680 M5X10 W/LK+PL WASHER	0-36230-510-0	04	1	0911-	●	●	●	●	●	●	●
108	09.645 SCREW; BRKT RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) 08.083 M5X16 TAPPING	8-98061-685-0	04	1	0808-0809	●	●	●
108	09.645 SCREW; BRKT EXTEND CAB EXTRA LONG(TF**CK) RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) 08.083 M5X16 TAPPING	8-98061-685-0	04	1	0808-0809				●
108	09.645 SCREW; BRKT 4X4 REGULAR CAB EXTRA LONG(TFS*SK) RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) 08.083 M5X16 TAPPING	8-98061-685-0	04	1	0808-0809					●
108	09.645 SCREW; BRKT RADIO DELETE(UL5),AM/FM W/CASSETTE 2SPEAKERS(UN6),RADIO AM/FM STEREO,SE EK/SCAN,CD(UT3),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) 08.083 M5X16 TAPPING	8-98061-685-0	04	1	0810-0910	●	●	●	●	●	●	●
108	09.645 SCREW; BRKT RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3),RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C) 08.083 M5X16 TAPPING	8-98061-685-0	04	1	0911-1004	●	●	●	●	●	●	●
108	09.645 SCREW; BRKT RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3),RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C) 08.083 M5X16 TAPPING	8-98167-449-0	04	1	1005-	●	●	●	●	●	●	●
108	09.645 SCREW; BRKT RADIO AM/FM W/CD,W/MP3(ULA) 08.083 M5X16 TAPPING	8-98061-685-0	08	1	0808-0809		●
108	09.645 SCREW; BRKT 4X4 CREW CAB LONG(TFS*WF) RADIO AM/FM W/CD,W/MP3(ULA) 08.083 M5X16 TAPPING	8-98061-685-0	08	1	0808-0809			●
108	09.645 SCREW; BRKT RADIO AM/FM W/CD,W/MP3(ULA) 08.083 M5X16 TAPPING	8-98061-685-0	08	1	0810-1004		●	●	●	●	●	●
108	09.645 SCREW; BRKT RADIO AM/FM W/CD,W/MP3(ULA) 08.083 M5X16 TAPPING	8-98167-449-0	08	1	1005-		●	●	●	●	●	●
244	09.647 CABLE; FEEDER	8-97238-487-1	01	1	0808-0809	●	●	●
244	09.647 CABLE; FEEDER EXTEND CAB EXTRA LONG(TF**CK)	8-97238-487-1	01	1	0808-0809				●
244	09.647 CABLE; FEEDER 4X4 REGULAR CAB EXTRA LONG(TFS*SK)	8-97238-487-1	01	1	0808-0809					●
244	09.647 CABLE; FEEDER	8-97238-487-1	01	1	0810-	●	●	●	●	●	●	●
254	09.645 RADIO CONTROL ASM; STEREO,AM-FM RADIO AM/FM W/CD,W/MP3(ULA) EXC. AUSTRALIA EQUIPMENT(B13) (A) LIGHT GRAY	8-97409-206-0	01	1	0810-1003		●	●	●	●	●	●
254	09.645 RADIO CONTROL ASM; STEREO,AM-FM RADIO AM/FM W/CD,W/MP3(ULA) EXC. AUSTRALIA EQUIPMENT(B13) (A) BLACK	8-97418-482-0	01	1	1004-1010		●	●	●	●	●	●
254	09.645 RADIO CONTROL ASM; STEREO,AM-FM RADIO AM/FM W/CD,W/MP3(ULA) EXC. AUSTRALIA EQUIPMENT(B13) (A)	8-97422-204-0	01	1	1011-		●	●	●	●	●	●
254	09.645 RADIO CONTROL ASM; STEREO,AM-FM RADIO AM/FM STEREO,SEEK/SCAN,CD, CLOCK(U1C) (B)	8-98007-739-0	01	1	0810-1003		●	●	●	●	●	●
254	09.645 RADIO CONTROL ASM; STEREO,AM-FM RADIO AM/FM STEREO,SEEK/SCAN,CD, CLOCK(U1C) (B)	8-98154-140-0	01	1	1004-1010		●	●	●	●	●	●
254	09.645 RADIO CONTROL ASM; STEREO,AM-FM RADIO AM/FM STEREO,SEEK/SCAN,CD, CLOCK(U1C) (B)	8-98178-432-0	01	1	1011-		●	●	●	●	●	●
254	09.645 RADIO CONTROL ASM; STEREO,AM-FM RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) EXC. AUSTRALIA EQUIPMENT(B13) (B)	8-98007-738-0	01	1	0810-1003		●	●
254	09.645 RADIO CONTROL ASM; STEREO,AM-FM RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) EXC. AUSTRALIA EQUIPMENT(B13) (B)	8-98154-139-0	01	1	1004-1010		●	●
254	09.645 RADIO CONTROL ASM; STEREO,AM-FM RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) EXC. AUSTRALIA EQUIPMENT(B13) (B)	8-98178-431-0	01	1	1011-		●	●
254	09.645 RADIO CONTROL ASM; STEREO,AM-FM RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) (B)	8-98101-839-0	01	1	0808-0809	●	●	●
254	09.645 RADIO CONTROL ASM; STEREO,AM-FM EXTEND CAB EXTRA LONG(TF**CK) RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) (B)	8-98101-839-0	01	1	0808-0809				●
254	09.645 RADIO CONTROL ASM; STEREO,AM-FM 4X4 REGULAR CAB EXTRA LONG(TFS*SK) RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) (B)	8-98101-839-0	01	1	0808-0809					●
254	09.645 RADIO CONTROL ASM; STEREO,AM-FM AUSTRALIA EQUIPMENT(B13) RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) (B)	8-98101-839-0	01	1	0810-1003	●	●	●	●	●
254	09.645 RADIO CONTROL ASM; STEREO,AM-FM AUSTRALIA EQUIPMENT(B13) RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) (B)	8-98154-144-0	01	1	1004-	●	●	●	●	●
254	09.645 RADIO CONTROL ASM; STEREO,AM-FM RADIO AM/FM W/CD,W/MP3(ULA) (A) LIGHT GRAY	8-97415-262-0	01	1	0808-0809		●
254	09.645 RADIO CONTROL ASM; STEREO,AM-FM 4X4 CREW CAB LONG(TFS*WF) RADIO AM/FM W/CD,W/MP3(ULA) (A) LIGHT GRAY	8-97415-262-0	01	1	0808-0809			●
254	09.645 RADIO CONTROL ASM; STEREO,AM-FM AUSTRALIA EQUIPMENT(B13) RADIO AM/FM W/CD,W/MP3(ULA) (A) LIGHT GRAY	8-97415-262-0	01	1	0810-1003		●	●
254	09.645 RADIO CONTROL ASM; STEREO,AM-FM AUSTRALIA EQUIPMENT(B13) RADIO AM/FM W/CD,W/MP3(ULA) (A)	8-97419-445-0	01	1	1004-		●	●

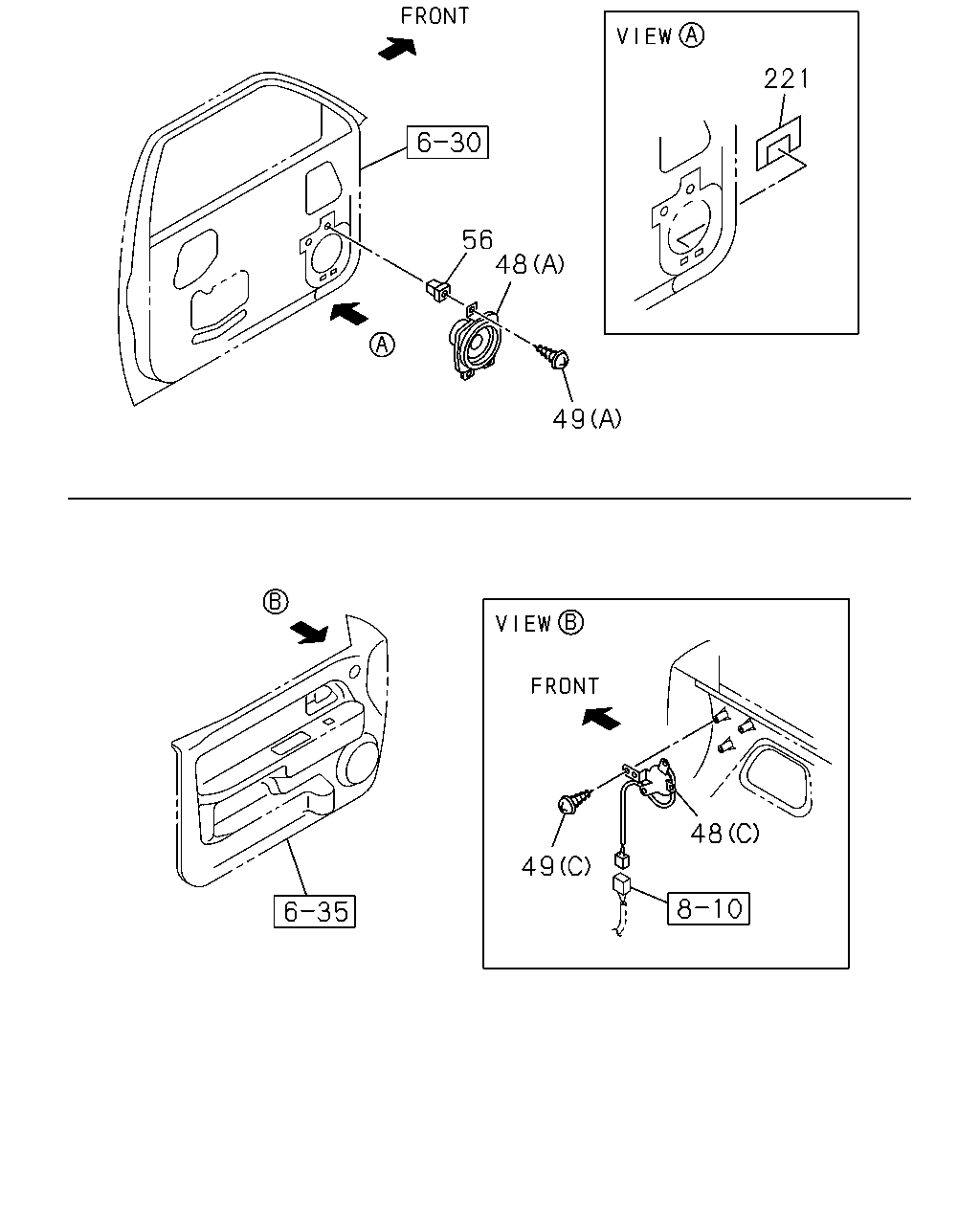

221 56 48 49 48 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
48	09.650 SPEAKER; AUDIO 4-SPEAKER SYSTEM BASE<UQ4> (C)	8-98061-044-0	01	1	0808-0809	●
48	09.650 SPEAKER; AUDIO 6-SPEAKER SYSTEM BASE<UW5> (C)	8-98061-044-0	01	1	0808-0809		●	●
48	09.650 SPEAKER; AUDIO EXTEND CAB EXTRA LONG(TF**CK) 6-SPEAKER SYSTEM BASE<UW5> (C)	8-98061-044-0	01	1	0808-0809				●
48	09.650 SPEAKER; AUDIO 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4-SPEAKER SYSTEM BASE<UQ4> (C)	8-98061-044-0	01	1	0808-0809					●
48	09.650 SPEAKER; AUDIO 6-SPEAKER SYSTEM BASE<UW5> (C)	8-98061-044-0	01	1	0810-		●	●	●		●
48	09.650 SPEAKER; AUDIO 4-SPEAKER SYSTEM BASE<UQ4> (C)	8-98061-044-0	01	1	0810-	●				●		●
48	09.650 SPEAKER; AUDIO 4-SPEAKER SYSTEM BASE<UQ4> (C)	8-98061-045-0	01	1	0808-0809	●
48	09.650 SPEAKER; AUDIO 6-SPEAKER SYSTEM BASE<UW5> (C)	8-98061-045-0	01	1	0808-0809		●	●
48	09.650 SPEAKER; AUDIO EXTEND CAB EXTRA LONG(TF**CK) 6-SPEAKER SYSTEM BASE<UW5> (C)	8-98061-045-0	01	1	0808-0809				●
48	09.650 SPEAKER; AUDIO 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4-SPEAKER SYSTEM BASE<UQ4> (C)	8-98061-045-0	01	1	0808-0809					●
48	09.650 SPEAKER; AUDIO 6-SPEAKER SYSTEM BASE<UW5> (C)	8-98061-045-0	01	1	0810-		●	●	●		●
48	09.650 SPEAKER; AUDIO 4-SPEAKER SYSTEM BASE<UQ4> (C)	8-98061-045-0	01	1	0810-	●				●		●
48	09.650 SPEAKER; AUDIO 4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKERSYSTEM BASE<UW5>,2-SPEAKER SYSTEM B ASE<U95> (A)	8-98061-046-0	02	1	0808-0809	●	●	●	●	●
48	09.650 SPEAKER; AUDIO 4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKERSYSTEM BASE<UW5>,2-SPEAKER SYSTEM B ASE<U95> (A)	8-98061-046-0	02	1	0810-		●	●	●		●
48	09.650 SPEAKER; AUDIO 4-SPEAKER SYSTEM BASE<UQ4>, 2-SPEAKERSYSTEM BASE<U95> (A)	8-98061-046-0	02	1	0810-	●				●		●
48	09.650 SPEAKER; AUDIO 4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKERSYSTEM BASE<UW5> (B)	8-98061-047-0	02	1	0808-		●	●
49	09.655 SCREW; SPEAKER 4-SPEAKER SYSTEM BASE<UQ4> (C) M4X10	0-34218-410-0	06	1	0808-0809	●
49	09.655 SCREW; SPEAKER 6-SPEAKER SYSTEM BASE<UW5> (C) M4X10	0-34218-410-0	06	1	0808-0809		●	●
49	09.655 SCREW; SPEAKER EXTEND CAB EXTRA LONG(TF**CK) 6-SPEAKER SYSTEM BASE<UW5> (C) M4X10	0-34218-410-0	06	1	0808-0809				●
49	09.655 SCREW; SPEAKER 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4-SPEAKER SYSTEM BASE<UQ4> (C) M4X10	0-34218-410-0	06	1	0808-0809					●
49	09.655 SCREW; SPEAKER 6-SPEAKER SYSTEM BASE<UW5> (C) M4X10	0-34218-410-0	06	1	0810-		●	●	●		●
49	09.655 SCREW; SPEAKER 4-SPEAKER SYSTEM BASE<UQ4> (C) M4X10	0-34218-410-0	06	1	0810-	●				●		●
49	09.655 SCREW; SPEAKER 4-SPEAKER SYSTEM BASE<UQ4>, 2-SPEAKERSYSTEM BASE<U95> 12.182 (A) M5X14	8-94152-495-0	02	1	0808-0809	●
49	09.655 SCREW; SPEAKER 4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKERSYSTEM BASE<UW5>,2-SPEAKER SYSTEM B ASE<U95> 12.182 (A) M5X14	8-94152-495-0	02	1	0808-0809		●	●
49	09.655 SCREW; SPEAKER 4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKERSYSTEM BASE<UW5> 12.182 (A) M5X14	8-94152-495-0	02	1	0808-0809		●	●
49	09.655 SCREW; SPEAKER EXTEND CAB EXTRA LONG(TF**CK) 4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKERSYSTEM BASE<UW5>,2-SPEAKER SYSTEM B ASE<U95> 12.182 (A) M5X14	8-94152-495-0	02	1	0808-0809				●
49	09.655 SCREW; SPEAKER 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4-SPEAKER SYSTEM BASE<UQ4>, 2-SPEAKERSYSTEM BASE<U95> 12.182 (A) M5X14	8-94152-495-0	02	1	0808-0809					●
49	09.655 SCREW; SPEAKER 4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKERSYSTEM BASE<UW5>,2-SPEAKER SYSTEM B ASE<U95> 12.182 (A) M5X14	8-94152-495-0	02	1	0810-		●	●	●		●
49	09.655 SCREW; SPEAKER 4-SPEAKER SYSTEM BASE<UQ4>, 2-SPEAKERSYSTEM BASE<U95> 12.182 (A) M5X14	8-94152-495-0	02	1	0810-	●				●		●
49	09.655 SCREW; SPEAKER 4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKERSYSTEM BASE<UW5> 12.182 (A) M5X14	8-94152-495-0	02	1	0810-		●	●
49	09.655 SCREW; SPEAKER EXTEND CAB EXTRA LONG(TF**CK) 4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKERSYSTEM BASE<UW5> 08.083 (B) M5X16 TAPPING	8-98061-685-0	06	1	0808-0809				●
49	09.655 SCREW; SPEAKER 4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKERSYSTEM BASE<UW5> 08.083 (B) M5X16 TAPPING	8-98061-685-0	06	1	0810-1004				●		●
49	09.655 SCREW; SPEAKER 4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKERSYSTEM BASE<UW5> 08.083 (B) M5X16 TAPPING	8-98167-449-0	06	1	1005-				●		●
56	09.655 NUT; SPEAKER,RADIO OR STEREO 4-SPEAKER SYSTEM BASE<UQ4>, 2-SPEAKERSYSTEM BASE<U95> 10.565	8-94152-494-0	02	1	0808-0809	●
56	09.655 NUT; SPEAKER,RADIO OR STEREO 4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKERSYSTEM BASE<UW5>,2-SPEAKER SYSTEM B ASE<U95> 10.565	8-94152-494-0	02	1	0808-0809		●	●
56	09.655 NUT; SPEAKER,RADIO OR STEREO 4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKERSYSTEM BASE<UW5> 10.565	8-94152-494-0	02	1	0808-0809		●	●
56	09.655 NUT; SPEAKER,RADIO OR STEREO EXTEND CAB EXTRA LONG(TF**CK) 4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKERSYSTEM BASE<UW5>,2-SPEAKER SYSTEM B ASE<U95> 10.565	8-94152-494-0	02	1	0808-0809				●
56	09.655 NUT; SPEAKER,RADIO OR STEREO 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4-SPEAKER SYSTEM BASE<UQ4>, 2-SPEAKERSYSTEM BASE<U95> 10.565	8-94152-494-0	02	1	0808-0809					●
56	09.655 NUT; SPEAKER,RADIO OR STEREO 4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKERSYSTEM BASE<UW5>,2-SPEAKER SYSTEM B ASE<U95> 10.565	8-94152-494-0	02	1	0810-		●	●	●		●
56	09.655 NUT; SPEAKER,RADIO OR STEREO 4-SPEAKER SYSTEM BASE<UQ4>, 2-SPEAKERSYSTEM BASE<U95> 10.565	8-94152-494-0	02	1	0810-	●				●		●
56	09.655 NUT; SPEAKER,RADIO OR STEREO 4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKERSYSTEM BASE<UW5> 10.565	8-94152-494-0	02	1	0810-		●	●
221	16.165 SEAL; SPEAKER PANEL 4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKERSYSTEM BASE<UW5>,2-SPEAKER SYSTEM B ASE<U95>	8-97328-113-0	02	1	0808-0809	●	●	●	●	●
221	16.165 SEAL; SPEAKER PANEL 4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKERSYSTEM BASE<UW5>,2-SPEAKER SYSTEM B ASE<U95>	8-97328-113-0	02	1	0810-		●	●	●		●
221	16.165 SEAL; SPEAKER PANEL 4-SPEAKER SYSTEM BASE<UQ4>, 2-SPEAKERSYSTEM BASE<U95>	8-97328-113-0	02	1	0810-	●				●		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
