◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51194 - TFR/TFS-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-80 - WINDSHIELD WIPER AND WASHER ▶
8-80 — WINDSHIELD WIPER AND WASHER (#77118) — 124 parça

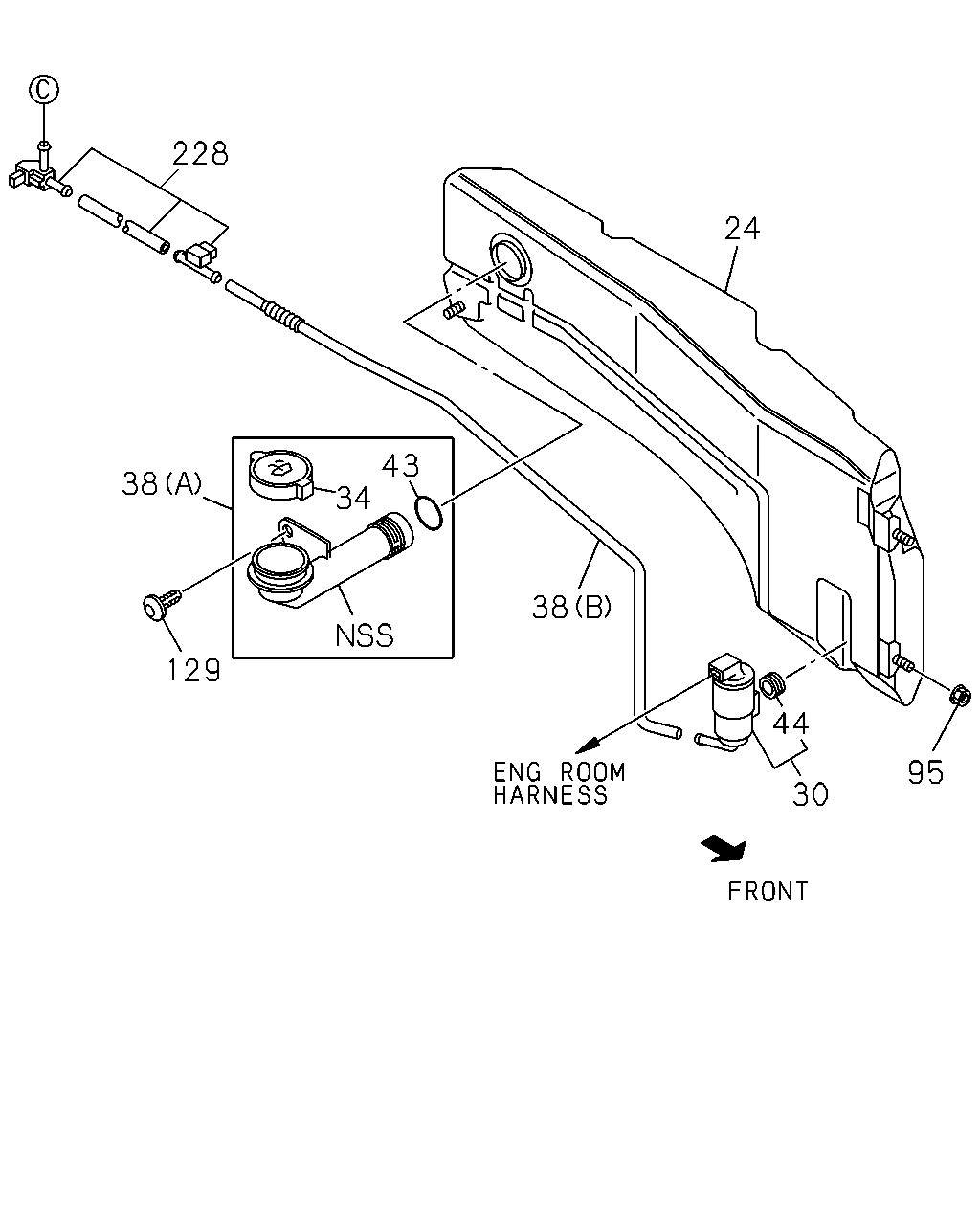

çizim 186212
228 24 43 34 38 38 129 44 95 30
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
24 16.065 TANK ASM; WASHER 8-98057-609-0 01 1 0808-0809 ● ● ● ● ●
24 16.065 TANK ASM; WASHER 8-98057-609-0 01 1 0810- ● ● ● ● ● ● ●
30 16.065 MOTOR ASM; FRT WASHER TANK 8-97314-350-0 01 1 0808-0809 ● ● ● ● ●
30 16.065 MOTOR ASM; FRT WASHER TANK 8-97314-350-0 01 1 0810- ● ● ● ● ● ● ●
34 16.065 CAP; WASHER TANK 8-97349-905-0 01 1 0808-0809 ● ● ● ● ●
34 16.065 CAP; WASHER TANK 8-97349-905-0 01 1 0810- ● ● ● ● ● ● ●
38 16.065 HOSE; JOINT,TANK
(A) 		8-97310-064-1 01 1 0808-0809 ● ● ● ● ●
38 16.065 HOSE; JOINT,TANK
(A) 		8-97310-064-1 01 1 0810- ● ● ● ● ● ● ●
38 16.065 HOSE; JOINT,TANK
(B) 		8-98011-321-0 01 1 0808-0809 ● ● ● ● ●
38 16.065 HOSE; JOINT,TANK
(B) 		8-98011-321-0 01 1 0810- ● ● ● ● ● ● ●
43 16.065 RUBBER; GASKET,TANK 8-97349-906-0 01 1 0808-0809 ● ● ● ● ●
43 16.065 RUBBER; GASKET,TANK 8-97349-906-0 01 1 0810- ● ● ● ● ● ● ●
44 16.065 GASKET; MOTOR TO TANK
10.154 		8-94352-050-0 01 1 0808-0809 ● ● ● ● ●
44 16.065 GASKET; MOTOR TO TANK
10.154 		8-94352-050-0 01 1 0810- ● ● ● ● ● ● ●
95 16.065 NUT; WASHER TANK
M6 W/DISHED WASHER 		8-98049-368-0 03 1 0808-0809 ● ● ● ● ●
95 16.065 NUT; WASHER TANK
M6 W/DISHED WASHER 		8-98049-368-0 03 1 0810- ● ● ● ● ● ● ●
129 16.065 CLIP; JOINT HOSE
16.800 L=19 BLACK 		8-94363-776-0 01 1 0808-0809 ● ● ● ● ●
129 16.065 CLIP; JOINT HOSE
16.800 L=19 BLACK 		8-94363-776-0 01 1 0810- ● ● ● ● ● ● ●
228 16.065 HOSE ASM; WASHER 8-98115-892-0 01 1 0808-0809 ● ● ● ● ●
228 16.065 HOSE ASM; WASHER 8-98115-892-0 01 1 0810- ● ● ● ● ● ● ●

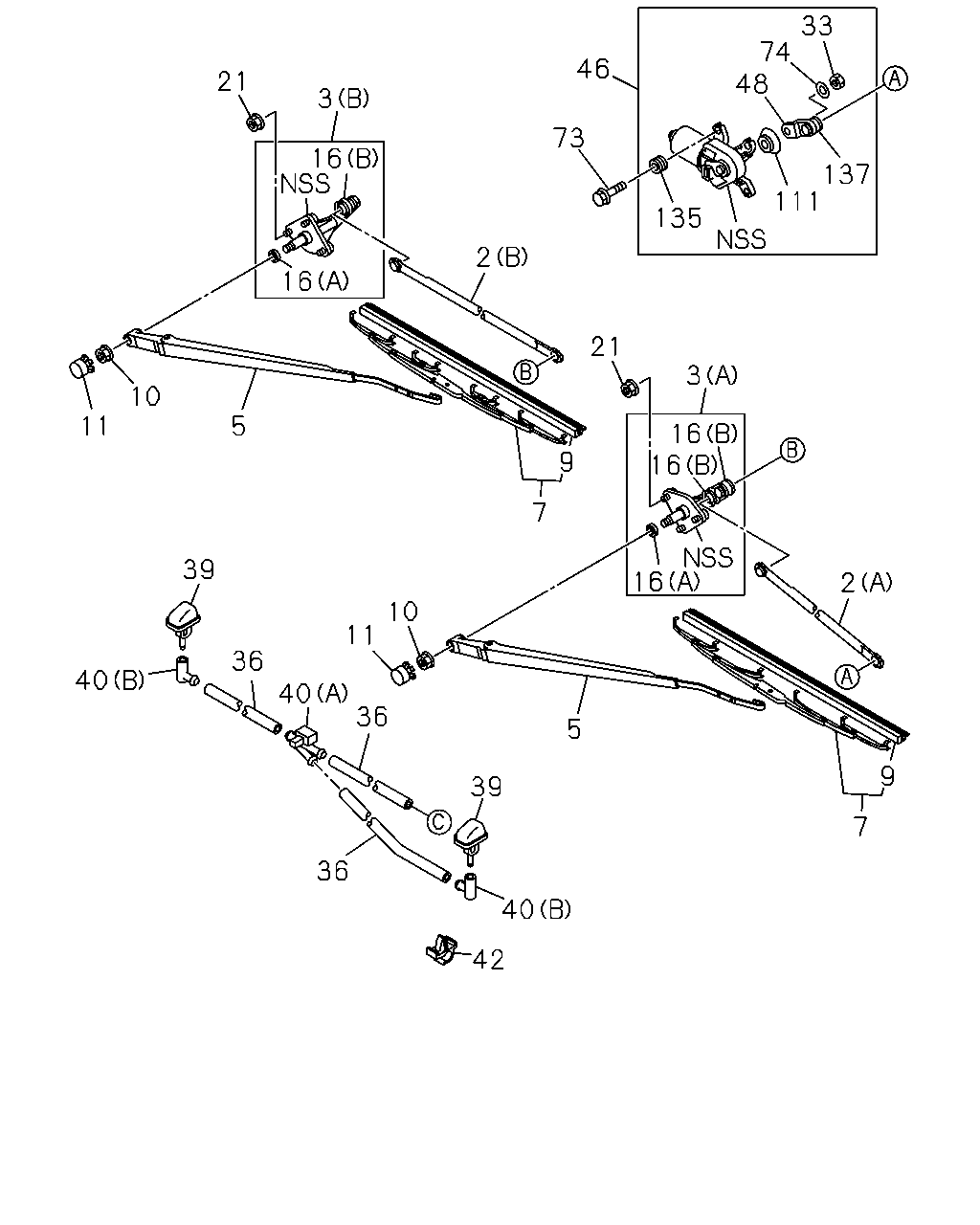

çizim 186213
33 74 48 46 21 3 73 16 137 111 135 2 16 21 3 10 11 5 16 16 9 7 16 39 2 10 11 36 40 40 36 5 9 39 7 36 40 42
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
2 16.063 LINK; FRT WIPER
(A) 		8-97349-892-0 01 1 0808-0809 ● ● ●
2 16.063 LINK; FRT WIPER
EXTEND CAB EXTRA LONG(TF**CK) (A) 		8-97349-892-0 01 1 0808-0809 ●
2 16.063 LINK; FRT WIPER
4X4 REGULAR CAB EXTRA LONG(TFS*SK) (A) 		8-97349-892-0 01 1 0808-0809 ●
2 16.063 LINK; FRT WIPER
(A) 		8-97349-892-0 01 1 0810- ● ● ● ● ● ● ●
2 16.063 LINK; FRT WIPER
(B) 		8-97349-893-0 01 1 0808-0809 ● ● ●
2 16.063 LINK; FRT WIPER
EXTEND CAB EXTRA LONG(TF**CK) (B) 		8-97349-893-0 01 1 0808-0809 ●
2 16.063 LINK; FRT WIPER
4X4 REGULAR CAB EXTRA LONG(TFS*SK) (B) 		8-97349-893-0 01 1 0808-0809 ●
2 16.063 LINK; FRT WIPER
(B) 		8-97349-893-0 01 1 0810- ● ● ● ● ● ● ●
3 16.063 PIVOT ASM; FRT WIPER
(A) 		8-98057-712-0 01 1 0808-0809 ● ● ●
3 16.063 PIVOT ASM; FRT WIPER
EXTEND CAB EXTRA LONG(TF**CK) (A) 		8-98057-712-0 01 1 0808-0809 ●
3 16.063 PIVOT ASM; FRT WIPER
4X4 REGULAR CAB EXTRA LONG(TFS*SK) (A) 		8-98057-712-0 01 1 0808-0809 ●
3 16.063 PIVOT ASM; FRT WIPER
(A) 		8-98057-712-0 01 1 0810- ● ● ● ● ● ● ●
3 16.063 PIVOT ASM; FRT WIPER
(B) 		8-98057-714-0 01 1 0808-0809 ● ● ●
3 16.063 PIVOT ASM; FRT WIPER
EXTEND CAB EXTRA LONG(TF**CK) (B) 		8-98057-714-0 01 1 0808-0809 ●
3 16.063 PIVOT ASM; FRT WIPER
4X4 REGULAR CAB EXTRA LONG(TFS*SK) (B) 		8-98057-714-0 01 1 0808-0809 ●
3 16.063 PIVOT ASM; FRT WIPER
(B) 		8-98057-714-0 01 1 0810- ● ● ● ● ● ● ●
5 16.063 ARM; WIPER 8-97349-899-0 01 1 0808-0809 ● ● ●
5 16.063 ARM; WIPER
EXTEND CAB EXTRA LONG(TF**CK) 		8-97349-899-0 01 1 0808-0809 ●
5 16.063 ARM; WIPER
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 		8-97349-899-0 01 1 0808-0809 ●
5 16.063 ARM; WIPER 8-97349-899-0 01 1 0810- ● ● ● ● ● ● ●
5 16.063 ARM; WIPER 8-97349-902-0 01 1 0808-0809 ● ● ●
5 16.063 ARM; WIPER
EXTEND CAB EXTRA LONG(TF**CK) 		8-97349-902-0 01 1 0808-0809 ●
5 16.063 ARM; WIPER
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 		8-97349-902-0 01 1 0808-0809 ●
5 16.063 ARM; WIPER 8-97349-902-0 01 1 0810- ● ● ● ● ● ● ●
7 16.062 BLADE; WIPER
L=550 		8-97349-900-0 01 1 0808-0809 ● ● ●
7 16.062 BLADE; WIPER
EXTEND CAB EXTRA LONG(TF**CK) L=550 		8-97349-900-0 01 1 0808-0809 ●
7 16.062 BLADE; WIPER
4X4 REGULAR CAB EXTRA LONG(TFS*SK) L=550 		8-97349-900-0 01 1 0808-0809 ●
7 16.062 BLADE; WIPER
L=550 		8-97349-900-0 01 1 0810- ● ● ● ● ● ● ●
7 16.062 BLADE; WIPER
L=475 		8-97349-903-0 01 1 0808-0809 ● ● ●
7 16.062 BLADE; WIPER
EXTEND CAB EXTRA LONG(TF**CK) L=475 		8-97349-903-0 01 1 0808-0809 ●
7 16.062 BLADE; WIPER
4X4 REGULAR CAB EXTRA LONG(TFS*SK) L=475 		8-97349-903-0 01 1 0808-0809 ●
7 16.062 BLADE; WIPER
L=475 		8-97349-903-0 01 1 0810- ● ● ● ● ● ● ●
9 16.062 RUBBER; FRT WIPER BLADE
L=550 		8-97349-901-0 01 1 0808-0809 ● ● ●
9 16.062 RUBBER; FRT WIPER BLADE
EXTEND CAB EXTRA LONG(TF**CK) L=550 		8-97349-901-0 01 1 0808-0809 ●
9 16.062 RUBBER; FRT WIPER BLADE
4X4 REGULAR CAB EXTRA LONG(TFS*SK) L=550 		8-97349-901-0 01 1 0808-0809 ●
9 16.062 RUBBER; FRT WIPER BLADE
L=550 		8-97349-901-0 01 1 0810- ● ● ● ● ● ● ●
9 16.062 RUBBER; FRT WIPER BLADE
L=475 		8-97349-904-0 01 1 0808-0809 ● ● ●
9 16.062 RUBBER; FRT WIPER BLADE
EXTEND CAB EXTRA LONG(TF**CK) L=475 		8-97349-904-0 01 1 0808-0809 ●
9 16.062 RUBBER; FRT WIPER BLADE
4X4 REGULAR CAB EXTRA LONG(TFS*SK) L=475 		8-97349-904-0 01 1 0808-0809 ●
9 16.062 RUBBER; FRT WIPER BLADE
L=475 		8-97349-904-0 01 1 0810- ● ● ● ● ● ● ●
10 16.063 NUT; WIPER ARM TO WIPER PIVOT
M10 FLANGE 		8-98049-367-0 02 1 0808-0809 ● ● ● ● ●
10 16.063 NUT; WIPER ARM TO WIPER PIVOT
M10 FLANGE 		8-98049-367-0 02 1 0810- ● ● ● ● ● ● ●
11 16.063 COVER; WIPER ARM
10.147 		8-94367-999-0 02 1 0808-0809 ● ● ● ● ●
11 16.063 COVER; WIPER ARM
10.147 		8-94367-999-0 02 1 0810- ● ● ● ● ● ● ●
16 16.063 SEAL; BALL JOINT
10.159 (B) 		8-97025-889-0 03 1 0808-0809 ● ● ●
16 16.063 SEAL; BALL JOINT
EXTEND CAB EXTRA LONG(TF**CK) 10.159 (B) 		8-97025-889-0 03 1 0808-0809 ●
16 16.063 SEAL; BALL JOINT
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 10.159 (B) 		8-97025-889-0 03 1 0808-0809 ●
16 16.063 SEAL; BALL JOINT
10.159 (B) 		8-97025-889-0 03 1 0810- ● ● ● ● ● ● ●
16 16.063 SEAL; BALL JOINT
(A) 		8-97349-894-0 02 1 0808-0809 ● ● ●
16 16.063 SEAL; BALL JOINT
EXTEND CAB EXTRA LONG(TF**CK) (A) 		8-97349-894-0 02 1 0808-0809 ●
16 16.063 SEAL; BALL JOINT
4X4 REGULAR CAB EXTRA LONG(TFS*SK) (A) 		8-97349-894-0 02 1 0808-0809 ●
16 16.063 SEAL; BALL JOINT
(A) 		8-97349-894-0 02 1 0810- ● ● ● ● ● ● ●
21 16.063 NUT; WIPER LINK PIVOT
01.062 M6 FLANGE 		0-91180-106-0 06 1 0808-0809 ● ● ● ● ●
21 16.063 NUT; WIPER LINK PIVOT
01.062 M6 FLANGE 		0-91180-106-0 06 1 0810- ● ● ● ● ● ● ●
33 16.064 NUT; MOTOR TO ARM 8-97349-898-0 01 1 0808-0809 ● ● ●
33 16.064 NUT; MOTOR TO ARM
EXTEND CAB EXTRA LONG(TF**CK) 		8-97349-898-0 01 1 0808-0809 ●
33 16.064 NUT; MOTOR TO ARM
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 		8-97349-898-0 01 1 0808-0809 ●
33 16.064 NUT; MOTOR TO ARM 8-97349-898-0 01 1 0810- ● ● ● ● ● ● ●
36 16.065 HOSE; WASHER
SERVICED BY L=10000 		8-97349-607-0 01 1 0808-0809 ● ● ●
36 16.065 HOSE; WASHER
EXTEND CAB EXTRA LONG(TF**CK) SERVICED BY L=10000 		8-97349-607-0 01 1 0808-0809 ●
36 16.065 HOSE; WASHER
4X4 REGULAR CAB EXTRA LONG(TFS*SK) SERVICED BY L=10000 		8-97349-607-0 01 1 0808-0809 ●
36 16.065 HOSE; WASHER
SERVICED BY L=10000 		8-97349-607-0 01 1 0810- ● ● ● ● ● ● ●
39 16.065 NOZZLE; WINDSHIELD WASHER 8-98008-112-0 02 1 0808-0809 ● ● ●
39 16.065 NOZZLE; WINDSHIELD WASHER
EXTEND CAB EXTRA LONG(TF**CK) 		8-98008-112-0 02 1 0808-0809 ●
39 16.065 NOZZLE; WINDSHIELD WASHER
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 		8-98008-112-0 02 1 0808-0809 ●
39 16.065 NOZZLE; WINDSHIELD WASHER 8-98008-112-0 02 1 0810- ● ● ● ● ● ● ●
40 16.065 JOINT; WASHER HOSE
(B) 		8-97178-847-0 02 1 0808-0809 ● ● ●
40 16.065 JOINT; WASHER HOSE
EXTEND CAB EXTRA LONG(TF**CK) (B) 		8-97178-847-0 02 1 0808-0809 ●
40 16.065 JOINT; WASHER HOSE
4X4 REGULAR CAB EXTRA LONG(TFS*SK) (B) 		8-97178-847-0 02 1 0808-0809 ●
40 16.065 JOINT; WASHER HOSE
(B) 		8-97178-847-0 02 1 0810- ● ● ● ● ● ● ●
40 16.065 JOINT; WASHER HOSE
(A) 		8-97215-337-0 01 1 0808-0809 ● ● ●
40 16.065 JOINT; WASHER HOSE
EXTEND CAB EXTRA LONG(TF**CK) (A) 		8-97215-337-0 01 1 0808-0809 ●
40 16.065 JOINT; WASHER HOSE
4X4 REGULAR CAB EXTRA LONG(TFS*SK) (A) 		8-97215-337-0 01 1 0808-0809 ●
40 16.065 JOINT; WASHER HOSE
(A) 		8-97215-337-0 01 1 0810- ● ● ● ● ● ● ●
42 16.065 CLIP; WASHER HOSE
10.156 ID=5.8 L=8 		8-94155-681-0 03 1 0808-0809 ● ● ●
42 16.065 CLIP; WASHER HOSE
EXTEND CAB EXTRA LONG(TF**CK) 10.156 ID=5.8 L=8 		8-94155-681-0 03 1 0808-0809 ●
42 16.065 CLIP; WASHER HOSE
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 10.156 ID=5.8 L=8 		8-94155-681-0 03 1 0808-0809 ●
42 16.065 CLIP; WASHER HOSE
10.156 ID=5.8 L=8 		8-94155-681-0 03 1 0810- ● ● ● ● ● ● ●
46 16.064 MOTOR ASM; FRT WINDSHIELD WIPER 8-98057-621-0 01 1 0808-0809 ● ● ●
46 16.064 MOTOR ASM; FRT WINDSHIELD WIPER
EXTEND CAB EXTRA LONG(TF**CK) 		8-98057-621-0 01 1 0808-0809 ●
46 16.064 MOTOR ASM; FRT WINDSHIELD WIPER
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 		8-98057-621-0 01 1 0808-0809 ●
46 16.064 MOTOR ASM; FRT WINDSHIELD WIPER 8-98057-621-0 01 1 0810- ● ● ● ● ● ● ●
48 16.063 ARM; WIPER MOTOR 8-98057-654-0 01 1 0808-0809 ● ● ●
48 16.063 ARM; WIPER MOTOR
EXTEND CAB EXTRA LONG(TF**CK) 		8-98057-654-0 01 1 0808-0809 ●
48 16.063 ARM; WIPER MOTOR
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 		8-98057-654-0 01 1 0808-0809 ●
48 16.063 ARM; WIPER MOTOR 8-98057-654-0 01 1 0810- ● ● ● ● ● ● ●
73 16.063 BOLT
M6X33 W/PL WASHER 		8-98048-997-0 04 1 0808-0809 ● ● ● ● ●
73 16.063 BOLT
M6X33 W/PL WASHER 		8-98048-997-0 04 1 0810- ● ● ● ● ● ● ●
74 16.063 WASHER; ARM TO MOTOR 8-97349-897-0 01 1 0808-0809 ● ● ●
74 16.063 WASHER; ARM TO MOTOR
EXTEND CAB EXTRA LONG(TF**CK) 		8-97349-897-0 01 1 0808-0809 ●
74 16.063 WASHER; ARM TO MOTOR
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 		8-97349-897-0 01 1 0808-0809 ●
74 16.063 WASHER; ARM TO MOTOR 8-97349-897-0 01 1 0810- ● ● ● ● ● ● ●
111 16.064 SEAL; FRT WIPER MOTOR TO BRKT 8-97349-896-0 01 1 0808-0809 ● ● ●
111 16.064 SEAL; FRT WIPER MOTOR TO BRKT
EXTEND CAB EXTRA LONG(TF**CK) 		8-97349-896-0 01 1 0808-0809 ●
111 16.064 SEAL; FRT WIPER MOTOR TO BRKT
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 		8-97349-896-0 01 1 0808-0809 ●
111 16.064 SEAL; FRT WIPER MOTOR TO BRKT 8-97349-896-0 01 1 0810- ● ● ● ● ● ● ●
135 16.250 RUBBER; CUSHION,WIPER MOTOR 8-98057-655-0 04 1 0808-0809 ● ● ●
135 16.250 RUBBER; CUSHION,WIPER MOTOR
EXTEND CAB EXTRA LONG(TF**CK) 		8-98057-655-0 04 1 0808-0809 ●
135 16.250 RUBBER; CUSHION,WIPER MOTOR
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 		8-98057-655-0 04 1 0808-0809 ●
135 16.250 RUBBER; CUSHION,WIPER MOTOR 8-98057-655-0 04 1 0810- ● ● ● ● ● ● ●
137 16.063 SEAL; JOINT,WIPER MOTOR
10.159 		8-97025-889-0 01 1 0808-0809 ● ● ●
137 16.063 SEAL; JOINT,WIPER MOTOR
EXTEND CAB EXTRA LONG(TF**CK) 10.159 		8-97025-889-0 01 1 0808-0809 ●
137 16.063 SEAL; JOINT,WIPER MOTOR
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 10.159 		8-97025-889-0 01 1 0808-0809 ●
137 16.063 SEAL; JOINT,WIPER MOTOR
10.159 		8-97025-889-0 01 1 0810- ● ● ● ● ● ● ●
