Sayfa 8-75 - Isuzu EPC

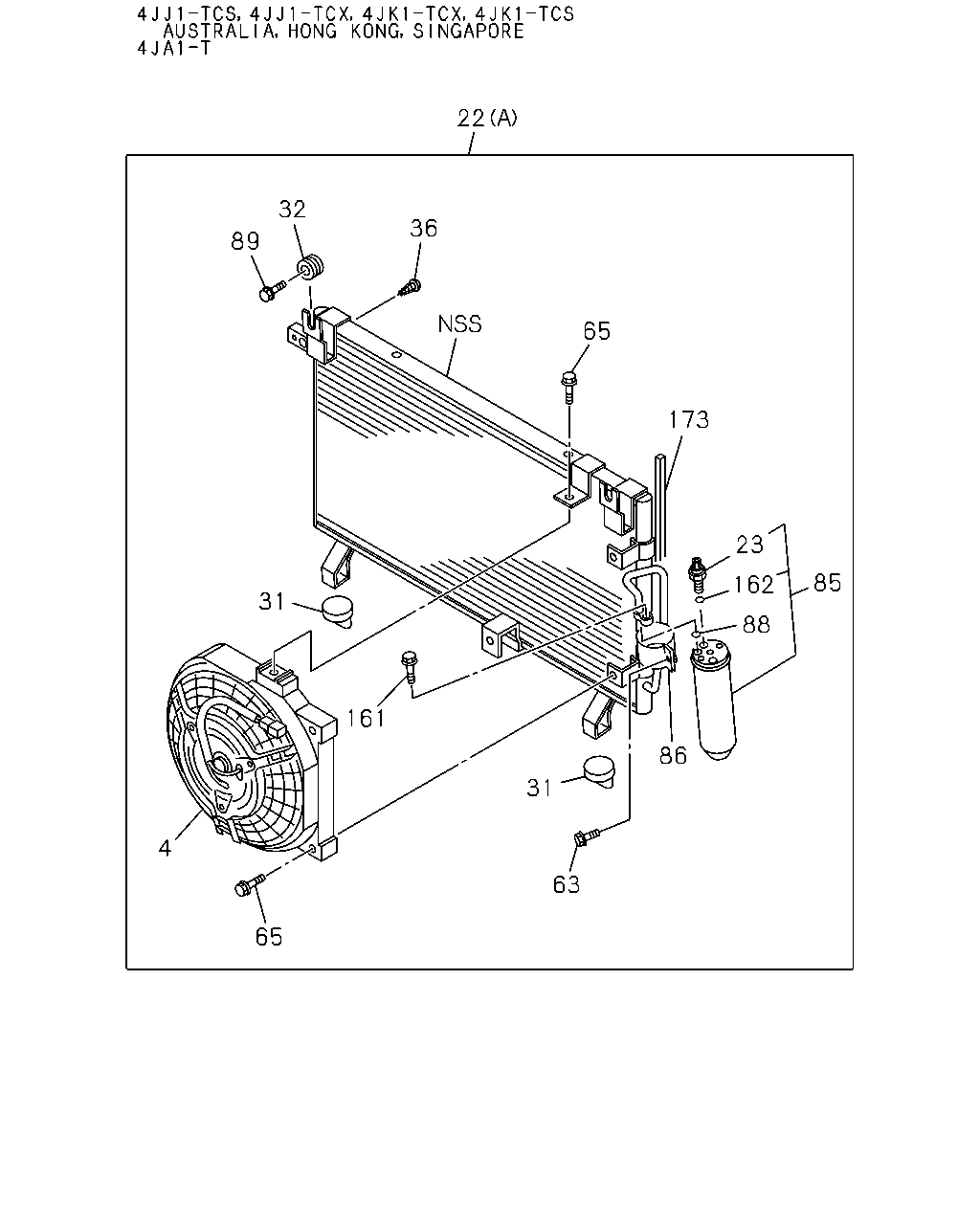

8-75 — CONDENSER (#77117) — 341 parça

22 32 89 161 23 65 162 85 88 173 63 86 31 31 4 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
4	09.216 MOTOR ASM; FAN 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97356-646-0	01	1	0808-0809	●	●	●
4	09.216 MOTOR ASM; FAN EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97356-646-0	01	1	0808-0809				●
4	09.216 MOTOR ASM; FAN 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97356-646-0	01	1	0808-0809					●
4	09.216 MOTOR ASM; FAN 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97356-646-0	01	1	0810-1003	●	●	●	●	●	●	●
4	09.216 MOTOR ASM; FAN C24SE ENG(LG1),4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97356-646-0	01	1	0810-1003		●	●	●	●	●	●
4	09.216 MOTOR ASM; FAN 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97356-646-0	01	1	1004-1007	●	●	●	●	●		●
4	09.216 MOTOR ASM; FAN C24SE ENG(LG1) AUSTRALIA EQUIPMENT(B13) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97356-646-0	01	1	1004-1007		●	●
4	09.216 MOTOR ASM; FAN 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97356-646-0	01	1	1008-	●	●	●	●	●		●
22	09.190 CONDENSER ASM; A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. AUSTRALIA EQUIPMENT(B13) (B)	8-98163-506-0	01	1	1004-1007		●	●		●		●
22	09.190 CONDENSER ASM; A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-98163-506-0	01	1	1008-		●	●		●		●
22	09.190 CONDENSER ASM; A/C 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPME NT(2G0) (C)	8-98071-118-0	01	1	0810-1007		●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPME NT(2G0) (C)	8-98071-118-0	01	1	1008-1201		●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPME NT(2G0) (C)	8-98176-435-1	01	1	1202-		●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-98071-128-0	01	1	0810-1003		●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED5G(RSP) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-98163-507-0	01	1	1004-1007		●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED5G(RSP),M/T MUA 5 SPEED 5S(RSQ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-98163-507-0	01	1	1008-		●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-98071-123-0	01	1	0810-1003		●	●		●		●
22	09.190 CONDENSER ASM; A/C C24SE ENG(LG1) AUSTRALIA EQUIPMENT(B13) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-98071-123-0	01	1	1004-1007		●	●
22	09.190 CONDENSER ASM; A/C 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (A)	8-98071-120-0	01	1	0808-0809	●	●	●
22	09.190 CONDENSER ASM; A/C EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (A)	8-98071-120-0	01	1	0808-0809				●
22	09.190 CONDENSER ASM; A/C 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (A)	8-98071-120-0	01	1	0808-0809					●
22	09.190 CONDENSER ASM; A/C 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-98071-120-0	01	1	0810-1007	●	●	●	●	●		●
22	09.190 CONDENSER ASM; A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-98071-120-0	01	1	1008-1201	●	●	●	●	●		●
22	09.190 CONDENSER ASM; A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-98176-437-0	01	1	1202-	●	●	●	●	●		●
23	09.172 SWITCH; PRESSURE,CONDENSER 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPME NT(2G0)	8-97375-560-0	01	1	0810-1003		●	●	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),SIN GAPORE EQUIPMENT(2G0)	8-97375-560-0	01	1	1004-1007		●	●	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED5G(RSP),M/T MUA 5 SPEED 5S(RSQ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97375-560-0	01	1	1004-1007		●	●	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. AUSTRALIA EQUIPMENT(B13)	8-97375-560-0	01	1	1004-1007		●	●		●		●
23	09.172 SWITCH; PRESSURE,CONDENSER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPME NT(2G0)	8-97375-560-0	01	1	1008-		●	●	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED5G(RSP),M/T MUA 5 SPEED 5S(RSQ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97375-560-0	01	1	1008-		●	●	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97375-560-0	01	1	1008-		●	●		●		●
23	09.172 SWITCH; PRESSURE,CONDENSER 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97381-465-0	01	1	0808-0809	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97381-465-0	01	1	0808-0809				●
23	09.172 SWITCH; PRESSURE,CONDENSER 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97381-465-0	01	1	0808-0809					●
23	09.172 SWITCH; PRESSURE,CONDENSER 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97381-465-0	01	1	0810-1003	●	●	●	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER C24SE ENG(LG1),4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97381-465-0	01	1	0810-1003		●	●	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97381-465-0	01	1	1004-1007	●	●	●	●	●		●
23	09.172 SWITCH; PRESSURE,CONDENSER C24SE ENG(LG1) AUSTRALIA EQUIPMENT(B13) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97381-465-0	01	1	1004-1007		●	●
23	09.172 SWITCH; PRESSURE,CONDENSER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97381-465-0	01	1	1008-	●	●	●	●	●		●
31	09.190 RUBBER; MTG,CONDENSER 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97333-319-0	02	1	0808-0809	●	●	●
31	09.190 RUBBER; MTG,CONDENSER EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97333-319-0	02	1	0808-0809				●
31	09.190 RUBBER; MTG,CONDENSER 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97333-319-0	02	1	0808-0809					●
31	09.190 RUBBER; MTG,CONDENSER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97333-319-0	02	1	0810-1007	●	●	●	●	●	●	●
31	09.190 RUBBER; MTG,CONDENSER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97333-319-0	02	1	1008-	●	●	●	●	●	●	●
32	09.190 GROMMET; CONDENSER 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97333-320-0	02	1	0808-0809	●	●	●
32	09.190 GROMMET; CONDENSER EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97333-320-0	02	1	0808-0809				●
32	09.190 GROMMET; CONDENSER 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97333-320-0	02	1	0808-0809					●
32	09.190 GROMMET; CONDENSER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97333-320-0	02	1	0810-1007	●	●	●	●	●	●	●
32	09.190 GROMMET; CONDENSER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97333-320-0	02	1	1008-	●	●	●	●	●	●	●
63	09.175 BOLT; RECEIVER TANK 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) M6X16	8-98071-146-0	03	1	0808-0809	●	●	●
63	09.175 BOLT; RECEIVER TANK EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) M6X16	8-98071-146-0	03	1	0808-0809				●
63	09.175 BOLT; RECEIVER TANK 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) M6X16	8-98071-146-0	03	1	0808-0809					●
63	09.175 BOLT; RECEIVER TANK 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X16	8-98071-146-0	03	1	0810-1007	●	●	●	●	●	●	●
63	09.175 BOLT; RECEIVER TANK 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X16	8-98071-146-0	03	1	1008-	●	●	●	●	●	●	●
65	09.216 BOLT; SHROUD 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) M6X18	8-98071-145-0	04	1	0808-0809	●	●	●
65	09.216 BOLT; SHROUD EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) M6X18	8-98071-145-0	04	1	0808-0809				●
65	09.216 BOLT; SHROUD 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) M6X18	8-98071-145-0	04	1	0808-0809					●
65	09.216 BOLT; SHROUD 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X18	8-98071-145-0	04	1	0810-1003	●	●	●	●	●	●	●
65	09.216 BOLT; SHROUD C24SE ENG(LG1),4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X18	8-98071-145-0	04	1	0810-1003		●	●	●	●	●	●
65	09.216 BOLT; SHROUD 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X18	8-98071-145-0	04	1	1004-1007	●	●	●	●	●		●
65	09.216 BOLT; SHROUD C24SE ENG(LG1) AUSTRALIA EQUIPMENT(B13) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X18	8-98071-145-0	04	1	1004-1007		●	●
65	09.216 BOLT; SHROUD 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X18	8-98071-145-0	04	1	1008-	●	●	●	●	●		●
85	09.172 DRYER; RECEIVER C24SE ENG(LG1),4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. AUSTRALIA EQUIPMENT(B13)	8-98071-280-0	01	1	1004-1007		●	●	●	●	●	●
85	09.172 DRYER; RECEIVER C24SE ENG(LG1),4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-98071-280-0	01	1	1008-1201		●	●	●	●	●	●
85	09.172 DRYER; RECEIVER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPME NT(2G0)	8-98071-280-0	01	1	1202-		●	●	●	●	●	●
85	09.172 DRYER; RECEIVER 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED5G(RSP),M/T MUA 5 SPEED 5S(RSQ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-98071-280-0	01	1	1202-		●	●	●	●	●	●
85	09.172 DRYER; RECEIVER C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-98071-280-0	01	1	1202-		●	●		●		●
85	09.172 DRYER; RECEIVER 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPME NT(2G0)	8-97375-558-2	01	1	0810-1007		●	●	●	●	●	●
85	09.172 DRYER; RECEIVER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPME NT(2G0)	8-97375-558-2	01	1	1008-1201		●	●	●	●	●	●
85	09.172 DRYER; RECEIVER C24SE ENG(LG1),4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97381-576-0	01	1	0810-1003		●	●	●	●	●	●
85	09.172 DRYER; RECEIVER C24SE ENG(LG1) AUSTRALIA EQUIPMENT(B13) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97381-576-0	01	1	1004-1007		●	●
85	09.172 DRYER; RECEIVER 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97380-448-2	01	1	0808-0809	●	●	●
85	09.172 DRYER; RECEIVER EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97380-448-2	01	1	0808-0809				●
85	09.172 DRYER; RECEIVER 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97380-448-2	01	1	0808-0809					●
85	09.172 DRYER; RECEIVER 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97380-448-2	01	1	0810-1007	●	●	●	●	●		●
85	09.172 DRYER; RECEIVER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97380-448-2	01	1	1008-1201	●	●	●	●	●		●
85	09.172 DRYER; RECEIVER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97381-576-0	01	1	1202-	●	●	●	●	●		●
86	09.196 BRACKET; RECEIVER DRYER C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-98071-269-0	01	1	0810-		●	●		●		●
86	09.196 BRACKET; RECEIVER DRYER 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97380-437-0	01	1	0808-0809	●	●	●
86	09.196 BRACKET; RECEIVER DRYER EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97380-437-0	01	1	0808-0809				●
86	09.196 BRACKET; RECEIVER DRYER 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97380-437-0	01	1	0808-0809					●
86	09.196 BRACKET; RECEIVER DRYER 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97380-437-0	01	1	0810-1007	●	●	●	●	●	●	●
86	09.196 BRACKET; RECEIVER DRYER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97380-437-0	01	1	1008-	●	●	●	●	●	●	●
88	09.190 GASKET; PRESSURE SW 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97333-321-0	01	1	0808-0809	●	●	●
88	09.190 GASKET; PRESSURE SW EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97333-321-0	01	1	0808-0809				●
88	09.190 GASKET; PRESSURE SW 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97333-321-0	01	1	0808-0809					●
88	09.190 GASKET; PRESSURE SW 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97333-321-0	01	1	0810-1007	●	●	●	●	●	●	●
88	09.190 GASKET; PRESSURE SW 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97333-321-0	01	1	1008-	●	●	●	●	●	●	●
89	09.190 BOLT; CONDENSER TO BODY 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) M6X35	8-98071-149-0	02	1	0808-0809	●	●	●
89	09.190 BOLT; CONDENSER TO BODY EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) M6X35	8-98071-149-0	02	1	0808-0809				●
89	09.190 BOLT; CONDENSER TO BODY 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) M6X35	8-98071-149-0	02	1	0808-0809					●
89	09.190 BOLT; CONDENSER TO BODY 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X35	8-98071-149-0	02	1	0810-1007	●	●	●	●	●	●	●
89	09.190 BOLT; CONDENSER TO BODY 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X35	8-98071-149-0	02	1	1008-	●	●	●	●	●	●	●
161	02.559 BOLT; PIPE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 09.175 M6X16	8-98071-146-0	01	1	0911-1007	●	●	●	●	●	●	●
161	02.559 BOLT; PIPE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 09.175 M6X16	8-98071-146-0	01	1	1008-	●	●	●	●	●	●	●
161	02.559 BOLT; PIPE 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) M6X20	8-98071-147-0	01	1	0808-0809	●	●	●
161	02.559 BOLT; PIPE EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) M6X20	8-98071-147-0	01	1	0808-0809				●
161	02.559 BOLT; PIPE 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) M6X20	8-98071-147-0	01	1	0808-0809					●
161	02.559 BOLT; PIPE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X20	8-98071-147-0	01	1	0810-0910	●	●	●	●	●	●	●
162	09.195 GASKET; PIPE TO DRYER 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) 09.190	8-97333-321-0	01	1	0808-0809	●	●	●
162	09.195 GASKET; PIPE TO DRYER EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) 09.190	8-97333-321-0	01	1	0808-0809				●
162	09.195 GASKET; PIPE TO DRYER 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) 09.190	8-97333-321-0	01	1	0808-0809					●
162	09.195 GASKET; PIPE TO DRYER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 09.190	8-97333-321-0	01	1	0810-1007	●	●	●	●	●	●	●
162	09.195 GASKET; PIPE TO DRYER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 09.190	8-97333-321-0	01	1	1008-	●	●	●	●	●	●	●
173	09.190 INSULATOR; CONDENSER 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-98034-693-0	02	1	0808-0809	●	●	●
173	09.190 INSULATOR; CONDENSER EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-98034-693-0	02	1	0808-0809				●
173	09.190 INSULATOR; CONDENSER 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-98034-693-0	02	1	0808-0809					●
173	09.190 INSULATOR; CONDENSER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-98034-693-0	02	1	0810-1007	●	●	●	●	●	●	●
173	09.190 INSULATOR; CONDENSER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-98034-693-0	02	1	1008-	●	●	●	●	●	●	●

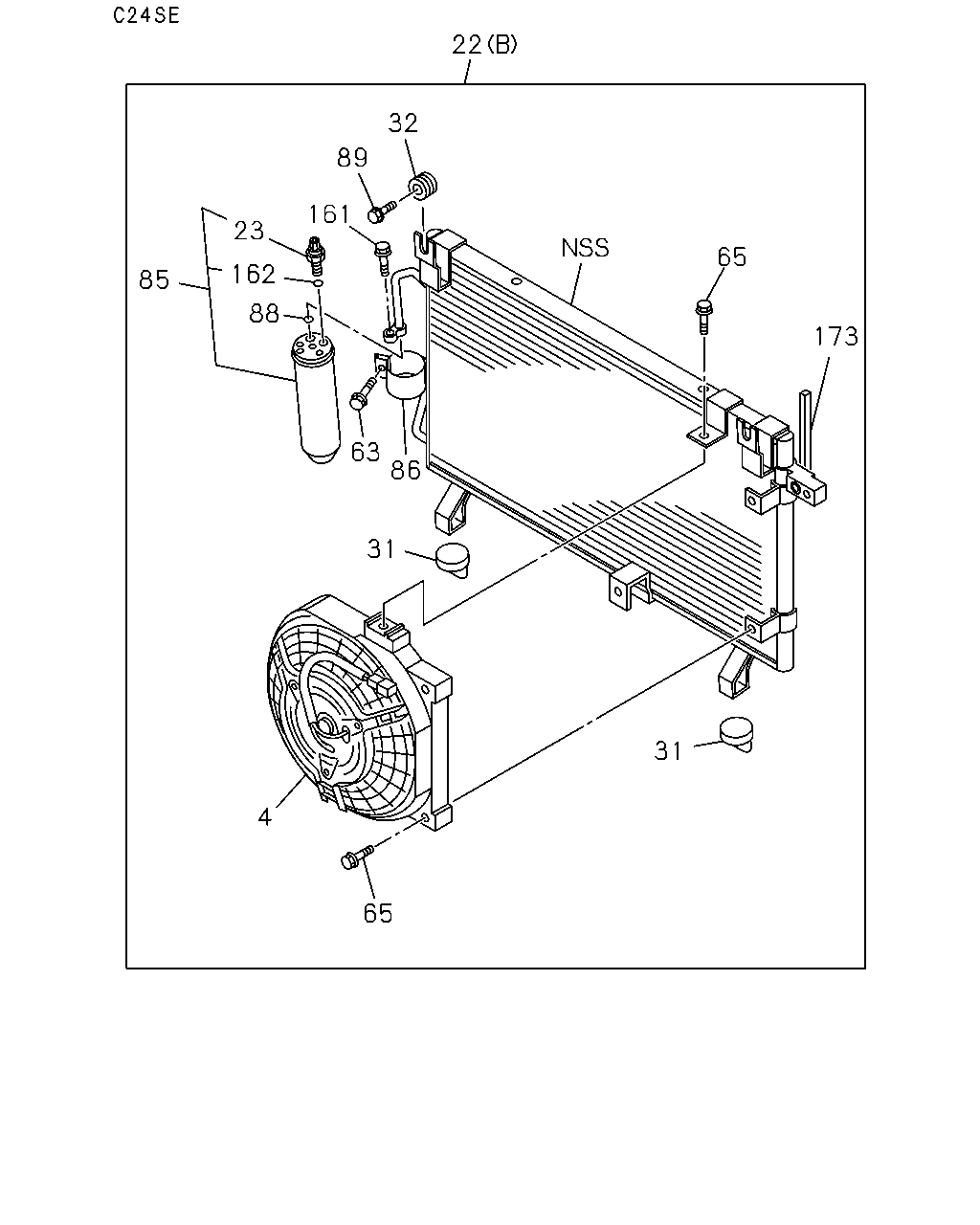

22 32 36 89 65 173 23 85 162 31 88 161 86 31 4 63 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
4	09.216 MOTOR ASM; FAN 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97356-646-0	01	1	0808-0809	●	●	●
4	09.216 MOTOR ASM; FAN EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97356-646-0	01	1	0808-0809				●
4	09.216 MOTOR ASM; FAN 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97356-646-0	01	1	0808-0809					●
4	09.216 MOTOR ASM; FAN 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97356-646-0	01	1	0810-1003	●	●	●	●	●	●	●
4	09.216 MOTOR ASM; FAN C24SE ENG(LG1),4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97356-646-0	01	1	0810-1003		●	●	●	●	●	●
4	09.216 MOTOR ASM; FAN 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97356-646-0	01	1	1004-1007	●	●	●	●	●		●
4	09.216 MOTOR ASM; FAN C24SE ENG(LG1) AUSTRALIA EQUIPMENT(B13) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97356-646-0	01	1	1004-1007		●	●
4	09.216 MOTOR ASM; FAN 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97356-646-0	01	1	1008-	●	●	●	●	●		●
22	09.190 CONDENSER ASM; A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. AUSTRALIA EQUIPMENT(B13) (B)	8-98163-506-0	01	1	1004-1007		●	●		●		●
22	09.190 CONDENSER ASM; A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-98163-506-0	01	1	1008-		●	●		●		●
22	09.190 CONDENSER ASM; A/C 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPME NT(2G0) (C)	8-98071-118-0	01	1	0810-1007		●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPME NT(2G0) (C)	8-98071-118-0	01	1	1008-1201		●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPME NT(2G0) (C)	8-98176-435-1	01	1	1202-		●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-98071-128-0	01	1	0810-1003		●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED5G(RSP) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-98163-507-0	01	1	1004-1007		●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED5G(RSP),M/T MUA 5 SPEED 5S(RSQ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-98163-507-0	01	1	1008-		●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-98071-123-0	01	1	0810-1003		●	●		●		●
22	09.190 CONDENSER ASM; A/C C24SE ENG(LG1) AUSTRALIA EQUIPMENT(B13) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-98071-123-0	01	1	1004-1007		●	●
22	09.190 CONDENSER ASM; A/C 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (A)	8-98071-120-0	01	1	0808-0809	●	●	●
22	09.190 CONDENSER ASM; A/C EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (A)	8-98071-120-0	01	1	0808-0809				●
22	09.190 CONDENSER ASM; A/C 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (A)	8-98071-120-0	01	1	0808-0809					●
22	09.190 CONDENSER ASM; A/C 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-98071-120-0	01	1	0810-1007	●	●	●	●	●		●
22	09.190 CONDENSER ASM; A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-98071-120-0	01	1	1008-1201	●	●	●	●	●		●
22	09.190 CONDENSER ASM; A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-98176-437-0	01	1	1202-	●	●	●	●	●		●
23	09.172 SWITCH; PRESSURE,CONDENSER 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPME NT(2G0)	8-97375-560-0	01	1	0810-1003		●	●	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),SIN GAPORE EQUIPMENT(2G0)	8-97375-560-0	01	1	1004-1007		●	●	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED5G(RSP),M/T MUA 5 SPEED 5S(RSQ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97375-560-0	01	1	1004-1007		●	●	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. AUSTRALIA EQUIPMENT(B13)	8-97375-560-0	01	1	1004-1007		●	●		●		●
23	09.172 SWITCH; PRESSURE,CONDENSER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPME NT(2G0)	8-97375-560-0	01	1	1008-		●	●	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED5G(RSP),M/T MUA 5 SPEED 5S(RSQ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97375-560-0	01	1	1008-		●	●	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97375-560-0	01	1	1008-		●	●		●		●
23	09.172 SWITCH; PRESSURE,CONDENSER 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97381-465-0	01	1	0808-0809	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97381-465-0	01	1	0808-0809				●
23	09.172 SWITCH; PRESSURE,CONDENSER 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97381-465-0	01	1	0808-0809					●
23	09.172 SWITCH; PRESSURE,CONDENSER 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97381-465-0	01	1	0810-1003	●	●	●	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER C24SE ENG(LG1),4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97381-465-0	01	1	0810-1003		●	●	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97381-465-0	01	1	1004-1007	●	●	●	●	●		●
23	09.172 SWITCH; PRESSURE,CONDENSER C24SE ENG(LG1) AUSTRALIA EQUIPMENT(B13) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97381-465-0	01	1	1004-1007		●	●
23	09.172 SWITCH; PRESSURE,CONDENSER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97381-465-0	01	1	1008-	●	●	●	●	●		●
31	09.190 RUBBER; MTG,CONDENSER 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97333-319-0	02	1	0808-0809	●	●	●
31	09.190 RUBBER; MTG,CONDENSER EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97333-319-0	02	1	0808-0809				●
31	09.190 RUBBER; MTG,CONDENSER 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97333-319-0	02	1	0808-0809					●
31	09.190 RUBBER; MTG,CONDENSER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97333-319-0	02	1	0810-1007	●	●	●	●	●	●	●
31	09.190 RUBBER; MTG,CONDENSER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97333-319-0	02	1	1008-	●	●	●	●	●	●	●
32	09.190 GROMMET; CONDENSER 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97333-320-0	02	1	0808-0809	●	●	●
32	09.190 GROMMET; CONDENSER EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97333-320-0	02	1	0808-0809				●
32	09.190 GROMMET; CONDENSER 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97333-320-0	02	1	0808-0809					●
32	09.190 GROMMET; CONDENSER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97333-320-0	02	1	0810-1007	●	●	●	●	●	●	●
32	09.190 GROMMET; CONDENSER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97333-320-0	02	1	1008-	●	●	●	●	●	●	●
36	09.190 SCREW; PLATE TO CONDENSER 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M4X25	8-98071-148-0	09	1	0810-1003	●	●	●	●	●	●	●
36	09.190 SCREW; PLATE TO CONDENSER C24SE ENG(LG1),4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M4X25	8-98071-148-0	09	1	0810-1003		●	●	●	●	●	●
36	09.190 SCREW; PLATE TO CONDENSER 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),SIN GAPORE EQUIPMENT(2G0) M4X25	8-98071-148-0	06	1	1004-1007		●	●	●	●	●	●
36	09.190 SCREW; PLATE TO CONDENSER 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED5G(RSP),M/T MUA 5 SPEED 5S(RSQ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M4X25	8-98071-148-0	06	1	1004-1007		●	●	●	●	●	●
36	09.190 SCREW; PLATE TO CONDENSER C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. AUSTRALIA EQUIPMENT(B13) M4X25	8-98071-148-0	06	1	1004-1007		●	●		●		●
36	09.190 SCREW; PLATE TO CONDENSER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPME NT(2G0) M4X25	8-98071-148-0	06	1	1008-		●	●	●	●	●	●
36	09.190 SCREW; PLATE TO CONDENSER 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED5G(RSP),M/T MUA 5 SPEED 5S(RSQ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M4X25	8-98071-148-0	06	1	1008-		●	●	●	●	●	●
36	09.190 SCREW; PLATE TO CONDENSER C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M4X25	8-98071-148-0	06	1	1008-		●	●		●		●
36	09.190 SCREW; PLATE TO CONDENSER 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) M4X25	8-98071-148-0	09	1	0808-0809	●	●	●
36	09.190 SCREW; PLATE TO CONDENSER EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) M4X25	8-98071-148-0	09	1	0808-0809				●
36	09.190 SCREW; PLATE TO CONDENSER 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) M4X25	8-98071-148-0	09	1	0808-0809					●
36	09.190 SCREW; PLATE TO CONDENSER 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPME NT(2G0) M4X25	8-98071-148-0	06	1	0810-1003		●	●	●	●	●	●
36	09.190 SCREW; PLATE TO CONDENSER 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M4X25	8-98071-148-0	09	1	1004-1007	●	●	●	●	●		●
36	09.190 SCREW; PLATE TO CONDENSER C24SE ENG(LG1) AUSTRALIA EQUIPMENT(B13) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M4X25	8-98071-148-0	09	1	1004-1007		●	●
36	09.190 SCREW; PLATE TO CONDENSER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M4X25	8-98071-148-0	09	1	1008-	●	●	●	●	●		●
63	09.175 BOLT; RECEIVER TANK 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) M6X16	8-98071-146-0	03	1	0808-0809	●	●	●
63	09.175 BOLT; RECEIVER TANK EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) M6X16	8-98071-146-0	03	1	0808-0809				●
63	09.175 BOLT; RECEIVER TANK 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) M6X16	8-98071-146-0	03	1	0808-0809					●
63	09.175 BOLT; RECEIVER TANK 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X16	8-98071-146-0	03	1	0810-1007	●	●	●	●	●	●	●
63	09.175 BOLT; RECEIVER TANK 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X16	8-98071-146-0	03	1	1008-	●	●	●	●	●	●	●
65	09.216 BOLT; SHROUD 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) M6X18	8-98071-145-0	04	1	0808-0809	●	●	●
65	09.216 BOLT; SHROUD EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) M6X18	8-98071-145-0	04	1	0808-0809				●
65	09.216 BOLT; SHROUD 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) M6X18	8-98071-145-0	04	1	0808-0809					●
65	09.216 BOLT; SHROUD 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X18	8-98071-145-0	04	1	0810-1003	●	●	●	●	●	●	●
65	09.216 BOLT; SHROUD C24SE ENG(LG1),4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X18	8-98071-145-0	04	1	0810-1003		●	●	●	●	●	●
65	09.216 BOLT; SHROUD 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X18	8-98071-145-0	04	1	1004-1007	●	●	●	●	●		●
65	09.216 BOLT; SHROUD C24SE ENG(LG1) AUSTRALIA EQUIPMENT(B13) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X18	8-98071-145-0	04	1	1004-1007		●	●
65	09.216 BOLT; SHROUD 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X18	8-98071-145-0	04	1	1008-	●	●	●	●	●		●
85	09.172 DRYER; RECEIVER C24SE ENG(LG1),4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. AUSTRALIA EQUIPMENT(B13)	8-98071-280-0	01	1	1004-1007		●	●	●	●	●	●
85	09.172 DRYER; RECEIVER C24SE ENG(LG1),4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-98071-280-0	01	1	1008-1201		●	●	●	●	●	●
85	09.172 DRYER; RECEIVER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPME NT(2G0)	8-98071-280-0	01	1	1202-		●	●	●	●	●	●
85	09.172 DRYER; RECEIVER 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED5G(RSP),M/T MUA 5 SPEED 5S(RSQ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-98071-280-0	01	1	1202-		●	●	●	●	●	●
85	09.172 DRYER; RECEIVER C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-98071-280-0	01	1	1202-		●	●		●		●
85	09.172 DRYER; RECEIVER 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPME NT(2G0)	8-97375-558-2	01	1	0810-1007		●	●	●	●	●	●
85	09.172 DRYER; RECEIVER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPME NT(2G0)	8-97375-558-2	01	1	1008-1201		●	●	●	●	●	●
85	09.172 DRYER; RECEIVER C24SE ENG(LG1),4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97381-576-0	01	1	0810-1003		●	●	●	●	●	●
85	09.172 DRYER; RECEIVER C24SE ENG(LG1) AUSTRALIA EQUIPMENT(B13) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97381-576-0	01	1	1004-1007		●	●
85	09.172 DRYER; RECEIVER 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97380-448-2	01	1	0808-0809	●	●	●
85	09.172 DRYER; RECEIVER EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97380-448-2	01	1	0808-0809				●
85	09.172 DRYER; RECEIVER 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97380-448-2	01	1	0808-0809					●
85	09.172 DRYER; RECEIVER 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97380-448-2	01	1	0810-1007	●	●	●	●	●		●
85	09.172 DRYER; RECEIVER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97380-448-2	01	1	1008-1201	●	●	●	●	●		●
85	09.172 DRYER; RECEIVER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97381-576-0	01	1	1202-	●	●	●	●	●		●
86	09.196 BRACKET; RECEIVER DRYER C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-98071-269-0	01	1	0810-		●	●		●		●
86	09.196 BRACKET; RECEIVER DRYER 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97380-437-0	01	1	0808-0809	●	●	●
86	09.196 BRACKET; RECEIVER DRYER EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97380-437-0	01	1	0808-0809				●
86	09.196 BRACKET; RECEIVER DRYER 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97380-437-0	01	1	0808-0809					●
86	09.196 BRACKET; RECEIVER DRYER 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97380-437-0	01	1	0810-1007	●	●	●	●	●	●	●
86	09.196 BRACKET; RECEIVER DRYER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97380-437-0	01	1	1008-	●	●	●	●	●	●	●
88	09.190 GASKET; PRESSURE SW 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97333-321-0	01	1	0808-0809	●	●	●
88	09.190 GASKET; PRESSURE SW EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97333-321-0	01	1	0808-0809				●
88	09.190 GASKET; PRESSURE SW 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97333-321-0	01	1	0808-0809					●
88	09.190 GASKET; PRESSURE SW 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97333-321-0	01	1	0810-1007	●	●	●	●	●	●	●
88	09.190 GASKET; PRESSURE SW 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97333-321-0	01	1	1008-	●	●	●	●	●	●	●
89	09.190 BOLT; CONDENSER TO BODY 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) M6X35	8-98071-149-0	02	1	0808-0809	●	●	●
89	09.190 BOLT; CONDENSER TO BODY EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) M6X35	8-98071-149-0	02	1	0808-0809				●
89	09.190 BOLT; CONDENSER TO BODY 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) M6X35	8-98071-149-0	02	1	0808-0809					●
89	09.190 BOLT; CONDENSER TO BODY 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X35	8-98071-149-0	02	1	0810-1007	●	●	●	●	●	●	●
89	09.190 BOLT; CONDENSER TO BODY 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X35	8-98071-149-0	02	1	1008-	●	●	●	●	●	●	●
161	02.559 BOLT; PIPE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 09.175 M6X16	8-98071-146-0	01	1	0911-1007	●	●	●	●	●	●	●
161	02.559 BOLT; PIPE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 09.175 M6X16	8-98071-146-0	01	1	1008-	●	●	●	●	●	●	●
161	02.559 BOLT; PIPE 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) M6X20	8-98071-147-0	01	1	0808-0809	●	●	●
161	02.559 BOLT; PIPE EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) M6X20	8-98071-147-0	01	1	0808-0809				●
161	02.559 BOLT; PIPE 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) M6X20	8-98071-147-0	01	1	0808-0809					●
161	02.559 BOLT; PIPE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X20	8-98071-147-0	01	1	0810-0910	●	●	●	●	●	●	●
162	09.195 GASKET; PIPE TO DRYER 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) 09.190	8-97333-321-0	01	1	0808-0809	●	●	●
162	09.195 GASKET; PIPE TO DRYER EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) 09.190	8-97333-321-0	01	1	0808-0809				●
162	09.195 GASKET; PIPE TO DRYER 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) 09.190	8-97333-321-0	01	1	0808-0809					●
162	09.195 GASKET; PIPE TO DRYER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 09.190	8-97333-321-0	01	1	0810-1007	●	●	●	●	●	●	●
162	09.195 GASKET; PIPE TO DRYER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 09.190	8-97333-321-0	01	1	1008-	●	●	●	●	●	●	●
173	09.190 INSULATOR; CONDENSER 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-98034-693-0	02	1	0808-0809	●	●	●
173	09.190 INSULATOR; CONDENSER EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-98034-693-0	02	1	0808-0809				●
173	09.190 INSULATOR; CONDENSER 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-98034-693-0	02	1	0808-0809					●
173	09.190 INSULATOR; CONDENSER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-98034-693-0	02	1	0810-1007	●	●	●	●	●	●	●
173	09.190 INSULATOR; CONDENSER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-98034-693-0	02	1	1008-	●	●	●	●	●	●	●

22 32 36 89 173 86 23 85 162 88 31 161 63 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
22	09.190 CONDENSER ASM; A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. AUSTRALIA EQUIPMENT(B13) (B)	8-98163-506-0	01	1	1004-1007		●	●		●		●
22	09.190 CONDENSER ASM; A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-98163-506-0	01	1	1008-		●	●		●		●
22	09.190 CONDENSER ASM; A/C 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPME NT(2G0) (C)	8-98071-118-0	01	1	0810-1007		●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPME NT(2G0) (C)	8-98071-118-0	01	1	1008-1201		●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPME NT(2G0) (C)	8-98176-435-1	01	1	1202-		●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-98071-128-0	01	1	0810-1003		●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED5G(RSP) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-98163-507-0	01	1	1004-1007		●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED5G(RSP),M/T MUA 5 SPEED 5S(RSQ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-98163-507-0	01	1	1008-		●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-98071-123-0	01	1	0810-1003		●	●		●		●
22	09.190 CONDENSER ASM; A/C C24SE ENG(LG1) AUSTRALIA EQUIPMENT(B13) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-98071-123-0	01	1	1004-1007		●	●
22	09.190 CONDENSER ASM; A/C 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (A)	8-98071-120-0	01	1	0808-0809	●	●	●
22	09.190 CONDENSER ASM; A/C EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (A)	8-98071-120-0	01	1	0808-0809				●
22	09.190 CONDENSER ASM; A/C 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (A)	8-98071-120-0	01	1	0808-0809					●
22	09.190 CONDENSER ASM; A/C 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-98071-120-0	01	1	0810-1007	●	●	●	●	●		●
22	09.190 CONDENSER ASM; A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-98071-120-0	01	1	1008-1201	●	●	●	●	●		●
22	09.190 CONDENSER ASM; A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-98176-437-0	01	1	1202-	●	●	●	●	●		●
23	09.172 SWITCH; PRESSURE,CONDENSER 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPME NT(2G0)	8-97375-560-0	01	1	0810-1003		●	●	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),SIN GAPORE EQUIPMENT(2G0)	8-97375-560-0	01	1	1004-1007		●	●	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED5G(RSP),M/T MUA 5 SPEED 5S(RSQ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97375-560-0	01	1	1004-1007		●	●	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. AUSTRALIA EQUIPMENT(B13)	8-97375-560-0	01	1	1004-1007		●	●		●		●
23	09.172 SWITCH; PRESSURE,CONDENSER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPME NT(2G0)	8-97375-560-0	01	1	1008-		●	●	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED5G(RSP),M/T MUA 5 SPEED 5S(RSQ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97375-560-0	01	1	1008-		●	●	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97375-560-0	01	1	1008-		●	●		●		●
23	09.172 SWITCH; PRESSURE,CONDENSER 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97381-465-0	01	1	0808-0809	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97381-465-0	01	1	0808-0809				●
23	09.172 SWITCH; PRESSURE,CONDENSER 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97381-465-0	01	1	0808-0809					●
23	09.172 SWITCH; PRESSURE,CONDENSER 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97381-465-0	01	1	0810-1003	●	●	●	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER C24SE ENG(LG1),4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97381-465-0	01	1	0810-1003		●	●	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97381-465-0	01	1	1004-1007	●	●	●	●	●		●
23	09.172 SWITCH; PRESSURE,CONDENSER C24SE ENG(LG1) AUSTRALIA EQUIPMENT(B13) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97381-465-0	01	1	1004-1007		●	●
23	09.172 SWITCH; PRESSURE,CONDENSER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97381-465-0	01	1	1008-	●	●	●	●	●		●
31	09.190 RUBBER; MTG,CONDENSER 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97333-319-0	02	1	0808-0809	●	●	●
31	09.190 RUBBER; MTG,CONDENSER EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97333-319-0	02	1	0808-0809				●
31	09.190 RUBBER; MTG,CONDENSER 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97333-319-0	02	1	0808-0809					●
31	09.190 RUBBER; MTG,CONDENSER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97333-319-0	02	1	0810-1007	●	●	●	●	●	●	●
31	09.190 RUBBER; MTG,CONDENSER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97333-319-0	02	1	1008-	●	●	●	●	●	●	●
32	09.190 GROMMET; CONDENSER 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97333-320-0	02	1	0808-0809	●	●	●
32	09.190 GROMMET; CONDENSER EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97333-320-0	02	1	0808-0809				●
32	09.190 GROMMET; CONDENSER 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97333-320-0	02	1	0808-0809					●
32	09.190 GROMMET; CONDENSER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97333-320-0	02	1	0810-1007	●	●	●	●	●	●	●
32	09.190 GROMMET; CONDENSER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97333-320-0	02	1	1008-	●	●	●	●	●	●	●
36	09.190 SCREW; PLATE TO CONDENSER 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M4X25	8-98071-148-0	09	1	0810-1003	●	●	●	●	●	●	●
36	09.190 SCREW; PLATE TO CONDENSER C24SE ENG(LG1),4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M4X25	8-98071-148-0	09	1	0810-1003		●	●	●	●	●	●
36	09.190 SCREW; PLATE TO CONDENSER 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),SIN GAPORE EQUIPMENT(2G0) M4X25	8-98071-148-0	06	1	1004-1007		●	●	●	●	●	●
36	09.190 SCREW; PLATE TO CONDENSER 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED5G(RSP),M/T MUA 5 SPEED 5S(RSQ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M4X25	8-98071-148-0	06	1	1004-1007		●	●	●	●	●	●
36	09.190 SCREW; PLATE TO CONDENSER C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. AUSTRALIA EQUIPMENT(B13) M4X25	8-98071-148-0	06	1	1004-1007		●	●		●		●
36	09.190 SCREW; PLATE TO CONDENSER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPME NT(2G0) M4X25	8-98071-148-0	06	1	1008-		●	●	●	●	●	●
36	09.190 SCREW; PLATE TO CONDENSER 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED5G(RSP),M/T MUA 5 SPEED 5S(RSQ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M4X25	8-98071-148-0	06	1	1008-		●	●	●	●	●	●
36	09.190 SCREW; PLATE TO CONDENSER C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M4X25	8-98071-148-0	06	1	1008-		●	●		●		●
36	09.190 SCREW; PLATE TO CONDENSER 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) M4X25	8-98071-148-0	09	1	0808-0809	●	●	●
36	09.190 SCREW; PLATE TO CONDENSER EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) M4X25	8-98071-148-0	09	1	0808-0809				●
36	09.190 SCREW; PLATE TO CONDENSER 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) M4X25	8-98071-148-0	09	1	0808-0809					●
36	09.190 SCREW; PLATE TO CONDENSER 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPME NT(2G0) M4X25	8-98071-148-0	06	1	0810-1003		●	●	●	●	●	●
36	09.190 SCREW; PLATE TO CONDENSER 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M4X25	8-98071-148-0	09	1	1004-1007	●	●	●	●	●		●
36	09.190 SCREW; PLATE TO CONDENSER C24SE ENG(LG1) AUSTRALIA EQUIPMENT(B13) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M4X25	8-98071-148-0	09	1	1004-1007		●	●
36	09.190 SCREW; PLATE TO CONDENSER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M4X25	8-98071-148-0	09	1	1008-	●	●	●	●	●		●
63	09.175 BOLT; RECEIVER TANK 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) M6X16	8-98071-146-0	03	1	0808-0809	●	●	●
63	09.175 BOLT; RECEIVER TANK EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) M6X16	8-98071-146-0	03	1	0808-0809				●
63	09.175 BOLT; RECEIVER TANK 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) M6X16	8-98071-146-0	03	1	0808-0809					●
63	09.175 BOLT; RECEIVER TANK 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X16	8-98071-146-0	03	1	0810-1007	●	●	●	●	●	●	●
63	09.175 BOLT; RECEIVER TANK 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X16	8-98071-146-0	03	1	1008-	●	●	●	●	●	●	●
85	09.172 DRYER; RECEIVER C24SE ENG(LG1),4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. AUSTRALIA EQUIPMENT(B13)	8-98071-280-0	01	1	1004-1007		●	●	●	●	●	●
85	09.172 DRYER; RECEIVER C24SE ENG(LG1),4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-98071-280-0	01	1	1008-1201		●	●	●	●	●	●
85	09.172 DRYER; RECEIVER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPME NT(2G0)	8-98071-280-0	01	1	1202-		●	●	●	●	●	●
85	09.172 DRYER; RECEIVER 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED5G(RSP),M/T MUA 5 SPEED 5S(RSQ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-98071-280-0	01	1	1202-		●	●	●	●	●	●
85	09.172 DRYER; RECEIVER C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-98071-280-0	01	1	1202-		●	●		●		●
85	09.172 DRYER; RECEIVER 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPME NT(2G0)	8-97375-558-2	01	1	0810-1007		●	●	●	●	●	●
85	09.172 DRYER; RECEIVER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPME NT(2G0)	8-97375-558-2	01	1	1008-1201		●	●	●	●	●	●
85	09.172 DRYER; RECEIVER C24SE ENG(LG1),4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97381-576-0	01	1	0810-1003		●	●	●	●	●	●
85	09.172 DRYER; RECEIVER C24SE ENG(LG1) AUSTRALIA EQUIPMENT(B13) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97381-576-0	01	1	1004-1007		●	●
85	09.172 DRYER; RECEIVER 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97380-448-2	01	1	0808-0809	●	●	●
85	09.172 DRYER; RECEIVER EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97380-448-2	01	1	0808-0809				●
85	09.172 DRYER; RECEIVER 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97380-448-2	01	1	0808-0809					●
85	09.172 DRYER; RECEIVER 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97380-448-2	01	1	0810-1007	●	●	●	●	●		●
85	09.172 DRYER; RECEIVER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97380-448-2	01	1	1008-1201	●	●	●	●	●		●
85	09.172 DRYER; RECEIVER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97381-576-0	01	1	1202-	●	●	●	●	●		●
86	09.196 BRACKET; RECEIVER DRYER C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-98071-269-0	01	1	0810-		●	●		●		●
86	09.196 BRACKET; RECEIVER DRYER 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97380-437-0	01	1	0808-0809	●	●	●
86	09.196 BRACKET; RECEIVER DRYER EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97380-437-0	01	1	0808-0809				●
86	09.196 BRACKET; RECEIVER DRYER 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97380-437-0	01	1	0808-0809					●
86	09.196 BRACKET; RECEIVER DRYER 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97380-437-0	01	1	0810-1007	●	●	●	●	●	●	●
86	09.196 BRACKET; RECEIVER DRYER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97380-437-0	01	1	1008-	●	●	●	●	●	●	●
88	09.190 GASKET; PRESSURE SW 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97333-321-0	01	1	0808-0809	●	●	●
88	09.190 GASKET; PRESSURE SW EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97333-321-0	01	1	0808-0809				●
88	09.190 GASKET; PRESSURE SW 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97333-321-0	01	1	0808-0809					●
88	09.190 GASKET; PRESSURE SW 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97333-321-0	01	1	0810-1007	●	●	●	●	●	●	●
88	09.190 GASKET; PRESSURE SW 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97333-321-0	01	1	1008-	●	●	●	●	●	●	●
89	09.190 BOLT; CONDENSER TO BODY 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) M6X35	8-98071-149-0	02	1	0808-0809	●	●	●
89	09.190 BOLT; CONDENSER TO BODY EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) M6X35	8-98071-149-0	02	1	0808-0809				●
89	09.190 BOLT; CONDENSER TO BODY 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) M6X35	8-98071-149-0	02	1	0808-0809					●
89	09.190 BOLT; CONDENSER TO BODY 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X35	8-98071-149-0	02	1	0810-1007	●	●	●	●	●	●	●
89	09.190 BOLT; CONDENSER TO BODY 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X35	8-98071-149-0	02	1	1008-	●	●	●	●	●	●	●
161	02.559 BOLT; PIPE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 09.175 M6X16	8-98071-146-0	01	1	0911-1007	●	●	●	●	●	●	●
161	02.559 BOLT; PIPE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 09.175 M6X16	8-98071-146-0	01	1	1008-	●	●	●	●	●	●	●
161	02.559 BOLT; PIPE 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) M6X20	8-98071-147-0	01	1	0808-0809	●	●	●
161	02.559 BOLT; PIPE EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) M6X20	8-98071-147-0	01	1	0808-0809				●
161	02.559 BOLT; PIPE 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) M6X20	8-98071-147-0	01	1	0808-0809					●
161	02.559 BOLT; PIPE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M6X20	8-98071-147-0	01	1	0810-0910	●	●	●	●	●	●	●
162	09.195 GASKET; PIPE TO DRYER 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) 09.190	8-97333-321-0	01	1	0808-0809	●	●	●
162	09.195 GASKET; PIPE TO DRYER EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) 09.190	8-97333-321-0	01	1	0808-0809				●
162	09.195 GASKET; PIPE TO DRYER 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) 09.190	8-97333-321-0	01	1	0808-0809					●
162	09.195 GASKET; PIPE TO DRYER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 09.190	8-97333-321-0	01	1	0810-1007	●	●	●	●	●	●	●
162	09.195 GASKET; PIPE TO DRYER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 09.190	8-97333-321-0	01	1	1008-	●	●	●	●	●	●	●
173	09.190 INSULATOR; CONDENSER 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-98034-693-0	02	1	0808-0809	●	●	●
173	09.190 INSULATOR; CONDENSER EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-98034-693-0	02	1	0808-0809				●
173	09.190 INSULATOR; CONDENSER 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-98034-693-0	02	1	0808-0809					●
173	09.190 INSULATOR; CONDENSER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-98034-693-0	02	1	0810-1007	●	●	●	●	●	●	●
173	09.190 INSULATOR; CONDENSER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-98034-693-0	02	1	1008-	●	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
