8-71 — COMPRESSOR; AIR CONDITIONING (#77114) — 33 parça

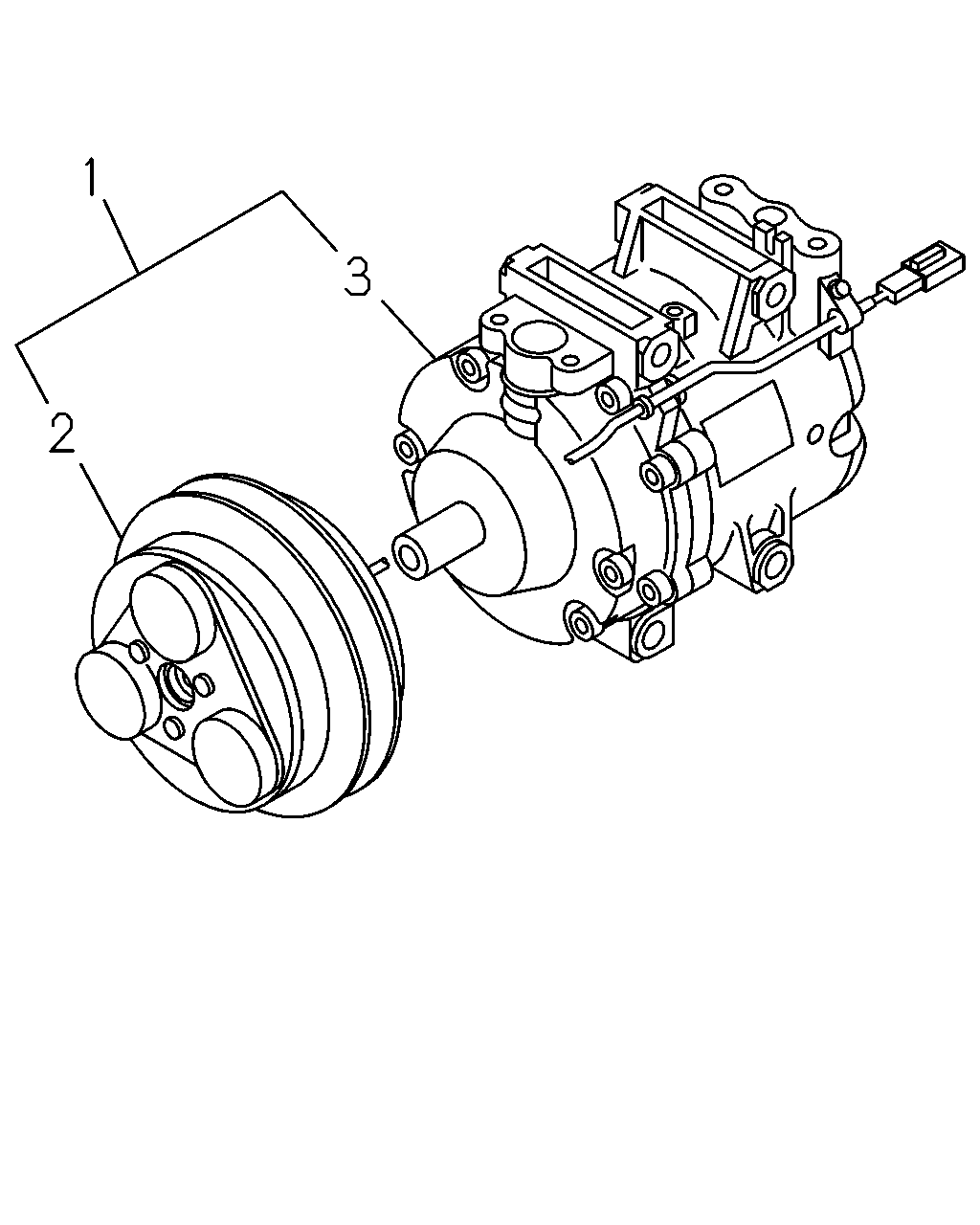

1 3 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	09.170 COMPRESSOR ASM; A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97369-415-0	01	1	0810-1110	●	●	●	●	●	●
1	09.170 COMPRESSOR ASM; A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-98199-289-1	01	1	1111-	●	●	●	●	●	●
1	09.170 COMPRESSOR ASM; A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97369-417-0	01	1	0810-1111		●	●		●	●
1	09.170 COMPRESSOR ASM; A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-98199-290-1	01	1	1112-		●	●		●	●
1	09.170 COMPRESSOR ASM; A/C 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97370-661-3	01	1	0808-0809			●			●	●
1	09.170 COMPRESSOR ASM; A/C EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97370-661-3	01	1	0808-0809				●
1	09.170 COMPRESSOR ASM; A/C 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97370-661-3	01	1	0808-0809					●
1	09.170 COMPRESSOR ASM; A/C 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97370-661-3	01	1	0810-1007	●	●	●	●	●	●	●
1	09.170 COMPRESSOR ASM; A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97370-661-3	01	1	1008-1109	●	●	●	●	●	●	●
1	09.170 COMPRESSOR ASM; A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-98199-292-1	01	1	1110-	●	●	●	●	●	●	●
2	09.188 CLUTCH; MAGNET,A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97371-580-0	01	1	0810-1402	●	●	●	●	●	●
2	09.188 CLUTCH; MAGNET,A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-98258-537-0	01	1	1403-	●	●	●	●	●	●
2	09.188 CLUTCH; MAGNET,A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97371-581-0	01	1	0810-1402		●	●		●	●
2	09.188 CLUTCH; MAGNET,A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-98258-538-0	01	1	1403-		●	●		●	●
2	09.188 CLUTCH; MAGNET,A/C 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97372-920-0	01	1	0808-0809			●			●	●
2	09.188 CLUTCH; MAGNET,A/C EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97372-920-0	01	1	0808-0809				●
2	09.188 CLUTCH; MAGNET,A/C 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97372-920-0	01	1	0808-0809					●
2	09.188 CLUTCH; MAGNET,A/C 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97372-920-0	01	1	0810-1007	●	●	●	●	●	●	●
2	09.188 CLUTCH; MAGNET,A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97372-920-0	01	1	1008-1402	●	●	●	●	●	●	●
2	09.188 CLUTCH; MAGNET,A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-98252-777-0	01	1	1403-	●	●	●	●	●	●	●
3	09.170 COMPRESSOR ASM; A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97371-576-0	01	1	0810-1110	●	●	●	●	●	●
3	09.170 COMPRESSOR ASM; A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-98204-871-0	01	1	1111-1402	●	●	●	●	●	●
3	09.170 COMPRESSOR ASM; A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-98258-530-0	01	1	1403-	●	●	●	●	●	●
3	09.170 COMPRESSOR ASM; A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97371-578-0	01	1	0810-1111		●	●		●	●
3	09.170 COMPRESSOR ASM; A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-98204-872-0	01	1	1112-1402		●	●		●	●
3	09.170 COMPRESSOR ASM; A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-98258-531-0	01	1	1403-		●	●		●	●
3	09.170 COMPRESSOR ASM; A/C 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-98070-188-0	01	1	0808-0809			●			●	●
3	09.170 COMPRESSOR ASM; A/C EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-98070-188-0	01	1	0808-0809				●
3	09.170 COMPRESSOR ASM; A/C 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-98070-188-0	01	1	0808-0809					●
3	09.170 COMPRESSOR ASM; A/C 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-98070-188-0	01	1	0810-1007	●	●	●	●	●	●	●
3	09.170 COMPRESSOR ASM; A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-98070-188-0	01	1	1008-1109	●	●	●	●	●	●	●
3	09.170 COMPRESSOR ASM; A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-98204-874-0	01	1	1110-1402	●	●	●	●	●	●	●
3	09.170 COMPRESSOR ASM; A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-98258-533-0	01	1	1403-	●	●	●	●	●	●	●
