8-65 — CONTROL LEVER; HEATER AND AIR CON (#77113) — 60 parça

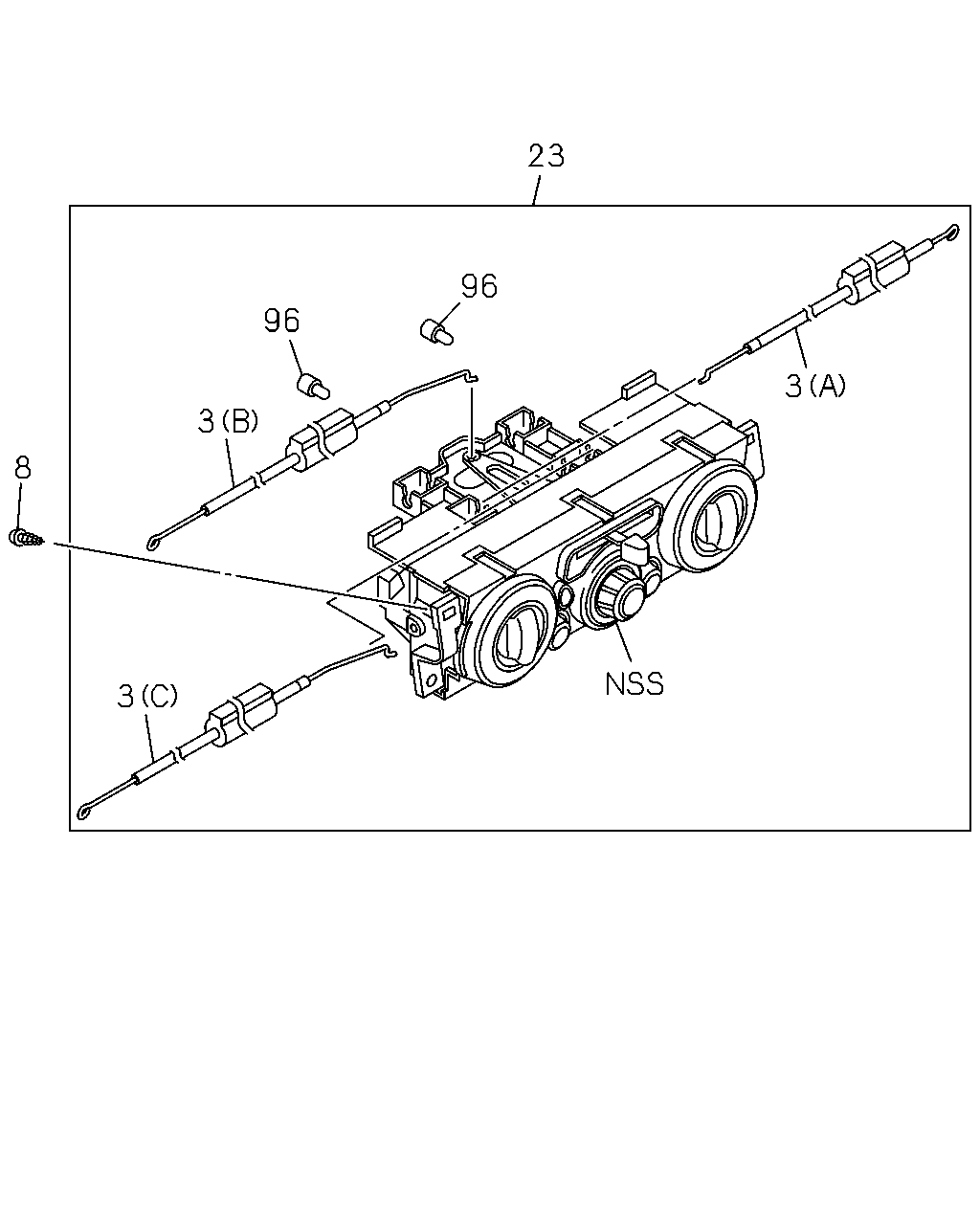

çizim 186209
23 96 96 3 3 8 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
3 09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A) MODE 		8-98029-143-0 01 1 0808-0809 ● ● ●
3 09.787 CABLE; HTR CONT LVR
EXTEND CAB EXTRA LONG(TF**CK) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A) MODE 		8-98029-143-0 01 1 0808-0809 ●
3 09.787 CABLE; HTR CONT LVR
4X4 REGULAR CAB EXTRA LONG(TFS*SK) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A) MODE 		8-98029-143-0 01 1 0808-0809 ●
3 09.787 CABLE; HTR CONT LVR
(A) MODE 		8-98029-143-0 01 1 0810- ● ● ● ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) TEMP 		8-98029-144-0 01 1 0808-0809 ● ● ●
3 09.787 CABLE; HTR CONT LVR
EXTEND CAB EXTRA LONG(TF**CK) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) TEMP 		8-98029-144-0 01 1 0808-0809 ●
3 09.787 CABLE; HTR CONT LVR
4X4 REGULAR CAB EXTRA LONG(TFS*SK) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) TEMP 		8-98029-144-0 01 1 0808-0809 ●
3 09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) TEMP 		8-98029-144-0 01 1 0810- ● ● ● ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (B) INTAKE 		8-98029-145-0 01 1 0808-0809 ● ● ●
3 09.787 CABLE; HTR CONT LVR
EXTEND CAB EXTRA LONG(TF**CK) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (B) INTAKE 		8-98029-145-0 01 1 0808-0809 ●
3 09.787 CABLE; HTR CONT LVR
4X4 REGULAR CAB EXTRA LONG(TFS*SK) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (B) INTAKE 		8-98029-145-0 01 1 0808-0809 ●
3 09.787 CABLE; HTR CONT LVR
(B) INTAKE 		8-98029-145-0 01 1 0810- ● ● ● ● ● ● ●
8 08.852 SCREW; CONT LVR TO INST PNL
08.083 M5X16 TAPPING 		8-98061-685-0 02 1 0808-0809 ● ● ● ● ●
8 08.852 SCREW; CONT LVR TO INST PNL
08.083 M5X16 TAPPING 		8-98061-685-0 02 1 0810-1004 ● ● ● ● ● ● ●
8 08.852 SCREW; CONT LVR TO INST PNL
08.083 M5X16 TAPPING 		8-98167-449-0 02 1 1005- ● ● ● ● ● ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> EXC. AUSTRALIA EQUIPMENT(B13) 		8-98038-127-0 01 1 0810-1003 ● ● ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> EXC. AUSTRALIA EQUIPMENT(B13) 		8-98162-208-0 01 1 1004- ● ● ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42) EXC. AUSTRALIA EQUIPMENT(B13),REAR DEFOGGER<C49> 		8-98038-128-0 01 1 0810-1003 ● ● ● ● ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42) EXC. AUSTRALIA EQUIPMENT(B13),REAR DEFOGGER<C49> 		8-98162-207-0 01 1 1004- ● ● ● ● ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> COOLER WO/HEATER(C65) 		8-98038-131-0 01 1 0810-1003 ● ● ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> COOLER WO/HEATER(C65) 		8-98152-601-1 01 1 1004- ● ● ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> AIR CONDITIONER MANUAL CONT(C60) EXC. REAR DEFOGGER<C49> 		8-98038-130-0 01 1 0810-1003 ● ● ● ● ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> AUSTRALIA EQUIPMENT(B13) HEATER & DEFROSTER(C42) EXC. REAR DEFOGGER<C49> 		8-98038-130-0 01 1 0810-1003 ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> AIR CONDITIONER MANUAL CONT(C60) EXC. REAR DEFOGGER<C49> 		8-98162-209-0 01 1 1004- ● ● ● ● ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> AUSTRALIA EQUIPMENT(B13) HEATER & DEFROSTER(C42) EXC. REAR DEFOGGER<C49> 		8-98162-209-0 01 1 1004- ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> COOLER WO/HEATER(C65) EXC. REAR DEFOGGER<C49> 		8-98038-132-0 01 1 0810-1003 ● ● ● ● ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> COOLER WO/HEATER(C65) EXC. REAR DEFOGGER<C49> 		8-98160-063-1 01 1 1004- ● ● ● ● ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9>, AUSTRALIA EQUIPMENT(B13) 		8-98038-109-0 01 1 0810-1003 ● ● ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9>, AUSTRALIA EQUIPMENT(B13) 		8-98154-109-0 01 1 1004- ● ● ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) EXC. INTERIOR SILVER BEZEL<BY9>, AUSTRALIA EQUIPMENT(B13),REAR DEFOGGER<C49> 		8-98038-110-0 01 1 0810-1003 ● ● ● ● ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) EXC. INTERIOR SILVER BEZEL<BY9>, AUSTRALIA EQUIPMENT(B13),REAR DEFOGGER<C49> 		8-98154-108-0 01 1 1004- ● ● ● ● ● ●
23 08.852 BEZEL; CONT LEVER
REAR DEFOGGER<C49> COOLER WO/HEATER(C65) EXC. INTERIOR SILVER BEZEL<BY9> 		8-98038-113-0 01 1 0810-1003 ● ● ● ●
23 08.852 BEZEL; CONT LEVER
REAR DEFOGGER<C49> COOLER WO/HEATER(C65) EXC. INTERIOR SILVER BEZEL<BY9> 		8-98154-106-1 01 1 1004- ● ● ● ●
23 08.852 BEZEL; CONT LEVER
COOLER WO/HEATER(C65) EXC. INTERIOR SILVER BEZEL<BY9>, REARDEFOGGER<C49> 		8-98038-114-0 01 1 0810-1003 ● ● ● ● ● ●
23 08.852 BEZEL; CONT LEVER
COOLER WO/HEATER(C65) EXC. INTERIOR SILVER BEZEL<BY9>, REARDEFOGGER<C49> 		8-98154-105-1 01 1 1004- ● ● ● ● ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98038-112-0 01 1 0808-0809 ●
23 08.852 BEZEL; CONT LEVER
4X4 REGULAR CAB EXTRA LONG(TFS*SK) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98038-112-0 01 1 0808-0809 ●
23 08.852 BEZEL; CONT LEVER
AIR CONDITIONER MANUAL CONT(C60) EXC. INTERIOR SILVER BEZEL<BY9>, REARDEFOGGER<C49> 		8-98038-112-0 01 1 0810-1003 ● ● ● ● ● ● ●
23 08.852 BEZEL; CONT LEVER
AUSTRALIA EQUIPMENT(B13) HEATER & DEFROSTER(C42) EXC. INTERIOR SILVER BEZEL<BY9>, REARDEFOGGER<C49> 		8-98038-112-0 01 1 0810-1003 ● ● ● ●
23 08.852 BEZEL; CONT LEVER
AIR CONDITIONER MANUAL CONT(C60) EXC. INTERIOR SILVER BEZEL<BY9>, REARDEFOGGER<C49> 		8-98154-112-0 01 1 1004- ● ● ● ● ● ● ●
23 08.852 BEZEL; CONT LEVER
AUSTRALIA EQUIPMENT(B13) HEATER & DEFROSTER(C42) EXC. INTERIOR SILVER BEZEL<BY9>, REARDEFOGGER<C49> 		8-98154-112-0 01 1 1004- ● ● ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98038-129-0 01 1 0808-0809 ●
23 08.852 BEZEL; CONT LEVER
4X4 CREW CAB LONG(TFS*WF) INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98038-129-0 01 1 0808-0809 ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> AIR CONDITIONER MANUAL CONT(C60) 		8-98038-129-0 01 1 0810-1003 ● ● ● ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> AUSTRALIA EQUIPMENT(B13) HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> 		8-98038-129-0 01 1 0810-1003 ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> AIR CONDITIONER MANUAL CONT(C60) 		8-98162-210-0 01 1 1004- ● ● ● ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> AUSTRALIA EQUIPMENT(B13) HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> 		8-98162-210-0 01 1 1004- ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. INTERIOR SILVER BEZEL<BY9> 		8-98038-111-0 01 1 0808-0809 ●
23 08.852 BEZEL; CONT LEVER
EXTEND CAB EXTRA LONG(TF**CK) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98038-111-0 01 1 0808-0809 ●
23 08.852 BEZEL; CONT LEVER
4X4 CREW CAB LONG(TFS*WF) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. INTERIOR SILVER BEZEL<BY9> 		8-98038-111-0 01 1 0808-0809 ●
23 08.852 BEZEL; CONT LEVER
CREW CAB EXTRA LONG(TF**WK) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98038-111-0 01 1 0808-0809 ●
23 08.852 BEZEL; CONT LEVER
REAR DEFOGGER<C49> AIR CONDITIONER MANUAL CONT(C60) EXC. INTERIOR SILVER BEZEL<BY9> 		8-98038-111-0 01 1 0810-1003 ● ● ● ●
23 08.852 BEZEL; CONT LEVER
AUSTRALIA EQUIPMENT(B13) HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> 		8-98038-111-0 01 1 0810-1003 ● ● ●
23 08.852 BEZEL; CONT LEVER
REAR DEFOGGER<C49> AIR CONDITIONER MANUAL CONT(C60) EXC. INTERIOR SILVER BEZEL<BY9> 		8-98154-113-0 01 1 1004- ● ● ● ●
23 08.852 BEZEL; CONT LEVER
AUSTRALIA EQUIPMENT(B13) HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> 		8-98154-113-0 01 1 1004- ● ● ●
96 08.852 BULB ASM; BEZEL
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98029-142-0 02 1 0808-0809 ● ● ●
96 08.852 BULB ASM; BEZEL
EXTEND CAB EXTRA LONG(TF**CK) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98029-142-0 02 1 0808-0809 ●
96 08.852 BULB ASM; BEZEL
4X4 REGULAR CAB EXTRA LONG(TFS*SK) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98029-142-0 02 1 0808-0809 ●
96 08.852 BULB ASM; BEZEL 8-98029-142-0 02 1 0810-1003 ● ● ● ● ● ● ●
96 08.852 BULB ASM; BEZEL 8-98159-721-0 02 1 1004- ● ● ● ● ● ● ●
