Sayfa 8-52 - Isuzu EPC

8-52 — PIPING; AIR CONDITIONING (#77111) — 196 parça

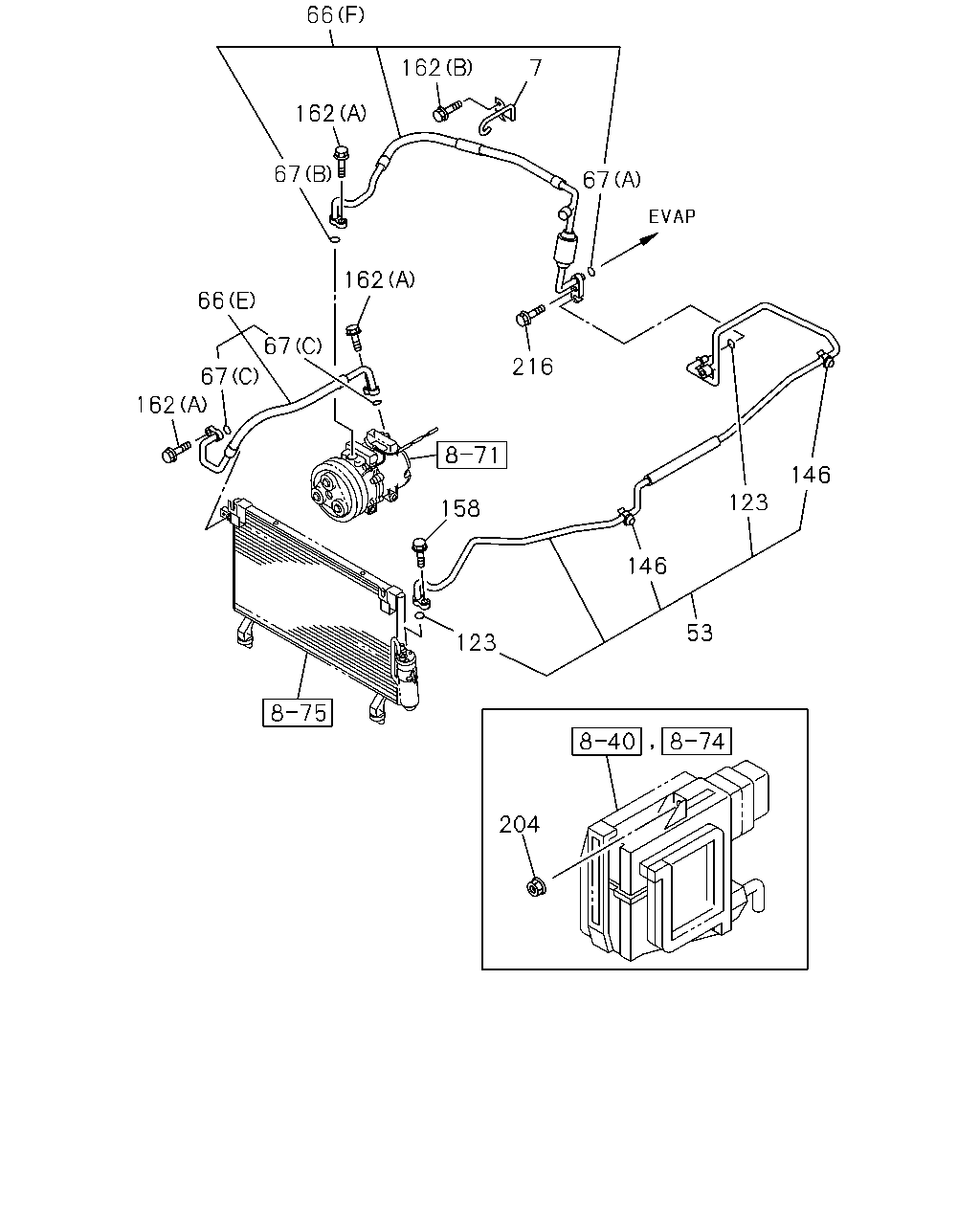

66 162 7 162 67 67 162 66 67 216 67 162 146 123 158 146 53 123 204

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
7	09.242 BRACKET; FLEX HOSE,A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2>	8-97327-938-2	01	1	0810-	●	●	●	●	●	●
53	09.220 PIPE; RECEIVER TANK TO EVAP 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-98034-889-0	01	1	0810-	●	●	●	●	●	●
53	09.220 PIPE; RECEIVER TANK TO EVAP 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-98088-792-0	01	1	0808-0809			●			●	●
53	09.220 PIPE; RECEIVER TANK TO EVAP EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-98088-792-0	01	1	0808-0809				●
53	09.220 PIPE; RECEIVER TANK TO EVAP 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-98088-792-0	01	1	0808-0809					●
53	09.220 PIPE; RECEIVER TANK TO EVAP 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-98088-792-0	01	1	0810-1007	●	●	●	●	●	●	●
53	09.220 PIPE; RECEIVER TANK TO EVAP 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-98088-792-0	01	1	1008-	●	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97363-904-1	01	1	0810-1007	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97363-904-1	01	1	1008-	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (F)	8-98002-521-0	01	1	0810-	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (E)	8-98002-536-0	01	1	0810-	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (D)	8-98002-526-0	01	1	0810-		●	●		●	●
66	09.225 HOSE; FLEX,A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C)	8-98002-535-0	01	1	0810-1011		●	●		●	●
66	09.225 HOSE; FLEX,A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C)	8-98185-645-0	01	1	1012-		●	●		●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97363-903-0	01	1	0808-0809			●			●	●
66	09.225 HOSE; FLEX,A/C EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97363-903-0	01	1	0808-0809				●
66	09.225 HOSE; FLEX,A/C 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97363-903-0	01	1	0808-0809					●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-97363-903-0	01	1	0810-1007	●	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-97363-903-0	01	1	1008-	●	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (B)	8-98007-108-1	01	1	0808-0809			●			●	●
66	09.225 HOSE; FLEX,A/C EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (B)	8-98007-108-1	01	1	0808-0809				●
66	09.225 HOSE; FLEX,A/C 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (B)	8-98007-108-1	01	1	0808-0809					●
66	09.225 HOSE; FLEX,A/C 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-98007-108-1	01	1	0810-		●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97321-351-0	01	1	0808-0809			●			●	●
67	09.260 GASKET; FLEX HOSE EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97321-351-0	01	1	0808-0809				●
67	09.260 GASKET; FLEX HOSE 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97321-351-0	01	1	0808-0809					●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-97321-351-0	01	1	0810-	●	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97321-352-0	01	1	0808-0809			●			●	●
67	09.260 GASKET; FLEX HOSE EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97321-352-0	01	1	0808-0809				●
67	09.260 GASKET; FLEX HOSE 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97321-352-0	01	1	0808-0809					●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97321-352-0	01	1	0810-	●	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (C)	8-97321-353-0	02	1	0808-0809			●			●	●
67	09.260 GASKET; FLEX HOSE EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (C)	8-97321-353-0	02	1	0808-0809				●
67	09.260 GASKET; FLEX HOSE 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (C)	8-97321-353-0	02	1	0808-0809					●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C)	8-97321-353-0	02	1	0810-	●	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) SCAL	8-97919-270-0	01	1	0810-		●	●		●	●
123	09.195 GASKET; RECEIVER PIPE 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) SCAL	8-97919-270-0	02	1	0808-0809			●			●	●
123	09.195 GASKET; RECEIVER PIPE EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) SCAL	8-97919-270-0	02	1	0808-0809				●
123	09.195 GASKET; RECEIVER PIPE 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) SCAL	8-97919-270-0	02	1	0808-0809					●
123	09.195 GASKET; RECEIVER PIPE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) SCAL	8-97919-270-0	02	1	0810-	●	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97355-792-0	02	1	0810-	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97355-792-0	01	1	0810-		●	●		●	●
146	09.196 CLIP; RECEIVER PIPE C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97355-792-0	03	1	0810-		●	●		●	●
146	09.196 CLIP; RECEIVER PIPE 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97354-058-0	02	1	0808-0809			●			●	●
146	09.196 CLIP; RECEIVER PIPE EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97354-058-0	02	1	0808-0809				●
146	09.196 CLIP; RECEIVER PIPE 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97354-058-0	02	1	0808-0809					●
146	09.196 CLIP; RECEIVER PIPE 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97354-058-0	02	1	0810-1007	●	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97354-058-0	02	1	1008-	●	●	●	●	●	●	●
158	09.220 BOLT; PIPE FIX AIR CONDITIONER MANUAL CONT(C60) 00.685 M6X25 FLANGE	0-28650-625-0	01	1	0808-0809			●			●	●
158	09.220 BOLT; PIPE FIX EXTEND CAB EXTRA LONG(TF**CK) AIR CONDITIONER MANUAL CONT(C60) 00.685 M6X25 FLANGE	0-28650-625-0	01	1	0808-0809				●
158	09.220 BOLT; PIPE FIX 4X4 REGULAR CAB EXTRA LONG(TFS*SK) AIR CONDITIONER MANUAL CONT(C60) 00.685 M6X25 FLANGE	0-28650-625-0	01	1	0808-0809					●
158	09.220 BOLT; PIPE FIX AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 00.685 M6X25 FLANGE	0-28650-625-0	01	1	0810-	●	●	●	●	●	●	●
162	09.173 BOLT; FLEX HOSE 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	0810-	●	●	●	●	●	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 06.216 (A) M8X25 FLANGE	0-28650-825-0	03	1	0808-0809			●			●	●
162	09.173 BOLT; FLEX HOSE EXTEND CAB EXTRA LONG(TF**CK) AIR CONDITIONER MANUAL CONT(C60) 06.216 (A) M8X25 FLANGE	0-28650-825-0	03	1	0808-0809				●
162	09.173 BOLT; FLEX HOSE 4X4 REGULAR CAB EXTRA LONG(TFS*SK) AIR CONDITIONER MANUAL CONT(C60) 06.216 (A) M8X25 FLANGE	0-28650-825-0	03	1	0808-0809					●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 06.216 (A) M8X25 FLANGE	0-28650-825-0	03	1	0810-	●	●	●	●	●	●	●
204	09.216 NUT 08.915 M6 FLANGE	8-98055-704-0	02	1	0808-0809			●	●	●	●	●
204	09.216 NUT 08.915 M6 FLANGE	8-98055-704-0	02	1	0810-	●	●	●	●	●	●	●
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X20 FLANGE	0-28650-620-0	01	1	0808-0809			●			●	●
216	09.173 BOLT; HOSE FIX EXTEND CAB EXTRA LONG(TF**CK) AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X20 FLANGE	0-28650-620-0	01	1	0808-0809				●
216	09.173 BOLT; HOSE FIX 4X4 REGULAR CAB EXTRA LONG(TFS*SK) AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X20 FLANGE	0-28650-620-0	01	1	0808-0809					●
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 03.162 M6X20 FLANGE	0-28650-620-0	01	1	0810-	●	●	●	●	●	●	●

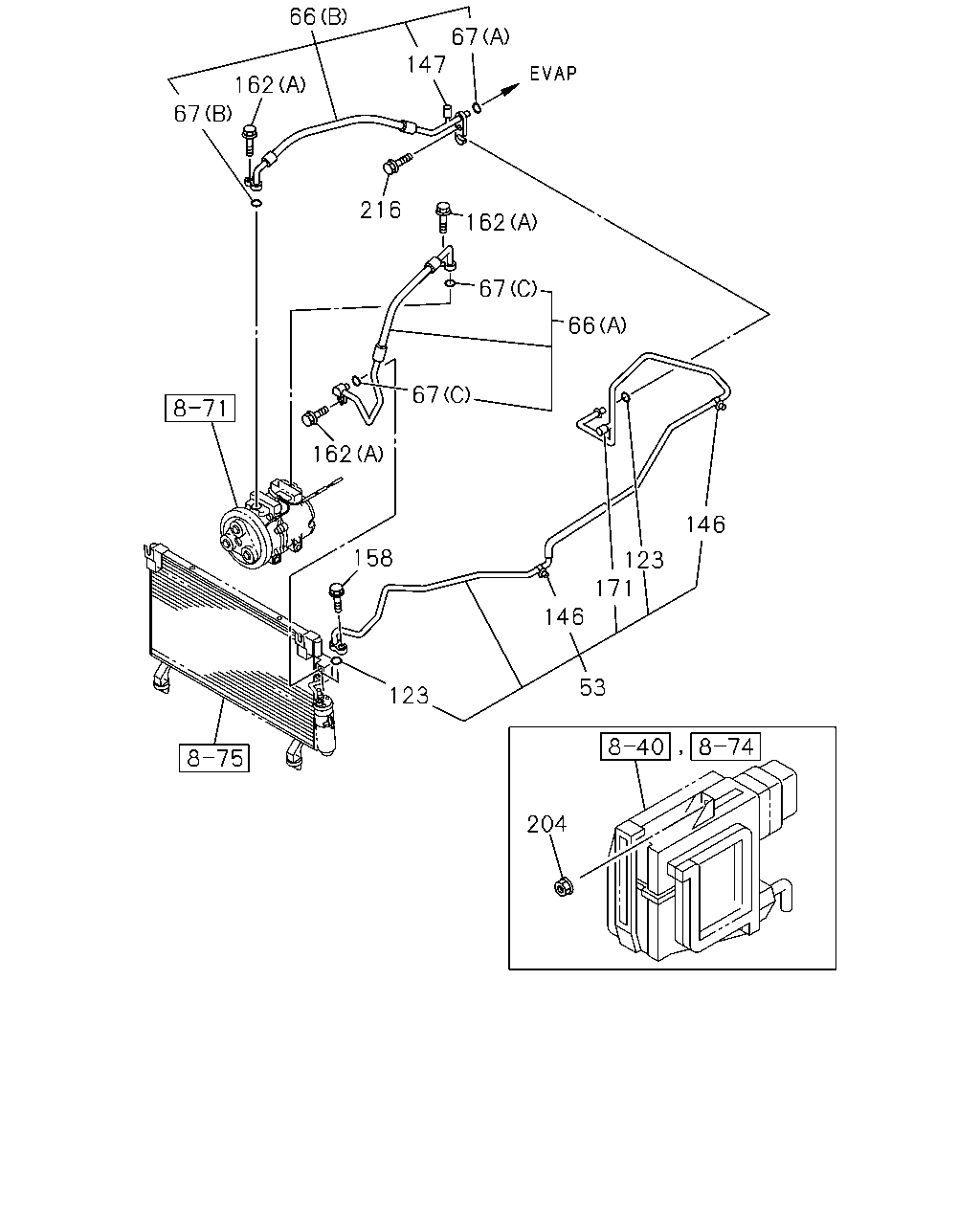

66 67 147 162 67 216 162 67 66 67 162 146 158 123 171 146 53 123 204

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
53	09.220 PIPE; RECEIVER TANK TO EVAP 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-98034-889-0	01	1	0810-	●	●	●	●	●	●
53	09.220 PIPE; RECEIVER TANK TO EVAP 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-98088-792-0	01	1	0808-0809			●			●	●
53	09.220 PIPE; RECEIVER TANK TO EVAP EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-98088-792-0	01	1	0808-0809				●
53	09.220 PIPE; RECEIVER TANK TO EVAP 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-98088-792-0	01	1	0808-0809					●
53	09.220 PIPE; RECEIVER TANK TO EVAP 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-98088-792-0	01	1	0810-1007	●	●	●	●	●	●	●
53	09.220 PIPE; RECEIVER TANK TO EVAP 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-98088-792-0	01	1	1008-	●	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97363-904-1	01	1	0810-1007	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97363-904-1	01	1	1008-	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (F)	8-98002-521-0	01	1	0810-	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (E)	8-98002-536-0	01	1	0810-	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (D)	8-98002-526-0	01	1	0810-		●	●		●	●
66	09.225 HOSE; FLEX,A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C)	8-98002-535-0	01	1	0810-1011		●	●		●	●
66	09.225 HOSE; FLEX,A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C)	8-98185-645-0	01	1	1012-		●	●		●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97363-903-0	01	1	0808-0809			●			●	●
66	09.225 HOSE; FLEX,A/C EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97363-903-0	01	1	0808-0809				●
66	09.225 HOSE; FLEX,A/C 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97363-903-0	01	1	0808-0809					●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-97363-903-0	01	1	0810-1007	●	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-97363-903-0	01	1	1008-	●	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (B)	8-98007-108-1	01	1	0808-0809			●			●	●
66	09.225 HOSE; FLEX,A/C EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (B)	8-98007-108-1	01	1	0808-0809				●
66	09.225 HOSE; FLEX,A/C 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (B)	8-98007-108-1	01	1	0808-0809					●
66	09.225 HOSE; FLEX,A/C 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-98007-108-1	01	1	0810-		●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97321-351-0	01	1	0808-0809			●			●	●
67	09.260 GASKET; FLEX HOSE EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97321-351-0	01	1	0808-0809				●
67	09.260 GASKET; FLEX HOSE 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97321-351-0	01	1	0808-0809					●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-97321-351-0	01	1	0810-	●	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97321-352-0	01	1	0808-0809			●			●	●
67	09.260 GASKET; FLEX HOSE EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97321-352-0	01	1	0808-0809				●
67	09.260 GASKET; FLEX HOSE 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97321-352-0	01	1	0808-0809					●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97321-352-0	01	1	0810-	●	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (C)	8-97321-353-0	02	1	0808-0809			●			●	●
67	09.260 GASKET; FLEX HOSE EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (C)	8-97321-353-0	02	1	0808-0809				●
67	09.260 GASKET; FLEX HOSE 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (C)	8-97321-353-0	02	1	0808-0809					●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C)	8-97321-353-0	02	1	0810-	●	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) SCAL	8-97919-270-0	01	1	0810-		●	●		●	●
123	09.195 GASKET; RECEIVER PIPE 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) SCAL	8-97919-270-0	02	1	0808-0809			●			●	●
123	09.195 GASKET; RECEIVER PIPE EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) SCAL	8-97919-270-0	02	1	0808-0809				●
123	09.195 GASKET; RECEIVER PIPE 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) SCAL	8-97919-270-0	02	1	0808-0809					●
123	09.195 GASKET; RECEIVER PIPE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) SCAL	8-97919-270-0	02	1	0810-	●	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97355-792-0	02	1	0810-	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97355-792-0	01	1	0810-		●	●		●	●
146	09.196 CLIP; RECEIVER PIPE C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97355-792-0	03	1	0810-		●	●		●	●
146	09.196 CLIP; RECEIVER PIPE 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97354-058-0	02	1	0808-0809			●			●	●
146	09.196 CLIP; RECEIVER PIPE EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97354-058-0	02	1	0808-0809				●
146	09.196 CLIP; RECEIVER PIPE 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97354-058-0	02	1	0808-0809					●
146	09.196 CLIP; RECEIVER PIPE 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97354-058-0	02	1	0810-1007	●	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97354-058-0	02	1	1008-	●	●	●	●	●	●	●
147	09.242 CAP; FLEX HOSE 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97386-623-0	01	1	0808-0809			●			●	●
147	09.242 CAP; FLEX HOSE EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97386-623-0	01	1	0808-0809				●
147	09.242 CAP; FLEX HOSE 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97386-623-0	01	1	0808-0809					●
147	09.242 CAP; FLEX HOSE C24SE ENG(LG1),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97386-623-0	01	1	0810-	●	●	●	●	●	●	●
158	09.220 BOLT; PIPE FIX AIR CONDITIONER MANUAL CONT(C60) 00.685 M6X25 FLANGE	0-28650-625-0	01	1	0808-0809			●			●	●
158	09.220 BOLT; PIPE FIX EXTEND CAB EXTRA LONG(TF**CK) AIR CONDITIONER MANUAL CONT(C60) 00.685 M6X25 FLANGE	0-28650-625-0	01	1	0808-0809				●
158	09.220 BOLT; PIPE FIX 4X4 REGULAR CAB EXTRA LONG(TFS*SK) AIR CONDITIONER MANUAL CONT(C60) 00.685 M6X25 FLANGE	0-28650-625-0	01	1	0808-0809					●
158	09.220 BOLT; PIPE FIX AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 00.685 M6X25 FLANGE	0-28650-625-0	01	1	0810-	●	●	●	●	●	●	●
162	09.173 BOLT; FLEX HOSE 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	0810-	●	●	●	●	●	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 06.216 (A) M8X25 FLANGE	0-28650-825-0	03	1	0808-0809			●			●	●
162	09.173 BOLT; FLEX HOSE EXTEND CAB EXTRA LONG(TF**CK) AIR CONDITIONER MANUAL CONT(C60) 06.216 (A) M8X25 FLANGE	0-28650-825-0	03	1	0808-0809				●
162	09.173 BOLT; FLEX HOSE 4X4 REGULAR CAB EXTRA LONG(TFS*SK) AIR CONDITIONER MANUAL CONT(C60) 06.216 (A) M8X25 FLANGE	0-28650-825-0	03	1	0808-0809					●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 06.216 (A) M8X25 FLANGE	0-28650-825-0	03	1	0810-	●	●	●	●	●	●	●
171	09.242 CAP; PIPE 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97376-622-0	01	1	0808-0809			●			●	●
171	09.242 CAP; PIPE EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97376-622-0	01	1	0808-0809				●
171	09.242 CAP; PIPE 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97376-622-0	01	1	0808-0809					●
171	09.242 CAP; PIPE 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97376-622-0	01	1	0810-1007	●	●	●	●	●	●	●
171	09.242 CAP; PIPE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97376-622-0	01	1	1008-	●	●	●	●	●	●	●
204	09.216 NUT 08.915 M6 FLANGE	8-98055-704-0	02	1	0808-0809			●	●	●	●	●
204	09.216 NUT 08.915 M6 FLANGE	8-98055-704-0	02	1	0810-	●	●	●	●	●	●	●
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X20 FLANGE	0-28650-620-0	01	1	0808-0809			●			●	●
216	09.173 BOLT; HOSE FIX EXTEND CAB EXTRA LONG(TF**CK) AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X20 FLANGE	0-28650-620-0	01	1	0808-0809				●
216	09.173 BOLT; HOSE FIX 4X4 REGULAR CAB EXTRA LONG(TFS*SK) AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X20 FLANGE	0-28650-620-0	01	1	0808-0809					●
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 03.162 M6X20 FLANGE	0-28650-620-0	01	1	0810-	●	●	●	●	●	●	●

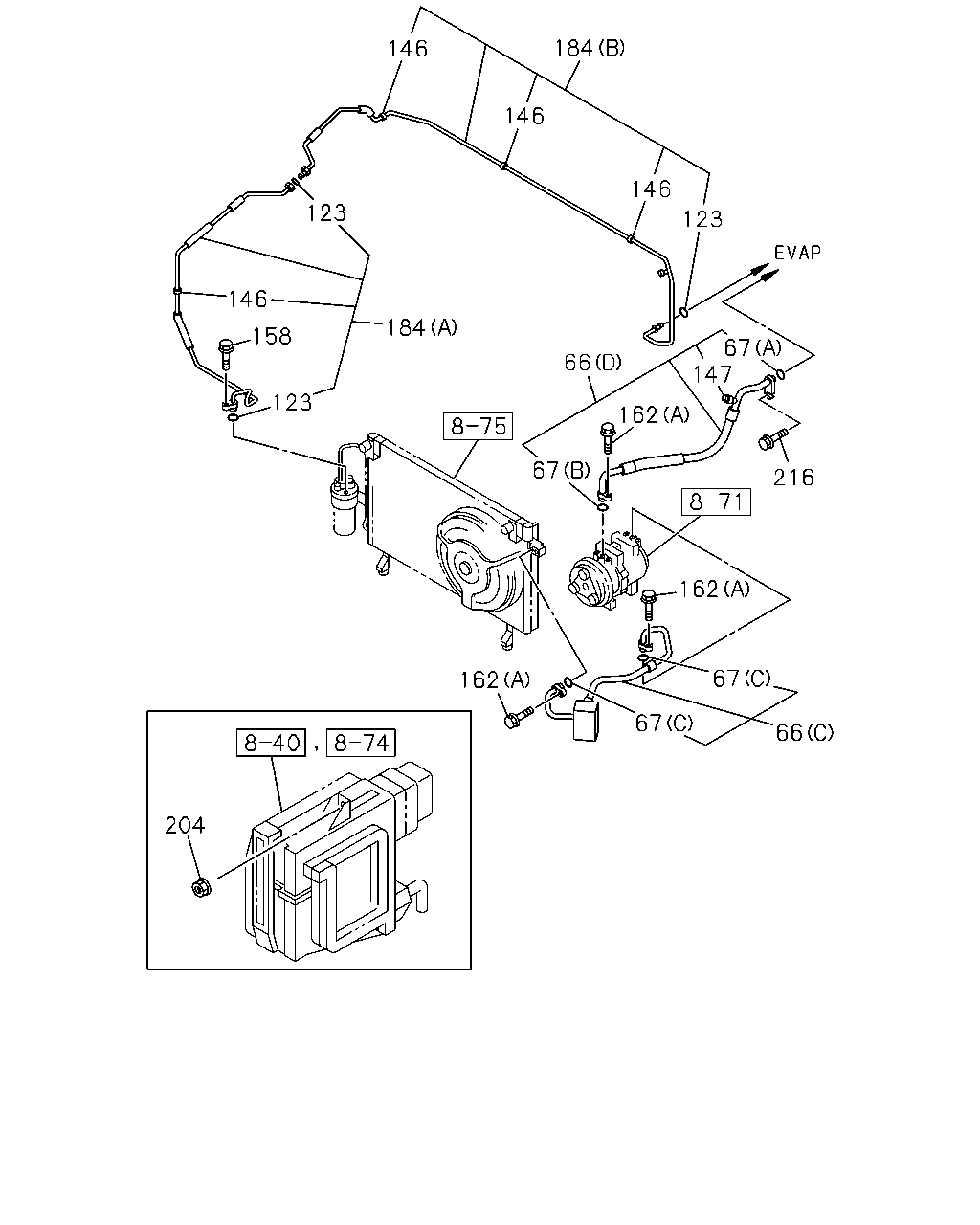

184 146 146 146 123 123 146 184 158 67 147 66 123 162 67 216 162 67 162 67 66 204

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97363-904-1	01	1	0810-1007	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97363-904-1	01	1	1008-	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (F)	8-98002-521-0	01	1	0810-	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (E)	8-98002-536-0	01	1	0810-	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (D)	8-98002-526-0	01	1	0810-		●	●		●	●
66	09.225 HOSE; FLEX,A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C)	8-98002-535-0	01	1	0810-1011		●	●		●	●
66	09.225 HOSE; FLEX,A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C)	8-98185-645-0	01	1	1012-		●	●		●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97363-903-0	01	1	0808-0809			●			●	●
66	09.225 HOSE; FLEX,A/C EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97363-903-0	01	1	0808-0809				●
66	09.225 HOSE; FLEX,A/C 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97363-903-0	01	1	0808-0809					●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-97363-903-0	01	1	0810-1007	●	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-97363-903-0	01	1	1008-	●	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (B)	8-98007-108-1	01	1	0808-0809			●			●	●
66	09.225 HOSE; FLEX,A/C EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (B)	8-98007-108-1	01	1	0808-0809				●
66	09.225 HOSE; FLEX,A/C 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (B)	8-98007-108-1	01	1	0808-0809					●
66	09.225 HOSE; FLEX,A/C 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-98007-108-1	01	1	0810-		●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97321-351-0	01	1	0808-0809			●			●	●
67	09.260 GASKET; FLEX HOSE EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97321-351-0	01	1	0808-0809				●
67	09.260 GASKET; FLEX HOSE 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97321-351-0	01	1	0808-0809					●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-97321-351-0	01	1	0810-	●	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97321-352-0	01	1	0808-0809			●			●	●
67	09.260 GASKET; FLEX HOSE EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97321-352-0	01	1	0808-0809				●
67	09.260 GASKET; FLEX HOSE 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97321-352-0	01	1	0808-0809					●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97321-352-0	01	1	0810-	●	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (C)	8-97321-353-0	02	1	0808-0809			●			●	●
67	09.260 GASKET; FLEX HOSE EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (C)	8-97321-353-0	02	1	0808-0809				●
67	09.260 GASKET; FLEX HOSE 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (C)	8-97321-353-0	02	1	0808-0809					●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C)	8-97321-353-0	02	1	0810-	●	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) SCAL	8-97919-270-0	01	1	0810-		●	●		●	●
123	09.195 GASKET; RECEIVER PIPE 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) SCAL	8-97919-270-0	02	1	0808-0809			●			●	●
123	09.195 GASKET; RECEIVER PIPE EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) SCAL	8-97919-270-0	02	1	0808-0809				●
123	09.195 GASKET; RECEIVER PIPE 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) SCAL	8-97919-270-0	02	1	0808-0809					●
123	09.195 GASKET; RECEIVER PIPE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) SCAL	8-97919-270-0	02	1	0810-	●	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97355-792-0	02	1	0810-	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97355-792-0	01	1	0810-		●	●		●	●
146	09.196 CLIP; RECEIVER PIPE C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97355-792-0	03	1	0810-		●	●		●	●
146	09.196 CLIP; RECEIVER PIPE 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97354-058-0	02	1	0808-0809			●			●	●
146	09.196 CLIP; RECEIVER PIPE EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97354-058-0	02	1	0808-0809				●
146	09.196 CLIP; RECEIVER PIPE 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97354-058-0	02	1	0808-0809					●
146	09.196 CLIP; RECEIVER PIPE 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97354-058-0	02	1	0810-1007	●	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97354-058-0	02	1	1008-	●	●	●	●	●	●	●
147	09.242 CAP; FLEX HOSE 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97386-623-0	01	1	0808-0809			●			●	●
147	09.242 CAP; FLEX HOSE EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97386-623-0	01	1	0808-0809				●
147	09.242 CAP; FLEX HOSE 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97386-623-0	01	1	0808-0809					●
147	09.242 CAP; FLEX HOSE C24SE ENG(LG1),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97386-623-0	01	1	0810-	●	●	●	●	●	●	●
158	09.220 BOLT; PIPE FIX AIR CONDITIONER MANUAL CONT(C60) 00.685 M6X25 FLANGE	0-28650-625-0	01	1	0808-0809			●			●	●
158	09.220 BOLT; PIPE FIX EXTEND CAB EXTRA LONG(TF**CK) AIR CONDITIONER MANUAL CONT(C60) 00.685 M6X25 FLANGE	0-28650-625-0	01	1	0808-0809				●
158	09.220 BOLT; PIPE FIX 4X4 REGULAR CAB EXTRA LONG(TFS*SK) AIR CONDITIONER MANUAL CONT(C60) 00.685 M6X25 FLANGE	0-28650-625-0	01	1	0808-0809					●
158	09.220 BOLT; PIPE FIX AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 00.685 M6X25 FLANGE	0-28650-625-0	01	1	0810-	●	●	●	●	●	●	●
162	09.173 BOLT; FLEX HOSE 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	0810-	●	●	●	●	●	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 06.216 (A) M8X25 FLANGE	0-28650-825-0	03	1	0808-0809			●			●	●
162	09.173 BOLT; FLEX HOSE EXTEND CAB EXTRA LONG(TF**CK) AIR CONDITIONER MANUAL CONT(C60) 06.216 (A) M8X25 FLANGE	0-28650-825-0	03	1	0808-0809				●
162	09.173 BOLT; FLEX HOSE 4X4 REGULAR CAB EXTRA LONG(TFS*SK) AIR CONDITIONER MANUAL CONT(C60) 06.216 (A) M8X25 FLANGE	0-28650-825-0	03	1	0808-0809					●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 06.216 (A) M8X25 FLANGE	0-28650-825-0	03	1	0810-	●	●	●	●	●	●	●
184	09.220 PIPE; PIPE TO EVAP C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97248-979-1	01	1	0810-		●	●		●	●
184	09.220 PIPE; PIPE TO EVAP C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-98089-489-0	01	1	0810-		●	●		●	●
204	09.216 NUT 08.915 M6 FLANGE	8-98055-704-0	02	1	0808-0809			●	●	●	●	●
204	09.216 NUT 08.915 M6 FLANGE	8-98055-704-0	02	1	0810-	●	●	●	●	●	●	●
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X20 FLANGE	0-28650-620-0	01	1	0808-0809			●			●	●
216	09.173 BOLT; HOSE FIX EXTEND CAB EXTRA LONG(TF**CK) AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X20 FLANGE	0-28650-620-0	01	1	0808-0809				●
216	09.173 BOLT; HOSE FIX 4X4 REGULAR CAB EXTRA LONG(TFS*SK) AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X20 FLANGE	0-28650-620-0	01	1	0808-0809					●
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 03.162 M6X20 FLANGE	0-28650-620-0	01	1	0810-	●	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
