8-50 — AIR CONDITIONING SYSTEM; FRONT (#77110) — 190 parça

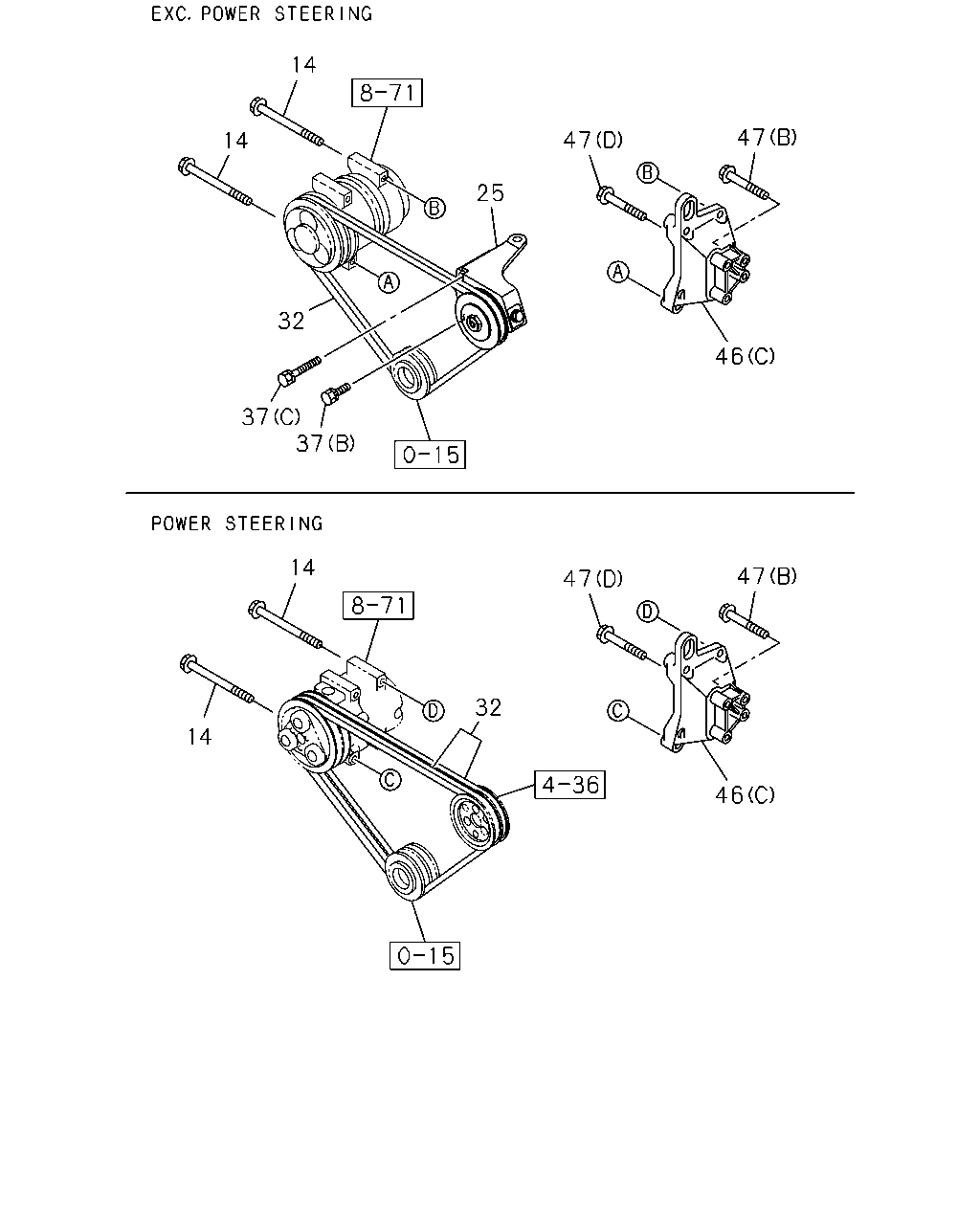

çizim 140877
14 47 47 14 25 32 46 37 37 14 47 47 32 14 46
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
14 09.171 BOLT; CMPR
4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) M10X100 FLANGE 		0-28151-000-0 04 1 0808-0809 ● ● ●
14 09.171 BOLT; CMPR
EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) M10X100 FLANGE 		0-28151-000-0 04 1 0808-0809 ●
14 09.171 BOLT; CMPR
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) M10X100 FLANGE 		0-28151-000-0 04 1 0808-0809 ●
14 09.171 BOLT; CMPR
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M10X100 FLANGE 		0-28151-000-0 04 1 0810- ● ● ● ● ● ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. POWER STEERING<N40> 		8-97943-806-0 01 1 0810- ● ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-92066-142-0 01 1 0810- ● ● ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) 1-GROOVE 		8-98051-011-0 01 1 0808-0809 ● ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) 1-GROOVE 		8-98051-011-0 01 1 0808-0809 ●
25 09.180 PULLEY ASM; IDLER,CMPR
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) 1-GROOVE 		8-98051-011-0 01 1 0808-0809 ●
25 09.180 PULLEY ASM; IDLER,CMPR
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 1-GROOVE 		8-98051-011-0 01 1 0810-1007 ● ● ● ● ● ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 1-GROOVE 		8-98051-011-0 01 1 1008- ● ● ● ● ● ● ●
32 01.066 BELT; A/C CMPR
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) POWER STEERING<N40> L=1510 1 SET=2 PIECE BANDO 		8-97942-726-0 01 1 0810- ● ● ● ● ● ●
32 01.066 BELT; A/C CMPR
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) POWER STEERING<N40> L=1510 B=13.3 1 SET=2 PIECE(8979427270) MITSUBOSHI 		8-97942-728-0 01 1 0810- ● ● ● ● ● ●
32 01.066 BELT; A/C CMPR
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. POWER STEERING<N40> L=1394 B=13.3 MITSUBOSHI 		8-97942-722-0 01 1 0810- ● ● ●
32 01.066 BELT; A/C CMPR
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. POWER STEERING<N40> L=1394 B=12.5 BANDO 		8-97942-723-0 01 1 0810- ● ● ●
32 01.066 BELT; A/C CMPR
C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) L=918 		8-92063-696-0 01 1 0810- ● ● ● ●
32 01.066 BELT; A/C CMPR
4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) L=1355 BANDO 		8-97944-138-0 01 1 0808-0809 ● ● ●
32 01.066 BELT; A/C CMPR
EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) L=1355 BANDO 		8-97944-138-0 01 1 0808-0809 ●
32 01.066 BELT; A/C CMPR
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) L=1355 BANDO 		8-97944-138-0 01 1 0808-0809 ●
32 01.066 BELT; A/C CMPR
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) L=1355 BANDO 		8-97944-138-0 01 1 0810-1007 ● ● ● ● ● ● ●
32 01.066 BELT; A/C CMPR
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) L=1355 BANDO 		8-97944-138-0 01 1 1008- ● ● ● ● ● ● ●
32 01.066 BELT; A/C CMPR
4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) L=1355 L=1355 MITSUBOSHI 		8-98088-385-0 01 1 0808-0809 ● ● ●
32 01.066 BELT; A/C CMPR
EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) L=1355 L=1355 MITSUBOSHI 		8-98088-385-0 01 1 0808-0809 ●
32 01.066 BELT; A/C CMPR
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) L=1355 L=1355 MITSUBOSHI 		8-98088-385-0 01 1 0808-0809 ●
32 01.066 BELT; A/C CMPR
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) L=1355 L=1355 MITSUBOSHI 		8-98088-385-0 01 1 0810-1007 ● ● ● ● ● ● ●
32 01.066 BELT; A/C CMPR
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) L=1355 L=1355 MITSUBOSHI 		8-98088-385-0 01 1 1008- ● ● ● ● ● ● ●
37 09.173 BOLT; PULLEY BRKT
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. POWER STEERING<N40> (C) M10X80 FLANGE 		0-28051-080-0 01 1 0810- ● ● ●
37 09.173 BOLT; PULLEY BRKT
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. POWER STEERING<N40> (B) M8X70 W/WASHER 		8-97919-730-1 01 1 0810- ● ● ●
37 09.173 BOLT; PULLEY BRKT
4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) 01.531 (A) M8X20 FLANGE 		0-28650-820-0 01 1 0808-0809 ● ● ●
37 09.173 BOLT; PULLEY BRKT
EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) 01.531 (A) M8X20 FLANGE 		0-28650-820-0 01 1 0808-0809 ●
37 09.173 BOLT; PULLEY BRKT
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) 01.531 (A) M8X20 FLANGE 		0-28650-820-0 01 1 0808-0809 ●
37 09.173 BOLT; PULLEY BRKT
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 01.531 (A) M8X20 FLANGE 		0-28650-820-0 01 1 0810-1007 ● ● ● ● ● ● ●
37 09.173 BOLT; PULLEY BRKT
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 01.531 (A) M8X20 FLANGE 		0-28650-820-0 01 1 1008- ● ● ● ● ● ● ●
46 09.171 BRACKET; CMPR
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A) 		8-97371-258-0 01 1 0810-1007 ● ● ● ● ● ●
46 09.171 BRACKET; CMPR
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A) 		8-97371-258-0 01 1 1008- ● ● ● ● ● ●
46 09.171 BRACKET; CMPR
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C) 		8-97358-563-0 01 1 0810- ● ● ● ● ● ●
46 09.171 BRACKET; CMPR
C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 09.180 (B) 		8-92065-518-0 01 1 0810- ● ● ● ●
46 09.171 BRACKET; CMPR
4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98039-618-0 01 1 0808-0809 ● ● ●
46 09.171 BRACKET; CMPR
EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98039-618-0 01 1 0808-0809 ●
46 09.171 BRACKET; CMPR
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98039-618-0 01 1 0808-0809 ●
46 09.171 BRACKET; CMPR
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A) 		8-98039-618-0 01 1 0810- ● ● ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 02.277 (B) M8X40 FLANGE 		0-28050-840-0 02 1 0810- ● ● ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 00.685 (D) M10X45 FLANGE 		0-28051-045-0 02 1 0810- ● ● ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 00.029 (C) M10X35 FLANGE 		0-28751-035-0 03 1 0810- ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 03 1 0808-0809 ● ● ●
47 09.173 BOLT; BRKT TO BODY
EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 03 1 0808-0809 ●
47 09.173 BOLT; BRKT TO BODY
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 03 1 0808-0809 ●
47 09.173 BOLT; BRKT TO BODY
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 03 1 0810-1007 ● ● ● ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 03 1 1008- ● ● ● ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (A) M8X35 FLANGE 		8-98049-562-0 01 1 0808-0809 ● ● ●
47 09.173 BOLT; BRKT TO BODY
EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (A) M8X35 FLANGE 		8-98049-562-0 01 1 0808-0809 ●
47 09.173 BOLT; BRKT TO BODY
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (A) M8X35 FLANGE 		8-98049-562-0 01 1 0808-0809 ●
47 09.173 BOLT; BRKT TO BODY
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A) M8X35 FLANGE 		8-98049-562-0 01 1 0810-1007 ● ● ● ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A) M8X35 FLANGE 		8-98049-562-0 01 1 1008- ● ● ● ● ● ● ●

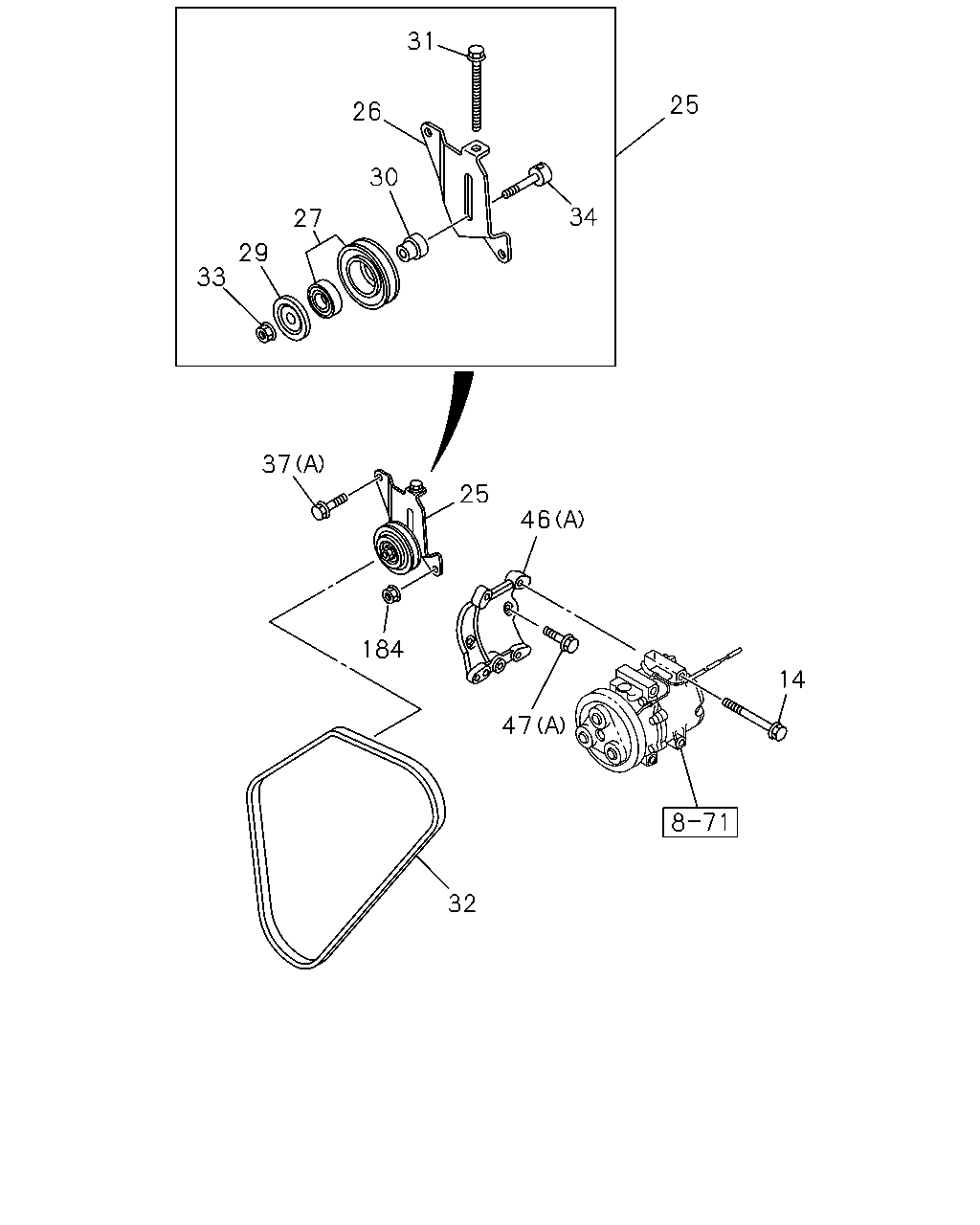

çizim 141078
31 25 26 30 34 27 29 33 37 25 46 184 14 47 32
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
14 09.171 BOLT; CMPR
4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) M10X100 FLANGE 		0-28151-000-0 04 1 0808-0809 ● ● ●
14 09.171 BOLT; CMPR
EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) M10X100 FLANGE 		0-28151-000-0 04 1 0808-0809 ●
14 09.171 BOLT; CMPR
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) M10X100 FLANGE 		0-28151-000-0 04 1 0808-0809 ●
14 09.171 BOLT; CMPR
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M10X100 FLANGE 		0-28151-000-0 04 1 0810- ● ● ● ● ● ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. POWER STEERING<N40> 		8-97943-806-0 01 1 0810- ● ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-92066-142-0 01 1 0810- ● ● ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) 1-GROOVE 		8-98051-011-0 01 1 0808-0809 ● ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) 1-GROOVE 		8-98051-011-0 01 1 0808-0809 ●
25 09.180 PULLEY ASM; IDLER,CMPR
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) 1-GROOVE 		8-98051-011-0 01 1 0808-0809 ●
25 09.180 PULLEY ASM; IDLER,CMPR
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 1-GROOVE 		8-98051-011-0 01 1 0810-1007 ● ● ● ● ● ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 1-GROOVE 		8-98051-011-0 01 1 1008- ● ● ● ● ● ● ●
26 09.180 BRACKET; IDLE PULLEY,A/C
4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) 		8-97377-329-0 01 1 0808-0809 ● ● ●
26 09.180 BRACKET; IDLE PULLEY,A/C
EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) 		8-97377-329-0 01 1 0808-0809 ●
26 09.180 BRACKET; IDLE PULLEY,A/C
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) 		8-97377-329-0 01 1 0808-0809 ●
26 09.180 BRACKET; IDLE PULLEY,A/C
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97377-329-0 01 1 0810-0910 ● ● ● ● ● ● ●
27 09.180 PULLEY; IDLE,A/C
4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) 		8-97377-328-0 01 1 0808-0809 ● ● ●
27 09.180 PULLEY; IDLE,A/C
EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) 		8-97377-328-0 01 1 0808-0809 ●
27 09.180 PULLEY; IDLE,A/C
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) 		8-97377-328-0 01 1 0808-0809 ●
27 09.180 PULLEY; IDLE,A/C
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97377-328-0 01 1 0810-0910 ● ● ● ● ● ● ●
29 09.181 COVER; DUST,IDLE PULLEY
4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) 		8-97377-334-1 01 1 0808-0809 ● ● ●
29 09.181 COVER; DUST,IDLE PULLEY
EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) 		8-97377-334-1 01 1 0808-0809 ●
29 09.181 COVER; DUST,IDLE PULLEY
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) 		8-97377-334-1 01 1 0808-0809 ●
29 09.181 COVER; DUST,IDLE PULLEY
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97377-334-1 01 1 0810-0910 ● ● ● ● ● ● ●
30 09.181 COLLAR; IDLE PULLEY
4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) 		8-97377-333-2 01 1 0808-0809 ● ● ●
30 09.181 COLLAR; IDLE PULLEY
EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) 		8-97377-333-2 01 1 0808-0809 ●
30 09.181 COLLAR; IDLE PULLEY
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) 		8-97377-333-2 01 1 0808-0809 ●
30 09.181 COLLAR; IDLE PULLEY
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97377-333-2 01 1 0810-0910 ● ● ● ● ● ● ●
31 09.181 BOLT; ADJ,IDLE PULLEY
4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) M8X75 		8-97377-330-2 01 1 0808-0809 ● ● ●
31 09.181 BOLT; ADJ,IDLE PULLEY
EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) M8X75 		8-97377-330-2 01 1 0808-0809 ●
31 09.181 BOLT; ADJ,IDLE PULLEY
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) M8X75 		8-97377-330-2 01 1 0808-0809 ●
31 09.181 BOLT; ADJ,IDLE PULLEY
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M8X75 		8-97377-330-2 01 1 0810-0910 ● ● ● ● ● ● ●
32 01.066 BELT; A/C CMPR
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) POWER STEERING<N40> L=1510 1 SET=2 PIECE BANDO 		8-97942-726-0 01 1 0810- ● ● ● ● ● ●
32 01.066 BELT; A/C CMPR
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) POWER STEERING<N40> L=1510 B=13.3 1 SET=2 PIECE(8979427270) MITSUBOSHI 		8-97942-728-0 01 1 0810- ● ● ● ● ● ●
32 01.066 BELT; A/C CMPR
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. POWER STEERING<N40> L=1394 B=13.3 MITSUBOSHI 		8-97942-722-0 01 1 0810- ● ● ●
32 01.066 BELT; A/C CMPR
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. POWER STEERING<N40> L=1394 B=12.5 BANDO 		8-97942-723-0 01 1 0810- ● ● ●
32 01.066 BELT; A/C CMPR
C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) L=918 		8-92063-696-0 01 1 0810- ● ● ● ●
32 01.066 BELT; A/C CMPR
4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) L=1355 BANDO 		8-97944-138-0 01 1 0808-0809 ● ● ●
32 01.066 BELT; A/C CMPR
EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) L=1355 BANDO 		8-97944-138-0 01 1 0808-0809 ●
32 01.066 BELT; A/C CMPR
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) L=1355 BANDO 		8-97944-138-0 01 1 0808-0809 ●
32 01.066 BELT; A/C CMPR
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) L=1355 BANDO 		8-97944-138-0 01 1 0810-1007 ● ● ● ● ● ● ●
32 01.066 BELT; A/C CMPR
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) L=1355 BANDO 		8-97944-138-0 01 1 1008- ● ● ● ● ● ● ●
32 01.066 BELT; A/C CMPR
4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) L=1355 L=1355 MITSUBOSHI 		8-98088-385-0 01 1 0808-0809 ● ● ●
32 01.066 BELT; A/C CMPR
EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) L=1355 L=1355 MITSUBOSHI 		8-98088-385-0 01 1 0808-0809 ●
32 01.066 BELT; A/C CMPR
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) L=1355 L=1355 MITSUBOSHI 		8-98088-385-0 01 1 0808-0809 ●
32 01.066 BELT; A/C CMPR
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) L=1355 L=1355 MITSUBOSHI 		8-98088-385-0 01 1 0810-1007 ● ● ● ● ● ● ●
32 01.066 BELT; A/C CMPR
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) L=1355 L=1355 MITSUBOSHI 		8-98088-385-0 01 1 1008- ● ● ● ● ● ● ●
33 09.181 NUT; IDLER PULLEY
4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) M10 		8-97377-331-0 01 1 0808-0809 ● ● ●
33 09.181 NUT; IDLER PULLEY
EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) M10 		8-97377-331-0 01 1 0808-0809 ●
33 09.181 NUT; IDLER PULLEY
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) M10 		8-97377-331-0 01 1 0808-0809 ●
33 09.181 NUT; IDLER PULLEY
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M10 		8-97377-331-0 01 1 0810-0910 ● ● ● ● ● ● ●
34 09.181 SHAFT; IDLE PULLEY
4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) 		8-97945-181-0 01 1 0808-0809 ● ● ●
34 09.181 SHAFT; IDLE PULLEY
EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) 		8-97945-181-0 01 1 0808-0809 ●
34 09.181 SHAFT; IDLE PULLEY
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) 		8-97945-181-0 01 1 0808-0809 ●
34 09.181 SHAFT; IDLE PULLEY
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-97945-181-0 01 1 0810-0910 ● ● ● ● ● ● ●
37 09.173 BOLT; PULLEY BRKT
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. POWER STEERING<N40> (C) M10X80 FLANGE 		0-28051-080-0 01 1 0810- ● ● ●
37 09.173 BOLT; PULLEY BRKT
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. POWER STEERING<N40> (B) M8X70 W/WASHER 		8-97919-730-1 01 1 0810- ● ● ●
37 09.173 BOLT; PULLEY BRKT
4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) 01.531 (A) M8X20 FLANGE 		0-28650-820-0 01 1 0808-0809 ● ● ●
37 09.173 BOLT; PULLEY BRKT
EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) 01.531 (A) M8X20 FLANGE 		0-28650-820-0 01 1 0808-0809 ●
37 09.173 BOLT; PULLEY BRKT
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) 01.531 (A) M8X20 FLANGE 		0-28650-820-0 01 1 0808-0809 ●
37 09.173 BOLT; PULLEY BRKT
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 01.531 (A) M8X20 FLANGE 		0-28650-820-0 01 1 0810-1007 ● ● ● ● ● ● ●
37 09.173 BOLT; PULLEY BRKT
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 01.531 (A) M8X20 FLANGE 		0-28650-820-0 01 1 1008- ● ● ● ● ● ● ●
46 09.171 BRACKET; CMPR
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A) 		8-97371-258-0 01 1 0810-1007 ● ● ● ● ● ●
46 09.171 BRACKET; CMPR
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A) 		8-97371-258-0 01 1 1008- ● ● ● ● ● ●
46 09.171 BRACKET; CMPR
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C) 		8-97358-563-0 01 1 0810- ● ● ● ● ● ●
46 09.171 BRACKET; CMPR
C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 09.180 (B) 		8-92065-518-0 01 1 0810- ● ● ● ●
46 09.171 BRACKET; CMPR
4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98039-618-0 01 1 0808-0809 ● ● ●
46 09.171 BRACKET; CMPR
EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98039-618-0 01 1 0808-0809 ●
46 09.171 BRACKET; CMPR
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98039-618-0 01 1 0808-0809 ●
46 09.171 BRACKET; CMPR
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A) 		8-98039-618-0 01 1 0810- ● ● ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 02.277 (B) M8X40 FLANGE 		0-28050-840-0 02 1 0810- ● ● ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 00.685 (D) M10X45 FLANGE 		0-28051-045-0 02 1 0810- ● ● ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 00.029 (C) M10X35 FLANGE 		0-28751-035-0 03 1 0810- ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 03 1 0808-0809 ● ● ●
47 09.173 BOLT; BRKT TO BODY
EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 03 1 0808-0809 ●
47 09.173 BOLT; BRKT TO BODY
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 03 1 0808-0809 ●
47 09.173 BOLT; BRKT TO BODY
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 03 1 0810-1007 ● ● ● ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 03 1 1008- ● ● ● ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (A) M8X35 FLANGE 		8-98049-562-0 01 1 0808-0809 ● ● ●
47 09.173 BOLT; BRKT TO BODY
EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (A) M8X35 FLANGE 		8-98049-562-0 01 1 0808-0809 ●
47 09.173 BOLT; BRKT TO BODY
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (A) M8X35 FLANGE 		8-98049-562-0 01 1 0808-0809 ●
47 09.173 BOLT; BRKT TO BODY
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A) M8X35 FLANGE 		8-98049-562-0 01 1 0810-1007 ● ● ● ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A) M8X35 FLANGE 		8-98049-562-0 01 1 1008- ● ● ● ● ● ● ●
184 09.242 NUT; A/C PIPE BRKT
4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) 01.540 M8 FLANGE 		0-91180-208-0 01 1 0808-0809 ● ● ●
184 09.242 NUT; A/C PIPE BRKT
EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) 01.540 M8 FLANGE 		0-91180-208-0 01 1 0808-0809 ●
184 09.242 NUT; A/C PIPE BRKT
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) 01.540 M8 FLANGE 		0-91180-208-0 01 1 0808-0809 ●
184 09.242 NUT; A/C PIPE BRKT
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 01.540 M8 FLANGE 		0-91180-208-0 01 1 0810-1007 ● ● ● ● ● ● ●
184 09.242 NUT; A/C PIPE BRKT
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 01.540 M8 FLANGE 		0-91180-208-0 01 1 1008- ● ● ● ● ● ● ●

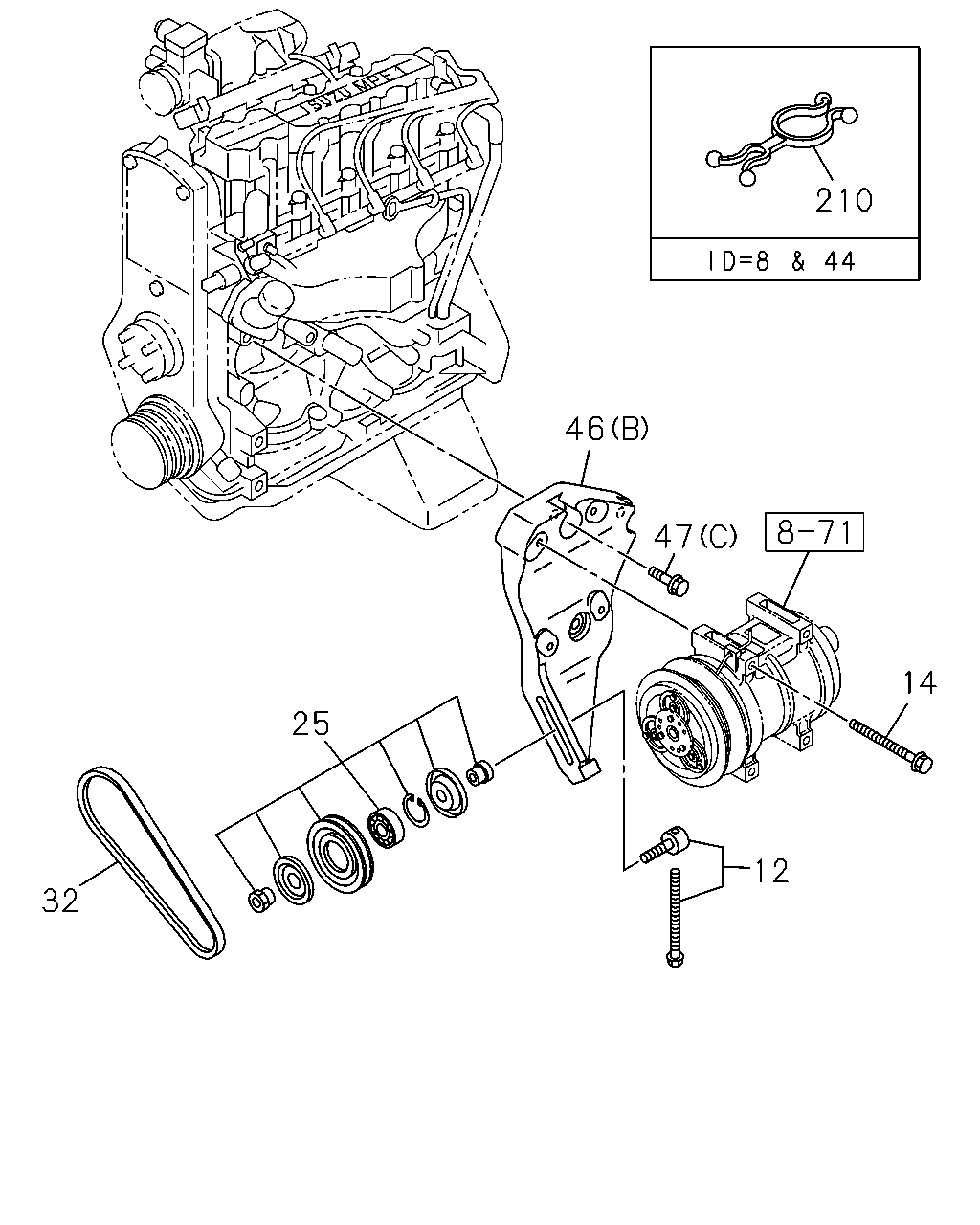

çizim 141237
210 46 47 14 25 12 32
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
12 09.181 BOLT; ADJ,CMPR
C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-92066-139-0 01 1 0810- ● ● ● ●
14 09.171 BOLT; CMPR
4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) M10X100 FLANGE 		0-28151-000-0 04 1 0808-0809 ● ● ●
14 09.171 BOLT; CMPR
EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) M10X100 FLANGE 		0-28151-000-0 04 1 0808-0809 ●
14 09.171 BOLT; CMPR
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) M10X100 FLANGE 		0-28151-000-0 04 1 0808-0809 ●
14 09.171 BOLT; CMPR
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) M10X100 FLANGE 		0-28151-000-0 04 1 0810- ● ● ● ● ● ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. POWER STEERING<N40> 		8-97943-806-0 01 1 0810- ● ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 		8-92066-142-0 01 1 0810- ● ● ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) 1-GROOVE 		8-98051-011-0 01 1 0808-0809 ● ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) 1-GROOVE 		8-98051-011-0 01 1 0808-0809 ●
25 09.180 PULLEY ASM; IDLER,CMPR
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) 1-GROOVE 		8-98051-011-0 01 1 0808-0809 ●
25 09.180 PULLEY ASM; IDLER,CMPR
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 1-GROOVE 		8-98051-011-0 01 1 0810-1007 ● ● ● ● ● ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 1-GROOVE 		8-98051-011-0 01 1 1008- ● ● ● ● ● ● ●
32 01.066 BELT; A/C CMPR
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) POWER STEERING<N40> L=1510 1 SET=2 PIECE BANDO 		8-97942-726-0 01 1 0810- ● ● ● ● ● ●
32 01.066 BELT; A/C CMPR
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) POWER STEERING<N40> L=1510 B=13.3 1 SET=2 PIECE(8979427270) MITSUBOSHI 		8-97942-728-0 01 1 0810- ● ● ● ● ● ●
32 01.066 BELT; A/C CMPR
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. POWER STEERING<N40> L=1394 B=13.3 MITSUBOSHI 		8-97942-722-0 01 1 0810- ● ● ●
32 01.066 BELT; A/C CMPR
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. POWER STEERING<N40> L=1394 B=12.5 BANDO 		8-97942-723-0 01 1 0810- ● ● ●
32 01.066 BELT; A/C CMPR
C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) L=918 		8-92063-696-0 01 1 0810- ● ● ● ●
32 01.066 BELT; A/C CMPR
4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) L=1355 BANDO 		8-97944-138-0 01 1 0808-0809 ● ● ●
32 01.066 BELT; A/C CMPR
EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) L=1355 BANDO 		8-97944-138-0 01 1 0808-0809 ●
32 01.066 BELT; A/C CMPR
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) L=1355 BANDO 		8-97944-138-0 01 1 0808-0809 ●
32 01.066 BELT; A/C CMPR
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) L=1355 BANDO 		8-97944-138-0 01 1 0810-1007 ● ● ● ● ● ● ●
32 01.066 BELT; A/C CMPR
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) L=1355 BANDO 		8-97944-138-0 01 1 1008- ● ● ● ● ● ● ●
32 01.066 BELT; A/C CMPR
4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) L=1355 L=1355 MITSUBOSHI 		8-98088-385-0 01 1 0808-0809 ● ● ●
32 01.066 BELT; A/C CMPR
EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) L=1355 L=1355 MITSUBOSHI 		8-98088-385-0 01 1 0808-0809 ●
32 01.066 BELT; A/C CMPR
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) L=1355 L=1355 MITSUBOSHI 		8-98088-385-0 01 1 0808-0809 ●
32 01.066 BELT; A/C CMPR
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) L=1355 L=1355 MITSUBOSHI 		8-98088-385-0 01 1 0810-1007 ● ● ● ● ● ● ●
32 01.066 BELT; A/C CMPR
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) L=1355 L=1355 MITSUBOSHI 		8-98088-385-0 01 1 1008- ● ● ● ● ● ● ●
46 09.171 BRACKET; CMPR
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A) 		8-97371-258-0 01 1 0810-1007 ● ● ● ● ● ●
46 09.171 BRACKET; CMPR
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A) 		8-97371-258-0 01 1 1008- ● ● ● ● ● ●
46 09.171 BRACKET; CMPR
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C) 		8-97358-563-0 01 1 0810- ● ● ● ● ● ●
46 09.171 BRACKET; CMPR
C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 09.180 (B) 		8-92065-518-0 01 1 0810- ● ● ● ●
46 09.171 BRACKET; CMPR
4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98039-618-0 01 1 0808-0809 ● ● ●
46 09.171 BRACKET; CMPR
EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98039-618-0 01 1 0808-0809 ●
46 09.171 BRACKET; CMPR
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98039-618-0 01 1 0808-0809 ●
46 09.171 BRACKET; CMPR
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A) 		8-98039-618-0 01 1 0810- ● ● ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 02.277 (B) M8X40 FLANGE 		0-28050-840-0 02 1 0810- ● ● ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 00.685 (D) M10X45 FLANGE 		0-28051-045-0 02 1 0810- ● ● ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 00.029 (C) M10X35 FLANGE 		0-28751-035-0 03 1 0810- ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 03 1 0808-0809 ● ● ●
47 09.173 BOLT; BRKT TO BODY
EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 03 1 0808-0809 ●
47 09.173 BOLT; BRKT TO BODY
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 03 1 0808-0809 ●
47 09.173 BOLT; BRKT TO BODY
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 03 1 0810-1007 ● ● ● ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 03 1 1008- ● ● ● ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (A) M8X35 FLANGE 		8-98049-562-0 01 1 0808-0809 ● ● ●
47 09.173 BOLT; BRKT TO BODY
EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (A) M8X35 FLANGE 		8-98049-562-0 01 1 0808-0809 ●
47 09.173 BOLT; BRKT TO BODY
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (A) M8X35 FLANGE 		8-98049-562-0 01 1 0808-0809 ●
47 09.173 BOLT; BRKT TO BODY
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A) M8X35 FLANGE 		8-98049-562-0 01 1 0810-1007 ● ● ● ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A) M8X35 FLANGE 		8-98049-562-0 01 1 1008- ● ● ● ● ● ● ●
210 09.242 CLIP; HARNESS
C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 02.559 		8-94109-862-0 01 1 0810- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
