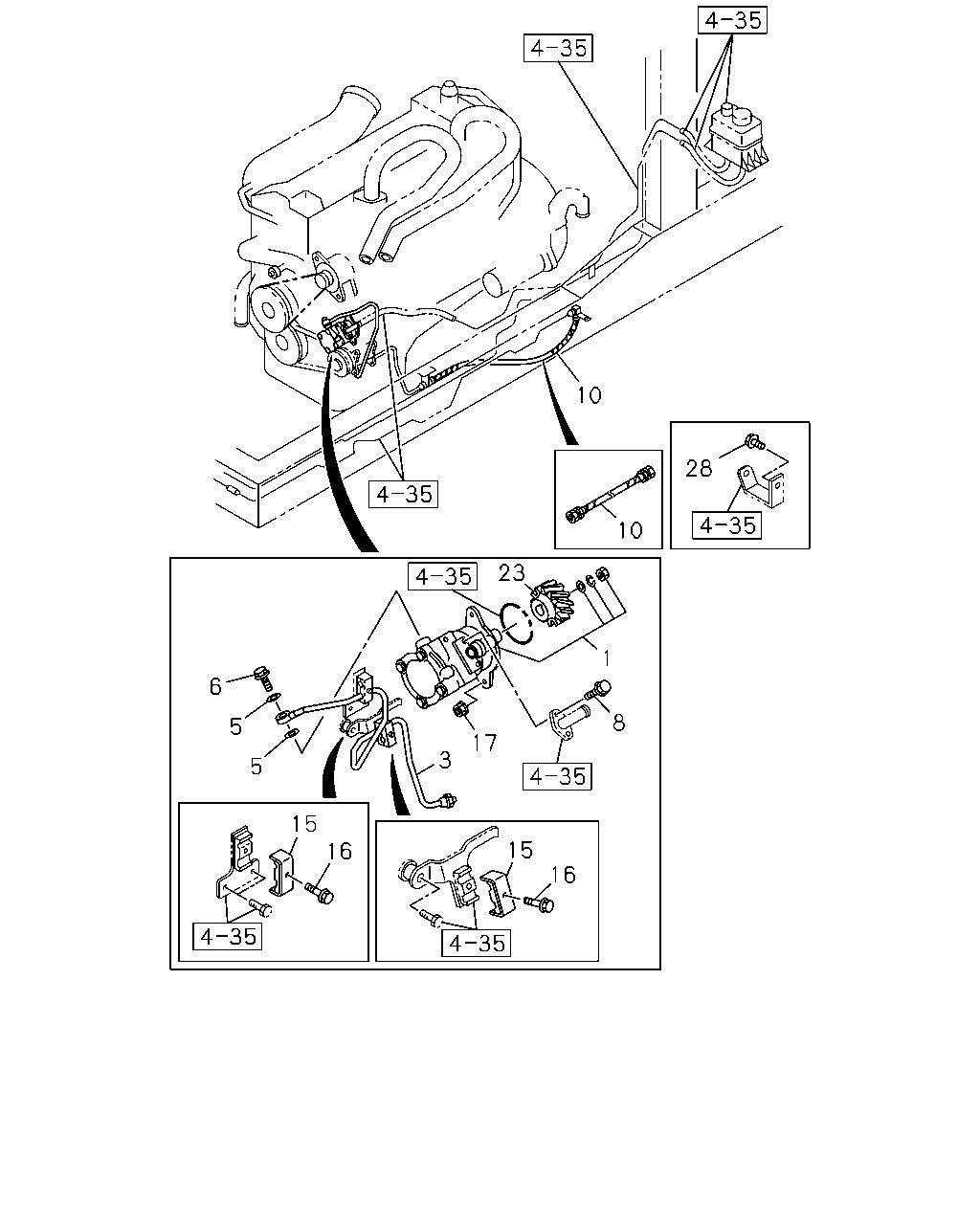

4-36 — POWER STEERING CONTROL; ENGINE SIDE (#7711) — 22 parça

10 28 10 23 1 6 8 5 17 3 5 15 15 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT.	1-19500-563-0	01	1	9902-0003	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT.	1-19500-563-2	01	1	0004-	●	●
3	PIPE; OIL,CHARGE,P/S	1-13313-637-1	01	1	9902-0003	●
3	PIPE; OIL,CHARGE,P/S	1-13313-637-1	01	1	0004-	●	●
5	GASKET; EYE BOLT,POWER STRG PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=18.2 OD=24.4	1-09630-087-0	02	1	9902-0003	●
5	GASKET; EYE BOLT,POWER STRG PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=18.2 OD=24.4	1-09630-087-0	02	1	0004-	●	●
6	BOLT; EYE,P/S PIPE M18X36	1-09675-174-0	01	1	9902-0003	●
6	BOLT; EYE,P/S PIPE M18X36	1-09675-174-0	01	1	0004-	●	●
8	BOLT; OIL PIPE M8X16 FLANGE	0-28080-816-0	02	1	9902-0003	●
8	BOLT; OIL PIPE M8X16 FLANGE	0-28080-816-0	02	1	0004-	●	●
10	HOSE; FLEX,P/S OIL PUMP,INL L=430	0-09671-430-0	01	1	9902-0003	●
10	HOSE; FLEX,P/S OIL PUMP,INL L=430	0-09671-430-0	01	1	0004-	●	●
15	CLIP; OIL PIPE SUCTION	1-09701-195-1	02	1	9902-0003	●
15	CLIP; OIL PIPE SUCTION	1-09701-195-2	02	1	0004-	●	●
16	BOLT; STAY,P/S OIL PUMP M6X35 FLANGE	0-28680-635-0	02	1	9902-0003	●
16	BOLT; STAY,P/S OIL PUMP M6X35 FLANGE	0-28680-635-0	02	1	0004-	●	●
17	NUT; POWER STRG PUMP M10 FLANGE	0-91150-110-0	02	1	9902-0003	●
17	NUT; POWER STRG PUMP M10 FLANGE	0-91150-110-0	02	1	0004-	●	●
23	GEAR; OIL PUMP Z=20	1-19581-023-2	01	1	9902-9910	●
23	GEAR; OIL PUMP Z=20	1-19581-038-0	01	1	9911-0003	●
23	GEAR; OIL PUMP Z=20	1-19581-038-0	01	1	0004-	●	●
28	BOLT; BRKT,FLEX HOSE,P/S M8X30 FLANGE	0-28680-830-0	02	1	0004-		●
