Sayfa 8-45 - Isuzu EPC

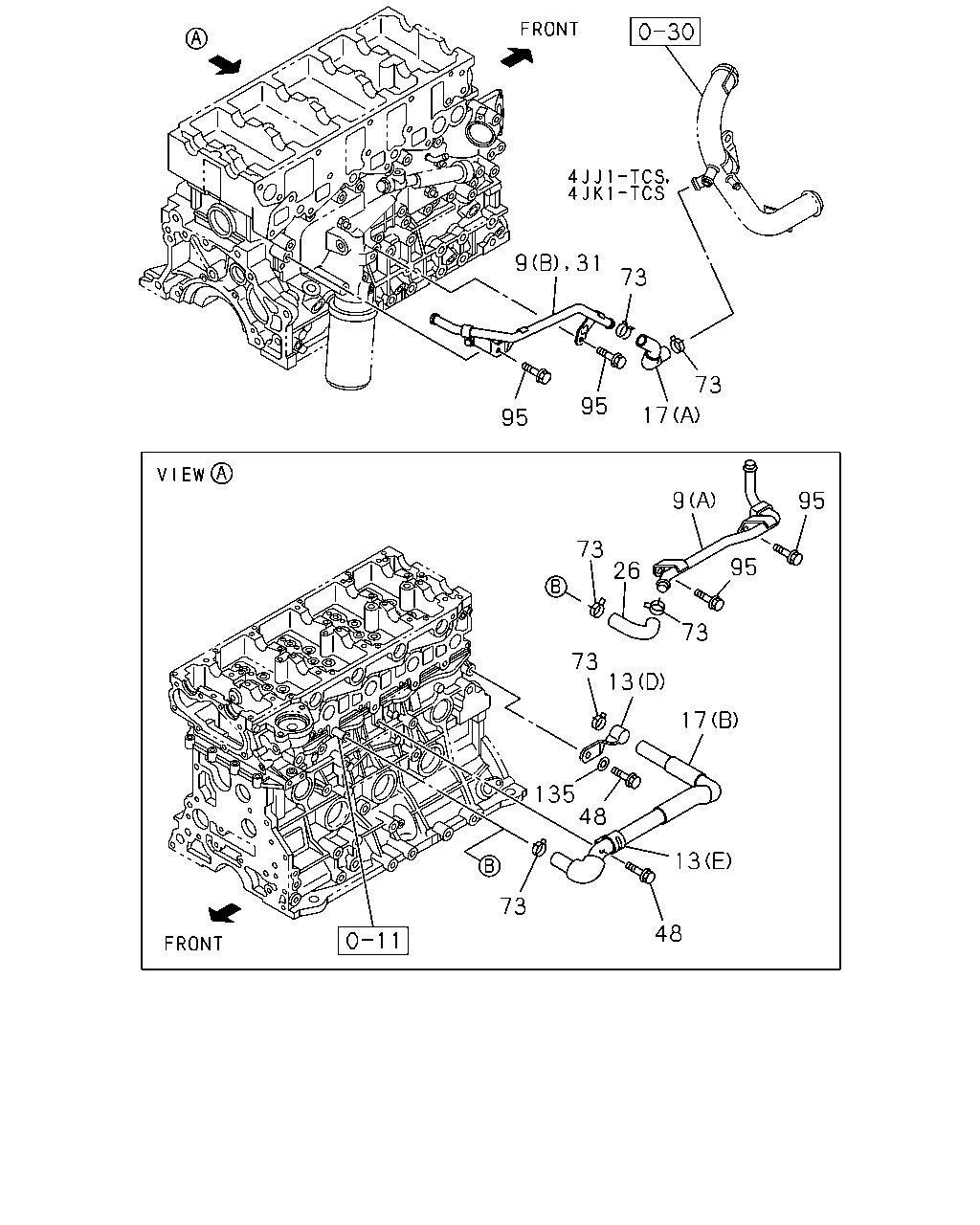

8-45 — HEATER PIPING (#77109) — 292 parça

13 25 13 27 13 107 13 121 13 13 30 74 13 13 17 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) COOLER WO/HEATER(C65) 02.559 (D) ID=25 L=54	1-09700-392-1	01	1	0810-1007	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) COOLER WO/HEATER(C65) 02.559 (D) ID=25 L=54	1-09700-392-1	01	1	1008-	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 02.559 (B)	8-98035-284-0	01	1	0810-1007	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 02.559 (B)	8-98035-284-0	01	1	1008-	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (F) ID=23	8-94382-402-0	02	1	0810-		●	●		●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) COOLER WO/HEATER(C65) (F) ID=23	8-94382-402-0	01	1	0810-		●	●		●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) COOLER WO/HEATER(C65) 02.559 (E) ID=24 H=40 L=24	1-09701-243-1	01	1	0810-1007	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) COOLER WO/HEATER(C65) 02.559 (E) ID=24 H=40 L=24	1-09701-243-1	01	1	1008-	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	01	1	0810-1004	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	01	1	0810-1004	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) COOLER WO/HEATER(C65) (C) ID=22	8-94382-401-0	01	1	0810-1004		●	●		●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 03.278 (C) ID=22	8-97359-141-0	01	1	1005-1007	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 03.278 (C) ID=22	8-97359-141-0	01	1	1005-1007	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) COOLER WO/HEATER(C65) 03.278 (C) ID=22	8-97359-141-0	01	1	1005-1007		●	●		●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 03.278 (C) ID=22	8-97359-141-0	01	1	1008-	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 03.278 (C) ID=22	8-97359-141-0	01	1	1008-	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) COOLER WO/HEATER(C65) 03.278 (C) ID=22	8-97359-141-0	01	1	1008-		●	●		●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	01	1	0808-0809			●			●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	01	1	0808-0809			●			●	●
13	08.846 CLIP; HTR HOSE EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	01	1	0808-0809				●
13	08.846 CLIP; HTR HOSE EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	01	1	0808-0809				●
13	08.846 CLIP; HTR HOSE 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	01	1	0808-0809					●
13	08.846 CLIP; HTR HOSE 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	01	1	0808-0809					●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	02	1	0810-0908		●	●		●	●
13	08.846 CLIP; HTR HOSE 4JA1-T ENG(LP0) COOLER WO/HEATER(C65) (C) ID=22	8-94382-401-0	02	1	0909-1004	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	02	1	0909-1004		●	●
13	08.846 CLIP; HTR HOSE 4X4 EXTEND CAB LONG(TFS*CF) 4JA1-T ENG(LP0) COOLER WO/HEATER(C65) (C) ID=22	8-94382-401-0	02	1	0909-1004				●
13	08.846 CLIP; HTR HOSE 4X4 REGULAR CAB LONG(TFS*SF) 4JA1-T ENG(LP0) COOLER WO/HEATER(C65) (C) ID=22	8-94382-401-0	02	1	0909-1004					●
13	08.846 CLIP; HTR HOSE 4X4 REGULAR CAB LONG(TFS*SF) C24SE ENG(LG1) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	02	1	0909-1004					●
13	08.846 CLIP; HTR HOSE 4X4 CREW CAB LONG(TFS*WF) 4JA1-T ENG(LP0) COOLER WO/HEATER(C65) (C) ID=22	8-94382-401-0	02	1	0909-1004						●
13	08.846 CLIP; HTR HOSE 4X4 CREW CAB LONG(TFS*WF) C24SE ENG(LG1) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	02	1	0909-1004						●
13	08.846 CLIP; HTR HOSE 4JA1-T ENG(LP0) COOLER WO/HEATER(C65) 03.278 (C) ID=22	8-97359-141-0	02	1	1005-	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 03.278 (C) ID=22	8-97359-141-0	02	1	1005-		●	●
13	08.846 CLIP; HTR HOSE 4X4 EXTEND CAB LONG(TFS*CF) 4JA1-T ENG(LP0) COOLER WO/HEATER(C65) 03.278 (C) ID=22	8-97359-141-0	02	1	1005-				●
13	08.846 CLIP; HTR HOSE 4X4 REGULAR CAB LONG(TFS*SF) 4JA1-T ENG(LP0) COOLER WO/HEATER(C65) 03.278 (C) ID=22	8-97359-141-0	02	1	1005-					●
13	08.846 CLIP; HTR HOSE 4X4 REGULAR CAB LONG(TFS*SF) C24SE ENG(LG1) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 03.278 (C) ID=22	8-97359-141-0	02	1	1005-					●
13	08.846 CLIP; HTR HOSE 4X4 CREW CAB LONG(TFS*WF) 4JA1-T ENG(LP0) COOLER WO/HEATER(C65) 03.278 (C) ID=22	8-97359-141-0	02	1	1005-						●
13	08.846 CLIP; HTR HOSE 4X4 CREW CAB LONG(TFS*WF) C24SE ENG(LG1) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 03.278 (C) ID=22	8-97359-141-0	02	1	1005-						●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A) ID=21.7	8-97203-074-0	02	1	0808-0809			●			●	●
13	08.846 CLIP; HTR HOSE EXTEND CAB EXTRA LONG(TF**CK) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A) ID=21.7	8-97203-074-0	02	1	0808-0809				●
13	08.846 CLIP; HTR HOSE 4X4 REGULAR CAB EXTRA LONG(TFS*SK) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A) ID=21.7	8-97203-074-0	02	1	0808-0809					●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A) ID=21.7	8-97203-074-0	02	1	0810-	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98063-683-0	01	1	0808-0809			●			●	●
13	08.846 CLIP; HTR HOSE EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98063-683-0	01	1	0808-0809				●
13	08.846 CLIP; HTR HOSE 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98063-683-0	01	1	0808-0809					●
13	08.846 CLIP; HTR HOSE 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98063-683-0	01	1	0810-		●	●	●	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) COOLER WO/HEATER(C65) (B)	8-98036-848-0	01	1	0810-1007	●	●	●	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCX ENG(LS0) COOLER WO/HEATER(C65) (B)	8-98036-848-0	01	1	0810-1007			●			●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) COOLER WO/HEATER(C65) (B)	8-98036-848-0	01	1	1008-	●	●		●	●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) COOLER WO/HEATER(C65) (B)	8-98036-848-0	01	1	1008-			●			●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) COOLER WO/HEATER(C65) (B)	8-98036-953-0	01	1	0810-	●	●	●			●
17	08.846 HOSE; WATER,BYPASS C24SE ENG(LG1) COOLER WO/HEATER(C65) (C)	8-97181-424-0	01	1	0810-		●	●		●	●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) 03.163 (A)	8-98031-860-0	01	1	0808-0809			●	●	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 03.163 (A)	8-98031-860-0	01	1	0810-1007	●	●	●	●	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 03.163 (A)	8-98031-860-0	01	1	1008-	●	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JA1-T ENG(LP0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C)	8-98002-547-0	01	1	0810-	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT C24SE ENG(LG1) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98002-546-0	01	1	0810-		●	●		●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98007-112-2	01	1	0808-0809			●			●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98007-112-2	01	1	0808-0809				●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98007-112-2	01	1	0808-0809					●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98007-112-2	01	1	0810-1007	●	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98007-112-2	01	1	1008-	●	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JA1-T ENG(LP0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C)	8-98002-541-0	01	1	0810-	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI C24SE ENG(LG1) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98002-539-0	01	1	0810-		●	●		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98007-110-2	01	1	0808-0809			●			●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98007-110-2	01	1	0808-0809				●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98007-110-2	01	1	0808-0809					●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98007-110-2	01	1	0810-1007	●	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98007-110-2	01	1	1008-	●	●	●	●	●	●	●
30	08.846 HOSE; WATER,CONN TO ENG C24SE ENG(LG1) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-97264-673-0	01	1	0810-		●	●		●	●
74	08.866 HOSE; WATER,ENG TO PIPE C24SE ENG(LG1) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-97264-672-0	01	1	0810-		●	●		●	●
107	08.864 HOSE; WATER,HTR C24SE ENG(LG1) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-97264-652-0	01	1	0810-		●	●		●	●
121	08.845 NUT; PIPE C24SE ENG(LG1) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 06.672 M10 FLANGE	0-91280-210-0	01	1	0810-		●	●		●	●

9 73 73 95 17 95 9 95 73 26 95 73 73 13 17 135 48 13 73 48 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98011-492-1	01	1	0810-	●	●	●	●	●	●
9	08.846 PIPE; HTR 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) (A)	8-98011-513-1	01	1	0808-0809			●	●	●	●	●
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98011-513-1	01	1	0810-	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) COOLER WO/HEATER(C65) 02.559 (D) ID=25 L=54	1-09700-392-1	01	1	0810-1007	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) COOLER WO/HEATER(C65) 02.559 (D) ID=25 L=54	1-09700-392-1	01	1	1008-	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 02.559 (B)	8-98035-284-0	01	1	0810-1007	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 02.559 (B)	8-98035-284-0	01	1	1008-	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (F) ID=23	8-94382-402-0	02	1	0810-		●	●		●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) COOLER WO/HEATER(C65) (F) ID=23	8-94382-402-0	01	1	0810-		●	●		●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) COOLER WO/HEATER(C65) 02.559 (E) ID=24 H=40 L=24	1-09701-243-1	01	1	0810-1007	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) COOLER WO/HEATER(C65) 02.559 (E) ID=24 H=40 L=24	1-09701-243-1	01	1	1008-	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	01	1	0810-1004	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	01	1	0810-1004	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) COOLER WO/HEATER(C65) (C) ID=22	8-94382-401-0	01	1	0810-1004		●	●		●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 03.278 (C) ID=22	8-97359-141-0	01	1	1005-1007	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 03.278 (C) ID=22	8-97359-141-0	01	1	1005-1007	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) COOLER WO/HEATER(C65) 03.278 (C) ID=22	8-97359-141-0	01	1	1005-1007		●	●		●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 03.278 (C) ID=22	8-97359-141-0	01	1	1008-	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 03.278 (C) ID=22	8-97359-141-0	01	1	1008-	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) COOLER WO/HEATER(C65) 03.278 (C) ID=22	8-97359-141-0	01	1	1008-		●	●		●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	01	1	0808-0809			●			●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	01	1	0808-0809			●			●	●
13	08.846 CLIP; HTR HOSE EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	01	1	0808-0809				●
13	08.846 CLIP; HTR HOSE EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	01	1	0808-0809				●
13	08.846 CLIP; HTR HOSE 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	01	1	0808-0809					●
13	08.846 CLIP; HTR HOSE 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	01	1	0808-0809					●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	02	1	0810-0908		●	●		●	●
13	08.846 CLIP; HTR HOSE 4JA1-T ENG(LP0) COOLER WO/HEATER(C65) (C) ID=22	8-94382-401-0	02	1	0909-1004	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	02	1	0909-1004		●	●
13	08.846 CLIP; HTR HOSE 4X4 EXTEND CAB LONG(TFS*CF) 4JA1-T ENG(LP0) COOLER WO/HEATER(C65) (C) ID=22	8-94382-401-0	02	1	0909-1004				●
13	08.846 CLIP; HTR HOSE 4X4 REGULAR CAB LONG(TFS*SF) 4JA1-T ENG(LP0) COOLER WO/HEATER(C65) (C) ID=22	8-94382-401-0	02	1	0909-1004					●
13	08.846 CLIP; HTR HOSE 4X4 REGULAR CAB LONG(TFS*SF) C24SE ENG(LG1) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	02	1	0909-1004					●
13	08.846 CLIP; HTR HOSE 4X4 CREW CAB LONG(TFS*WF) 4JA1-T ENG(LP0) COOLER WO/HEATER(C65) (C) ID=22	8-94382-401-0	02	1	0909-1004						●
13	08.846 CLIP; HTR HOSE 4X4 CREW CAB LONG(TFS*WF) C24SE ENG(LG1) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	02	1	0909-1004						●
13	08.846 CLIP; HTR HOSE 4JA1-T ENG(LP0) COOLER WO/HEATER(C65) 03.278 (C) ID=22	8-97359-141-0	02	1	1005-	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 03.278 (C) ID=22	8-97359-141-0	02	1	1005-		●	●
13	08.846 CLIP; HTR HOSE 4X4 EXTEND CAB LONG(TFS*CF) 4JA1-T ENG(LP0) COOLER WO/HEATER(C65) 03.278 (C) ID=22	8-97359-141-0	02	1	1005-				●
13	08.846 CLIP; HTR HOSE 4X4 REGULAR CAB LONG(TFS*SF) 4JA1-T ENG(LP0) COOLER WO/HEATER(C65) 03.278 (C) ID=22	8-97359-141-0	02	1	1005-					●
13	08.846 CLIP; HTR HOSE 4X4 REGULAR CAB LONG(TFS*SF) C24SE ENG(LG1) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 03.278 (C) ID=22	8-97359-141-0	02	1	1005-					●
13	08.846 CLIP; HTR HOSE 4X4 CREW CAB LONG(TFS*WF) 4JA1-T ENG(LP0) COOLER WO/HEATER(C65) 03.278 (C) ID=22	8-97359-141-0	02	1	1005-						●
13	08.846 CLIP; HTR HOSE 4X4 CREW CAB LONG(TFS*WF) C24SE ENG(LG1) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 03.278 (C) ID=22	8-97359-141-0	02	1	1005-						●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A) ID=21.7	8-97203-074-0	02	1	0808-0809			●			●	●
13	08.846 CLIP; HTR HOSE EXTEND CAB EXTRA LONG(TF**CK) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A) ID=21.7	8-97203-074-0	02	1	0808-0809				●
13	08.846 CLIP; HTR HOSE 4X4 REGULAR CAB EXTRA LONG(TFS*SK) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A) ID=21.7	8-97203-074-0	02	1	0808-0809					●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A) ID=21.7	8-97203-074-0	02	1	0810-	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98063-683-0	01	1	0808-0809			●			●	●
13	08.846 CLIP; HTR HOSE EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98063-683-0	01	1	0808-0809				●
13	08.846 CLIP; HTR HOSE 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98063-683-0	01	1	0808-0809					●
13	08.846 CLIP; HTR HOSE 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98063-683-0	01	1	0810-		●	●	●	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) COOLER WO/HEATER(C65) (B)	8-98036-848-0	01	1	0810-1007	●	●	●	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCX ENG(LS0) COOLER WO/HEATER(C65) (B)	8-98036-848-0	01	1	0810-1007			●			●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) COOLER WO/HEATER(C65) (B)	8-98036-848-0	01	1	1008-	●	●		●	●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) COOLER WO/HEATER(C65) (B)	8-98036-848-0	01	1	1008-			●			●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) COOLER WO/HEATER(C65) (B)	8-98036-953-0	01	1	0810-	●	●	●			●
17	08.846 HOSE; WATER,BYPASS C24SE ENG(LG1) COOLER WO/HEATER(C65) (C)	8-97181-424-0	01	1	0810-		●	●		●	●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) 03.163 (A)	8-98031-860-0	01	1	0808-0809			●	●	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 03.163 (A)	8-98031-860-0	01	1	0810-1007	●	●	●	●	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 03.163 (A)	8-98031-860-0	01	1	1008-	●	●	●	●	●	●	●
26	08.846 HOSE; HTR 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD)	8-98011-630-0	01	1	0808-0809			●	●	●	●	●
26	08.846 HOSE; HTR 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98011-630-0	01	1	0810-	●	●	●	●	●	●	●
31	08.846 PIPE; BYPASS,HTR 4JJ1-TCS ENG(LFB) COOLER WO/HEATER(C65)	8-98025-351-0	01	1	0810-1007	●	●	●	●	●	●
31	08.846 PIPE; BYPASS,HTR 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) COOLER WO/HEATER(C65)	8-98025-351-0	01	1	1008-	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) 02.343 M8X12 FLANGE	0-28050-812-0	02	1	0808-0809			●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 02.343 M8X12 FLANGE	0-28050-812-0	02	1	0810-1007	●	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1008-	●	●	●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) 01.166 ID=20.8	8-94125-862-1	04	1	1008-1109		●			●	●
73	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) KENYA EQUIPMENT(CL1) 01.166 ID=20.8	8-94125-862-1	04	1	1110-		●			●	●
73	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) 01.166 ID=20.8	8-94125-862-1	04	1	0810-1003		●			●	●
73	08.846 CLIP; HTR HOSE 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) ID=20.8	8-97944-127-0	04	1	0808-0809			●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB) EXC. KENYA EQUIPMENT(CL1) ID=20.8	8-97944-127-0	04	1	0810-1003	●	●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) ID=20.8	8-97944-127-0	04	1	0810-1003		●	●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) ID=20.8	8-97944-127-0	04	1	1004-1007	●	●	●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) ID=20.8	8-97944-127-0	04	1	1008-	●	●	●	●	●	●	●
95	08.866 BOLT; BYPASS PIPE 4JJ1-TCS ENG(LFB) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0810-1007	●	●	●	●	●	●
95	08.866 BOLT; BYPASS PIPE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1008-	●	●	●	●	●	●
135	08.846 WASHER; PL 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) COOLER WO/HEATER(C65) 03.417 ID=8.4 OD=16	0-91610-508-0	01	1	0810-1007	●	●	●	●	●	●
135	08.846 WASHER; PL 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) COOLER WO/HEATER(C65) 03.417 ID=8.4 OD=16	0-91610-508-0	01	1	1008-	●	●	●	●	●	●

13 25 27 13 13 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) COOLER WO/HEATER(C65) 02.559 (D) ID=25 L=54	1-09700-392-1	01	1	0810-1007	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) COOLER WO/HEATER(C65) 02.559 (D) ID=25 L=54	1-09700-392-1	01	1	1008-	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 02.559 (B)	8-98035-284-0	01	1	0810-1007	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 02.559 (B)	8-98035-284-0	01	1	1008-	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (F) ID=23	8-94382-402-0	02	1	0810-		●	●		●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) COOLER WO/HEATER(C65) (F) ID=23	8-94382-402-0	01	1	0810-		●	●		●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) COOLER WO/HEATER(C65) 02.559 (E) ID=24 H=40 L=24	1-09701-243-1	01	1	0810-1007	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) COOLER WO/HEATER(C65) 02.559 (E) ID=24 H=40 L=24	1-09701-243-1	01	1	1008-	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	01	1	0810-1004	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	01	1	0810-1004	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) COOLER WO/HEATER(C65) (C) ID=22	8-94382-401-0	01	1	0810-1004		●	●		●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 03.278 (C) ID=22	8-97359-141-0	01	1	1005-1007	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 03.278 (C) ID=22	8-97359-141-0	01	1	1005-1007	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) COOLER WO/HEATER(C65) 03.278 (C) ID=22	8-97359-141-0	01	1	1005-1007		●	●		●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 03.278 (C) ID=22	8-97359-141-0	01	1	1008-	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 03.278 (C) ID=22	8-97359-141-0	01	1	1008-	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) COOLER WO/HEATER(C65) 03.278 (C) ID=22	8-97359-141-0	01	1	1008-		●	●		●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	01	1	0808-0809			●			●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	01	1	0808-0809			●			●	●
13	08.846 CLIP; HTR HOSE EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	01	1	0808-0809				●
13	08.846 CLIP; HTR HOSE EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	01	1	0808-0809				●
13	08.846 CLIP; HTR HOSE 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	01	1	0808-0809					●
13	08.846 CLIP; HTR HOSE 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	01	1	0808-0809					●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	02	1	0810-0908		●	●		●	●
13	08.846 CLIP; HTR HOSE 4JA1-T ENG(LP0) COOLER WO/HEATER(C65) (C) ID=22	8-94382-401-0	02	1	0909-1004	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	02	1	0909-1004		●	●
13	08.846 CLIP; HTR HOSE 4X4 EXTEND CAB LONG(TFS*CF) 4JA1-T ENG(LP0) COOLER WO/HEATER(C65) (C) ID=22	8-94382-401-0	02	1	0909-1004				●
13	08.846 CLIP; HTR HOSE 4X4 REGULAR CAB LONG(TFS*SF) 4JA1-T ENG(LP0) COOLER WO/HEATER(C65) (C) ID=22	8-94382-401-0	02	1	0909-1004					●
13	08.846 CLIP; HTR HOSE 4X4 REGULAR CAB LONG(TFS*SF) C24SE ENG(LG1) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	02	1	0909-1004					●
13	08.846 CLIP; HTR HOSE 4X4 CREW CAB LONG(TFS*WF) 4JA1-T ENG(LP0) COOLER WO/HEATER(C65) (C) ID=22	8-94382-401-0	02	1	0909-1004						●
13	08.846 CLIP; HTR HOSE 4X4 CREW CAB LONG(TFS*WF) C24SE ENG(LG1) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	02	1	0909-1004						●
13	08.846 CLIP; HTR HOSE 4JA1-T ENG(LP0) COOLER WO/HEATER(C65) 03.278 (C) ID=22	8-97359-141-0	02	1	1005-	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 03.278 (C) ID=22	8-97359-141-0	02	1	1005-		●	●
13	08.846 CLIP; HTR HOSE 4X4 EXTEND CAB LONG(TFS*CF) 4JA1-T ENG(LP0) COOLER WO/HEATER(C65) 03.278 (C) ID=22	8-97359-141-0	02	1	1005-				●
13	08.846 CLIP; HTR HOSE 4X4 REGULAR CAB LONG(TFS*SF) 4JA1-T ENG(LP0) COOLER WO/HEATER(C65) 03.278 (C) ID=22	8-97359-141-0	02	1	1005-					●
13	08.846 CLIP; HTR HOSE 4X4 REGULAR CAB LONG(TFS*SF) C24SE ENG(LG1) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 03.278 (C) ID=22	8-97359-141-0	02	1	1005-					●
13	08.846 CLIP; HTR HOSE 4X4 CREW CAB LONG(TFS*WF) 4JA1-T ENG(LP0) COOLER WO/HEATER(C65) 03.278 (C) ID=22	8-97359-141-0	02	1	1005-						●
13	08.846 CLIP; HTR HOSE 4X4 CREW CAB LONG(TFS*WF) C24SE ENG(LG1) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 03.278 (C) ID=22	8-97359-141-0	02	1	1005-						●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A) ID=21.7	8-97203-074-0	02	1	0808-0809			●			●	●
13	08.846 CLIP; HTR HOSE EXTEND CAB EXTRA LONG(TF**CK) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A) ID=21.7	8-97203-074-0	02	1	0808-0809				●
13	08.846 CLIP; HTR HOSE 4X4 REGULAR CAB EXTRA LONG(TFS*SK) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A) ID=21.7	8-97203-074-0	02	1	0808-0809					●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A) ID=21.7	8-97203-074-0	02	1	0810-	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98063-683-0	01	1	0808-0809			●			●	●
13	08.846 CLIP; HTR HOSE EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98063-683-0	01	1	0808-0809				●
13	08.846 CLIP; HTR HOSE 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98063-683-0	01	1	0808-0809					●
13	08.846 CLIP; HTR HOSE 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98063-683-0	01	1	0810-		●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JA1-T ENG(LP0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C)	8-98002-547-0	01	1	0810-	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT C24SE ENG(LG1) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98002-546-0	01	1	0810-		●	●		●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98007-112-2	01	1	0808-0809			●			●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98007-112-2	01	1	0808-0809				●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98007-112-2	01	1	0808-0809					●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98007-112-2	01	1	0810-1007	●	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98007-112-2	01	1	1008-	●	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JA1-T ENG(LP0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C)	8-98002-541-0	01	1	0810-	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI C24SE ENG(LG1) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98002-539-0	01	1	0810-		●	●		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98007-110-2	01	1	0808-0809			●			●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98007-110-2	01	1	0808-0809				●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98007-110-2	01	1	0808-0809					●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98007-110-2	01	1	0810-1007	●	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98007-110-2	01	1	1008-	●	●	●	●	●	●	●

13 25 13 13 18 27 13 13 73 17 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) COOLER WO/HEATER(C65) 02.559 (D) ID=25 L=54	1-09700-392-1	01	1	0810-1007	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) COOLER WO/HEATER(C65) 02.559 (D) ID=25 L=54	1-09700-392-1	01	1	1008-	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 02.559 (B)	8-98035-284-0	01	1	0810-1007	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 02.559 (B)	8-98035-284-0	01	1	1008-	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (F) ID=23	8-94382-402-0	02	1	0810-		●	●		●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) COOLER WO/HEATER(C65) (F) ID=23	8-94382-402-0	01	1	0810-		●	●		●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) COOLER WO/HEATER(C65) 02.559 (E) ID=24 H=40 L=24	1-09701-243-1	01	1	0810-1007	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) COOLER WO/HEATER(C65) 02.559 (E) ID=24 H=40 L=24	1-09701-243-1	01	1	1008-	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	01	1	0810-1004	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	01	1	0810-1004	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) COOLER WO/HEATER(C65) (C) ID=22	8-94382-401-0	01	1	0810-1004		●	●		●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 03.278 (C) ID=22	8-97359-141-0	01	1	1005-1007	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 03.278 (C) ID=22	8-97359-141-0	01	1	1005-1007	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) COOLER WO/HEATER(C65) 03.278 (C) ID=22	8-97359-141-0	01	1	1005-1007		●	●		●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 03.278 (C) ID=22	8-97359-141-0	01	1	1008-	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 03.278 (C) ID=22	8-97359-141-0	01	1	1008-	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) COOLER WO/HEATER(C65) 03.278 (C) ID=22	8-97359-141-0	01	1	1008-		●	●		●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	01	1	0808-0809			●			●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	01	1	0808-0809			●			●	●
13	08.846 CLIP; HTR HOSE EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	01	1	0808-0809				●
13	08.846 CLIP; HTR HOSE EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	01	1	0808-0809				●
13	08.846 CLIP; HTR HOSE 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	01	1	0808-0809					●
13	08.846 CLIP; HTR HOSE 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	01	1	0808-0809					●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	02	1	0810-0908		●	●		●	●
13	08.846 CLIP; HTR HOSE 4JA1-T ENG(LP0) COOLER WO/HEATER(C65) (C) ID=22	8-94382-401-0	02	1	0909-1004	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	02	1	0909-1004		●	●
13	08.846 CLIP; HTR HOSE 4X4 EXTEND CAB LONG(TFS*CF) 4JA1-T ENG(LP0) COOLER WO/HEATER(C65) (C) ID=22	8-94382-401-0	02	1	0909-1004				●
13	08.846 CLIP; HTR HOSE 4X4 REGULAR CAB LONG(TFS*SF) 4JA1-T ENG(LP0) COOLER WO/HEATER(C65) (C) ID=22	8-94382-401-0	02	1	0909-1004					●
13	08.846 CLIP; HTR HOSE 4X4 REGULAR CAB LONG(TFS*SF) C24SE ENG(LG1) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	02	1	0909-1004					●
13	08.846 CLIP; HTR HOSE 4X4 CREW CAB LONG(TFS*WF) 4JA1-T ENG(LP0) COOLER WO/HEATER(C65) (C) ID=22	8-94382-401-0	02	1	0909-1004						●
13	08.846 CLIP; HTR HOSE 4X4 CREW CAB LONG(TFS*WF) C24SE ENG(LG1) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	02	1	0909-1004						●
13	08.846 CLIP; HTR HOSE 4JA1-T ENG(LP0) COOLER WO/HEATER(C65) 03.278 (C) ID=22	8-97359-141-0	02	1	1005-	●	●	●
13	08.846 CLIP; HTR HOSE C24SE ENG(LG1) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 03.278 (C) ID=22	8-97359-141-0	02	1	1005-		●	●
13	08.846 CLIP; HTR HOSE 4X4 EXTEND CAB LONG(TFS*CF) 4JA1-T ENG(LP0) COOLER WO/HEATER(C65) 03.278 (C) ID=22	8-97359-141-0	02	1	1005-				●
13	08.846 CLIP; HTR HOSE 4X4 REGULAR CAB LONG(TFS*SF) 4JA1-T ENG(LP0) COOLER WO/HEATER(C65) 03.278 (C) ID=22	8-97359-141-0	02	1	1005-					●
13	08.846 CLIP; HTR HOSE 4X4 REGULAR CAB LONG(TFS*SF) C24SE ENG(LG1) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 03.278 (C) ID=22	8-97359-141-0	02	1	1005-					●
13	08.846 CLIP; HTR HOSE 4X4 CREW CAB LONG(TFS*WF) 4JA1-T ENG(LP0) COOLER WO/HEATER(C65) 03.278 (C) ID=22	8-97359-141-0	02	1	1005-						●
13	08.846 CLIP; HTR HOSE 4X4 CREW CAB LONG(TFS*WF) C24SE ENG(LG1) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 03.278 (C) ID=22	8-97359-141-0	02	1	1005-						●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A) ID=21.7	8-97203-074-0	02	1	0808-0809			●			●	●
13	08.846 CLIP; HTR HOSE EXTEND CAB EXTRA LONG(TF**CK) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A) ID=21.7	8-97203-074-0	02	1	0808-0809				●
13	08.846 CLIP; HTR HOSE 4X4 REGULAR CAB EXTRA LONG(TFS*SK) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A) ID=21.7	8-97203-074-0	02	1	0808-0809					●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A) ID=21.7	8-97203-074-0	02	1	0810-	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98063-683-0	01	1	0808-0809			●			●	●
13	08.846 CLIP; HTR HOSE EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98063-683-0	01	1	0808-0809				●
13	08.846 CLIP; HTR HOSE 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98063-683-0	01	1	0808-0809					●
13	08.846 CLIP; HTR HOSE 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98063-683-0	01	1	0810-		●	●	●	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) COOLER WO/HEATER(C65) (B)	8-98036-848-0	01	1	0810-1007	●	●	●	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCX ENG(LS0) COOLER WO/HEATER(C65) (B)	8-98036-848-0	01	1	0810-1007			●			●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) COOLER WO/HEATER(C65) (B)	8-98036-848-0	01	1	1008-	●	●		●	●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) COOLER WO/HEATER(C65) (B)	8-98036-848-0	01	1	1008-			●			●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) COOLER WO/HEATER(C65) (B)	8-98036-953-0	01	1	0810-	●	●	●			●
17	08.846 HOSE; WATER,BYPASS C24SE ENG(LG1) COOLER WO/HEATER(C65) (C)	8-97181-424-0	01	1	0810-		●	●		●	●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) 03.163 (A)	8-98031-860-0	01	1	0808-0809			●	●	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 03.163 (A)	8-98031-860-0	01	1	0810-1007	●	●	●	●	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 03.163 (A)	8-98031-860-0	01	1	1008-	●	●	●	●	●	●	●
18	08.866 BOLT; WATER HOSE 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0808-0809			●			●	●
18	08.866 BOLT; WATER HOSE EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0808-0809				●
18	08.866 BOLT; WATER HOSE 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0808-0809					●
18	08.866 BOLT; WATER HOSE 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0810-1007	●	●	●	●	●	●	●
18	08.866 BOLT; WATER HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1008-	●	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JA1-T ENG(LP0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C)	8-98002-547-0	01	1	0810-	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT C24SE ENG(LG1) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98002-546-0	01	1	0810-		●	●		●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98007-112-2	01	1	0808-0809			●			●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98007-112-2	01	1	0808-0809				●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98007-112-2	01	1	0808-0809					●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98007-112-2	01	1	0810-1007	●	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98007-112-2	01	1	1008-	●	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JA1-T ENG(LP0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C)	8-98002-541-0	01	1	0810-	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI C24SE ENG(LG1) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98002-539-0	01	1	0810-		●	●		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98007-110-2	01	1	0808-0809			●			●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98007-110-2	01	1	0808-0809				●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98007-110-2	01	1	0808-0809					●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98007-110-2	01	1	0810-1007	●	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98007-110-2	01	1	1008-	●	●	●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) 01.166 ID=20.8	8-94125-862-1	04	1	1008-1109		●			●	●
73	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) KENYA EQUIPMENT(CL1) 01.166 ID=20.8	8-94125-862-1	04	1	1110-		●			●	●
73	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) 01.166 ID=20.8	8-94125-862-1	04	1	0810-1003		●			●	●
73	08.846 CLIP; HTR HOSE 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) ID=20.8	8-97944-127-0	04	1	0808-0809			●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB) EXC. KENYA EQUIPMENT(CL1) ID=20.8	8-97944-127-0	04	1	0810-1003	●	●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) ID=20.8	8-97944-127-0	04	1	0810-1003		●	●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) ID=20.8	8-97944-127-0	04	1	1004-1007	●	●	●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) ID=20.8	8-97944-127-0	04	1	1008-	●	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
