8-40 — HEATER SYSTEM (#77107) — 88 parça

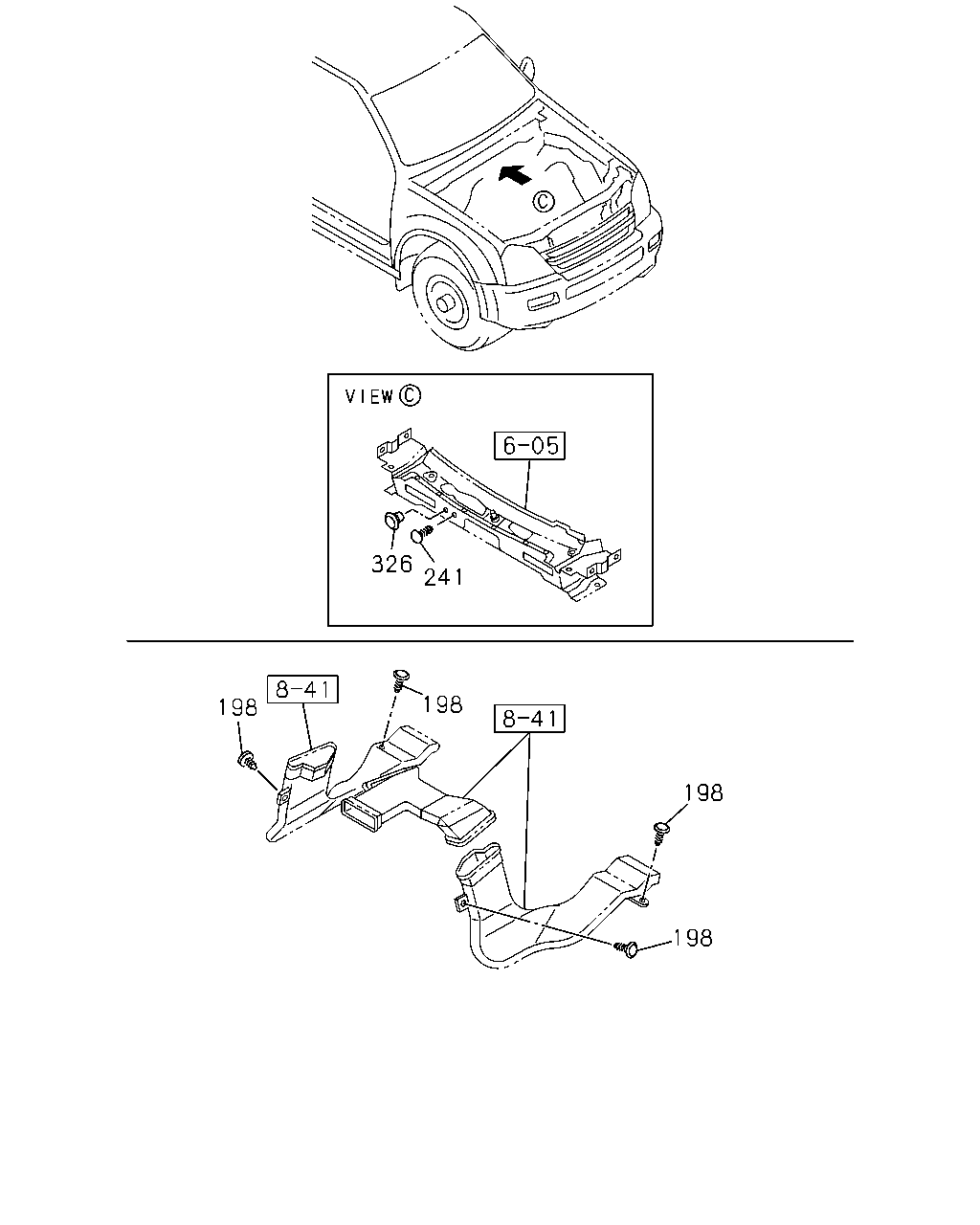

çizim 6782
326 241 198 198 198 198
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
198 09.787 CLIP; DUCT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> 16.800 L=19 BLACK 		8-94363-776-0 04 1 0808- ● ●
241 16.550 PLUG; RUBBER,EVAP DRAIN HOLE
C24SE ENG(LG1),4JA1-T ENG(LP0) HEATER & DEFROSTER(C42) 16.067 		8-94279-922-0 02 1 0810- ● ● ● ● ● ●
241 16.550 PLUG; RUBBER,EVAP DRAIN HOLE
C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 16.067 		8-94279-922-0 02 1 0810- ● ● ● ●
241 16.550 PLUG; RUBBER,EVAP DRAIN HOLE
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 16.067 		8-94279-922-0 01 1 0810- ● ● ● ● ● ●
326 08.845 GROMMET; DRAIN HOSE
4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) 16.550 OD=12 		9-09956-122-0 02 1 0808-0809 ● ● ●
326 08.845 GROMMET; DRAIN HOSE
HEATER & DEFROSTER(C42) 16.550 OD=12 		9-09956-122-0 02 1 0808-0809 ● ● ●
326 08.845 GROMMET; DRAIN HOSE
EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) 16.550 OD=12 		9-09956-122-0 02 1 0808-0809 ●
326 08.845 GROMMET; DRAIN HOSE
EXTEND CAB EXTRA LONG(TF**CK) HEATER & DEFROSTER(C42) 16.550 OD=12 		9-09956-122-0 02 1 0808-0809 ●
326 08.845 GROMMET; DRAIN HOSE
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) 16.550 OD=12 		9-09956-122-0 02 1 0808-0809 ●
326 08.845 GROMMET; DRAIN HOSE
4X4 REGULAR CAB EXTRA LONG(TFS*SK) HEATER & DEFROSTER(C42) 16.550 OD=12 		9-09956-122-0 02 1 0808-0809 ●
326 08.845 GROMMET; DRAIN HOSE
HEATER & DEFROSTER(C42) 16.550 OD=12 		9-09956-122-0 02 1 0810-1007 ● ● ● ● ● ● ●
326 08.845 GROMMET; DRAIN HOSE
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 16.550 OD=12 		9-09956-122-0 02 1 0810-1007 ● ● ● ● ● ● ●
326 08.845 GROMMET; DRAIN HOSE
HEATER & DEFROSTER(C42) 16.550 OD=12 		9-09956-122-0 02 1 1008- ● ● ● ● ● ● ●
326 08.845 GROMMET; DRAIN HOSE
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 16.550 OD=12 		9-09956-122-0 02 1 1008- ● ● ● ● ● ● ●

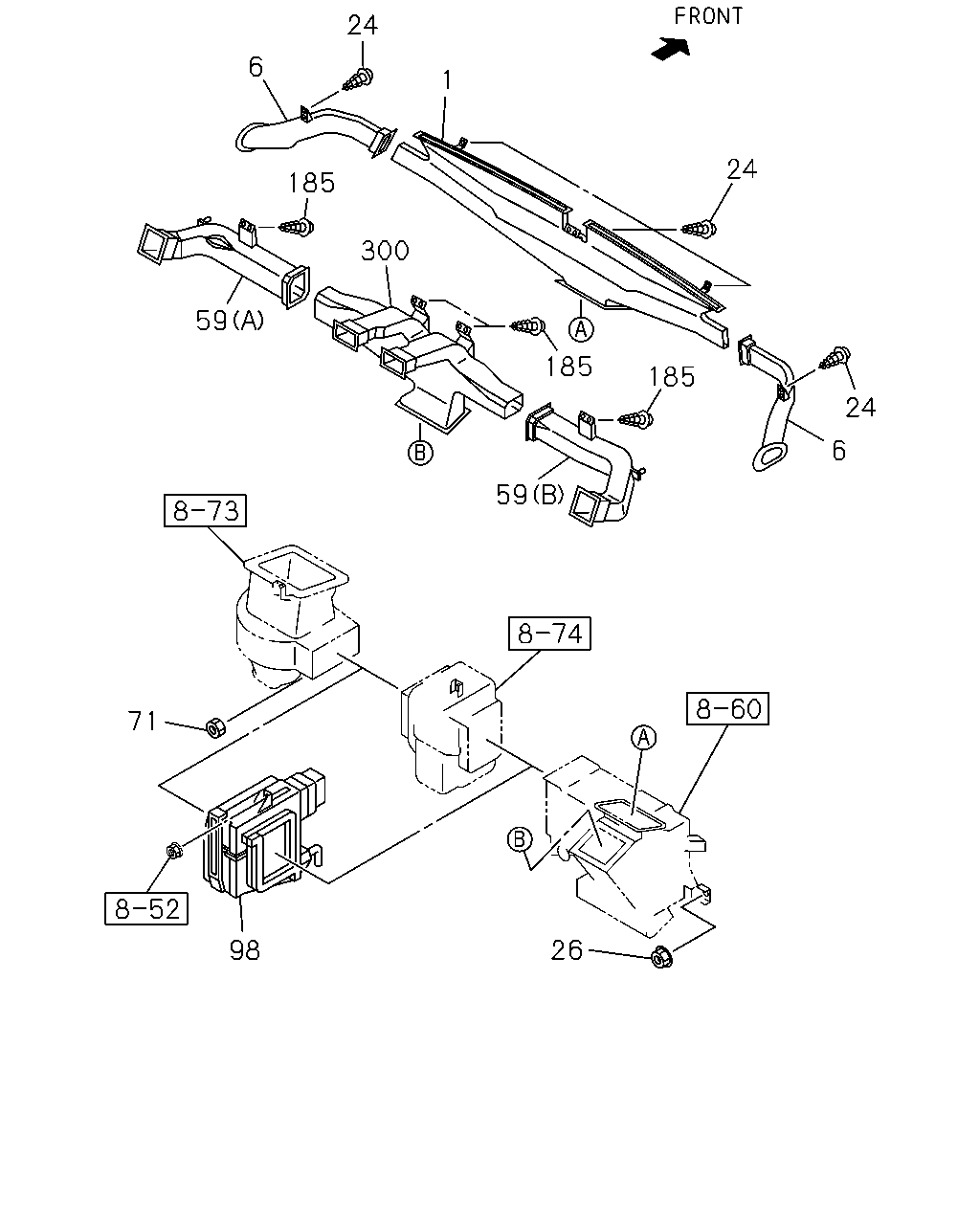

çizim 143881
24 6 1 24 185 300 59 185 185 24 6 59 71 26 98
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 09.779 NOZZLE; DEFROSTER,INST PNL 8-97235-773-1 01 1 0808-0809 ● ● ●
1 09.779 NOZZLE; DEFROSTER,INST PNL
EXTEND CAB EXTRA LONG(TF**CK) 		8-97235-773-1 01 1 0808-0809 ●
1 09.779 NOZZLE; DEFROSTER,INST PNL
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 		8-97235-773-1 01 1 0808-0809 ●
1 09.779 NOZZLE; DEFROSTER,INST PNL 8-97235-773-1 01 1 0810- ● ● ● ● ● ● ●
6 09.779 DUCT; SIDE DEFROSTER 8-97235-874-0 01 1 0808-0809 ● ● ● ● ●
6 09.779 DUCT; SIDE DEFROSTER 8-97235-874-0 01 1 0810- ● ● ● ● ● ● ●
6 09.779 DUCT; SIDE DEFROSTER 8-97235-878-0 01 1 0808-0809 ● ● ● ● ●
6 09.779 DUCT; SIDE DEFROSTER 8-97235-878-0 01 1 0810- ● ● ● ● ● ● ●
24 03.890 SCREW; NOZZLE TO INST PNL
08.083 M5X16 TAPPING 		8-98061-685-0 05 1 0808-0809 ● ● ● ● ●
24 03.890 SCREW; NOZZLE TO INST PNL
08.083 M5X16 TAPPING 		8-98061-685-0 05 1 0810-1003 ● ● ● ● ● ● ●
24 03.890 SCREW; NOZZLE TO INST PNL
08.083 M5X16 TAPPING 		8-98167-449-0 05 1 1004- ● ● ● ● ● ● ●
26 08.845 NUT; HTR
08.915 M6 FLANGE 		8-98055-704-0 04 1 0808-0809 ● ● ● ● ●
26 08.845 NUT; HTR
08.915 M6 FLANGE 		8-98055-704-0 04 1 0810- ● ● ● ● ● ● ●
59 09.786 DUCT; VENT,ASSIST SIDE
(A) 		8-98007-083-0 01 1 0808-0809 ● ● ●
59 09.786 DUCT; VENT,ASSIST SIDE
EXTEND CAB EXTRA LONG(TF**CK) (A) 		8-98007-083-0 01 1 0808-0809 ●
59 09.786 DUCT; VENT,ASSIST SIDE
4X4 REGULAR CAB EXTRA LONG(TFS*SK) (A) 		8-98007-083-0 01 1 0808-0809 ●
59 09.786 DUCT; VENT,ASSIST SIDE
(A) 		8-98007-083-0 01 1 0810- ● ● ● ● ● ● ●
59 09.786 DUCT; VENT,ASSIST SIDE
(B) 		8-98007-084-0 01 1 0808-0809 ● ● ●
59 09.786 DUCT; VENT,ASSIST SIDE
EXTEND CAB EXTRA LONG(TF**CK) (B) 		8-98007-084-0 01 1 0808-0809 ●
59 09.786 DUCT; VENT,ASSIST SIDE
4X4 REGULAR CAB EXTRA LONG(TFS*SK) (B) 		8-98007-084-0 01 1 0808-0809 ●
59 09.786 DUCT; VENT,ASSIST SIDE
(B) 		8-98007-084-0 01 1 0810- ● ● ● ● ● ● ●
71 08.845 NUT; BLOWER UNIT TO DASH
08.915 M6 FLANGE 		8-98055-704-0 03 1 0808-0809 ● ● ● ● ●
71 08.845 NUT; BLOWER UNIT TO DASH
08.915 M6 FLANGE 		8-98055-704-0 03 1 0810- ● ● ● ● ● ● ●
98 09.262 DUCT; BLOWER UNIT TO HTR UNIT
HEATER & DEFROSTER(C42) 		8-98086-178-0 01 1 0808-0809 ● ● ●
98 09.262 DUCT; BLOWER UNIT TO HTR UNIT
EXTEND CAB EXTRA LONG(TF**CK) HEATER & DEFROSTER(C42) 		8-98086-178-0 01 1 0808-0809 ●
98 09.262 DUCT; BLOWER UNIT TO HTR UNIT
4X4 REGULAR CAB EXTRA LONG(TFS*SK) HEATER & DEFROSTER(C42) 		8-98086-178-0 01 1 0808-0809 ●
98 09.262 DUCT; BLOWER UNIT TO HTR UNIT
HEATER & DEFROSTER(C42) 		8-98086-178-0 01 1 0810- ● ● ● ● ● ● ●
185 09.262 SCREW; VENT DUCT
08.083 M5X16 TAPPING 		8-98061-685-0 04 1 0808-0809 ● ● ● ● ●
185 09.262 SCREW; VENT DUCT
08.083 M5X16 TAPPING 		8-98061-685-0 04 1 0810-1003 ● ● ● ● ● ● ●
185 09.262 SCREW; VENT DUCT
08.083 M5X16 TAPPING 		8-98167-449-0 04 1 1004- ● ● ● ● ● ● ●
300 09.264 DUCT; VENT,CENTER 8-98007-074-0 01 1 0808-0809 ● ● ●
300 09.264 DUCT; VENT,CENTER
EXTEND CAB EXTRA LONG(TF**CK) 		8-98007-074-0 01 1 0808-0809 ●
300 09.264 DUCT; VENT,CENTER
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 		8-98007-074-0 01 1 0808-0809 ●
300 09.264 DUCT; VENT,CENTER 8-98007-074-0 01 1 0810- ● ● ● ● ● ● ●

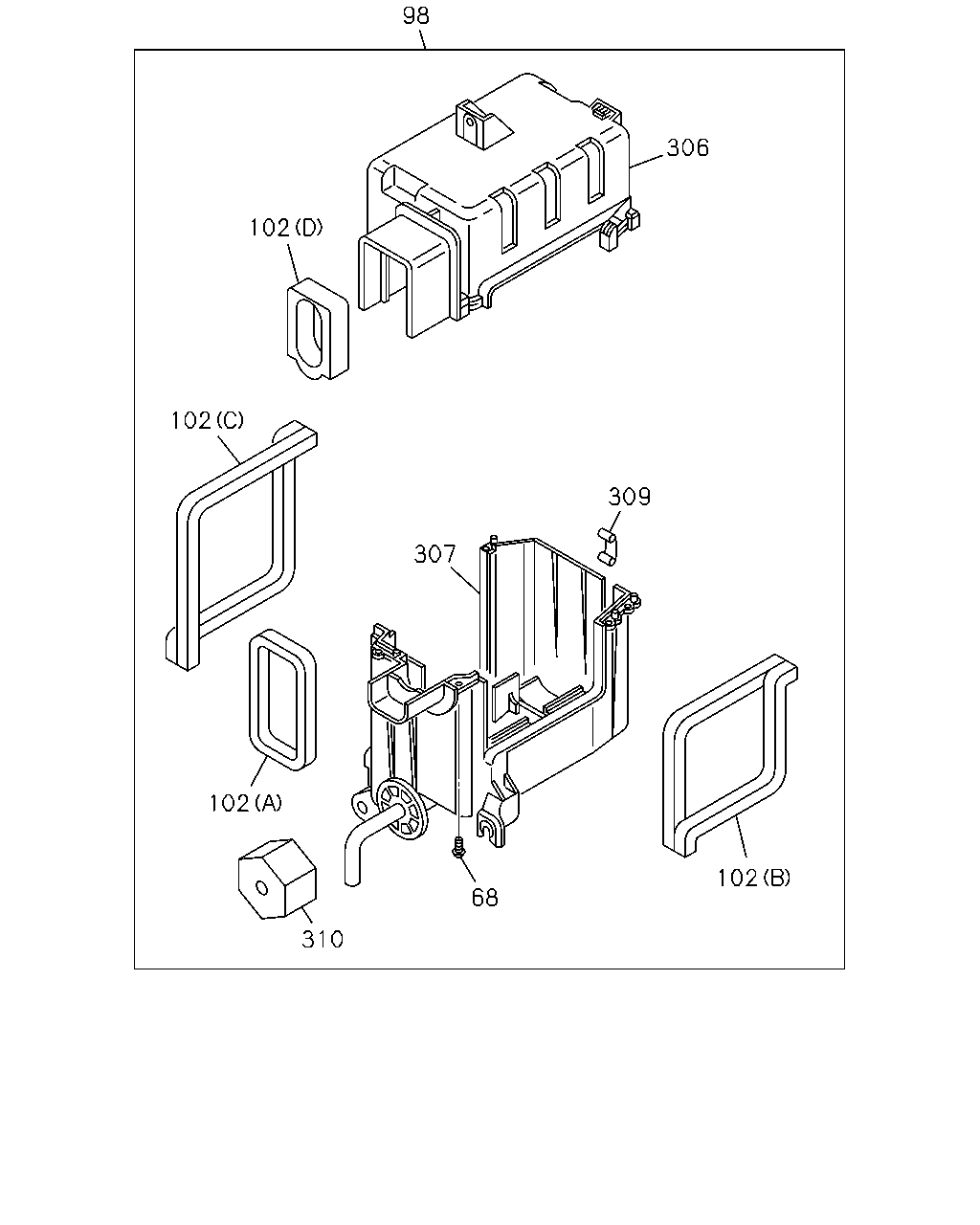

çizim 147997
98 306 102 102 309 307 102 102 68 310
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
68 09.786 SCREW; HTR DUCT
HEATER & DEFROSTER(C42) 09.211 		8-97321-165-0 04 1 0808-0809 ● ● ●
68 09.786 SCREW; HTR DUCT
EXTEND CAB EXTRA LONG(TF**CK) HEATER & DEFROSTER(C42) 09.211 		8-97321-165-0 04 1 0808-0809 ●
68 09.786 SCREW; HTR DUCT
4X4 REGULAR CAB EXTRA LONG(TFS*SK) HEATER & DEFROSTER(C42) 09.211 		8-97321-165-0 04 1 0808-0809 ●
68 09.786 SCREW; HTR DUCT
HEATER & DEFROSTER(C42) 09.211 		8-97321-165-0 04 1 0810- ● ● ● ● ● ● ●
98 09.262 DUCT; BLOWER UNIT TO HTR UNIT
HEATER & DEFROSTER(C42) 		8-98086-178-0 01 1 0808-0809 ● ● ●
98 09.262 DUCT; BLOWER UNIT TO HTR UNIT
EXTEND CAB EXTRA LONG(TF**CK) HEATER & DEFROSTER(C42) 		8-98086-178-0 01 1 0808-0809 ●
98 09.262 DUCT; BLOWER UNIT TO HTR UNIT
4X4 REGULAR CAB EXTRA LONG(TFS*SK) HEATER & DEFROSTER(C42) 		8-98086-178-0 01 1 0808-0809 ●
98 09.262 DUCT; BLOWER UNIT TO HTR UNIT
HEATER & DEFROSTER(C42) 		8-98086-178-0 01 1 0810- ● ● ● ● ● ● ●
102 09.262 LINING; HTR DUCT
HEATER & DEFROSTER(C42) 09.211 (A) 		8-97321-158-1 01 1 0808-0809 ● ● ●
102 09.262 LINING; HTR DUCT
EXTEND CAB EXTRA LONG(TF**CK) HEATER & DEFROSTER(C42) 09.211 (A) 		8-97321-158-1 01 1 0808-0809 ●
102 09.262 LINING; HTR DUCT
4X4 REGULAR CAB EXTRA LONG(TFS*SK) HEATER & DEFROSTER(C42) 09.211 (A) 		8-97321-158-1 01 1 0808-0809 ●
102 09.262 LINING; HTR DUCT
HEATER & DEFROSTER(C42) 09.211 (A) 		8-97321-158-1 01 1 0810- ● ● ● ● ● ● ●
102 09.262 LINING; HTR DUCT
HEATER & DEFROSTER(C42) 09.211 (B) 		8-97321-159-0 01 1 0808-0809 ● ● ●
102 09.262 LINING; HTR DUCT
EXTEND CAB EXTRA LONG(TF**CK) HEATER & DEFROSTER(C42) 09.211 (B) 		8-97321-159-0 01 1 0808-0809 ●
102 09.262 LINING; HTR DUCT
4X4 REGULAR CAB EXTRA LONG(TFS*SK) HEATER & DEFROSTER(C42) 09.211 (B) 		8-97321-159-0 01 1 0808-0809 ●
102 09.262 LINING; HTR DUCT
HEATER & DEFROSTER(C42) 09.211 (B) 		8-97321-159-0 01 1 0810- ● ● ● ● ● ● ●
102 09.262 LINING; HTR DUCT
HEATER & DEFROSTER(C42) (D) 		8-97355-831-0 01 1 0808-0809 ● ● ●
102 09.262 LINING; HTR DUCT
EXTEND CAB EXTRA LONG(TF**CK) HEATER & DEFROSTER(C42) (D) 		8-97355-831-0 01 1 0808-0809 ●
102 09.262 LINING; HTR DUCT
4X4 REGULAR CAB EXTRA LONG(TFS*SK) HEATER & DEFROSTER(C42) (D) 		8-97355-831-0 01 1 0808-0809 ●
102 09.262 LINING; HTR DUCT
HEATER & DEFROSTER(C42) (D) 		8-97355-831-0 01 1 0810- ● ● ● ● ● ● ●
102 09.262 LINING; HTR DUCT
HEATER & DEFROSTER(C42) 09.211 (C) 		8-98063-684-0 01 1 0808-0809 ● ● ●
102 09.262 LINING; HTR DUCT
EXTEND CAB EXTRA LONG(TF**CK) HEATER & DEFROSTER(C42) 09.211 (C) 		8-98063-684-0 01 1 0808-0809 ●
102 09.262 LINING; HTR DUCT
4X4 REGULAR CAB EXTRA LONG(TFS*SK) HEATER & DEFROSTER(C42) 09.211 (C) 		8-98063-684-0 01 1 0808-0809 ●
102 09.262 LINING; HTR DUCT
HEATER & DEFROSTER(C42) 09.211 (C) 		8-98063-684-0 01 1 0810- ● ● ● ● ● ● ●
306 08.845 CASE; UPR,HTR DUCT
HEATER & DEFROSTER(C42) 09.211 		8-98055-332-0 01 1 0808-0809 ● ● ●
306 08.845 CASE; UPR,HTR DUCT
EXTEND CAB EXTRA LONG(TF**CK) HEATER & DEFROSTER(C42) 09.211 		8-98055-332-0 01 1 0808-0809 ●
306 08.845 CASE; UPR,HTR DUCT
4X4 REGULAR CAB EXTRA LONG(TFS*SK) HEATER & DEFROSTER(C42) 09.211 		8-98055-332-0 01 1 0808-0809 ●
306 08.845 CASE; UPR,HTR DUCT
HEATER & DEFROSTER(C42) 09.211 		8-98055-332-0 01 1 0810- ● ● ● ● ● ● ●
307 08.845 CASE; LWR,HTR DUCT
HEATER & DEFROSTER(C42) 09.211 		8-98055-336-0 01 1 0808-0809 ● ● ●
307 08.845 CASE; LWR,HTR DUCT
EXTEND CAB EXTRA LONG(TF**CK) HEATER & DEFROSTER(C42) 09.211 		8-98055-336-0 01 1 0808-0809 ●
307 08.845 CASE; LWR,HTR DUCT
4X4 REGULAR CAB EXTRA LONG(TFS*SK) HEATER & DEFROSTER(C42) 09.211 		8-98055-336-0 01 1 0808-0809 ●
307 08.845 CASE; LWR,HTR DUCT
HEATER & DEFROSTER(C42) 09.211 		8-98055-336-0 01 1 0810- ● ● ● ● ● ● ●
309 09.262 CLIP; CASE,HTR DUCT
HEATER & DEFROSTER(C42) 		8-98088-089-0 01 1 0808-0809 ● ● ●
309 09.262 CLIP; CASE,HTR DUCT
EXTEND CAB EXTRA LONG(TF**CK) HEATER & DEFROSTER(C42) 		8-98088-089-0 01 1 0808-0809 ●
309 09.262 CLIP; CASE,HTR DUCT
4X4 REGULAR CAB EXTRA LONG(TFS*SK) HEATER & DEFROSTER(C42) 		8-98088-089-0 01 1 0808-0809 ●
309 09.262 CLIP; CASE,HTR DUCT
HEATER & DEFROSTER(C42) 		8-98088-089-0 01 1 0810- ● ● ● ● ● ● ●
310 08.845 GROMMET; HTR DUCT
HEATER & DEFROSTER(C42) 09.211 		8-97321-157-0 01 1 0808-0809 ● ● ●
310 08.845 GROMMET; HTR DUCT
EXTEND CAB EXTRA LONG(TF**CK) HEATER & DEFROSTER(C42) 09.211 		8-97321-157-0 01 1 0808-0809 ●
310 08.845 GROMMET; HTR DUCT
4X4 REGULAR CAB EXTRA LONG(TFS*SK) HEATER & DEFROSTER(C42) 09.211 		8-97321-157-0 01 1 0808-0809 ●
310 08.845 GROMMET; HTR DUCT
HEATER & DEFROSTER(C42) 09.211 		8-97321-157-0 01 1 0810- ● ● ● ● ● ● ●
