◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51194 - TFR/TFS-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-27 - SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM ▶
8-27 — SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM (#77105) — 26 parça

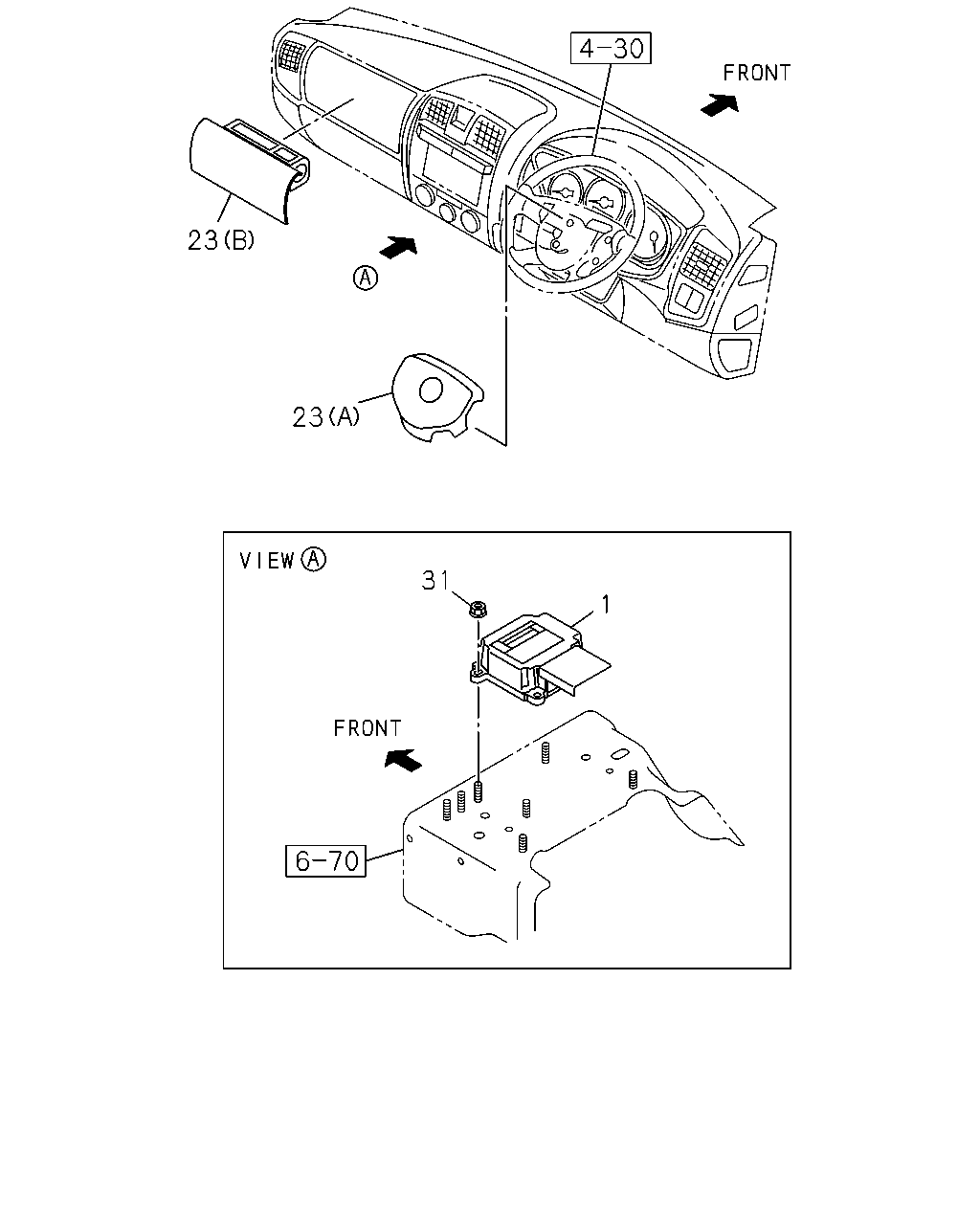

çizim 186206
23 23 31 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 02.559 CONTROL UNIT; SIR
AIR BAG DRIVER & PASSENGER(AK5) SEAT BELT TENSIONER FRT<A70> 		8-98039-725-0 01 1 0810-0905 ● ● ● ●
1 02.559 CONTROL UNIT; SIR
AIR BAG DRIVER & PASSENGER(AK5) SEAT BELT TENSIONER FRT<A70> 		8-98122-211-0 01 1 0906-1003 ● ● ● ●
1 02.559 CONTROL UNIT; SIR
AIR BAG DRIVER & PASSENGER(AK5) SEAT BELT TENSIONER FRT<A70> 		8-98122-211-0 01 1 1004- ● ● ● ● ● ●
1 02.559 CONTROL UNIT; SIR
AIR BAG DRIVER & PASSENGER(AK5) 		8-98039-724-0 01 1 0808-0809 ● ● ●
1 02.559 CONTROL UNIT; SIR
EXTEND CAB EXTRA LONG(TF**CK) AIR BAG DRIVER & PASSENGER(AK5) 		8-98039-724-0 01 1 0808-0809 ●
1 02.559 CONTROL UNIT; SIR
4X4 REGULAR CAB EXTRA LONG(TFS*SK) AIR BAG DRIVER & PASSENGER(AK5) 		8-98039-724-0 01 1 0808-0809 ●
1 02.559 CONTROL UNIT; SIR
AIR BAG DRIVER & PASSENGER(AK5) EXC. SEAT BELT TENSIONER FRT<A70> 		8-98039-724-0 01 1 0810-0905 ● ● ● ● ● ● ●
1 02.559 CONTROL UNIT; SIR
AIR BAG DRIVER & PASSENGER(AK5) EXC. SEAT BELT TENSIONER FRT<A70> 		8-98122-210-0 01 1 0906- ● ● ● ● ● ● ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER(AK5) STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> CHEVROLET BRAND<RWE> INTERIOR STEERING CENTER PAD BADGE<8MB> (A) DARK GRAY 		8-97408-900-0 01 1 0810-0904 ● ● ● ● ● ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER(AK5) STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> CHEVROLET BRAND<RWE> INTERIOR STEERING CENTER PAD BADGE<8MB> (A) DARK GRAY 		8-97417-276-0 01 1 0905-0906 ● ● ● ● ● ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER(AK5) STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> CHEVROLET BRAND<RWE> INTERIOR STEERING CENTER PAD BADGE<8MB> (A) DARK GRAY 		8-97418-296-0 01 1 0907- ● ● ● ● ● ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER(AK5) (B) DARK GRAY 		8-97408-901-1 01 1 0808-0809 ● ● ●
23 02.559 AIR BAG UNIT
EXTEND CAB EXTRA LONG(TF**CK) AIR BAG DRIVER & PASSENGER(AK5) (B) DARK GRAY 		8-97408-901-1 01 1 0808-0809 ●
23 02.559 AIR BAG UNIT
4X4 REGULAR CAB EXTRA LONG(TFS*SK) AIR BAG DRIVER & PASSENGER(AK5) (B) DARK GRAY 		8-97408-901-1 01 1 0808-0809 ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER(AK5) (B) DARK GRAY 		8-97408-901-1 01 1 0810-1007 ● ● ● ● ● ● ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER(AK5) (B) BLACK 		8-97422-062-0 01 1 1008- ● ● ● ● ● ● ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER(AK5) INTERIOR STEERING CENTER PAD BADGE<8MB> (A) DARK GRAY 		8-97408-898-0 01 1 0808-0809 ● ● ●
23 02.559 AIR BAG UNIT
EXTEND CAB EXTRA LONG(TF**CK) AIR BAG DRIVER & PASSENGER(AK5) INTERIOR STEERING CENTER PAD BADGE<8MB> (A) DARK GRAY 		8-97408-898-0 01 1 0808-0809 ●
23 02.559 AIR BAG UNIT
4X4 REGULAR CAB EXTRA LONG(TFS*SK) AIR BAG DRIVER & PASSENGER(AK5) INTERIOR STEERING CENTER PAD BADGE<8MB> (A) DARK GRAY 		8-97408-898-0 01 1 0808-0809 ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER(AK5) STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> ISUZU BRAND<7WL> INTERIOR STEERING CENTER PAD BADGE<8MB> (A) DARK GRAY 		8-97408-898-0 01 1 0810-0904 ● ● ● ● ● ● ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER(AK5) STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> ISUZU BRAND<7WL> INTERIOR STEERING CENTER PAD BADGE<8MB> (A) DARK GRAY 		8-97417-274-0 01 1 0905-0906 ● ● ● ● ● ● ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER(AK5) STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> ISUZU BRAND<7WL> INTERIOR STEERING CENTER PAD BADGE<8MB> (A) DARK GRAY 		8-97418-298-0 01 1 0907- ● ● ● ● ● ● ●
31 14.865 NUT
AIR BAG DRIVER & PASSENGER(AK5) 01.540 M6 FLANGE 		0-91180-206-0 03 1 0808-0809 ● ● ●
31 14.865 NUT
EXTEND CAB EXTRA LONG(TF**CK) AIR BAG DRIVER & PASSENGER(AK5) 01.540 M6 FLANGE 		0-91180-206-0 03 1 0808-0809 ●
31 14.865 NUT
4X4 REGULAR CAB EXTRA LONG(TFS*SK) AIR BAG DRIVER & PASSENGER(AK5) 01.540 M6 FLANGE 		0-91180-206-0 03 1 0808-0809 ●
31 14.865 NUT
AIR BAG DRIVER & PASSENGER(AK5) 01.540 M6 FLANGE 		0-91180-206-0 03 1 0810- ● ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
