8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#77104) — 82 parça

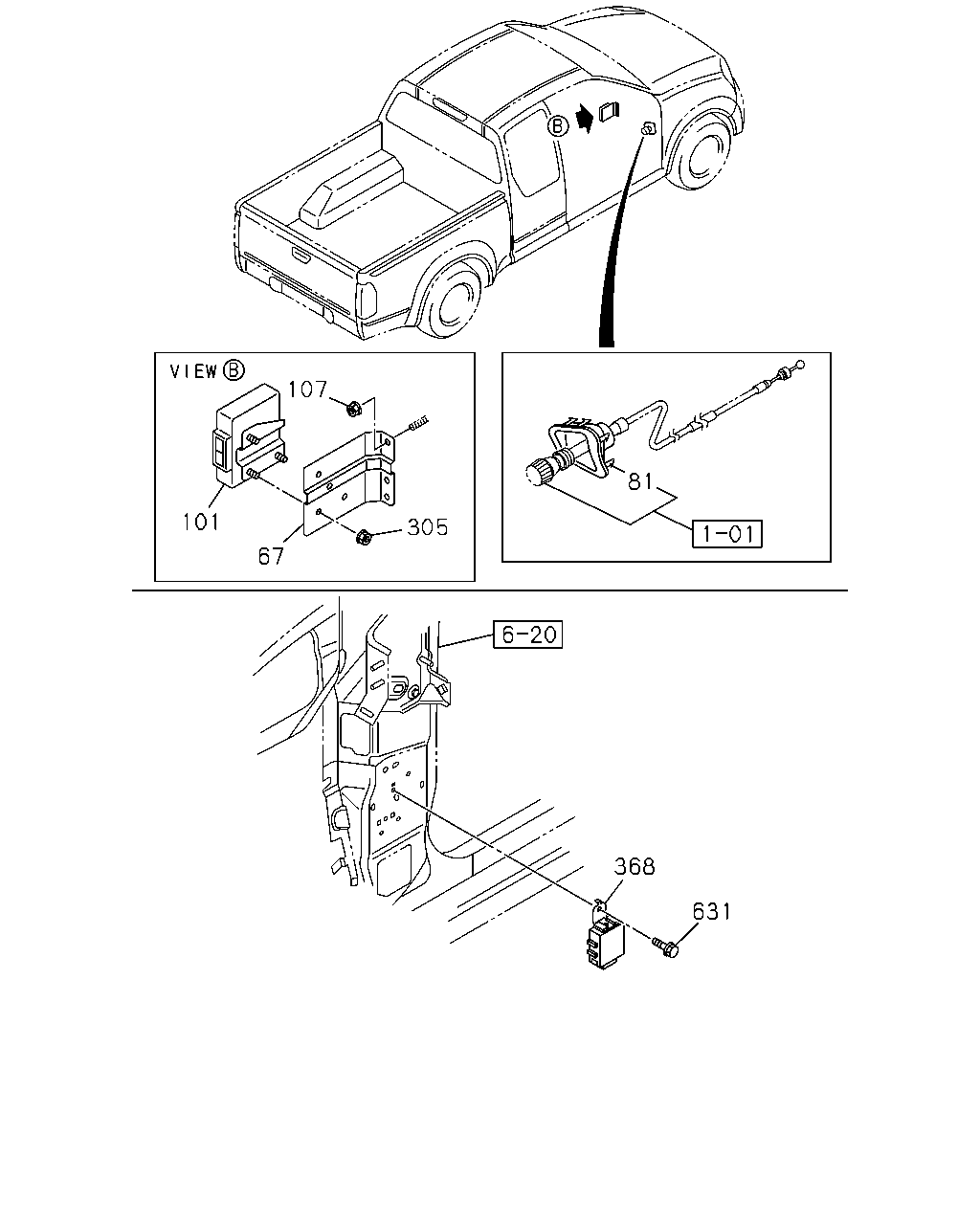

çizim 138425
107 305 81 67 101 368 631
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
67 03.887 BRACKET; CONT UNIT
A/T AISIN(RMD) 		8-97306-829-0 01 1 0808-0809 ●
67 03.887 BRACKET; CONT UNIT
4X4 CREW CAB LONG(TFS*WF) A/T AISIN(RMD) 		8-97306-829-0 01 1 0808-0809 ●
67 03.887 BRACKET; CONT UNIT
A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) 		8-97306-829-0 01 1 0810- ● ● ● ●
81 03.451 BEZEL; IDLE CONT
4JA1-T ENG(LP0) 		8-97403-935-0 01 1 0810-1204 ● ● ● ● ● ●
81 03.451 BEZEL; IDLE CONT
4JA1-T ENG(LP0) 		8-97423-265-0 01 1 1205- ● ● ● ● ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> 		8-98041-752-0 01 1 0810- ● ● ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16 ALS(QCQ) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> 		8-98041-752-0 01 1 0810- ● ● ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C GOODYEAR TIRE(QFT) EURO3 SPECIFICATION<NT3> 		8-98049-042-0 01 1 0810-1007 ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16 ALS(QCQ) EURO3 SPECIFICATION<NT3> 		8-98041-750-0 01 1 0810-1007 ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) EURO3 SPECIFICATION<NT3> 		8-98043-641-0 01 1 0810-1007 ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) 		8-98043-640-0 01 1 0808-0809 ●
101 04.115 CONTROL UNIT; ELEC,A/T
4X4 CREW CAB LONG(TFS*WF) 4JJ1-TCX ENG(LS0) A/T AISIN(RMD) 		8-98043-640-0 01 1 0808-0809 ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) EURO4 SPECIFICATION<NT4> 		8-98043-640-0 01 1 0810- ● ●
107 04.115 NUT; BRKT,ELEC CONT UNIT
A/T AISIN(RMD) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0808-0809 ●
107 04.115 NUT; BRKT,ELEC CONT UNIT
4X4 CREW CAB LONG(TFS*WF) A/T AISIN(RMD) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0808-0809 ●
107 04.115 NUT; BRKT,ELEC CONT UNIT
A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0810- ● ● ● ●
107 04.115 NUT; BRKT,ELEC CONT UNIT
EXTEND CAB EXTRA LONG(TF**CK) 01.062 M6 FLANGE 		0-91180-106-0 02 1 0808-0809 ●
107 04.115 NUT; BRKT,ELEC CONT UNIT
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 01.062 M6 FLANGE 		0-91180-106-0 02 1 0808-0809 ●
107 04.115 NUT; BRKT,ELEC CONT UNIT
01.062 M6 FLANGE 		0-91180-106-0 02 1 0808-0809 ●
107 04.115 NUT; BRKT,ELEC CONT UNIT
01.062 M6 FLANGE 		0-91180-106-0 02 1 0810- ● ● ●
305 08.915 NUT; CONT UNIT
A/T 4 SPEED-JATCO(RMK) 01.062 M6 FLANGE 		0-91180-106-0 03 1 0810- ● ● ● ●
305 08.915 NUT; CONT UNIT
A/T AISIN(RMD) 01.062 M6 FLANGE 		0-91180-106-0 02 1 0808- ●
305 08.915 NUT; CONT UNIT
4X4 CREW CAB LONG(TFS*WF) A/T AISIN(RMD) 01.062 M6 FLANGE 		0-91180-106-0 02 1 0808- ●
368 16.341 CONTROL UNIT; DOOR LOCK
REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AUSTRALIA EQUIPMENT(B13) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-97385-923-0 01 1 1008- ● ●
368 16.341 CONTROL UNIT; DOOR LOCK
4X4 REGULAR CAB LONG(TFS*SF) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AUSTRALIA EQUIPMENT(B13) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-97385-923-0 01 1 1008- ●
368 16.341 CONTROL UNIT; DOOR LOCK
4X4 CREW CAB LONG(TFS*WF) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AUSTRALIA EQUIPMENT(B13) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-97385-923-0 01 1 1008- ●
631 04.054 BOLT; CONT UNIT
REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AUSTRALIA EQUIPMENT(B13) EXC. POWER WINDOW FRT&REAR DOOR<A31> 09.171 M6X16 FLANGE 		0-28450-616-0 01 1 1008- ● ●
631 04.054 BOLT; CONT UNIT
4X4 REGULAR CAB LONG(TFS*SF) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AUSTRALIA EQUIPMENT(B13) EXC. POWER WINDOW FRT&REAR DOOR<A31> 09.171 M6X16 FLANGE 		0-28450-616-0 01 1 1008- ●
631 04.054 BOLT; CONT UNIT
4X4 CREW CAB LONG(TFS*WF) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AUSTRALIA EQUIPMENT(B13) EXC. POWER WINDOW FRT&REAR DOOR<A31> 09.171 M6X16 FLANGE 		0-28450-616-0 01 1 1008- ●

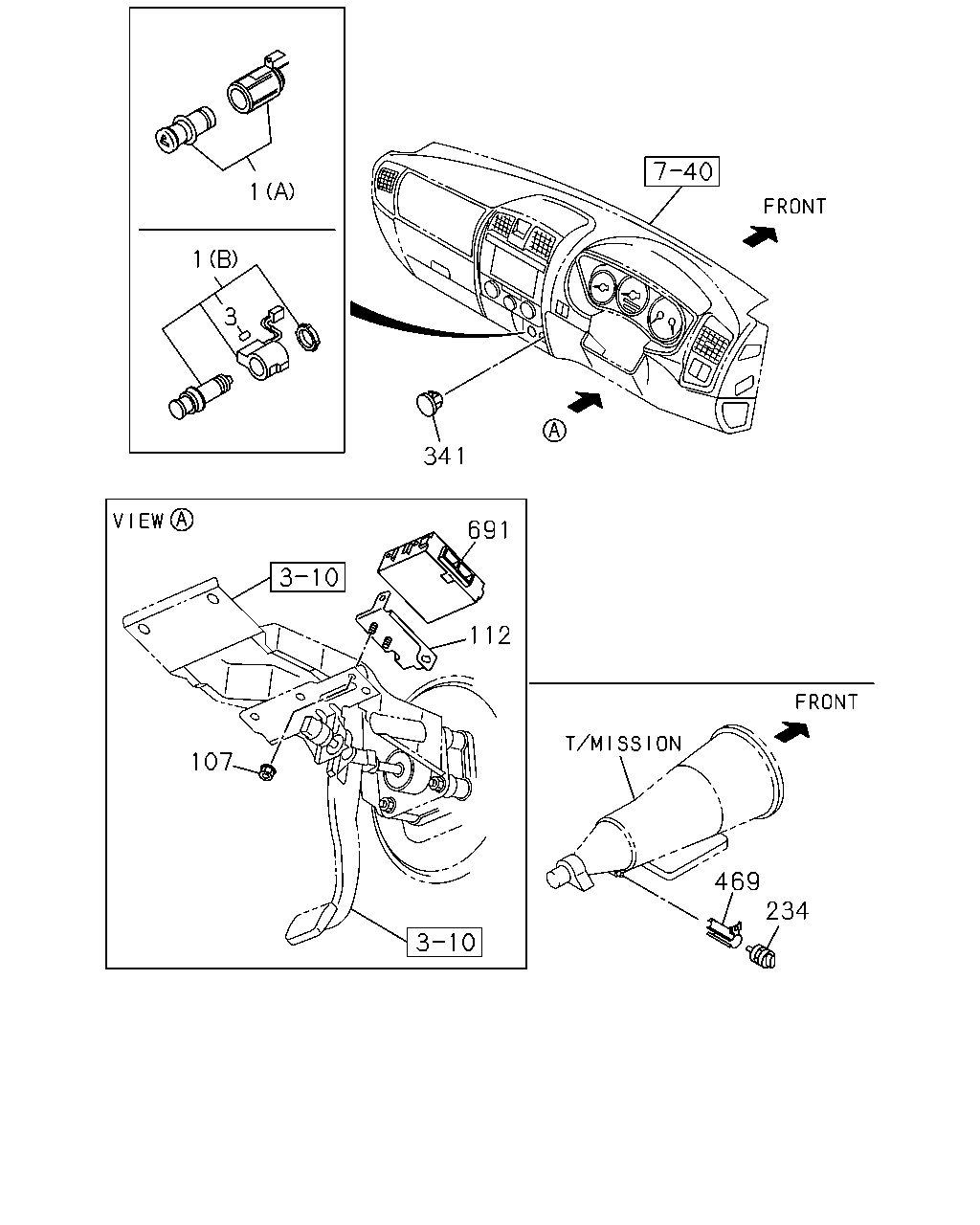

çizim 186210
1 1 3 341 691 112 107 469 234
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 09.709 LIGHTER; CIGAR
(B) 		8-97329-641-0 01 1 0808-0809 ●
1 09.709 LIGHTER; CIGAR
GRADE LX(RBB),GRADE LT/LS(RBD) (B) 		8-97329-641-0 01 1 0808-0809 ●
1 09.709 LIGHTER; CIGAR
EXTEND CAB EXTRA LONG(TF**CK) (B) 		8-97329-641-0 01 1 0808-0809 ●
1 09.709 LIGHTER; CIGAR
4X4 REGULAR CAB EXTRA LONG(TFS*SK) GRADE LX(RBB) (B) 		8-97329-641-0 01 1 0808-0809 ●
1 09.709 LIGHTER; CIGAR
4X4 CREW CAB LONG(TFS*WF) GRADE LX(RBB),GRADE LT/LS(RBD) (B) 		8-97329-641-0 01 1 0808-0809 ●
1 09.709 LIGHTER; CIGAR
CREW CAB EXTRA LONG(TF**WK) (B) 		8-97329-641-0 01 1 0808-0809 ●
1 09.709 LIGHTER; CIGAR
GRADE LX(RBB),GRADE LT/LS(RBD) (B) 		8-97329-641-0 01 1 0810-1003 ● ● ● ● ● ● ●
1 09.709 LIGHTER; CIGAR
GRADE LX(RBB),GRADE LT/LS(RBD) (B) 		8-97302-229-0 01 1 1004- ● ● ● ● ● ● ●
1 09.709 LIGHTER; CIGAR
4X4 REGULAR CAB EXTRA LONG(TFS*SK) GRADE DX(RBA) (A) 		8-97314-003-0 01 1 0808-0809 ●
1 09.709 LIGHTER; CIGAR
GRADE DX(RBA) (A) 		8-97314-003-0 01 1 0810-0912 ● ● ● ● ● ●
1 09.709 LIGHTER; CIGAR
GRADE DX(RBA) (A) 		8-97314-003-0 01 1 1001- ● ● ● ● ● ● ●
3 08.991 BULB; CIGAR LIGHTER
14V 1.4W 		8-97173-160-0 01 1 0808-0809 ●
3 08.991 BULB; CIGAR LIGHTER
GRADE LX(RBB),GRADE LT/LS(RBD) 14V 1.4W 		8-97173-160-0 01 1 0808-0809 ●
3 08.991 BULB; CIGAR LIGHTER
EXTEND CAB EXTRA LONG(TF**CK) 14V 1.4W 		8-97173-160-0 01 1 0808-0809 ●
3 08.991 BULB; CIGAR LIGHTER
4X4 REGULAR CAB EXTRA LONG(TFS*SK) GRADE LX(RBB) 14V 1.4W 		8-97173-160-0 01 1 0808-0809 ●
3 08.991 BULB; CIGAR LIGHTER
4X4 CREW CAB LONG(TFS*WF) GRADE LX(RBB),GRADE LT/LS(RBD) 14V 1.4W 		8-97173-160-0 01 1 0808-0809 ●
3 08.991 BULB; CIGAR LIGHTER
CREW CAB EXTRA LONG(TF**WK) 14V 1.4W 		8-97173-160-0 01 1 0808-0809 ●
3 08.991 BULB; CIGAR LIGHTER
GRADE LX(RBB),GRADE LT/LS(RBD) 14V 1.4W 		8-97173-160-0 01 1 0810- ● ● ● ● ● ● ●
107 04.115 NUT; BRKT,ELEC CONT UNIT
A/T AISIN(RMD) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0808-0809 ●
107 04.115 NUT; BRKT,ELEC CONT UNIT
4X4 CREW CAB LONG(TFS*WF) A/T AISIN(RMD) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0808-0809 ●
107 04.115 NUT; BRKT,ELEC CONT UNIT
A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0810- ● ● ● ●
107 04.115 NUT; BRKT,ELEC CONT UNIT
EXTEND CAB EXTRA LONG(TF**CK) 01.062 M6 FLANGE 		0-91180-106-0 02 1 0808-0809 ●
107 04.115 NUT; BRKT,ELEC CONT UNIT
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 01.062 M6 FLANGE 		0-91180-106-0 02 1 0808-0809 ●
107 04.115 NUT; BRKT,ELEC CONT UNIT
01.062 M6 FLANGE 		0-91180-106-0 02 1 0808-0809 ●
107 04.115 NUT; BRKT,ELEC CONT UNIT
01.062 M6 FLANGE 		0-91180-106-0 02 1 0810- ● ● ●
112 02.500 BRACKET; CONT UNIT
EXTEND CAB EXTRA LONG(TF**CK) 		8-97945-256-0 01 1 0808-0809 ●
112 02.500 BRACKET; CONT UNIT
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 		8-97945-256-0 01 1 0808-0809 ●
112 02.500 BRACKET; CONT UNIT 8-97945-256-0 01 1 0808-0809 ●
112 02.500 BRACKET; CONT UNIT 8-97945-256-0 01 1 0810- ● ● ●
234 03.682 SENSOR; VEHICLE SPD
M/T MUX 5 SPEED 5S(MZJ) 4 PULSE PPS RESIN WHITE 		8-97377-920-0 01 1 0808-0809 ● ●
234 03.682 SENSOR; VEHICLE SPD
EXTEND CAB EXTRA LONG(TF**CK) M/T MUX 5 SPEED 5S(MZJ) 4 PULSE PPS RESIN WHITE 		8-97377-920-0 01 1 0808-0809 ●
234 03.682 SENSOR; VEHICLE SPD
4X4 REGULAR CAB EXTRA LONG(TFS*SK) M/T MUX 5 SPEED 5S(MZJ) 4 PULSE PPS RESIN WHITE 		8-97377-920-0 01 1 0808-0809 ●
234 03.682 SENSOR; VEHICLE SPD
4X4 CREW CAB LONG(TFS*WF) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) 4 PULSE PPS RESIN WHITE 		8-97377-920-0 01 1 0808-0809 ●
234 03.682 SENSOR; VEHICLE SPD
CREW CAB EXTRA LONG(TF**WK) M/T MUX 5 SPEED 5S(MZJ) 4 PULSE PPS RESIN WHITE 		8-97377-920-0 01 1 0808-0809 ●
234 03.682 SENSOR; VEHICLE SPD
M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) 4 PULSE PPS RESIN WHITE 		8-97377-920-0 01 1 0810-1003 ● ● ● ● ●
234 03.682 SENSOR; VEHICLE SPD
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T MSG 5 SPEED(M75), M/TMUA 5 SPEED 5G(RSP) 4 PULSE PPS RESIN WHITE 		8-97377-920-0 01 1 1004-1007 ● ● ● ●
234 03.682 SENSOR; VEHICLE SPD
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) 4 PULSE PPS RESIN WHITE 		8-97377-920-0 01 1 1004-1007 ● ● ●
234 03.682 SENSOR; VEHICLE SPD
M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) 4 PULSE PPS RESIN WHITE 		8-97377-920-0 01 1 1008-1211 ● ● ● ● ●
234 03.682 SENSOR; VEHICLE SPD
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T MSG 5 SPEED(M75), M/TMUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 4 PULSE PPS RESIN WHITE 		8-97377-920-0 01 1 1212- ● ● ● ●
234 03.682 SENSOR; VEHICLE SPD
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) 4 PULSE PPS RESIN WHITE 		8-97377-920-0 01 1 1212- ● ● ●
234 03.682 SENSOR; VEHICLE SPD
A/T AISIN(RMD) 4 PULSE PPS RESIN WHITE/BLACK 		8-98043-734-0 01 1 0808- ●
341 04.115 COVER ASM
EXC. ACCESSORY SOCKET FRT CONSOLE<KC5> DARK GRAY 		8-97396-703-0 01 1 0810- ● ● ● ● ● ●
469 03.682 PROTECTOR; SPEED SENSOR
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP), M/TMUA 5 SPEED 5S(RSQ) 		8-98119-901-0 01 1 0810-1003 ● ● ●
469 03.682 PROTECTOR; SPEED SENSOR
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) 		8-98119-901-0 01 1 1004-1007 ● ● ●
469 03.682 PROTECTOR; SPEED SENSOR
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP), M/TMUA 5 SPEED 5S(RSQ) 		8-98119-901-0 01 1 1008- ● ● ●
691 04.115 CONTROLLER; TRANSFER
EXTEND CAB EXTRA LONG(TF**CK) SHIFT ON THE FLY<NR4> 		8-98024-663-0 01 1 0808-0809 ●
691 04.115 CONTROLLER; TRANSFER
4X4 REGULAR CAB EXTRA LONG(TFS*SK) SHIFT ON THE FLY<NR4> 		8-98024-663-0 01 1 0808-0809 ●
691 04.115 CONTROLLER; TRANSFER
SHIFT ON THE FLY<NR4> 		8-98024-663-0 01 1 0808-0809 ●
691 04.115 CONTROLLER; TRANSFER
SHIFT ON THE FLY<NR4> 		8-98024-663-0 01 1 0810- ● ● ●
691 04.115 CONTROLLER; TRANSFER
EXTEND CAB EXTRA LONG(TF**CK) EXC. SHIFT ON THE FLY<NR4> 		8-98024-664-0 01 1 0808-0809 ●
691 04.115 CONTROLLER; TRANSFER
4X4 REGULAR CAB EXTRA LONG(TFS*SK) EXC. SHIFT ON THE FLY<NR4> 		8-98024-664-0 01 1 0808-0809 ●
691 04.115 CONTROLLER; TRANSFER
EXC. SHIFT ON THE FLY<NR4> 		8-98024-664-0 01 1 0808-0809 ●
691 04.115 CONTROLLER; TRANSFER
EXC. SHIFT ON THE FLY<NR4> 		8-98024-664-0 01 1 0810- ● ● ●
