◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51194 - TFR/TFS-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#77101) — 297 parça

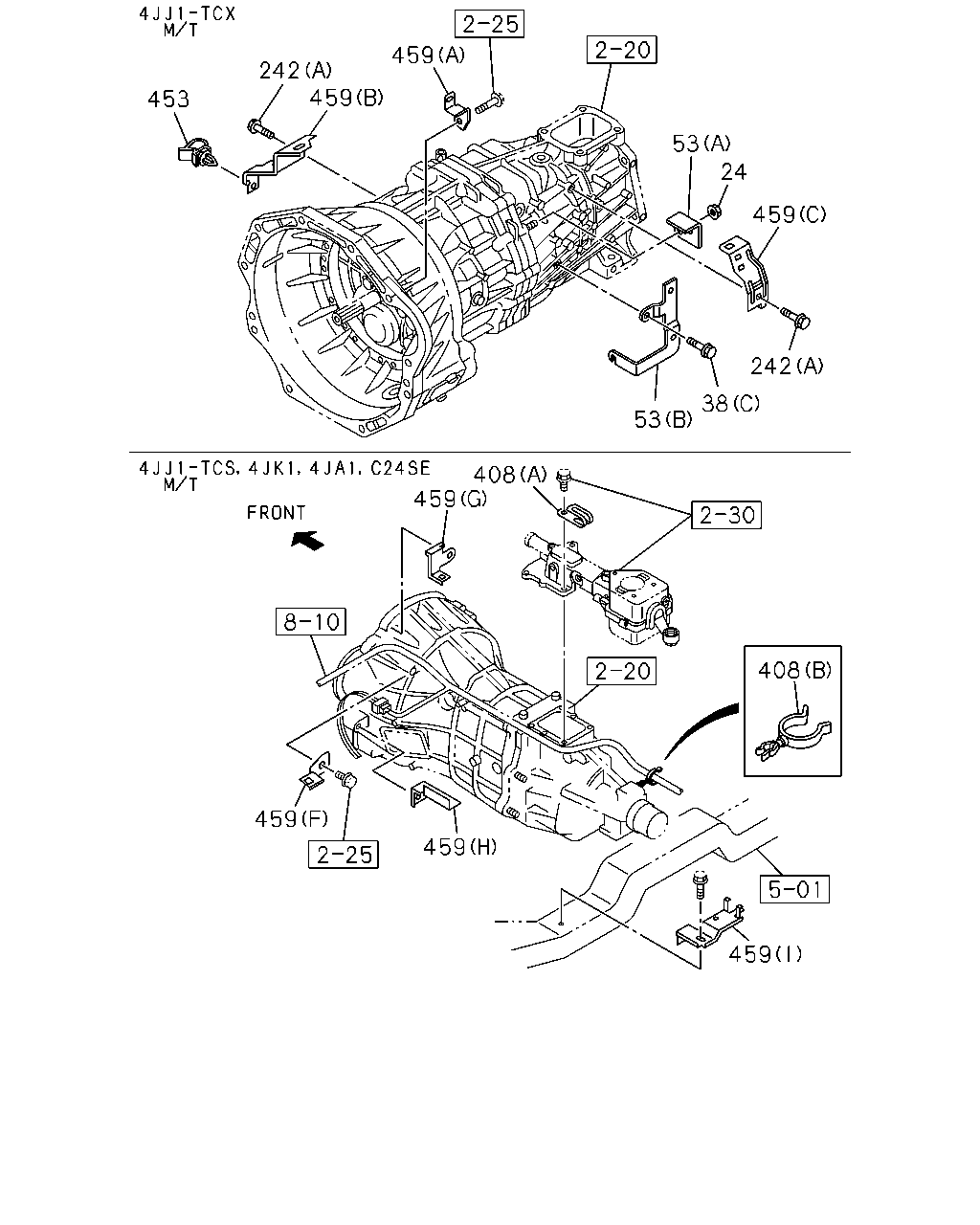

çizim 136585
459 242 459 453 53 24 459 242 38 53 408 459 408 459 459 459
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
24 02.559 NUT; HARNESS
M/T MUX 5 SPEED 5S(MZJ) 01.540 M6 FLANGE 		0-91180-206-0 01 1 0808- ● ● ●
24 02.559 NUT; HARNESS
EXTEND CAB EXTRA LONG(TF**CK) M/T MUX 5 SPEED 5S(MZJ) 01.540 M6 FLANGE 		0-91180-206-0 01 1 0808- ●
24 02.559 NUT; HARNESS
4X4 REGULAR CAB EXTRA LONG(TFS*SK) M/T MUX 5 SPEED 5S(MZJ) 01.540 M6 FLANGE 		0-91180-206-0 01 1 0808- ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED5G(RSP) EURO2 SPECIFICATION<NT2> 03.671 (D) M6X10 FLANGE 		0-28050-610-0 01 1 0810-1109 ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED5G(RSP) EURO2 SPECIFICATION<NT2> EXC. ELECTRONIC CONTROL<K20> 03.671 (D) M6X10 FLANGE 		0-28050-610-0 01 1 1110- ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0810-1007 ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 1008- ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0808-0809 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) 02.343 (A) M8X12 FLANGE 		0-28050-812-0 02 1 0810- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) 02.343 (C) M8X16 FLANGE 		0-28050-816-0 02 1 0808-0809 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 02.343 (C) M8X16 FLANGE 		0-28050-816-0 02 1 0810-1007 ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 02.343 (C) M8X16 FLANGE 		0-28050-816-0 02 1 1008- ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
02.343 (B) M6X16 FLANGE 		0-28650-616-0 05 1 0808-0809 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
02.343 (B) M6X16 FLANGE 		0-28650-616-0 05 1 0810- ● ● ● ● ● ● ●
53 02.483 BRACKET; HARNESS
M/T MUX 5 SPEED 5S(MZJ) (A) 		8-97944-510-1 01 1 0808- ● ● ●
53 02.483 BRACKET; HARNESS
EXTEND CAB EXTRA LONG(TF**CK) M/T MUX 5 SPEED 5S(MZJ) (A) 		8-97944-510-1 01 1 0808- ●
53 02.483 BRACKET; HARNESS
4X4 REGULAR CAB EXTRA LONG(TFS*SK) M/T MUX 5 SPEED 5S(MZJ) (A) 		8-97944-510-1 01 1 0808- ●
53 02.483 BRACKET; HARNESS
M/T MUX 5 SPEED 5S(MZJ) (B) 		8-97944-511-1 01 1 0808- ● ● ●
53 02.483 BRACKET; HARNESS
EXTEND CAB EXTRA LONG(TF**CK) M/T MUX 5 SPEED 5S(MZJ) (B) 		8-97944-511-1 01 1 0808- ●
53 02.483 BRACKET; HARNESS
4X4 REGULAR CAB EXTRA LONG(TFS*SK) M/T MUX 5 SPEED 5S(MZJ) (B) 		8-97944-511-1 01 1 0808- ●
242 02.483 BOLT; BRKT,HARNESS
4JA1-T ENG(LP0) 02.343 (B) M8X12 FLANGE 		0-28050-812-0 01 1 0810- ● ● ● ● ● ●
242 02.483 BOLT; BRKT,HARNESS
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 02.343 (A) M8X16 FLANGE 		0-28050-816-0 02 1 0808- ● ● ● ● ●
408 02.559 CLIP; TRANS HARNESS
C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 03.163 (B) ID=13 & 4.75 		8-94447-856-0 01 1 0810-1003 ● ● ● ●
408 02.559 CLIP; TRANS HARNESS
C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP) 03.163 (B) ID=13 & 4.75 		8-94447-856-0 01 1 1004-1007 ● ● ● ●
408 02.559 CLIP; TRANS HARNESS
C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 03.163 (B) ID=13 & 4.75 		8-94447-856-0 01 1 1008- ● ● ● ●
408 02.559 CLIP; TRANS HARNESS
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 03.671 (A) ID=12 VINYL CHLORIDE 		8-97367-984-1 04 1 0810-1003 ● ● ● ● ● ●
408 02.559 CLIP; TRANS HARNESS
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP) 03.671 (A) ID=12 VINYL CHLORIDE 		8-97367-984-1 04 1 1004-1007 ● ● ● ● ● ●
408 02.559 CLIP; TRANS HARNESS
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 03.671 (A) ID=12 VINYL CHLORIDE 		8-97367-984-1 04 1 1008- ● ● ● ● ● ●
453 02.559 CLIP; CABLE HARNESS
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 04.342 ID=6.5 		5-09709-117-0 01 1 0808- ● ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) (E) 		8-97307-524-1 01 1 0810- ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) (F) 		8-98050-882-0 01 1 0810-1003 ● ● ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) (F) 		8-98050-882-0 01 1 1004-1007 ● ● ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) (F) 		8-98050-882-0 01 1 1008- ● ● ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
C24SE ENG(LG1) (G) 		8-98050-883-0 01 1 0810- ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
C24SE ENG(LG1) M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (H) 		8-97237-168-0 01 1 0810-1007 ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
C24SE ENG(LG1) M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP) EURO2 SPECIFICATION<NT2> (H) 		8-97237-168-0 01 1 1008- ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
C24SE ENG(LG1) EURO3 SPECIFICATION<NT3> (I) 		8-98035-653-0 01 1 0810-1007 ●
459 02.483 BRACKET; SUPPORT,HARNESS
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) (A) 		8-97382-804-0 01 1 0808- ● ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) (B) 		8-98035-740-0 01 1 0808- ● ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) (C) 		8-98035-741-0 01 1 0808- ● ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) (D) 		8-98050-720-0 01 1 0808- ● ●

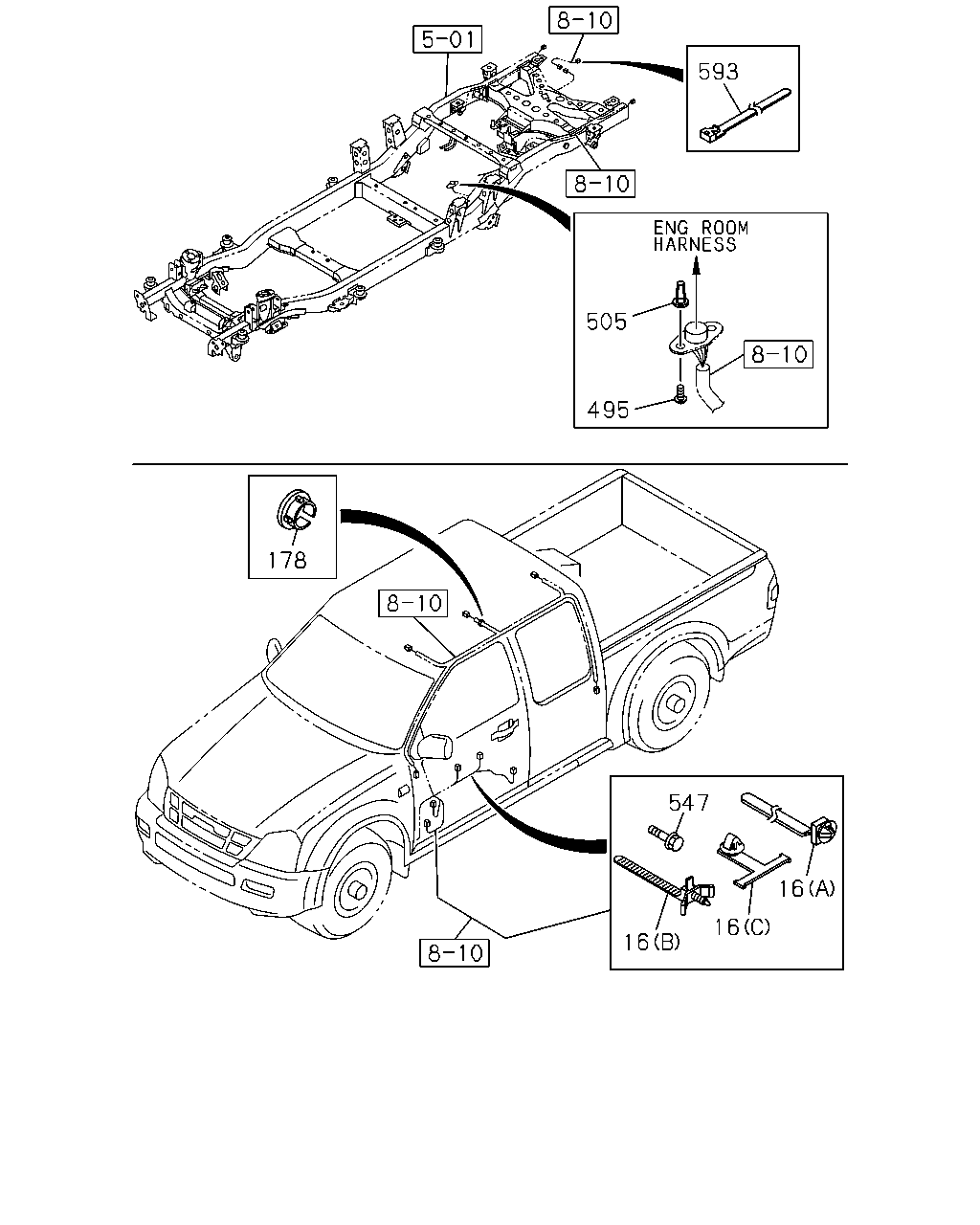

çizim 136703
593 505 495 178 547 16 16 16
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
16 02.559 CLIP; HARNESS
4JA1-T ENG(LP0) 03.162 (F) L=140 		5-09707-031-1 01 1 0810- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1-T ENG(LP0) 02.313 (E) ID=18 L=44 		8-97367-985-1 02 1 0810- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED5G(RSP) EURO2 SPECIFICATION<NT2> (D) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 0810-1109 ● ●
16 02.559 CLIP; HARNESS
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED5G(RSP) EURO2 SPECIFICATION<NT2> EXC. ELECTRONIC CONTROL<K20> (D) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 1110- ● ●
16 02.559 CLIP; HARNESS
4X4 REGULAR CAB EXTRA LONG(TFS*SK) AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 02 1 0808-0809 ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 02 1 0810-0912 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 02 1 1001-1007 ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4X4 REGULAR CAB EXTRA LONG(TFS*SK) AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 02 1 0808-0809 ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 02 1 0810-0912 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 02 1 1001-1007 ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4X4 REGULAR CAB EXTRA LONG(TFS*SK) AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT&REAR DOOR<A31> (A) L=155 		8-97173-307-0 06 1 0808-0809 ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT&REAR DOOR<A31> (A) L=155 		8-97173-307-0 06 1 0810-0912 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT&REAR DOOR<A31> (A) L=155 		8-97173-307-0 06 1 1001-1007 ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(B) L=135 		8-94473-399-0 01 1 0808-0809 ● ● ●
16 02.559 CLIP; HARNESS
(B) L=135 		8-94473-399-0 01 1 0808-0809 ●
16 02.559 CLIP; HARNESS
EXTEND CAB EXTRA LONG(TF**CK) (B) L=135 		8-94473-399-0 01 1 0808-0809 ●
16 02.559 CLIP; HARNESS
EXTEND CAB EXTRA LONG(TF**CK) (B) L=135 		8-94473-399-0 01 1 0808-0809 ●
16 02.559 CLIP; HARNESS
4X4 REGULAR CAB EXTRA LONG(TFS*SK) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 01 1 0808-0809 ●
16 02.559 CLIP; HARNESS
4X4 REGULAR CAB EXTRA LONG(TFS*SK) AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 01 1 0808-0809 ●
16 02.559 CLIP; HARNESS
4X4 REGULAR CAB EXTRA LONG(TFS*SK) AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 01 1 0808-0809 ●
16 02.559 CLIP; HARNESS
4X4 REGULAR CAB EXTRA LONG(TFS*SK) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 01 1 0808-0809 ●
16 02.559 CLIP; HARNESS
CREW CAB EXTRA LONG(TF**WK) (B) L=135 		8-94473-399-0 01 1 0808-0809 ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 01 1 0810- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 01 1 0810- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 01 1 0810- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 01 1 0810- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(C) L=60 H=10.9 		8-97128-114-0 01 1 0808-0809 ● ● ●
16 02.559 CLIP; HARNESS
(C) L=60 H=10.9 		8-97128-114-0 01 1 0808-0809 ●
16 02.559 CLIP; HARNESS
EXTEND CAB EXTRA LONG(TF**CK) (C) L=60 H=10.9 		8-97128-114-0 01 1 0808-0809 ●
16 02.559 CLIP; HARNESS
EXTEND CAB EXTRA LONG(TF**CK) (C) L=60 H=10.9 		8-97128-114-0 01 1 0808-0809 ●
16 02.559 CLIP; HARNESS
4X4 REGULAR CAB EXTRA LONG(TFS*SK) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 01 1 0808-0809 ●
16 02.559 CLIP; HARNESS
4X4 REGULAR CAB EXTRA LONG(TFS*SK) AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 01 1 0808-0809 ●
16 02.559 CLIP; HARNESS
4X4 REGULAR CAB EXTRA LONG(TFS*SK) AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 01 1 0808-0809 ●
16 02.559 CLIP; HARNESS
4X4 REGULAR CAB EXTRA LONG(TFS*SK) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 01 1 0808-0809 ●
16 02.559 CLIP; HARNESS
CREW CAB EXTRA LONG(TF**WK) (C) L=60 H=10.9 		8-97128-114-0 01 1 0808-0809 ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 01 1 0810- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 01 1 0810- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 01 1 0810- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 01 1 0810- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(A) L=155 		8-97173-307-0 03 1 0808-0809 ● ● ●
16 02.559 CLIP; HARNESS
(A) L=155 		8-97173-307-0 03 1 0808-0809 ●
16 02.559 CLIP; HARNESS
EXTEND CAB EXTRA LONG(TF**CK) (A) L=155 		8-97173-307-0 03 1 0808-0809 ●
16 02.559 CLIP; HARNESS
EXTEND CAB EXTRA LONG(TF**CK) (A) L=155 		8-97173-307-0 03 1 0808-0809 ●
16 02.559 CLIP; HARNESS
4X4 REGULAR CAB EXTRA LONG(TFS*SK) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (A) L=155 		8-97173-307-0 03 1 0808-0809 ●
16 02.559 CLIP; HARNESS
4X4 REGULAR CAB EXTRA LONG(TFS*SK) AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (A) L=155 		8-97173-307-0 03 1 0808-0809 ●
16 02.559 CLIP; HARNESS
4X4 REGULAR CAB EXTRA LONG(TFS*SK) AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (A) L=155 		8-97173-307-0 03 1 0808-0809 ●
16 02.559 CLIP; HARNESS
4X4 REGULAR CAB EXTRA LONG(TFS*SK) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (A) L=155 		8-97173-307-0 03 1 0808-0809 ●
16 02.559 CLIP; HARNESS
CREW CAB EXTRA LONG(TF**WK) (A) L=155 		8-97173-307-0 03 1 0808-0809 ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (A) L=155 		8-97173-307-0 03 1 0810- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (A) L=155 		8-97173-307-0 03 1 0810- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (A) L=155 		8-97173-307-0 03 1 0810- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (A) L=155 		8-97173-307-0 03 1 0810- ● ● ● ● ● ● ●
178 02.559 GROMMET; HARNESS
09.647 		8-97027-381-0 01 1 0808-0809 ● ●
178 02.559 GROMMET; HARNESS
EXTEND CAB EXTRA LONG(TF**CK) 09.647 		8-97027-381-0 01 1 0808-0809 ●
178 02.559 GROMMET; HARNESS
09.647 		8-97027-381-0 01 1 0810- ● ● ● ●
495 00.685 BOLT; CABLE TO BODY
10.240 M5X14 		8-94120-095-0 02 1 0808-0809 ● ● ● ● ●
495 00.685 BOLT; CABLE TO BODY
10.240 M5X14 		8-94120-095-0 02 1 0810- ● ● ● ● ● ● ●
505 02.559 RETAINER; HARNESS
02.679 D=7.9X7.9 L=20 M5 		8-94441-539-0 02 1 0808-0809 ● ● ● ● ●
505 02.559 RETAINER; HARNESS
02.679 D=7.9X7.9 L=20 M5 		8-94441-539-0 02 1 0810- ● ● ● ● ● ● ●
547 02.559 BOLT
AIR BAG DRIVER & PASSENGER(AK5) M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 0808-0809 ● ● ●
547 02.559 BOLT
EXTEND CAB EXTRA LONG(TF**CK) AIR BAG DRIVER & PASSENGER(AK5) M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 0808-0809 ●
547 02.559 BOLT
4X4 REGULAR CAB EXTRA LONG(TFS*SK) AIR BAG DRIVER & PASSENGER(AK5) M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 0808-0809 ●
547 02.559 BOLT
AIR BAG DRIVER & PASSENGER(AK5) M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 0810- ● ● ● ● ● ● ●
593 02.559 CLIP
REAR BODY DELETE(8HH) EXC. REAR STEP BUMPER(VF6),REAR STEPBUMPER CHROME(V42) L=250 		5-09707-030-1 01 1 0808-0809 ● ● ● ● ●
593 02.559 CLIP
REAR BODY DELETE(8HH) EXC. REAR STEP BUMPER(VF6),REAR STEPBUMPER CHROME(V42) L=250 		5-09707-030-1 01 1 0810- ● ● ● ● ● ● ●

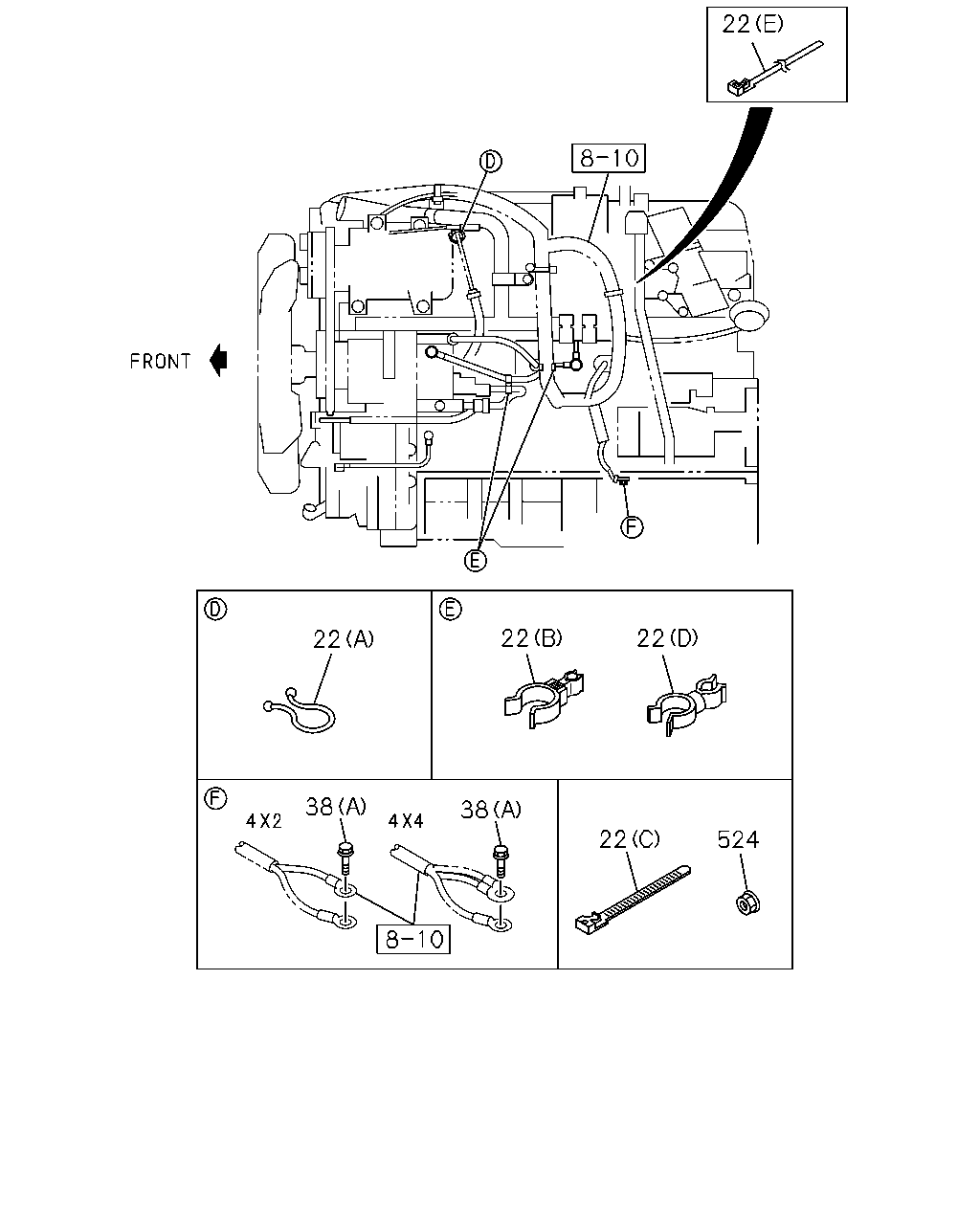

çizim 136896
22 22 22 22 38 38 22 524
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) 03.162 (E) L=140 		5-09707-031-1 01 1 1008-1109 ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) KENYA EQUIPMENT(CL1) 03.162 (E) L=140 		5-09707-031-1 01 1 1110- ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) 03.162 (E) L=140 		5-09707-031-1 01 1 0810-1003 ● ● ●
22 02.559 CLIP; ENG HARNESS
4JA1-T ENG(LP0) EURO2 SPECIFICATION<NT2> 01.540 (F) ID=30 		8-94315-423-0 01 1 0810- ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42) 09.663 (A) ID=15 		1-09709-003-0 01 1 0808-0809 ● ● ●
22 02.559 CLIP; ENG HARNESS
EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42) 09.663 (A) ID=15 		1-09709-003-0 01 1 0808-0809 ●
22 02.559 CLIP; ENG HARNESS
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42) 09.663 (A) ID=15 		1-09709-003-0 01 1 0808-0809 ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42) 09.663 (A) ID=15 		1-09709-003-0 01 1 0810-1007 ● ● ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) 09.663 (A) ID=15 		1-09709-003-0 01 1 0810-1007 ● ● ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42) 09.663 (A) ID=15 		1-09709-003-0 01 1 1008- ● ● ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) 09.663 (A) ID=15 		1-09709-003-0 01 1 1008- ● ● ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) 03.483 (D) ID=6 & 10 		8-94154-844-0 01 1 0808-0809 ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 03.483 (D) ID=6 & 10 		8-94154-844-0 01 1 0810-1007 ● ● ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 03.483 (D) ID=6 & 10 		8-94154-844-0 01 1 1008- ● ● ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) (B) ID=10 & 11 		8-94438-996-0 01 1 0808-0809 ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) (B) ID=10 & 11 		8-94438-996-0 01 1 0810-1007 ● ● ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (B) ID=10 & 11 		8-94438-996-0 01 1 1008- ● ● ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) 02.363 (C) L=140 		8-97920-656-0 01 1 0808-0809 ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD),A/T 4 SPE ED-JATCO(RMK) 02.363 (C) L=140 		8-97920-656-0 01 1 0810-1007 ● ● ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 02.363 (C) L=140 		8-97920-656-0 01 1 0810-1007 ● ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 02.363 (C) L=140 		8-97920-656-0 01 1 1008-1109 ● ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 02.363 (C) L=140 		8-97920-656-0 01 1 1008-1109 ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. KENYA EQUIPMENT(CL1) 02.363 (C) L=140 		8-97920-656-0 01 1 1110- ● ● ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JA1-T ENG(LP0) 02.363 (C) L=140 		8-97920-656-0 01 1 1110- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED5G(RSP) EURO2 SPECIFICATION<NT2> 03.671 (D) M6X10 FLANGE 		0-28050-610-0 01 1 0810-1109 ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED5G(RSP) EURO2 SPECIFICATION<NT2> EXC. ELECTRONIC CONTROL<K20> 03.671 (D) M6X10 FLANGE 		0-28050-610-0 01 1 1110- ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0810-1007 ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 1008- ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0808-0809 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) 02.343 (A) M8X12 FLANGE 		0-28050-812-0 02 1 0810- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) 02.343 (C) M8X16 FLANGE 		0-28050-816-0 02 1 0808-0809 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 02.343 (C) M8X16 FLANGE 		0-28050-816-0 02 1 0810-1007 ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 02.343 (C) M8X16 FLANGE 		0-28050-816-0 02 1 1008- ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
02.343 (B) M6X16 FLANGE 		0-28650-616-0 05 1 0808-0809 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
02.343 (B) M6X16 FLANGE 		0-28650-616-0 05 1 0810- ● ● ● ● ● ● ●
524 02.559 NUT; HARNESS
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0808-0809 ● ● ● ● ●
524 02.559 NUT; HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0810-1007 ● ● ● ● ● ● ●
524 02.559 NUT; HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1008- ● ● ● ● ● ● ●

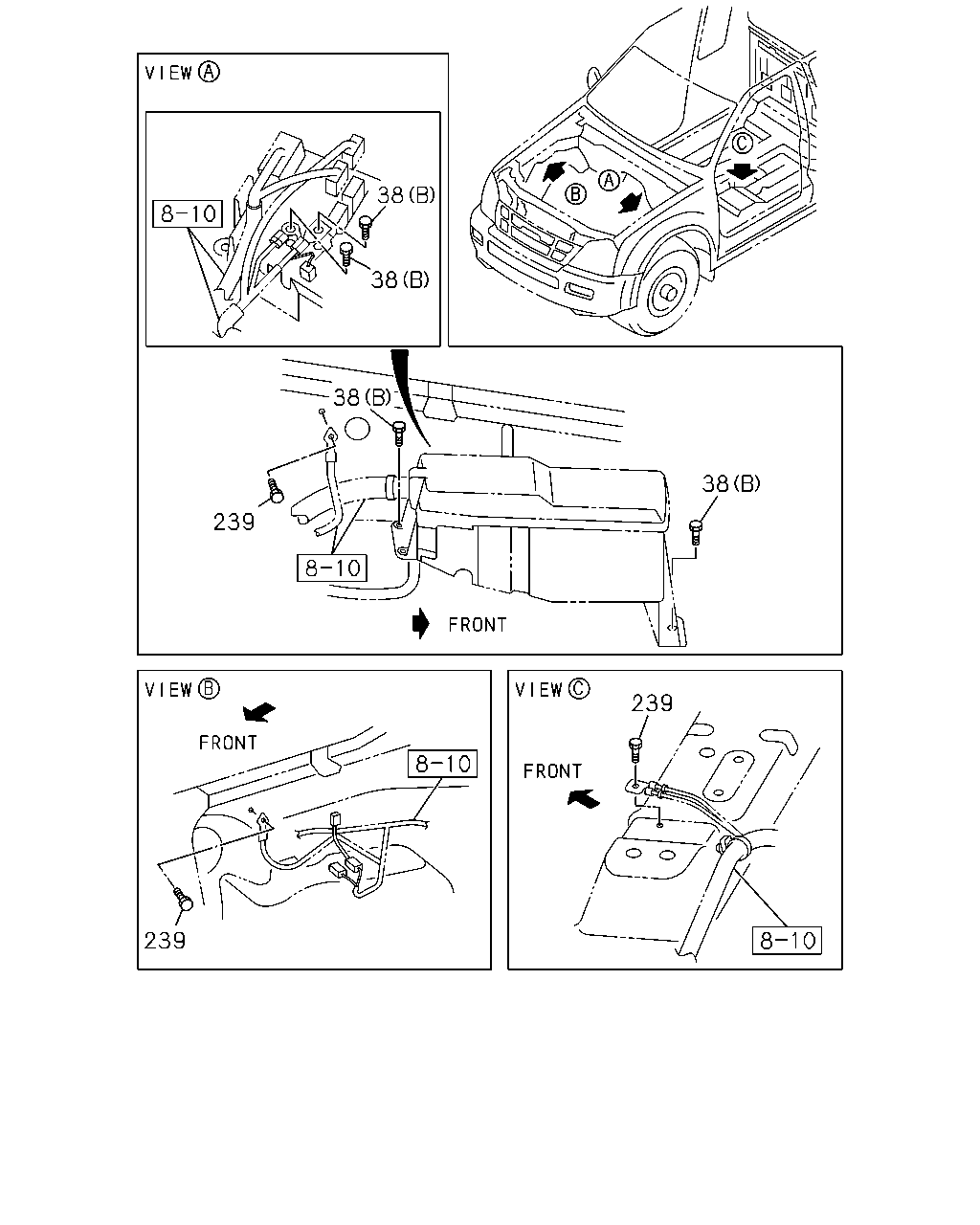

çizim 137059
38 38 38 38 239 239 239
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED5G(RSP) EURO2 SPECIFICATION<NT2> 03.671 (D) M6X10 FLANGE 		0-28050-610-0 01 1 0810-1109 ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED5G(RSP) EURO2 SPECIFICATION<NT2> EXC. ELECTRONIC CONTROL<K20> 03.671 (D) M6X10 FLANGE 		0-28050-610-0 01 1 1110- ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0810-1007 ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 1008- ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0808-0809 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) 02.343 (A) M8X12 FLANGE 		0-28050-812-0 02 1 0810- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) 02.343 (C) M8X16 FLANGE 		0-28050-816-0 02 1 0808-0809 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 02.343 (C) M8X16 FLANGE 		0-28050-816-0 02 1 0810-1007 ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 02.343 (C) M8X16 FLANGE 		0-28050-816-0 02 1 1008- ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
02.343 (B) M6X16 FLANGE 		0-28650-616-0 05 1 0808-0809 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
02.343 (B) M6X16 FLANGE 		0-28650-616-0 05 1 0810- ● ● ● ● ● ● ●
239 02.559 BOLT; GRAND
M6X14 W/LK&PL WASHER 		8-97086-822-0 03 1 0808-0809 ● ● ● ● ●
239 02.559 BOLT; GRAND
M6X14 W/LK&PL WASHER 		8-97086-822-0 03 1 0810- ● ● ● ● ● ● ●

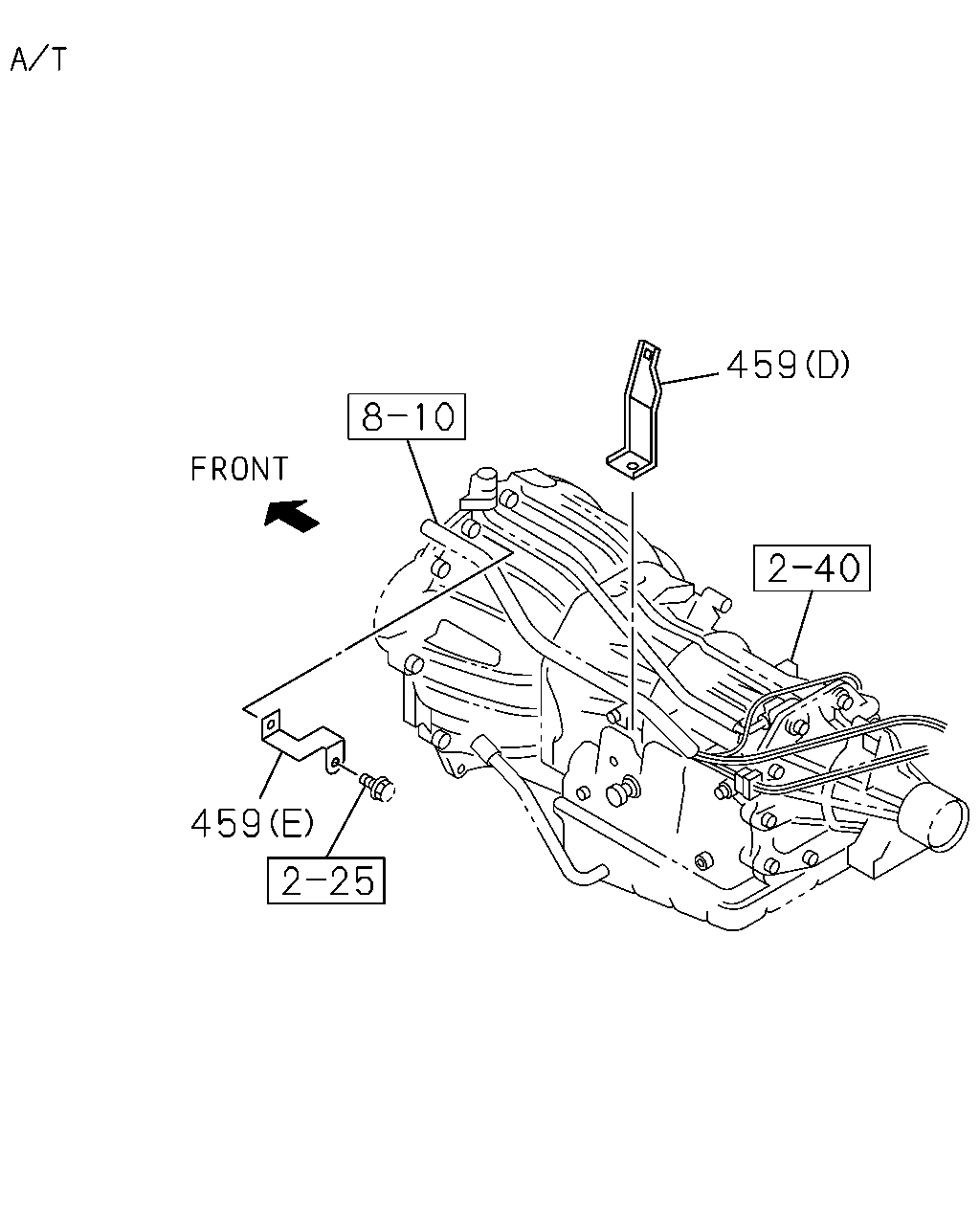

çizim 137831
459 459
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
459 02.483 BRACKET; SUPPORT,HARNESS
4JJ1-TCS ENG(LFB) A/T 4 SPEED-JATCO(RMK) (E) 		8-97307-524-1 01 1 0810- ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) (F) 		8-98050-882-0 01 1 0810-1003 ● ● ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) (F) 		8-98050-882-0 01 1 1004-1007 ● ● ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) (F) 		8-98050-882-0 01 1 1008- ● ● ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
C24SE ENG(LG1) (G) 		8-98050-883-0 01 1 0810- ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
C24SE ENG(LG1) M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (H) 		8-97237-168-0 01 1 0810-1007 ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
C24SE ENG(LG1) M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP) EURO2 SPECIFICATION<NT2> (H) 		8-97237-168-0 01 1 1008- ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
C24SE ENG(LG1) EURO3 SPECIFICATION<NT3> (I) 		8-98035-653-0 01 1 0810-1007 ●
459 02.483 BRACKET; SUPPORT,HARNESS
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) (A) 		8-97382-804-0 01 1 0808- ● ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) (B) 		8-98035-740-0 01 1 0808- ● ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) (C) 		8-98035-741-0 01 1 0808- ● ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) (D) 		8-98050-720-0 01 1 0808- ● ●

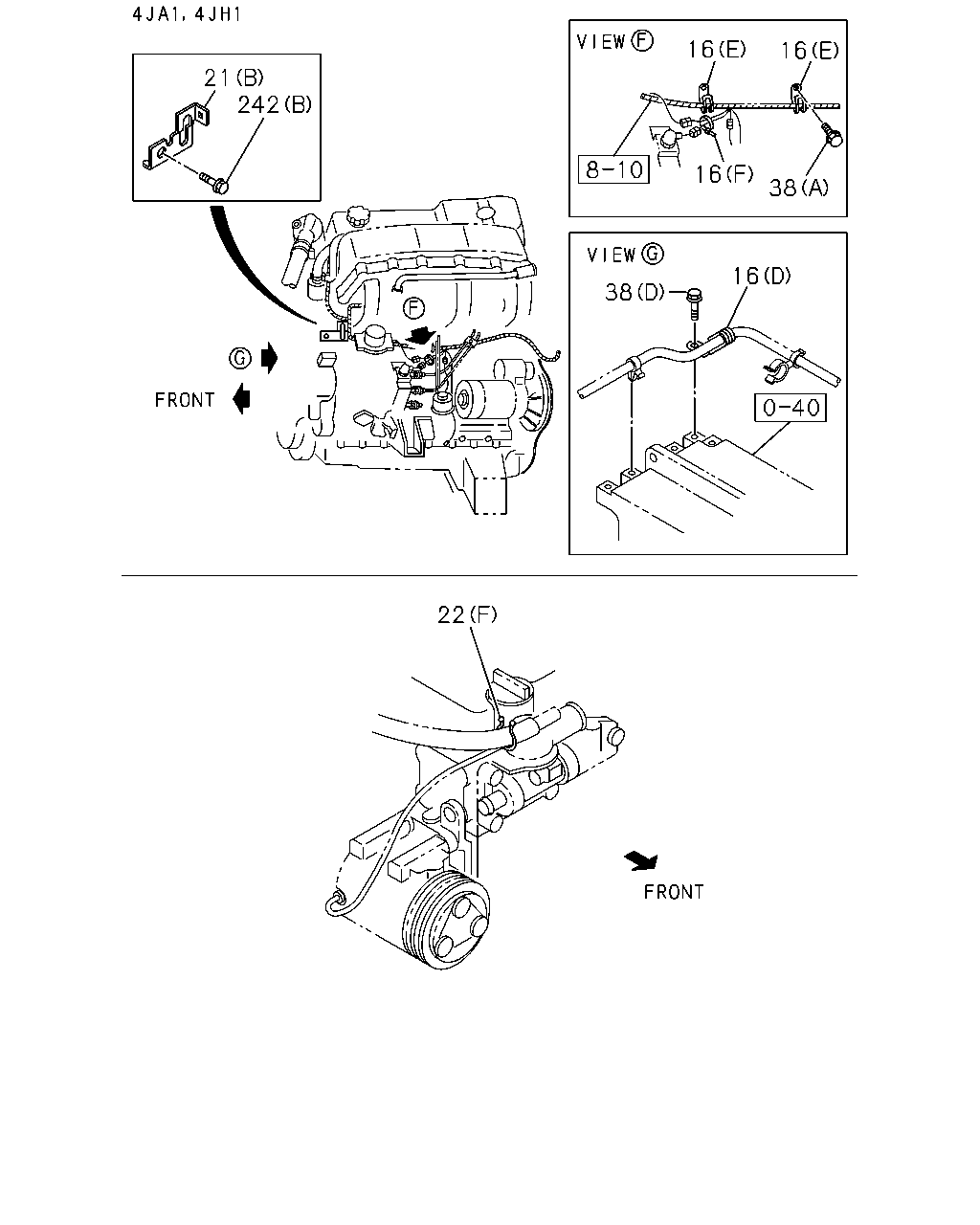

çizim 137890
16 16 21 242 16 38 16 38 22
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
16 02.559 CLIP; HARNESS
4JA1-T ENG(LP0) 03.162 (F) L=140 		5-09707-031-1 01 1 0810- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1-T ENG(LP0) 02.313 (E) ID=18 L=44 		8-97367-985-1 02 1 0810- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED5G(RSP) EURO2 SPECIFICATION<NT2> (D) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 0810-1109 ● ●
16 02.559 CLIP; HARNESS
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED5G(RSP) EURO2 SPECIFICATION<NT2> EXC. ELECTRONIC CONTROL<K20> (D) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 1110- ● ●
16 02.559 CLIP; HARNESS
4X4 REGULAR CAB EXTRA LONG(TFS*SK) AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 02 1 0808-0809 ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 02 1 0810-0912 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 02 1 1001-1007 ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4X4 REGULAR CAB EXTRA LONG(TFS*SK) AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 02 1 0808-0809 ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 02 1 0810-0912 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 02 1 1001-1007 ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4X4 REGULAR CAB EXTRA LONG(TFS*SK) AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT&REAR DOOR<A31> (A) L=155 		8-97173-307-0 06 1 0808-0809 ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT&REAR DOOR<A31> (A) L=155 		8-97173-307-0 06 1 0810-0912 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT&REAR DOOR<A31> (A) L=155 		8-97173-307-0 06 1 1001-1007 ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(B) L=135 		8-94473-399-0 01 1 0808-0809 ● ● ●
16 02.559 CLIP; HARNESS
(B) L=135 		8-94473-399-0 01 1 0808-0809 ●
16 02.559 CLIP; HARNESS
EXTEND CAB EXTRA LONG(TF**CK) (B) L=135 		8-94473-399-0 01 1 0808-0809 ●
16 02.559 CLIP; HARNESS
EXTEND CAB EXTRA LONG(TF**CK) (B) L=135 		8-94473-399-0 01 1 0808-0809 ●
16 02.559 CLIP; HARNESS
4X4 REGULAR CAB EXTRA LONG(TFS*SK) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 01 1 0808-0809 ●
16 02.559 CLIP; HARNESS
4X4 REGULAR CAB EXTRA LONG(TFS*SK) AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 01 1 0808-0809 ●
16 02.559 CLIP; HARNESS
4X4 REGULAR CAB EXTRA LONG(TFS*SK) AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 01 1 0808-0809 ●
16 02.559 CLIP; HARNESS
4X4 REGULAR CAB EXTRA LONG(TFS*SK) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 01 1 0808-0809 ●
16 02.559 CLIP; HARNESS
CREW CAB EXTRA LONG(TF**WK) (B) L=135 		8-94473-399-0 01 1 0808-0809 ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 01 1 0810- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 01 1 0810- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 01 1 0810- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 01 1 0810- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(C) L=60 H=10.9 		8-97128-114-0 01 1 0808-0809 ● ● ●
16 02.559 CLIP; HARNESS
(C) L=60 H=10.9 		8-97128-114-0 01 1 0808-0809 ●
16 02.559 CLIP; HARNESS
EXTEND CAB EXTRA LONG(TF**CK) (C) L=60 H=10.9 		8-97128-114-0 01 1 0808-0809 ●
16 02.559 CLIP; HARNESS
EXTEND CAB EXTRA LONG(TF**CK) (C) L=60 H=10.9 		8-97128-114-0 01 1 0808-0809 ●
16 02.559 CLIP; HARNESS
4X4 REGULAR CAB EXTRA LONG(TFS*SK) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 01 1 0808-0809 ●
16 02.559 CLIP; HARNESS
4X4 REGULAR CAB EXTRA LONG(TFS*SK) AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 01 1 0808-0809 ●
16 02.559 CLIP; HARNESS
4X4 REGULAR CAB EXTRA LONG(TFS*SK) AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 01 1 0808-0809 ●
16 02.559 CLIP; HARNESS
4X4 REGULAR CAB EXTRA LONG(TFS*SK) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 01 1 0808-0809 ●
16 02.559 CLIP; HARNESS
CREW CAB EXTRA LONG(TF**WK) (C) L=60 H=10.9 		8-97128-114-0 01 1 0808-0809 ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 01 1 0810- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 01 1 0810- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 01 1 0810- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 01 1 0810- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(A) L=155 		8-97173-307-0 03 1 0808-0809 ● ● ●
16 02.559 CLIP; HARNESS
(A) L=155 		8-97173-307-0 03 1 0808-0809 ●
16 02.559 CLIP; HARNESS
EXTEND CAB EXTRA LONG(TF**CK) (A) L=155 		8-97173-307-0 03 1 0808-0809 ●
16 02.559 CLIP; HARNESS
EXTEND CAB EXTRA LONG(TF**CK) (A) L=155 		8-97173-307-0 03 1 0808-0809 ●
16 02.559 CLIP; HARNESS
4X4 REGULAR CAB EXTRA LONG(TFS*SK) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (A) L=155 		8-97173-307-0 03 1 0808-0809 ●
16 02.559 CLIP; HARNESS
4X4 REGULAR CAB EXTRA LONG(TFS*SK) AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (A) L=155 		8-97173-307-0 03 1 0808-0809 ●
16 02.559 CLIP; HARNESS
4X4 REGULAR CAB EXTRA LONG(TFS*SK) AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (A) L=155 		8-97173-307-0 03 1 0808-0809 ●
16 02.559 CLIP; HARNESS
4X4 REGULAR CAB EXTRA LONG(TFS*SK) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (A) L=155 		8-97173-307-0 03 1 0808-0809 ●
16 02.559 CLIP; HARNESS
CREW CAB EXTRA LONG(TF**WK) (A) L=155 		8-97173-307-0 03 1 0808-0809 ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (A) L=155 		8-97173-307-0 03 1 0810- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (A) L=155 		8-97173-307-0 03 1 0810- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (A) L=155 		8-97173-307-0 03 1 0810- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> (A) L=155 		8-97173-307-0 03 1 0810- ● ● ● ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
4JA1-T ENG(LP0) (B) 		8-97249-918-1 01 1 0810- ● ● ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
C24SE ENG(LG1) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> (C) 		8-98050-842-0 01 1 0810- ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
4JJ1-TCX ENG(LS0) (A) 		8-97373-034-0 01 1 0808-0809 ● ● ●
21 02.483 BRACKET; ENG HARNESS
EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) (A) 		8-97373-034-0 01 1 0808-0809 ●
21 02.483 BRACKET; ENG HARNESS
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) (A) 		8-97373-034-0 01 1 0808-0809 ●
21 02.483 BRACKET; ENG HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) (A) 		8-97373-034-0 01 1 0810-1007 ● ● ● ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (A) 		8-97373-034-0 01 1 1008- ● ● ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) 03.162 (E) L=140 		5-09707-031-1 01 1 1008-1109 ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) KENYA EQUIPMENT(CL1) 03.162 (E) L=140 		5-09707-031-1 01 1 1110- ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) 03.162 (E) L=140 		5-09707-031-1 01 1 0810-1003 ● ● ●
22 02.559 CLIP; ENG HARNESS
4JA1-T ENG(LP0) EURO2 SPECIFICATION<NT2> 01.540 (F) ID=30 		8-94315-423-0 01 1 0810- ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42) 09.663 (A) ID=15 		1-09709-003-0 01 1 0808-0809 ● ● ●
22 02.559 CLIP; ENG HARNESS
EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42) 09.663 (A) ID=15 		1-09709-003-0 01 1 0808-0809 ●
22 02.559 CLIP; ENG HARNESS
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42) 09.663 (A) ID=15 		1-09709-003-0 01 1 0808-0809 ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42) 09.663 (A) ID=15 		1-09709-003-0 01 1 0810-1007 ● ● ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) 09.663 (A) ID=15 		1-09709-003-0 01 1 0810-1007 ● ● ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42) 09.663 (A) ID=15 		1-09709-003-0 01 1 1008- ● ● ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) 09.663 (A) ID=15 		1-09709-003-0 01 1 1008- ● ● ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) 03.483 (D) ID=6 & 10 		8-94154-844-0 01 1 0808-0809 ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 03.483 (D) ID=6 & 10 		8-94154-844-0 01 1 0810-1007 ● ● ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 03.483 (D) ID=6 & 10 		8-94154-844-0 01 1 1008- ● ● ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) (B) ID=10 & 11 		8-94438-996-0 01 1 0808-0809 ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) (B) ID=10 & 11 		8-94438-996-0 01 1 0810-1007 ● ● ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (B) ID=10 & 11 		8-94438-996-0 01 1 1008- ● ● ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) 02.363 (C) L=140 		8-97920-656-0 01 1 0808-0809 ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD),A/T 4 SPE ED-JATCO(RMK) 02.363 (C) L=140 		8-97920-656-0 01 1 0810-1007 ● ● ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 02.363 (C) L=140 		8-97920-656-0 01 1 0810-1007 ● ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 02.363 (C) L=140 		8-97920-656-0 01 1 1008-1109 ● ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 02.363 (C) L=140 		8-97920-656-0 01 1 1008-1109 ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. KENYA EQUIPMENT(CL1) 02.363 (C) L=140 		8-97920-656-0 01 1 1110- ● ● ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JA1-T ENG(LP0) 02.363 (C) L=140 		8-97920-656-0 01 1 1110- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED5G(RSP) EURO2 SPECIFICATION<NT2> 03.671 (D) M6X10 FLANGE 		0-28050-610-0 01 1 0810-1109 ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED5G(RSP) EURO2 SPECIFICATION<NT2> EXC. ELECTRONIC CONTROL<K20> 03.671 (D) M6X10 FLANGE 		0-28050-610-0 01 1 1110- ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0810-1007 ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 1008- ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0808-0809 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) 02.343 (A) M8X12 FLANGE 		0-28050-812-0 02 1 0810- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) 02.343 (C) M8X16 FLANGE 		0-28050-816-0 02 1 0808-0809 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 02.343 (C) M8X16 FLANGE 		0-28050-816-0 02 1 0810-1007 ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 02.343 (C) M8X16 FLANGE 		0-28050-816-0 02 1 1008- ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
02.343 (B) M6X16 FLANGE 		0-28650-616-0 05 1 0808-0809 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
02.343 (B) M6X16 FLANGE 		0-28650-616-0 05 1 0810- ● ● ● ● ● ● ●
242 02.483 BOLT; BRKT,HARNESS
4JA1-T ENG(LP0) 02.343 (B) M8X12 FLANGE 		0-28050-812-0 01 1 0810- ● ● ● ● ● ●
242 02.483 BOLT; BRKT,HARNESS
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 02.343 (A) M8X16 FLANGE 		0-28050-816-0 02 1 0808- ● ● ● ● ●

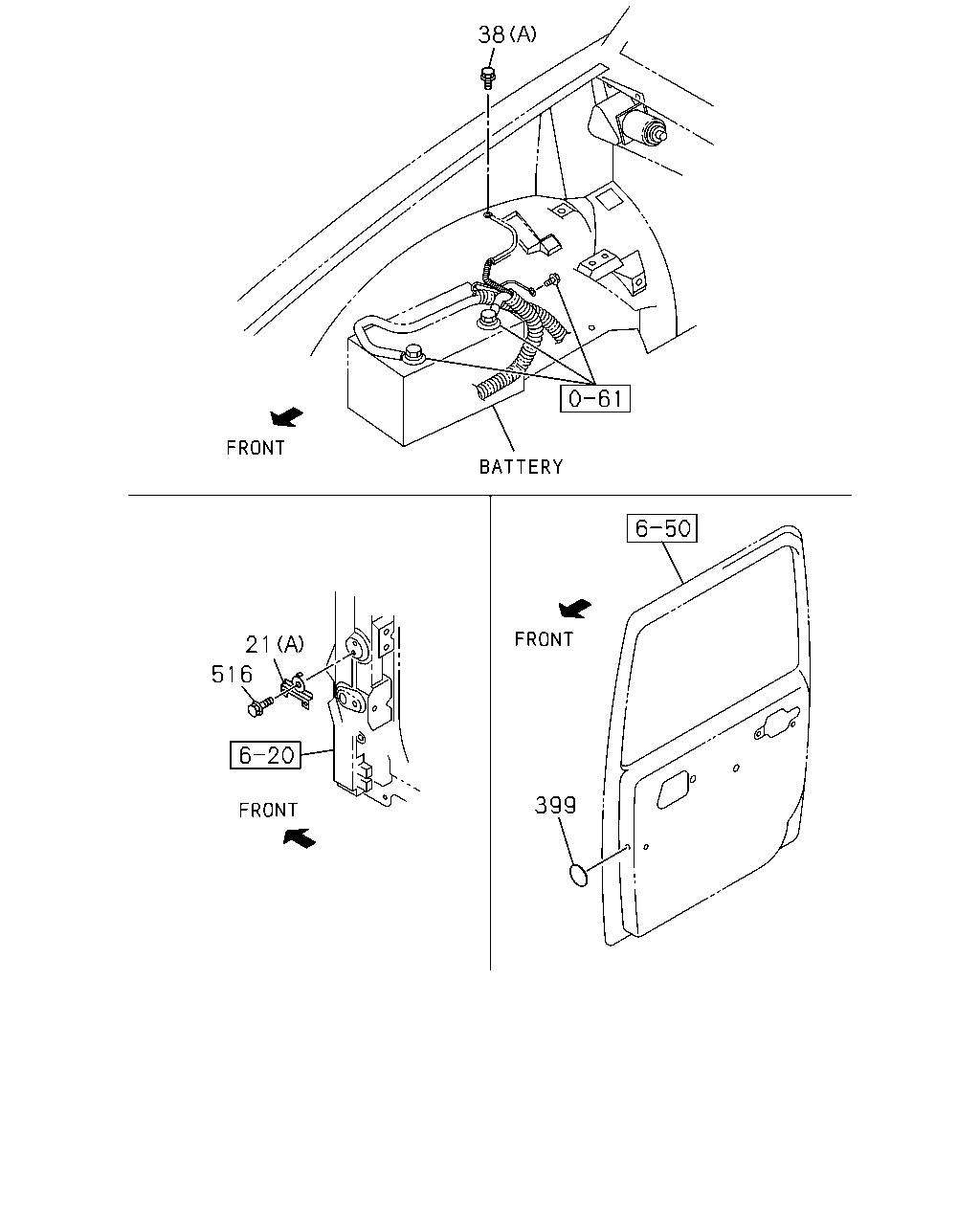

çizim 186208
38 21 516 399
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
21 02.483 BRACKET; ENG HARNESS
4JA1-T ENG(LP0) (B) 		8-97249-918-1 01 1 0810- ● ● ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
C24SE ENG(LG1) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> (C) 		8-98050-842-0 01 1 0810- ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
4JJ1-TCX ENG(LS0) (A) 		8-97373-034-0 01 1 0808-0809 ● ● ●
21 02.483 BRACKET; ENG HARNESS
EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) (A) 		8-97373-034-0 01 1 0808-0809 ●
21 02.483 BRACKET; ENG HARNESS
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) (A) 		8-97373-034-0 01 1 0808-0809 ●
21 02.483 BRACKET; ENG HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) (A) 		8-97373-034-0 01 1 0810-1007 ● ● ● ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (A) 		8-97373-034-0 01 1 1008- ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED5G(RSP) EURO2 SPECIFICATION<NT2> 03.671 (D) M6X10 FLANGE 		0-28050-610-0 01 1 0810-1109 ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED5G(RSP) EURO2 SPECIFICATION<NT2> EXC. ELECTRONIC CONTROL<K20> 03.671 (D) M6X10 FLANGE 		0-28050-610-0 01 1 1110- ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0810-1007 ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 1008- ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0808-0809 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) 02.343 (A) M8X12 FLANGE 		0-28050-812-0 02 1 0810- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) 02.343 (C) M8X16 FLANGE 		0-28050-816-0 02 1 0808-0809 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 02.343 (C) M8X16 FLANGE 		0-28050-816-0 02 1 0810-1007 ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 02.343 (C) M8X16 FLANGE 		0-28050-816-0 02 1 1008- ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
02.343 (B) M6X16 FLANGE 		0-28650-616-0 05 1 0808-0809 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
02.343 (B) M6X16 FLANGE 		0-28650-616-0 05 1 0810- ● ● ● ● ● ● ●
399 02.559 COVER; HOLE,HARNESS,RR DOOR
EXC. POWER WINDOW FRT&REAR DOOR<A31> ,4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKER SYSTEM BASE<UW5> 16.165 OD=50 T=0.08 BLACK 		8-94111-754-0 02 1 0810- ● ●
516 02.559 BOLT; HARNESS
4JJ1-TCX ENG(LS0) 09.171 M6X16 FLANGE 		0-28450-616-0 01 1 0808-0809 ● ● ●
516 02.559 BOLT; HARNESS
EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) 09.171 M6X16 FLANGE 		0-28450-616-0 01 1 0808-0809 ●
516 02.559 BOLT; HARNESS
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) 09.171 M6X16 FLANGE 		0-28450-616-0 01 1 0808-0809 ●
516 02.559 BOLT; HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 09.171 M6X16 FLANGE 		0-28450-616-0 01 1 0810-1007 ● ● ● ● ● ● ●
516 02.559 BOLT; HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 09.171 M6X16 FLANGE 		0-28450-616-0 01 1 1008- ● ● ● ● ● ● ●

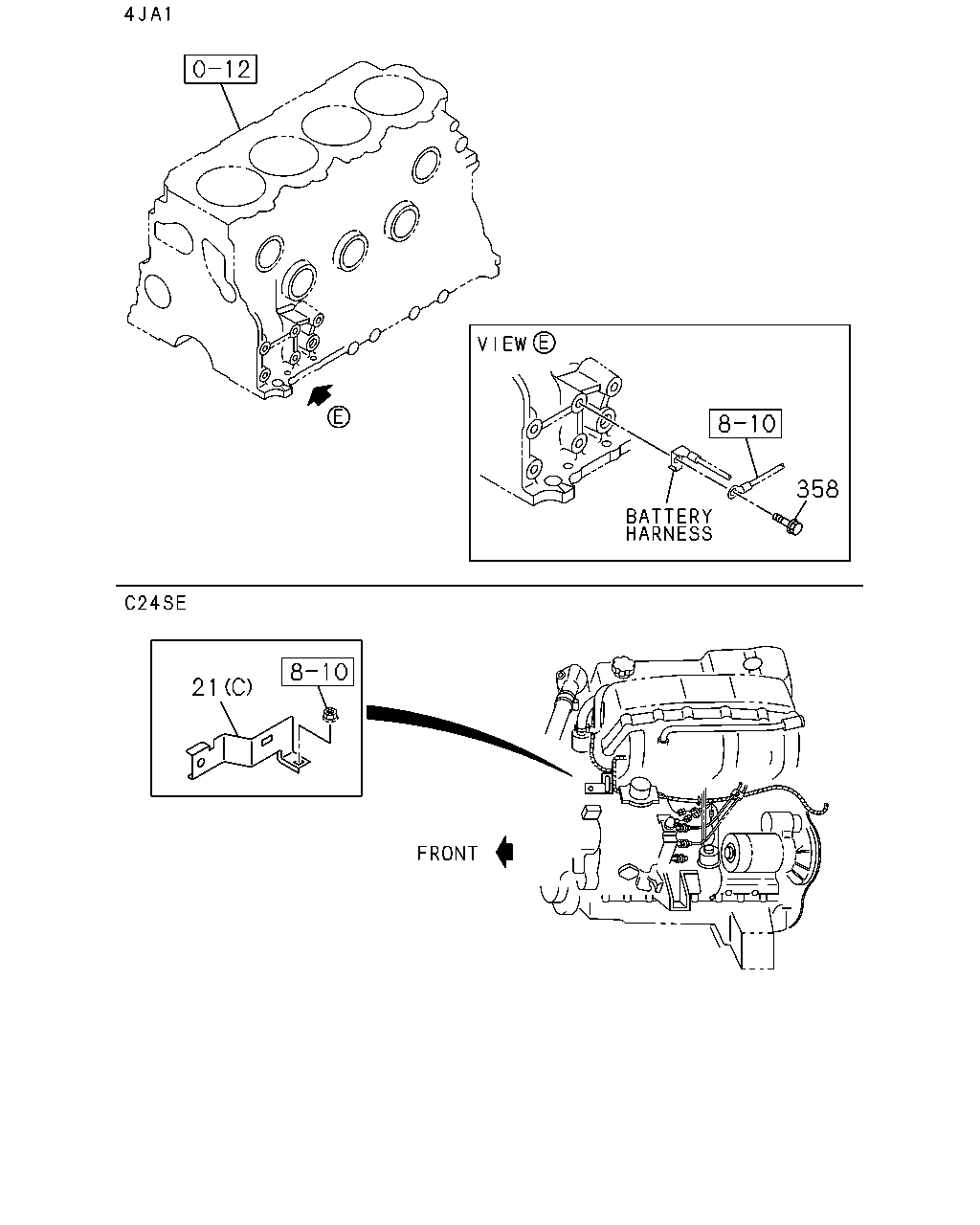

çizim 186287
358 21
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
21 02.483 BRACKET; ENG HARNESS
4JA1-T ENG(LP0) (B) 		8-97249-918-1 01 1 0810- ● ● ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
C24SE ENG(LG1) EMISSION SYSTEM R15-04<K75>,EURO2 SPECIFICATION<NT2> (C) 		8-98050-842-0 01 1 0810- ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
4JJ1-TCX ENG(LS0) (A) 		8-97373-034-0 01 1 0808-0809 ● ● ●
21 02.483 BRACKET; ENG HARNESS
EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) (A) 		8-97373-034-0 01 1 0808-0809 ●
21 02.483 BRACKET; ENG HARNESS
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) (A) 		8-97373-034-0 01 1 0808-0809 ●
21 02.483 BRACKET; ENG HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) (A) 		8-97373-034-0 01 1 0810-1007 ● ● ● ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (A) 		8-97373-034-0 01 1 1008- ● ● ● ● ● ● ●
358 02.480 BOLT; EARTH
4JA1-T ENG(LP0) 02.483 M10X16 FLANGE 		0-28051-016-0 01 1 0810- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
