Sayfa 4-35 - Isuzu EPC

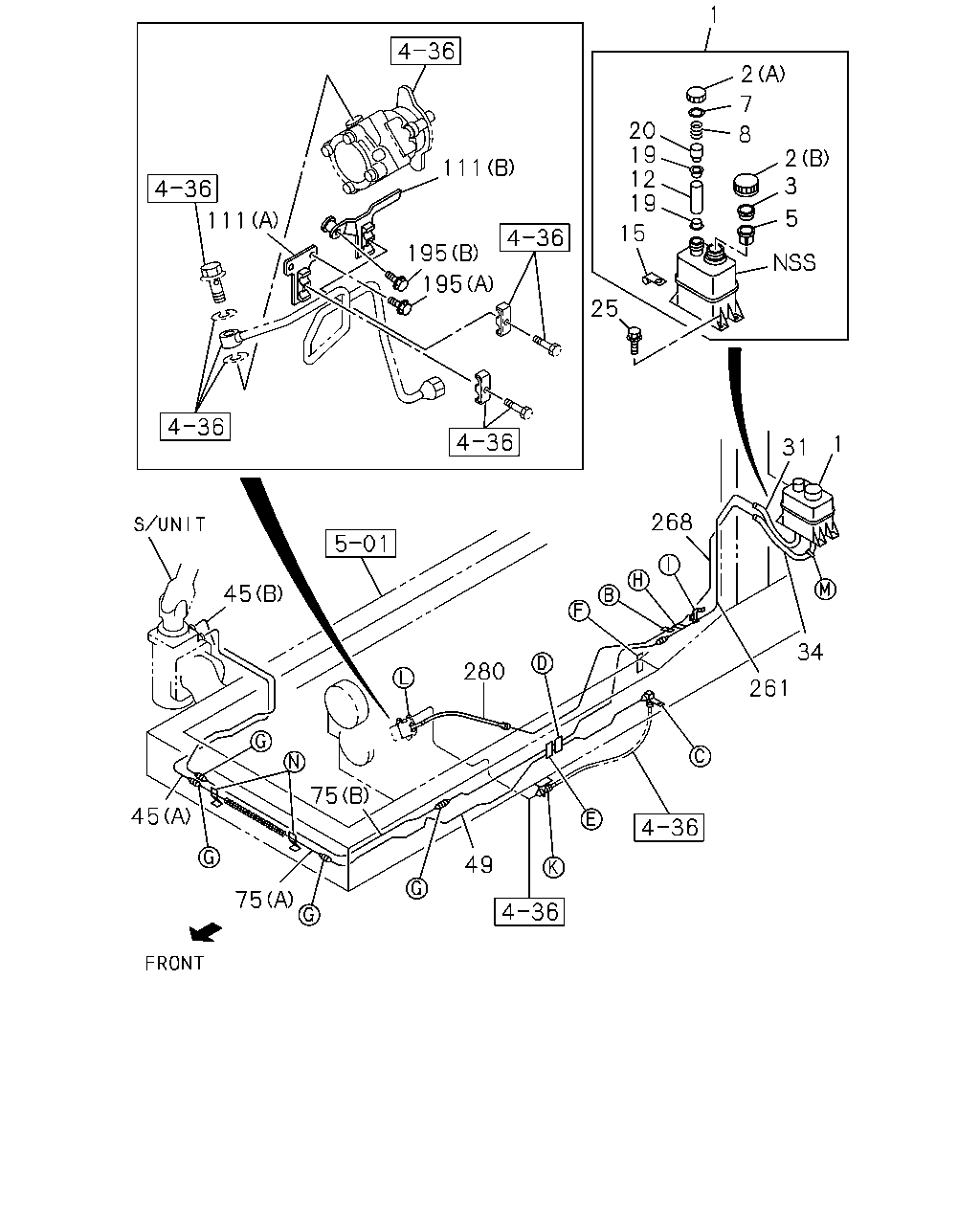

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#7710) — 335 parça

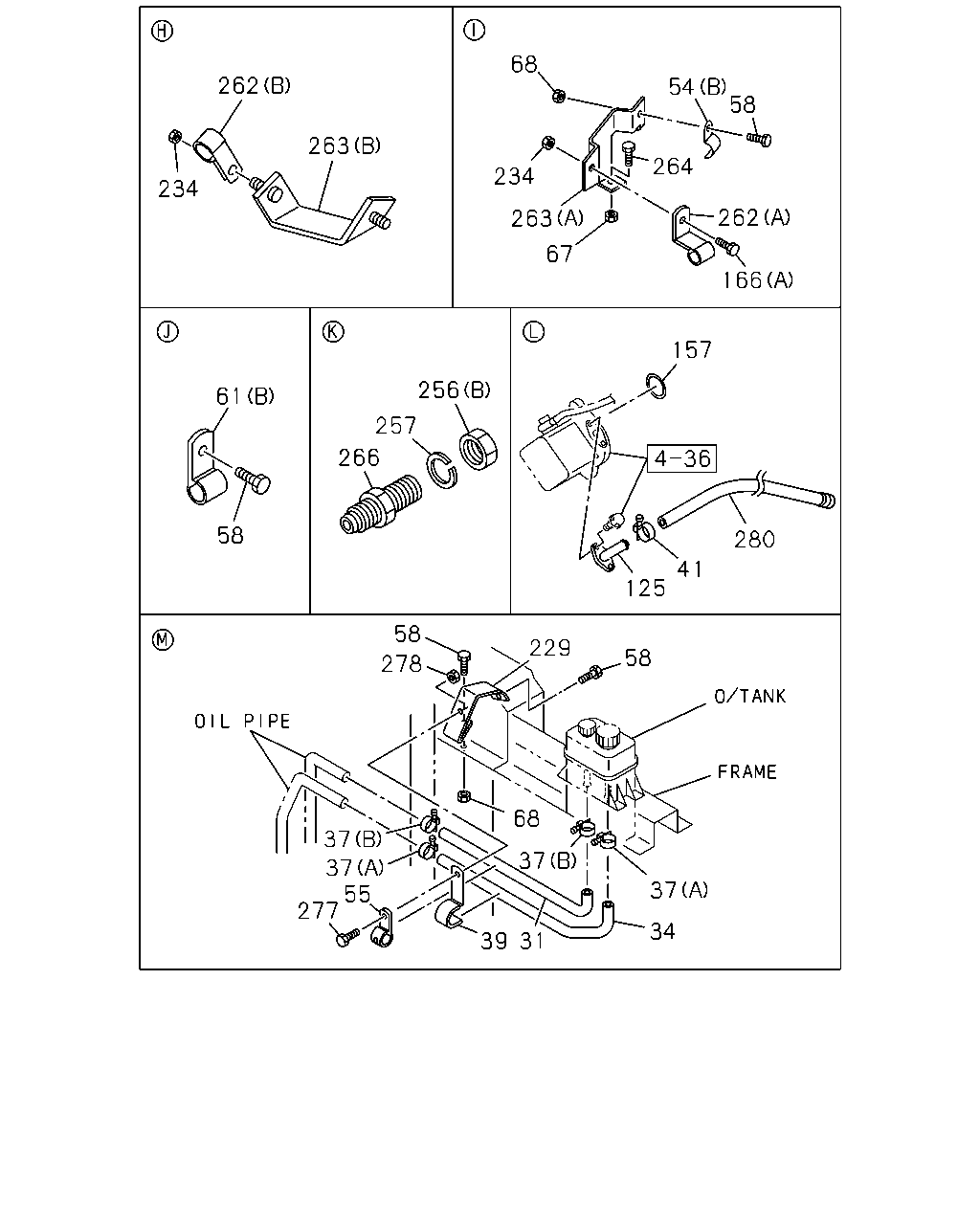

68 262 54 58 263 264 234 234 262 263 67 166 157 256 61 257 266 58 280 41 125 58 229 58 278 68 37 37 37 55 277 37 34 39 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	HOSE; P/S OIL TANK,INL	1-21114-284-0	01	1	9902-0003	●
31	HOSE; P/S OIL TANK,INL	1-21114-284-0	01	1	0004-	●	●
34	HOSE; P/S OIL TANK,OUTLET	1-21114-283-0	01	1	9902-0003	●
34	HOSE; P/S OIL TANK,OUTLET	1-21114-283-0	01	1	0004-	●	●
37	CLIP; HOSE,P/S (A) ID=38	9-09915-041-1	02	1	9902-0003	●
37	CLIP; HOSE,P/S (A) ID=38	9-09915-041-1	02	1	0004-	●	●
37	CLIP; HOSE,P/S (B) ID=28	9-09915-672-1	02	1	9902-0003	●
37	CLIP; HOSE,P/S (B) ID=28	9-09915-672-1	02	1	0004-	●	●
39	CLIP; FLEX HOSE ID=32 L=75	1-09700-702-0	01	1	9902-0003	●
39	CLIP; FLEX HOSE ID=32 L=75	1-09700-702-0	01	1	0004-	●	●
41	CLIP; HOSE,P/S ID=38	9-09915-041-1	02	1	9902-0003	●
41	CLIP; HOSE,P/S ID=38	9-09915-041-1	02	1	0004-	●	●
54	CLIP; OIL PIPE (B) ID=23.6 L=35	1-09700-634-0	02	1	9902-0003	●
54	CLIP; OIL PIPE (B) ID=23.6 L=35	1-09700-634-0	02	1	0004-	●	●
54	CLIP; OIL PIPE (A) ID=16 L=20	9-09525-535-0	01	1	9904-	●
54	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0004-		●
54	CLIP; OIL PIPE (C) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0004-		●
55	CLIP; P/S RUBBER HOSE ID=28 L=30	1-09700-607-1	01	1	9902-0003	●
55	CLIP; P/S RUBBER HOSE ID=28 L=30	1-09700-607-1	01	1	0004-	●	●
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	03	1	9902-9903	●
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	05	1	9904-	●
58	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	03	1	9902-9903	●
58	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	01	1	9904-0003	●
58	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	01	1	9904-0003	●
58	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	01	1	0004-	●	●
58	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	01	1	0004-	●
58	BOLT; CLIP M10X25 FLANGE	0-28681-025-0	02	1	9902-0003	●
58	BOLT; CLIP M10X25 FLANGE	0-28681-025-0	02	1	0004-	●	●
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	0004-		●
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	04	1	0004-		●
61	CLIP; OIL PIPE (A) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	9902-9903	●
61	CLIP; OIL PIPE (A) ID=16 & 9 L=21 & 18	1-09700-676-0	02	1	9904-	●
61	CLIP; OIL PIPE (B) ID=16 L=20	9-09525-535-0	01	1	9902-	●
61	CLIP; OIL PIPE (B) ID=16 L=20	9-09525-535-0	02	1	9902-0003	●
61	CLIP; OIL PIPE (B) ID=16 L=20	9-09525-535-0	02	1	0004-	●	●
61	CLIP; OIL PIPE (B) ID=16 L=20	9-09525-535-0	02	1	0004-		●
61	CLIP; OIL PIPE ISUZU M/T<X9A> (A) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	9902-	●
61	CLIP; OIL PIPE ISUZU M/T<X9A> (A) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	9902-	●
61	CLIP; OIL PIPE ZF M/T<X9E> (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9902-0003	●
61	CLIP; OIL PIPE ZF M/T<X9E> (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9902-0003	●
61	CLIP; OIL PIPE ZF M/T<X9E> (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0004-	●	●
61	CLIP; OIL PIPE ZF M/T<X9E> (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0004-	●	●
67	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	9902-0003	●
67	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0004-	●	●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	01	1	9902-0003	●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	01	1	9902-0003	●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	01	1	0004-	●	●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	01	1	0004-	●
125	CONNECTOR; P/S PUMP	1-13313-532-0	01	1	9902-0003	●
125	CONNECTOR; P/S PUMP	1-13313-532-0	01	1	0004-	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=79.6	1-09623-421-0	01	1	9902-0003	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=79.6	1-09623-421-0	01	1	0004-	●	●
166	BOLT; CLIP (B) M8X20 FLANGE	0-28680-820-0	02	1	9902-	●
166	BOLT; CLIP (A) M8X25 FLANGE	0-28680-825-0	01	1	9902-0003	●
166	BOLT; CLIP (A) M8X25 FLANGE	0-28680-825-0	01	1	0004-	●	●
229	BRACKET; HOSE,POWER STRG	1-21464-407-1	01	1	9902-0003	●
229	BRACKET; HOSE,POWER STRG	1-21464-407-1	01	1	0004-	●	●
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91150-108-0	02	1	9902-0003	●
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91150-108-0	02	1	0004-	●	●
256	NUT; UNION (A) M22	9-09111-422-0	01	1	9902-0003	●
256	NUT; UNION (A) M22	9-09111-422-0	01	1	0004-	●	●
256	NUT; UNION (B) M22	9-09111-522-0	01	1	9902-0003	●
256	NUT; UNION (B) M22	9-09111-522-0	01	1	0004-	●	●
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	9902-0003	●
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	9902-0003	●
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	0004-	●	●
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	0004-	●	●
262	CLIP; P/S PIPE (A) ID=15 H=24 L=20	1-09700-606-0	01	1	9902-0003	●
262	CLIP; P/S PIPE (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0004-	●	●
262	CLIP; P/S PIPE (B) ID=16 L=20	9-09525-535-0	01	1	9902-0003	●
262	CLIP; P/S PIPE (B) ID=16 L=20	9-09525-535-0	01	1	0004-	●	●
263	BRACKET; P/S PIPE (A)	1-47476-483-2	01	1	9902-0003	●
263	BRACKET; P/S PIPE (A)	1-47476-483-2	01	1	0004-	●	●
263	BRACKET; P/S PIPE (B)	1-47477-597-2	01	1	9902-0003	●
263	BRACKET; P/S PIPE (B)	1-47477-597-3	01	1	0004-	●	●
264	BOLT; PIPE BRKT M8X30 FLANGE	0-28680-830-0	01	1	9902-0003	●
264	BOLT; PIPE BRKT M8X30 FLANGE	0-28680-830-0	01	1	0004-	●	●
266	UNION; OIL PIPE,P/S M20 & M22 STRAIGHT	1-09654-167-1	01	1	9902-0003	●
266	UNION; OIL PIPE,P/S M20 & M22 STRAIGHT	1-09654-167-1	01	1	0004-	●	●
277	BOLT; HOSE CLIP M10X25 FLANGE	0-28681-025-0	01	1	9902-0003	●
277	BOLT; HOSE CLIP M10X25 FLANGE	0-28681-025-0	01	1	0004-	●	●
277	BOLT; HOSE CLIP M8X20 FLANGE	0-28680-820-0	02	1	0004-		●
278	NUT; HOSE CLIP M10 FLANGE	0-91150-210-0	01	1	9902-0003	●
278	NUT; HOSE CLIP M10 FLANGE	0-91150-210-0	01	1	0004-	●	●
280	HOSE; P/S OIL PUMP,INL	1-21115-865-0	01	1	9902-0003	●
280	HOSE; P/S OIL PUMP,INL	1-21115-865-0	01	1	0004-	●	●

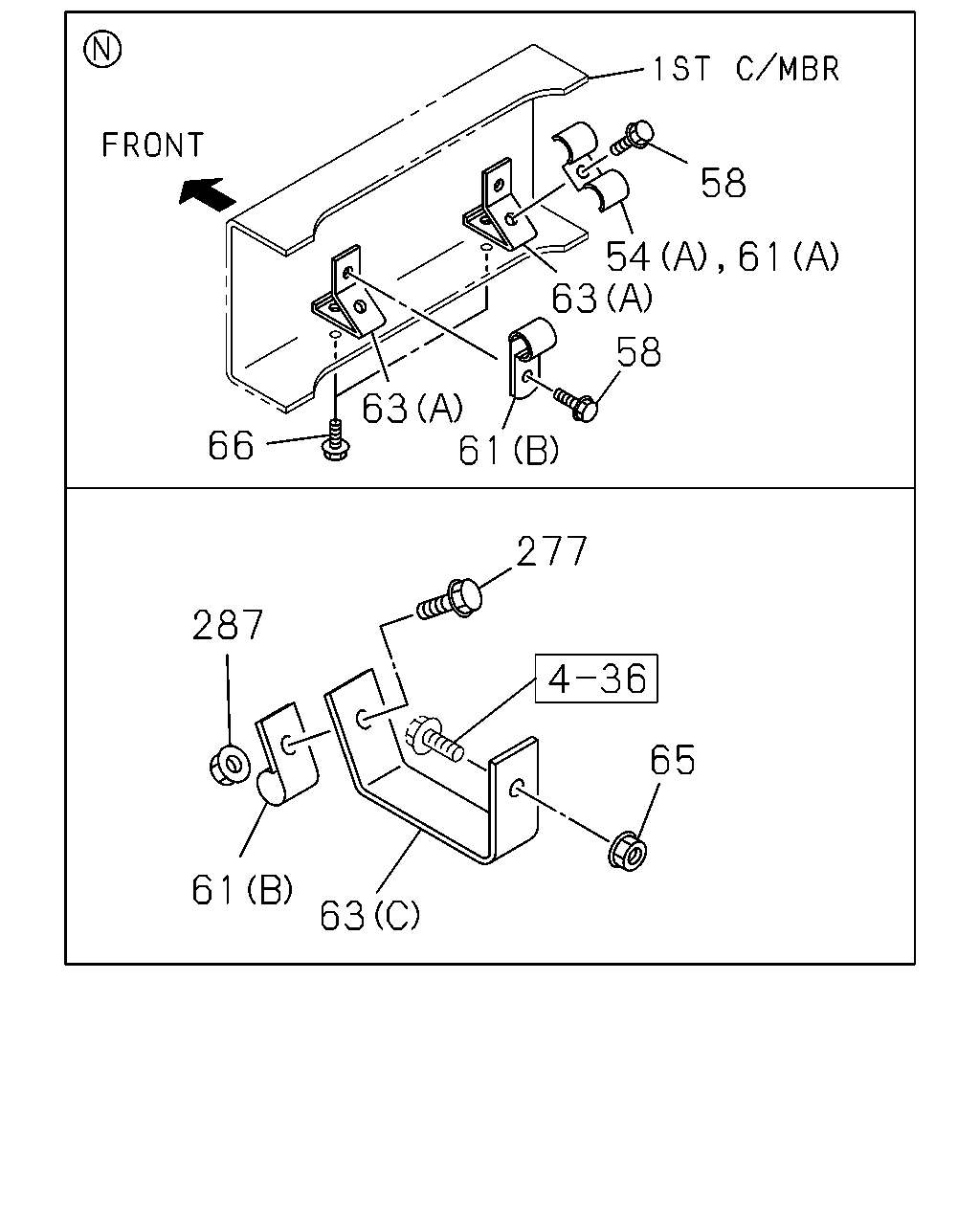

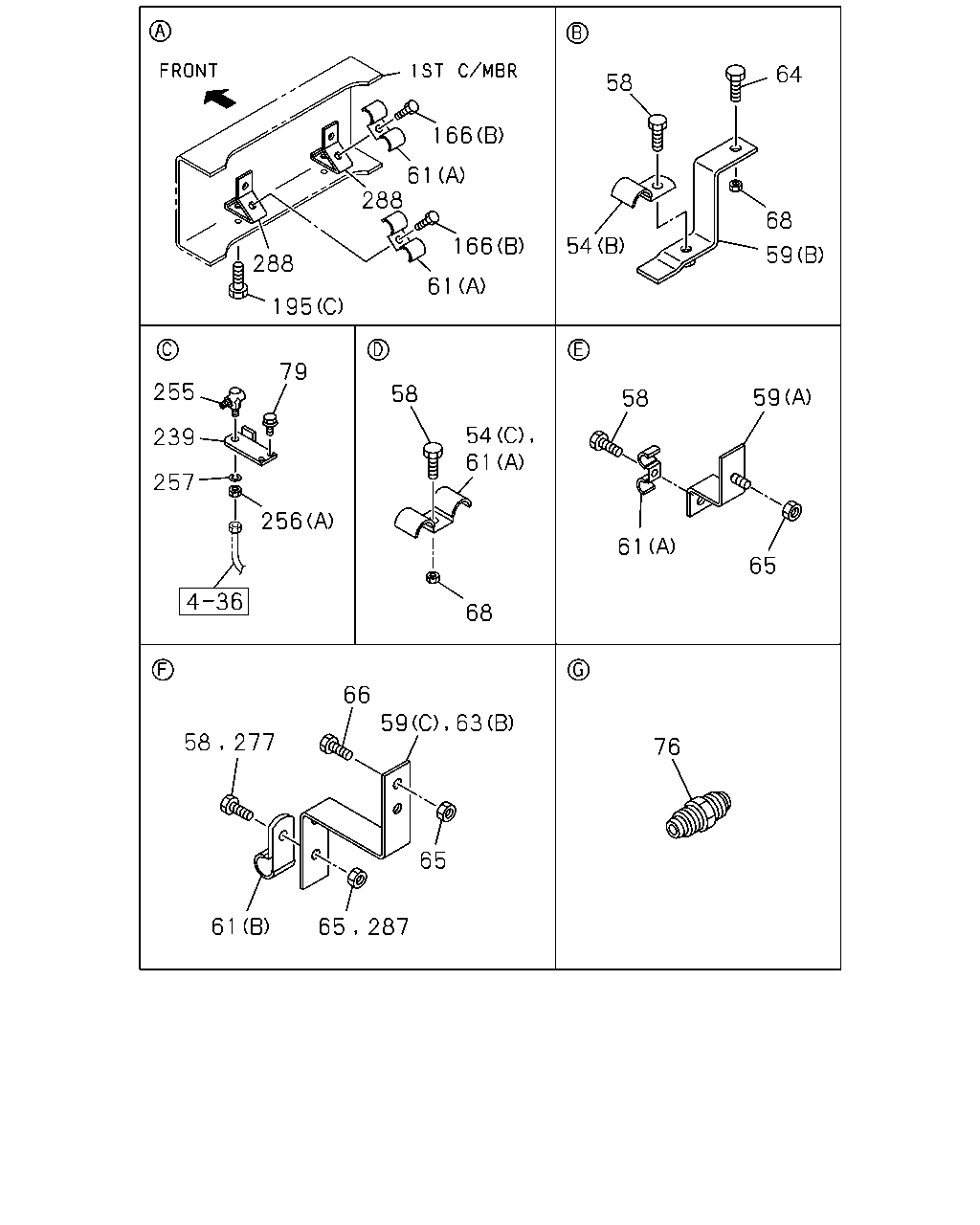

64 58 166 61 288 68 54 166 288 59 61 195 79 255 58 59 58 54 61 239 257 256 61 65 68 66 76 65 61 65 287 59 63 58 277

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
54	CLIP; OIL PIPE (B) ID=23.6 L=35	1-09700-634-0	02	1	9902-0003	●
54	CLIP; OIL PIPE (B) ID=23.6 L=35	1-09700-634-0	02	1	0004-	●	●
54	CLIP; OIL PIPE (A) ID=16 L=20	9-09525-535-0	01	1	9904-	●
54	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0004-		●
54	CLIP; OIL PIPE (C) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0004-		●
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	03	1	9902-9903	●
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	05	1	9904-	●
58	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	03	1	9902-9903	●
58	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	01	1	9904-0003	●
58	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	01	1	9904-0003	●
58	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	01	1	0004-	●	●
58	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	01	1	0004-	●
58	BOLT; CLIP M10X25 FLANGE	0-28681-025-0	02	1	9902-0003	●
58	BOLT; CLIP M10X25 FLANGE	0-28681-025-0	02	1	0004-	●	●
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	0004-		●
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	04	1	0004-		●
59	BRACKET; CLIP,OIL PIPE (C)	1-47475-963-1	01	1	9902-	●
59	BRACKET; CLIP,OIL PIPE (B)	1-47477-145-0	01	1	9902-0003	●
59	BRACKET; CLIP,OIL PIPE (B)	1-47477-145-0	01	1	0004-	●	●
59	BRACKET; CLIP,OIL PIPE (A)	1-47477-235-0	01	1	9902-0003	●
59	BRACKET; CLIP,OIL PIPE (A)	1-47477-235-0	01	1	0004-	●	●
61	CLIP; OIL PIPE (A) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	9902-9903	●
61	CLIP; OIL PIPE (A) ID=16 & 9 L=21 & 18	1-09700-676-0	02	1	9904-	●
61	CLIP; OIL PIPE (B) ID=16 L=20	9-09525-535-0	01	1	9902-	●
61	CLIP; OIL PIPE (B) ID=16 L=20	9-09525-535-0	02	1	9902-0003	●
61	CLIP; OIL PIPE (B) ID=16 L=20	9-09525-535-0	02	1	0004-	●	●
61	CLIP; OIL PIPE (B) ID=16 L=20	9-09525-535-0	02	1	0004-		●
61	CLIP; OIL PIPE ISUZU M/T<X9A> (A) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	9902-	●
61	CLIP; OIL PIPE ISUZU M/T<X9A> (A) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	9902-	●
61	CLIP; OIL PIPE ZF M/T<X9E> (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9902-0003	●
61	CLIP; OIL PIPE ZF M/T<X9E> (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9902-0003	●
61	CLIP; OIL PIPE ZF M/T<X9E> (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0004-	●	●
61	CLIP; OIL PIPE ZF M/T<X9E> (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0004-	●	●
63	BRACKET; CLIP,P/S (B)	1-47475-963-1	01	1	0004-		●
63	BRACKET; CLIP,P/S (C)	1-47477-193-0	01	1	0004-		●
63	BRACKET; CLIP,P/S (A)	1-47477-621-1	02	1	0004-		●
64	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	01	1	9902-0003	●
64	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	01	1	0004-	●	●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	03	1	9902-	●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0004-		●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0004-		●
66	BOLT; BRKT,OIL PIPE M8X30 FLANGE	0-28680-830-0	02	1	9902-0003	●
66	BOLT; BRKT,OIL PIPE M8X30 FLANGE	0-28680-830-0	02	1	0004-	●
66	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28680-825-0	02	1	0004-		●
66	BOLT; BRKT,OIL PIPE M8X30 FLANGE	0-28680-830-0	01	1	0004-		●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	01	1	9902-0003	●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	01	1	9902-0003	●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	01	1	0004-	●	●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	01	1	0004-	●
76	UNION; OIL PIPE M22	9-09233-015-1	01	1	9902-0003	●
76	UNION; OIL PIPE M22	9-09233-015-1	01	1	0004-	●	●
76	UNION; OIL PIPE M22	9-09233-015-1	01	1	0004-		●
79	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	9902-0003	●
79	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	0004-	●	●
166	BOLT; CLIP (B) M8X20 FLANGE	0-28680-820-0	02	1	9902-	●
166	BOLT; CLIP (A) M8X25 FLANGE	0-28680-825-0	01	1	9902-0003	●
166	BOLT; CLIP (A) M8X25 FLANGE	0-28680-825-0	01	1	0004-	●	●
195	BOLT; BRKT (A) M8X12 FLANGE	0-28080-812-0	02	1	9902-0003	●
195	BOLT; BRKT (A) M8X12 FLANGE	0-28080-812-0	02	1	0004-	●	●
195	BOLT; BRKT (B) M10X35 FLANGE	0-28181-035-0	01	1	9902-0003	●
195	BOLT; BRKT (B) M10X35 FLANGE	0-28181-035-0	01	1	0004-	●	●
195	BOLT; BRKT (C) M8X25 FLANGE	0-28680-825-0	02	1	9902-	●
239	BRACKET; FLEX HOSE	1-47476-679-4	01	1	9902-0003	●
239	BRACKET; FLEX HOSE	1-47476-679-4	01	1	0004-	●	●
255	UNION; FLEX HOSE M22 & M22 ELBOW	1-09654-163-1	01	1	9902-0003	●
255	UNION; FLEX HOSE M22 & M22 ELBOW	1-09654-163-1	01	1	0004-	●	●
256	NUT; UNION (A) M22	9-09111-422-0	01	1	9902-0003	●
256	NUT; UNION (A) M22	9-09111-422-0	01	1	0004-	●	●
256	NUT; UNION (B) M22	9-09111-522-0	01	1	9902-0003	●
256	NUT; UNION (B) M22	9-09111-522-0	01	1	0004-	●	●
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	9902-0003	●
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	9902-0003	●
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	0004-	●	●
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	0004-	●	●
277	BOLT; HOSE CLIP M10X25 FLANGE	0-28681-025-0	01	1	9902-0003	●
277	BOLT; HOSE CLIP M10X25 FLANGE	0-28681-025-0	01	1	0004-	●	●
277	BOLT; HOSE CLIP M8X20 FLANGE	0-28680-820-0	02	1	0004-		●
287	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	0004-		●
288	BRACKET; CLIP,P/S	1-47477-621-1	02	1	9902-	●

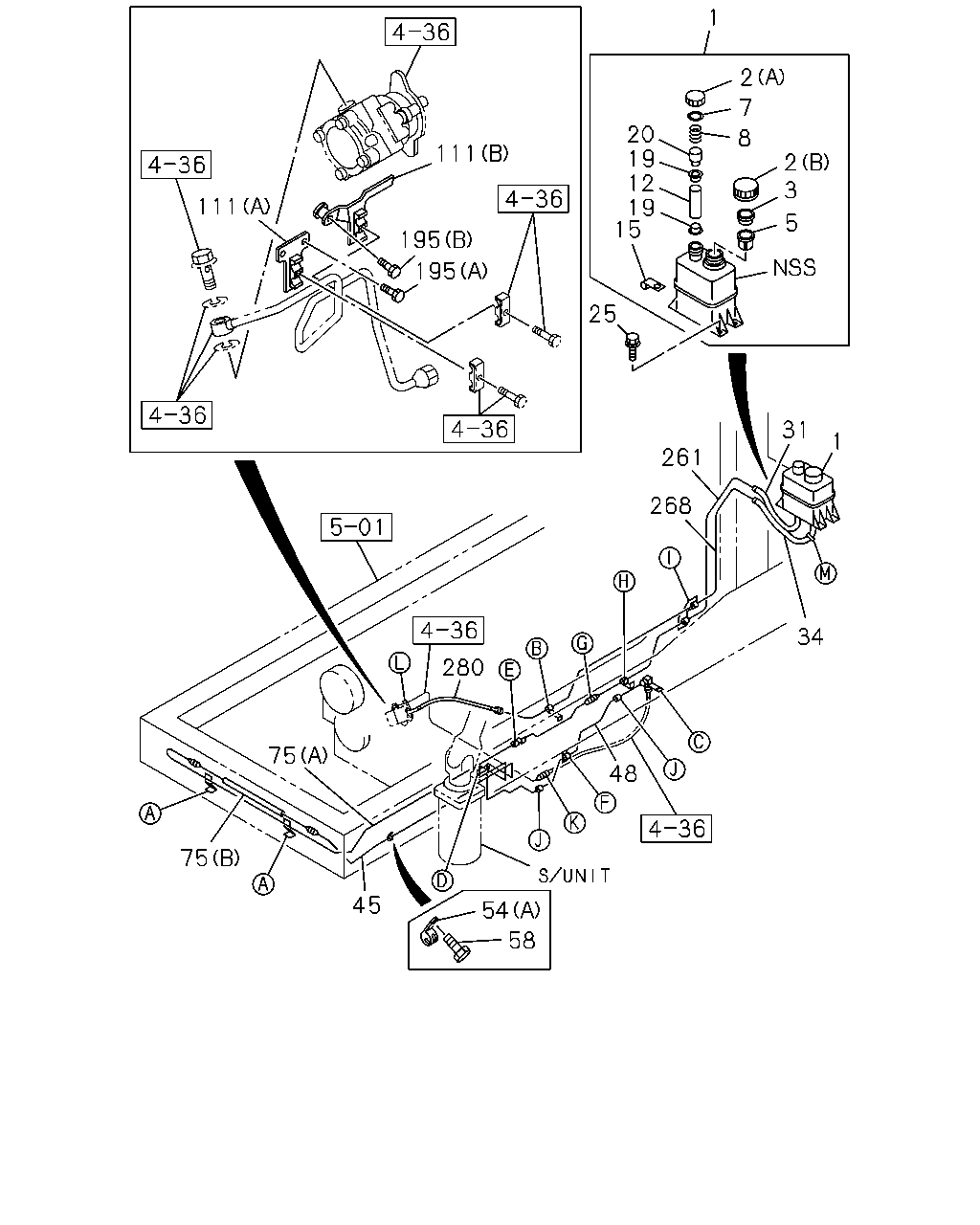

1 2 7 20 19 12 19 15 8 111 2 3 111 5 195 195 25 31 1 261 268 34 280 75 48 75 45 54 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	1-21210-195-2	01	1	9902-0003	●
1	TANK ASM; OIL,P/S	1-21210-195-2	01	1	0004-	●	●
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-5	01	1	9902-0003	●
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-5	01	1	0004-	●	●
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-3	01	1	9902-0003	●
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-3	01	1	0004-	●	●
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	9902-0003	●
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	0004-	●	●
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	9902-0003	●
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	0004-	●	●
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	9902-0003	●
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	0004-	●	●
8	SPRING; OIL TANK,P/S	1-09580-319-1	01	1	9902-0003	●
8	SPRING; OIL TANK,P/S	1-09580-319-1	01	1	0004-	●	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	9902-0003	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	0004-	●	●
15	PLATE; FILTER,OIL TANK	1-21249-007-1	04	1	9902-0003	●
15	PLATE; FILTER,OIL TANK	1-21249-007-1	04	1	0004-	●	●
19	SEAT; OIL TANK	1-21262-001-0	02	1	9902-0003	●
19	SEAT; OIL TANK	1-21262-001-0	02	1	0004-	●	●
20	HOLDER; FILTER,OIL TANK,P/S	1-21239-001-2	01	1	9902-0003	●
20	HOLDER; FILTER,OIL TANK,P/S	1-21239-001-2	01	1	0004-	●	●
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28680-820-0	04	1	9902-0003	●
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28680-820-0	04	1	0004-	●	●
31	HOSE; P/S OIL TANK,INL	1-21114-284-0	01	1	9902-0003	●
31	HOSE; P/S OIL TANK,INL	1-21114-284-0	01	1	0004-	●	●
34	HOSE; P/S OIL TANK,OUTLET	1-21114-283-0	01	1	9902-0003	●
34	HOSE; P/S OIL TANK,OUTLET	1-21114-283-0	01	1	0004-	●	●
45	PIPE; OIL,P/S UNIT TO UNION	1-21115-570-0	01	1	9902-9903	●
45	PIPE; OIL,P/S UNIT TO UNION	1-21116-402-0	01	1	9904-0006	●
45	PIPE; OIL,P/S UNIT TO UNION	1-21116-848-0	01	1	0007-	●
45	PIPE; OIL,P/S UNIT TO UNION (B) L=1234	1-21116-238-0	01	1	0004-		●
45	PIPE; OIL,P/S UNIT TO UNION (A) L=1106	1-21116-239-0	01	1	0004-0006		●
45	PIPE; OIL,P/S UNIT TO UNION (A)	1-21116-849-0	01	1	0007-		●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	1-21116-186-0	01	1	9902-	●
54	CLIP; OIL PIPE (B) ID=23.6 L=35	1-09700-634-0	02	1	9902-0003	●
54	CLIP; OIL PIPE (B) ID=23.6 L=35	1-09700-634-0	02	1	0004-	●	●
54	CLIP; OIL PIPE (A) ID=16 L=20	9-09525-535-0	01	1	9904-	●
54	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0004-		●
54	CLIP; OIL PIPE (C) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0004-		●
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	03	1	9902-9903	●
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	05	1	9904-	●
58	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	03	1	9902-9903	●
58	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	01	1	9904-0003	●
58	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	01	1	9904-0003	●
58	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	01	1	0004-	●	●
58	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	01	1	0004-	●
58	BOLT; CLIP M10X25 FLANGE	0-28681-025-0	02	1	9902-0003	●
58	BOLT; CLIP M10X25 FLANGE	0-28681-025-0	02	1	0004-	●	●
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	0004-		●
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	04	1	0004-		●
75	PIPE; OIL,P/S,UNION TO UNION (B)	1-21115-450-0	01	1	9902-0006	●
75	PIPE; OIL,P/S,UNION TO UNION (A)	1-21116-203-0	01	1	9902-9903	●
75	PIPE; OIL,P/S,UNION TO UNION (A)	1-21116-403-0	01	1	9904-	●
75	PIPE; OIL,P/S,UNION TO UNION (A) L=550	1-21116-307-0	01	1	0004-0006		●
75	PIPE; OIL,P/S,UNION TO UNION (B) L=1807	1-21116-404-0	01	1	0004-		●
111	BRACKET; OIL PIPE (A)	1-13345-186-0	01	1	9902-0003	●
111	BRACKET; OIL PIPE (A)	1-13345-186-0	01	1	0004-	●	●
111	BRACKET; OIL PIPE (B)	1-13345-187-0	01	1	9902-0003	●
111	BRACKET; OIL PIPE (B)	1-13345-187-0	01	1	0004-	●	●
195	BOLT; BRKT (A) M8X12 FLANGE	0-28080-812-0	02	1	9902-0003	●
195	BOLT; BRKT (A) M8X12 FLANGE	0-28080-812-0	02	1	0004-	●	●
195	BOLT; BRKT (B) M10X35 FLANGE	0-28181-035-0	01	1	9902-0003	●
195	BOLT; BRKT (B) M10X35 FLANGE	0-28181-035-0	01	1	0004-	●	●
195	BOLT; BRKT (C) M8X25 FLANGE	0-28680-825-0	02	1	9902-	●
261	PIPE; OIL,UNION TO HOSE L=1034	1-21115-588-0	01	1	9902-0003	●
261	PIPE; OIL,UNION TO HOSE L=1034	1-21115-588-0	01	1	0004-	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE L=1305	1-21115-948-0	01	1	9902-0003	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE L=1305	1-21115-948-0	01	1	0004-0006	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE L=1315	1-21116-855-0	01	1	0007-	●	●
280	HOSE; P/S OIL PUMP,INL	1-21115-865-0	01	1	9902-0003	●
280	HOSE; P/S OIL PUMP,INL	1-21115-865-0	01	1	0004-	●	●

1 2 7 20 19 12 19 8 2 3 111 5 111 15 195 195 25 1 31 268 45 34 280 261 75 45 49 75

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	1-21210-195-2	01	1	9902-0003	●
1	TANK ASM; OIL,P/S	1-21210-195-2	01	1	0004-	●	●
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-5	01	1	9902-0003	●
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-5	01	1	0004-	●	●
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-3	01	1	9902-0003	●
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-3	01	1	0004-	●	●
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	9902-0003	●
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	0004-	●	●
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	9902-0003	●
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	0004-	●	●
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	9902-0003	●
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	0004-	●	●
8	SPRING; OIL TANK,P/S	1-09580-319-1	01	1	9902-0003	●
8	SPRING; OIL TANK,P/S	1-09580-319-1	01	1	0004-	●	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	9902-0003	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	0004-	●	●
15	PLATE; FILTER,OIL TANK	1-21249-007-1	04	1	9902-0003	●
15	PLATE; FILTER,OIL TANK	1-21249-007-1	04	1	0004-	●	●
19	SEAT; OIL TANK	1-21262-001-0	02	1	9902-0003	●
19	SEAT; OIL TANK	1-21262-001-0	02	1	0004-	●	●
20	HOLDER; FILTER,OIL TANK,P/S	1-21239-001-2	01	1	9902-0003	●
20	HOLDER; FILTER,OIL TANK,P/S	1-21239-001-2	01	1	0004-	●	●
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28680-820-0	04	1	9902-0003	●
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28680-820-0	04	1	0004-	●	●
31	HOSE; P/S OIL TANK,INL	1-21114-284-0	01	1	9902-0003	●
31	HOSE; P/S OIL TANK,INL	1-21114-284-0	01	1	0004-	●	●
34	HOSE; P/S OIL TANK,OUTLET	1-21114-283-0	01	1	9902-0003	●
34	HOSE; P/S OIL TANK,OUTLET	1-21114-283-0	01	1	0004-	●	●
45	PIPE; OIL,P/S UNIT TO UNION	1-21115-570-0	01	1	9902-9903	●
45	PIPE; OIL,P/S UNIT TO UNION	1-21116-402-0	01	1	9904-0006	●
45	PIPE; OIL,P/S UNIT TO UNION	1-21116-848-0	01	1	0007-	●
45	PIPE; OIL,P/S UNIT TO UNION (B) L=1234	1-21116-238-0	01	1	0004-		●
45	PIPE; OIL,P/S UNIT TO UNION (A) L=1106	1-21116-239-0	01	1	0004-0006		●
45	PIPE; OIL,P/S UNIT TO UNION (A)	1-21116-849-0	01	1	0007-		●
49	PIPE; OIL,FLEX HOSE TO UNION L=1663	1-21116-235-0	01	1	0004-		●
75	PIPE; OIL,P/S,UNION TO UNION (B)	1-21115-450-0	01	1	9902-0006	●
75	PIPE; OIL,P/S,UNION TO UNION (A)	1-21116-203-0	01	1	9902-9903	●
75	PIPE; OIL,P/S,UNION TO UNION (A)	1-21116-403-0	01	1	9904-	●
75	PIPE; OIL,P/S,UNION TO UNION (A) L=550	1-21116-307-0	01	1	0004-0006		●
75	PIPE; OIL,P/S,UNION TO UNION (B) L=1807	1-21116-404-0	01	1	0004-		●
111	BRACKET; OIL PIPE (A)	1-13345-186-0	01	1	9902-0003	●
111	BRACKET; OIL PIPE (A)	1-13345-186-0	01	1	0004-	●	●
111	BRACKET; OIL PIPE (B)	1-13345-187-0	01	1	9902-0003	●
111	BRACKET; OIL PIPE (B)	1-13345-187-0	01	1	0004-	●	●
195	BOLT; BRKT (A) M8X12 FLANGE	0-28080-812-0	02	1	9902-0003	●
195	BOLT; BRKT (A) M8X12 FLANGE	0-28080-812-0	02	1	0004-	●	●
195	BOLT; BRKT (B) M10X35 FLANGE	0-28181-035-0	01	1	9902-0003	●
195	BOLT; BRKT (B) M10X35 FLANGE	0-28181-035-0	01	1	0004-	●	●
195	BOLT; BRKT (C) M8X25 FLANGE	0-28680-825-0	02	1	9902-	●
261	PIPE; OIL,UNION TO HOSE L=1034	1-21115-588-0	01	1	9902-0003	●
261	PIPE; OIL,UNION TO HOSE L=1034	1-21115-588-0	01	1	0004-	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE L=1305	1-21115-948-0	01	1	9902-0003	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE L=1305	1-21115-948-0	01	1	0004-0006	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE L=1315	1-21116-855-0	01	1	0007-	●	●
280	HOSE; P/S OIL PUMP,INL	1-21115-865-0	01	1	9902-0003	●
280	HOSE; P/S OIL PUMP,INL	1-21115-865-0	01	1	0004-	●	●

58 54 63 61 58 63 61 66 277 287 65 61 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
54	CLIP; OIL PIPE (B) ID=23.6 L=35	1-09700-634-0	02	1	9902-0003	●
54	CLIP; OIL PIPE (B) ID=23.6 L=35	1-09700-634-0	02	1	0004-	●	●
54	CLIP; OIL PIPE (A) ID=16 L=20	9-09525-535-0	01	1	9904-	●
54	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0004-		●
54	CLIP; OIL PIPE (C) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0004-		●
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	03	1	9902-9903	●
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	05	1	9904-	●
58	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	03	1	9902-9903	●
58	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	01	1	9904-0003	●
58	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	01	1	9904-0003	●
58	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	01	1	0004-	●	●
58	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	01	1	0004-	●
58	BOLT; CLIP M10X25 FLANGE	0-28681-025-0	02	1	9902-0003	●
58	BOLT; CLIP M10X25 FLANGE	0-28681-025-0	02	1	0004-	●	●
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	0004-		●
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	04	1	0004-		●
61	CLIP; OIL PIPE (A) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	9902-9903	●
61	CLIP; OIL PIPE (A) ID=16 & 9 L=21 & 18	1-09700-676-0	02	1	9904-	●
61	CLIP; OIL PIPE (B) ID=16 L=20	9-09525-535-0	01	1	9902-	●
61	CLIP; OIL PIPE (B) ID=16 L=20	9-09525-535-0	02	1	9902-0003	●
61	CLIP; OIL PIPE (B) ID=16 L=20	9-09525-535-0	02	1	0004-	●	●
61	CLIP; OIL PIPE (B) ID=16 L=20	9-09525-535-0	02	1	0004-		●
61	CLIP; OIL PIPE ISUZU M/T<X9A> (A) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	9902-	●
61	CLIP; OIL PIPE ISUZU M/T<X9A> (A) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	9902-	●
61	CLIP; OIL PIPE ZF M/T<X9E> (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9902-0003	●
61	CLIP; OIL PIPE ZF M/T<X9E> (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9902-0003	●
61	CLIP; OIL PIPE ZF M/T<X9E> (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0004-	●	●
61	CLIP; OIL PIPE ZF M/T<X9E> (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0004-	●	●
63	BRACKET; CLIP,P/S (B)	1-47475-963-1	01	1	0004-		●
63	BRACKET; CLIP,P/S (C)	1-47477-193-0	01	1	0004-		●
63	BRACKET; CLIP,P/S (A)	1-47477-621-1	02	1	0004-		●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	03	1	9902-	●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0004-		●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0004-		●
66	BOLT; BRKT,OIL PIPE M8X30 FLANGE	0-28680-830-0	02	1	9902-0003	●
66	BOLT; BRKT,OIL PIPE M8X30 FLANGE	0-28680-830-0	02	1	0004-	●
66	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28680-825-0	02	1	0004-		●
66	BOLT; BRKT,OIL PIPE M8X30 FLANGE	0-28680-830-0	01	1	0004-		●
277	BOLT; HOSE CLIP M10X25 FLANGE	0-28681-025-0	01	1	9902-0003	●
277	BOLT; HOSE CLIP M10X25 FLANGE	0-28681-025-0	01	1	0004-	●	●
277	BOLT; HOSE CLIP M8X20 FLANGE	0-28680-820-0	02	1	0004-		●
287	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	0004-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
