◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 10632 - FVM-RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#771) — 95 parça

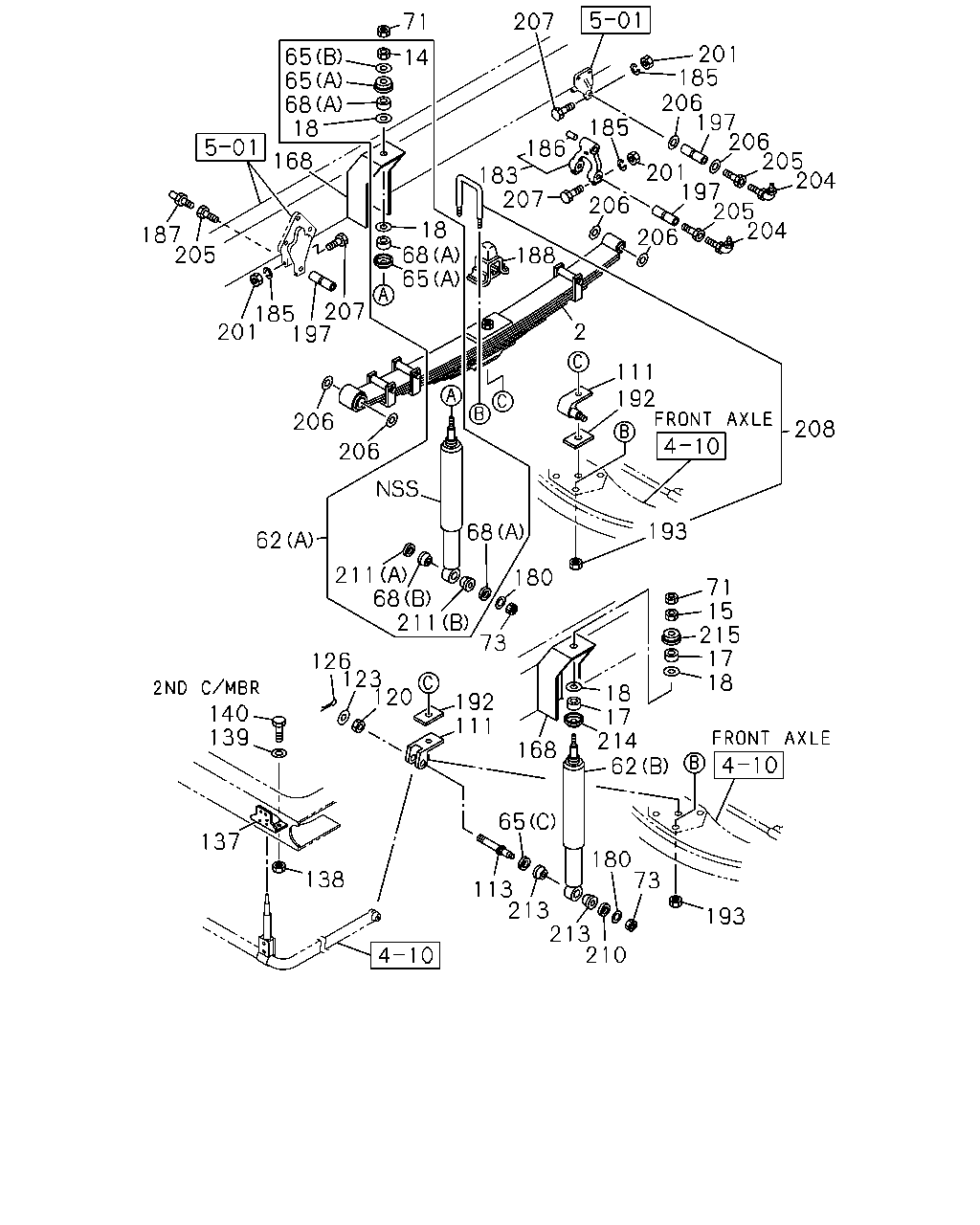

çizim 28555
71 207 201 185 206 197 206 205 204 65 65 68 18 14 185 186 168 201 197 205 204 183 207 206 18 68 65 187 205 206 188 185 207 201 197 2 111 192 206 208 206 193 68 62 211 68 211 180 71 15 215 17 18 73 126 123 120 140 139 18 17 214 62 192 111 168 65 137 180 73 138 113 213 213 210 193
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> 		1-51130-201-0 02 1 9204-9410
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> EXC. AUSTRALIA EQUIPMENT(RR3) 		1-51130-201-0 02 1 9411-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59> 		1-51130-222-0 02 1 9204-9410
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) 		1-51130-222-0 02 1 9411-9504
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59> 		1-51130-222-0 02 1 9411-9504
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) 		1-51130-222-0 02 1 9505-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59>,PAKISTAN EQUIPMENT(WN3) 		1-51130-222-0 02 1 9505-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. PAKISTAN EQUIPMENT(WN3) 		1-51130-071-0 02 1 9505-
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 9204-9406
14 NUT; S/ABS,UPR
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) M14 		9-99111-414-0 02 1 9407-
14 NUT; S/ABS,UPR
EXC. FRONT STABILIZER SHAFT<F59> M14 		9-99111-414-0 02 1 9407-
15 NUT; S/ABS,UPR
FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) M12 		1-09400-006-0 02 1 9407-
17 BUSHING; RUBBER,S/ABS
FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) 		9-51631-050-0 04 1 9407-
18 WASHER; CENTERING,S/ABS
ID=20.8 		9-51631-041-0 04 1 9204-9406
18 WASHER; CENTERING,S/ABS
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) ID=20.8 		9-51631-041-0 04 1 9407-
18 WASHER; CENTERING,S/ABS
EXC. FRONT STABILIZER SHAFT<F59> ID=20.8 		9-51631-041-0 04 1 9407-
18 WASHER; CENTERING,S/ABS
FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) ID=16.8 		1-51631-022-0 04 1 9407-
62 ABSORBER ASM; SHOCK,FRT
(A) 		1-51630-304-0 02 1 9204-9406
62 ABSORBER ASM; SHOCK,FRT
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) (A) 		1-51630-304-0 02 1 9407-
62 ABSORBER ASM; SHOCK,FRT
EXC. FRONT STABILIZER SHAFT<F59> (A) 		1-51630-304-0 02 1 9407-
62 ABSORBER ASM; SHOCK,FRT
FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) (B) 		1-51630-180-3 02 1 9407-
65 WASHER; S/ABS
(B) ID=16.5 		1-09503-228-0 02 1 9204-9406
65 WASHER; S/ABS
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) (B) ID=16.5 		1-09503-228-0 02 1 9407-
65 WASHER; S/ABS
EXC. FRONT STABILIZER SHAFT<F59> (B) ID=16.5 		1-09503-228-0 02 1 9407-
65 WASHER; S/ABS
(A) ID=16.5 		9-51631-040-0 04 1 9204-9406
65 WASHER; S/ABS
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) (A) ID=16.5 		9-51631-040-0 04 1 9407-
65 WASHER; S/ABS
EXC. FRONT STABILIZER SHAFT<F59> (A) ID=16.5 		9-51631-040-0 04 1 9407-
65 WASHER; S/ABS
FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) (C) ID=23 		1-51631-019-0 02 1 9407-
68 BUSHING; S/ABS
(B) ID=21 		9-51631-026-0 02 1 9204-9406
68 BUSHING; S/ABS
(A) 		9-51631-039-0 04 1 9204-9406
68 BUSHING; S/ABS
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) (A) 		9-51631-039-0 04 1 9407-
68 BUSHING; S/ABS
EXC. FRONT STABILIZER SHAFT<F59> (A) 		9-51631-039-0 04 1 9407-
68 BUSHING; S/ABS
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) (B) ID=21 		9-51631-026-0 02 1 9407-
68 BUSHING; S/ABS
EXC. FRONT STABILIZER SHAFT<F59> (B) ID=21 		9-51631-026-0 02 1 9407-
71 NUT; LK,S/ABS,UPR
M14 		9-99111-414-0 02 1 9204-9406
71 NUT; LK,S/ABS,UPR
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) M14 		9-99111-414-0 02 1 9407-
71 NUT; LK,S/ABS,UPR
EXC. FRONT STABILIZER SHAFT<F59> M14 		9-99111-414-0 02 1 9407-
71 NUT; LK,S/ABS,UPR
FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) M12 		1-09400-006-0 02 1 9407-
73 NUT; BRKT,SHOCK
M20 		9-99110-420-0 02 1 9204-9406
73 NUT; BRKT,SHOCK
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) M20 		9-99110-420-0 02 1 9407-
73 NUT; BRKT,SHOCK
EXC. FRONT STABILIZER SHAFT<F59> M20 		9-99110-420-0 02 1 9407-
73 NUT; BRKT,SHOCK
FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) M16 		9-99110-416-0 02 1 9407-
111 SUPPORTER; S/ABS,FRT SUSP
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) 		1-51681-700-0 01 1 9204-
111 SUPPORTER; S/ABS,FRT SUSP
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) 		1-51681-699-0 01 1 9204-
111 SUPPORTER; S/ABS,FRT SUSP
FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) 		1-51681-633-1 01 1 9407-
111 SUPPORTER; S/ABS,FRT SUSP
FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) 		1-51681-632-1 01 1 9407-
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		1-51681-598-1 01 1 9204-
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		1-51681-597-1 01 1 9204-
113 PIN; SUPPORTER
FRONT STABILIZER SHAFT<F59> 		1-51682-122-2 02 1 9204-9406
113 PIN; SUPPORTER
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) 		1-51682-122-2 02 1 9407-
113 PIN; SUPPORTER
FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) 		1-51682-127-1 02 1 9407-
120 WASHER; PL,SUPPORT BRKT TO BODY
FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) 		9-09160-522-0 02 1 9407-
123 NUT; PIN TO SUPPORTER
FRONT STABILIZER SHAFT<F59> M24 		9-99116-424-0 02 1 9204-9406
123 NUT; PIN TO SUPPORTER
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) M24 		9-99116-424-0 02 1 9407-
123 NUT; PIN TO SUPPORTER
FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) M22 		9-09116-522-0 02 1 9407-
126 PIN; SPLIT,STAB
FRONT STABILIZER SHAFT<F59> OD=4.6 L=45 		9-08115-045-0 02 1 9204-
137 BRACKET; STAB BAR TO FRAME
FRONT STABILIZER SHAFT<F59> 		1-51781-046-2 02 1 9204-
138 NUT; BRKT
FRONT STABILIZER SHAFT<F59> M10 		9-09110-410-0 08 1 9204-
139 WASHER; PL,BRKT
FRONT STABILIZER SHAFT<F59> ID=10.5 OD=26 		9-09160-710-0 08 1 9204-
140 BOLT; BRKT
FRONT STABILIZER SHAFT<F59> M10X30 W/LK WASHER 		0-50041-030-0 08 1 9204-
168 BRACKET; S/ABS,FRT SUSP
WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) 		1-51681-317-0 02 1 9204-
168 BRACKET; S/ABS,FRT SUSP
WHEEL BASE 7100MM(71W) BUMPER W/HEADLAMPS<SLB> 		1-51681-317-0 02 1 9204-
168 BRACKET; S/ABS,FRT SUSP
WHEEL BASE 7100MM(71W) EXC. BUMPER W/HEADLAMPS<SLB> 		1-51681-306-0 02 1 9408-
180 WASHER; PL,PIN
ID=21 		9-09160-520-0 02 1 9204-9406
180 WASHER; PL,PIN
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) ID=21 		9-09160-520-0 02 1 9407-
180 WASHER; PL,PIN
EXC. FRONT STABILIZER SHAFT<F59> ID=21 		9-09160-520-0 02 1 9407-
180 WASHER; PL,PIN
FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) ID=17 		9-09160-516-0 02 1 9407-
183 SHACKLE; FRT SUSP 1-51162-029-4 02 1 9204-
185 WASHER; LK,PIN
ID=12.2 		9-09150-512-0 12 1 9204-9209
185 WASHER; LK,PIN
ID=12.2 		9-09150-612-0 12 1 9210-
186 BUSHING; SHACKLE
OD=38 		1-51351-009-0 02 1 9204-
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		9-09031-210-0 02 1 9204-
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-086-0 02 1 9204-
192 PIECE; DIST
80X144 ID=17.5 		1-51177-284-1 01 1 9204-
193 NUT; U BOLT
M22 		9-09112-822-0 08 1 9204-
197 PIN; FRT SPR,FRT 1-51161-031-0 06 1 9204-
201 NUT; PIN LK
M12 		9-99110-412-0 12 1 9204-
204 NIPPLE; GREASE,RR
PT1/8 ELBOW 		9-09031-210-0 04 1 9204-
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 9204-
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 12 1 9204-
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 12 1 9204-
208 U-BOLT SET; FRT SPRING
L=210 		1-87870-118-3 04 1 9204-9307
208 U-BOLT SET; FRT SPRING
L=210 		1-87870-380-0 04 1 9308-9504
208 U-BOLT SET; FRT SPRING
EXC. PAKISTAN EQUIPMENT(WN3) L=210 		1-87870-380-0 04 1 9505-
208 U-BOLT SET; FRT SPRING
PAKISTAN EQUIPMENT(WN3) L=230 		1-87870-269-1 04 1 9505-
210 WASHER; S/ABS,OUTER
FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) ID=17 		1-51631-020-0 02 1 9407-
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 9204-9406
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 04 1 9204-9406
211 WASHER; BRKT,SHOCK
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) (A) ID=27 		9-51631-027-0 02 1 9407-
211 WASHER; BRKT,SHOCK
EXC. FRONT STABILIZER SHAFT<F59> (A) ID=27 		9-51631-027-0 02 1 9407-
211 WASHER; BRKT,SHOCK
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) (B) ID=21 		9-51631-028-0 04 1 9407-
211 WASHER; BRKT,SHOCK
EXC. FRONT STABILIZER SHAFT<F59> (B) ID=21 		9-51631-028-0 04 1 9407-
213 BUSHING; RUBBER,LWR
FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) 		1-51631-009-1 04 1 9407-
214 WASHER; S/ABS,UPR,INNER
FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) ID=14.5 		9-51631-051-0 02 1 9407-
215 WASHER; S/ABS,UPR,OUTER
FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) ID=14.5 		9-51631-051-0 02 1 9407-
