◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51194 - TFR/TFS-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-05 - INTERIOR LAMP ▶
8-05 — INTERIOR LAMP (#77099) — 58 parça

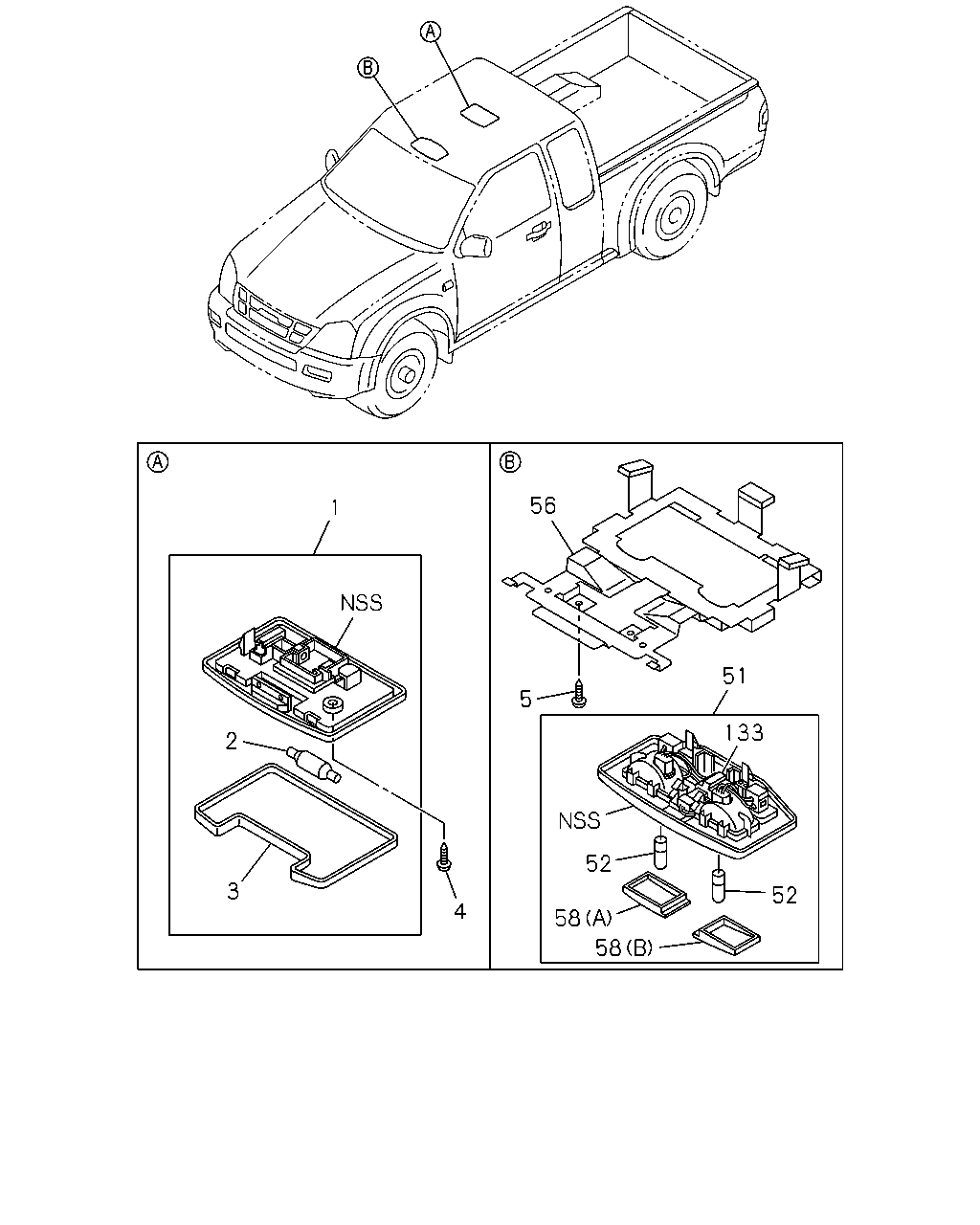

çizim 136528
56 1 51 5 133 2 52 3 52 4 58 58
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 16.494 LAMP ASM; ROOM
INTERIOR COLOR BLACK(101) BLACK 		8-97418-484-0 01 1 1004- ● ● ● ● ● ●
1 16.494 LAMP ASM; ROOM
LIGHT GRAY 		8-97411-439-0 01 1 0808-0809 ● ● ●
1 16.494 LAMP ASM; ROOM
EXTEND CAB EXTRA LONG(TF**CK) LIGHT GRAY 		8-97411-439-0 01 1 0808-0809 ●
1 16.494 LAMP ASM; ROOM
4X4 REGULAR CAB EXTRA LONG(TFS*SK) LIGHT GRAY 		8-97411-439-0 01 1 0808-0809 ●
1 16.494 LAMP ASM; ROOM
LIGHT GRAY 		8-97411-439-0 01 1 0810-1003 ● ● ● ● ● ● ●
1 16.494 LAMP ASM; ROOM
INTERIOR COLOR IN VERY DARK GRAY(116) LIGHT GRAY 		8-97411-439-0 01 1 1004- ● ● ● ● ● ● ●
2 08.991 BULB; ROOM LAMP
12V 10W 		8-97128-771-0 01 1 0808-0809 ● ● ●
2 08.991 BULB; ROOM LAMP
EXTEND CAB EXTRA LONG(TF**CK) 12V 10W 		8-97128-771-0 01 1 0808-0809 ●
2 08.991 BULB; ROOM LAMP
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 12V 10W 		8-97128-771-0 01 1 0808-0809 ●
2 08.991 BULB; ROOM LAMP
12V 10W 		8-97128-771-0 01 1 0810- ● ● ● ● ● ● ●
3 16.495 LENS; ROOM LAMP 8-97333-429-0 01 1 0808-0809 ● ● ●
3 16.495 LENS; ROOM LAMP
EXTEND CAB EXTRA LONG(TF**CK) 		8-97333-429-0 01 1 0808-0809 ●
3 16.495 LENS; ROOM LAMP
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 		8-97333-429-0 01 1 0808-0809 ●
3 16.495 LENS; ROOM LAMP 8-97333-429-0 01 1 0810- ● ● ● ● ● ● ●
4 16.495 SCREW; ROOM LAMP
M5X12 TAPPING 		0-71040-512-0 02 1 0808-0809 ● ● ● ● ●
4 16.495 SCREW; ROOM LAMP
M5X12 TAPPING 		0-71040-512-0 02 1 0810- ● ● ● ● ● ● ●
5 16.545 SCREW; SPOT LAMP
MAP LAMP<C74> 08.913 M5X12 		8-94120-094-0 02 1 0808-0809 ● ● ●
5 16.545 SCREW; SPOT LAMP
EXTEND CAB EXTRA LONG(TF**CK) MAP LAMP<C74> 08.913 M5X12 		8-94120-094-0 02 1 0808-0809 ●
5 16.545 SCREW; SPOT LAMP
4X4 REGULAR CAB EXTRA LONG(TFS*SK) MAP LAMP<C74> 08.913 M5X12 		8-94120-094-0 02 1 0808-0809 ●
5 16.545 SCREW; SPOT LAMP
MAP LAMP<C74> 08.913 M5X12 		8-94120-094-0 02 1 0810- ● ● ● ● ● ● ●
51 16.494 LAMP ASM; SPOT
INTERIOR COLOR BLACK(101) MAP LAMP<C74> BLACK 		8-97418-611-0 01 1 1004- ● ● ● ● ● ●
51 16.494 LAMP ASM; SPOT
MAP LAMP<C74> LIGHT GRAY 		8-97411-744-0 01 1 0808-0809 ● ● ●
51 16.494 LAMP ASM; SPOT
EXTEND CAB EXTRA LONG(TF**CK) MAP LAMP<C74> LIGHT GRAY 		8-97411-744-0 01 1 0808-0809 ●
51 16.494 LAMP ASM; SPOT
4X4 REGULAR CAB EXTRA LONG(TFS*SK) MAP LAMP<C74> LIGHT GRAY 		8-97411-744-0 01 1 0808-0809 ●
51 16.494 LAMP ASM; SPOT
MAP LAMP<C74> LIGHT GRAY 		8-97411-744-0 01 1 0810-1003 ● ● ● ● ● ● ●
51 16.494 LAMP ASM; SPOT
INTERIOR COLOR IN VERY DARK GRAY(116) MAP LAMP<C74> LIGHT GRAY 		8-97411-744-0 01 1 1004- ● ● ● ● ● ● ●
52 08.991 BULB; SPOT LAMP
MAP LAMP<C74> 12V 5W 		8-94124-595-0 02 1 0808-0809 ● ● ●
52 08.991 BULB; SPOT LAMP
EXTEND CAB EXTRA LONG(TF**CK) MAP LAMP<C74> 12V 5W 		8-94124-595-0 02 1 0808-0809 ●
52 08.991 BULB; SPOT LAMP
4X4 REGULAR CAB EXTRA LONG(TFS*SK) MAP LAMP<C74> 12V 5W 		8-94124-595-0 02 1 0808-0809 ●
52 08.991 BULB; SPOT LAMP
MAP LAMP<C74> 12V 5W 		8-94124-595-0 02 1 0810- ● ● ● ● ● ● ●
56 16.494 BRACKET; LAMP
MAP LAMP<C74> 		8-98050-901-0 01 1 0808-0809 ● ● ●
56 16.494 BRACKET; LAMP
EXTEND CAB EXTRA LONG(TF**CK) MAP LAMP<C74> 		8-98050-901-0 01 1 0808-0809 ●
56 16.494 BRACKET; LAMP
4X4 REGULAR CAB EXTRA LONG(TFS*SK) MAP LAMP<C74> 		8-98050-901-0 01 1 0808-0809 ●
56 16.494 BRACKET; LAMP
MAP LAMP<C74> 		8-98050-901-0 01 1 0810- ● ● ● ● ● ● ●
58 16.494 LENS; SPOT LAMP
MAP LAMP<C74> (A) 		8-97333-440-0 01 1 0808-0809 ● ● ●
58 16.494 LENS; SPOT LAMP
EXTEND CAB EXTRA LONG(TF**CK) MAP LAMP<C74> (A) 		8-97333-440-0 01 1 0808-0809 ●
58 16.494 LENS; SPOT LAMP
4X4 REGULAR CAB EXTRA LONG(TFS*SK) MAP LAMP<C74> (A) 		8-97333-440-0 01 1 0808-0809 ●
58 16.494 LENS; SPOT LAMP
MAP LAMP<C74> (A) 		8-97333-440-0 01 1 0810- ● ● ● ● ● ● ●
58 16.494 LENS; SPOT LAMP
MAP LAMP<C74> (B) 		8-97333-441-0 01 1 0808-0809 ● ● ●
58 16.494 LENS; SPOT LAMP
EXTEND CAB EXTRA LONG(TF**CK) MAP LAMP<C74> (B) 		8-97333-441-0 01 1 0808-0809 ●
58 16.494 LENS; SPOT LAMP
4X4 REGULAR CAB EXTRA LONG(TFS*SK) MAP LAMP<C74> (B) 		8-97333-441-0 01 1 0808-0809 ●
58 16.494 LENS; SPOT LAMP
MAP LAMP<C74> (B) 		8-97333-441-0 01 1 0810- ● ● ● ● ● ● ●
133 16.494 SOCKET ASM; SPOT LAMP
MAP LAMP<C74> 		8-97176-526-0 01 1 0808-0809 ● ● ●
133 16.494 SOCKET ASM; SPOT LAMP
EXTEND CAB EXTRA LONG(TF**CK) MAP LAMP<C74> 		8-97176-526-0 01 1 0808-0809 ●
133 16.494 SOCKET ASM; SPOT LAMP
4X4 REGULAR CAB EXTRA LONG(TFS*SK) MAP LAMP<C74> 		8-97176-526-0 01 1 0808-0809 ●
133 16.494 SOCKET ASM; SPOT LAMP
MAP LAMP<C74> 		8-97176-526-0 01 1 0810- ● ● ● ● ● ● ●

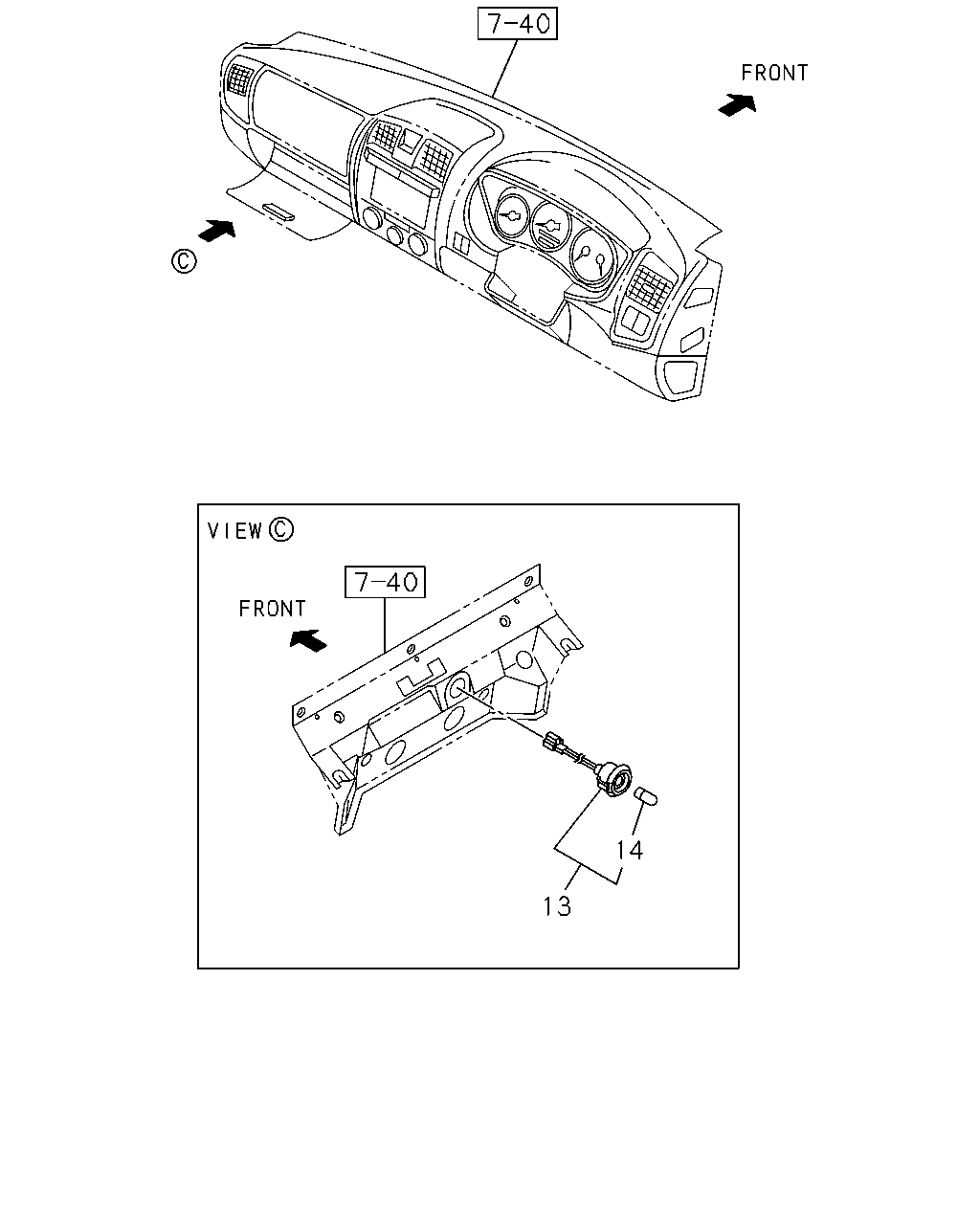

çizim 186201
14 13
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
13 02.575 LAMP ASM; GLOVE BOX 8-97363-727-0 01 1 0808-0809 ● ● ●
13 02.575 LAMP ASM; GLOVE BOX
EXTEND CAB EXTRA LONG(TF**CK) 		8-97363-727-0 01 1 0808-0809 ●
13 02.575 LAMP ASM; GLOVE BOX
4X4 REGULAR CAB EXTRA LONG(TFS*SK) LAMP GLOVE COMPARTMENT<U27> 		8-97363-727-0 01 1 0808-0809 ●
13 02.575 LAMP ASM; GLOVE BOX
LAMP GLOVE COMPARTMENT<U27> 		8-97363-727-0 01 1 0810-0912 ● ● ● ● ● ●
13 02.575 LAMP ASM; GLOVE BOX 8-97363-727-0 01 1 0810-0912 ●
13 02.575 LAMP ASM; GLOVE BOX
LAMP GLOVE COMPARTMENT<U27> 		8-97363-727-0 01 1 1001- ● ● ● ● ● ● ●
14 08.991 BULB; GLOVE BOX LAMP
12V 1.2W 		8-97352-272-0 01 1 0808-0809 ● ● ●
14 08.991 BULB; GLOVE BOX LAMP
EXTEND CAB EXTRA LONG(TF**CK) 12V 1.2W 		8-97352-272-0 01 1 0808-0809 ●
14 08.991 BULB; GLOVE BOX LAMP
4X4 REGULAR CAB EXTRA LONG(TFS*SK) LAMP GLOVE COMPARTMENT<U27> 12V 1.2W 		8-97352-272-0 01 1 0808-0809 ●
14 08.991 BULB; GLOVE BOX LAMP
LAMP GLOVE COMPARTMENT<U27> 12V 1.2W 		8-97352-272-0 01 1 0810-0912 ● ● ● ● ● ●
14 08.991 BULB; GLOVE BOX LAMP
12V 1.2W 		8-97352-272-0 01 1 0810-0912 ●
14 08.991 BULB; GLOVE BOX LAMP
LAMP GLOVE COMPARTMENT<U27> 12V 1.2W 		8-97352-272-0 01 1 1001- ● ● ● ● ● ● ●
