◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51194 - TFR/TFS-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-03 - LAMP; REAR AND REAR SIDE ▶
8-03 — LAMP; REAR AND REAR SIDE (#77098) — 261 parça

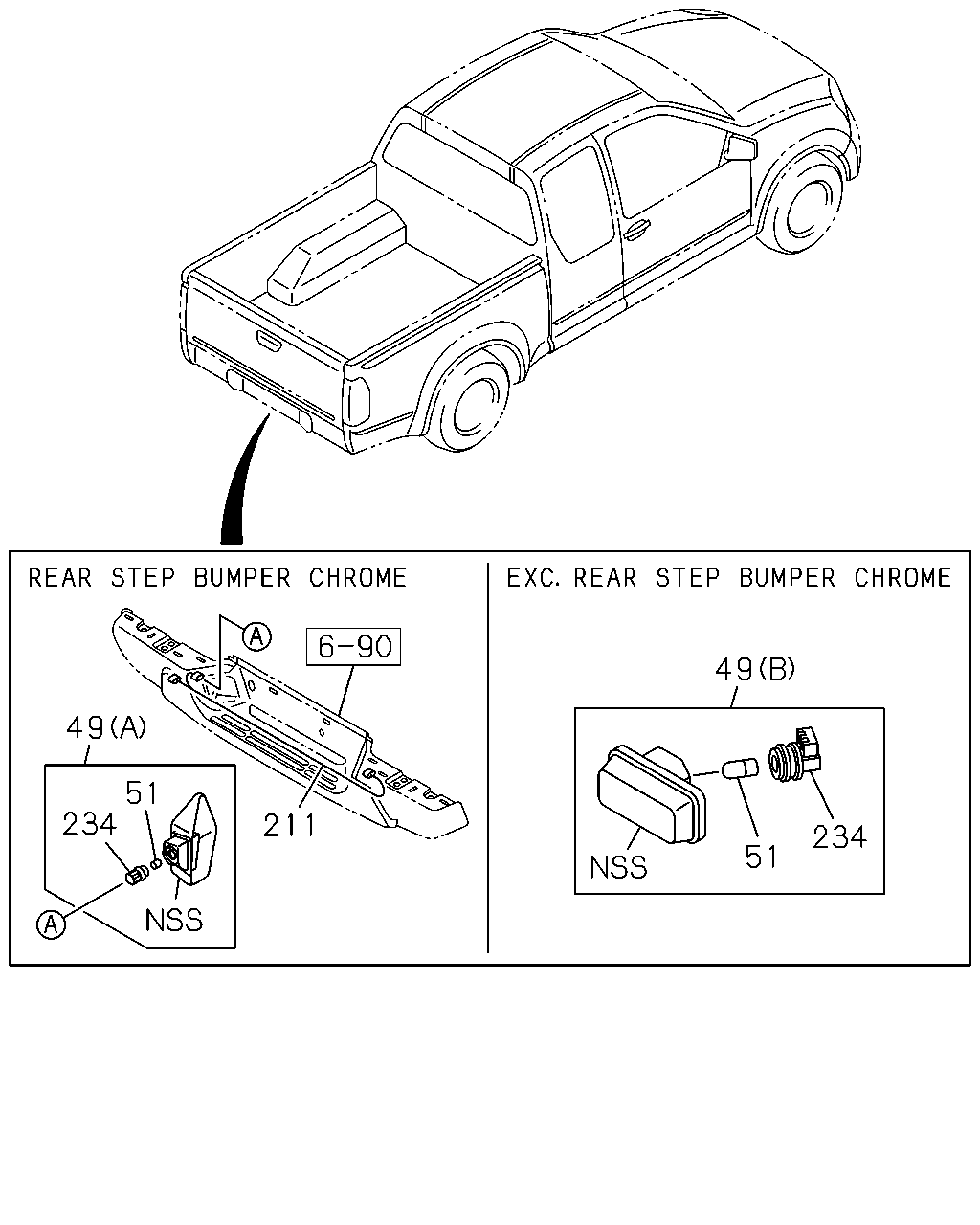

çizim 136044
49 49 51 234 211 234 51
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
49 02.700 LAMP; LICENSE PLATE
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (A) 		8-98070-866-0 01 1 0808-0809 ● ● ●
49 02.700 LAMP; LICENSE PLATE
EXTEND CAB EXTRA LONG(TF**CK) REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (A) 		8-98070-866-0 01 1 0808-0809 ●
49 02.700 LAMP; LICENSE PLATE
4X4 REGULAR CAB EXTRA LONG(TFS*SK) REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (A) 		8-98070-866-0 01 1 0808-0809 ●
49 02.700 LAMP; LICENSE PLATE
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (A) 		8-98070-866-0 01 1 0810- ● ● ● ● ● ● ●
49 02.700 LAMP; LICENSE PLATE
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (A) 		8-98070-867-0 01 1 0808-0809 ● ● ●
49 02.700 LAMP; LICENSE PLATE
EXTEND CAB EXTRA LONG(TF**CK) REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (A) 		8-98070-867-0 01 1 0808-0809 ●
49 02.700 LAMP; LICENSE PLATE
4X4 REGULAR CAB EXTRA LONG(TFS*SK) REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (A) 		8-98070-867-0 01 1 0808-0809 ●
49 02.700 LAMP; LICENSE PLATE
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (A) 		8-98070-867-0 01 1 0810- ● ● ● ● ● ● ●
49 02.700 LAMP; LICENSE PLATE
EXC. REAR STEP BUMPER(VF6),REAR STEPBUMPER CHROME(V42) (B) 		8-97236-690-1 02 1 0808-0809 ● ● ●
49 02.700 LAMP; LICENSE PLATE
EXTEND CAB EXTRA LONG(TF**CK) EXC. REAR STEP BUMPER(VF6),REAR STEPBUMPER CHROME(V42) (B) 		8-97236-690-1 02 1 0808-0809 ●
49 02.700 LAMP; LICENSE PLATE
4X4 REGULAR CAB EXTRA LONG(TFS*SK) EXC. REAR STEP BUMPER(VF6),REAR STEPBUMPER CHROME(V42) (B) 		8-97236-690-1 02 1 0808-0809 ●
49 02.700 LAMP; LICENSE PLATE
EXC. REAR STEP BUMPER(VF6),REAR STEPBUMPER CHROME(V42) (B) 		8-97236-690-1 02 1 0810-1306 ● ● ● ● ● ● ●
49 02.700 LAMP; LICENSE PLATE
EXC. REAR STEP BUMPER(VF6),REAR STEPBUMPER CHROME(V42) (B) 		8-98224-482-0 02 1 1307- ● ● ● ● ● ● ●
51 08.991 BULB; LICENSE PLATE LAMP
12V 5W 		8-94124-595-0 02 1 0808-0809 ● ● ●
51 08.991 BULB; LICENSE PLATE LAMP
EXTEND CAB EXTRA LONG(TF**CK) 12V 5W 		8-94124-595-0 02 1 0808-0809 ●
51 08.991 BULB; LICENSE PLATE LAMP
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 12V 5W 		8-94124-595-0 02 1 0808-0809 ●
51 08.991 BULB; LICENSE PLATE LAMP
12V 5W 		8-94124-595-0 02 1 0810- ● ● ● ● ● ● ●
211 02.708 HARNESS; EXT
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98025-099-0 01 1 0808-0809 ● ● ●
211 02.708 HARNESS; EXT
EXTEND CAB EXTRA LONG(TF**CK) REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98025-099-0 01 1 0808-0809 ●
211 02.708 HARNESS; EXT
4X4 REGULAR CAB EXTRA LONG(TFS*SK) REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98025-099-0 01 1 0808-0809 ●
211 02.708 HARNESS; EXT
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98025-099-0 01 1 0810- ● ● ● ● ● ● ●
234 02.596 SOCKET ASM; LICENSE PLATE LAMP
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97184-970-0 02 1 0808-0809 ● ● ●
234 02.596 SOCKET ASM; LICENSE PLATE LAMP
EXTEND CAB EXTRA LONG(TF**CK) REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97184-970-0 02 1 0808-0809 ●
234 02.596 SOCKET ASM; LICENSE PLATE LAMP
4X4 REGULAR CAB EXTRA LONG(TFS*SK) REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97184-970-0 02 1 0808-0809 ●
234 02.596 SOCKET ASM; LICENSE PLATE LAMP
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97184-970-0 02 1 0810- ● ● ● ● ● ● ●
234 02.596 SOCKET ASM; LICENSE PLATE LAMP
EXC. REAR STEP BUMPER(VF6),REAR STEPBUMPER CHROME(V42) 		1-82119-148-0 02 1 0808-0809 ● ● ●
234 02.596 SOCKET ASM; LICENSE PLATE LAMP
EXTEND CAB EXTRA LONG(TF**CK) EXC. REAR STEP BUMPER(VF6),REAR STEPBUMPER CHROME(V42) 		1-82119-148-0 02 1 0808-0809 ●
234 02.596 SOCKET ASM; LICENSE PLATE LAMP
4X4 REGULAR CAB EXTRA LONG(TFS*SK) EXC. REAR STEP BUMPER(VF6),REAR STEPBUMPER CHROME(V42) 		1-82119-148-0 02 1 0808-0809 ●
234 02.596 SOCKET ASM; LICENSE PLATE LAMP
EXC. REAR STEP BUMPER(VF6),REAR STEPBUMPER CHROME(V42) 		1-82119-148-0 02 1 0810- ● ● ● ● ● ● ●

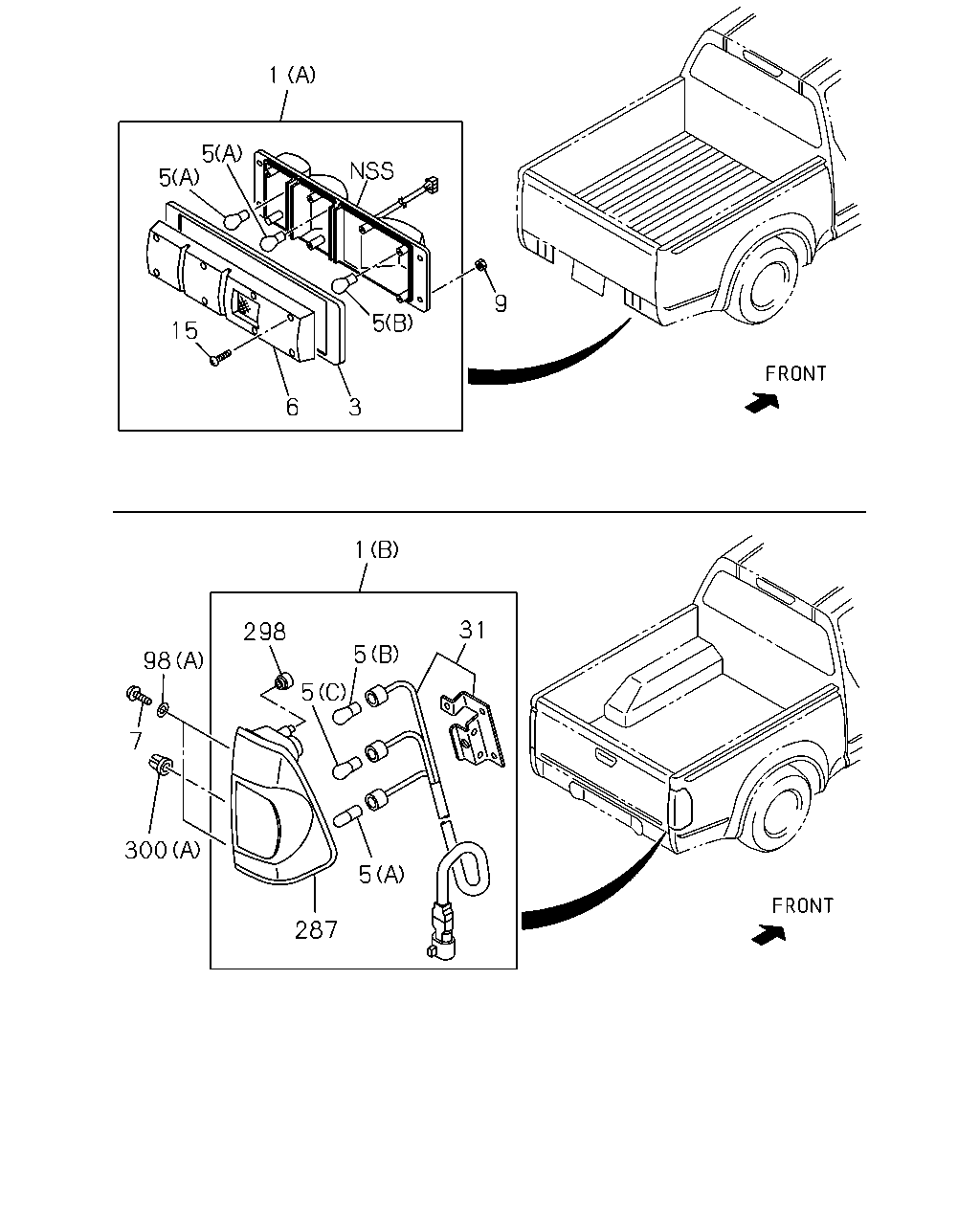

çizim 136484
1 5 5 9 5 15 6 3 1 31 298 5 98 5 7 300 5 287
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 02.679 LAMP ASM; RR COMB
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98023-359-0 01 1 0810- ● ●
1 02.679 LAMP ASM; RR COMB
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98023-360-0 01 1 0810- ● ●
1 02.679 LAMP ASM; RR COMB
(A) 		8-97137-731-0 01 1 0808-0809 ●
1 02.679 LAMP ASM; RR COMB
REAR BODY DELETE(8HH) (A) 		8-97137-731-0 01 1 0808-0809 ●
1 02.679 LAMP ASM; RR COMB
EXTEND CAB EXTRA LONG(TF**CK) (A) 		8-97137-731-0 01 1 0808-0809 ●
1 02.679 LAMP ASM; RR COMB
4X4 REGULAR CAB EXTRA LONG(TFS*SK) (A) 		8-97137-731-0 01 1 0808-0809 ●
1 02.679 LAMP ASM; RR COMB
4X4 CREW CAB LONG(TFS*WF) REAR BODY DELETE(8HH) (A) 		8-97137-731-0 01 1 0808-0809 ●
1 02.679 LAMP ASM; RR COMB
CREW CAB EXTRA LONG(TF**WK) (A) 		8-97137-731-0 01 1 0808-0809 ●
1 02.679 LAMP ASM; RR COMB
REAR BODY DELETE(8HH) (A) 		8-97137-731-0 01 1 0810- ● ● ● ● ● ●
1 02.679 LAMP ASM; RR COMB
REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) (A) 		8-97137-731-0 01 1 0810- ●
1 02.679 LAMP ASM; RR COMB
(A) 		8-97137-732-0 01 1 0808-0809 ●
1 02.679 LAMP ASM; RR COMB
REAR BODY DELETE(8HH) (A) 		8-97137-732-0 01 1 0808-0809 ●
1 02.679 LAMP ASM; RR COMB
EXTEND CAB EXTRA LONG(TF**CK) (A) 		8-97137-732-0 01 1 0808-0809 ●
1 02.679 LAMP ASM; RR COMB
4X4 REGULAR CAB EXTRA LONG(TFS*SK) (A) 		8-97137-732-0 01 1 0808-0809 ●
1 02.679 LAMP ASM; RR COMB
4X4 CREW CAB LONG(TFS*WF) REAR BODY DELETE(8HH) (A) 		8-97137-732-0 01 1 0808-0809 ●
1 02.679 LAMP ASM; RR COMB
CREW CAB EXTRA LONG(TF**WK) (A) 		8-97137-732-0 01 1 0808-0809 ●
1 02.679 LAMP ASM; RR COMB
REAR BODY DELETE(8HH) (A) 		8-97137-732-0 01 1 0810- ● ● ● ● ● ●
1 02.679 LAMP ASM; RR COMB
REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) (A) 		8-97137-732-0 01 1 0810- ●
1 02.679 LAMP ASM; RR COMB
GRADE LX(RBB) REAR BODY DBL WALL CTR PULL(E63) (B) 		8-97375-606-2 01 1 0808-0809 ●
1 02.679 LAMP ASM; RR COMB
4X4 CREW CAB LONG(TFS*WF) GRADE LX(RBB) REAR BODY DBL WALL CTR PULL(E63) (B) 		8-97375-606-2 01 1 0808-0809 ●
1 02.679 LAMP ASM; RR COMB
GRADE DX(RBA),GRADE LX(RBB) REAR BODY DBL WALL CTR PULL(E63) (B) 		8-97375-606-2 01 1 0810- ● ● ● ●
1 02.679 LAMP ASM; RR COMB
GRADE LX(RBB) REAR BODY DBL WALL CTR PULL(E63) (B) 		8-97375-607-2 01 1 0808-0809 ●
1 02.679 LAMP ASM; RR COMB
4X4 CREW CAB LONG(TFS*WF) GRADE LX(RBB) REAR BODY DBL WALL CTR PULL(E63) (B) 		8-97375-607-2 01 1 0808-0809 ●
1 02.679 LAMP ASM; RR COMB
GRADE DX(RBA),GRADE LX(RBB) REAR BODY DBL WALL CTR PULL(E63) (B) 		8-97375-607-2 01 1 0810- ● ● ● ●
1 02.679 LAMP ASM; RR COMB
GRADE LT/LS(RBD) REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98098-586-0 01 1 0808-0809 ●
1 02.679 LAMP ASM; RR COMB
4X4 CREW CAB LONG(TFS*WF) GRADE LT/LS(RBD) REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98098-586-0 01 1 0808-0809 ●
1 02.679 LAMP ASM; RR COMB
GRADE LT/LS(RBD) REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98098-586-0 01 1 0810- ● ● ● ●
1 02.679 LAMP ASM; RR COMB
GRADE LT/LS(RBD) REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98098-587-0 01 1 0808-0809 ●
1 02.679 LAMP ASM; RR COMB
4X4 CREW CAB LONG(TFS*WF) GRADE LT/LS(RBD) REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98098-587-0 01 1 0808-0809 ●
1 02.679 LAMP ASM; RR COMB
GRADE LT/LS(RBD) REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98098-587-0 01 1 0810- ● ● ● ●
3 02.684 GASKET; RR COMB LAMP
02.689 		5-82236-001-0 01 1 0808-0809 ●
3 02.684 GASKET; RR COMB LAMP
REAR BODY DELETE(8HH) 02.689 		5-82236-001-0 01 1 0808-0809 ●
3 02.684 GASKET; RR COMB LAMP
EXTEND CAB EXTRA LONG(TF**CK) 02.689 		5-82236-001-0 01 1 0808-0809 ●
3 02.684 GASKET; RR COMB LAMP
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 02.689 		5-82236-001-0 01 1 0808-0809 ●
3 02.684 GASKET; RR COMB LAMP
4X4 CREW CAB LONG(TFS*WF) REAR BODY DELETE(8HH) 02.689 		5-82236-001-0 01 1 0808-0809 ●
3 02.684 GASKET; RR COMB LAMP
CREW CAB EXTRA LONG(TF**WK) 02.689 		5-82236-001-0 01 1 0808-0809 ●
3 02.684 GASKET; RR COMB LAMP
REAR BODY DELETE(8HH) 02.689 		5-82236-001-0 01 1 0810- ● ● ● ● ● ●
3 02.684 GASKET; RR COMB LAMP
REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) 02.689 		5-82236-001-0 01 1 0810- ●
3 02.684 GASKET; RR COMB LAMP
02.689 		5-82236-002-0 01 1 0808-0809 ●
3 02.684 GASKET; RR COMB LAMP
REAR BODY DELETE(8HH) 02.689 		5-82236-002-0 01 1 0808-0809 ●
3 02.684 GASKET; RR COMB LAMP
EXTEND CAB EXTRA LONG(TF**CK) 02.689 		5-82236-002-0 01 1 0808-0809 ●
3 02.684 GASKET; RR COMB LAMP
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 02.689 		5-82236-002-0 01 1 0808-0809 ●
3 02.684 GASKET; RR COMB LAMP
4X4 CREW CAB LONG(TFS*WF) REAR BODY DELETE(8HH) 02.689 		5-82236-002-0 01 1 0808-0809 ●
3 02.684 GASKET; RR COMB LAMP
CREW CAB EXTRA LONG(TF**WK) 02.689 		5-82236-002-0 01 1 0808-0809 ●
3 02.684 GASKET; RR COMB LAMP
REAR BODY DELETE(8HH) 02.689 		5-82236-002-0 01 1 0810- ● ● ● ● ● ●
3 02.684 GASKET; RR COMB LAMP
REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) 02.689 		5-82236-002-0 01 1 0810- ●
5 08.991 BULB; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) (A) 12V 21W 		8-94124-074-0 02 1 0810- ● ●
5 08.991 BULB; RR COMB LAMP
(B) 12V 21/5W 		8-94125-959-0 02 1 0808-0809 ● ● ●
5 08.991 BULB; RR COMB LAMP
EXTEND CAB EXTRA LONG(TF**CK) (B) 12V 21/5W 		8-94125-959-0 02 1 0808-0809 ●
5 08.991 BULB; RR COMB LAMP
4X4 REGULAR CAB EXTRA LONG(TFS*SK) (B) 12V 21/5W 		8-94125-959-0 02 1 0808-0809 ●
5 08.991 BULB; RR COMB LAMP
REAR BODY DELETE(8HH) (B) 12V 21/5W 		8-94125-959-0 02 1 0810- ● ●
5 08.991 BULB; RR COMB LAMP
GRADE DX(RBA),GRADE LT/LS(RBD) REAR BODY DBL WALL CTR PULL(E63) (B) 12V 21/5W 		8-94125-959-0 02 1 0810- ● ●
5 08.991 BULB; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63), REAR BODY DELETE(8HH) (B) 12V 21/5W 		8-94125-959-0 02 1 0810- ● ● ● ● ●
5 08.991 BULB; RR COMB LAMP
(A) 12V 21W 		8-94124-074-0 04 1 0808-0809 ●
5 08.991 BULB; RR COMB LAMP
REAR BODY DELETE(8HH) (A) 12V 21W 		8-94124-074-0 04 1 0808-0809 ●
5 08.991 BULB; RR COMB LAMP
EXTEND CAB EXTRA LONG(TF**CK) (A) 12V 21W 		8-94124-074-0 04 1 0808-0809 ●
5 08.991 BULB; RR COMB LAMP
4X4 REGULAR CAB EXTRA LONG(TFS*SK) (A) 12V 21W 		8-94124-074-0 04 1 0808-0809 ●
5 08.991 BULB; RR COMB LAMP
4X4 CREW CAB LONG(TFS*WF) REAR BODY DELETE(8HH) (A) 12V 21W 		8-94124-074-0 04 1 0808-0809 ●
5 08.991 BULB; RR COMB LAMP
CREW CAB EXTRA LONG(TF**WK) (A) 12V 21W 		8-94124-074-0 04 1 0808-0809 ●
5 08.991 BULB; RR COMB LAMP
REAR BODY DELETE(8HH) (A) 12V 21W 		8-94124-074-0 04 1 0810- ● ● ● ● ● ●
5 08.991 BULB; RR COMB LAMP
REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) (A) 12V 21W 		8-94124-074-0 04 1 0810- ●
5 08.991 BULB; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) (A) 12V 18W 		8-94372-897-0 02 1 0808-0809 ●
5 08.991 BULB; RR COMB LAMP
4X4 CREW CAB LONG(TFS*WF) REAR BODY DBL WALL CTR PULL(E63) (A) 12V 18W 		8-94372-897-0 02 1 0808-0809 ●
5 08.991 BULB; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) (A) 12V 18W 		8-94372-897-0 02 1 0810- ● ● ● ●
5 08.991 BULB; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) (C) 12V 21W 		8-97179-967-0 02 1 0808-0809 ●
5 08.991 BULB; RR COMB LAMP
4X4 CREW CAB LONG(TFS*WF) REAR BODY DBL WALL CTR PULL(E63) (C) 12V 21W 		8-97179-967-0 02 1 0808-0809 ●
5 08.991 BULB; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) (C) 12V 21W 		8-97179-967-0 02 1 0810- ● ● ● ● ● ●
6 02.682 LENS; RR COMB LAMP 5-82235-001-0 01 1 0808-0809 ●
6 02.682 LENS; RR COMB LAMP
REAR BODY DELETE(8HH) 		5-82235-001-0 01 1 0808-0809 ●
6 02.682 LENS; RR COMB LAMP
EXTEND CAB EXTRA LONG(TF**CK) 		5-82235-001-0 01 1 0808-0809 ●
6 02.682 LENS; RR COMB LAMP
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 		5-82235-001-0 01 1 0808-0809 ●
6 02.682 LENS; RR COMB LAMP
4X4 CREW CAB LONG(TFS*WF) REAR BODY DELETE(8HH) 		5-82235-001-0 01 1 0808-0809 ●
6 02.682 LENS; RR COMB LAMP
CREW CAB EXTRA LONG(TF**WK) 		5-82235-001-0 01 1 0808-0809 ●
6 02.682 LENS; RR COMB LAMP
REAR BODY DELETE(8HH) 		5-82235-001-0 01 1 0810- ● ● ● ● ● ●
6 02.682 LENS; RR COMB LAMP
REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) 		5-82235-001-0 01 1 0810- ●
6 02.682 LENS; RR COMB LAMP 5-82235-002-0 01 1 0808-0809 ●
6 02.682 LENS; RR COMB LAMP
REAR BODY DELETE(8HH) 		5-82235-002-0 01 1 0808-0809 ●
6 02.682 LENS; RR COMB LAMP
EXTEND CAB EXTRA LONG(TF**CK) 		5-82235-002-0 01 1 0808-0809 ●
6 02.682 LENS; RR COMB LAMP
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 		5-82235-002-0 01 1 0808-0809 ●
6 02.682 LENS; RR COMB LAMP
4X4 CREW CAB LONG(TFS*WF) REAR BODY DELETE(8HH) 		5-82235-002-0 01 1 0808-0809 ●
6 02.682 LENS; RR COMB LAMP
CREW CAB EXTRA LONG(TF**WK) 		5-82235-002-0 01 1 0808-0809 ●
6 02.682 LENS; RR COMB LAMP
REAR BODY DELETE(8HH) 		5-82235-002-0 01 1 0810- ● ● ● ● ● ●
6 02.682 LENS; RR COMB LAMP
REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) 		5-82235-002-0 01 1 0810- ●
7 02.664 SCREW; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) 16.800 M5X14 TAPPING W/PL WASHER 		0-74160-514-0 04 1 0808-0809 ●
7 02.664 SCREW; RR COMB LAMP
4X4 CREW CAB LONG(TFS*WF) REAR BODY DBL WALL CTR PULL(E63) 16.800 M5X14 TAPPING W/PL WASHER 		0-74160-514-0 04 1 0808-0809 ●
7 02.664 SCREW; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) 16.800 M5X14 TAPPING W/PL WASHER 		0-74160-514-0 04 1 0810- ● ● ● ● ●
9 02.689 NUT; LAMP,RR COMB
M5 FLANGE 		8-98049-363-0 08 1 0808-0809 ●
9 02.689 NUT; LAMP,RR COMB
REAR BODY DELETE(8HH) M5 FLANGE 		8-98049-363-0 08 1 0808-0809 ●
9 02.689 NUT; LAMP,RR COMB
EXTEND CAB EXTRA LONG(TF**CK) M5 FLANGE 		8-98049-363-0 08 1 0808-0809 ●
9 02.689 NUT; LAMP,RR COMB
4X4 REGULAR CAB EXTRA LONG(TFS*SK) M5 FLANGE 		8-98049-363-0 08 1 0808-0809 ●
9 02.689 NUT; LAMP,RR COMB
4X4 CREW CAB LONG(TFS*WF) REAR BODY DELETE(8HH) M5 FLANGE 		8-98049-363-0 08 1 0808-0809 ●
9 02.689 NUT; LAMP,RR COMB
CREW CAB EXTRA LONG(TF**WK) M5 FLANGE 		8-98049-363-0 08 1 0808-0809 ●
9 02.689 NUT; LAMP,RR COMB
REAR BODY DELETE(8HH) M5 FLANGE 		8-98049-363-0 08 1 0810- ● ● ● ● ● ●
9 02.689 NUT; LAMP,RR COMB
REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) M5 FLANGE 		8-98049-363-0 08 1 0810- ●
15 02.664 SCREW; RR COMB LAMP
02.587 M4X20 TAPPING STAINLESS 		0-71090-420-0 16 1 0808-0809 ●
15 02.664 SCREW; RR COMB LAMP
REAR BODY DELETE(8HH) 02.587 M4X20 TAPPING STAINLESS 		0-71090-420-0 16 1 0808-0809 ●
15 02.664 SCREW; RR COMB LAMP
EXTEND CAB EXTRA LONG(TF**CK) 02.587 M4X20 TAPPING STAINLESS 		0-71090-420-0 16 1 0808-0809 ●
15 02.664 SCREW; RR COMB LAMP
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 02.587 M4X20 TAPPING STAINLESS 		0-71090-420-0 16 1 0808-0809 ●
15 02.664 SCREW; RR COMB LAMP
4X4 CREW CAB LONG(TFS*WF) REAR BODY DELETE(8HH) 02.587 M4X20 TAPPING STAINLESS 		0-71090-420-0 16 1 0808-0809 ●
15 02.664 SCREW; RR COMB LAMP
CREW CAB EXTRA LONG(TF**WK) 02.587 M4X20 TAPPING STAINLESS 		0-71090-420-0 16 1 0808-0809 ●
15 02.664 SCREW; RR COMB LAMP
REAR BODY DELETE(8HH) 02.587 M4X20 TAPPING STAINLESS 		0-71090-420-0 16 1 0810- ● ● ● ● ● ●
15 02.664 SCREW; RR COMB LAMP
REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) 02.587 M4X20 TAPPING STAINLESS 		0-71090-420-0 16 1 0810- ●
31 02.664 BRACKET; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) 		8-98012-764-0 01 1 0808-0809 ●
31 02.664 BRACKET; RR COMB LAMP
4X4 CREW CAB LONG(TFS*WF) REAR BODY DBL WALL CTR PULL(E63) 		8-98012-764-0 01 1 0808-0809 ●
31 02.664 BRACKET; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) 		8-98012-764-0 01 1 0810- ● ● ● ●
31 02.664 BRACKET; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) 		8-98012-765-0 01 1 0808-0809 ●
31 02.664 BRACKET; RR COMB LAMP
4X4 CREW CAB LONG(TFS*WF) REAR BODY DBL WALL CTR PULL(E63) 		8-98012-765-0 01 1 0808-0809 ●
31 02.664 BRACKET; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) 		8-98012-765-0 01 1 0810- ● ● ● ●
98 02.708 WASHER
16.588 (B) 		8-94279-039-0 02 1 0808-0809 ● ● ●
98 02.708 WASHER
EXTEND CAB EXTRA LONG(TF**CK) 16.588 (B) 		8-94279-039-0 02 1 0808-0809 ●
98 02.708 WASHER
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 16.588 (B) 		8-94279-039-0 02 1 0808-0809 ●
98 02.708 WASHER
HIGH MOUNT STOP LAMP<TS6> 16.588 (B) 		8-94279-039-0 02 1 0810- ● ● ● ● ● ●
98 02.708 WASHER
16.588 (B) 		8-94279-039-0 02 1 0810- ●
98 02.708 WASHER
REAR BODY DBL WALL CTR PULL(E63) 08.054 (A) D=16 		8-94427-941-0 04 1 0808-0809 ●
98 02.708 WASHER
4X4 CREW CAB LONG(TFS*WF) REAR BODY DBL WALL CTR PULL(E63) 08.054 (A) D=16 		8-94427-941-0 04 1 0808-0809 ●
98 02.708 WASHER
REAR BODY DBL WALL CTR PULL(E63) 08.054 (A) D=16 		8-94427-941-0 04 1 0810- ● ● ● ● ●
287 02.679 LAMP UNIT; RR COMB
GRADE LX(RBB) REAR BODY DBL WALL CTR PULL(E63) 		8-98012-759-0 01 1 0808-0809 ●
287 02.679 LAMP UNIT; RR COMB
4X4 CREW CAB LONG(TFS*WF) GRADE LX(RBB) REAR BODY DBL WALL CTR PULL(E63) 		8-98012-759-0 01 1 0808-0809 ●
287 02.679 LAMP UNIT; RR COMB
GRADE DX(RBA),GRADE LX(RBB) REAR BODY DBL WALL CTR PULL(E63) 		8-98012-759-0 01 1 0810- ● ● ● ●
287 02.679 LAMP UNIT; RR COMB
GRADE LX(RBB) REAR BODY DBL WALL CTR PULL(E63) 		8-98012-760-0 01 1 0808-0809 ●
287 02.679 LAMP UNIT; RR COMB
4X4 CREW CAB LONG(TFS*WF) GRADE LX(RBB) REAR BODY DBL WALL CTR PULL(E63) 		8-98012-760-0 01 1 0808-0809 ●
287 02.679 LAMP UNIT; RR COMB
GRADE DX(RBA),GRADE LX(RBB) REAR BODY DBL WALL CTR PULL(E63) 		8-98012-760-0 01 1 0810- ● ● ● ●
287 02.679 LAMP UNIT; RR COMB
GRADE LT/LS(RBD) REAR BODY DBL WALL CTR PULL(E63) 		8-98012-757-0 01 1 0808-0809 ●
287 02.679 LAMP UNIT; RR COMB
4X4 CREW CAB LONG(TFS*WF) GRADE LT/LS(RBD) REAR BODY DBL WALL CTR PULL(E63) 		8-98012-757-0 01 1 0808-0809 ●
287 02.679 LAMP UNIT; RR COMB
GRADE LT/LS(RBD) REAR BODY DBL WALL CTR PULL(E63) 		8-98012-757-0 01 1 0810- ● ● ● ●
287 02.679 LAMP UNIT; RR COMB
GRADE LT/LS(RBD) REAR BODY DBL WALL CTR PULL(E63) 		8-98012-758-0 01 1 0808-0809 ●
287 02.679 LAMP UNIT; RR COMB
4X4 CREW CAB LONG(TFS*WF) GRADE LT/LS(RBD) REAR BODY DBL WALL CTR PULL(E63) 		8-98012-758-0 01 1 0808-0809 ●
287 02.679 LAMP UNIT; RR COMB
GRADE LT/LS(RBD) REAR BODY DBL WALL CTR PULL(E63) 		8-98012-758-0 01 1 0810- ● ● ● ●
298 02.727 CAP; BREATHER,RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) 		8-97289-148-0 02 1 0808-0809 ●
298 02.727 CAP; BREATHER,RR COMB LAMP
4X4 CREW CAB LONG(TFS*WF) REAR BODY DBL WALL CTR PULL(E63) 		8-97289-148-0 02 1 0808-0809 ●
298 02.727 CAP; BREATHER,RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) 		8-97289-148-0 02 1 0810- ● ● ● ●
300 16.494 HOLDER; LAMP
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-97305-675-0 02 1 0810- ● ●
300 16.494 HOLDER; LAMP
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-97305-676-0 02 1 0810- ● ●
300 16.494 HOLDER; LAMP
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-97372-854-0 02 1 0808-0809 ●
300 16.494 HOLDER; LAMP
4X4 CREW CAB LONG(TFS*WF) REAR BODY DBL WALL CTR PULL(E63) (A) 		8-97372-854-0 02 1 0808-0809 ●
300 16.494 HOLDER; LAMP
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-97372-854-0 02 1 0810- ● ● ● ●

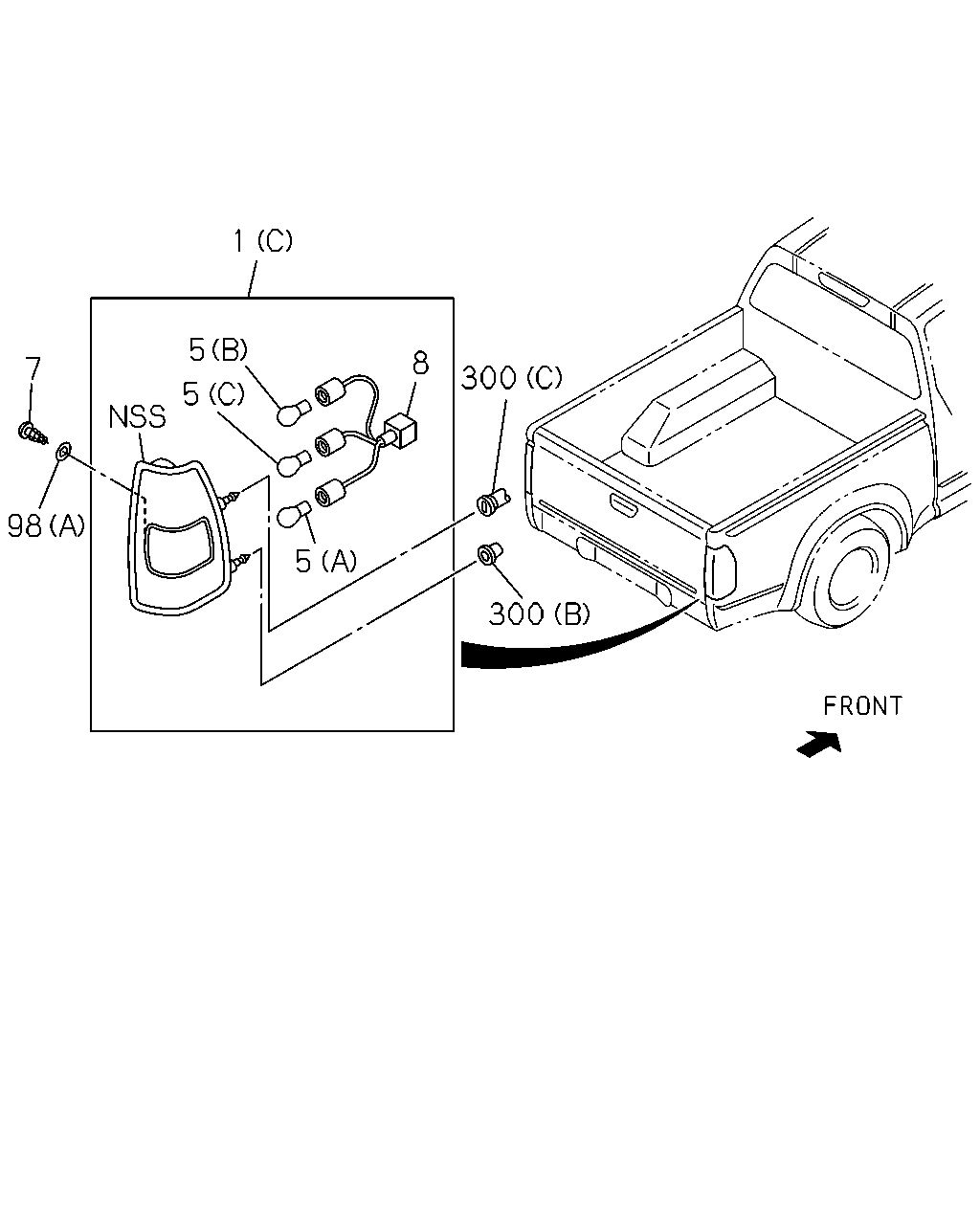

çizim 136487
1 5 8 7 300 5 98 5 300
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 02.679 LAMP ASM; RR COMB
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98023-359-0 01 1 0810- ● ●
1 02.679 LAMP ASM; RR COMB
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98023-360-0 01 1 0810- ● ●
1 02.679 LAMP ASM; RR COMB
(A) 		8-97137-731-0 01 1 0808-0809 ●
1 02.679 LAMP ASM; RR COMB
REAR BODY DELETE(8HH) (A) 		8-97137-731-0 01 1 0808-0809 ●
1 02.679 LAMP ASM; RR COMB
EXTEND CAB EXTRA LONG(TF**CK) (A) 		8-97137-731-0 01 1 0808-0809 ●
1 02.679 LAMP ASM; RR COMB
4X4 REGULAR CAB EXTRA LONG(TFS*SK) (A) 		8-97137-731-0 01 1 0808-0809 ●
1 02.679 LAMP ASM; RR COMB
4X4 CREW CAB LONG(TFS*WF) REAR BODY DELETE(8HH) (A) 		8-97137-731-0 01 1 0808-0809 ●
1 02.679 LAMP ASM; RR COMB
CREW CAB EXTRA LONG(TF**WK) (A) 		8-97137-731-0 01 1 0808-0809 ●
1 02.679 LAMP ASM; RR COMB
REAR BODY DELETE(8HH) (A) 		8-97137-731-0 01 1 0810- ● ● ● ● ● ●
1 02.679 LAMP ASM; RR COMB
REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) (A) 		8-97137-731-0 01 1 0810- ●
1 02.679 LAMP ASM; RR COMB
(A) 		8-97137-732-0 01 1 0808-0809 ●
1 02.679 LAMP ASM; RR COMB
REAR BODY DELETE(8HH) (A) 		8-97137-732-0 01 1 0808-0809 ●
1 02.679 LAMP ASM; RR COMB
EXTEND CAB EXTRA LONG(TF**CK) (A) 		8-97137-732-0 01 1 0808-0809 ●
1 02.679 LAMP ASM; RR COMB
4X4 REGULAR CAB EXTRA LONG(TFS*SK) (A) 		8-97137-732-0 01 1 0808-0809 ●
1 02.679 LAMP ASM; RR COMB
4X4 CREW CAB LONG(TFS*WF) REAR BODY DELETE(8HH) (A) 		8-97137-732-0 01 1 0808-0809 ●
1 02.679 LAMP ASM; RR COMB
CREW CAB EXTRA LONG(TF**WK) (A) 		8-97137-732-0 01 1 0808-0809 ●
1 02.679 LAMP ASM; RR COMB
REAR BODY DELETE(8HH) (A) 		8-97137-732-0 01 1 0810- ● ● ● ● ● ●
1 02.679 LAMP ASM; RR COMB
REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) (A) 		8-97137-732-0 01 1 0810- ●
1 02.679 LAMP ASM; RR COMB
GRADE LX(RBB) REAR BODY DBL WALL CTR PULL(E63) (B) 		8-97375-606-2 01 1 0808-0809 ●
1 02.679 LAMP ASM; RR COMB
4X4 CREW CAB LONG(TFS*WF) GRADE LX(RBB) REAR BODY DBL WALL CTR PULL(E63) (B) 		8-97375-606-2 01 1 0808-0809 ●
1 02.679 LAMP ASM; RR COMB
GRADE DX(RBA),GRADE LX(RBB) REAR BODY DBL WALL CTR PULL(E63) (B) 		8-97375-606-2 01 1 0810- ● ● ● ●
1 02.679 LAMP ASM; RR COMB
GRADE LX(RBB) REAR BODY DBL WALL CTR PULL(E63) (B) 		8-97375-607-2 01 1 0808-0809 ●
1 02.679 LAMP ASM; RR COMB
4X4 CREW CAB LONG(TFS*WF) GRADE LX(RBB) REAR BODY DBL WALL CTR PULL(E63) (B) 		8-97375-607-2 01 1 0808-0809 ●
1 02.679 LAMP ASM; RR COMB
GRADE DX(RBA),GRADE LX(RBB) REAR BODY DBL WALL CTR PULL(E63) (B) 		8-97375-607-2 01 1 0810- ● ● ● ●
1 02.679 LAMP ASM; RR COMB
GRADE LT/LS(RBD) REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98098-586-0 01 1 0808-0809 ●
1 02.679 LAMP ASM; RR COMB
4X4 CREW CAB LONG(TFS*WF) GRADE LT/LS(RBD) REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98098-586-0 01 1 0808-0809 ●
1 02.679 LAMP ASM; RR COMB
GRADE LT/LS(RBD) REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98098-586-0 01 1 0810- ● ● ● ●
1 02.679 LAMP ASM; RR COMB
GRADE LT/LS(RBD) REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98098-587-0 01 1 0808-0809 ●
1 02.679 LAMP ASM; RR COMB
4X4 CREW CAB LONG(TFS*WF) GRADE LT/LS(RBD) REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98098-587-0 01 1 0808-0809 ●
1 02.679 LAMP ASM; RR COMB
GRADE LT/LS(RBD) REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98098-587-0 01 1 0810- ● ● ● ●
5 08.991 BULB; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) (A) 12V 21W 		8-94124-074-0 02 1 0810- ● ●
5 08.991 BULB; RR COMB LAMP
(B) 12V 21/5W 		8-94125-959-0 02 1 0808-0809 ● ● ●
5 08.991 BULB; RR COMB LAMP
EXTEND CAB EXTRA LONG(TF**CK) (B) 12V 21/5W 		8-94125-959-0 02 1 0808-0809 ●
5 08.991 BULB; RR COMB LAMP
4X4 REGULAR CAB EXTRA LONG(TFS*SK) (B) 12V 21/5W 		8-94125-959-0 02 1 0808-0809 ●
5 08.991 BULB; RR COMB LAMP
REAR BODY DELETE(8HH) (B) 12V 21/5W 		8-94125-959-0 02 1 0810- ● ●
5 08.991 BULB; RR COMB LAMP
GRADE DX(RBA),GRADE LT/LS(RBD) REAR BODY DBL WALL CTR PULL(E63) (B) 12V 21/5W 		8-94125-959-0 02 1 0810- ● ●
5 08.991 BULB; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63), REAR BODY DELETE(8HH) (B) 12V 21/5W 		8-94125-959-0 02 1 0810- ● ● ● ● ●
5 08.991 BULB; RR COMB LAMP
(A) 12V 21W 		8-94124-074-0 04 1 0808-0809 ●
5 08.991 BULB; RR COMB LAMP
REAR BODY DELETE(8HH) (A) 12V 21W 		8-94124-074-0 04 1 0808-0809 ●
5 08.991 BULB; RR COMB LAMP
EXTEND CAB EXTRA LONG(TF**CK) (A) 12V 21W 		8-94124-074-0 04 1 0808-0809 ●
5 08.991 BULB; RR COMB LAMP
4X4 REGULAR CAB EXTRA LONG(TFS*SK) (A) 12V 21W 		8-94124-074-0 04 1 0808-0809 ●
5 08.991 BULB; RR COMB LAMP
4X4 CREW CAB LONG(TFS*WF) REAR BODY DELETE(8HH) (A) 12V 21W 		8-94124-074-0 04 1 0808-0809 ●
5 08.991 BULB; RR COMB LAMP
CREW CAB EXTRA LONG(TF**WK) (A) 12V 21W 		8-94124-074-0 04 1 0808-0809 ●
5 08.991 BULB; RR COMB LAMP
REAR BODY DELETE(8HH) (A) 12V 21W 		8-94124-074-0 04 1 0810- ● ● ● ● ● ●
5 08.991 BULB; RR COMB LAMP
REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) (A) 12V 21W 		8-94124-074-0 04 1 0810- ●
5 08.991 BULB; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) (A) 12V 18W 		8-94372-897-0 02 1 0808-0809 ●
5 08.991 BULB; RR COMB LAMP
4X4 CREW CAB LONG(TFS*WF) REAR BODY DBL WALL CTR PULL(E63) (A) 12V 18W 		8-94372-897-0 02 1 0808-0809 ●
5 08.991 BULB; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) (A) 12V 18W 		8-94372-897-0 02 1 0810- ● ● ● ●
5 08.991 BULB; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) (C) 12V 21W 		8-97179-967-0 02 1 0808-0809 ●
5 08.991 BULB; RR COMB LAMP
4X4 CREW CAB LONG(TFS*WF) REAR BODY DBL WALL CTR PULL(E63) (C) 12V 21W 		8-97179-967-0 02 1 0808-0809 ●
5 08.991 BULB; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) (C) 12V 21W 		8-97179-967-0 02 1 0810- ● ● ● ● ● ●
7 02.664 SCREW; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) 16.800 M5X14 TAPPING W/PL WASHER 		0-74160-514-0 04 1 0808-0809 ●
7 02.664 SCREW; RR COMB LAMP
4X4 CREW CAB LONG(TFS*WF) REAR BODY DBL WALL CTR PULL(E63) 16.800 M5X14 TAPPING W/PL WASHER 		0-74160-514-0 04 1 0808-0809 ●
7 02.664 SCREW; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) 16.800 M5X14 TAPPING W/PL WASHER 		0-74160-514-0 04 1 0810- ● ● ● ● ●
8 02.664 HARNESS; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) 		8-98023-361-0 02 1 0810- ● ●
98 02.708 WASHER
16.588 (B) 		8-94279-039-0 02 1 0808-0809 ● ● ●
98 02.708 WASHER
EXTEND CAB EXTRA LONG(TF**CK) 16.588 (B) 		8-94279-039-0 02 1 0808-0809 ●
98 02.708 WASHER
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 16.588 (B) 		8-94279-039-0 02 1 0808-0809 ●
98 02.708 WASHER
HIGH MOUNT STOP LAMP<TS6> 16.588 (B) 		8-94279-039-0 02 1 0810- ● ● ● ● ● ●
98 02.708 WASHER
16.588 (B) 		8-94279-039-0 02 1 0810- ●
98 02.708 WASHER
REAR BODY DBL WALL CTR PULL(E63) 08.054 (A) D=16 		8-94427-941-0 04 1 0808-0809 ●
98 02.708 WASHER
4X4 CREW CAB LONG(TFS*WF) REAR BODY DBL WALL CTR PULL(E63) 08.054 (A) D=16 		8-94427-941-0 04 1 0808-0809 ●
98 02.708 WASHER
REAR BODY DBL WALL CTR PULL(E63) 08.054 (A) D=16 		8-94427-941-0 04 1 0810- ● ● ● ● ●
300 16.494 HOLDER; LAMP
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-97305-675-0 02 1 0810- ● ●
300 16.494 HOLDER; LAMP
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-97305-676-0 02 1 0810- ● ●
300 16.494 HOLDER; LAMP
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-97372-854-0 02 1 0808-0809 ●
300 16.494 HOLDER; LAMP
4X4 CREW CAB LONG(TFS*WF) REAR BODY DBL WALL CTR PULL(E63) (A) 		8-97372-854-0 02 1 0808-0809 ●
300 16.494 HOLDER; LAMP
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-97372-854-0 02 1 0810- ● ● ● ●

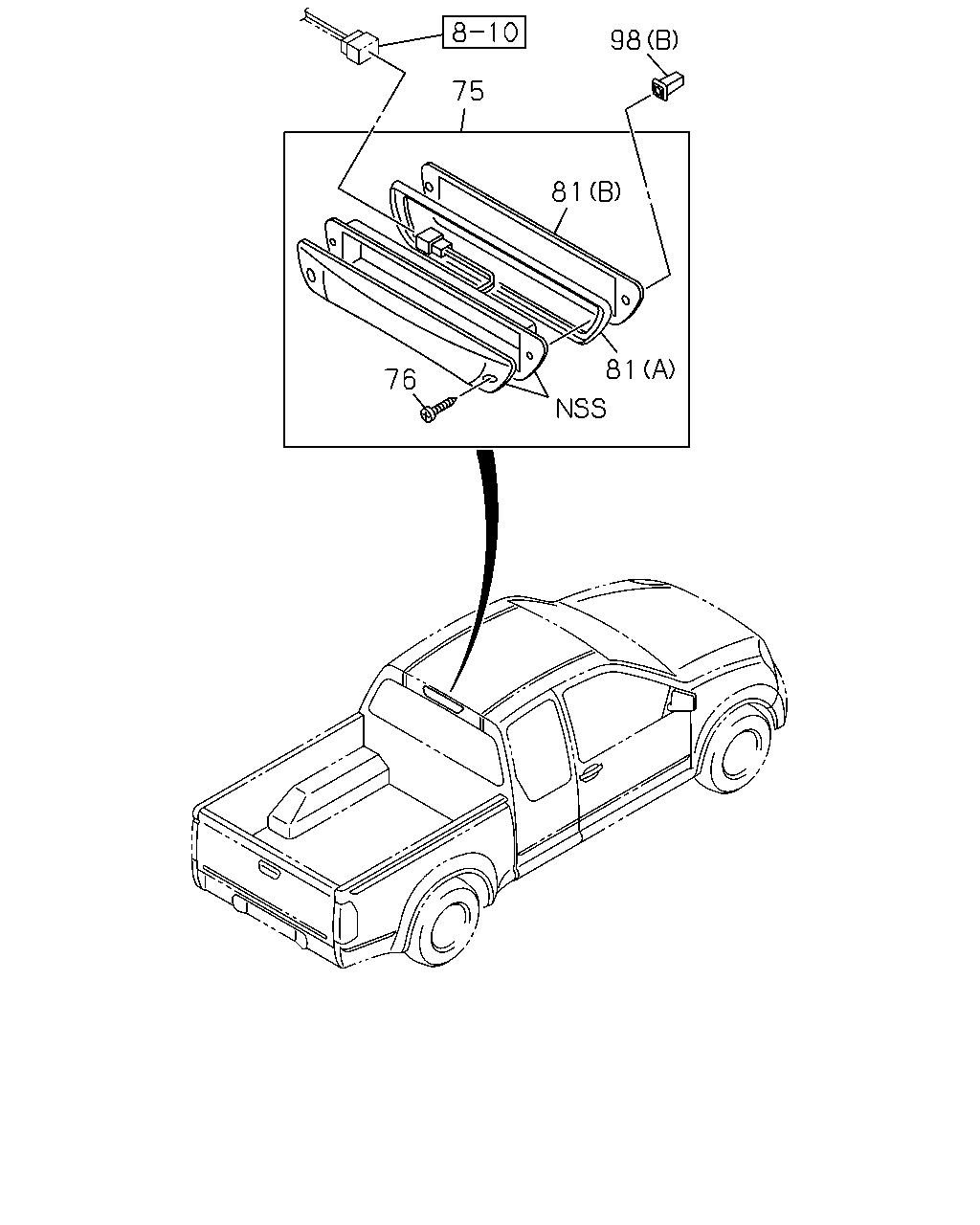

çizim 186204
98 75 81 81 76
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
75 02.679 LAMP ASM; STOP,HIGHMOUNTED 8-98052-867-2 01 1 0808-0809 ● ● ●
75 02.679 LAMP ASM; STOP,HIGHMOUNTED
EXTEND CAB EXTRA LONG(TF**CK) 		8-98052-867-2 01 1 0808-0809 ●
75 02.679 LAMP ASM; STOP,HIGHMOUNTED
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 		8-98052-867-2 01 1 0808-0809 ●
75 02.679 LAMP ASM; STOP,HIGHMOUNTED
HIGH MOUNT STOP LAMP<TS6> 		8-98052-867-2 01 1 0810- ● ● ● ● ● ●
75 02.679 LAMP ASM; STOP,HIGHMOUNTED 8-98052-867-2 01 1 0810- ●
76 02.688 SCREW; STOP LAMP,HIGHMOUNTED 8-98095-145-0 02 1 0808-0809 ● ● ●
76 02.688 SCREW; STOP LAMP,HIGHMOUNTED
EXTEND CAB EXTRA LONG(TF**CK) 		8-98095-145-0 02 1 0808-0809 ●
76 02.688 SCREW; STOP LAMP,HIGHMOUNTED
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 		8-98095-145-0 02 1 0808-0809 ●
76 02.688 SCREW; STOP LAMP,HIGHMOUNTED
HIGH MOUNT STOP LAMP<TS6> 		8-98095-145-0 02 1 0810- ● ● ● ● ● ●
76 02.688 SCREW; STOP LAMP,HIGHMOUNTED 8-98095-145-0 02 1 0810- ●
81 02.694 GASKET; STOP LAMP
(A) 		8-98095-143-0 01 1 0808-0809 ● ● ●
81 02.694 GASKET; STOP LAMP
EXTEND CAB EXTRA LONG(TF**CK) (A) 		8-98095-143-0 01 1 0808-0809 ●
81 02.694 GASKET; STOP LAMP
4X4 REGULAR CAB EXTRA LONG(TFS*SK) (A) 		8-98095-143-0 01 1 0808-0809 ●
81 02.694 GASKET; STOP LAMP
HIGH MOUNT STOP LAMP<TS6> (A) 		8-98095-143-0 01 1 0810- ● ● ● ● ● ●
81 02.694 GASKET; STOP LAMP
(A) 		8-98095-143-0 01 1 0810- ●
81 02.694 GASKET; STOP LAMP
(B) 		8-98095-144-0 01 1 0808-0809 ● ● ●
81 02.694 GASKET; STOP LAMP
EXTEND CAB EXTRA LONG(TF**CK) (B) 		8-98095-144-0 01 1 0808-0809 ●
81 02.694 GASKET; STOP LAMP
4X4 REGULAR CAB EXTRA LONG(TFS*SK) (B) 		8-98095-144-0 01 1 0808-0809 ●
81 02.694 GASKET; STOP LAMP
HIGH MOUNT STOP LAMP<TS6> (B) 		8-98095-144-0 01 1 0810- ● ● ● ● ● ●
81 02.694 GASKET; STOP LAMP
(B) 		8-98095-144-0 01 1 0810- ●
98 02.708 WASHER
16.588 (B) 		8-94279-039-0 02 1 0808-0809 ● ● ●
98 02.708 WASHER
EXTEND CAB EXTRA LONG(TF**CK) 16.588 (B) 		8-94279-039-0 02 1 0808-0809 ●
98 02.708 WASHER
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 16.588 (B) 		8-94279-039-0 02 1 0808-0809 ●
98 02.708 WASHER
HIGH MOUNT STOP LAMP<TS6> 16.588 (B) 		8-94279-039-0 02 1 0810- ● ● ● ● ● ●
98 02.708 WASHER
16.588 (B) 		8-94279-039-0 02 1 0810- ●
98 02.708 WASHER
REAR BODY DBL WALL CTR PULL(E63) 08.054 (A) D=16 		8-94427-941-0 04 1 0808-0809 ●
98 02.708 WASHER
4X4 CREW CAB LONG(TFS*WF) REAR BODY DBL WALL CTR PULL(E63) 08.054 (A) D=16 		8-94427-941-0 04 1 0808-0809 ●
98 02.708 WASHER
REAR BODY DBL WALL CTR PULL(E63) 08.054 (A) D=16 		8-94427-941-0 04 1 0810- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
