◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51194 - TFR/TFS-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-01 - LAMP; FRONT AND FRONT SIDE ▶
8-01 — LAMP; FRONT AND FRONT SIDE (#77097) — 338 parça

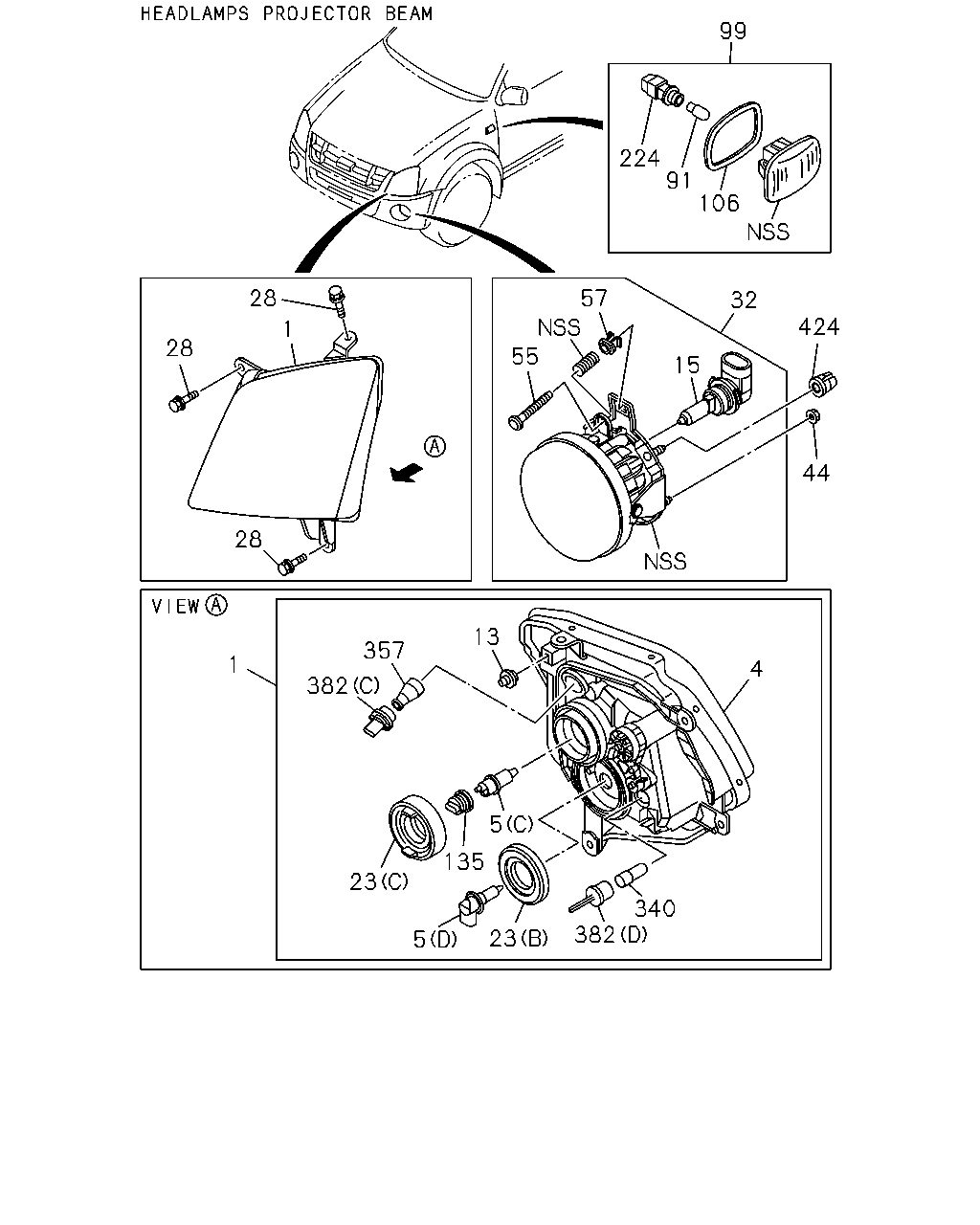

çizim 135688
99 224 91 106 28 57 32 424 1 28 55 15 44 28 13 357 1 4 382 5 135 23 340 382 23 5
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 02.725 LAMP ASM; HEAD
HEAD LAMP LEVELING MANUAL<T92> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98080-007-0 01 1 0810- ● ● ● ●
1 02.725 LAMP ASM; HEAD
HEAD LAMP LEVELING MANUAL<T92> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98080-008-0 01 1 0810- ● ● ● ●
1 02.725 LAMP ASM; HEAD
HEAD LAMP LEVELING MANUAL<T92> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98079-997-0 01 1 0810- ● ● ● ●
1 02.725 LAMP ASM; HEAD
HEAD LAMP LEVELING MANUAL<T92> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98079-998-0 01 1 0810- ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-98079-995-0 01 1 0808-0809 ●
1 02.725 LAMP ASM; HEAD
EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98079-995-0 01 1 0808-0809 ●
1 02.725 LAMP ASM; HEAD
EXTEND CAB EXTRA LONG(TF**CK) 		8-98079-995-0 01 1 0808-0809 ●
1 02.725 LAMP ASM; HEAD
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 		8-98079-995-0 01 1 0808-0809 ●
1 02.725 LAMP ASM; HEAD
4X4 CREW CAB LONG(TFS*WF) EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98079-995-0 01 1 0808-0809 ●
1 02.725 LAMP ASM; HEAD
CREW CAB EXTRA LONG(TF**WK) 		8-98079-995-0 01 1 0808-0809 ●
1 02.725 LAMP ASM; HEAD
EXC. HEAD LAMP LEVELING MANUAL<T92>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98079-995-0 01 1 0810- ● ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-98079-996-0 01 1 0808-0809 ●
1 02.725 LAMP ASM; HEAD
EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98079-996-0 01 1 0808-0809 ●
1 02.725 LAMP ASM; HEAD
EXTEND CAB EXTRA LONG(TF**CK) 		8-98079-996-0 01 1 0808-0809 ●
1 02.725 LAMP ASM; HEAD
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 		8-98079-996-0 01 1 0808-0809 ●
1 02.725 LAMP ASM; HEAD
4X4 CREW CAB LONG(TFS*WF) EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98079-996-0 01 1 0808-0809 ●
1 02.725 LAMP ASM; HEAD
CREW CAB EXTRA LONG(TF**WK) 		8-98079-996-0 01 1 0808-0809 ●
1 02.725 LAMP ASM; HEAD
EXC. HEAD LAMP LEVELING MANUAL<T92>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98079-996-0 01 1 0810- ● ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
HEADLAMPS PROJECTOR BEAM<8LH> 		8-98080-005-0 01 1 0808-0809 ●
1 02.725 LAMP ASM; HEAD
4X4 CREW CAB LONG(TFS*WF) HEADLAMPS PROJECTOR BEAM<8LH> 		8-98080-005-0 01 1 0808-0809 ●
1 02.725 LAMP ASM; HEAD
HEADLAMPS PROJECTOR BEAM<8LH> EXC. HEAD LAMP LEVELING MANUAL<T92> 		8-98080-005-0 01 1 0810- ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
HEADLAMPS PROJECTOR BEAM<8LH> 		8-98080-006-0 01 1 0808-0809 ●
1 02.725 LAMP ASM; HEAD
4X4 CREW CAB LONG(TFS*WF) HEADLAMPS PROJECTOR BEAM<8LH> 		8-98080-006-0 01 1 0808-0809 ●
1 02.725 LAMP ASM; HEAD
HEADLAMPS PROJECTOR BEAM<8LH> EXC. HEAD LAMP LEVELING MANUAL<T92> 		8-98080-006-0 01 1 0810- ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT
HEAD LAMP LEVELING MANUAL<T92> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98011-847-0 01 1 0810- ● ● ● ●
4 02.727 HEADLAMP UNIT
HEAD LAMP LEVELING MANUAL<T92> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98011-848-0 01 1 0810- ● ● ● ●
4 02.727 HEADLAMP UNIT
HEAD LAMP LEVELING MANUAL<T92> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98011-761-0 01 1 0810- ● ● ● ●
4 02.727 HEADLAMP UNIT
HEAD LAMP LEVELING MANUAL<T92> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98011-762-0 01 1 0810- ● ● ● ●
4 02.727 HEADLAMP UNIT 8-98011-757-0 01 1 0808-0809 ●
4 02.727 HEADLAMP UNIT
EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98011-757-0 01 1 0808-0809 ●
4 02.727 HEADLAMP UNIT
EXTEND CAB EXTRA LONG(TF**CK) 		8-98011-757-0 01 1 0808-0809 ●
4 02.727 HEADLAMP UNIT
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 		8-98011-757-0 01 1 0808-0809 ●
4 02.727 HEADLAMP UNIT
4X4 CREW CAB LONG(TFS*WF) EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98011-757-0 01 1 0808-0809 ●
4 02.727 HEADLAMP UNIT
CREW CAB EXTRA LONG(TF**WK) 		8-98011-757-0 01 1 0808-0809 ●
4 02.727 HEADLAMP UNIT
EXC. HEAD LAMP LEVELING MANUAL<T92>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98011-757-0 01 1 0810- ● ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT 8-98011-758-0 01 1 0808-0809 ●
4 02.727 HEADLAMP UNIT
EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98011-758-0 01 1 0808-0809 ●
4 02.727 HEADLAMP UNIT
EXTEND CAB EXTRA LONG(TF**CK) 		8-98011-758-0 01 1 0808-0809 ●
4 02.727 HEADLAMP UNIT
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 		8-98011-758-0 01 1 0808-0809 ●
4 02.727 HEADLAMP UNIT
4X4 CREW CAB LONG(TFS*WF) EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98011-758-0 01 1 0808-0809 ●
4 02.727 HEADLAMP UNIT
CREW CAB EXTRA LONG(TF**WK) 		8-98011-758-0 01 1 0808-0809 ●
4 02.727 HEADLAMP UNIT
EXC. HEAD LAMP LEVELING MANUAL<T92>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98011-758-0 01 1 0810- ● ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT
HEADLAMPS PROJECTOR BEAM<8LH> 		8-98011-845-0 01 1 0808-0809 ●
4 02.727 HEADLAMP UNIT
4X4 CREW CAB LONG(TFS*WF) HEADLAMPS PROJECTOR BEAM<8LH> 		8-98011-845-0 01 1 0808-0809 ●
4 02.727 HEADLAMP UNIT
HEADLAMPS PROJECTOR BEAM<8LH> EXC. HEAD LAMP LEVELING MANUAL<T92> 		8-98011-845-0 01 1 0810- ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT
HEADLAMPS PROJECTOR BEAM<8LH> 		8-98011-846-0 01 1 0808-0809 ●
4 02.727 HEADLAMP UNIT
4X4 CREW CAB LONG(TFS*WF) HEADLAMPS PROJECTOR BEAM<8LH> 		8-98011-846-0 01 1 0808-0809 ●
4 02.727 HEADLAMP UNIT
HEADLAMPS PROJECTOR BEAM<8LH> EXC. HEAD LAMP LEVELING MANUAL<T92> 		8-98011-846-0 01 1 0810- ● ● ● ● ● ●
5 02.727 BULB; HEADLAMP
08.991 (A) 12V 21W 		8-97179-967-0 02 1 0808-0809 ●
5 02.727 BULB; HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> 08.991 (A) 12V 21W 		8-97179-967-0 02 1 0808-0809 ●
5 02.727 BULB; HEADLAMP
EXTEND CAB EXTRA LONG(TF**CK) 08.991 (A) 12V 21W 		8-97179-967-0 02 1 0808-0809 ●
5 02.727 BULB; HEADLAMP
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 08.991 (A) 12V 21W 		8-97179-967-0 02 1 0808-0809 ●
5 02.727 BULB; HEADLAMP
4X4 CREW CAB LONG(TFS*WF) EXC. HEADLAMPS PROJECTOR BEAM<8LH> 08.991 (A) 12V 21W 		8-97179-967-0 02 1 0808-0809 ●
5 02.727 BULB; HEADLAMP
CREW CAB EXTRA LONG(TF**WK) 08.991 (A) 12V 21W 		8-97179-967-0 02 1 0808-0809 ●
5 02.727 BULB; HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> 08.991 (A) 12V 21W 		8-97179-967-0 02 1 0810- ● ● ● ● ● ● ●
5 02.727 BULB; HEADLAMP
(B) 12V 60/55W 		8-98032-732-0 02 1 0808-0809 ●
5 02.727 BULB; HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (B) 12V 60/55W 		8-98032-732-0 02 1 0808-0809 ●
5 02.727 BULB; HEADLAMP
EXTEND CAB EXTRA LONG(TF**CK) (B) 12V 60/55W 		8-98032-732-0 02 1 0808-0809 ●
5 02.727 BULB; HEADLAMP
4X4 REGULAR CAB EXTRA LONG(TFS*SK) (B) 12V 60/55W 		8-98032-732-0 02 1 0808-0809 ●
5 02.727 BULB; HEADLAMP
4X4 CREW CAB LONG(TFS*WF) EXC. HEADLAMPS PROJECTOR BEAM<8LH> (B) 12V 60/55W 		8-98032-732-0 02 1 0808-0809 ●
5 02.727 BULB; HEADLAMP
CREW CAB EXTRA LONG(TF**WK) (B) 12V 60/55W 		8-98032-732-0 02 1 0808-0809 ●
5 02.727 BULB; HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (B) 12V 60/55W 		8-98032-732-0 02 1 0810- ● ● ● ● ● ● ●
5 02.727 BULB; HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (D) 12V 60W 		8-97289-997-0 02 1 0808-0809 ●
5 02.727 BULB; HEADLAMP
4X4 CREW CAB LONG(TFS*WF) HEADLAMPS PROJECTOR BEAM<8LH> (D) 12V 60W 		8-97289-997-0 02 1 0808-0809 ●
5 02.727 BULB; HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (D) 12V 60W 		8-97289-997-0 02 1 0810- ● ● ● ● ● ● ●
5 02.727 BULB; HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (C) 12V 55W 		8-98011-475-0 02 1 0808-0809 ●
5 02.727 BULB; HEADLAMP
4X4 CREW CAB LONG(TFS*WF) HEADLAMPS PROJECTOR BEAM<8LH> (C) 12V 55W 		8-98011-475-0 02 1 0808-0809 ●
5 02.727 BULB; HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (C) 12V 55W 		8-98011-475-0 02 1 0810- ● ● ● ● ● ● ●
13 02.736 CLIP; HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> 		8-97378-145-0 02 1 0808-0809 ●
13 02.736 CLIP; HEADLAMP
4X4 CREW CAB LONG(TFS*WF) HEADLAMPS PROJECTOR BEAM<8LH> 		8-97378-145-0 02 1 0808-0809 ●
13 02.736 CLIP; HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> 		8-97378-145-0 02 1 0810- ● ● ● ● ● ● ●
15 08.991 BULB; FOG LAMP
FOG LAMP<T96> 02.727 12V 51W 		8-97286-998-0 02 1 0808-0809 ● ● ●
15 08.991 BULB; FOG LAMP
EXTEND CAB EXTRA LONG(TF**CK) FOG LAMP<T96> 02.727 12V 51W 		8-97286-998-0 02 1 0808-0809 ●
15 08.991 BULB; FOG LAMP
4X4 REGULAR CAB EXTRA LONG(TFS*SK) FOG LAMP<T96> 02.727 12V 51W 		8-97286-998-0 02 1 0808-0809 ●
15 08.991 BULB; FOG LAMP
FOG LAMP<T96> 02.727 12V 51W 		8-97286-998-0 02 1 0810- ● ● ● ● ● ● ●
23 02.727 COVER; BULB,HEADLAMP
(A) 		8-97332-448-0 02 1 0808-0809 ●
23 02.727 COVER; BULB,HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (A) 		8-97332-448-0 02 1 0808-0809 ●
23 02.727 COVER; BULB,HEADLAMP
EXTEND CAB EXTRA LONG(TF**CK) (A) 		8-97332-448-0 02 1 0808-0809 ●
23 02.727 COVER; BULB,HEADLAMP
4X4 REGULAR CAB EXTRA LONG(TFS*SK) (A) 		8-97332-448-0 02 1 0808-0809 ●
23 02.727 COVER; BULB,HEADLAMP
4X4 CREW CAB LONG(TFS*WF) EXC. HEADLAMPS PROJECTOR BEAM<8LH> (A) 		8-97332-448-0 02 1 0808-0809 ●
23 02.727 COVER; BULB,HEADLAMP
CREW CAB EXTRA LONG(TF**WK) (A) 		8-97332-448-0 02 1 0808-0809 ●
23 02.727 COVER; BULB,HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (A) 		8-97332-448-0 02 1 0810- ● ● ● ● ● ● ●
23 02.727 COVER; BULB,HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (B) 		8-97675-961-0 02 1 0808-0809 ●
23 02.727 COVER; BULB,HEADLAMP
4X4 CREW CAB LONG(TFS*WF) HEADLAMPS PROJECTOR BEAM<8LH> (B) 		8-97675-961-0 02 1 0808-0809 ●
23 02.727 COVER; BULB,HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (B) 		8-97675-961-0 02 1 0810- ● ● ● ● ● ● ●
23 02.727 COVER; BULB,HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (C) 		8-98011-477-0 02 1 0808-0809 ●
23 02.727 COVER; BULB,HEADLAMP
4X4 CREW CAB LONG(TFS*WF) HEADLAMPS PROJECTOR BEAM<8LH> (C) 		8-98011-477-0 02 1 0808-0809 ●
23 02.727 COVER; BULB,HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (C) 		8-98011-477-0 02 1 0810- ● ● ● ● ● ● ●
28 02.762 BOLT; HEADLAMP
M6X18 TAPPING W/LK&PL WASHER 		8-98062-140-0 08 1 0808-0809 ● ● ● ● ●
28 02.762 BOLT; HEADLAMP
M6X18 TAPPING W/LK&PL WASHER 		8-98062-140-0 08 1 0810- ● ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-97374-661-1 02 1 0808-0809 ● ● ●
32 02.725 LAMP ASM; FOG
EXTEND CAB EXTRA LONG(TF**CK) FOG LAMP<T96> 		8-97374-661-1 02 1 0808-0809 ●
32 02.725 LAMP ASM; FOG
4X4 REGULAR CAB EXTRA LONG(TFS*SK) FOG LAMP<T96> 		8-97374-661-1 02 1 0808-0809 ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-97374-661-1 02 1 0810-0904 ● ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98144-229-0 02 1 0905-1101 ● ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98169-680-0 02 1 1102- ● ● ● ● ● ● ●
44 02.737 NUT; FOG LAMP
FOG LAMP<T96> 08.915 M6 FLANGE 		8-98055-704-0 04 1 0808-0809 ● ● ●
44 02.737 NUT; FOG LAMP
EXTEND CAB EXTRA LONG(TF**CK) FOG LAMP<T96> 08.915 M6 FLANGE 		8-98055-704-0 04 1 0808-0809 ●
44 02.737 NUT; FOG LAMP
4X4 REGULAR CAB EXTRA LONG(TFS*SK) FOG LAMP<T96> 08.915 M6 FLANGE 		8-98055-704-0 04 1 0808-0809 ●
44 02.737 NUT; FOG LAMP
FOG LAMP<T96> 08.915 M6 FLANGE 		8-98055-704-0 04 1 0810- ● ● ● ● ● ● ●
55 02.737 SCREW; ADJ,FOG LAMP
FOG LAMP<T96> 		8-98017-834-0 02 1 0808-0809 ● ● ●
55 02.737 SCREW; ADJ,FOG LAMP
EXTEND CAB EXTRA LONG(TF**CK) FOG LAMP<T96> 		8-98017-834-0 02 1 0808-0809 ●
55 02.737 SCREW; ADJ,FOG LAMP
4X4 REGULAR CAB EXTRA LONG(TFS*SK) FOG LAMP<T96> 		8-98017-834-0 02 1 0808-0809 ●
55 02.737 SCREW; ADJ,FOG LAMP
FOG LAMP<T96> 		8-98017-834-0 02 1 0810- ● ● ● ● ● ● ●
57 02.726 NUT; UNIT TO SCREW,FOG LAMP
FOG LAMP<T96> 		8-98017-835-0 02 1 0808-0809 ● ● ●
57 02.726 NUT; UNIT TO SCREW,FOG LAMP
EXTEND CAB EXTRA LONG(TF**CK) FOG LAMP<T96> 		8-98017-835-0 02 1 0808-0809 ●
57 02.726 NUT; UNIT TO SCREW,FOG LAMP
4X4 REGULAR CAB EXTRA LONG(TFS*SK) FOG LAMP<T96> 		8-98017-835-0 02 1 0808-0809 ●
57 02.726 NUT; UNIT TO SCREW,FOG LAMP
FOG LAMP<T96> 		8-98017-835-0 02 1 0810- ● ● ● ● ● ● ●
91 08.991 BULB; SIDE TURN SIGNAL
12V 5W 		8-97310-952-0 02 1 0808-0809 ●
91 08.991 BULB; SIDE TURN SIGNAL
EXC. DOOR MIR ELEC FOLDING COLOR TUR N SIG,BRIGHT<DE3>,DOOR MIR ELEC FOLDING COLOR TURN SIG IND<DE4> 12V 5W 		8-97310-952-0 02 1 0808-0809 ●
91 08.991 BULB; SIDE TURN SIGNAL
EXTEND CAB EXTRA LONG(TF**CK) 12V 5W 		8-97310-952-0 02 1 0808-0809 ●
91 08.991 BULB; SIDE TURN SIGNAL
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 12V 5W 		8-97310-952-0 02 1 0808-0809 ●
91 08.991 BULB; SIDE TURN SIGNAL
4X4 CREW CAB LONG(TFS*WF) EXC. DOOR MIR ELEC FOLDING COLOR TUR N SIG,BRIGHT<DE3>,DOOR MIR ELEC FOLDING COLOR TURN SIG IND<DE4> 12V 5W 		8-97310-952-0 02 1 0808-0809 ●
91 08.991 BULB; SIDE TURN SIGNAL
CREW CAB EXTRA LONG(TF**WK) 12V 5W 		8-97310-952-0 02 1 0808-0809 ●
91 08.991 BULB; SIDE TURN SIGNAL
EXC. DOOR MIR ELEC FOLDING COLOR TUR N SIG,BRIGHT<DE3>,DOOR MIR ELEC FOLDING COLOR TURN SIG IND<DE4> 12V 5W 		8-97310-952-0 02 1 0810- ● ● ● ● ● ● ●
99 02.585 LAMP; SIDE FLASHER 8-97237-378-1 02 1 0808-0809 ●
99 02.585 LAMP; SIDE FLASHER
EXC. DOOR MIR ELEC FOLDING COLOR TUR N SIG,BRIGHT<DE3>,DOOR MIR ELEC FOLDING COLOR TURN SIG IND<DE4> 		8-97237-378-1 02 1 0808-0809 ●
99 02.585 LAMP; SIDE FLASHER
EXTEND CAB EXTRA LONG(TF**CK) 		8-97237-378-1 02 1 0808-0809 ●
99 02.585 LAMP; SIDE FLASHER
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 		8-97237-378-1 02 1 0808-0809 ●
99 02.585 LAMP; SIDE FLASHER
4X4 CREW CAB LONG(TFS*WF) EXC. DOOR MIR ELEC FOLDING COLOR TUR N SIG,BRIGHT<DE3>,DOOR MIR ELEC FOLDING COLOR TURN SIG IND<DE4> 		8-97237-378-1 02 1 0808-0809 ●
99 02.585 LAMP; SIDE FLASHER
CREW CAB EXTRA LONG(TF**WK) 		8-97237-378-1 02 1 0808-0809 ●
99 02.585 LAMP; SIDE FLASHER
EXC. DOOR MIR ELEC FOLDING COLOR TUR N SIG,BRIGHT<DE3>,DOOR MIR ELEC FOLDING COLOR TURN SIG IND<DE4> 		8-97237-378-1 02 1 0810- ● ● ● ● ● ● ●
106 02.590 GASKET; SIDE TURN SIGNAL 8-97333-420-0 02 1 0808-0809 ●
106 02.590 GASKET; SIDE TURN SIGNAL
EXC. DOOR MIR ELEC FOLDING COLOR TUR N SIG,BRIGHT<DE3>,DOOR MIR ELEC FOLDING COLOR TURN SIG IND<DE4> 		8-97333-420-0 02 1 0808-0809 ●
106 02.590 GASKET; SIDE TURN SIGNAL
EXTEND CAB EXTRA LONG(TF**CK) 		8-97333-420-0 02 1 0808-0809 ●
106 02.590 GASKET; SIDE TURN SIGNAL
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 		8-97333-420-0 02 1 0808-0809 ●
106 02.590 GASKET; SIDE TURN SIGNAL
4X4 CREW CAB LONG(TFS*WF) EXC. DOOR MIR ELEC FOLDING COLOR TUR N SIG,BRIGHT<DE3>,DOOR MIR ELEC FOLDING COLOR TURN SIG IND<DE4> 		8-97333-420-0 02 1 0808-0809 ●
106 02.590 GASKET; SIDE TURN SIGNAL
CREW CAB EXTRA LONG(TF**WK) 		8-97333-420-0 02 1 0808-0809 ●
106 02.590 GASKET; SIDE TURN SIGNAL
EXC. DOOR MIR ELEC FOLDING COLOR TUR N SIG,BRIGHT<DE3>,DOOR MIR ELEC FOLDING COLOR TURN SIG IND<DE4> 		8-97333-420-0 02 1 0810- ● ● ● ● ● ● ●
135 02.725 ADAPTER; HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> 		8-98011-476-0 02 1 0808-0809 ●
135 02.725 ADAPTER; HEADLAMP
4X4 CREW CAB LONG(TFS*WF) HEADLAMPS PROJECTOR BEAM<8LH> 		8-98011-476-0 02 1 0808-0809 ●
135 02.725 ADAPTER; HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> 		8-98011-476-0 02 1 0810- ● ● ● ● ● ● ●
224 02.575 SOCKET; SIDE FLASHER LAMP 8-97310-953-0 02 1 0808-0809 ●
224 02.575 SOCKET; SIDE FLASHER LAMP
EXC. DOOR MIR ELEC FOLDING COLOR TUR N SIG,BRIGHT<DE3>,DOOR MIR ELEC FOLDING COLOR TURN SIG IND<DE4> 		8-97310-953-0 02 1 0808-0809 ●
224 02.575 SOCKET; SIDE FLASHER LAMP
EXTEND CAB EXTRA LONG(TF**CK) 		8-97310-953-0 02 1 0808-0809 ●
224 02.575 SOCKET; SIDE FLASHER LAMP
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 		8-97310-953-0 02 1 0808-0809 ●
224 02.575 SOCKET; SIDE FLASHER LAMP
4X4 CREW CAB LONG(TFS*WF) EXC. DOOR MIR ELEC FOLDING COLOR TUR N SIG,BRIGHT<DE3>,DOOR MIR ELEC FOLDING COLOR TURN SIG IND<DE4> 		8-97310-953-0 02 1 0808-0809 ●
224 02.575 SOCKET; SIDE FLASHER LAMP
CREW CAB EXTRA LONG(TF**WK) 		8-97310-953-0 02 1 0808-0809 ●
224 02.575 SOCKET; SIDE FLASHER LAMP
EXC. DOOR MIR ELEC FOLDING COLOR TUR N SIG,BRIGHT<DE3>,DOOR MIR ELEC FOLDING COLOR TURN SIG IND<DE4> 		8-97310-953-0 02 1 0810- ● ● ● ● ● ● ●
340 08.991 BULB; POSITION
12V 5W 		8-94124-595-0 02 1 0808-0809 ● ● ●
340 08.991 BULB; POSITION
EXTEND CAB EXTRA LONG(TF**CK) 12V 5W 		8-94124-595-0 02 1 0808-0809 ●
340 08.991 BULB; POSITION
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 12V 5W 		8-94124-595-0 02 1 0808-0809 ●
340 08.991 BULB; POSITION
12V 5W 		8-94124-595-0 02 1 0810- ● ● ● ● ● ● ●
357 08.991 BULB; TURN SIGNAL
HEADLAMPS PROJECTOR BEAM<8LH> 12V 21W 		8-94124-074-0 02 1 0808-0809 ●
357 08.991 BULB; TURN SIGNAL
4X4 CREW CAB LONG(TFS*WF) HEADLAMPS PROJECTOR BEAM<8LH> 12V 21W 		8-94124-074-0 02 1 0808-0809 ●
357 08.991 BULB; TURN SIGNAL
HEADLAMPS PROJECTOR BEAM<8LH> 12V 21W 		8-94124-074-0 02 1 0810- ● ● ● ● ● ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
(A) 		8-97332-446-0 02 1 0808-0809 ●
382 02.575 PLUG; SOCKET,HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (A) 		8-97332-446-0 02 1 0808-0809 ●
382 02.575 PLUG; SOCKET,HEADLAMP
EXTEND CAB EXTRA LONG(TF**CK) (A) 		8-97332-446-0 02 1 0808-0809 ●
382 02.575 PLUG; SOCKET,HEADLAMP
4X4 REGULAR CAB EXTRA LONG(TFS*SK) (A) 		8-97332-446-0 02 1 0808-0809 ●
382 02.575 PLUG; SOCKET,HEADLAMP
4X4 CREW CAB LONG(TFS*WF) EXC. HEADLAMPS PROJECTOR BEAM<8LH> (A) 		8-97332-446-0 02 1 0808-0809 ●
382 02.575 PLUG; SOCKET,HEADLAMP
CREW CAB EXTRA LONG(TF**WK) (A) 		8-97332-446-0 02 1 0808-0809 ●
382 02.575 PLUG; SOCKET,HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (A) 		8-97332-446-0 02 1 0810- ● ● ● ● ● ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
(B) 		8-97332-447-0 02 1 0808-0809 ●
382 02.575 PLUG; SOCKET,HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (B) 		8-97332-447-0 02 1 0808-0809 ●
382 02.575 PLUG; SOCKET,HEADLAMP
EXTEND CAB EXTRA LONG(TF**CK) (B) 		8-97332-447-0 02 1 0808-0809 ●
382 02.575 PLUG; SOCKET,HEADLAMP
4X4 REGULAR CAB EXTRA LONG(TFS*SK) (B) 		8-97332-447-0 02 1 0808-0809 ●
382 02.575 PLUG; SOCKET,HEADLAMP
4X4 CREW CAB LONG(TFS*WF) EXC. HEADLAMPS PROJECTOR BEAM<8LH> (B) 		8-97332-447-0 02 1 0808-0809 ●
382 02.575 PLUG; SOCKET,HEADLAMP
CREW CAB EXTRA LONG(TF**WK) (B) 		8-97332-447-0 02 1 0808-0809 ●
382 02.575 PLUG; SOCKET,HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (B) 		8-97332-447-0 02 1 0810- ● ● ● ● ● ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (C) 		8-98012-762-0 02 1 0808-0809 ●
382 02.575 PLUG; SOCKET,HEADLAMP
4X4 CREW CAB LONG(TFS*WF) HEADLAMPS PROJECTOR BEAM<8LH> (C) 		8-98012-762-0 02 1 0808-0809 ●
382 02.575 PLUG; SOCKET,HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (C) 		8-98012-762-0 02 1 0810- ● ● ● ● ● ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (D) 		8-98012-788-0 02 1 0808-0809 ●
382 02.575 PLUG; SOCKET,HEADLAMP
4X4 CREW CAB LONG(TFS*WF) HEADLAMPS PROJECTOR BEAM<8LH> (D) 		8-98012-788-0 02 1 0808-0809 ●
382 02.575 PLUG; SOCKET,HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (D) 		8-98012-788-0 02 1 0810- ● ● ● ● ● ● ●
424 02.727 RETAINER; FOG LAMP
FOG LAMP<T96> 16.494 		8-97372-854-0 02 1 0808-0809 ● ● ●
424 02.727 RETAINER; FOG LAMP
EXTEND CAB EXTRA LONG(TF**CK) FOG LAMP<T96> 16.494 		8-97372-854-0 02 1 0808-0809 ●
424 02.727 RETAINER; FOG LAMP
4X4 REGULAR CAB EXTRA LONG(TFS*SK) FOG LAMP<T96> 16.494 		8-97372-854-0 02 1 0808-0809 ●
424 02.727 RETAINER; FOG LAMP
FOG LAMP<T96> 16.494 		8-97372-854-0 02 1 0810- ● ● ● ● ● ● ●

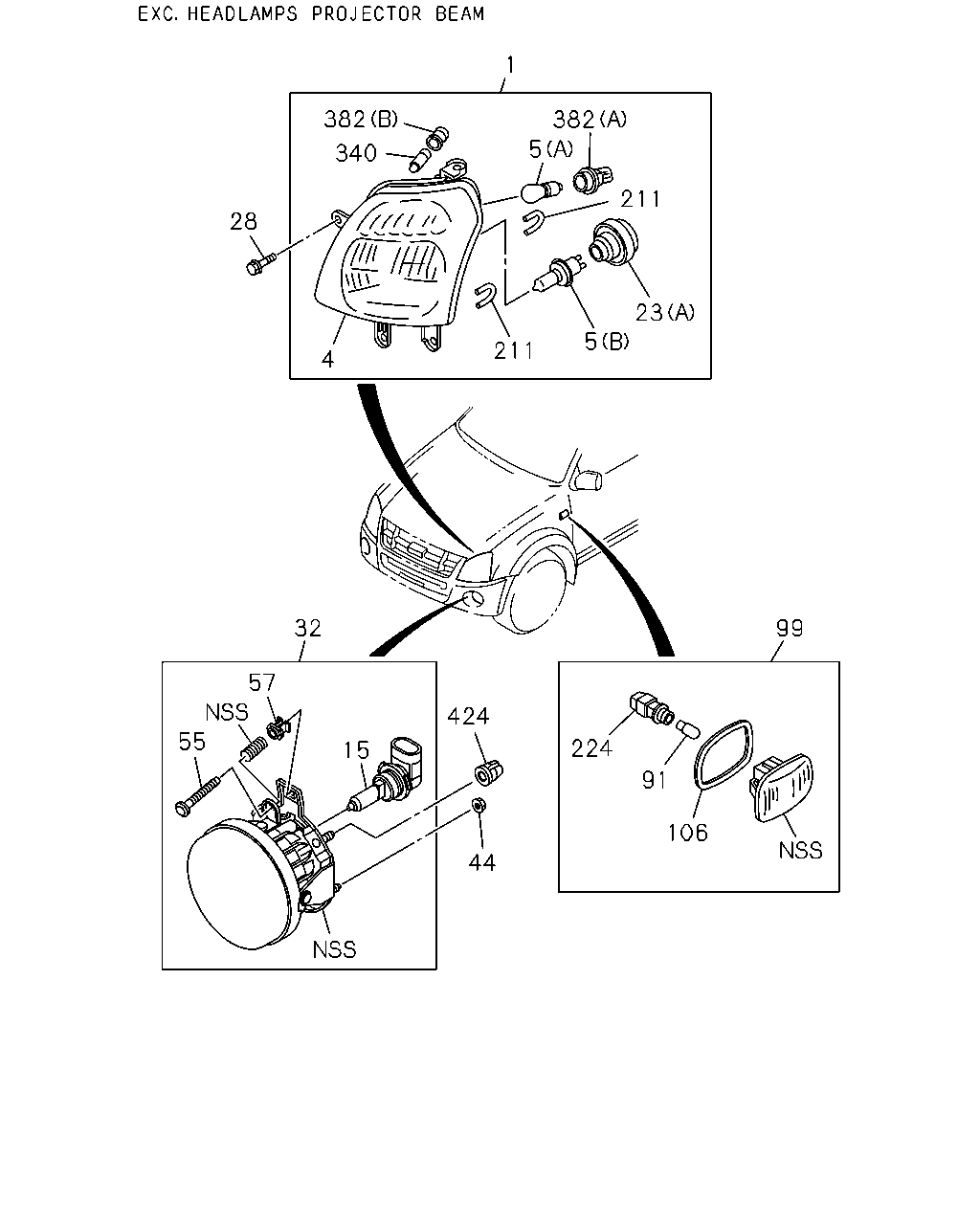

çizim 136027
1 382 382 5 340 211 28 23 5 211 4 32 99 57 424 55 224 15 91 106 44
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 02.725 LAMP ASM; HEAD
HEAD LAMP LEVELING MANUAL<T92> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98080-007-0 01 1 0810- ● ● ● ●
1 02.725 LAMP ASM; HEAD
HEAD LAMP LEVELING MANUAL<T92> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98080-008-0 01 1 0810- ● ● ● ●
1 02.725 LAMP ASM; HEAD
HEAD LAMP LEVELING MANUAL<T92> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98079-997-0 01 1 0810- ● ● ● ●
1 02.725 LAMP ASM; HEAD
HEAD LAMP LEVELING MANUAL<T92> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98079-998-0 01 1 0810- ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-98079-995-0 01 1 0808-0809 ●
1 02.725 LAMP ASM; HEAD
EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98079-995-0 01 1 0808-0809 ●
1 02.725 LAMP ASM; HEAD
EXTEND CAB EXTRA LONG(TF**CK) 		8-98079-995-0 01 1 0808-0809 ●
1 02.725 LAMP ASM; HEAD
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 		8-98079-995-0 01 1 0808-0809 ●
1 02.725 LAMP ASM; HEAD
4X4 CREW CAB LONG(TFS*WF) EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98079-995-0 01 1 0808-0809 ●
1 02.725 LAMP ASM; HEAD
CREW CAB EXTRA LONG(TF**WK) 		8-98079-995-0 01 1 0808-0809 ●
1 02.725 LAMP ASM; HEAD
EXC. HEAD LAMP LEVELING MANUAL<T92>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98079-995-0 01 1 0810- ● ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-98079-996-0 01 1 0808-0809 ●
1 02.725 LAMP ASM; HEAD
EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98079-996-0 01 1 0808-0809 ●
1 02.725 LAMP ASM; HEAD
EXTEND CAB EXTRA LONG(TF**CK) 		8-98079-996-0 01 1 0808-0809 ●
1 02.725 LAMP ASM; HEAD
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 		8-98079-996-0 01 1 0808-0809 ●
1 02.725 LAMP ASM; HEAD
4X4 CREW CAB LONG(TFS*WF) EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98079-996-0 01 1 0808-0809 ●
1 02.725 LAMP ASM; HEAD
CREW CAB EXTRA LONG(TF**WK) 		8-98079-996-0 01 1 0808-0809 ●
1 02.725 LAMP ASM; HEAD
EXC. HEAD LAMP LEVELING MANUAL<T92>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98079-996-0 01 1 0810- ● ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
HEADLAMPS PROJECTOR BEAM<8LH> 		8-98080-005-0 01 1 0808-0809 ●
1 02.725 LAMP ASM; HEAD
4X4 CREW CAB LONG(TFS*WF) HEADLAMPS PROJECTOR BEAM<8LH> 		8-98080-005-0 01 1 0808-0809 ●
1 02.725 LAMP ASM; HEAD
HEADLAMPS PROJECTOR BEAM<8LH> EXC. HEAD LAMP LEVELING MANUAL<T92> 		8-98080-005-0 01 1 0810- ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
HEADLAMPS PROJECTOR BEAM<8LH> 		8-98080-006-0 01 1 0808-0809 ●
1 02.725 LAMP ASM; HEAD
4X4 CREW CAB LONG(TFS*WF) HEADLAMPS PROJECTOR BEAM<8LH> 		8-98080-006-0 01 1 0808-0809 ●
1 02.725 LAMP ASM; HEAD
HEADLAMPS PROJECTOR BEAM<8LH> EXC. HEAD LAMP LEVELING MANUAL<T92> 		8-98080-006-0 01 1 0810- ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT
HEAD LAMP LEVELING MANUAL<T92> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98011-847-0 01 1 0810- ● ● ● ●
4 02.727 HEADLAMP UNIT
HEAD LAMP LEVELING MANUAL<T92> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98011-848-0 01 1 0810- ● ● ● ●
4 02.727 HEADLAMP UNIT
HEAD LAMP LEVELING MANUAL<T92> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98011-761-0 01 1 0810- ● ● ● ●
4 02.727 HEADLAMP UNIT
HEAD LAMP LEVELING MANUAL<T92> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98011-762-0 01 1 0810- ● ● ● ●
4 02.727 HEADLAMP UNIT 8-98011-757-0 01 1 0808-0809 ●
4 02.727 HEADLAMP UNIT
EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98011-757-0 01 1 0808-0809 ●
4 02.727 HEADLAMP UNIT
EXTEND CAB EXTRA LONG(TF**CK) 		8-98011-757-0 01 1 0808-0809 ●
4 02.727 HEADLAMP UNIT
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 		8-98011-757-0 01 1 0808-0809 ●
4 02.727 HEADLAMP UNIT
4X4 CREW CAB LONG(TFS*WF) EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98011-757-0 01 1 0808-0809 ●
4 02.727 HEADLAMP UNIT
CREW CAB EXTRA LONG(TF**WK) 		8-98011-757-0 01 1 0808-0809 ●
4 02.727 HEADLAMP UNIT
EXC. HEAD LAMP LEVELING MANUAL<T92>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98011-757-0 01 1 0810- ● ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT 8-98011-758-0 01 1 0808-0809 ●
4 02.727 HEADLAMP UNIT
EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98011-758-0 01 1 0808-0809 ●
4 02.727 HEADLAMP UNIT
EXTEND CAB EXTRA LONG(TF**CK) 		8-98011-758-0 01 1 0808-0809 ●
4 02.727 HEADLAMP UNIT
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 		8-98011-758-0 01 1 0808-0809 ●
4 02.727 HEADLAMP UNIT
4X4 CREW CAB LONG(TFS*WF) EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98011-758-0 01 1 0808-0809 ●
4 02.727 HEADLAMP UNIT
CREW CAB EXTRA LONG(TF**WK) 		8-98011-758-0 01 1 0808-0809 ●
4 02.727 HEADLAMP UNIT
EXC. HEAD LAMP LEVELING MANUAL<T92>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98011-758-0 01 1 0810- ● ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT
HEADLAMPS PROJECTOR BEAM<8LH> 		8-98011-845-0 01 1 0808-0809 ●
4 02.727 HEADLAMP UNIT
4X4 CREW CAB LONG(TFS*WF) HEADLAMPS PROJECTOR BEAM<8LH> 		8-98011-845-0 01 1 0808-0809 ●
4 02.727 HEADLAMP UNIT
HEADLAMPS PROJECTOR BEAM<8LH> EXC. HEAD LAMP LEVELING MANUAL<T92> 		8-98011-845-0 01 1 0810- ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT
HEADLAMPS PROJECTOR BEAM<8LH> 		8-98011-846-0 01 1 0808-0809 ●
4 02.727 HEADLAMP UNIT
4X4 CREW CAB LONG(TFS*WF) HEADLAMPS PROJECTOR BEAM<8LH> 		8-98011-846-0 01 1 0808-0809 ●
4 02.727 HEADLAMP UNIT
HEADLAMPS PROJECTOR BEAM<8LH> EXC. HEAD LAMP LEVELING MANUAL<T92> 		8-98011-846-0 01 1 0810- ● ● ● ● ● ●
5 02.727 BULB; HEADLAMP
08.991 (A) 12V 21W 		8-97179-967-0 02 1 0808-0809 ●
5 02.727 BULB; HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> 08.991 (A) 12V 21W 		8-97179-967-0 02 1 0808-0809 ●
5 02.727 BULB; HEADLAMP
EXTEND CAB EXTRA LONG(TF**CK) 08.991 (A) 12V 21W 		8-97179-967-0 02 1 0808-0809 ●
5 02.727 BULB; HEADLAMP
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 08.991 (A) 12V 21W 		8-97179-967-0 02 1 0808-0809 ●
5 02.727 BULB; HEADLAMP
4X4 CREW CAB LONG(TFS*WF) EXC. HEADLAMPS PROJECTOR BEAM<8LH> 08.991 (A) 12V 21W 		8-97179-967-0 02 1 0808-0809 ●
5 02.727 BULB; HEADLAMP
CREW CAB EXTRA LONG(TF**WK) 08.991 (A) 12V 21W 		8-97179-967-0 02 1 0808-0809 ●
5 02.727 BULB; HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> 08.991 (A) 12V 21W 		8-97179-967-0 02 1 0810- ● ● ● ● ● ● ●
5 02.727 BULB; HEADLAMP
(B) 12V 60/55W 		8-98032-732-0 02 1 0808-0809 ●
5 02.727 BULB; HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (B) 12V 60/55W 		8-98032-732-0 02 1 0808-0809 ●
5 02.727 BULB; HEADLAMP
EXTEND CAB EXTRA LONG(TF**CK) (B) 12V 60/55W 		8-98032-732-0 02 1 0808-0809 ●
5 02.727 BULB; HEADLAMP
4X4 REGULAR CAB EXTRA LONG(TFS*SK) (B) 12V 60/55W 		8-98032-732-0 02 1 0808-0809 ●
5 02.727 BULB; HEADLAMP
4X4 CREW CAB LONG(TFS*WF) EXC. HEADLAMPS PROJECTOR BEAM<8LH> (B) 12V 60/55W 		8-98032-732-0 02 1 0808-0809 ●
5 02.727 BULB; HEADLAMP
CREW CAB EXTRA LONG(TF**WK) (B) 12V 60/55W 		8-98032-732-0 02 1 0808-0809 ●
5 02.727 BULB; HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (B) 12V 60/55W 		8-98032-732-0 02 1 0810- ● ● ● ● ● ● ●
5 02.727 BULB; HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (D) 12V 60W 		8-97289-997-0 02 1 0808-0809 ●
5 02.727 BULB; HEADLAMP
4X4 CREW CAB LONG(TFS*WF) HEADLAMPS PROJECTOR BEAM<8LH> (D) 12V 60W 		8-97289-997-0 02 1 0808-0809 ●
5 02.727 BULB; HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (D) 12V 60W 		8-97289-997-0 02 1 0810- ● ● ● ● ● ● ●
5 02.727 BULB; HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (C) 12V 55W 		8-98011-475-0 02 1 0808-0809 ●
5 02.727 BULB; HEADLAMP
4X4 CREW CAB LONG(TFS*WF) HEADLAMPS PROJECTOR BEAM<8LH> (C) 12V 55W 		8-98011-475-0 02 1 0808-0809 ●
5 02.727 BULB; HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (C) 12V 55W 		8-98011-475-0 02 1 0810- ● ● ● ● ● ● ●
15 08.991 BULB; FOG LAMP
FOG LAMP<T96> 02.727 12V 51W 		8-97286-998-0 02 1 0808-0809 ● ● ●
15 08.991 BULB; FOG LAMP
EXTEND CAB EXTRA LONG(TF**CK) FOG LAMP<T96> 02.727 12V 51W 		8-97286-998-0 02 1 0808-0809 ●
15 08.991 BULB; FOG LAMP
4X4 REGULAR CAB EXTRA LONG(TFS*SK) FOG LAMP<T96> 02.727 12V 51W 		8-97286-998-0 02 1 0808-0809 ●
15 08.991 BULB; FOG LAMP
FOG LAMP<T96> 02.727 12V 51W 		8-97286-998-0 02 1 0810- ● ● ● ● ● ● ●
23 02.727 COVER; BULB,HEADLAMP
(A) 		8-97332-448-0 02 1 0808-0809 ●
23 02.727 COVER; BULB,HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (A) 		8-97332-448-0 02 1 0808-0809 ●
23 02.727 COVER; BULB,HEADLAMP
EXTEND CAB EXTRA LONG(TF**CK) (A) 		8-97332-448-0 02 1 0808-0809 ●
23 02.727 COVER; BULB,HEADLAMP
4X4 REGULAR CAB EXTRA LONG(TFS*SK) (A) 		8-97332-448-0 02 1 0808-0809 ●
23 02.727 COVER; BULB,HEADLAMP
4X4 CREW CAB LONG(TFS*WF) EXC. HEADLAMPS PROJECTOR BEAM<8LH> (A) 		8-97332-448-0 02 1 0808-0809 ●
23 02.727 COVER; BULB,HEADLAMP
CREW CAB EXTRA LONG(TF**WK) (A) 		8-97332-448-0 02 1 0808-0809 ●
23 02.727 COVER; BULB,HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (A) 		8-97332-448-0 02 1 0810- ● ● ● ● ● ● ●
23 02.727 COVER; BULB,HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (B) 		8-97675-961-0 02 1 0808-0809 ●
23 02.727 COVER; BULB,HEADLAMP
4X4 CREW CAB LONG(TFS*WF) HEADLAMPS PROJECTOR BEAM<8LH> (B) 		8-97675-961-0 02 1 0808-0809 ●
23 02.727 COVER; BULB,HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (B) 		8-97675-961-0 02 1 0810- ● ● ● ● ● ● ●
23 02.727 COVER; BULB,HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (C) 		8-98011-477-0 02 1 0808-0809 ●
23 02.727 COVER; BULB,HEADLAMP
4X4 CREW CAB LONG(TFS*WF) HEADLAMPS PROJECTOR BEAM<8LH> (C) 		8-98011-477-0 02 1 0808-0809 ●
23 02.727 COVER; BULB,HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (C) 		8-98011-477-0 02 1 0810- ● ● ● ● ● ● ●
28 02.762 BOLT; HEADLAMP
M6X18 TAPPING W/LK&PL WASHER 		8-98062-140-0 08 1 0808-0809 ● ● ● ● ●
28 02.762 BOLT; HEADLAMP
M6X18 TAPPING W/LK&PL WASHER 		8-98062-140-0 08 1 0810- ● ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-97374-661-1 02 1 0808-0809 ● ● ●
32 02.725 LAMP ASM; FOG
EXTEND CAB EXTRA LONG(TF**CK) FOG LAMP<T96> 		8-97374-661-1 02 1 0808-0809 ●
32 02.725 LAMP ASM; FOG
4X4 REGULAR CAB EXTRA LONG(TFS*SK) FOG LAMP<T96> 		8-97374-661-1 02 1 0808-0809 ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-97374-661-1 02 1 0810-0904 ● ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98144-229-0 02 1 0905-1101 ● ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98169-680-0 02 1 1102- ● ● ● ● ● ● ●
44 02.737 NUT; FOG LAMP
FOG LAMP<T96> 08.915 M6 FLANGE 		8-98055-704-0 04 1 0808-0809 ● ● ●
44 02.737 NUT; FOG LAMP
EXTEND CAB EXTRA LONG(TF**CK) FOG LAMP<T96> 08.915 M6 FLANGE 		8-98055-704-0 04 1 0808-0809 ●
44 02.737 NUT; FOG LAMP
4X4 REGULAR CAB EXTRA LONG(TFS*SK) FOG LAMP<T96> 08.915 M6 FLANGE 		8-98055-704-0 04 1 0808-0809 ●
44 02.737 NUT; FOG LAMP
FOG LAMP<T96> 08.915 M6 FLANGE 		8-98055-704-0 04 1 0810- ● ● ● ● ● ● ●
55 02.737 SCREW; ADJ,FOG LAMP
FOG LAMP<T96> 		8-98017-834-0 02 1 0808-0809 ● ● ●
55 02.737 SCREW; ADJ,FOG LAMP
EXTEND CAB EXTRA LONG(TF**CK) FOG LAMP<T96> 		8-98017-834-0 02 1 0808-0809 ●
55 02.737 SCREW; ADJ,FOG LAMP
4X4 REGULAR CAB EXTRA LONG(TFS*SK) FOG LAMP<T96> 		8-98017-834-0 02 1 0808-0809 ●
55 02.737 SCREW; ADJ,FOG LAMP
FOG LAMP<T96> 		8-98017-834-0 02 1 0810- ● ● ● ● ● ● ●
57 02.726 NUT; UNIT TO SCREW,FOG LAMP
FOG LAMP<T96> 		8-98017-835-0 02 1 0808-0809 ● ● ●
57 02.726 NUT; UNIT TO SCREW,FOG LAMP
EXTEND CAB EXTRA LONG(TF**CK) FOG LAMP<T96> 		8-98017-835-0 02 1 0808-0809 ●
57 02.726 NUT; UNIT TO SCREW,FOG LAMP
4X4 REGULAR CAB EXTRA LONG(TFS*SK) FOG LAMP<T96> 		8-98017-835-0 02 1 0808-0809 ●
57 02.726 NUT; UNIT TO SCREW,FOG LAMP
FOG LAMP<T96> 		8-98017-835-0 02 1 0810- ● ● ● ● ● ● ●
91 08.991 BULB; SIDE TURN SIGNAL
12V 5W 		8-97310-952-0 02 1 0808-0809 ●
91 08.991 BULB; SIDE TURN SIGNAL
EXC. DOOR MIR ELEC FOLDING COLOR TUR N SIG,BRIGHT<DE3>,DOOR MIR ELEC FOLDING COLOR TURN SIG IND<DE4> 12V 5W 		8-97310-952-0 02 1 0808-0809 ●
91 08.991 BULB; SIDE TURN SIGNAL
EXTEND CAB EXTRA LONG(TF**CK) 12V 5W 		8-97310-952-0 02 1 0808-0809 ●
91 08.991 BULB; SIDE TURN SIGNAL
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 12V 5W 		8-97310-952-0 02 1 0808-0809 ●
91 08.991 BULB; SIDE TURN SIGNAL
4X4 CREW CAB LONG(TFS*WF) EXC. DOOR MIR ELEC FOLDING COLOR TUR N SIG,BRIGHT<DE3>,DOOR MIR ELEC FOLDING COLOR TURN SIG IND<DE4> 12V 5W 		8-97310-952-0 02 1 0808-0809 ●
91 08.991 BULB; SIDE TURN SIGNAL
CREW CAB EXTRA LONG(TF**WK) 12V 5W 		8-97310-952-0 02 1 0808-0809 ●
91 08.991 BULB; SIDE TURN SIGNAL
EXC. DOOR MIR ELEC FOLDING COLOR TUR N SIG,BRIGHT<DE3>,DOOR MIR ELEC FOLDING COLOR TURN SIG IND<DE4> 12V 5W 		8-97310-952-0 02 1 0810- ● ● ● ● ● ● ●
99 02.585 LAMP; SIDE FLASHER 8-97237-378-1 02 1 0808-0809 ●
99 02.585 LAMP; SIDE FLASHER
EXC. DOOR MIR ELEC FOLDING COLOR TUR N SIG,BRIGHT<DE3>,DOOR MIR ELEC FOLDING COLOR TURN SIG IND<DE4> 		8-97237-378-1 02 1 0808-0809 ●
99 02.585 LAMP; SIDE FLASHER
EXTEND CAB EXTRA LONG(TF**CK) 		8-97237-378-1 02 1 0808-0809 ●
99 02.585 LAMP; SIDE FLASHER
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 		8-97237-378-1 02 1 0808-0809 ●
99 02.585 LAMP; SIDE FLASHER
4X4 CREW CAB LONG(TFS*WF) EXC. DOOR MIR ELEC FOLDING COLOR TUR N SIG,BRIGHT<DE3>,DOOR MIR ELEC FOLDING COLOR TURN SIG IND<DE4> 		8-97237-378-1 02 1 0808-0809 ●
99 02.585 LAMP; SIDE FLASHER
CREW CAB EXTRA LONG(TF**WK) 		8-97237-378-1 02 1 0808-0809 ●
99 02.585 LAMP; SIDE FLASHER
EXC. DOOR MIR ELEC FOLDING COLOR TUR N SIG,BRIGHT<DE3>,DOOR MIR ELEC FOLDING COLOR TURN SIG IND<DE4> 		8-97237-378-1 02 1 0810- ● ● ● ● ● ● ●
106 02.590 GASKET; SIDE TURN SIGNAL 8-97333-420-0 02 1 0808-0809 ●
106 02.590 GASKET; SIDE TURN SIGNAL
EXC. DOOR MIR ELEC FOLDING COLOR TUR N SIG,BRIGHT<DE3>,DOOR MIR ELEC FOLDING COLOR TURN SIG IND<DE4> 		8-97333-420-0 02 1 0808-0809 ●
106 02.590 GASKET; SIDE TURN SIGNAL
EXTEND CAB EXTRA LONG(TF**CK) 		8-97333-420-0 02 1 0808-0809 ●
106 02.590 GASKET; SIDE TURN SIGNAL
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 		8-97333-420-0 02 1 0808-0809 ●
106 02.590 GASKET; SIDE TURN SIGNAL
4X4 CREW CAB LONG(TFS*WF) EXC. DOOR MIR ELEC FOLDING COLOR TUR N SIG,BRIGHT<DE3>,DOOR MIR ELEC FOLDING COLOR TURN SIG IND<DE4> 		8-97333-420-0 02 1 0808-0809 ●
106 02.590 GASKET; SIDE TURN SIGNAL
CREW CAB EXTRA LONG(TF**WK) 		8-97333-420-0 02 1 0808-0809 ●
106 02.590 GASKET; SIDE TURN SIGNAL
EXC. DOOR MIR ELEC FOLDING COLOR TUR N SIG,BRIGHT<DE3>,DOOR MIR ELEC FOLDING COLOR TURN SIG IND<DE4> 		8-97333-420-0 02 1 0810- ● ● ● ● ● ● ●
211 02.728 TUBE; HEADLAMP 8-97333-983-0 04 1 0808-0809 ●
211 02.728 TUBE; HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-97333-983-0 04 1 0808-0809 ●
211 02.728 TUBE; HEADLAMP
EXTEND CAB EXTRA LONG(TF**CK) 		8-97333-983-0 04 1 0808-0809 ●
211 02.728 TUBE; HEADLAMP
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 		8-97333-983-0 04 1 0808-0809 ●
211 02.728 TUBE; HEADLAMP
4X4 CREW CAB LONG(TFS*WF) EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-97333-983-0 04 1 0808-0809 ●
211 02.728 TUBE; HEADLAMP
CREW CAB EXTRA LONG(TF**WK) 		8-97333-983-0 04 1 0808-0809 ●
211 02.728 TUBE; HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-97333-983-0 04 1 0810- ● ● ● ● ● ● ●
224 02.575 SOCKET; SIDE FLASHER LAMP 8-97310-953-0 02 1 0808-0809 ●
224 02.575 SOCKET; SIDE FLASHER LAMP
EXC. DOOR MIR ELEC FOLDING COLOR TUR N SIG,BRIGHT<DE3>,DOOR MIR ELEC FOLDING COLOR TURN SIG IND<DE4> 		8-97310-953-0 02 1 0808-0809 ●
224 02.575 SOCKET; SIDE FLASHER LAMP
EXTEND CAB EXTRA LONG(TF**CK) 		8-97310-953-0 02 1 0808-0809 ●
224 02.575 SOCKET; SIDE FLASHER LAMP
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 		8-97310-953-0 02 1 0808-0809 ●
224 02.575 SOCKET; SIDE FLASHER LAMP
4X4 CREW CAB LONG(TFS*WF) EXC. DOOR MIR ELEC FOLDING COLOR TUR N SIG,BRIGHT<DE3>,DOOR MIR ELEC FOLDING COLOR TURN SIG IND<DE4> 		8-97310-953-0 02 1 0808-0809 ●
224 02.575 SOCKET; SIDE FLASHER LAMP
CREW CAB EXTRA LONG(TF**WK) 		8-97310-953-0 02 1 0808-0809 ●
224 02.575 SOCKET; SIDE FLASHER LAMP
EXC. DOOR MIR ELEC FOLDING COLOR TUR N SIG,BRIGHT<DE3>,DOOR MIR ELEC FOLDING COLOR TURN SIG IND<DE4> 		8-97310-953-0 02 1 0810- ● ● ● ● ● ● ●
340 08.991 BULB; POSITION
12V 5W 		8-94124-595-0 02 1 0808-0809 ● ● ●
340 08.991 BULB; POSITION
EXTEND CAB EXTRA LONG(TF**CK) 12V 5W 		8-94124-595-0 02 1 0808-0809 ●
340 08.991 BULB; POSITION
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 12V 5W 		8-94124-595-0 02 1 0808-0809 ●
340 08.991 BULB; POSITION
12V 5W 		8-94124-595-0 02 1 0810- ● ● ● ● ● ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
(A) 		8-97332-446-0 02 1 0808-0809 ●
382 02.575 PLUG; SOCKET,HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (A) 		8-97332-446-0 02 1 0808-0809 ●
382 02.575 PLUG; SOCKET,HEADLAMP
EXTEND CAB EXTRA LONG(TF**CK) (A) 		8-97332-446-0 02 1 0808-0809 ●
382 02.575 PLUG; SOCKET,HEADLAMP
4X4 REGULAR CAB EXTRA LONG(TFS*SK) (A) 		8-97332-446-0 02 1 0808-0809 ●
382 02.575 PLUG; SOCKET,HEADLAMP
4X4 CREW CAB LONG(TFS*WF) EXC. HEADLAMPS PROJECTOR BEAM<8LH> (A) 		8-97332-446-0 02 1 0808-0809 ●
382 02.575 PLUG; SOCKET,HEADLAMP
CREW CAB EXTRA LONG(TF**WK) (A) 		8-97332-446-0 02 1 0808-0809 ●
382 02.575 PLUG; SOCKET,HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (A) 		8-97332-446-0 02 1 0810- ● ● ● ● ● ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
(B) 		8-97332-447-0 02 1 0808-0809 ●
382 02.575 PLUG; SOCKET,HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (B) 		8-97332-447-0 02 1 0808-0809 ●
382 02.575 PLUG; SOCKET,HEADLAMP
EXTEND CAB EXTRA LONG(TF**CK) (B) 		8-97332-447-0 02 1 0808-0809 ●
382 02.575 PLUG; SOCKET,HEADLAMP
4X4 REGULAR CAB EXTRA LONG(TFS*SK) (B) 		8-97332-447-0 02 1 0808-0809 ●
382 02.575 PLUG; SOCKET,HEADLAMP
4X4 CREW CAB LONG(TFS*WF) EXC. HEADLAMPS PROJECTOR BEAM<8LH> (B) 		8-97332-447-0 02 1 0808-0809 ●
382 02.575 PLUG; SOCKET,HEADLAMP
CREW CAB EXTRA LONG(TF**WK) (B) 		8-97332-447-0 02 1 0808-0809 ●
382 02.575 PLUG; SOCKET,HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (B) 		8-97332-447-0 02 1 0810- ● ● ● ● ● ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (C) 		8-98012-762-0 02 1 0808-0809 ●
382 02.575 PLUG; SOCKET,HEADLAMP
4X4 CREW CAB LONG(TFS*WF) HEADLAMPS PROJECTOR BEAM<8LH> (C) 		8-98012-762-0 02 1 0808-0809 ●
382 02.575 PLUG; SOCKET,HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (C) 		8-98012-762-0 02 1 0810- ● ● ● ● ● ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (D) 		8-98012-788-0 02 1 0808-0809 ●
382 02.575 PLUG; SOCKET,HEADLAMP
4X4 CREW CAB LONG(TFS*WF) HEADLAMPS PROJECTOR BEAM<8LH> (D) 		8-98012-788-0 02 1 0808-0809 ●
382 02.575 PLUG; SOCKET,HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (D) 		8-98012-788-0 02 1 0810- ● ● ● ● ● ● ●
424 02.727 RETAINER; FOG LAMP
FOG LAMP<T96> 16.494 		8-97372-854-0 02 1 0808-0809 ● ● ●
424 02.727 RETAINER; FOG LAMP
EXTEND CAB EXTRA LONG(TF**CK) FOG LAMP<T96> 16.494 		8-97372-854-0 02 1 0808-0809 ●
424 02.727 RETAINER; FOG LAMP
4X4 REGULAR CAB EXTRA LONG(TFS*SK) FOG LAMP<T96> 16.494 		8-97372-854-0 02 1 0808-0809 ●
424 02.727 RETAINER; FOG LAMP
FOG LAMP<T96> 16.494 		8-97372-854-0 02 1 0810- ● ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
