◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51194 - TFR/TFS-RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#77096) — 374 parça

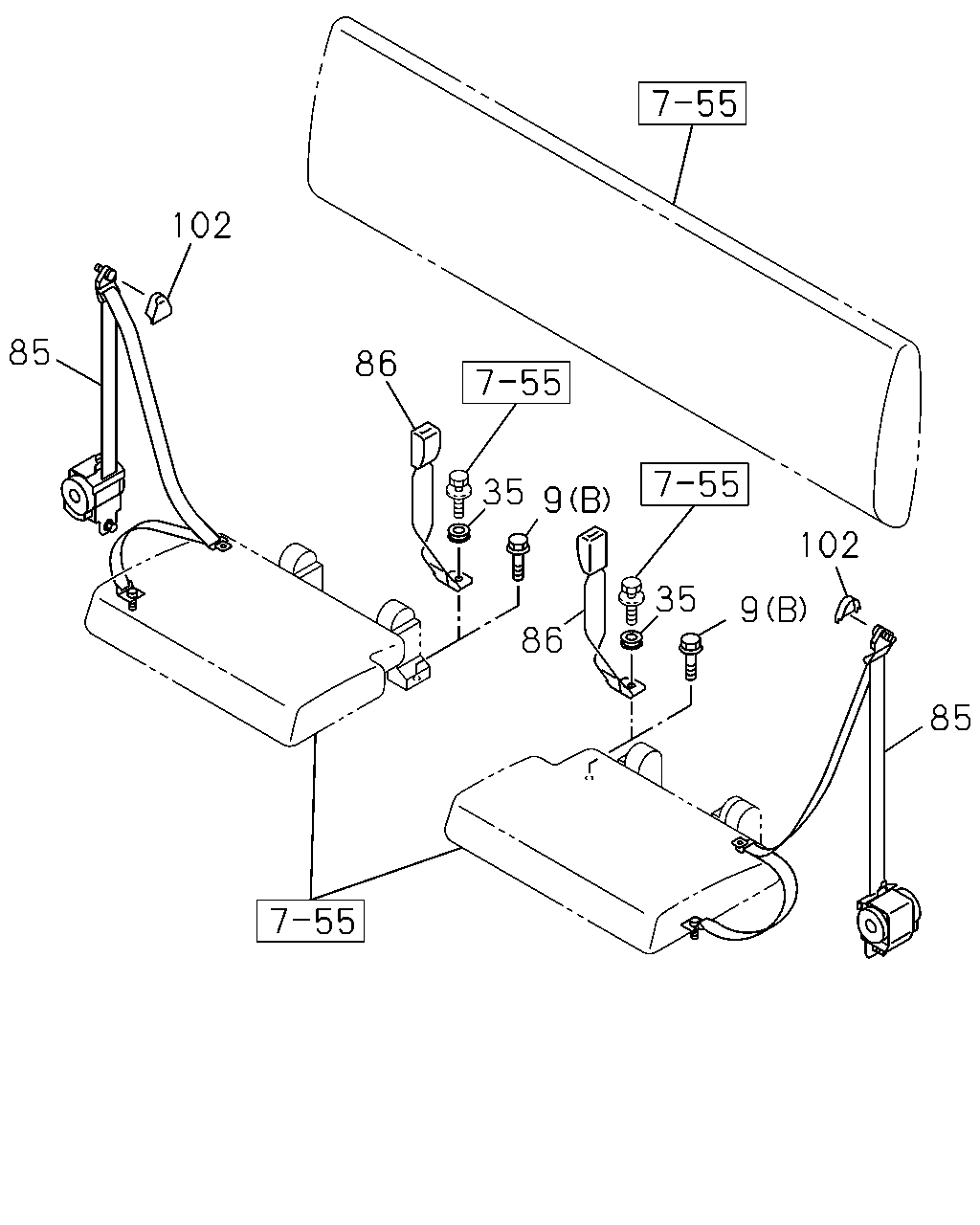

çizim 135654
102 85 86 35 9 102 35 9 86 85
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
9 16.714 BOLT; SEAT BELT ANCHOR
CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTH TRIM SUPER DELUXE, VAR 1<8LM> FRONT SEAT BUCKET TYPE<A50> EXC. SEAT BELT TENSIONER FRT<A70> (A) 		8-97332-665-0 01 1 0810-0912 ● ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTH TRIM SUPER DELUXE, VAR 1<8LM> FRONT SEAT BUCKET TYPE<A50> EXC. SEAT BELT TENSIONER FRT<A70> (A) 		8-97332-665-0 01 1 0810-0912 ● ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
VINYL TRIM<8LJ> FRONT SEAT BUCKET TYPE<A50> EXC. SEAT BELT TENSIONER FRT<A70>, FRONT SEAT BACK POCKET(E91) (A) 		8-97332-665-0 01 1 0810-0912 ● ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
VINYL TRIM<8LJ> FRONT SEAT BUCKET TYPE<A50> EXC. SEAT BELT TENSIONER FRT<A70>, FRONT SEAT BACK POCKET(E91) (A) 		8-97332-665-0 01 1 0810-0912 ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
CLOTH TRIM SUPER DELUXE, VAR 1<8LM> FRONT SEAT BUCKET TYPE<A50> EXC. SEAT BELT TENSIONER FRT<A70> (A) 		8-97332-665-0 01 1 1001-1204 ● ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
CLOTH TRIM SUPER DELUXE, VAR 1<8LM> FRONT SEAT BUCKET TYPE<A50> EXC. SEAT BELT TENSIONER FRT<A70> (A) 		8-97332-665-0 01 1 1001-1204 ● ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM STANDARD, VAR 1<8LK> FRONT SEAT BUCKET TYPE<A50> EXC. SEAT BELT TENSIONER FRT<A70> (A) 		8-97332-665-0 01 1 1001-1204 ● ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM STANDARD, VAR 1<8LK> FRONT SEAT BUCKET TYPE<A50> EXC. SEAT BELT TENSIONER FRT<A70> (A) 		8-97332-665-0 01 1 1001-1204 ● ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
INTERIOR COLOR IN VERY DARK GRAY(116) VINYL TRIM<8LJ> FRONT SEAT BUCKET TYPE<A50> EXC. SEAT BELT TENSIONER FRT<A70>, FRONT SEAT BACK POCKET(E91) (A) 		8-97332-665-0 01 1 1001-1204 ● ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
INTERIOR COLOR IN VERY DARK GRAY(116) VINYL TRIM<8LJ> FRONT SEAT BUCKET TYPE<A50> EXC. SEAT BELT TENSIONER FRT<A70>, FRONT SEAT BACK POCKET(E91) (A) 		8-97332-665-0 01 1 1001-1204 ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
FRONT SEAT BUCKET TYPE<A50> EXC. SEAT BELT TENSIONER FRT<A70> (A) 		8-97332-665-0 01 1 1205- ● ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTH TRIM SUPER DELUXE, VAR 1<8LM> FRONT SEAT BUCKET TYPE<A50> EXC. SEAT BELT TENSIONER FRT<A70> (A) 		8-97332-665-0 01 1 1205- ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
FRONT SEAT BUCKET TYPE<A50> EXC. SEAT BELT TENSIONER FRT<A70> (A) 		8-97332-665-0 01 1 1205- ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
BENCH SEAT<A52> (A) 		8-97332-665-0 04 1 0808-0809 ●
9 16.714 BOLT; SEAT BELT ANCHOR
4X4 REGULAR CAB EXTRA LONG(TFS*SK) BENCH SEAT<A52> (A) 		8-97332-665-0 04 1 0808-0809 ●
9 16.714 BOLT; SEAT BELT ANCHOR
VINYL TRIM<8LJ>,CLOTH TRIM STANDARD, VAR 1<8LK> BENCH SEAT<A52> EXC. SEAT BELT TENSIONER FRT<A70> (A) 		8-97332-665-0 04 1 0810- ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
00.004 (C) M12X35 FLANGE 		0-28661-235-0 02 1 0808- ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXTEND CAB EXTRA LONG(TF**CK) EXC. JUMP SEAT<AJ2> 16.682 (B) M12X27.5 W/PL WASHER 		8-98050-319-0 02 1 0808-0809 ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. JUMP SEAT<AJ2> 16.682 (B) M12X27.5 W/PL WASHER 		8-98050-319-0 02 1 0810- ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
FRONT SEAT BUCKET TYPE<A50> (A) 		8-97332-665-0 01 1 0808-0809 ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
FRONT SEAT BUCKET TYPE<A50> (A) 		8-97332-665-0 01 1 0808-0809 ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXTEND CAB EXTRA LONG(TF**CK) FRONT SEAT BUCKET TYPE<A50> (A) 		8-97332-665-0 01 1 0808-0809 ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXTEND CAB EXTRA LONG(TF**CK) FRONT SEAT BUCKET TYPE<A50> (A) 		8-97332-665-0 01 1 0808-0809 ●
9 16.714 BOLT; SEAT BELT ANCHOR
4X4 REGULAR CAB EXTRA LONG(TFS*SK) FRONT SEAT BUCKET TYPE<A50> (A) 		8-97332-665-0 01 1 0808-0809 ●
9 16.714 BOLT; SEAT BELT ANCHOR
4X4 REGULAR CAB EXTRA LONG(TFS*SK) FRONT SEAT BUCKET TYPE<A50> (A) 		8-97332-665-0 01 1 0808-0809 ●
9 16.714 BOLT; SEAT BELT ANCHOR
CLOTH TRIM STANDARD, VAR 1<8LK> BENCH SEAT<A52> SEAT BELT TENSIONER FRT<A70> (A) 		8-97332-665-0 02 1 0810- ● ● ● ●
35 16.714 GROMMET; SEAT BELT ANCHOR
EXTEND CAB EXTRA LONG(TF**CK) JUMP SEAT<AJ2> 		8-97370-311-0 02 1 0808-0809 ●
35 16.714 GROMMET; SEAT BELT ANCHOR
CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTH TRIM SUPER DELUXE, VAR 1<8LM> JUMP SEAT<AJ2> 		8-97370-311-0 02 1 0810- ● ●
85 16.714 BELT; SEAT,RR OUTER
INTERIOR COLOR BLACK(101) JUMP SEAT<AJ2> DARK GRAY 		8-97421-865-0 02 1 1005-1303 ●
85 16.714 BELT; SEAT,RR OUTER
4X4 EXTEND CAB LONG(TFS*CF) INTERIOR COLOR BLACK(101) JUMP SEAT<AJ2> DARK GRAY 		8-97421-865-0 02 1 1005-1303 ●
85 16.714 BELT; SEAT,RR OUTER
INTERIOR COLOR BLACK(101) JUMP SEAT<AJ2> DARK GRAY 		8-97424-049-0 02 1 1304- ●
85 16.714 BELT; SEAT,RR OUTER
4X4 EXTEND CAB LONG(TFS*CF) INTERIOR COLOR BLACK(101) JUMP SEAT<AJ2> DARK GRAY 		8-97424-049-0 02 1 1304- ●
85 16.714 BELT; SEAT,RR OUTER
INTERIOR COLOR BLACK(101) AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97418-550-0 02 1 1004-1303 ●
85 16.714 BELT; SEAT,RR OUTER
4X4 CREW CAB LONG(TFS*WF) INTERIOR COLOR BLACK(101) AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97418-550-0 02 1 1004-1303 ●
85 16.714 BELT; SEAT,RR OUTER
INTERIOR COLOR BLACK(101) AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97424-048-0 02 1 1304- ●
85 16.714 BELT; SEAT,RR OUTER
4X4 CREW CAB LONG(TFS*WF) INTERIOR COLOR BLACK(101) AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97424-048-0 02 1 1304- ●
85 16.714 BELT; SEAT,RR OUTER
INTERIOR COLOR BLACK(101) EXC. AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97418-429-0 02 1 1004-1303 ●
85 16.714 BELT; SEAT,RR OUTER
4X4 CREW CAB LONG(TFS*WF) INTERIOR COLOR BLACK(101) EXC. AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97418-429-0 02 1 1004-1303 ●
85 16.714 BELT; SEAT,RR OUTER
INTERIOR COLOR BLACK(101) EXC. AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97424-025-0 02 1 1304- ●
85 16.714 BELT; SEAT,RR OUTER
4X4 CREW CAB LONG(TFS*WF) INTERIOR COLOR BLACK(101) EXC. AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97424-025-0 02 1 1304- ●
85 16.714 BELT; SEAT,RR OUTER
JUMP SEAT<AJ2> DARK GRAY 		8-97413-185-0 02 1 0810-0811 ●
85 16.714 BELT; SEAT,RR OUTER
4X4 EXTEND CAB LONG(TFS*CF) JUMP SEAT<AJ2> DARK GRAY 		8-97413-185-0 02 1 0810-0811 ●
85 16.714 BELT; SEAT,RR OUTER
JUMP SEAT<AJ2> DARK GRAY 		8-97417-036-0 02 1 0812-1004 ●
85 16.714 BELT; SEAT,RR OUTER
4X4 EXTEND CAB LONG(TFS*CF) JUMP SEAT<AJ2> DARK GRAY 		8-97417-036-0 02 1 0812-1004 ●
85 16.714 BELT; SEAT,RR OUTER
INTERIOR COLOR IN VERY DARK GRAY(116) JUMP SEAT<AJ2> DARK GRAY 		8-97417-036-0 02 1 1005-1303 ●
85 16.714 BELT; SEAT,RR OUTER
4X4 EXTEND CAB LONG(TFS*CF) INTERIOR COLOR IN VERY DARK GRAY(116) JUMP SEAT<AJ2> DARK GRAY 		8-97417-036-0 02 1 1005-1303 ●
85 16.714 BELT; SEAT,RR OUTER
INTERIOR COLOR IN VERY DARK GRAY(116) JUMP SEAT<AJ2> DARK GRAY 		8-97424-027-0 02 1 1304- ●
85 16.714 BELT; SEAT,RR OUTER
4X4 EXTEND CAB LONG(TFS*CF) INTERIOR COLOR IN VERY DARK GRAY(116) JUMP SEAT<AJ2> DARK GRAY 		8-97424-027-0 02 1 1304- ●
85 16.714 BELT; SEAT,RR OUTER
EXC. AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97413-180-0 02 1 0810-0811 ●
85 16.714 BELT; SEAT,RR OUTER
4X4 CREW CAB LONG(TFS*WF) EXC. AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97413-180-0 02 1 0810-0811 ●
85 16.714 BELT; SEAT,RR OUTER
EXC. AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97417-031-0 02 1 0812-1003 ●
85 16.714 BELT; SEAT,RR OUTER
4X4 CREW CAB LONG(TFS*WF) EXC. AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97417-031-0 02 1 0812-1003 ●
85 16.714 BELT; SEAT,RR OUTER
INTERIOR COLOR IN VERY DARK GRAY(116) EXC. AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97417-031-0 02 1 1004-1303 ●
85 16.714 BELT; SEAT,RR OUTER
4X4 CREW CAB LONG(TFS*WF) INTERIOR COLOR IN VERY DARK GRAY(116) EXC. AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97417-031-0 02 1 1004-1303 ●
85 16.714 BELT; SEAT,RR OUTER
INTERIOR COLOR IN VERY DARK GRAY(116) EXC. AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97424-024-0 02 1 1304- ●
85 16.714 BELT; SEAT,RR OUTER
4X4 CREW CAB LONG(TFS*WF) INTERIOR COLOR IN VERY DARK GRAY(116) EXC. AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97424-024-0 02 1 1304- ●
85 16.714 BELT; SEAT,RR OUTER
DARK GRAY 		8-97413-183-0 02 1 0808-0809 ● ●
85 16.714 BELT; SEAT,RR OUTER
AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97413-183-0 02 1 0810-0811 ●
85 16.714 BELT; SEAT,RR OUTER
4X4 CREW CAB LONG(TFS*WF) AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97413-183-0 02 1 0810-0811 ●
85 16.714 BELT; SEAT,RR OUTER
CREW CAB EXTRA LONG(TF**WK) DARK GRAY 		8-97413-183-0 02 1 0810-0811 ●
85 16.714 BELT; SEAT,RR OUTER
AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97417-034-0 02 1 0812-1003 ●
85 16.714 BELT; SEAT,RR OUTER
4X4 CREW CAB LONG(TFS*WF) AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97417-034-0 02 1 0812-1003 ●
85 16.714 BELT; SEAT,RR OUTER
CREW CAB EXTRA LONG(TF**WK) DARK GRAY 		8-97417-034-0 02 1 0812-1003 ●
85 16.714 BELT; SEAT,RR OUTER
INTERIOR COLOR IN VERY DARK GRAY(116) AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97417-034-0 02 1 1004-1303 ●
85 16.714 BELT; SEAT,RR OUTER
4X4 CREW CAB LONG(TFS*WF) INTERIOR COLOR IN VERY DARK GRAY(116) AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97417-034-0 02 1 1004-1303 ●
85 16.714 BELT; SEAT,RR OUTER
CREW CAB EXTRA LONG(TF**WK) DARK GRAY 		8-97417-034-0 02 1 1004-1303 ●
85 16.714 BELT; SEAT,RR OUTER
INTERIOR COLOR IN VERY DARK GRAY(116) AUSTRALIA EQUIPMENT(B13) 		8-97424-026-0 02 1 1304- ●
85 16.714 BELT; SEAT,RR OUTER
4X4 CREW CAB LONG(TFS*WF) INTERIOR COLOR IN VERY DARK GRAY(116) AUSTRALIA EQUIPMENT(B13) 		8-97424-026-0 02 1 1304- ●
85 16.714 BELT; SEAT,RR OUTER
CREW CAB EXTRA LONG(TF**WK) 		8-97424-026-0 02 1 1304- ●
85 16.714 BELT; SEAT,RR OUTER
EXTEND CAB EXTRA LONG(TF**CK) JUMP SEAT<AJ2> DARK GRAY 		8-97413-187-0 02 1 0808-0811 ●
85 16.714 BELT; SEAT,RR OUTER
EXTEND CAB EXTRA LONG(TF**CK) JUMP SEAT<AJ2> DARK GRAY 		8-97417-038-0 02 1 0812-1303 ●
85 16.714 BELT; SEAT,RR OUTER
EXTEND CAB EXTRA LONG(TF**CK) JUMP SEAT<AJ2> DARK GRAY 		8-97424-028-0 02 1 1304- ●
86 16.714 BELT; SEAT,RR INNER
EXTEND CAB EXTRA LONG(TF**CK) JUMP SEAT<AJ2> DARK GRAY 		8-97404-957-0 02 1 0808-0809 ●
86 16.714 BELT; SEAT,RR INNER
CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTH TRIM SUPER DELUXE, VAR 1<8LM> JUMP SEAT<AJ2> DARK GRAY 		8-97404-957-0 02 1 0810- ● ●
102 16.714 COVER; SHOULDER ANCHOR
INTERIOR COLOR BLACK(101) BLACK 		8-97418-427-0 02 1 1004- ● ● ● ● ● ●
102 16.714 COVER; SHOULDER ANCHOR
INTERIOR COLOR BLACK(101) JUMP SEAT<AJ2> BLACK 		8-97418-427-0 02 1 1004- ● ●
102 16.714 COVER; SHOULDER ANCHOR
INTERIOR COLOR BLACK(101) BLACK 		8-97418-427-0 02 1 1004- ● ●
102 16.714 COVER; SHOULDER ANCHOR
LIGHT GRAY 		8-97403-340-0 02 1 0808-0809 ● ● ●
102 16.714 COVER; SHOULDER ANCHOR
LIGHT GRAY 		8-97403-340-0 02 1 0808-0809 ● ●
102 16.714 COVER; SHOULDER ANCHOR
EXTEND CAB EXTRA LONG(TF**CK) JUMP SEAT<AJ2> LIGHT GRAY 		8-97403-340-0 02 1 0808-0809 ●
102 16.714 COVER; SHOULDER ANCHOR
EXTEND CAB EXTRA LONG(TF**CK) LIGHT GRAY 		8-97403-340-0 02 1 0808-0809 ●
102 16.714 COVER; SHOULDER ANCHOR
4X4 REGULAR CAB EXTRA LONG(TFS*SK) LIGHT GRAY 		8-97403-340-0 02 1 0808-0809 ●
102 16.714 COVER; SHOULDER ANCHOR
LIGHT GRAY 		8-97403-340-0 02 1 0810-1003 ● ● ● ● ● ● ●
102 16.714 COVER; SHOULDER ANCHOR
JUMP SEAT<AJ2> LIGHT GRAY 		8-97403-340-0 02 1 0810-1003 ● ●
102 16.714 COVER; SHOULDER ANCHOR
LIGHT GRAY 		8-97403-340-0 02 1 0810-1003 ● ●
102 16.714 COVER; SHOULDER ANCHOR
INTERIOR COLOR IN VERY DARK GRAY(116) LIGHT GRAY 		8-97403-340-0 02 1 1004- ● ● ● ● ● ● ●
102 16.714 COVER; SHOULDER ANCHOR
INTERIOR COLOR IN VERY DARK GRAY(116) JUMP SEAT<AJ2> LIGHT GRAY 		8-97403-340-0 02 1 1004- ● ●
102 16.714 COVER; SHOULDER ANCHOR
INTERIOR COLOR IN VERY DARK GRAY(116) LIGHT GRAY 		8-97403-340-0 02 1 1004- ● ●

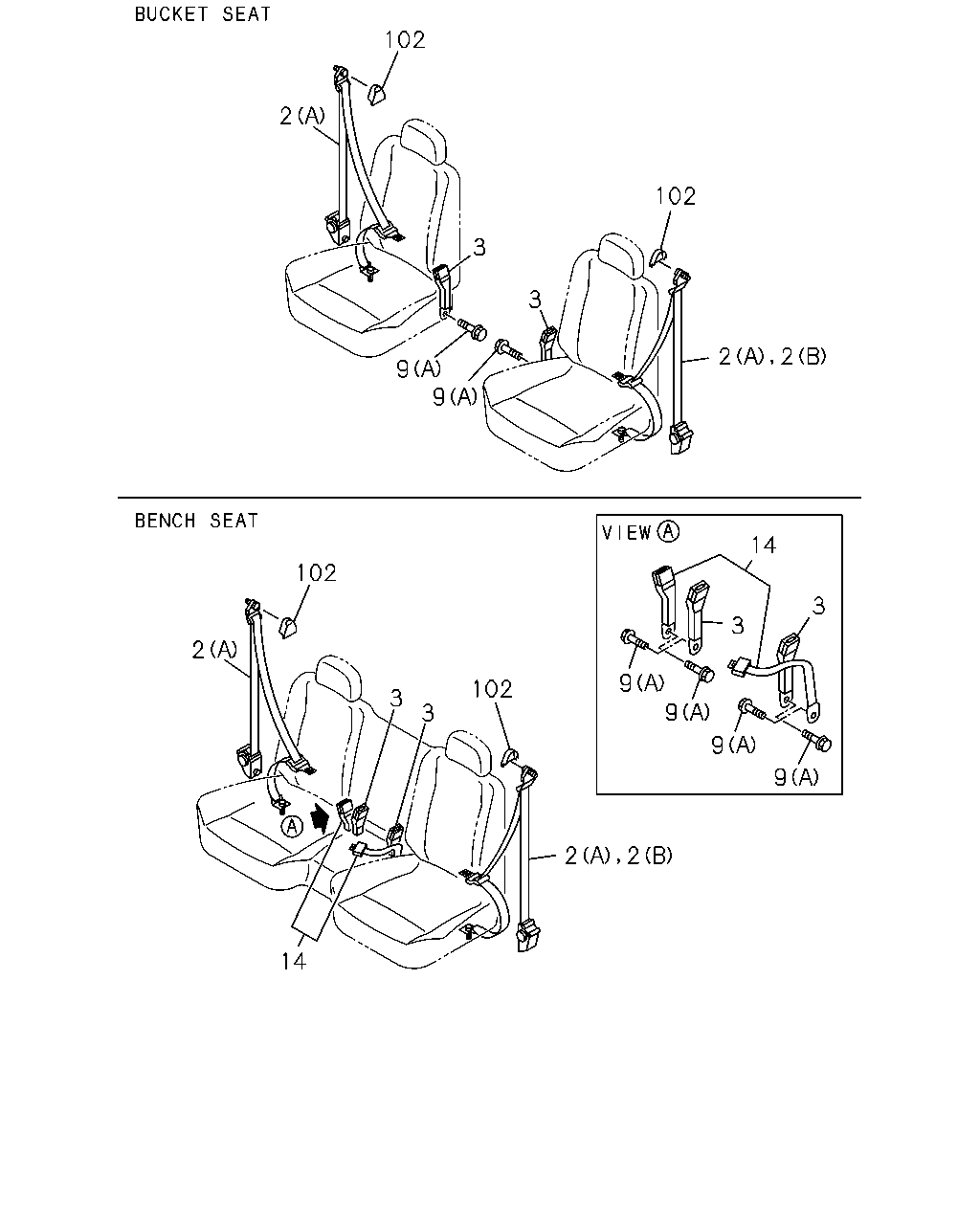

çizim 135786
102 2 102 3 3 2 2 9 9 14 102 3 3 2 9 9 102 3 3 9 9 2 2 14
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
2 16.714 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR BLACK(101) (A) DRIVER SIDE DARK GRAY 		8-97418-425-0 01 1 1004-1303 ● ● ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR BLACK(101) (A) DRIVER SIDE DARK GRAY 		8-97424-043-0 01 1 1304- ● ● ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR BLACK(101) EXC. AUSTRALIA EQUIPMENT(B13) (A) PASSENGER SIDE DARK GRAY 		8-97418-428-0 01 1 1004-1303 ● ● ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR BLACK(101) EXC. AUSTRALIA EQUIPMENT(B13) (A) PASSENGER SIDE DARK GRAY 		8-97424-045-0 01 1 1304- ● ● ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR BLACK(101) AUSTRALIA EQUIPMENT(B13) (B) PASSENGER SIDE DARK GRAY 		8-97418-549-0 01 1 1004-1303 ●
2 16.714 BELT; SEAT,TONGUE SIDE
4X4 CREW CAB LONG(TFS*WF) INTERIOR COLOR BLACK(101) AUSTRALIA EQUIPMENT(B13) (B) PASSENGER SIDE DARK GRAY 		8-97418-549-0 01 1 1004-1303 ●
2 16.714 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR BLACK(101) AUSTRALIA EQUIPMENT(B13) (B) PASSENGER SIDE DARK GRAY 		8-97424-046-0 01 1 1304- ●
2 16.714 BELT; SEAT,TONGUE SIDE
4X4 CREW CAB LONG(TFS*WF) INTERIOR COLOR BLACK(101) AUSTRALIA EQUIPMENT(B13) (B) PASSENGER SIDE DARK GRAY 		8-97424-046-0 01 1 1304- ●
2 16.714 BELT; SEAT,TONGUE SIDE
(A) PASSENGER SIDE DARK GRAY 		8-97413-190-0 01 1 0810-0811 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
EXC. AUSTRALIA EQUIPMENT(B13) (A) PASSENGER SIDE DARK GRAY 		8-97413-190-0 01 1 0810-0811 ●
2 16.714 BELT; SEAT,TONGUE SIDE
4X4 EXTEND CAB LONG(TFS*CF) (A) PASSENGER SIDE DARK GRAY 		8-97413-190-0 01 1 0810-0811 ●
2 16.714 BELT; SEAT,TONGUE SIDE
4X4 REGULAR CAB LONG(TFS*SF) (A) PASSENGER SIDE DARK GRAY 		8-97413-190-0 01 1 0810-0811 ●
2 16.714 BELT; SEAT,TONGUE SIDE
4X4 CREW CAB LONG(TFS*WF) EXC. AUSTRALIA EQUIPMENT(B13) (A) PASSENGER SIDE DARK GRAY 		8-97413-190-0 01 1 0810-0811 ●
2 16.714 BELT; SEAT,TONGUE SIDE
(A) PASSENGER SIDE DARK GRAY 		8-97417-025-0 01 1 0812-1003 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
EXC. AUSTRALIA EQUIPMENT(B13) (A) PASSENGER SIDE DARK GRAY 		8-97417-025-0 01 1 0812-1003 ●
2 16.714 BELT; SEAT,TONGUE SIDE
4X4 EXTEND CAB LONG(TFS*CF) (A) PASSENGER SIDE DARK GRAY 		8-97417-025-0 01 1 0812-1003 ●
2 16.714 BELT; SEAT,TONGUE SIDE
4X4 REGULAR CAB LONG(TFS*SF) (A) PASSENGER SIDE DARK GRAY 		8-97417-025-0 01 1 0812-1003 ●
2 16.714 BELT; SEAT,TONGUE SIDE
4X4 CREW CAB LONG(TFS*WF) EXC. AUSTRALIA EQUIPMENT(B13) (A) PASSENGER SIDE DARK GRAY 		8-97417-025-0 01 1 0812-1003 ●
2 16.714 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR IN VERY DARK GRAY(116) EXC. AUSTRALIA EQUIPMENT(B13) (A) PASSENGER SIDE DARK GRAY 		8-97417-025-0 01 1 1004-1303 ● ● ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR IN VERY DARK GRAY(116) EXC. AUSTRALIA EQUIPMENT(B13) (A) PASSENGER SIDE DARK GRAY 		8-97424-020-0 01 1 1304- ● ● ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
(A) DRIVER SIDE DARK GRAY 		8-97413-176-0 01 1 0808-0809 ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
EXTEND CAB EXTRA LONG(TF**CK) (A) DRIVER SIDE DARK GRAY 		8-97413-176-0 01 1 0808-0809 ●
2 16.714 BELT; SEAT,TONGUE SIDE
4X4 REGULAR CAB EXTRA LONG(TFS*SK) (A) DRIVER SIDE DARK GRAY 		8-97413-176-0 01 1 0808-0809 ●
2 16.714 BELT; SEAT,TONGUE SIDE
(A) DRIVER SIDE DARK GRAY 		8-97413-176-0 01 1 0810-0811 ● ● ● ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
(A) DRIVER SIDE DARK GRAY 		8-97417-018-0 01 1 0812-1003 ● ● ● ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR IN VERY DARK GRAY(116) (A) DRIVER SIDE DARK GRAY 		8-97417-018-0 01 1 1004-1303 ● ● ● ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR IN VERY DARK GRAY(116) (A) DRIVER SIDE DARK GRAY 		8-97424-019-0 01 1 1304- ● ● ● ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
(B) PASSENGER SIDE DARK GRAY 		8-97413-178-0 01 1 0808-0809 ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
EXTEND CAB EXTRA LONG(TF**CK) (B) PASSENGER SIDE DARK GRAY 		8-97413-178-0 01 1 0808-0809 ●
2 16.714 BELT; SEAT,TONGUE SIDE
4X4 REGULAR CAB EXTRA LONG(TFS*SK) (B) PASSENGER SIDE DARK GRAY 		8-97413-178-0 01 1 0808-0809 ●
2 16.714 BELT; SEAT,TONGUE SIDE
AUSTRALIA EQUIPMENT(B13) (B) PASSENGER SIDE DARK GRAY 		8-97413-178-0 01 1 0810-0811 ● ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
AUSTRALIA EQUIPMENT(B13) (B) PASSENGER SIDE DARK GRAY 		8-97417-028-0 01 1 0812-1003 ● ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR IN VERY DARK GRAY(116) AUSTRALIA EQUIPMENT(B13) (B) PASSENGER SIDE DARK GRAY 		8-97417-028-0 01 1 1004-1303 ● ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR IN VERY DARK GRAY(116) AUSTRALIA EQUIPMENT(B13) (B) PASSENGER SIDE DARK GRAY 		8-97424-031-0 01 1 1304- ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
CLOTH TRIM SUPER DELUXE, VAR 1<8LM> FRONT SEAT BUCKET TYPE<A50> SEAT BELT TENSIONER FRT<A70> DARK GRAY 		8-97416-330-1 01 1 0810-1003 ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
CLOTH TRIM STANDARD, VAR 1<8LK> FRONT SEAT BUCKET TYPE<A50> SEAT BELT TENSIONER FRT<A70> FRONT SEAT BACK POCKET(E91) DARK GRAY 		8-97416-330-1 01 1 0810-1003 ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
CLOTH TRIM SUPER DELUXE, VAR 1<8LM> FRONT SEAT BUCKET TYPE<A50> SEAT BELT TENSIONER FRT<A70> DARK GRAY 		8-97416-330-1 01 1 1004- ● ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
CLOTH TRIM STANDARD, VAR 1<8LK> FRONT SEAT BUCKET TYPE<A50> SEAT BELT TENSIONER FRT<A70> FRONT SEAT BACK POCKET(E91) DARK GRAY 		8-97416-330-1 01 1 1004- ● ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
CLOTH TRIM STANDARD, VAR 1<8LK> FRONT SEAT BUCKET TYPE<A50> SEAT BELT TENSIONER FRT<A70> EXC. FRONT SEAT BACK POCKET(E91) DARK GRAY 		8-97416-330-1 01 1 0810-1003 ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
CLOTH TRIM STANDARD, VAR 1<8LK> FRONT SEAT BUCKET TYPE<A50> SEAT BELT TENSIONER FRT<A70> EXC. FRONT SEAT BACK POCKET(E91) DARK GRAY 		8-97416-330-1 01 1 1004- ● ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
CLOTH TRIM STANDARD, VAR 1<8LK> BENCH SEAT<A52> SEAT BELT TENSIONER FRT<A70> DARK GRAY 		8-97416-317-1 01 1 0810- ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
CLOTH TRIM STANDARD, VAR 1<8LK> BENCH SEAT<A52> SEAT BELT TENSIONER FRT<A70> DARK GRAY 		8-97416-318-1 01 1 0810- ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTH TRIM SUPER DELUXE, VAR 1<8LM> FRONT SEAT BUCKET TYPE<A50> SEAT BELT TENSIONER FRT<A70> DARK GRAY 		8-97416-329-1 01 1 0810-1003 ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTH TRIM SUPER DELUXE, VAR 1<8LM> FRONT SEAT BUCKET TYPE<A50> SEAT BELT TENSIONER FRT<A70> DARK GRAY 		8-97416-329-1 01 1 1004-1004 ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTH TRIM SUPER DELUXE, VAR 1<8LM> FRONT SEAT BUCKET TYPE<A50> SEAT BELT TENSIONER FRT<A70> DARK GRAY 		8-97416-329-1 01 1 1005- ● ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
BENCH SEAT<A52> DARK GRAY 		8-97405-237-0 02 1 0808-0809 ●
3 16.714 BELT; SEAT,BUCKLE SIDE
4X4 REGULAR CAB EXTRA LONG(TFS*SK) BENCH SEAT<A52> DARK GRAY 		8-97405-237-0 02 1 0808-0809 ●
3 16.714 BELT; SEAT,BUCKLE SIDE
VINYL TRIM<8LJ>,CLOTH TRIM STANDARD, VAR 1<8LK> BENCH SEAT<A52> EXC. SEAT BELT TENSIONER FRT<A70> DARK GRAY 		8-97405-237-0 02 1 0810-1009 ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR IN VERY DARK GRAY(116) VINYL TRIM<8LJ>,CLOTH TRIM STANDARD, VAR 1<8LK> BENCH SEAT<A52> EXC. SEAT BELT TENSIONER FRT<A70> DARK GRAY 		8-97405-237-0 02 1 1010-1010 ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
VINYL TRIM<8LJ>,CLOTH TRIM STANDARD, VAR 1<8LK> BENCH SEAT<A52> EXC. SEAT BELT TENSIONER FRT<A70> DARK GRAY 		8-97405-237-0 02 1 1011- ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
FRONT SEAT BUCKET TYPE<A50> DARK GRAY 		8-97398-481-1 01 1 0808-0809 ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
FRONT SEAT BUCKET TYPE<A50> DARK GRAY 		8-97398-481-1 01 1 0808-0809 ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
EXTEND CAB EXTRA LONG(TF**CK) FRONT SEAT BUCKET TYPE<A50> DARK GRAY 		8-97398-481-1 01 1 0808-0809 ●
3 16.714 BELT; SEAT,BUCKLE SIDE
EXTEND CAB EXTRA LONG(TF**CK) FRONT SEAT BUCKET TYPE<A50> DARK GRAY 		8-97398-481-1 01 1 0808-0809 ●
3 16.714 BELT; SEAT,BUCKLE SIDE
4X4 REGULAR CAB EXTRA LONG(TFS*SK) FRONT SEAT BUCKET TYPE<A50> DARK GRAY 		8-97398-481-1 01 1 0808-0809 ●
3 16.714 BELT; SEAT,BUCKLE SIDE
4X4 REGULAR CAB EXTRA LONG(TFS*SK) FRONT SEAT BUCKET TYPE<A50> DARK GRAY 		8-97398-481-1 01 1 0808-0809 ●
3 16.714 BELT; SEAT,BUCKLE SIDE
CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTH TRIM SUPER DELUXE, VAR 1<8LM> FRONT SEAT BUCKET TYPE<A50> EXC. SEAT BELT TENSIONER FRT<A70> DARK GRAY 		8-97398-481-1 01 1 0810-0912 ● ● ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTH TRIM SUPER DELUXE, VAR 1<8LM> FRONT SEAT BUCKET TYPE<A50> EXC. SEAT BELT TENSIONER FRT<A70> DARK GRAY 		8-97398-481-1 01 1 0810-0912 ● ● ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
VINYL TRIM<8LJ> FRONT SEAT BUCKET TYPE<A50> EXC. SEAT BELT TENSIONER FRT<A70>, FRONT SEAT BACK POCKET(E91) DARK GRAY 		8-97398-481-1 01 1 0810-0912 ● ● ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
VINYL TRIM<8LJ> FRONT SEAT BUCKET TYPE<A50> EXC. SEAT BELT TENSIONER FRT<A70>, FRONT SEAT BACK POCKET(E91) DARK GRAY 		8-97398-481-1 01 1 0810-0912 ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
CLOTH TRIM SUPER DELUXE, VAR 1<8LM> FRONT SEAT BUCKET TYPE<A50> EXC. SEAT BELT TENSIONER FRT<A70> DARK GRAY 		8-97398-481-1 01 1 1001-1204 ● ● ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
CLOTH TRIM SUPER DELUXE, VAR 1<8LM> FRONT SEAT BUCKET TYPE<A50> EXC. SEAT BELT TENSIONER FRT<A70> DARK GRAY 		8-97398-481-1 01 1 1001-1204 ● ● ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM STANDARD, VAR 1<8LK> FRONT SEAT BUCKET TYPE<A50> EXC. SEAT BELT TENSIONER FRT<A70> DARK GRAY 		8-97398-481-1 01 1 1001-1204 ● ● ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM STANDARD, VAR 1<8LK> FRONT SEAT BUCKET TYPE<A50> EXC. SEAT BELT TENSIONER FRT<A70> DARK GRAY 		8-97398-481-1 01 1 1001-1204 ● ● ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR IN VERY DARK GRAY(116) VINYL TRIM<8LJ> FRONT SEAT BUCKET TYPE<A50> EXC. SEAT BELT TENSIONER FRT<A70>, FRONT SEAT BACK POCKET(E91) DARK GRAY 		8-97398-481-1 01 1 1001-1204 ● ● ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR IN VERY DARK GRAY(116) VINYL TRIM<8LJ> FRONT SEAT BUCKET TYPE<A50> EXC. SEAT BELT TENSIONER FRT<A70>, FRONT SEAT BACK POCKET(E91) DARK GRAY 		8-97398-481-1 01 1 1001-1204 ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
FRONT SEAT BUCKET TYPE<A50> EXC. SEAT BELT TENSIONER FRT<A70> DARK GRAY 		8-97398-481-1 01 1 1205- ● ● ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTH TRIM SUPER DELUXE, VAR 1<8LM> FRONT SEAT BUCKET TYPE<A50> EXC. SEAT BELT TENSIONER FRT<A70> DARK GRAY 		8-97398-481-1 01 1 1205- ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
FRONT SEAT BUCKET TYPE<A50> EXC. SEAT BELT TENSIONER FRT<A70> DARK GRAY 		8-97398-481-1 01 1 1205- ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTH TRIM SUPER DELUXE, VAR 1<8LM> FRONT SEAT BUCKET TYPE<A50> EXC. SEAT BELT TENSIONER FRT<A70> (A) 		8-97332-665-0 01 1 0810-0912 ● ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTH TRIM SUPER DELUXE, VAR 1<8LM> FRONT SEAT BUCKET TYPE<A50> EXC. SEAT BELT TENSIONER FRT<A70> (A) 		8-97332-665-0 01 1 0810-0912 ● ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
VINYL TRIM<8LJ> FRONT SEAT BUCKET TYPE<A50> EXC. SEAT BELT TENSIONER FRT<A70>, FRONT SEAT BACK POCKET(E91) (A) 		8-97332-665-0 01 1 0810-0912 ● ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
VINYL TRIM<8LJ> FRONT SEAT BUCKET TYPE<A50> EXC. SEAT BELT TENSIONER FRT<A70>, FRONT SEAT BACK POCKET(E91) (A) 		8-97332-665-0 01 1 0810-0912 ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
CLOTH TRIM SUPER DELUXE, VAR 1<8LM> FRONT SEAT BUCKET TYPE<A50> EXC. SEAT BELT TENSIONER FRT<A70> (A) 		8-97332-665-0 01 1 1001-1204 ● ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
CLOTH TRIM SUPER DELUXE, VAR 1<8LM> FRONT SEAT BUCKET TYPE<A50> EXC. SEAT BELT TENSIONER FRT<A70> (A) 		8-97332-665-0 01 1 1001-1204 ● ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM STANDARD, VAR 1<8LK> FRONT SEAT BUCKET TYPE<A50> EXC. SEAT BELT TENSIONER FRT<A70> (A) 		8-97332-665-0 01 1 1001-1204 ● ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM STANDARD, VAR 1<8LK> FRONT SEAT BUCKET TYPE<A50> EXC. SEAT BELT TENSIONER FRT<A70> (A) 		8-97332-665-0 01 1 1001-1204 ● ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
INTERIOR COLOR IN VERY DARK GRAY(116) VINYL TRIM<8LJ> FRONT SEAT BUCKET TYPE<A50> EXC. SEAT BELT TENSIONER FRT<A70>, FRONT SEAT BACK POCKET(E91) (A) 		8-97332-665-0 01 1 1001-1204 ● ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
INTERIOR COLOR IN VERY DARK GRAY(116) VINYL TRIM<8LJ> FRONT SEAT BUCKET TYPE<A50> EXC. SEAT BELT TENSIONER FRT<A70>, FRONT SEAT BACK POCKET(E91) (A) 		8-97332-665-0 01 1 1001-1204 ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
FRONT SEAT BUCKET TYPE<A50> EXC. SEAT BELT TENSIONER FRT<A70> (A) 		8-97332-665-0 01 1 1205- ● ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTH TRIM SUPER DELUXE, VAR 1<8LM> FRONT SEAT BUCKET TYPE<A50> EXC. SEAT BELT TENSIONER FRT<A70> (A) 		8-97332-665-0 01 1 1205- ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
FRONT SEAT BUCKET TYPE<A50> EXC. SEAT BELT TENSIONER FRT<A70> (A) 		8-97332-665-0 01 1 1205- ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
BENCH SEAT<A52> (A) 		8-97332-665-0 04 1 0808-0809 ●
9 16.714 BOLT; SEAT BELT ANCHOR
4X4 REGULAR CAB EXTRA LONG(TFS*SK) BENCH SEAT<A52> (A) 		8-97332-665-0 04 1 0808-0809 ●
9 16.714 BOLT; SEAT BELT ANCHOR
VINYL TRIM<8LJ>,CLOTH TRIM STANDARD, VAR 1<8LK> BENCH SEAT<A52> EXC. SEAT BELT TENSIONER FRT<A70> (A) 		8-97332-665-0 04 1 0810- ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
00.004 (C) M12X35 FLANGE 		0-28661-235-0 02 1 0808- ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXTEND CAB EXTRA LONG(TF**CK) EXC. JUMP SEAT<AJ2> 16.682 (B) M12X27.5 W/PL WASHER 		8-98050-319-0 02 1 0808-0809 ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. JUMP SEAT<AJ2> 16.682 (B) M12X27.5 W/PL WASHER 		8-98050-319-0 02 1 0810- ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
FRONT SEAT BUCKET TYPE<A50> (A) 		8-97332-665-0 01 1 0808-0809 ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
FRONT SEAT BUCKET TYPE<A50> (A) 		8-97332-665-0 01 1 0808-0809 ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXTEND CAB EXTRA LONG(TF**CK) FRONT SEAT BUCKET TYPE<A50> (A) 		8-97332-665-0 01 1 0808-0809 ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXTEND CAB EXTRA LONG(TF**CK) FRONT SEAT BUCKET TYPE<A50> (A) 		8-97332-665-0 01 1 0808-0809 ●
9 16.714 BOLT; SEAT BELT ANCHOR
4X4 REGULAR CAB EXTRA LONG(TFS*SK) FRONT SEAT BUCKET TYPE<A50> (A) 		8-97332-665-0 01 1 0808-0809 ●
9 16.714 BOLT; SEAT BELT ANCHOR
4X4 REGULAR CAB EXTRA LONG(TFS*SK) FRONT SEAT BUCKET TYPE<A50> (A) 		8-97332-665-0 01 1 0808-0809 ●
9 16.714 BOLT; SEAT BELT ANCHOR
CLOTH TRIM STANDARD, VAR 1<8LK> BENCH SEAT<A52> SEAT BELT TENSIONER FRT<A70> (A) 		8-97332-665-0 02 1 0810- ● ● ● ●
14 16.714 BELT; SEAT,CENTER
BENCH SEAT<A52> DARK GRAY 		8-97405-239-1 01 1 0808-0809 ●
14 16.714 BELT; SEAT,CENTER
4X4 REGULAR CAB EXTRA LONG(TFS*SK) BENCH SEAT<A52> DARK GRAY 		8-97405-239-1 01 1 0808-0809 ●
14 16.714 BELT; SEAT,CENTER
CLOTH TRIM STANDARD, VAR 1<8LK> BENCH SEAT<A52> DARK GRAY 		8-97405-239-1 01 1 0810-0912 ● ● ● ●
14 16.714 BELT; SEAT,CENTER
VINYL TRIM<8LJ> BENCH SEAT<A52> EXC. SEAT BELT TENSIONER FRT<A70> DARK GRAY 		8-97405-239-1 01 1 0810-0912 ● ● ● ●
14 16.714 BELT; SEAT,CENTER
DARK GRAY 		8-97405-239-1 01 1 0810-0912 ●
14 16.714 BELT; SEAT,CENTER
CLOTH TRIM STANDARD, VAR 1<8LK> BENCH SEAT<A52> DARK GRAY 		8-97405-239-1 01 1 1001-1009 ● ● ● ●
14 16.714 BELT; SEAT,CENTER
VINYL TRIM<8LJ> BENCH SEAT<A52> EXC. SEAT BELT TENSIONER FRT<A70> DARK GRAY 		8-97405-239-1 01 1 1001-1009 ● ● ● ●
14 16.714 BELT; SEAT,CENTER
VINYL TRIM<8LJ>,CLOTH TRIM STANDARD, VAR 1<8LK> BENCH SEAT<A52> DARK GRAY 		8-97405-239-1 01 1 1001-1009 ●
14 16.714 BELT; SEAT,CENTER
INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM STANDARD, VAR 1<8LK> BENCH SEAT<A52> SEAT BELT TENSIONER FRT<A70> DARK GRAY 		8-97405-239-1 01 1 1010-1010 ● ● ●
14 16.714 BELT; SEAT,CENTER
INTERIOR COLOR IN VERY DARK GRAY(116) VINYL TRIM<8LJ> BENCH SEAT<A52> EXC. SEAT BELT TENSIONER FRT<A70> DARK GRAY 		8-97405-239-1 01 1 1010-1010 ● ●
14 16.714 BELT; SEAT,CENTER
INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM STANDARD, VAR 1<8LK> BENCH SEAT<A52> DARK GRAY 		8-97405-239-1 01 1 1010-1010 ● ●
14 16.714 BELT; SEAT,CENTER
CLOTH TRIM STANDARD, VAR 1<8LK> BENCH SEAT<A52> DARK GRAY 		8-97405-239-1 01 1 1011- ● ● ● ●
14 16.714 BELT; SEAT,CENTER
VINYL TRIM<8LJ> BENCH SEAT<A52> EXC. SEAT BELT TENSIONER FRT<A70> DARK GRAY 		8-97405-239-1 01 1 1011- ● ● ● ●
14 16.714 BELT; SEAT,CENTER
VINYL TRIM<8LJ>,CLOTH TRIM STANDARD, VAR 1<8LK> BENCH SEAT<A52> DARK GRAY 		8-97405-239-1 01 1 1011- ●
14 16.714 BELT; SEAT,CENTER
INTERIOR COLOR IN VERY DARK GRAY(116) VINYL TRIM<8LJ>,CLOTH TRIM STANDARD, VAR 1<8LK> BENCH SEAT<A52> EXC. SEAT BELT TENSIONER FRT<A70> DARK GRAY 		8-97405-239-1 01 1 1010-1010 ● ● ●
102 16.714 COVER; SHOULDER ANCHOR
INTERIOR COLOR BLACK(101) BLACK 		8-97418-427-0 02 1 1004- ● ● ● ● ● ●
102 16.714 COVER; SHOULDER ANCHOR
INTERIOR COLOR BLACK(101) JUMP SEAT<AJ2> BLACK 		8-97418-427-0 02 1 1004- ● ●
102 16.714 COVER; SHOULDER ANCHOR
INTERIOR COLOR BLACK(101) BLACK 		8-97418-427-0 02 1 1004- ● ●
102 16.714 COVER; SHOULDER ANCHOR
LIGHT GRAY 		8-97403-340-0 02 1 0808-0809 ● ● ●
102 16.714 COVER; SHOULDER ANCHOR
LIGHT GRAY 		8-97403-340-0 02 1 0808-0809 ● ●
102 16.714 COVER; SHOULDER ANCHOR
EXTEND CAB EXTRA LONG(TF**CK) JUMP SEAT<AJ2> LIGHT GRAY 		8-97403-340-0 02 1 0808-0809 ●
102 16.714 COVER; SHOULDER ANCHOR
EXTEND CAB EXTRA LONG(TF**CK) LIGHT GRAY 		8-97403-340-0 02 1 0808-0809 ●
102 16.714 COVER; SHOULDER ANCHOR
4X4 REGULAR CAB EXTRA LONG(TFS*SK) LIGHT GRAY 		8-97403-340-0 02 1 0808-0809 ●
102 16.714 COVER; SHOULDER ANCHOR
LIGHT GRAY 		8-97403-340-0 02 1 0810-1003 ● ● ● ● ● ● ●
102 16.714 COVER; SHOULDER ANCHOR
JUMP SEAT<AJ2> LIGHT GRAY 		8-97403-340-0 02 1 0810-1003 ● ●
102 16.714 COVER; SHOULDER ANCHOR
LIGHT GRAY 		8-97403-340-0 02 1 0810-1003 ● ●
102 16.714 COVER; SHOULDER ANCHOR
INTERIOR COLOR IN VERY DARK GRAY(116) LIGHT GRAY 		8-97403-340-0 02 1 1004- ● ● ● ● ● ● ●
102 16.714 COVER; SHOULDER ANCHOR
INTERIOR COLOR IN VERY DARK GRAY(116) JUMP SEAT<AJ2> LIGHT GRAY 		8-97403-340-0 02 1 1004- ● ●
102 16.714 COVER; SHOULDER ANCHOR
INTERIOR COLOR IN VERY DARK GRAY(116) LIGHT GRAY 		8-97403-340-0 02 1 1004- ● ●

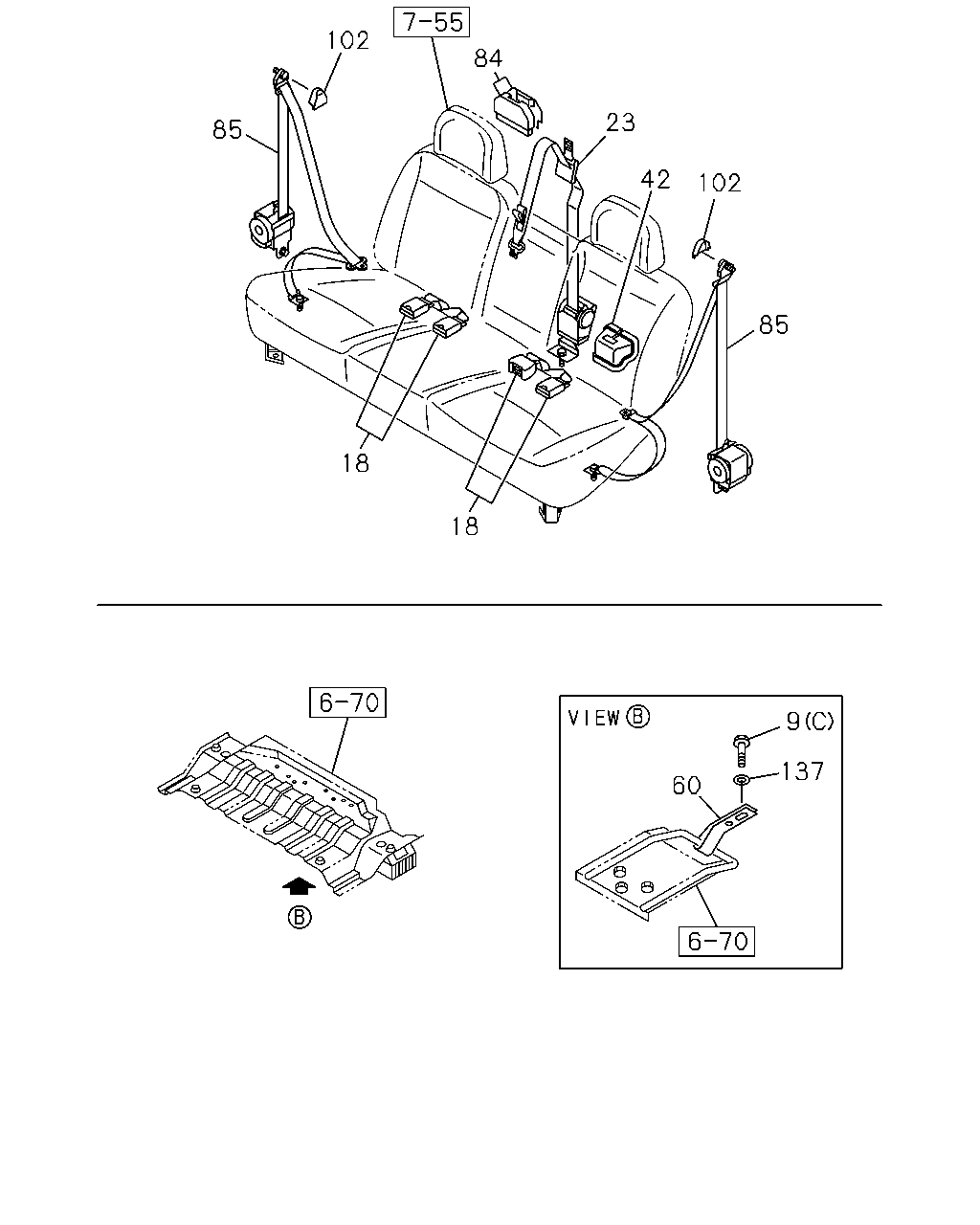

çizim 135924
102 84 23 85 42 102 85 18 18 9 137 60
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
9 16.714 BOLT; SEAT BELT ANCHOR
CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTH TRIM SUPER DELUXE, VAR 1<8LM> FRONT SEAT BUCKET TYPE<A50> EXC. SEAT BELT TENSIONER FRT<A70> (A) 		8-97332-665-0 01 1 0810-0912 ● ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTH TRIM SUPER DELUXE, VAR 1<8LM> FRONT SEAT BUCKET TYPE<A50> EXC. SEAT BELT TENSIONER FRT<A70> (A) 		8-97332-665-0 01 1 0810-0912 ● ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
VINYL TRIM<8LJ> FRONT SEAT BUCKET TYPE<A50> EXC. SEAT BELT TENSIONER FRT<A70>, FRONT SEAT BACK POCKET(E91) (A) 		8-97332-665-0 01 1 0810-0912 ● ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
VINYL TRIM<8LJ> FRONT SEAT BUCKET TYPE<A50> EXC. SEAT BELT TENSIONER FRT<A70>, FRONT SEAT BACK POCKET(E91) (A) 		8-97332-665-0 01 1 0810-0912 ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
CLOTH TRIM SUPER DELUXE, VAR 1<8LM> FRONT SEAT BUCKET TYPE<A50> EXC. SEAT BELT TENSIONER FRT<A70> (A) 		8-97332-665-0 01 1 1001-1204 ● ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
CLOTH TRIM SUPER DELUXE, VAR 1<8LM> FRONT SEAT BUCKET TYPE<A50> EXC. SEAT BELT TENSIONER FRT<A70> (A) 		8-97332-665-0 01 1 1001-1204 ● ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM STANDARD, VAR 1<8LK> FRONT SEAT BUCKET TYPE<A50> EXC. SEAT BELT TENSIONER FRT<A70> (A) 		8-97332-665-0 01 1 1001-1204 ● ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM STANDARD, VAR 1<8LK> FRONT SEAT BUCKET TYPE<A50> EXC. SEAT BELT TENSIONER FRT<A70> (A) 		8-97332-665-0 01 1 1001-1204 ● ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
INTERIOR COLOR IN VERY DARK GRAY(116) VINYL TRIM<8LJ> FRONT SEAT BUCKET TYPE<A50> EXC. SEAT BELT TENSIONER FRT<A70>, FRONT SEAT BACK POCKET(E91) (A) 		8-97332-665-0 01 1 1001-1204 ● ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
INTERIOR COLOR IN VERY DARK GRAY(116) VINYL TRIM<8LJ> FRONT SEAT BUCKET TYPE<A50> EXC. SEAT BELT TENSIONER FRT<A70>, FRONT SEAT BACK POCKET(E91) (A) 		8-97332-665-0 01 1 1001-1204 ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
FRONT SEAT BUCKET TYPE<A50> EXC. SEAT BELT TENSIONER FRT<A70> (A) 		8-97332-665-0 01 1 1205- ● ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTH TRIM SUPER DELUXE, VAR 1<8LM> FRONT SEAT BUCKET TYPE<A50> EXC. SEAT BELT TENSIONER FRT<A70> (A) 		8-97332-665-0 01 1 1205- ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
FRONT SEAT BUCKET TYPE<A50> EXC. SEAT BELT TENSIONER FRT<A70> (A) 		8-97332-665-0 01 1 1205- ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
BENCH SEAT<A52> (A) 		8-97332-665-0 04 1 0808-0809 ●
9 16.714 BOLT; SEAT BELT ANCHOR
4X4 REGULAR CAB EXTRA LONG(TFS*SK) BENCH SEAT<A52> (A) 		8-97332-665-0 04 1 0808-0809 ●
9 16.714 BOLT; SEAT BELT ANCHOR
VINYL TRIM<8LJ>,CLOTH TRIM STANDARD, VAR 1<8LK> BENCH SEAT<A52> EXC. SEAT BELT TENSIONER FRT<A70> (A) 		8-97332-665-0 04 1 0810- ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
00.004 (C) M12X35 FLANGE 		0-28661-235-0 02 1 0808- ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXTEND CAB EXTRA LONG(TF**CK) EXC. JUMP SEAT<AJ2> 16.682 (B) M12X27.5 W/PL WASHER 		8-98050-319-0 02 1 0808-0809 ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. JUMP SEAT<AJ2> 16.682 (B) M12X27.5 W/PL WASHER 		8-98050-319-0 02 1 0810- ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
FRONT SEAT BUCKET TYPE<A50> (A) 		8-97332-665-0 01 1 0808-0809 ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
FRONT SEAT BUCKET TYPE<A50> (A) 		8-97332-665-0 01 1 0808-0809 ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXTEND CAB EXTRA LONG(TF**CK) FRONT SEAT BUCKET TYPE<A50> (A) 		8-97332-665-0 01 1 0808-0809 ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXTEND CAB EXTRA LONG(TF**CK) FRONT SEAT BUCKET TYPE<A50> (A) 		8-97332-665-0 01 1 0808-0809 ●
9 16.714 BOLT; SEAT BELT ANCHOR
4X4 REGULAR CAB EXTRA LONG(TFS*SK) FRONT SEAT BUCKET TYPE<A50> (A) 		8-97332-665-0 01 1 0808-0809 ●
9 16.714 BOLT; SEAT BELT ANCHOR
4X4 REGULAR CAB EXTRA LONG(TFS*SK) FRONT SEAT BUCKET TYPE<A50> (A) 		8-97332-665-0 01 1 0808-0809 ●
9 16.714 BOLT; SEAT BELT ANCHOR
CLOTH TRIM STANDARD, VAR 1<8LK> BENCH SEAT<A52> SEAT BELT TENSIONER FRT<A70> (A) 		8-97332-665-0 02 1 0810- ● ● ● ●
18 16.714 BELT; SEAT,RR
VINYL TRIM<8LJ>,CLOTH TRIM STANDARD, VAR 1<8LK>,CLOTH TRIM SUPER DELUXE, VAR 1<8LM> DARK GRAY 		8-97407-563-0 01 1 0808-1003 ●
18 16.714 BELT; SEAT,RR
4X4 CREW CAB LONG(TFS*WF) VINYL TRIM<8LJ>,CLOTH TRIM STANDARD, VAR 1<8LK>,CLOTH TRIM SUPER DELUXE, VAR 1<8LM> DARK GRAY 		8-97407-563-0 01 1 0808-1003 ●
18 16.714 BELT; SEAT,RR
CREW CAB EXTRA LONG(TF**WK) DARK GRAY 		8-97407-563-0 01 1 0808-1003 ●
18 16.714 BELT; SEAT,RR
CLOTH TRIM SUPER DELUXE, VAR 1<8LM> DARK GRAY 		8-97407-563-0 01 1 1004- ●
18 16.714 BELT; SEAT,RR
INTERIOR COLOR IN VERY DARK GRAY(116) VINYL TRIM<8LJ>,CLOTH TRIM STANDARD, VAR 1<8LK> DARK GRAY 		8-97407-563-0 01 1 1004- ●
18 16.714 BELT; SEAT,RR
4X4 CREW CAB LONG(TFS*WF) CLOTH TRIM SUPER DELUXE, VAR 1<8LM> DARK GRAY 		8-97407-563-0 01 1 1004- ●
18 16.714 BELT; SEAT,RR
CREW CAB EXTRA LONG(TF**WK) DARK GRAY 		8-97407-563-0 01 1 1004- ●
18 16.714 BELT; SEAT,RR
4X4 CREW CAB LONG(TFS*WF) INTERIOR COLOR IN VERY DARK GRAY(116) VINYL TRIM<8LJ>,CLOTH TRIM STANDARD, VAR 1<8LK> DARK GRAY 		8-97407-563-0 01 1 1004- ●
18 16.714 BELT; SEAT,RR
VINYL TRIM<8LJ>,CLOTH TRIM STANDARD, VAR 1<8LK>,CLOTH TRIM SUPER DELUXE, VAR 1<8LM> DARK GRAY 		8-97407-564-0 01 1 0808-1003 ●
18 16.714 BELT; SEAT,RR
4X4 CREW CAB LONG(TFS*WF) VINYL TRIM<8LJ>,CLOTH TRIM STANDARD, VAR 1<8LK>,CLOTH TRIM SUPER DELUXE, VAR 1<8LM> DARK GRAY 		8-97407-564-0 01 1 0808-1003 ●
18 16.714 BELT; SEAT,RR
CREW CAB EXTRA LONG(TF**WK) DARK GRAY 		8-97407-564-0 01 1 0808-1003 ●
18 16.714 BELT; SEAT,RR
CLOTH TRIM SUPER DELUXE, VAR 1<8LM> DARK GRAY 		8-97407-564-0 01 1 1004- ●
18 16.714 BELT; SEAT,RR
INTERIOR COLOR IN VERY DARK GRAY(116) VINYL TRIM<8LJ>,CLOTH TRIM STANDARD, VAR 1<8LK> DARK GRAY 		8-97407-564-0 01 1 1004- ●
18 16.714 BELT; SEAT,RR
4X4 CREW CAB LONG(TFS*WF) CLOTH TRIM SUPER DELUXE, VAR 1<8LM> DARK GRAY 		8-97407-564-0 01 1 1004- ●
18 16.714 BELT; SEAT,RR
CREW CAB EXTRA LONG(TF**WK) DARK GRAY 		8-97407-564-0 01 1 1004- ●
18 16.714 BELT; SEAT,RR
4X4 CREW CAB LONG(TFS*WF) INTERIOR COLOR IN VERY DARK GRAY(116) VINYL TRIM<8LJ>,CLOTH TRIM STANDARD, VAR 1<8LK> DARK GRAY 		8-97407-564-0 01 1 1004- ●
23 16.714 BELT; SEAT,CENTER
EXC. AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97413-171-0 01 1 0810-0811 ●
23 16.714 BELT; SEAT,CENTER
4X4 CREW CAB LONG(TFS*WF) EXC. AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97413-171-0 01 1 0810-0811 ●
23 16.714 BELT; SEAT,CENTER
EXC. AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97417-021-0 01 1 0812-1303 ●
23 16.714 BELT; SEAT,CENTER
4X4 CREW CAB LONG(TFS*WF) EXC. AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97417-021-0 01 1 0812-1303 ●
23 16.714 BELT; SEAT,CENTER
EXC. AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97424-022-0 01 1 1304- ●
23 16.714 BELT; SEAT,CENTER
4X4 CREW CAB LONG(TFS*WF) EXC. AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97424-022-0 01 1 1304- ●
23 16.714 BELT; SEAT,CENTER
DARK GRAY 		8-97413-173-0 01 1 0808-0809 ● ●
23 16.714 BELT; SEAT,CENTER
AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97413-173-0 01 1 0810-0811 ●
23 16.714 BELT; SEAT,CENTER
4X4 CREW CAB LONG(TFS*WF) AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97413-173-0 01 1 0810-0811 ●
23 16.714 BELT; SEAT,CENTER
CREW CAB EXTRA LONG(TF**WK) DARK GRAY 		8-97413-173-0 01 1 0810-0811 ●
23 16.714 BELT; SEAT,CENTER
AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97417-023-0 01 1 0812-1303 ●
23 16.714 BELT; SEAT,CENTER
4X4 CREW CAB LONG(TFS*WF) AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97417-023-0 01 1 0812-1303 ●
23 16.714 BELT; SEAT,CENTER
CREW CAB EXTRA LONG(TF**WK) DARK GRAY 		8-97417-023-0 01 1 0812-1303 ●
23 16.714 BELT; SEAT,CENTER
AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97424-023-0 01 1 1304- ●
23 16.714 BELT; SEAT,CENTER
4X4 CREW CAB LONG(TFS*WF) AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97424-023-0 01 1 1304- ●
23 16.714 BELT; SEAT,CENTER
CREW CAB EXTRA LONG(TF**WK) DARK GRAY 		8-97424-023-0 01 1 1304- ●
42 16.578 COVER; SEAT BELT
GRADE DX(RBA) DARK GRAY 		8-97403-352-1 01 1 0810-1003 ●
42 16.578 COVER; SEAT BELT
4X4 CREW CAB LONG(TFS*WF) GRADE DX(RBA) DARK GRAY 		8-97403-352-1 01 1 0810-1003 ●
42 16.578 COVER; SEAT BELT
GRADE DX(RBA) INTERIOR COLOR IN VERY DARK GRAY(116) DARK GRAY 		8-97403-352-1 01 1 1004- ●
42 16.578 COVER; SEAT BELT
4X4 CREW CAB LONG(TFS*WF) GRADE DX(RBA) INTERIOR COLOR IN VERY DARK GRAY(116) DARK GRAY 		8-97403-352-1 01 1 1004- ●
60 16.714 BRACKET; SHOULDER RETRACTOR 8-97324-174-1 01 1 0808- ● ●
84 16.714 COVER; RETRACTOR,RR SEAT BELT
DARK GRAY 		8-97403-355-0 01 1 0808- ● ●
85 16.714 BELT; SEAT,RR OUTER
INTERIOR COLOR BLACK(101) JUMP SEAT<AJ2> DARK GRAY 		8-97421-865-0 02 1 1005-1303 ●
85 16.714 BELT; SEAT,RR OUTER
4X4 EXTEND CAB LONG(TFS*CF) INTERIOR COLOR BLACK(101) JUMP SEAT<AJ2> DARK GRAY 		8-97421-865-0 02 1 1005-1303 ●
85 16.714 BELT; SEAT,RR OUTER
INTERIOR COLOR BLACK(101) JUMP SEAT<AJ2> DARK GRAY 		8-97424-049-0 02 1 1304- ●
85 16.714 BELT; SEAT,RR OUTER
4X4 EXTEND CAB LONG(TFS*CF) INTERIOR COLOR BLACK(101) JUMP SEAT<AJ2> DARK GRAY 		8-97424-049-0 02 1 1304- ●
85 16.714 BELT; SEAT,RR OUTER
INTERIOR COLOR BLACK(101) AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97418-550-0 02 1 1004-1303 ●
85 16.714 BELT; SEAT,RR OUTER
4X4 CREW CAB LONG(TFS*WF) INTERIOR COLOR BLACK(101) AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97418-550-0 02 1 1004-1303 ●
85 16.714 BELT; SEAT,RR OUTER
INTERIOR COLOR BLACK(101) AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97424-048-0 02 1 1304- ●
85 16.714 BELT; SEAT,RR OUTER
4X4 CREW CAB LONG(TFS*WF) INTERIOR COLOR BLACK(101) AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97424-048-0 02 1 1304- ●
85 16.714 BELT; SEAT,RR OUTER
INTERIOR COLOR BLACK(101) EXC. AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97418-429-0 02 1 1004-1303 ●
85 16.714 BELT; SEAT,RR OUTER
4X4 CREW CAB LONG(TFS*WF) INTERIOR COLOR BLACK(101) EXC. AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97418-429-0 02 1 1004-1303 ●
85 16.714 BELT; SEAT,RR OUTER
INTERIOR COLOR BLACK(101) EXC. AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97424-025-0 02 1 1304- ●
85 16.714 BELT; SEAT,RR OUTER
4X4 CREW CAB LONG(TFS*WF) INTERIOR COLOR BLACK(101) EXC. AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97424-025-0 02 1 1304- ●
85 16.714 BELT; SEAT,RR OUTER
JUMP SEAT<AJ2> DARK GRAY 		8-97413-185-0 02 1 0810-0811 ●
85 16.714 BELT; SEAT,RR OUTER
4X4 EXTEND CAB LONG(TFS*CF) JUMP SEAT<AJ2> DARK GRAY 		8-97413-185-0 02 1 0810-0811 ●
85 16.714 BELT; SEAT,RR OUTER
JUMP SEAT<AJ2> DARK GRAY 		8-97417-036-0 02 1 0812-1004 ●
85 16.714 BELT; SEAT,RR OUTER
4X4 EXTEND CAB LONG(TFS*CF) JUMP SEAT<AJ2> DARK GRAY 		8-97417-036-0 02 1 0812-1004 ●
85 16.714 BELT; SEAT,RR OUTER
INTERIOR COLOR IN VERY DARK GRAY(116) JUMP SEAT<AJ2> DARK GRAY 		8-97417-036-0 02 1 1005-1303 ●
85 16.714 BELT; SEAT,RR OUTER
4X4 EXTEND CAB LONG(TFS*CF) INTERIOR COLOR IN VERY DARK GRAY(116) JUMP SEAT<AJ2> DARK GRAY 		8-97417-036-0 02 1 1005-1303 ●
85 16.714 BELT; SEAT,RR OUTER
INTERIOR COLOR IN VERY DARK GRAY(116) JUMP SEAT<AJ2> DARK GRAY 		8-97424-027-0 02 1 1304- ●
85 16.714 BELT; SEAT,RR OUTER
4X4 EXTEND CAB LONG(TFS*CF) INTERIOR COLOR IN VERY DARK GRAY(116) JUMP SEAT<AJ2> DARK GRAY 		8-97424-027-0 02 1 1304- ●
85 16.714 BELT; SEAT,RR OUTER
EXC. AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97413-180-0 02 1 0810-0811 ●
85 16.714 BELT; SEAT,RR OUTER
4X4 CREW CAB LONG(TFS*WF) EXC. AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97413-180-0 02 1 0810-0811 ●
85 16.714 BELT; SEAT,RR OUTER
EXC. AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97417-031-0 02 1 0812-1003 ●
85 16.714 BELT; SEAT,RR OUTER
4X4 CREW CAB LONG(TFS*WF) EXC. AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97417-031-0 02 1 0812-1003 ●
85 16.714 BELT; SEAT,RR OUTER
INTERIOR COLOR IN VERY DARK GRAY(116) EXC. AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97417-031-0 02 1 1004-1303 ●
85 16.714 BELT; SEAT,RR OUTER
4X4 CREW CAB LONG(TFS*WF) INTERIOR COLOR IN VERY DARK GRAY(116) EXC. AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97417-031-0 02 1 1004-1303 ●
85 16.714 BELT; SEAT,RR OUTER
INTERIOR COLOR IN VERY DARK GRAY(116) EXC. AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97424-024-0 02 1 1304- ●
85 16.714 BELT; SEAT,RR OUTER
4X4 CREW CAB LONG(TFS*WF) INTERIOR COLOR IN VERY DARK GRAY(116) EXC. AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97424-024-0 02 1 1304- ●
85 16.714 BELT; SEAT,RR OUTER
DARK GRAY 		8-97413-183-0 02 1 0808-0809 ● ●
85 16.714 BELT; SEAT,RR OUTER
AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97413-183-0 02 1 0810-0811 ●
85 16.714 BELT; SEAT,RR OUTER
4X4 CREW CAB LONG(TFS*WF) AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97413-183-0 02 1 0810-0811 ●
85 16.714 BELT; SEAT,RR OUTER
CREW CAB EXTRA LONG(TF**WK) DARK GRAY 		8-97413-183-0 02 1 0810-0811 ●
85 16.714 BELT; SEAT,RR OUTER
AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97417-034-0 02 1 0812-1003 ●
85 16.714 BELT; SEAT,RR OUTER
4X4 CREW CAB LONG(TFS*WF) AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97417-034-0 02 1 0812-1003 ●
85 16.714 BELT; SEAT,RR OUTER
CREW CAB EXTRA LONG(TF**WK) DARK GRAY 		8-97417-034-0 02 1 0812-1003 ●
85 16.714 BELT; SEAT,RR OUTER
INTERIOR COLOR IN VERY DARK GRAY(116) AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97417-034-0 02 1 1004-1303 ●
85 16.714 BELT; SEAT,RR OUTER
4X4 CREW CAB LONG(TFS*WF) INTERIOR COLOR IN VERY DARK GRAY(116) AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97417-034-0 02 1 1004-1303 ●
85 16.714 BELT; SEAT,RR OUTER
CREW CAB EXTRA LONG(TF**WK) DARK GRAY 		8-97417-034-0 02 1 1004-1303 ●
85 16.714 BELT; SEAT,RR OUTER
INTERIOR COLOR IN VERY DARK GRAY(116) AUSTRALIA EQUIPMENT(B13) 		8-97424-026-0 02 1 1304- ●
85 16.714 BELT; SEAT,RR OUTER
4X4 CREW CAB LONG(TFS*WF) INTERIOR COLOR IN VERY DARK GRAY(116) AUSTRALIA EQUIPMENT(B13) 		8-97424-026-0 02 1 1304- ●
85 16.714 BELT; SEAT,RR OUTER
CREW CAB EXTRA LONG(TF**WK) 		8-97424-026-0 02 1 1304- ●
85 16.714 BELT; SEAT,RR OUTER
EXTEND CAB EXTRA LONG(TF**CK) JUMP SEAT<AJ2> DARK GRAY 		8-97413-187-0 02 1 0808-0811 ●
85 16.714 BELT; SEAT,RR OUTER
EXTEND CAB EXTRA LONG(TF**CK) JUMP SEAT<AJ2> DARK GRAY 		8-97417-038-0 02 1 0812-1303 ●
85 16.714 BELT; SEAT,RR OUTER
EXTEND CAB EXTRA LONG(TF**CK) JUMP SEAT<AJ2> DARK GRAY 		8-97424-028-0 02 1 1304- ●
102 16.714 COVER; SHOULDER ANCHOR
INTERIOR COLOR BLACK(101) BLACK 		8-97418-427-0 02 1 1004- ● ● ● ● ● ●
102 16.714 COVER; SHOULDER ANCHOR
INTERIOR COLOR BLACK(101) JUMP SEAT<AJ2> BLACK 		8-97418-427-0 02 1 1004- ● ●
102 16.714 COVER; SHOULDER ANCHOR
INTERIOR COLOR BLACK(101) BLACK 		8-97418-427-0 02 1 1004- ● ●
102 16.714 COVER; SHOULDER ANCHOR
LIGHT GRAY 		8-97403-340-0 02 1 0808-0809 ● ● ●
102 16.714 COVER; SHOULDER ANCHOR
LIGHT GRAY 		8-97403-340-0 02 1 0808-0809 ● ●
102 16.714 COVER; SHOULDER ANCHOR
EXTEND CAB EXTRA LONG(TF**CK) JUMP SEAT<AJ2> LIGHT GRAY 		8-97403-340-0 02 1 0808-0809 ●
102 16.714 COVER; SHOULDER ANCHOR
EXTEND CAB EXTRA LONG(TF**CK) LIGHT GRAY 		8-97403-340-0 02 1 0808-0809 ●
102 16.714 COVER; SHOULDER ANCHOR
4X4 REGULAR CAB EXTRA LONG(TFS*SK) LIGHT GRAY 		8-97403-340-0 02 1 0808-0809 ●
102 16.714 COVER; SHOULDER ANCHOR
LIGHT GRAY 		8-97403-340-0 02 1 0810-1003 ● ● ● ● ● ● ●
102 16.714 COVER; SHOULDER ANCHOR
JUMP SEAT<AJ2> LIGHT GRAY 		8-97403-340-0 02 1 0810-1003 ● ●
102 16.714 COVER; SHOULDER ANCHOR
LIGHT GRAY 		8-97403-340-0 02 1 0810-1003 ● ●
102 16.714 COVER; SHOULDER ANCHOR
INTERIOR COLOR IN VERY DARK GRAY(116) LIGHT GRAY 		8-97403-340-0 02 1 1004- ● ● ● ● ● ● ●
102 16.714 COVER; SHOULDER ANCHOR
INTERIOR COLOR IN VERY DARK GRAY(116) JUMP SEAT<AJ2> LIGHT GRAY 		8-97403-340-0 02 1 1004- ● ●
102 16.714 COVER; SHOULDER ANCHOR
INTERIOR COLOR IN VERY DARK GRAY(116) LIGHT GRAY 		8-97403-340-0 02 1 1004- ● ●
137 16.714 WASHER; PL,SEAT BELT
02.812 ID=12.5 OD=26 		0-91610-612-0 02 1 0808- ● ●

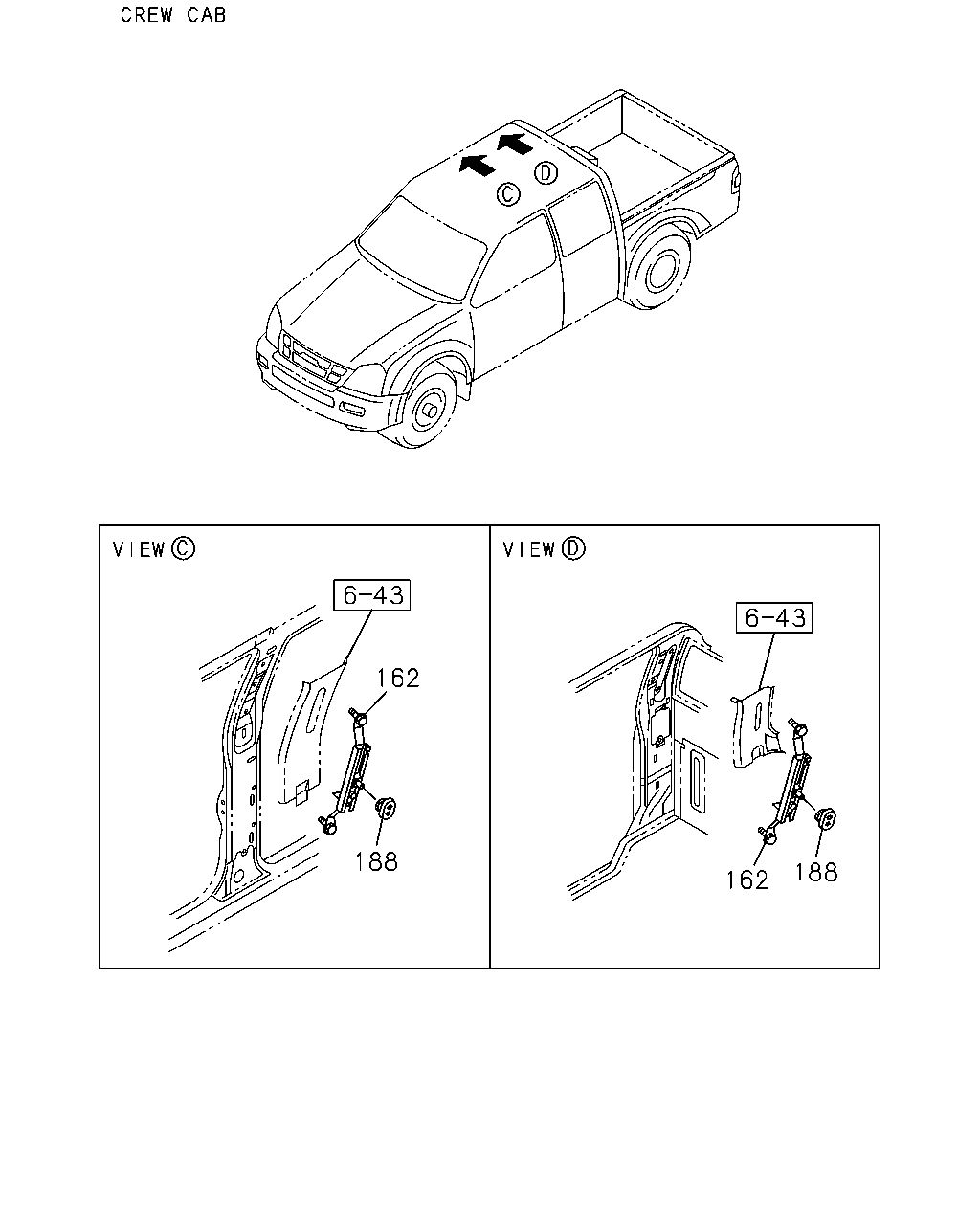

çizim 135967
162 188 188 162
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
162 16.714 ADJUSTER; SEAT BELT 8-97232-956-0 02 1 0808-0809 ● ● ●
162 16.714 ADJUSTER; SEAT BELT 8-97232-956-0 02 1 0808-0809 ● ●
162 16.714 ADJUSTER; SEAT BELT
EXTEND CAB EXTRA LONG(TF**CK) 		8-97232-956-0 02 1 0808-0809 ●
162 16.714 ADJUSTER; SEAT BELT
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 		8-97232-956-0 02 1 0808-0809 ●
162 16.714 ADJUSTER; SEAT BELT 8-97232-956-0 02 1 0810- ● ● ● ● ● ● ●
162 16.714 ADJUSTER; SEAT BELT 8-97232-956-0 02 1 0810- ● ●
188 16.714 KNOB; LEVER
INTERIOR COLOR BLACK(101) BLACK 		8-97418-426-0 02 1 1004- ● ● ● ● ● ●
188 16.714 KNOB; LEVER
INTERIOR COLOR BLACK(101) BLACK 		8-97418-426-0 02 1 1004- ● ●
188 16.714 KNOB; LEVER
LIGHT GRAY 		8-97403-338-0 02 1 0808-0809 ● ● ●
188 16.714 KNOB; LEVER
LIGHT GRAY 		8-97403-338-0 02 1 0808-0809 ● ●
188 16.714 KNOB; LEVER
EXTEND CAB EXTRA LONG(TF**CK) LIGHT GRAY 		8-97403-338-0 02 1 0808-0809 ●
188 16.714 KNOB; LEVER
4X4 REGULAR CAB EXTRA LONG(TFS*SK) LIGHT GRAY 		8-97403-338-0 02 1 0808-0809 ●
188 16.714 KNOB; LEVER
LIGHT GRAY 		8-97403-338-0 02 1 0810-1003 ● ● ● ● ● ● ●
188 16.714 KNOB; LEVER
LIGHT GRAY 		8-97403-338-0 02 1 0810-1003 ● ●
188 16.714 KNOB; LEVER
INTERIOR COLOR IN VERY DARK GRAY(116) LIGHT GRAY 		8-97403-338-0 02 1 1004- ● ● ● ● ● ● ●
188 16.714 KNOB; LEVER
INTERIOR COLOR IN VERY DARK GRAY(116) LIGHT GRAY 		8-97403-338-0 02 1 1004- ● ●

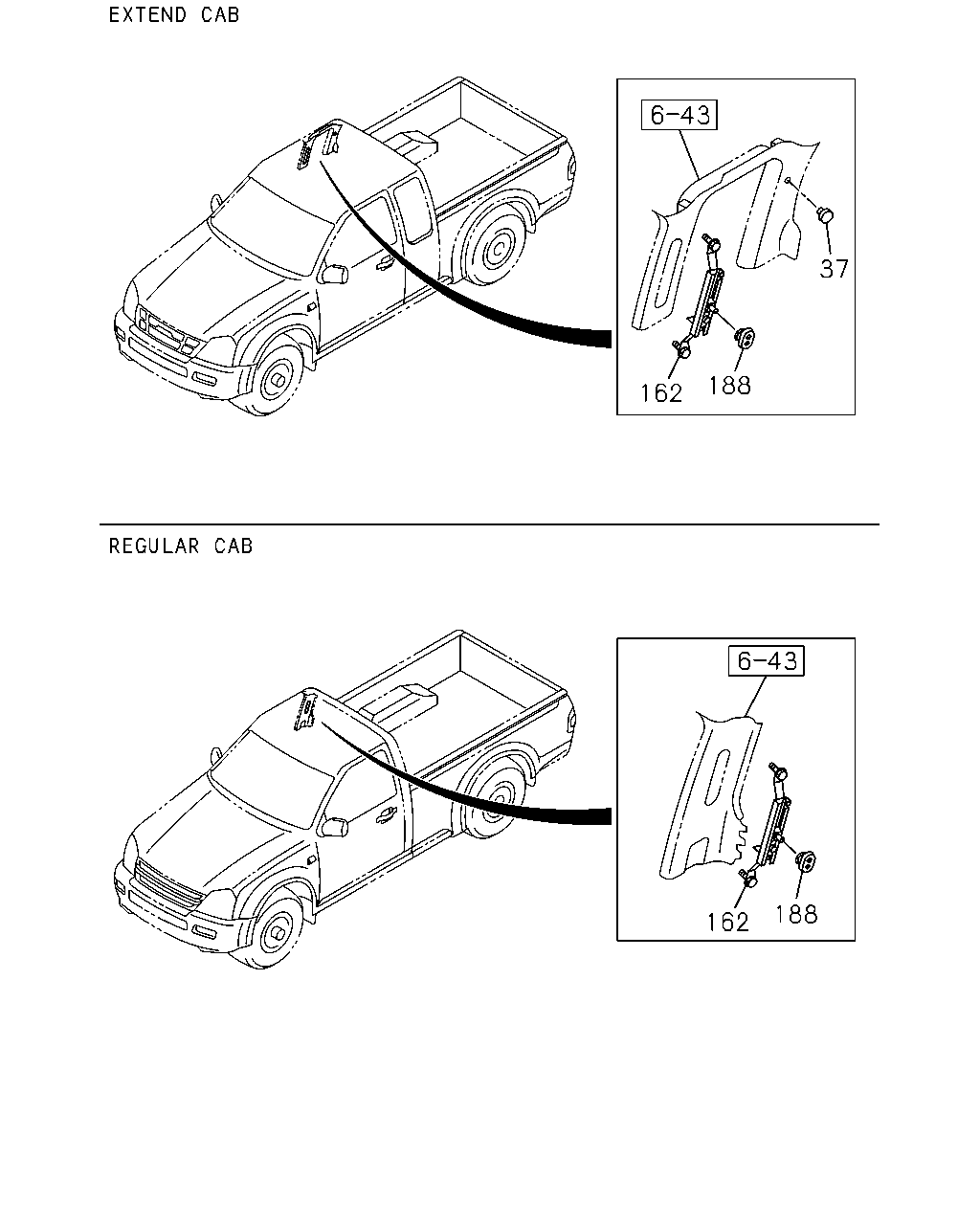

çizim 186202
37 188 162 188 162
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
37 16.714 PLUG; SEAT BELT ANCHOR
INTERIOR COLOR BLACK(101) EXC. JUMP SEAT<AJ2> BLACK 		8-97418-430-0 02 1 1004- ●
37 16.714 PLUG; SEAT BELT ANCHOR
4X4 EXTEND CAB LONG(TFS*CF) INTERIOR COLOR BLACK(101) EXC. JUMP SEAT<AJ2> BLACK 		8-97418-430-0 02 1 1004- ●
37 16.714 PLUG; SEAT BELT ANCHOR
EXTEND CAB EXTRA LONG(TF**CK) EXC. JUMP SEAT<AJ2> LIGHT GRAY 		8-97403-353-0 02 1 0808-0809 ●
37 16.714 PLUG; SEAT BELT ANCHOR
EXC. JUMP SEAT<AJ2> LIGHT GRAY 		8-97403-353-0 02 1 0810-1003 ● ●
37 16.714 PLUG; SEAT BELT ANCHOR
INTERIOR COLOR IN VERY DARK GRAY(116) EXC. JUMP SEAT<AJ2> LIGHT GRAY 		8-97403-353-0 02 1 1004- ●
37 16.714 PLUG; SEAT BELT ANCHOR
4X4 EXTEND CAB LONG(TFS*CF) INTERIOR COLOR IN VERY DARK GRAY(116) EXC. JUMP SEAT<AJ2> LIGHT GRAY 		8-97403-353-0 02 1 1004- ●
37 16.714 PLUG; SEAT BELT ANCHOR
EXTEND CAB EXTRA LONG(TF**CK) EXC. JUMP SEAT<AJ2> LIGHT GRAY 		8-97403-353-0 02 1 1004- ●
162 16.714 ADJUSTER; SEAT BELT 8-97232-956-0 02 1 0808-0809 ● ● ●
162 16.714 ADJUSTER; SEAT BELT 8-97232-956-0 02 1 0808-0809 ● ●
162 16.714 ADJUSTER; SEAT BELT
EXTEND CAB EXTRA LONG(TF**CK) 		8-97232-956-0 02 1 0808-0809 ●
162 16.714 ADJUSTER; SEAT BELT
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 		8-97232-956-0 02 1 0808-0809 ●
162 16.714 ADJUSTER; SEAT BELT 8-97232-956-0 02 1 0810- ● ● ● ● ● ● ●
162 16.714 ADJUSTER; SEAT BELT 8-97232-956-0 02 1 0810- ● ●
188 16.714 KNOB; LEVER
INTERIOR COLOR BLACK(101) BLACK 		8-97418-426-0 02 1 1004- ● ● ● ● ● ●
188 16.714 KNOB; LEVER
INTERIOR COLOR BLACK(101) BLACK 		8-97418-426-0 02 1 1004- ● ●
188 16.714 KNOB; LEVER
LIGHT GRAY 		8-97403-338-0 02 1 0808-0809 ● ● ●
188 16.714 KNOB; LEVER
LIGHT GRAY 		8-97403-338-0 02 1 0808-0809 ● ●
188 16.714 KNOB; LEVER
EXTEND CAB EXTRA LONG(TF**CK) LIGHT GRAY 		8-97403-338-0 02 1 0808-0809 ●
188 16.714 KNOB; LEVER
4X4 REGULAR CAB EXTRA LONG(TFS*SK) LIGHT GRAY 		8-97403-338-0 02 1 0808-0809 ●
188 16.714 KNOB; LEVER
LIGHT GRAY 		8-97403-338-0 02 1 0810-1003 ● ● ● ● ● ● ●
188 16.714 KNOB; LEVER
LIGHT GRAY 		8-97403-338-0 02 1 0810-1003 ● ●
188 16.714 KNOB; LEVER
INTERIOR COLOR IN VERY DARK GRAY(116) LIGHT GRAY 		8-97403-338-0 02 1 1004- ● ● ● ● ● ● ●
188 16.714 KNOB; LEVER
INTERIOR COLOR IN VERY DARK GRAY(116) LIGHT GRAY 		8-97403-338-0 02 1 1004- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
