◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51194 - TFR/TFS-RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-45 - CONSOLE BOX ▶
7-45 — CONSOLE BOX (#77093) — 436 parça

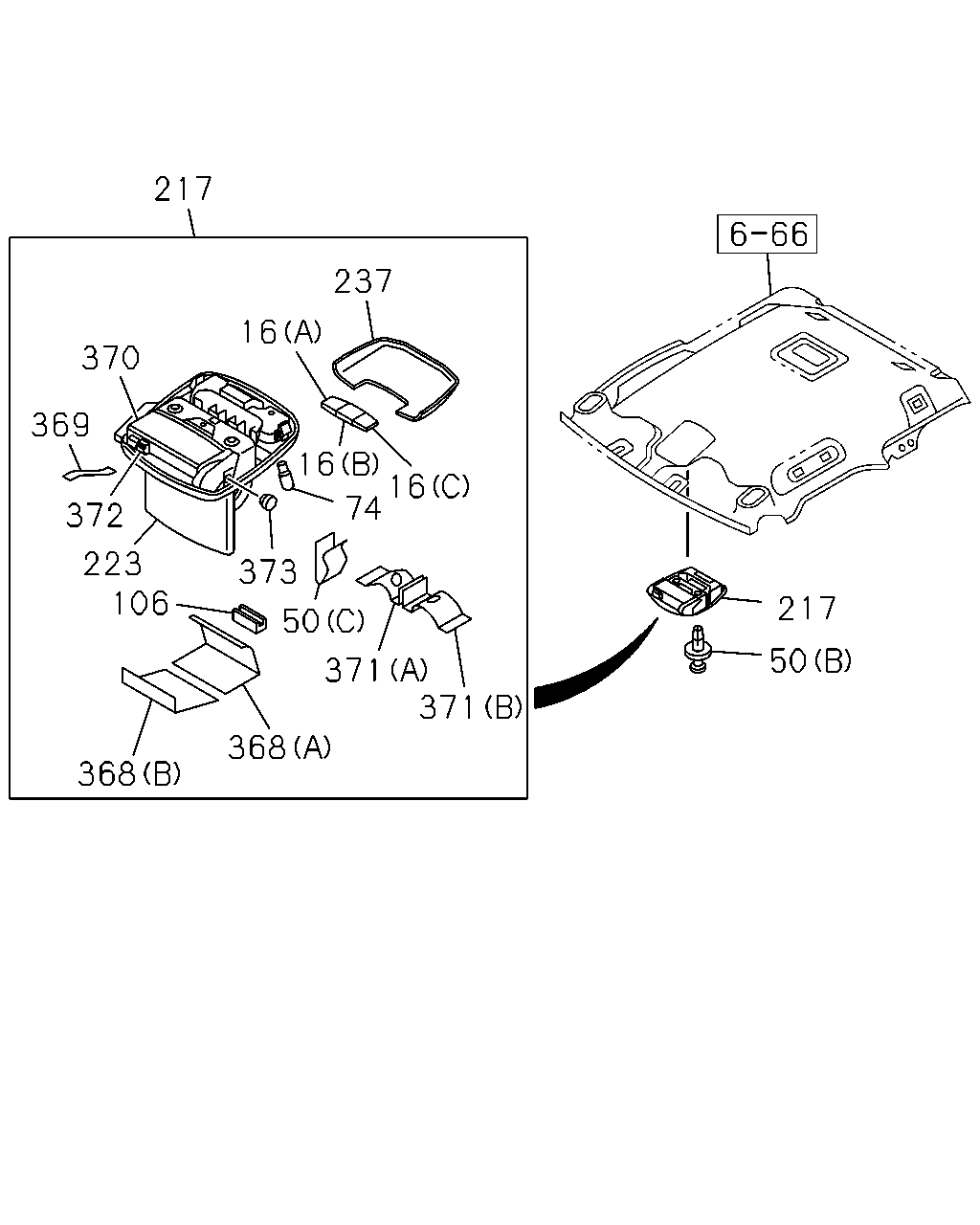

çizim 133992
217 237 16 370 369 16 16 74 372 223 106 373 217 50 50 371 371 368 368
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
16 16.650 KNOB ASM
INTERIOR COLOR BLACK(101) HEADER CONSOLE<DK6> (A) BLACK 		8-97418-464-1 01 1 1004- ● ● ● ● ● ●
16 16.650 KNOB ASM
INTERIOR COLOR BLACK(101) HEADER CONSOLE<DK6> (B) BLACK 		8-97418-465-1 01 1 1004- ● ● ● ● ● ●
16 16.650 KNOB ASM
INTERIOR COLOR BLACK(101) HEADER CONSOLE<DK6> (C) BLACK 		8-97418-486-1 01 1 1004- ● ● ● ● ● ●
16 16.650 KNOB ASM
HEADER CONSOLE<DK6> (A) LIGHT GRAY 		8-97403-995-1 01 1 0808-0809 ● ● ●
16 16.650 KNOB ASM
EXTEND CAB EXTRA LONG(TF**CK) HEADER CONSOLE<DK6> (A) LIGHT GRAY 		8-97403-995-1 01 1 0808-0809 ●
16 16.650 KNOB ASM
4X4 REGULAR CAB EXTRA LONG(TFS*SK) HEADER CONSOLE<DK6> (A) LIGHT GRAY 		8-97403-995-1 01 1 0808-0809 ●
16 16.650 KNOB ASM
HEADER CONSOLE<DK6> (A) LIGHT GRAY 		8-97403-995-1 01 1 0810-1003 ● ● ● ● ● ● ●
16 16.650 KNOB ASM
INTERIOR COLOR IN VERY DARK GRAY(116) HEADER CONSOLE<DK6> (A) LIGHT GRAY 		8-97403-995-1 01 1 1004- ● ● ● ● ● ● ●
16 16.650 KNOB ASM
HEADER CONSOLE<DK6> (B) LIGHT GRAY 		8-97403-997-1 01 1 0808-0809 ● ● ●
16 16.650 KNOB ASM
EXTEND CAB EXTRA LONG(TF**CK) HEADER CONSOLE<DK6> (B) LIGHT GRAY 		8-97403-997-1 01 1 0808-0809 ●
16 16.650 KNOB ASM
4X4 REGULAR CAB EXTRA LONG(TFS*SK) HEADER CONSOLE<DK6> (B) LIGHT GRAY 		8-97403-997-1 01 1 0808-0809 ●
16 16.650 KNOB ASM
HEADER CONSOLE<DK6> (B) LIGHT GRAY 		8-97403-997-1 01 1 0810-1003 ● ● ● ● ● ● ●
16 16.650 KNOB ASM
INTERIOR COLOR IN VERY DARK GRAY(116) HEADER CONSOLE<DK6> (B) LIGHT GRAY 		8-97403-997-1 01 1 1004- ● ● ● ● ● ● ●
16 16.650 KNOB ASM
HEADER CONSOLE<DK6> (C) LIGHT GRAY 		8-97403-999-1 01 1 0808-0809 ● ● ●
16 16.650 KNOB ASM
EXTEND CAB EXTRA LONG(TF**CK) HEADER CONSOLE<DK6> (C) LIGHT GRAY 		8-97403-999-1 01 1 0808-0809 ●
16 16.650 KNOB ASM
4X4 REGULAR CAB EXTRA LONG(TFS*SK) HEADER CONSOLE<DK6> (C) LIGHT GRAY 		8-97403-999-1 01 1 0808-0809 ●
16 16.650 KNOB ASM
HEADER CONSOLE<DK6> (C) LIGHT GRAY 		8-97403-999-1 01 1 0810-1003 ● ● ● ● ● ● ●
16 16.650 KNOB ASM
INTERIOR COLOR IN VERY DARK GRAY(116) HEADER CONSOLE<DK6> (C) LIGHT GRAY 		8-97403-999-1 01 1 1004- ● ● ● ● ● ● ●
50 04.010 CLIP; CONSOLE
INTERIOR COLOR BLACK(101) HEADER CONSOLE<DK6> (B) BLACK 		8-97418-440-0 02 1 1004- ● ● ● ● ● ●
50 04.010 CLIP; CONSOLE
HEADER CONSOLE<DK6> (C) 		8-97388-958-0 02 1 0808-0809 ● ● ●
50 04.010 CLIP; CONSOLE
EXTEND CAB EXTRA LONG(TF**CK) HEADER CONSOLE<DK6> (C) 		8-97388-958-0 02 1 0808-0809 ●
50 04.010 CLIP; CONSOLE
4X4 REGULAR CAB EXTRA LONG(TFS*SK) HEADER CONSOLE<DK6> (C) 		8-97388-958-0 02 1 0808-0809 ●
50 04.010 CLIP; CONSOLE
HEADER CONSOLE<DK6> (C) 		8-97388-958-0 02 1 0810- ● ● ● ● ● ● ●
50 04.010 CLIP; CONSOLE
HEADER CONSOLE<DK6> (B) LIGHT GRAY 		8-97403-529-0 02 1 0808-0809 ● ● ●
50 04.010 CLIP; CONSOLE
EXTEND CAB EXTRA LONG(TF**CK) HEADER CONSOLE<DK6> (B) LIGHT GRAY 		8-97403-529-0 02 1 0808-0809 ●
50 04.010 CLIP; CONSOLE
4X4 REGULAR CAB EXTRA LONG(TFS*SK) HEADER CONSOLE<DK6> (B) LIGHT GRAY 		8-97403-529-0 02 1 0808-0809 ●
50 04.010 CLIP; CONSOLE
HEADER CONSOLE<DK6> (B) LIGHT GRAY 		8-97403-529-0 02 1 0810-1003 ● ● ● ● ● ● ●
50 04.010 CLIP; CONSOLE
INTERIOR COLOR IN VERY DARK GRAY(116) HEADER CONSOLE<DK6> (B) LIGHT GRAY 		8-97403-529-0 02 1 1004- ● ● ● ● ● ● ●
50 04.010 CLIP; CONSOLE
PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0808-0809 ●
50 04.010 CLIP; CONSOLE
GRADE LX(RBB),GRADE LT/LS(RBD) PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0808-0809 ●
50 04.010 CLIP; CONSOLE
EXTEND CAB EXTRA LONG(TF**CK) (A) 		8-97355-734-0 02 1 0808-0809 ●
50 04.010 CLIP; CONSOLE
4X4 REGULAR CAB EXTRA LONG(TFS*SK) GRADE DX(RBA),GRADE LX(RBB) PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0808-0809 ●
50 04.010 CLIP; CONSOLE
4X4 CREW CAB LONG(TFS*WF) GRADE LX(RBB),GRADE LT/LS(RBD) PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0808-0809 ●
50 04.010 CLIP; CONSOLE
CREW CAB EXTRA LONG(TF**WK) (A) 		8-97355-734-0 02 1 0808-0809 ●
50 04.010 CLIP; CONSOLE
GRADE DX(RBA),GRADE LX(RBB) PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0810-0912 ● ● ● ● ● ● ●
50 04.010 CLIP; CONSOLE
GRADE LT/LS(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0810-0912 ● ● ●
50 04.010 CLIP; CONSOLE
PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 1001- ● ● ● ● ● ● ●
74 08.991 BULB; CONSOLE
HEADER CONSOLE<DK6> 		8-97388-953-0 02 1 0808-0809 ● ● ●
74 08.991 BULB; CONSOLE
EXTEND CAB EXTRA LONG(TF**CK) HEADER CONSOLE<DK6> 		8-97388-953-0 02 1 0808-0809 ●
74 08.991 BULB; CONSOLE
4X4 REGULAR CAB EXTRA LONG(TFS*SK) HEADER CONSOLE<DK6> 		8-97388-953-0 02 1 0808-0809 ●
74 08.991 BULB; CONSOLE
HEADER CONSOLE<DK6> 		8-97388-953-0 02 1 0810- ● ● ● ● ● ● ●
106 16.650 LOCK; CONSOLE LID
HEADER CONSOLE<DK6> 		8-97388-944-0 01 1 0808-0809 ● ● ●
106 16.650 LOCK; CONSOLE LID
EXTEND CAB EXTRA LONG(TF**CK) HEADER CONSOLE<DK6> 		8-97388-944-0 01 1 0808-0809 ●
106 16.650 LOCK; CONSOLE LID
4X4 REGULAR CAB EXTRA LONG(TFS*SK) HEADER CONSOLE<DK6> 		8-97388-944-0 01 1 0808-0809 ●
106 16.650 LOCK; CONSOLE LID
HEADER CONSOLE<DK6> 		8-97388-944-0 01 1 0810- ● ● ● ● ● ● ●
217 16.745 CONSOLE; HEADER
INTERIOR COLOR BLACK(101) HEADER CONSOLE<DK6> BLACK 		8-97418-439-3 01 1 1004- ● ● ● ● ● ●
217 16.745 CONSOLE; HEADER
HEADER CONSOLE<DK6> LIGHT GRAY 		8-97403-527-3 01 1 0808-0809 ● ● ●
217 16.745 CONSOLE; HEADER
EXTEND CAB EXTRA LONG(TF**CK) HEADER CONSOLE<DK6> LIGHT GRAY 		8-97403-527-3 01 1 0808-0809 ●
217 16.745 CONSOLE; HEADER
4X4 REGULAR CAB EXTRA LONG(TFS*SK) HEADER CONSOLE<DK6> LIGHT GRAY 		8-97403-527-3 01 1 0808-0809 ●
217 16.745 CONSOLE; HEADER
HEADER CONSOLE<DK6> LIGHT GRAY 		8-97403-527-3 01 1 0810-1003 ● ● ● ● ● ● ●
217 16.745 CONSOLE; HEADER
INTERIOR COLOR IN VERY DARK GRAY(116) HEADER CONSOLE<DK6> LIGHT GRAY 		8-97403-527-3 01 1 1004- ● ● ● ● ● ● ●
223 16.650 LID; HEADER CONSOLE
INTERIOR COLOR BLACK(101) HEADER CONSOLE<DK6> BLACK 		8-97418-463-0 01 1 1004- ● ● ● ● ● ●
223 16.650 LID; HEADER CONSOLE
HEADER CONSOLE<DK6> LIGHT GRAY 		8-97403-993-0 01 1 0808-0809 ● ● ●
223 16.650 LID; HEADER CONSOLE
EXTEND CAB EXTRA LONG(TF**CK) HEADER CONSOLE<DK6> LIGHT GRAY 		8-97403-993-0 01 1 0808-0809 ●
223 16.650 LID; HEADER CONSOLE
4X4 REGULAR CAB EXTRA LONG(TFS*SK) HEADER CONSOLE<DK6> LIGHT GRAY 		8-97403-993-0 01 1 0808-0809 ●
223 16.650 LID; HEADER CONSOLE
HEADER CONSOLE<DK6> LIGHT GRAY 		8-97403-993-0 01 1 0810-1003 ● ● ● ● ● ● ●
223 16.650 LID; HEADER CONSOLE
INTERIOR COLOR IN VERY DARK GRAY(116) HEADER CONSOLE<DK6> LIGHT GRAY 		8-97403-993-0 01 1 1004- ● ● ● ● ● ● ●
237 16.650 LENS; HEADER CONSOLE
HEADER CONSOLE<DK6> 		8-97371-299-0 01 1 0808-0809 ● ● ●
237 16.650 LENS; HEADER CONSOLE
EXTEND CAB EXTRA LONG(TF**CK) HEADER CONSOLE<DK6> 		8-97371-299-0 01 1 0808-0809 ●
237 16.650 LENS; HEADER CONSOLE
4X4 REGULAR CAB EXTRA LONG(TFS*SK) HEADER CONSOLE<DK6> 		8-97371-299-0 01 1 0808-0809 ●
237 16.650 LENS; HEADER CONSOLE
HEADER CONSOLE<DK6> 		8-97371-299-0 01 1 0810- ● ● ● ● ● ● ●
368 16.650 SHEET; CASE,HEADER CONSOLE
HEADER CONSOLE<DK6> (A) 		8-97388-945-0 01 1 0808-0809 ● ● ●
368 16.650 SHEET; CASE,HEADER CONSOLE
EXTEND CAB EXTRA LONG(TF**CK) HEADER CONSOLE<DK6> (A) 		8-97388-945-0 01 1 0808-0809 ●
368 16.650 SHEET; CASE,HEADER CONSOLE
4X4 REGULAR CAB EXTRA LONG(TFS*SK) HEADER CONSOLE<DK6> (A) 		8-97388-945-0 01 1 0808-0809 ●
368 16.650 SHEET; CASE,HEADER CONSOLE
HEADER CONSOLE<DK6> (A) 		8-97388-945-0 01 1 0810- ● ● ● ● ● ● ●
368 16.650 SHEET; CASE,HEADER CONSOLE
HEADER CONSOLE<DK6> (B) 		8-97388-948-0 01 1 0808-0809 ● ● ●
368 16.650 SHEET; CASE,HEADER CONSOLE
EXTEND CAB EXTRA LONG(TF**CK) HEADER CONSOLE<DK6> (B) 		8-97388-948-0 01 1 0808-0809 ●
368 16.650 SHEET; CASE,HEADER CONSOLE
4X4 REGULAR CAB EXTRA LONG(TFS*SK) HEADER CONSOLE<DK6> (B) 		8-97388-948-0 01 1 0808-0809 ●
368 16.650 SHEET; CASE,HEADER CONSOLE
HEADER CONSOLE<DK6> (B) 		8-97388-948-0 01 1 0810- ● ● ● ● ● ● ●
369 16.650 SPRING; LID,HEADER CONSOLE
HEADER CONSOLE<DK6> 		8-97388-946-0 01 1 0808-0809 ● ● ●
369 16.650 SPRING; LID,HEADER CONSOLE
EXTEND CAB EXTRA LONG(TF**CK) HEADER CONSOLE<DK6> 		8-97388-946-0 01 1 0808-0809 ●
369 16.650 SPRING; LID,HEADER CONSOLE
4X4 REGULAR CAB EXTRA LONG(TFS*SK) HEADER CONSOLE<DK6> 		8-97388-946-0 01 1 0808-0809 ●
369 16.650 SPRING; LID,HEADER CONSOLE
HEADER CONSOLE<DK6> 		8-97388-946-0 01 1 0810- ● ● ● ● ● ● ●
370 16.650 CASE; HEADER CONSOLE
HEADER CONSOLE<DK6> 		8-97388-947-0 01 1 0808-0809 ● ● ●
370 16.650 CASE; HEADER CONSOLE
EXTEND CAB EXTRA LONG(TF**CK) HEADER CONSOLE<DK6> 		8-97388-947-0 01 1 0808-0809 ●
370 16.650 CASE; HEADER CONSOLE
4X4 REGULAR CAB EXTRA LONG(TFS*SK) HEADER CONSOLE<DK6> 		8-97388-947-0 01 1 0808-0809 ●
370 16.650 CASE; HEADER CONSOLE
HEADER CONSOLE<DK6> 		8-97388-947-0 01 1 0810- ● ● ● ● ● ● ●
371 16.650 REFLECTOR; LAMP,HEADER CONSOLE
HEADER CONSOLE<DK6> (A) 		8-97388-949-0 01 1 0808-0809 ● ● ●
371 16.650 REFLECTOR; LAMP,HEADER CONSOLE
EXTEND CAB EXTRA LONG(TF**CK) HEADER CONSOLE<DK6> (A) 		8-97388-949-0 01 1 0808-0809 ●
371 16.650 REFLECTOR; LAMP,HEADER CONSOLE
4X4 REGULAR CAB EXTRA LONG(TFS*SK) HEADER CONSOLE<DK6> (A) 		8-97388-949-0 01 1 0808-0809 ●
371 16.650 REFLECTOR; LAMP,HEADER CONSOLE
HEADER CONSOLE<DK6> (A) 		8-97388-949-0 01 1 0810- ● ● ● ● ● ● ●
371 16.650 REFLECTOR; LAMP,HEADER CONSOLE
HEADER CONSOLE<DK6> (B) 		8-97388-950-0 01 1 0808-0809 ● ● ●
371 16.650 REFLECTOR; LAMP,HEADER CONSOLE
EXTEND CAB EXTRA LONG(TF**CK) HEADER CONSOLE<DK6> (B) 		8-97388-950-0 01 1 0808-0809 ●
371 16.650 REFLECTOR; LAMP,HEADER CONSOLE
4X4 REGULAR CAB EXTRA LONG(TFS*SK) HEADER CONSOLE<DK6> (B) 		8-97388-950-0 01 1 0808-0809 ●
371 16.650 REFLECTOR; LAMP,HEADER CONSOLE
HEADER CONSOLE<DK6> (B) 		8-97388-950-0 01 1 0810- ● ● ● ● ● ● ●
372 16.674 HARNESS ASM; SWITCH,HEADER CONSO
HEADER CONSOLE<DK6> 		8-97388-951-0 01 1 0808-0809 ● ● ●
372 16.674 HARNESS ASM; SWITCH,HEADER CONSO
EXTEND CAB EXTRA LONG(TF**CK) HEADER CONSOLE<DK6> 		8-97388-951-0 01 1 0808-0809 ●
372 16.674 HARNESS ASM; SWITCH,HEADER CONSO
4X4 REGULAR CAB EXTRA LONG(TFS*SK) HEADER CONSOLE<DK6> 		8-97388-951-0 01 1 0808-0809 ●
372 16.674 HARNESS ASM; SWITCH,HEADER CONSO
HEADER CONSOLE<DK6> 		8-97388-951-0 01 1 0810- ● ● ● ● ● ● ●
373 16.674 DAMPER; LID,HEADER CONSOLE
HEADER CONSOLE<DK6> 		8-97388-954-0 01 1 0808-0809 ● ● ●
373 16.674 DAMPER; LID,HEADER CONSOLE
EXTEND CAB EXTRA LONG(TF**CK) HEADER CONSOLE<DK6> 		8-97388-954-0 01 1 0808-0809 ●
373 16.674 DAMPER; LID,HEADER CONSOLE
4X4 REGULAR CAB EXTRA LONG(TFS*SK) HEADER CONSOLE<DK6> 		8-97388-954-0 01 1 0808-0809 ●
373 16.674 DAMPER; LID,HEADER CONSOLE
HEADER CONSOLE<DK6> 		8-97388-954-0 01 1 0810- ● ● ● ● ● ● ●
çizim 134205
188 154 200 163 107 112 148 29 29 11 116 50 49 188
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
11 16.650 HINGE; CONSOLE LID
GRADE LT/LS(RBD) MALAYSIA EQUIPMENT(B10) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (B) 		8-97349-646-0 01 1 0810-0902 ● ●
11 16.650 HINGE; CONSOLE LID
GRADE LT/LS(RBD) MALAYSIA EQUIPMENT(B10),AUSTRALIA EQUIPMENT(B13) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (B) 		8-97349-646-0 01 1 0903- ● ●
11 16.650 HINGE; CONSOLE LID
GRADE LT/LS(RBD) PARKING BRAKE FLOOR<7XW> (A) 		8-97349-645-0 01 1 0808-0809 ●
11 16.650 HINGE; CONSOLE LID
4X4 CREW CAB LONG(TFS*WF) GRADE LT/LS(RBD) PARKING BRAKE FLOOR<7XW> (A) 		8-97349-645-0 01 1 0808-0809 ●
11 16.650 HINGE; CONSOLE LID
GRADE LT/LS(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (A) 		8-97349-645-0 01 1 0810- ● ● ● ● ● ●
29 16.650 SCREW; HINGE
GRADE LT/LS(RBD) MALAYSIA EQUIPMENT(B10) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> 09.744 M5X16 TAPPING 		8-98061-683-0 06 1 0810-0902 ● ●
29 16.650 SCREW; HINGE
GRADE LT/LS(RBD) MALAYSIA EQUIPMENT(B10),AUSTRALIA EQUIPMENT(B13) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> 09.744 M5X16 TAPPING 		8-98061-683-0 06 1 0903- ● ●
29 16.650 SCREW; HINGE
GRADE LT/LS(RBD) PARKING BRAKE FLOOR<7XW> 09.744 M5X16 TAPPING 		8-98061-683-0 05 1 0808-0809 ●
29 16.650 SCREW; HINGE
4X4 CREW CAB LONG(TFS*WF) GRADE LT/LS(RBD) PARKING BRAKE FLOOR<7XW> 09.744 M5X16 TAPPING 		8-98061-683-0 05 1 0808-0809 ●
29 16.650 SCREW; HINGE
GRADE LT/LS(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> EXC. MALAYSIA EQUIPMENT(B10) 09.744 M5X16 TAPPING 		8-98061-683-0 05 1 0810-0902 ● ● ● ● ● ●
29 16.650 SCREW; HINGE
GRADE LT/LS(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> EXC. MALAYSIA EQUIPMENT(B10), AUSTRALIA EQUIPMENT(B13) 09.744 M5X16 TAPPING 		8-98061-683-0 05 1 0903- ● ● ● ● ● ●
49 04.017 SCREW; CONSOLE
PARKING BRAKE FLOOR<7XW> 16.650 M5X16 		8-98061-684-0 02 1 0808-0809 ● ●
49 04.017 SCREW; CONSOLE
EXTEND CAB EXTRA LONG(TF**CK) 16.650 M5X16 		8-98061-684-0 02 1 0808-0809 ●
49 04.017 SCREW; CONSOLE
4X4 REGULAR CAB EXTRA LONG(TFS*SK) PARKING BRAKE FLOOR<7XW> 16.650 M5X16 		8-98061-684-0 02 1 0808-0809 ●
49 04.017 SCREW; CONSOLE
4X4 CREW CAB LONG(TFS*WF) PARKING BRAKE FLOOR<7XW> 16.650 M5X16 		8-98061-684-0 02 1 0808-0809 ●
49 04.017 SCREW; CONSOLE
CREW CAB EXTRA LONG(TF**WK) 16.650 M5X16 		8-98061-684-0 02 1 0808-0809 ●
49 04.017 SCREW; CONSOLE
PARKING BRAKE FLOOR<7XW> 16.650 M5X16 		8-98061-684-0 02 1 0810-1003 ● ● ● ● ● ● ●
49 04.017 SCREW; CONSOLE
PARKING BRAKE FLOOR<7XW> 16.650 M5X16 		8-98167-220-0 02 1 1004- ● ● ● ● ● ● ●
50 04.010 CLIP; CONSOLE
INTERIOR COLOR BLACK(101) HEADER CONSOLE<DK6> (B) BLACK 		8-97418-440-0 02 1 1004- ● ● ● ● ● ●
50 04.010 CLIP; CONSOLE
HEADER CONSOLE<DK6> (C) 		8-97388-958-0 02 1 0808-0809 ● ● ●
50 04.010 CLIP; CONSOLE
EXTEND CAB EXTRA LONG(TF**CK) HEADER CONSOLE<DK6> (C) 		8-97388-958-0 02 1 0808-0809 ●
50 04.010 CLIP; CONSOLE
4X4 REGULAR CAB EXTRA LONG(TFS*SK) HEADER CONSOLE<DK6> (C) 		8-97388-958-0 02 1 0808-0809 ●
50 04.010 CLIP; CONSOLE
HEADER CONSOLE<DK6> (C) 		8-97388-958-0 02 1 0810- ● ● ● ● ● ● ●
50 04.010 CLIP; CONSOLE
HEADER CONSOLE<DK6> (B) LIGHT GRAY 		8-97403-529-0 02 1 0808-0809 ● ● ●
50 04.010 CLIP; CONSOLE
EXTEND CAB EXTRA LONG(TF**CK) HEADER CONSOLE<DK6> (B) LIGHT GRAY 		8-97403-529-0 02 1 0808-0809 ●
50 04.010 CLIP; CONSOLE
4X4 REGULAR CAB EXTRA LONG(TFS*SK) HEADER CONSOLE<DK6> (B) LIGHT GRAY 		8-97403-529-0 02 1 0808-0809 ●
50 04.010 CLIP; CONSOLE
HEADER CONSOLE<DK6> (B) LIGHT GRAY 		8-97403-529-0 02 1 0810-1003 ● ● ● ● ● ● ●
50 04.010 CLIP; CONSOLE
INTERIOR COLOR IN VERY DARK GRAY(116) HEADER CONSOLE<DK6> (B) LIGHT GRAY 		8-97403-529-0 02 1 1004- ● ● ● ● ● ● ●
50 04.010 CLIP; CONSOLE
PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0808-0809 ●
50 04.010 CLIP; CONSOLE
GRADE LX(RBB),GRADE LT/LS(RBD) PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0808-0809 ●
50 04.010 CLIP; CONSOLE
EXTEND CAB EXTRA LONG(TF**CK) (A) 		8-97355-734-0 02 1 0808-0809 ●
50 04.010 CLIP; CONSOLE
4X4 REGULAR CAB EXTRA LONG(TFS*SK) GRADE DX(RBA),GRADE LX(RBB) PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0808-0809 ●
50 04.010 CLIP; CONSOLE
4X4 CREW CAB LONG(TFS*WF) GRADE LX(RBB),GRADE LT/LS(RBD) PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0808-0809 ●
50 04.010 CLIP; CONSOLE
CREW CAB EXTRA LONG(TF**WK) (A) 		8-97355-734-0 02 1 0808-0809 ●
50 04.010 CLIP; CONSOLE
GRADE DX(RBA),GRADE LX(RBB) PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0810-0912 ● ● ● ● ● ● ●
50 04.010 CLIP; CONSOLE
GRADE LT/LS(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0810-0912 ● ● ●
50 04.010 CLIP; CONSOLE
PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 1001- ● ● ● ● ● ● ●
107 16.650 LOCK; LID,RR CONSOLE
GRADE LT/LS(RBD) PARKING BRAKE FLOOR<7XW> 		8-97349-644-0 01 1 0808-0809 ●
107 16.650 LOCK; LID,RR CONSOLE
4X4 CREW CAB LONG(TFS*WF) GRADE LT/LS(RBD) PARKING BRAKE FLOOR<7XW> 		8-97349-644-0 01 1 0808-0809 ●
107 16.650 LOCK; LID,RR CONSOLE
GRADE LT/LS(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> 		8-97349-644-0 01 1 0810- ● ● ● ● ● ●
112 16.650 LOCK; HOLE,RR CONSOLE
GRADE LT/LS(RBD) PARKING BRAKE FLOOR<7XW> 		8-97349-643-0 01 1 0808-0809 ●
112 16.650 LOCK; HOLE,RR CONSOLE
4X4 CREW CAB LONG(TFS*WF) GRADE LT/LS(RBD) PARKING BRAKE FLOOR<7XW> 		8-97349-643-0 01 1 0808-0809 ●
112 16.650 LOCK; HOLE,RR CONSOLE
GRADE LT/LS(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> 		8-97349-643-0 01 1 0810- ● ● ● ● ● ●
116 16.650 COVER; HOLE,CONSOLE,RR
PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97403-966-0 01 1 0808-0809 ●
116 16.650 COVER; HOLE,CONSOLE,RR
GRADE LX(RBB),GRADE LT/LS(RBD) PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97403-966-0 01 1 0808-0809 ●
116 16.650 COVER; HOLE,CONSOLE,RR
EXTEND CAB EXTRA LONG(TF**CK) DARK GRAY 		8-97403-966-0 01 1 0808-0809 ●
116 16.650 COVER; HOLE,CONSOLE,RR
4X4 REGULAR CAB EXTRA LONG(TFS*SK) GRADE DX(RBA),GRADE LX(RBB) PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97403-966-0 01 1 0808-0809 ●
116 16.650 COVER; HOLE,CONSOLE,RR
4X4 CREW CAB LONG(TFS*WF) GRADE LX(RBB),GRADE LT/LS(RBD) PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97403-966-0 01 1 0808-0809 ●
116 16.650 COVER; HOLE,CONSOLE,RR
CREW CAB EXTRA LONG(TF**WK) DARK GRAY 		8-97403-966-0 01 1 0808-0809 ●
116 16.650 COVER; HOLE,CONSOLE,RR
GRADE DX(RBA),GRADE LX(RBB) PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97403-966-0 01 1 0810-0912 ● ● ● ● ● ● ●
116 16.650 COVER; HOLE,CONSOLE,RR
GRADE LT/LS(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97403-966-0 01 1 0810-0912 ● ● ●
116 16.650 COVER; HOLE,CONSOLE,RR
PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97403-966-0 01 1 1001-1104 ● ● ● ● ● ● ●
116 16.650 COVER; HOLE,CONSOLE,RR
PARKING BRAKE FLOOR<7XW> BLACK 		8-97422-799-0 01 1 1105- ● ● ● ● ● ● ●
148 16.650 SCREW; LID,CONSOLE
GRADE LT/LS(RBD) MALAYSIA EQUIPMENT(B10) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (B) M4X14 		8-97349-647-0 13 1 0810-0902 ● ●
148 16.650 SCREW; LID,CONSOLE
GRADE LT/LS(RBD) MALAYSIA EQUIPMENT(B10),AUSTRALIA EQUIPMENT(B13) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (B) M4X14 		8-97349-647-0 13 1 0903- ● ●
148 16.650 SCREW; LID,CONSOLE
GRADE LT/LS(RBD) MALAYSIA EQUIPMENT(B10) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (A) M5X14 		8-97349-872-0 03 1 0810-0902 ● ●
148 16.650 SCREW; LID,CONSOLE
GRADE LT/LS(RBD) MALAYSIA EQUIPMENT(B10),AUSTRALIA EQUIPMENT(B13) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (A) M5X14 		8-97349-872-0 03 1 0903- ● ●
148 16.650 SCREW; LID,CONSOLE
GRADE LT/LS(RBD) PARKING BRAKE FLOOR<7XW> (B) M4X14 		8-97349-647-0 08 1 0808-0809 ●
148 16.650 SCREW; LID,CONSOLE
4X4 CREW CAB LONG(TFS*WF) GRADE LT/LS(RBD) PARKING BRAKE FLOOR<7XW> (B) M4X14 		8-97349-647-0 08 1 0808-0809 ●
148 16.650 SCREW; LID,CONSOLE
GRADE LT/LS(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> EXC. MALAYSIA EQUIPMENT(B10) (B) M4X14 		8-97349-647-0 08 1 0810-0902 ● ● ● ● ● ●
148 16.650 SCREW; LID,CONSOLE
GRADE LT/LS(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> EXC. MALAYSIA EQUIPMENT(B10), AUSTRALIA EQUIPMENT(B13) (B) M4X14 		8-97349-647-0 08 1 0903- ● ● ● ● ● ●
154 16.650 LID ASM; RR CONSOLE
GRADE LT/LS(RBD) MALAYSIA EQUIPMENT(B10) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (B) DARK GRAY 		8-97404-945-0 01 1 0810-0902 ● ●
154 16.650 LID ASM; RR CONSOLE
GRADE LT/LS(RBD) MALAYSIA EQUIPMENT(B10),AUSTRALIA EQUIPMENT(B13) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (B) DARK GRAY 		8-97404-945-1 01 1 0903- ● ●
154 16.650 LID ASM; RR CONSOLE
GRADE LT/LS(RBD) PARKING BRAKE FLOOR<7XW> (A) DARK GRAY 		8-97403-968-0 01 1 0808-0809 ●
154 16.650 LID ASM; RR CONSOLE
4X4 CREW CAB LONG(TFS*WF) GRADE LT/LS(RBD) PARKING BRAKE FLOOR<7XW> (A) DARK GRAY 		8-97403-968-0 01 1 0808-0809 ●
154 16.650 LID ASM; RR CONSOLE
GRADE LT/LS(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> EXC. MALAYSIA EQUIPMENT(B10) (A) DARK GRAY 		8-97403-968-0 01 1 0810-0902 ● ● ● ● ● ●
154 16.650 LID ASM; RR CONSOLE
GRADE LT/LS(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> EXC. MALAYSIA EQUIPMENT(B10), AUSTRALIA EQUIPMENT(B13) (A) DARK GRAY 		8-97403-968-0 01 1 0903-1104 ● ● ● ● ● ●
154 16.650 LID ASM; RR CONSOLE
GRADE LT/LS(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> EXC. MALAYSIA EQUIPMENT(B10), AUSTRALIA EQUIPMENT(B13) (A) BLACK 		8-97422-810-0 01 1 1105- ● ● ● ● ● ●
163 16.650 RUBBER; CUSHION,PARCEL BOX LID
GRADE LT/LS(RBD) PARKING BRAKE FLOOR<7XW> 		8-97349-682-0 02 1 0808-0809 ●
163 16.650 RUBBER; CUSHION,PARCEL BOX LID
4X4 CREW CAB LONG(TFS*WF) GRADE LT/LS(RBD) PARKING BRAKE FLOOR<7XW> 		8-97349-682-0 02 1 0808-0809 ●
163 16.650 RUBBER; CUSHION,PARCEL BOX LID
GRADE LT/LS(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> 		8-97349-682-0 02 1 0810- ● ● ● ● ● ●
188 16.650 CONSOLE; RR
GRADE LT/LS(RBD) MALAYSIA EQUIPMENT(B10) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (C) DARK GRAY 		8-97409-186-0 01 1 0810-0902 ● ●
188 16.650 CONSOLE; RR
GRADE LT/LS(RBD) MALAYSIA EQUIPMENT(B10),AUSTRALIA EQUIPMENT(B13) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (C) DARK GRAY 		8-97409-186-1 01 1 0903- ● ●
188 16.650 CONSOLE; RR
GRADE LX(RBB) PARKING BRAKE FLOOR<7XW> (B) DARK GRAY 		8-97403-345-3 01 1 0808-0809 ● ●
188 16.650 CONSOLE; RR
EXTEND CAB EXTRA LONG(TF**CK) (B) DARK GRAY 		8-97403-345-3 01 1 0808-0809 ●
188 16.650 CONSOLE; RR
4X4 REGULAR CAB EXTRA LONG(TFS*SK) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (B) DARK GRAY 		8-97403-345-3 01 1 0808-0809 ●
188 16.650 CONSOLE; RR
4X4 CREW CAB LONG(TFS*WF) GRADE LX(RBB) PARKING BRAKE FLOOR<7XW> (B) DARK GRAY 		8-97403-345-3 01 1 0808-0809 ●
188 16.650 CONSOLE; RR
CREW CAB EXTRA LONG(TF**WK) (B) DARK GRAY 		8-97403-345-3 01 1 0808-0809 ●
188 16.650 CONSOLE; RR
GRADE DX(RBA),GRADE LX(RBB) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (B) DARK GRAY 		8-97403-345-3 01 1 0810-1003 ● ● ● ● ● ● ●
188 16.650 CONSOLE; RR
INTERIOR COLOR IN VERY DARK GRAY(116) GRADE DX(RBA),GRADE LX(RBB) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (B) DARK GRAY 		8-97403-345-3 01 1 1004-1104 ● ● ● ● ● ● ●
188 16.650 CONSOLE; RR
INTERIOR COLOR IN VERY DARK GRAY(116) GRADE DX(RBA),GRADE LX(RBB) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (B) BLACK 		8-97422-771-0 01 1 1105- ● ● ● ● ● ● ●
188 16.650 CONSOLE; RR
4X4 REGULAR CAB EXTRA LONG(TFS*SK) GRADE DX(RBA),GRADE LX(RBB) PARKING BRAKE FLOOR<7XW> EXC. FRONT CONSOLE<D55> (B) DARK GRAY 		8-97403-360-2 01 1 0808-0809 ●
188 16.650 CONSOLE; RR
GRADE DX(RBA),GRADE LX(RBB) PARKING BRAKE FLOOR<7XW> EXC. FRONT CONSOLE<D55> (B) DARK GRAY 		8-97403-360-2 01 1 0810-0912 ● ● ● ● ● ●
188 16.650 CONSOLE; RR
GRADE DX(RBA),GRADE LX(RBB) PARKING BRAKE FLOOR<7XW> EXC. FRONT CONSOLE<D55> (B) DARK GRAY 		8-97403-360-2 01 1 1001-1003 ● ● ● ● ● ● ●
188 16.650 CONSOLE; RR
GRADE DX(RBA),GRADE LX(RBB) INTERIOR COLOR IN VERY DARK GRAY(116) PARKING BRAKE FLOOR<7XW> EXC. FRONT CONSOLE<D55> (B) DARK GRAY 		8-97403-360-2 01 1 1004-1104 ● ● ● ● ● ● ●
188 16.650 CONSOLE; RR
GRADE DX(RBA),GRADE LX(RBB) INTERIOR COLOR IN VERY DARK GRAY(116) PARKING BRAKE FLOOR<7XW> EXC. FRONT CONSOLE<D55> (B) BLACK 		8-97422-773-0 01 1 1105- ● ● ● ● ● ● ●
188 16.650 CONSOLE; RR
GRADE LT/LS(RBD) PARKING BRAKE FLOOR<7XW> (A) DARK GRAY 		8-97409-184-0 01 1 0808-0809 ●
188 16.650 CONSOLE; RR
4X4 CREW CAB LONG(TFS*WF) GRADE LT/LS(RBD) PARKING BRAKE FLOOR<7XW> (A) DARK GRAY 		8-97409-184-0 01 1 0808-0809 ●
188 16.650 CONSOLE; RR
GRADE LT/LS(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> EXC. MALAYSIA EQUIPMENT(B10) (A) DARK GRAY 		8-97409-184-0 01 1 0810-0902 ● ● ● ● ● ●
188 16.650 CONSOLE; RR
GRADE LT/LS(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> EXC. MALAYSIA EQUIPMENT(B10), AUSTRALIA EQUIPMENT(B13) (A) DARK GRAY 		8-97409-184-1 01 1 0903- ● ● ● ● ● ●
200 16.650 NUT; SPIRE,SPR LID
GRADE LT/LS(RBD) MALAYSIA EQUIPMENT(B10) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> 		8-97349-642-0 03 1 0810-0902 ● ●
200 16.650 NUT; SPIRE,SPR LID
GRADE LT/LS(RBD) MALAYSIA EQUIPMENT(B10),AUSTRALIA EQUIPMENT(B13) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> 		8-97349-642-0 03 1 0903- ● ●
200 16.650 NUT; SPIRE,SPR LID
GRADE LT/LS(RBD) PARKING BRAKE FLOOR<7XW> 		8-97349-642-0 06 1 0808-0809 ●
200 16.650 NUT; SPIRE,SPR LID
4X4 CREW CAB LONG(TFS*WF) GRADE LT/LS(RBD) PARKING BRAKE FLOOR<7XW> 		8-97349-642-0 06 1 0808-0809 ●
200 16.650 NUT; SPIRE,SPR LID
GRADE LT/LS(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> EXC. MALAYSIA EQUIPMENT(B10) 		8-97349-642-0 06 1 0810-0902 ● ● ● ● ● ●
200 16.650 NUT; SPIRE,SPR LID
GRADE LT/LS(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> EXC. MALAYSIA EQUIPMENT(B10), AUSTRALIA EQUIPMENT(B13) 		8-97349-642-0 06 1 0903- ● ● ● ● ● ●

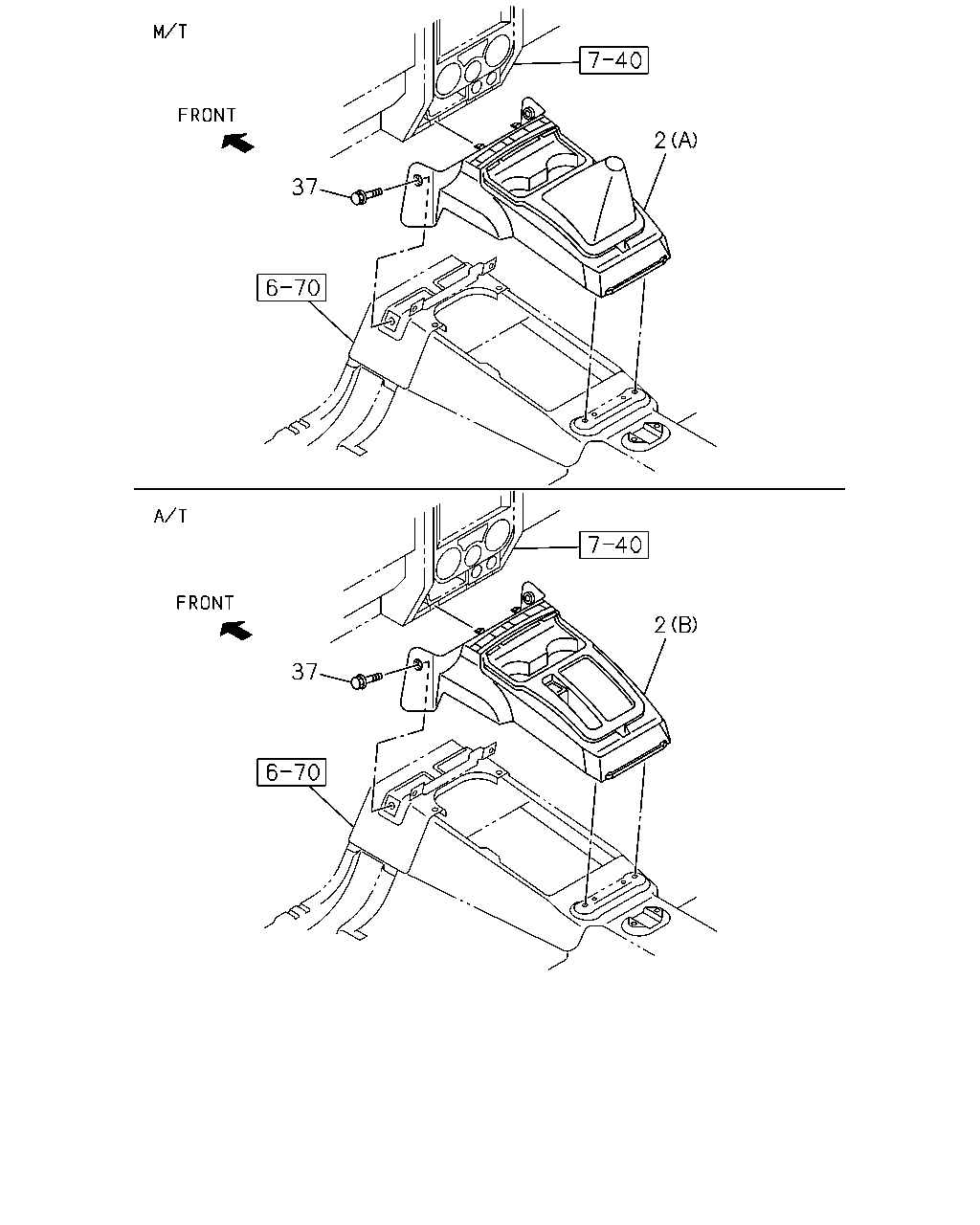

çizim 134271
2 37 2 37
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
2 16.081 CONSOLE; CENTER
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP), M/TMUA 5 SPEED 5S(RSQ) FRONT CONSOLE<D55> EXC. REAR HEATER DUCT<S8C> (A) DARK GRAY 		8-97403-359-1 01 1 0810-1104 ● ● ● ● ● ●
2 16.081 CONSOLE; CENTER
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP), M/TMUA 5 SPEED 5S(RSQ) FRONT CONSOLE<D55> EXC. REAR HEATER DUCT<S8C> (A) BLACK 		8-97422-764-0 01 1 1105- ● ● ● ● ● ●
2 16.081 CONSOLE; CENTER
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) FRONT CONSOLE<D55> REAR HEATER DUCT<S8C> (A) DARK GRAY 		8-97403-342-0 01 1 0810-1104 ● ●
2 16.081 CONSOLE; CENTER
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) FRONT CONSOLE<D55> REAR HEATER DUCT<S8C> (A) BLACK 		8-97422-767-0 01 1 1105- ● ●
2 16.081 CONSOLE; CENTER
M/T MUX 5 SPEED 5S(MZJ) FRONT CONSOLE<D55> EXC. REAR HEATER DUCT<S8C> (A) DARK GRAY 		8-97407-083-0 01 1 0808-0809 ● ● ●
2 16.081 CONSOLE; CENTER
EXTEND CAB EXTRA LONG(TF**CK) M/T MUX 5 SPEED 5S(MZJ) FRONT CONSOLE<D55> EXC. REAR HEATER DUCT<S8C> (A) DARK GRAY 		8-97407-083-0 01 1 0808-0809 ●
2 16.081 CONSOLE; CENTER
4X4 REGULAR CAB EXTRA LONG(TFS*SK) M/T MUX 5 SPEED 5S(MZJ) FRONT CONSOLE<D55> EXC. REAR HEATER DUCT<S8C> (A) DARK GRAY 		8-97407-083-0 01 1 0808-0809 ●
2 16.081 CONSOLE; CENTER
M/T MUX 5 SPEED 5S(MZJ) FRONT CONSOLE<D55> EXC. REAR HEATER DUCT<S8C> (A) DARK GRAY 		8-97407-083-1 01 1 0810- ● ● ● ● ●
2 16.081 CONSOLE; CENTER
M/T MUX 5 SPEED 5S(MZJ) REAR HEATER DUCT<S8C> (A) DARK GRAY 		8-97407-082-1 01 1 0808-0809 ● ●
2 16.081 CONSOLE; CENTER
M/T MUX 5 SPEED 5S(MZJ) FRONT CONSOLE<D55> REAR HEATER DUCT<S8C> (A) DARK GRAY 		8-97407-082-2 01 1 0810- ● ●
2 16.081 CONSOLE; CENTER
A/T AISIN(RMD) REAR HEATER DUCT<S8C> (B) DARK GRAY 		8-97403-341-0 01 1 0808-0809 ●
2 16.081 CONSOLE; CENTER
4X4 CREW CAB LONG(TFS*WF) A/T AISIN(RMD) REAR HEATER DUCT<S8C> (B) DARK GRAY 		8-97403-341-0 01 1 0808-0809 ●
2 16.081 CONSOLE; CENTER
A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) FRONT CONSOLE<D55> REAR HEATER DUCT<S8C> (B) DARK GRAY 		8-97403-341-0 01 1 0810-1104 ● ●
2 16.081 CONSOLE; CENTER
A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) FRONT CONSOLE<D55> REAR HEATER DUCT<S8C> (B) BLACK 		8-97422-766-0 01 1 1105- ● ●
2 16.081 CONSOLE; CENTER
A/T AISIN(RMD) EXC. REAR HEATER DUCT<S8C> (B) DARK GRAY 		8-97403-357-1 01 1 0808-0809 ●
2 16.081 CONSOLE; CENTER
4X4 CREW CAB LONG(TFS*WF) A/T AISIN(RMD) EXC. REAR HEATER DUCT<S8C> (B) DARK GRAY 		8-97403-357-1 01 1 0808-0809 ●
2 16.081 CONSOLE; CENTER
A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) FRONT CONSOLE<D55> EXC. REAR HEATER DUCT<S8C> (B) DARK GRAY 		8-97403-357-1 01 1 0810-1104 ● ● ● ●
2 16.081 CONSOLE; CENTER
A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) FRONT CONSOLE<D55> EXC. REAR HEATER DUCT<S8C> (B) BLACK 		8-97422-761-0 01 1 1105- ● ● ● ●
2 16.081 CONSOLE; CENTER
4X4 REGULAR CAB EXTRA LONG(TFS*SK) EXC. FRONT CONSOLE<D55> (C) DARK GRAY 		8-97403-324-0 01 1 0808-0809 ●
2 16.081 CONSOLE; CENTER
EXC. FRONT CONSOLE<D55> (C) DARK GRAY 		8-97403-324-0 01 1 0810-0912 ● ● ● ● ● ●
2 16.081 CONSOLE; CENTER
EXC. FRONT CONSOLE<D55> (C) DARK GRAY 		8-97403-324-0 01 1 1001-1003 ● ● ● ● ● ● ●
2 16.081 CONSOLE; CENTER
INTERIOR COLOR IN VERY DARK GRAY(116) EXC. FRONT CONSOLE<D55> (C) DARK GRAY 		8-97403-324-0 01 1 1004-1104 ● ● ● ● ● ● ●
2 16.081 CONSOLE; CENTER
INTERIOR COLOR IN VERY DARK GRAY(116) EXC. FRONT CONSOLE<D55> (C) BLACK 		8-97422-689-0 01 1 1105- ● ● ● ● ● ● ●
37 16.650 SCREW; CONSOLE
M5X16 		8-98061-684-0 02 1 0808-0809 ● ● ●
37 16.650 SCREW; CONSOLE
EXTEND CAB EXTRA LONG(TF**CK) M5X16 		8-98061-684-0 02 1 0808-0809 ●
37 16.650 SCREW; CONSOLE
4X4 REGULAR CAB EXTRA LONG(TFS*SK) FRONT CONSOLE<D55> M5X16 		8-98061-684-0 02 1 0808-0809 ●
37 16.650 SCREW; CONSOLE
FRONT CONSOLE<D55> M5X16 		8-98061-684-0 02 1 0810-0912 ● ● ● ● ● ●
37 16.650 SCREW; CONSOLE
M5X16 		8-98061-684-0 02 1 0810-0912 ●
37 16.650 SCREW; CONSOLE
FRONT CONSOLE<D55> M5X16 		8-98061-684-0 02 1 1001-1003 ● ● ● ● ● ● ●
37 16.650 SCREW; CONSOLE
FRONT CONSOLE<D55> M5X16 		8-98167-220-0 02 1 1004- ● ● ● ● ● ● ●

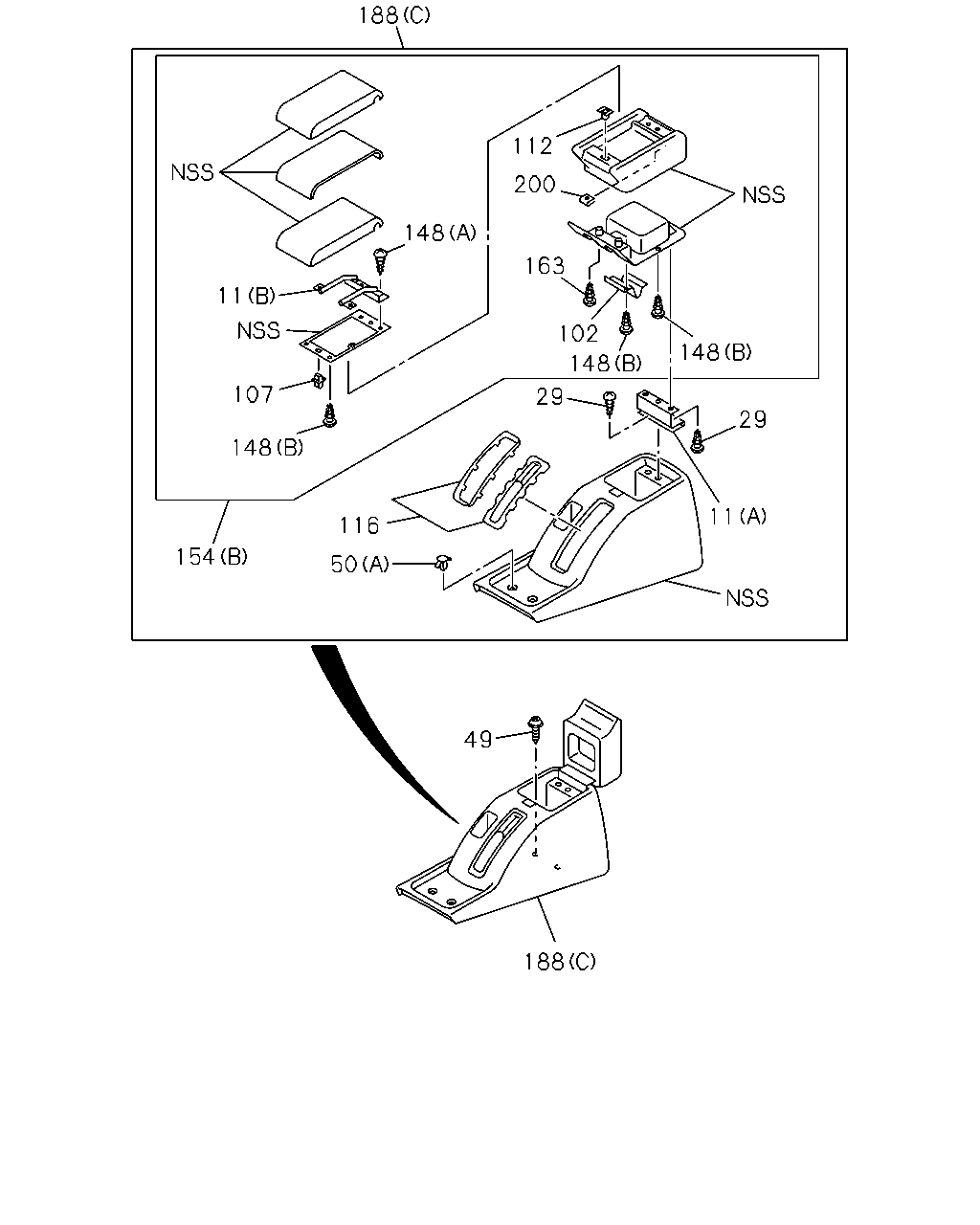

çizim 134276
188 112 200 148 163 11 102 148 148 107 29 29 148 11 116 154 50 49 188
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
11 16.650 HINGE; CONSOLE LID
GRADE LT/LS(RBD) MALAYSIA EQUIPMENT(B10) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (B) 		8-97349-646-0 01 1 0810-0902 ● ●
11 16.650 HINGE; CONSOLE LID
GRADE LT/LS(RBD) MALAYSIA EQUIPMENT(B10),AUSTRALIA EQUIPMENT(B13) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (B) 		8-97349-646-0 01 1 0903- ● ●
11 16.650 HINGE; CONSOLE LID
GRADE LT/LS(RBD) PARKING BRAKE FLOOR<7XW> (A) 		8-97349-645-0 01 1 0808-0809 ●
11 16.650 HINGE; CONSOLE LID
4X4 CREW CAB LONG(TFS*WF) GRADE LT/LS(RBD) PARKING BRAKE FLOOR<7XW> (A) 		8-97349-645-0 01 1 0808-0809 ●
11 16.650 HINGE; CONSOLE LID
GRADE LT/LS(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (A) 		8-97349-645-0 01 1 0810- ● ● ● ● ● ●
29 16.650 SCREW; HINGE
GRADE LT/LS(RBD) MALAYSIA EQUIPMENT(B10) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> 09.744 M5X16 TAPPING 		8-98061-683-0 06 1 0810-0902 ● ●
29 16.650 SCREW; HINGE
GRADE LT/LS(RBD) MALAYSIA EQUIPMENT(B10),AUSTRALIA EQUIPMENT(B13) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> 09.744 M5X16 TAPPING 		8-98061-683-0 06 1 0903- ● ●
29 16.650 SCREW; HINGE
GRADE LT/LS(RBD) PARKING BRAKE FLOOR<7XW> 09.744 M5X16 TAPPING 		8-98061-683-0 05 1 0808-0809 ●
29 16.650 SCREW; HINGE
4X4 CREW CAB LONG(TFS*WF) GRADE LT/LS(RBD) PARKING BRAKE FLOOR<7XW> 09.744 M5X16 TAPPING 		8-98061-683-0 05 1 0808-0809 ●
29 16.650 SCREW; HINGE
GRADE LT/LS(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> EXC. MALAYSIA EQUIPMENT(B10) 09.744 M5X16 TAPPING 		8-98061-683-0 05 1 0810-0902 ● ● ● ● ● ●
29 16.650 SCREW; HINGE
GRADE LT/LS(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> EXC. MALAYSIA EQUIPMENT(B10), AUSTRALIA EQUIPMENT(B13) 09.744 M5X16 TAPPING 		8-98061-683-0 05 1 0903- ● ● ● ● ● ●
49 04.017 SCREW; CONSOLE
PARKING BRAKE FLOOR<7XW> 16.650 M5X16 		8-98061-684-0 02 1 0808-0809 ● ●
49 04.017 SCREW; CONSOLE
EXTEND CAB EXTRA LONG(TF**CK) 16.650 M5X16 		8-98061-684-0 02 1 0808-0809 ●
49 04.017 SCREW; CONSOLE
4X4 REGULAR CAB EXTRA LONG(TFS*SK) PARKING BRAKE FLOOR<7XW> 16.650 M5X16 		8-98061-684-0 02 1 0808-0809 ●
49 04.017 SCREW; CONSOLE
4X4 CREW CAB LONG(TFS*WF) PARKING BRAKE FLOOR<7XW> 16.650 M5X16 		8-98061-684-0 02 1 0808-0809 ●
49 04.017 SCREW; CONSOLE
CREW CAB EXTRA LONG(TF**WK) 16.650 M5X16 		8-98061-684-0 02 1 0808-0809 ●
49 04.017 SCREW; CONSOLE
PARKING BRAKE FLOOR<7XW> 16.650 M5X16 		8-98061-684-0 02 1 0810-1003 ● ● ● ● ● ● ●
49 04.017 SCREW; CONSOLE
PARKING BRAKE FLOOR<7XW> 16.650 M5X16 		8-98167-220-0 02 1 1004- ● ● ● ● ● ● ●
50 04.010 CLIP; CONSOLE
INTERIOR COLOR BLACK(101) HEADER CONSOLE<DK6> (B) BLACK 		8-97418-440-0 02 1 1004- ● ● ● ● ● ●
50 04.010 CLIP; CONSOLE
HEADER CONSOLE<DK6> (C) 		8-97388-958-0 02 1 0808-0809 ● ● ●
50 04.010 CLIP; CONSOLE
EXTEND CAB EXTRA LONG(TF**CK) HEADER CONSOLE<DK6> (C) 		8-97388-958-0 02 1 0808-0809 ●
50 04.010 CLIP; CONSOLE
4X4 REGULAR CAB EXTRA LONG(TFS*SK) HEADER CONSOLE<DK6> (C) 		8-97388-958-0 02 1 0808-0809 ●
50 04.010 CLIP; CONSOLE
HEADER CONSOLE<DK6> (C) 		8-97388-958-0 02 1 0810- ● ● ● ● ● ● ●
50 04.010 CLIP; CONSOLE
HEADER CONSOLE<DK6> (B) LIGHT GRAY 		8-97403-529-0 02 1 0808-0809 ● ● ●
50 04.010 CLIP; CONSOLE
EXTEND CAB EXTRA LONG(TF**CK) HEADER CONSOLE<DK6> (B) LIGHT GRAY 		8-97403-529-0 02 1 0808-0809 ●
50 04.010 CLIP; CONSOLE
4X4 REGULAR CAB EXTRA LONG(TFS*SK) HEADER CONSOLE<DK6> (B) LIGHT GRAY 		8-97403-529-0 02 1 0808-0809 ●
50 04.010 CLIP; CONSOLE
HEADER CONSOLE<DK6> (B) LIGHT GRAY 		8-97403-529-0 02 1 0810-1003 ● ● ● ● ● ● ●
50 04.010 CLIP; CONSOLE
INTERIOR COLOR IN VERY DARK GRAY(116) HEADER CONSOLE<DK6> (B) LIGHT GRAY 		8-97403-529-0 02 1 1004- ● ● ● ● ● ● ●
50 04.010 CLIP; CONSOLE
PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0808-0809 ●
50 04.010 CLIP; CONSOLE
GRADE LX(RBB),GRADE LT/LS(RBD) PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0808-0809 ●
50 04.010 CLIP; CONSOLE
EXTEND CAB EXTRA LONG(TF**CK) (A) 		8-97355-734-0 02 1 0808-0809 ●
50 04.010 CLIP; CONSOLE
4X4 REGULAR CAB EXTRA LONG(TFS*SK) GRADE DX(RBA),GRADE LX(RBB) PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0808-0809 ●
50 04.010 CLIP; CONSOLE
4X4 CREW CAB LONG(TFS*WF) GRADE LX(RBB),GRADE LT/LS(RBD) PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0808-0809 ●
50 04.010 CLIP; CONSOLE
CREW CAB EXTRA LONG(TF**WK) (A) 		8-97355-734-0 02 1 0808-0809 ●
50 04.010 CLIP; CONSOLE
GRADE DX(RBA),GRADE LX(RBB) PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0810-0912 ● ● ● ● ● ● ●
50 04.010 CLIP; CONSOLE
GRADE LT/LS(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0810-0912 ● ● ●
50 04.010 CLIP; CONSOLE
PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 1001- ● ● ● ● ● ● ●
102 16.650 LOCK ASM; RR CONSOLE
GRADE LT/LS(RBD) MALAYSIA EQUIPMENT(B10) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> 		8-97349-650-0 01 1 0810-0902 ● ●
102 16.650 LOCK ASM; RR CONSOLE
GRADE LT/LS(RBD) MALAYSIA EQUIPMENT(B10),AUSTRALIA EQUIPMENT(B13) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> 		8-97349-650-0 01 1 0903- ● ●
107 16.650 LOCK; LID,RR CONSOLE
GRADE LT/LS(RBD) PARKING BRAKE FLOOR<7XW> 		8-97349-644-0 01 1 0808-0809 ●
107 16.650 LOCK; LID,RR CONSOLE
4X4 CREW CAB LONG(TFS*WF) GRADE LT/LS(RBD) PARKING BRAKE FLOOR<7XW> 		8-97349-644-0 01 1 0808-0809 ●
107 16.650 LOCK; LID,RR CONSOLE
GRADE LT/LS(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> 		8-97349-644-0 01 1 0810- ● ● ● ● ● ●
112 16.650 LOCK; HOLE,RR CONSOLE
GRADE LT/LS(RBD) PARKING BRAKE FLOOR<7XW> 		8-97349-643-0 01 1 0808-0809 ●
112 16.650 LOCK; HOLE,RR CONSOLE
4X4 CREW CAB LONG(TFS*WF) GRADE LT/LS(RBD) PARKING BRAKE FLOOR<7XW> 		8-97349-643-0 01 1 0808-0809 ●
112 16.650 LOCK; HOLE,RR CONSOLE
GRADE LT/LS(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> 		8-97349-643-0 01 1 0810- ● ● ● ● ● ●
116 16.650 COVER; HOLE,CONSOLE,RR
PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97403-966-0 01 1 0808-0809 ●
116 16.650 COVER; HOLE,CONSOLE,RR
GRADE LX(RBB),GRADE LT/LS(RBD) PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97403-966-0 01 1 0808-0809 ●
116 16.650 COVER; HOLE,CONSOLE,RR
EXTEND CAB EXTRA LONG(TF**CK) DARK GRAY 		8-97403-966-0 01 1 0808-0809 ●
116 16.650 COVER; HOLE,CONSOLE,RR
4X4 REGULAR CAB EXTRA LONG(TFS*SK) GRADE DX(RBA),GRADE LX(RBB) PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97403-966-0 01 1 0808-0809 ●
116 16.650 COVER; HOLE,CONSOLE,RR
4X4 CREW CAB LONG(TFS*WF) GRADE LX(RBB),GRADE LT/LS(RBD) PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97403-966-0 01 1 0808-0809 ●
116 16.650 COVER; HOLE,CONSOLE,RR
CREW CAB EXTRA LONG(TF**WK) DARK GRAY 		8-97403-966-0 01 1 0808-0809 ●
116 16.650 COVER; HOLE,CONSOLE,RR
GRADE DX(RBA),GRADE LX(RBB) PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97403-966-0 01 1 0810-0912 ● ● ● ● ● ● ●
116 16.650 COVER; HOLE,CONSOLE,RR
GRADE LT/LS(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97403-966-0 01 1 0810-0912 ● ● ●
116 16.650 COVER; HOLE,CONSOLE,RR
PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97403-966-0 01 1 1001-1104 ● ● ● ● ● ● ●
116 16.650 COVER; HOLE,CONSOLE,RR
PARKING BRAKE FLOOR<7XW> BLACK 		8-97422-799-0 01 1 1105- ● ● ● ● ● ● ●
148 16.650 SCREW; LID,CONSOLE
GRADE LT/LS(RBD) MALAYSIA EQUIPMENT(B10) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (B) M4X14 		8-97349-647-0 13 1 0810-0902 ● ●
148 16.650 SCREW; LID,CONSOLE
GRADE LT/LS(RBD) MALAYSIA EQUIPMENT(B10),AUSTRALIA EQUIPMENT(B13) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (B) M4X14 		8-97349-647-0 13 1 0903- ● ●
148 16.650 SCREW; LID,CONSOLE
GRADE LT/LS(RBD) MALAYSIA EQUIPMENT(B10) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (A) M5X14 		8-97349-872-0 03 1 0810-0902 ● ●
148 16.650 SCREW; LID,CONSOLE
GRADE LT/LS(RBD) MALAYSIA EQUIPMENT(B10),AUSTRALIA EQUIPMENT(B13) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (A) M5X14 		8-97349-872-0 03 1 0903- ● ●
148 16.650 SCREW; LID,CONSOLE
GRADE LT/LS(RBD) PARKING BRAKE FLOOR<7XW> (B) M4X14 		8-97349-647-0 08 1 0808-0809 ●
148 16.650 SCREW; LID,CONSOLE
4X4 CREW CAB LONG(TFS*WF) GRADE LT/LS(RBD) PARKING BRAKE FLOOR<7XW> (B) M4X14 		8-97349-647-0 08 1 0808-0809 ●
148 16.650 SCREW; LID,CONSOLE
GRADE LT/LS(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> EXC. MALAYSIA EQUIPMENT(B10) (B) M4X14 		8-97349-647-0 08 1 0810-0902 ● ● ● ● ● ●
148 16.650 SCREW; LID,CONSOLE
GRADE LT/LS(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> EXC. MALAYSIA EQUIPMENT(B10), AUSTRALIA EQUIPMENT(B13) (B) M4X14 		8-97349-647-0 08 1 0903- ● ● ● ● ● ●
154 16.650 LID ASM; RR CONSOLE
GRADE LT/LS(RBD) MALAYSIA EQUIPMENT(B10) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (B) DARK GRAY 		8-97404-945-0 01 1 0810-0902 ● ●
154 16.650 LID ASM; RR CONSOLE
GRADE LT/LS(RBD) MALAYSIA EQUIPMENT(B10),AUSTRALIA EQUIPMENT(B13) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (B) DARK GRAY 		8-97404-945-1 01 1 0903- ● ●
154 16.650 LID ASM; RR CONSOLE
GRADE LT/LS(RBD) PARKING BRAKE FLOOR<7XW> (A) DARK GRAY 		8-97403-968-0 01 1 0808-0809 ●
154 16.650 LID ASM; RR CONSOLE
4X4 CREW CAB LONG(TFS*WF) GRADE LT/LS(RBD) PARKING BRAKE FLOOR<7XW> (A) DARK GRAY 		8-97403-968-0 01 1 0808-0809 ●
154 16.650 LID ASM; RR CONSOLE
GRADE LT/LS(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> EXC. MALAYSIA EQUIPMENT(B10) (A) DARK GRAY 		8-97403-968-0 01 1 0810-0902 ● ● ● ● ● ●
154 16.650 LID ASM; RR CONSOLE
GRADE LT/LS(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> EXC. MALAYSIA EQUIPMENT(B10), AUSTRALIA EQUIPMENT(B13) (A) DARK GRAY 		8-97403-968-0 01 1 0903-1104 ● ● ● ● ● ●
154 16.650 LID ASM; RR CONSOLE
GRADE LT/LS(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> EXC. MALAYSIA EQUIPMENT(B10), AUSTRALIA EQUIPMENT(B13) (A) BLACK 		8-97422-810-0 01 1 1105- ● ● ● ● ● ●
163 16.650 RUBBER; CUSHION,PARCEL BOX LID
GRADE LT/LS(RBD) PARKING BRAKE FLOOR<7XW> 		8-97349-682-0 02 1 0808-0809 ●
163 16.650 RUBBER; CUSHION,PARCEL BOX LID
4X4 CREW CAB LONG(TFS*WF) GRADE LT/LS(RBD) PARKING BRAKE FLOOR<7XW> 		8-97349-682-0 02 1 0808-0809 ●
163 16.650 RUBBER; CUSHION,PARCEL BOX LID
GRADE LT/LS(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> 		8-97349-682-0 02 1 0810- ● ● ● ● ● ●
188 16.650 CONSOLE; RR
GRADE LT/LS(RBD) MALAYSIA EQUIPMENT(B10) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (C) DARK GRAY 		8-97409-186-0 01 1 0810-0902 ● ●
188 16.650 CONSOLE; RR
GRADE LT/LS(RBD) MALAYSIA EQUIPMENT(B10),AUSTRALIA EQUIPMENT(B13) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (C) DARK GRAY 		8-97409-186-1 01 1 0903- ● ●
188 16.650 CONSOLE; RR
GRADE LX(RBB) PARKING BRAKE FLOOR<7XW> (B) DARK GRAY 		8-97403-345-3 01 1 0808-0809 ● ●
188 16.650 CONSOLE; RR
EXTEND CAB EXTRA LONG(TF**CK) (B) DARK GRAY 		8-97403-345-3 01 1 0808-0809 ●
188 16.650 CONSOLE; RR
4X4 REGULAR CAB EXTRA LONG(TFS*SK) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (B) DARK GRAY 		8-97403-345-3 01 1 0808-0809 ●
188 16.650 CONSOLE; RR
4X4 CREW CAB LONG(TFS*WF) GRADE LX(RBB) PARKING BRAKE FLOOR<7XW> (B) DARK GRAY 		8-97403-345-3 01 1 0808-0809 ●
188 16.650 CONSOLE; RR
CREW CAB EXTRA LONG(TF**WK) (B) DARK GRAY 		8-97403-345-3 01 1 0808-0809 ●
188 16.650 CONSOLE; RR
GRADE DX(RBA),GRADE LX(RBB) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (B) DARK GRAY 		8-97403-345-3 01 1 0810-1003 ● ● ● ● ● ● ●
188 16.650 CONSOLE; RR
INTERIOR COLOR IN VERY DARK GRAY(116) GRADE DX(RBA),GRADE LX(RBB) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (B) DARK GRAY 		8-97403-345-3 01 1 1004-1104 ● ● ● ● ● ● ●
188 16.650 CONSOLE; RR
INTERIOR COLOR IN VERY DARK GRAY(116) GRADE DX(RBA),GRADE LX(RBB) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (B) BLACK 		8-97422-771-0 01 1 1105- ● ● ● ● ● ● ●
188 16.650 CONSOLE; RR
4X4 REGULAR CAB EXTRA LONG(TFS*SK) GRADE DX(RBA),GRADE LX(RBB) PARKING BRAKE FLOOR<7XW> EXC. FRONT CONSOLE<D55> (B) DARK GRAY 		8-97403-360-2 01 1 0808-0809 ●
188 16.650 CONSOLE; RR
GRADE DX(RBA),GRADE LX(RBB) PARKING BRAKE FLOOR<7XW> EXC. FRONT CONSOLE<D55> (B) DARK GRAY 		8-97403-360-2 01 1 0810-0912 ● ● ● ● ● ●
188 16.650 CONSOLE; RR
GRADE DX(RBA),GRADE LX(RBB) PARKING BRAKE FLOOR<7XW> EXC. FRONT CONSOLE<D55> (B) DARK GRAY 		8-97403-360-2 01 1 1001-1003 ● ● ● ● ● ● ●
188 16.650 CONSOLE; RR
GRADE DX(RBA),GRADE LX(RBB) INTERIOR COLOR IN VERY DARK GRAY(116) PARKING BRAKE FLOOR<7XW> EXC. FRONT CONSOLE<D55> (B) DARK GRAY 		8-97403-360-2 01 1 1004-1104 ● ● ● ● ● ● ●
188 16.650 CONSOLE; RR
GRADE DX(RBA),GRADE LX(RBB) INTERIOR COLOR IN VERY DARK GRAY(116) PARKING BRAKE FLOOR<7XW> EXC. FRONT CONSOLE<D55> (B) BLACK 		8-97422-773-0 01 1 1105- ● ● ● ● ● ● ●
188 16.650 CONSOLE; RR
GRADE LT/LS(RBD) PARKING BRAKE FLOOR<7XW> (A) DARK GRAY 		8-97409-184-0 01 1 0808-0809 ●
188 16.650 CONSOLE; RR
4X4 CREW CAB LONG(TFS*WF) GRADE LT/LS(RBD) PARKING BRAKE FLOOR<7XW> (A) DARK GRAY 		8-97409-184-0 01 1 0808-0809 ●
188 16.650 CONSOLE; RR
GRADE LT/LS(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> EXC. MALAYSIA EQUIPMENT(B10) (A) DARK GRAY 		8-97409-184-0 01 1 0810-0902 ● ● ● ● ● ●
188 16.650 CONSOLE; RR
GRADE LT/LS(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> EXC. MALAYSIA EQUIPMENT(B10), AUSTRALIA EQUIPMENT(B13) (A) DARK GRAY 		8-97409-184-1 01 1 0903- ● ● ● ● ● ●
200 16.650 NUT; SPIRE,SPR LID
GRADE LT/LS(RBD) MALAYSIA EQUIPMENT(B10) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> 		8-97349-642-0 03 1 0810-0902 ● ●
200 16.650 NUT; SPIRE,SPR LID
GRADE LT/LS(RBD) MALAYSIA EQUIPMENT(B10),AUSTRALIA EQUIPMENT(B13) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> 		8-97349-642-0 03 1 0903- ● ●
200 16.650 NUT; SPIRE,SPR LID
GRADE LT/LS(RBD) PARKING BRAKE FLOOR<7XW> 		8-97349-642-0 06 1 0808-0809 ●
200 16.650 NUT; SPIRE,SPR LID
4X4 CREW CAB LONG(TFS*WF) GRADE LT/LS(RBD) PARKING BRAKE FLOOR<7XW> 		8-97349-642-0 06 1 0808-0809 ●
200 16.650 NUT; SPIRE,SPR LID
GRADE LT/LS(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> EXC. MALAYSIA EQUIPMENT(B10) 		8-97349-642-0 06 1 0810-0902 ● ● ● ● ● ●
200 16.650 NUT; SPIRE,SPR LID
GRADE LT/LS(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> EXC. MALAYSIA EQUIPMENT(B10), AUSTRALIA EQUIPMENT(B13) 		8-97349-642-0 06 1 0903- ● ● ● ● ● ●
çizim 134278
188 116 50 49 188
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
49 04.017 SCREW; CONSOLE
PARKING BRAKE FLOOR<7XW> 16.650 M5X16 		8-98061-684-0 02 1 0808-0809 ● ●
49 04.017 SCREW; CONSOLE
EXTEND CAB EXTRA LONG(TF**CK) 16.650 M5X16 		8-98061-684-0 02 1 0808-0809 ●
49 04.017 SCREW; CONSOLE
4X4 REGULAR CAB EXTRA LONG(TFS*SK) PARKING BRAKE FLOOR<7XW> 16.650 M5X16 		8-98061-684-0 02 1 0808-0809 ●
49 04.017 SCREW; CONSOLE
4X4 CREW CAB LONG(TFS*WF) PARKING BRAKE FLOOR<7XW> 16.650 M5X16 		8-98061-684-0 02 1 0808-0809 ●
49 04.017 SCREW; CONSOLE
CREW CAB EXTRA LONG(TF**WK) 16.650 M5X16 		8-98061-684-0 02 1 0808-0809 ●
49 04.017 SCREW; CONSOLE
PARKING BRAKE FLOOR<7XW> 16.650 M5X16 		8-98061-684-0 02 1 0810-1003 ● ● ● ● ● ● ●
49 04.017 SCREW; CONSOLE
PARKING BRAKE FLOOR<7XW> 16.650 M5X16 		8-98167-220-0 02 1 1004- ● ● ● ● ● ● ●
50 04.010 CLIP; CONSOLE
INTERIOR COLOR BLACK(101) HEADER CONSOLE<DK6> (B) BLACK 		8-97418-440-0 02 1 1004- ● ● ● ● ● ●
50 04.010 CLIP; CONSOLE
HEADER CONSOLE<DK6> (C) 		8-97388-958-0 02 1 0808-0809 ● ● ●
50 04.010 CLIP; CONSOLE
EXTEND CAB EXTRA LONG(TF**CK) HEADER CONSOLE<DK6> (C) 		8-97388-958-0 02 1 0808-0809 ●
50 04.010 CLIP; CONSOLE
4X4 REGULAR CAB EXTRA LONG(TFS*SK) HEADER CONSOLE<DK6> (C) 		8-97388-958-0 02 1 0808-0809 ●
50 04.010 CLIP; CONSOLE
HEADER CONSOLE<DK6> (C) 		8-97388-958-0 02 1 0810- ● ● ● ● ● ● ●
50 04.010 CLIP; CONSOLE
HEADER CONSOLE<DK6> (B) LIGHT GRAY 		8-97403-529-0 02 1 0808-0809 ● ● ●
50 04.010 CLIP; CONSOLE
EXTEND CAB EXTRA LONG(TF**CK) HEADER CONSOLE<DK6> (B) LIGHT GRAY 		8-97403-529-0 02 1 0808-0809 ●
50 04.010 CLIP; CONSOLE
4X4 REGULAR CAB EXTRA LONG(TFS*SK) HEADER CONSOLE<DK6> (B) LIGHT GRAY 		8-97403-529-0 02 1 0808-0809 ●
50 04.010 CLIP; CONSOLE
HEADER CONSOLE<DK6> (B) LIGHT GRAY 		8-97403-529-0 02 1 0810-1003 ● ● ● ● ● ● ●
50 04.010 CLIP; CONSOLE
INTERIOR COLOR IN VERY DARK GRAY(116) HEADER CONSOLE<DK6> (B) LIGHT GRAY 		8-97403-529-0 02 1 1004- ● ● ● ● ● ● ●
50 04.010 CLIP; CONSOLE
PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0808-0809 ●
50 04.010 CLIP; CONSOLE
GRADE LX(RBB),GRADE LT/LS(RBD) PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0808-0809 ●
50 04.010 CLIP; CONSOLE
EXTEND CAB EXTRA LONG(TF**CK) (A) 		8-97355-734-0 02 1 0808-0809 ●
50 04.010 CLIP; CONSOLE
4X4 REGULAR CAB EXTRA LONG(TFS*SK) GRADE DX(RBA),GRADE LX(RBB) PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0808-0809 ●
50 04.010 CLIP; CONSOLE
4X4 CREW CAB LONG(TFS*WF) GRADE LX(RBB),GRADE LT/LS(RBD) PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0808-0809 ●
50 04.010 CLIP; CONSOLE
CREW CAB EXTRA LONG(TF**WK) (A) 		8-97355-734-0 02 1 0808-0809 ●
50 04.010 CLIP; CONSOLE
GRADE DX(RBA),GRADE LX(RBB) PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0810-0912 ● ● ● ● ● ● ●
50 04.010 CLIP; CONSOLE
GRADE LT/LS(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 0810-0912 ● ● ●
50 04.010 CLIP; CONSOLE
PARKING BRAKE FLOOR<7XW> (A) 		8-97355-734-0 02 1 1001- ● ● ● ● ● ● ●
116 16.650 COVER; HOLE,CONSOLE,RR
PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97403-966-0 01 1 0808-0809 ●
116 16.650 COVER; HOLE,CONSOLE,RR
GRADE LX(RBB),GRADE LT/LS(RBD) PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97403-966-0 01 1 0808-0809 ●
116 16.650 COVER; HOLE,CONSOLE,RR
EXTEND CAB EXTRA LONG(TF**CK) DARK GRAY 		8-97403-966-0 01 1 0808-0809 ●
116 16.650 COVER; HOLE,CONSOLE,RR
4X4 REGULAR CAB EXTRA LONG(TFS*SK) GRADE DX(RBA),GRADE LX(RBB) PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97403-966-0 01 1 0808-0809 ●
116 16.650 COVER; HOLE,CONSOLE,RR
4X4 CREW CAB LONG(TFS*WF) GRADE LX(RBB),GRADE LT/LS(RBD) PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97403-966-0 01 1 0808-0809 ●
116 16.650 COVER; HOLE,CONSOLE,RR
CREW CAB EXTRA LONG(TF**WK) DARK GRAY 		8-97403-966-0 01 1 0808-0809 ●
116 16.650 COVER; HOLE,CONSOLE,RR
GRADE DX(RBA),GRADE LX(RBB) PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97403-966-0 01 1 0810-0912 ● ● ● ● ● ● ●
116 16.650 COVER; HOLE,CONSOLE,RR
GRADE LT/LS(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97403-966-0 01 1 0810-0912 ● ● ●
116 16.650 COVER; HOLE,CONSOLE,RR
PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97403-966-0 01 1 1001-1104 ● ● ● ● ● ● ●
116 16.650 COVER; HOLE,CONSOLE,RR
PARKING BRAKE FLOOR<7XW> BLACK 		8-97422-799-0 01 1 1105- ● ● ● ● ● ● ●
188 16.650 CONSOLE; RR
GRADE LT/LS(RBD) MALAYSIA EQUIPMENT(B10) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (C) DARK GRAY 		8-97409-186-0 01 1 0810-0902 ● ●
188 16.650 CONSOLE; RR
GRADE LT/LS(RBD) MALAYSIA EQUIPMENT(B10),AUSTRALIA EQUIPMENT(B13) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (C) DARK GRAY 		8-97409-186-1 01 1 0903- ● ●
188 16.650 CONSOLE; RR
GRADE LX(RBB) PARKING BRAKE FLOOR<7XW> (B) DARK GRAY 		8-97403-345-3 01 1 0808-0809 ● ●
188 16.650 CONSOLE; RR
EXTEND CAB EXTRA LONG(TF**CK) (B) DARK GRAY 		8-97403-345-3 01 1 0808-0809 ●
188 16.650 CONSOLE; RR
4X4 REGULAR CAB EXTRA LONG(TFS*SK) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (B) DARK GRAY 		8-97403-345-3 01 1 0808-0809 ●
188 16.650 CONSOLE; RR
4X4 CREW CAB LONG(TFS*WF) GRADE LX(RBB) PARKING BRAKE FLOOR<7XW> (B) DARK GRAY 		8-97403-345-3 01 1 0808-0809 ●
188 16.650 CONSOLE; RR
CREW CAB EXTRA LONG(TF**WK) (B) DARK GRAY 		8-97403-345-3 01 1 0808-0809 ●
188 16.650 CONSOLE; RR
GRADE DX(RBA),GRADE LX(RBB) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (B) DARK GRAY 		8-97403-345-3 01 1 0810-1003 ● ● ● ● ● ● ●
188 16.650 CONSOLE; RR
INTERIOR COLOR IN VERY DARK GRAY(116) GRADE DX(RBA),GRADE LX(RBB) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (B) DARK GRAY 		8-97403-345-3 01 1 1004-1104 ● ● ● ● ● ● ●
188 16.650 CONSOLE; RR
INTERIOR COLOR IN VERY DARK GRAY(116) GRADE DX(RBA),GRADE LX(RBB) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (B) BLACK 		8-97422-771-0 01 1 1105- ● ● ● ● ● ● ●
188 16.650 CONSOLE; RR
4X4 REGULAR CAB EXTRA LONG(TFS*SK) GRADE DX(RBA),GRADE LX(RBB) PARKING BRAKE FLOOR<7XW> EXC. FRONT CONSOLE<D55> (B) DARK GRAY 		8-97403-360-2 01 1 0808-0809 ●
188 16.650 CONSOLE; RR
GRADE DX(RBA),GRADE LX(RBB) PARKING BRAKE FLOOR<7XW> EXC. FRONT CONSOLE<D55> (B) DARK GRAY 		8-97403-360-2 01 1 0810-0912 ● ● ● ● ● ●
188 16.650 CONSOLE; RR
GRADE DX(RBA),GRADE LX(RBB) PARKING BRAKE FLOOR<7XW> EXC. FRONT CONSOLE<D55> (B) DARK GRAY 		8-97403-360-2 01 1 1001-1003 ● ● ● ● ● ● ●
188 16.650 CONSOLE; RR
GRADE DX(RBA),GRADE LX(RBB) INTERIOR COLOR IN VERY DARK GRAY(116) PARKING BRAKE FLOOR<7XW> EXC. FRONT CONSOLE<D55> (B) DARK GRAY 		8-97403-360-2 01 1 1004-1104 ● ● ● ● ● ● ●
188 16.650 CONSOLE; RR
GRADE DX(RBA),GRADE LX(RBB) INTERIOR COLOR IN VERY DARK GRAY(116) PARKING BRAKE FLOOR<7XW> EXC. FRONT CONSOLE<D55> (B) BLACK 		8-97422-773-0 01 1 1105- ● ● ● ● ● ● ●
188 16.650 CONSOLE; RR
GRADE LT/LS(RBD) PARKING BRAKE FLOOR<7XW> (A) DARK GRAY 		8-97409-184-0 01 1 0808-0809 ●
188 16.650 CONSOLE; RR
4X4 CREW CAB LONG(TFS*WF) GRADE LT/LS(RBD) PARKING BRAKE FLOOR<7XW> (A) DARK GRAY 		8-97409-184-0 01 1 0808-0809 ●
188 16.650 CONSOLE; RR
GRADE LT/LS(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> EXC. MALAYSIA EQUIPMENT(B10) (A) DARK GRAY 		8-97409-184-0 01 1 0810-0902 ● ● ● ● ● ●
188 16.650 CONSOLE; RR
GRADE LT/LS(RBD) FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> EXC. MALAYSIA EQUIPMENT(B10), AUSTRALIA EQUIPMENT(B13) (A) DARK GRAY 		8-97409-184-1 01 1 0903- ● ● ● ● ● ●

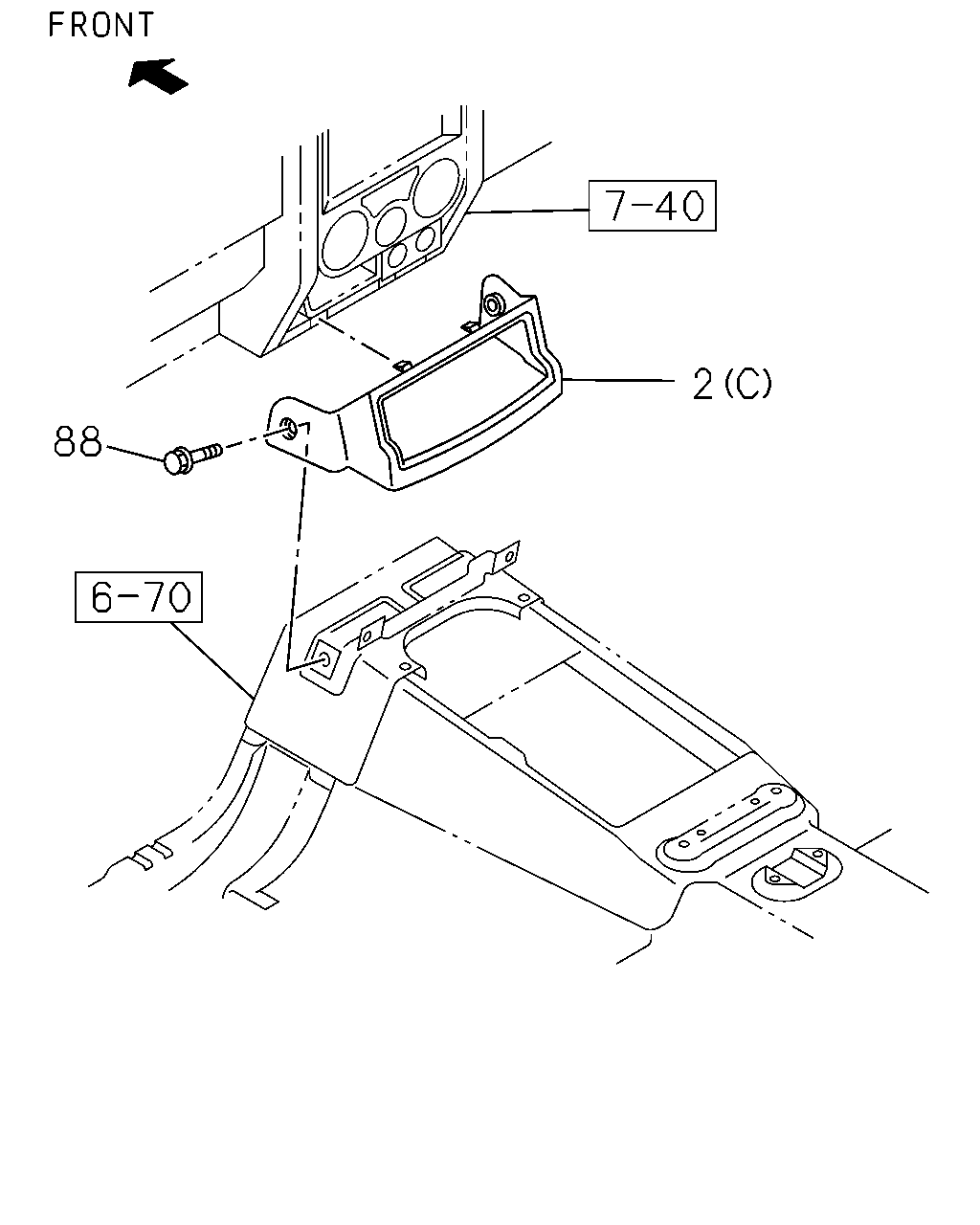

çizim 186196
2 88
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
2 16.081 CONSOLE; CENTER
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP), M/TMUA 5 SPEED 5S(RSQ) FRONT CONSOLE<D55> EXC. REAR HEATER DUCT<S8C> (A) DARK GRAY 		8-97403-359-1 01 1 0810-1104 ● ● ● ● ● ●
2 16.081 CONSOLE; CENTER
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP), M/TMUA 5 SPEED 5S(RSQ) FRONT CONSOLE<D55> EXC. REAR HEATER DUCT<S8C> (A) BLACK 		8-97422-764-0 01 1 1105- ● ● ● ● ● ●
2 16.081 CONSOLE; CENTER
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) FRONT CONSOLE<D55> REAR HEATER DUCT<S8C> (A) DARK GRAY 		8-97403-342-0 01 1 0810-1104 ● ●
2 16.081 CONSOLE; CENTER
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) FRONT CONSOLE<D55> REAR HEATER DUCT<S8C> (A) BLACK 		8-97422-767-0 01 1 1105- ● ●
2 16.081 CONSOLE; CENTER
M/T MUX 5 SPEED 5S(MZJ) FRONT CONSOLE<D55> EXC. REAR HEATER DUCT<S8C> (A) DARK GRAY 		8-97407-083-0 01 1 0808-0809 ● ● ●
2 16.081 CONSOLE; CENTER
EXTEND CAB EXTRA LONG(TF**CK) M/T MUX 5 SPEED 5S(MZJ) FRONT CONSOLE<D55> EXC. REAR HEATER DUCT<S8C> (A) DARK GRAY 		8-97407-083-0 01 1 0808-0809 ●
2 16.081 CONSOLE; CENTER
4X4 REGULAR CAB EXTRA LONG(TFS*SK) M/T MUX 5 SPEED 5S(MZJ) FRONT CONSOLE<D55> EXC. REAR HEATER DUCT<S8C> (A) DARK GRAY 		8-97407-083-0 01 1 0808-0809 ●
2 16.081 CONSOLE; CENTER
M/T MUX 5 SPEED 5S(MZJ) FRONT CONSOLE<D55> EXC. REAR HEATER DUCT<S8C> (A) DARK GRAY 		8-97407-083-1 01 1 0810- ● ● ● ● ●
2 16.081 CONSOLE; CENTER
M/T MUX 5 SPEED 5S(MZJ) REAR HEATER DUCT<S8C> (A) DARK GRAY 		8-97407-082-1 01 1 0808-0809 ● ●
2 16.081 CONSOLE; CENTER
M/T MUX 5 SPEED 5S(MZJ) FRONT CONSOLE<D55> REAR HEATER DUCT<S8C> (A) DARK GRAY 		8-97407-082-2 01 1 0810- ● ●
2 16.081 CONSOLE; CENTER
A/T AISIN(RMD) REAR HEATER DUCT<S8C> (B) DARK GRAY 		8-97403-341-0 01 1 0808-0809 ●
2 16.081 CONSOLE; CENTER
4X4 CREW CAB LONG(TFS*WF) A/T AISIN(RMD) REAR HEATER DUCT<S8C> (B) DARK GRAY 		8-97403-341-0 01 1 0808-0809 ●
2 16.081 CONSOLE; CENTER
A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) FRONT CONSOLE<D55> REAR HEATER DUCT<S8C> (B) DARK GRAY 		8-97403-341-0 01 1 0810-1104 ● ●
2 16.081 CONSOLE; CENTER
A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) FRONT CONSOLE<D55> REAR HEATER DUCT<S8C> (B) BLACK 		8-97422-766-0 01 1 1105- ● ●
2 16.081 CONSOLE; CENTER
A/T AISIN(RMD) EXC. REAR HEATER DUCT<S8C> (B) DARK GRAY 		8-97403-357-1 01 1 0808-0809 ●
2 16.081 CONSOLE; CENTER
4X4 CREW CAB LONG(TFS*WF) A/T AISIN(RMD) EXC. REAR HEATER DUCT<S8C> (B) DARK GRAY 		8-97403-357-1 01 1 0808-0809 ●
2 16.081 CONSOLE; CENTER
A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) FRONT CONSOLE<D55> EXC. REAR HEATER DUCT<S8C> (B) DARK GRAY 		8-97403-357-1 01 1 0810-1104 ● ● ● ●
2 16.081 CONSOLE; CENTER
A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) FRONT CONSOLE<D55> EXC. REAR HEATER DUCT<S8C> (B) BLACK 		8-97422-761-0 01 1 1105- ● ● ● ●
2 16.081 CONSOLE; CENTER
4X4 REGULAR CAB EXTRA LONG(TFS*SK) EXC. FRONT CONSOLE<D55> (C) DARK GRAY 		8-97403-324-0 01 1 0808-0809 ●
2 16.081 CONSOLE; CENTER
EXC. FRONT CONSOLE<D55> (C) DARK GRAY 		8-97403-324-0 01 1 0810-0912 ● ● ● ● ● ●
2 16.081 CONSOLE; CENTER
EXC. FRONT CONSOLE<D55> (C) DARK GRAY 		8-97403-324-0 01 1 1001-1003 ● ● ● ● ● ● ●
2 16.081 CONSOLE; CENTER
INTERIOR COLOR IN VERY DARK GRAY(116) EXC. FRONT CONSOLE<D55> (C) DARK GRAY 		8-97403-324-0 01 1 1004-1104 ● ● ● ● ● ● ●
2 16.081 CONSOLE; CENTER
INTERIOR COLOR IN VERY DARK GRAY(116) EXC. FRONT CONSOLE<D55> (C) BLACK 		8-97422-689-0 01 1 1105- ● ● ● ● ● ● ●
88 16.650 SCREW
4X4 REGULAR CAB EXTRA LONG(TFS*SK) EXC. FRONT CONSOLE<D55> M5X16 		8-98061-684-0 02 1 0808-0809 ●
88 16.650 SCREW
EXC. FRONT CONSOLE<D55> M5X16 		8-98061-684-0 02 1 0810-0912 ● ● ● ● ● ●
88 16.650 SCREW
EXC. FRONT CONSOLE<D55> M5X16 		8-98061-684-0 02 1 1001-1003 ● ● ● ● ● ● ●
88 16.650 SCREW
EXC. FRONT CONSOLE<D55> M5X16 		8-98167-220-0 02 1 1004- ● ● ● ● ● ● ●

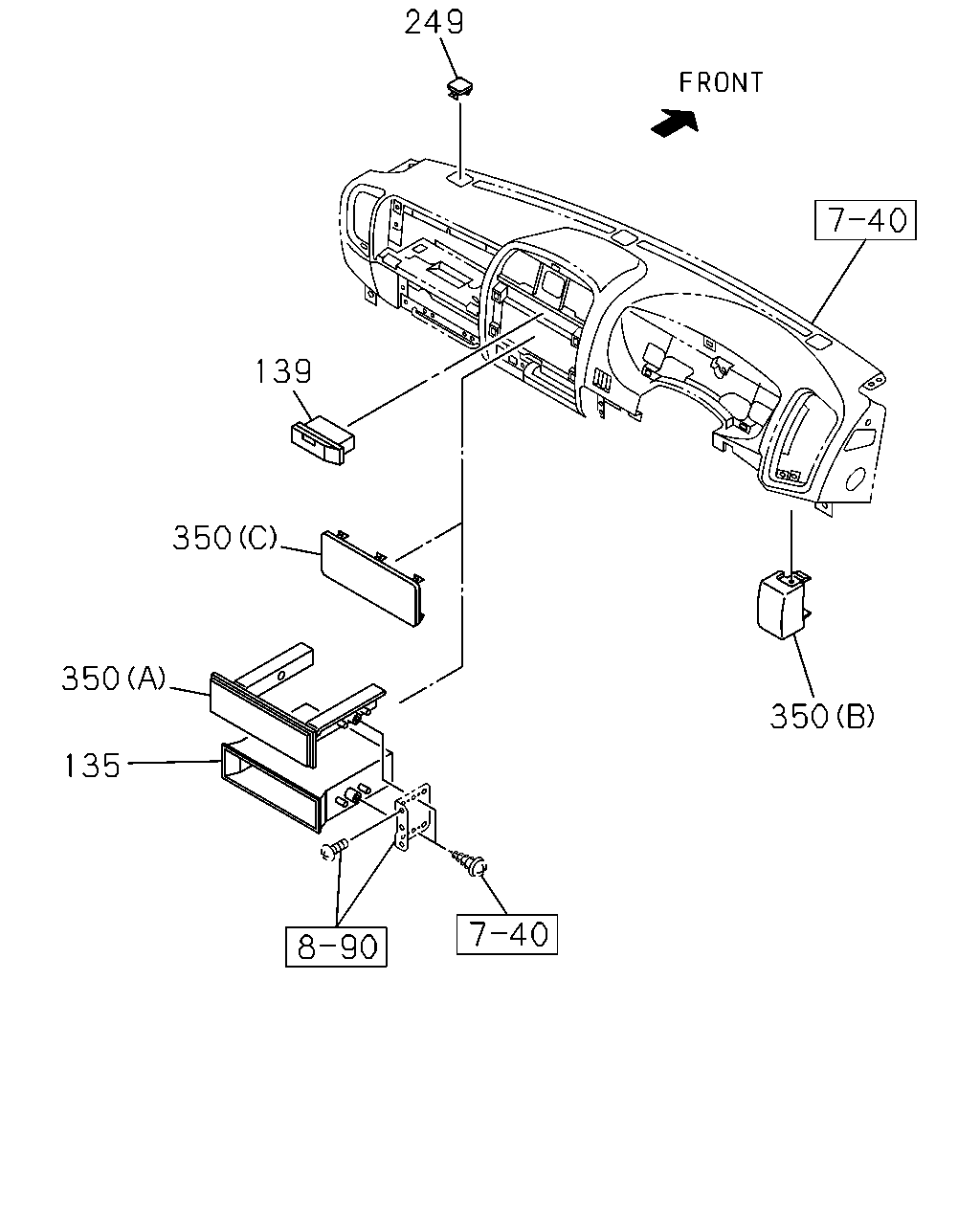

çizim 186197
249 139 350 350 350 135
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
135 16.650 BOX; CONSOLE,LWR
INST PANEL FOR DIN E SIZE AUDIO(7QL) DARK GRAY 		8-97403-313-0 01 1 0810- ● ● ● ●
135 16.650 BOX; CONSOLE,LWR
RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) DARK GRAY 		8-97396-595-0 01 1 0808-0809 ● ● ●
135 16.650 BOX; CONSOLE,LWR
EXTEND CAB EXTRA LONG(TF**CK) RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) DARK GRAY 		8-97396-595-0 01 1 0808-0809 ●
135 16.650 BOX; CONSOLE,LWR
4X4 REGULAR CAB EXTRA LONG(TFS*SK) RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) DARK GRAY 		8-97396-595-0 01 1 0808-0809 ●
135 16.650 BOX; CONSOLE,LWR
RADIO DELETE(UL5),AM/FM W/CASSETTE 2SPEAKERS(UN6),RADIO AM/FM STEREO,SE EK/SCAN,CD(UT3),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) DARK GRAY 		8-97396-595-0 01 1 0810-0912 ● ● ● ● ● ● ●
135 16.650 BOX; CONSOLE,LWR
RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3),RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C) DARK GRAY 		8-97396-595-0 01 1 1001- ● ● ● ● ● ● ●
139 16.650 BOX; CONSOLE,UPR
DARK GRAY 		8-97403-312-2 01 1 0808-0809 ●
139 16.650 BOX; CONSOLE,UPR
EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY 		8-97403-312-2 01 1 0808-0809 ●
139 16.650 BOX; CONSOLE,UPR
DIGITAL CLOCK<UE8> EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY 		8-97403-312-2 01 1 0810-0912 ● ● ●
139 16.650 BOX; CONSOLE,UPR
DARK GRAY 		8-97403-312-2 01 1 0810-0912 ●
139 16.650 BOX; CONSOLE,UPR
DIGITAL CLOCK<UE8> EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY 		8-97403-312-2 01 1 1001- ● ● ●
139 16.650 BOX; CONSOLE,UPR
DIGITAL CLOCK<UE8> DARK GRAY 		8-97403-312-2 01 1 1001- ●
139 16.650 BOX; CONSOLE,UPR
INTERIOR SILVER BEZEL<BY9> LIGHT GRAY 		8-97403-311-2 01 1 0808-0809 ●
139 16.650 BOX; CONSOLE,UPR
INTERIOR SILVER BEZEL<BY9> DIGITAL CLOCK<UE8> LIGHT GRAY 		8-97403-311-2 01 1 0810- ● ● ●
249 16.674 COVER
DARK GRAY 		8-97403-309-0 03 1 0808-0809 ● ● ●
249 16.674 COVER
EXTEND CAB EXTRA LONG(TF**CK) DARK GRAY 		8-97403-309-0 03 1 0808-0809 ●
249 16.674 COVER
4X4 REGULAR CAB EXTRA LONG(TFS*SK) DARK GRAY 		8-97403-309-0 03 1 0808-0809 ●
249 16.674 COVER
DARK GRAY 		8-97403-309-0 03 1 0810-1104 ● ● ● ● ● ● ●
249 16.674 COVER
BLACK 		8-97422-663-0 03 1 1105- ● ● ● ● ● ● ●
350 16.650 COVER; CONSOLE
EXC. DIGITAL CLOCK<UE8> (B) DARK GRAY 		8-97403-320-0 01 1 0810-0912 ● ● ●
350 16.650 COVER; CONSOLE
EXC. DIGITAL CLOCK<UE8> (B) DARK GRAY 		8-97403-320-0 01 1 1001-1003 ● ● ● ●
350 16.650 COVER; CONSOLE
INTERIOR COLOR IN VERY DARK GRAY(116) EXC. DIGITAL CLOCK<UE8> (B) DARK GRAY 		8-97403-320-0 01 1 1004- ● ● ●
350 16.650 COVER; CONSOLE
EXC. DIGITAL CLOCK<UE8> (B) DARK GRAY 		8-97403-320-0 01 1 1004- ●
350 16.650 COVER; CONSOLE
INST PANEL FOR DIN E SIZE AUDIO(7QL) (C) DARK GRAY 		8-97403-885-0 01 1 0810- ● ● ● ●
350 16.650 COVER; CONSOLE
RADIO DELETE(UL5) (A) DARK GRAY 		8-97396-597-0 01 1 0808-0809 ● ● ●
350 16.650 COVER; CONSOLE
EXTEND CAB EXTRA LONG(TF**CK) RADIO DELETE(UL5) (A) DARK GRAY 		8-97396-597-0 01 1 0808-0809 ●
350 16.650 COVER; CONSOLE
4X4 REGULAR CAB EXTRA LONG(TFS*SK) RADIO DELETE(UL5) (A) DARK GRAY 		8-97396-597-0 01 1 0808-0809 ●
350 16.650 COVER; CONSOLE
RADIO DELETE(UL5) (A) DARK GRAY 		8-97396-597-0 01 1 0810- ● ● ● ● ● ● ●
350 16.650 COVER; CONSOLE
(B) DARK GRAY 		8-97396-598-0 01 1 0808-0809 ● ● ● ● ●
350 16.650 COVER; CONSOLE
(B) DARK GRAY 		8-97396-598-0 01 1 0808-0809 ● ● ● ● ●
350 16.650 COVER; CONSOLE
(B) DARK GRAY 		8-97396-598-0 01 1 0808-0809 ● ● ●
350 16.650 COVER; CONSOLE
EXC. AUTO CRUISE CONT<K30> (B) DARK GRAY 		8-97396-598-0 01 1 0808-0809 ● ●
350 16.650 COVER; CONSOLE
(B) DARK GRAY 		8-97396-598-0 01 1 0810- ● ● ● ● ● ● ●
350 16.650 COVER; CONSOLE
(B) DARK GRAY 		8-97396-598-0 01 1 0810- ● ● ● ● ● ● ●
350 16.650 COVER; CONSOLE
EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) (B) DARK GRAY 		8-97396-598-0 01 1 0810- ● ● ● ● ● ● ●
350 16.650 COVER; CONSOLE
EXC. AUSTRALIA EQUIPMENT(B13),HEAD LAMP LEVELING MANUAL<T92> (B) DARK GRAY 		8-97396-598-0 01 1 0810- ● ● ● ● ● ● ●
350 16.650 COVER; CONSOLE
EXC. AUTO CRUISE CONT<K30> (B) DARK GRAY 		8-97396-598-0 01 1 0810- ● ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
