7-40 — INSTRUMENT PANEL AND BOX (#77090) — 217 parça

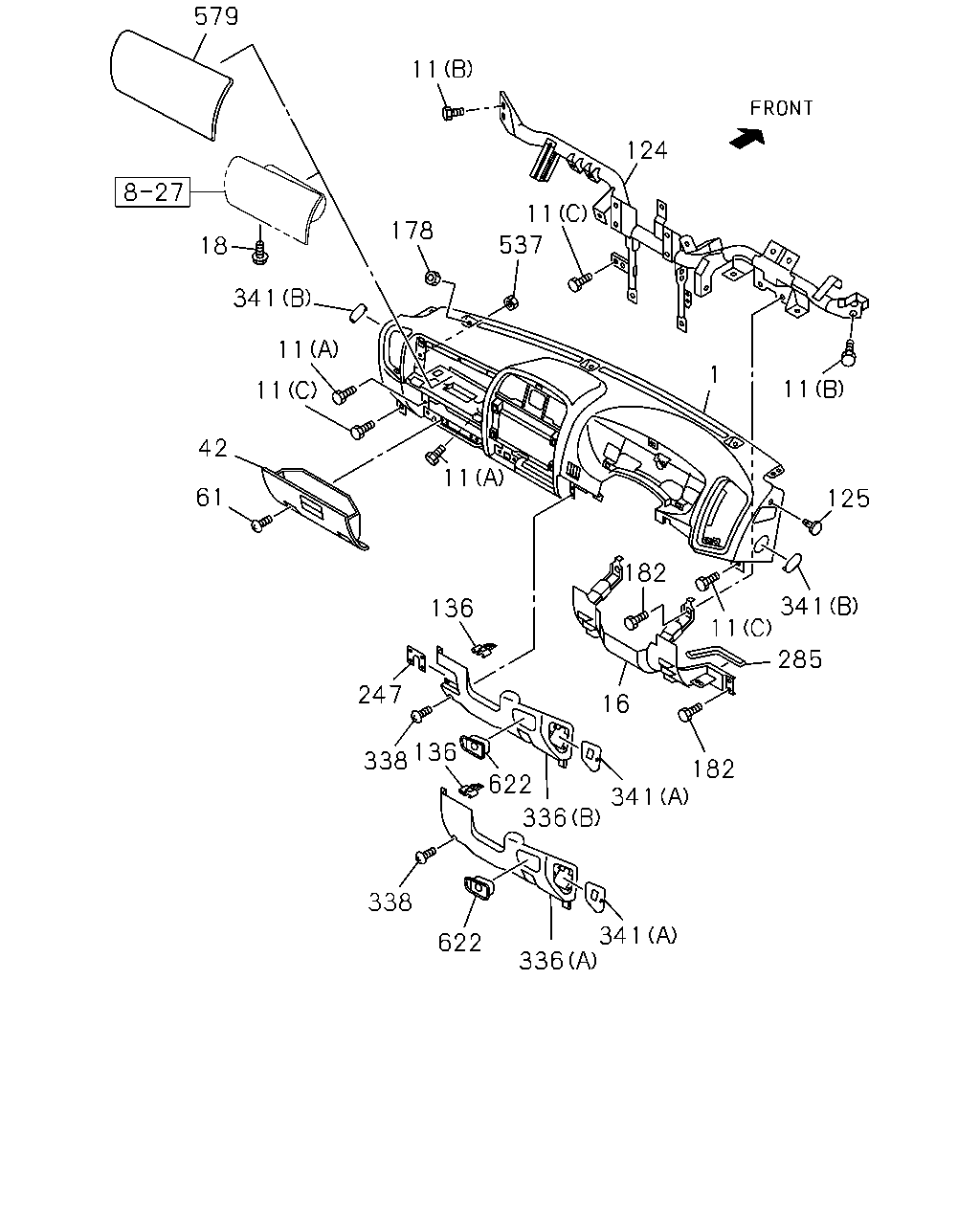

çizim 132641
579 11 124 11 178 537 18 341 11 1 11 11 42 11 61 125 182 341 11 136 285 247 16 136 338 182 622 341 336 338 341 622 336
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 16.080 PANEL; INST
EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY 		8-97405-962-0 01 1 0808-0809 ● ● ● ● ●
1 16.080 PANEL; INST
EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY 		8-97405-962-0 01 1 0810-1103 ● ● ● ● ● ● ●
1 16.080 PANEL; INST
INTERIOR SILVER BEZEL<BY9> DARK GRAY 		8-97405-969-0 01 1 0808-0809 ● ●
1 16.080 PANEL; INST
INTERIOR SILVER BEZEL<BY9> DARK GRAY 		8-97405-969-0 01 1 0810-1103 ● ● ● ● ● ●
1 16.080 PANEL; INST
DARK GRAY 		8-97405-969-1 01 1 1104- ● ● ● ● ● ● ●
11 16.090 BOLT; INST PNL
AIR BAG DRIVER & PASSENGER(AK5) 09.744 (A) M6X20 W/WASHER 		8-98056-282-0 06 1 0808-0809 ● ● ●
11 16.090 BOLT; INST PNL
EXTEND CAB EXTRA LONG(TF**CK) AIR BAG DRIVER & PASSENGER(AK5) 09.744 (A) M6X20 W/WASHER 		8-98056-282-0 06 1 0808-0809 ●
11 16.090 BOLT; INST PNL
4X4 REGULAR CAB EXTRA LONG(TFS*SK) AIR BAG DRIVER & PASSENGER(AK5) 09.744 (A) M6X20 W/WASHER 		8-98056-282-0 06 1 0808-0809 ●
11 16.090 BOLT; INST PNL
AIR BAG DRIVER & PASSENGER(AK5) 09.744 (A) M6X20 W/WASHER 		8-98056-282-0 06 1 0810- ● ● ● ● ● ● ●
11 16.090 BOLT; INST PNL
AIR BAG DRIVER & PASSENGER DELETE(AK6) 09.744 (A) M6X20 W/WASHER 		8-98056-282-0 04 1 0808-0809 ● ● ●
11 16.090 BOLT; INST PNL
EXTEND CAB EXTRA LONG(TF**CK) AIR BAG DRIVER & PASSENGER DELETE(AK6) 09.744 (A) M6X20 W/WASHER 		8-98056-282-0 04 1 0808-0809 ●
11 16.090 BOLT; INST PNL
4X4 REGULAR CAB EXTRA LONG(TFS*SK) AIR BAG DRIVER & PASSENGER DELETE(AK6) 09.744 (A) M6X20 W/WASHER 		8-98056-282-0 04 1 0808-0809 ●
11 16.090 BOLT; INST PNL
AIR BAG DRIVER & PASSENGER DELETE(AK6) 09.744 (A) M6X20 W/WASHER 		8-98056-282-0 04 1 0810- ● ● ● ● ● ● ●
11 16.090 BOLT; INST PNL
(B) M8X30 W/LK&PL WASHER 		8-98057-964-0 04 1 0808-0809 ● ● ● ● ●
11 16.090 BOLT; INST PNL
(B) M8X30 W/LK&PL WASHER 		8-98057-964-0 04 1 0810- ● ● ● ● ● ● ●
11 16.090 BOLT; INST PNL
(C) M6X30 W/LK&PL WASHER 		8-98057-965-0 04 1 0808-0809 ● ● ● ● ●
11 16.090 BOLT; INST PNL
(C) M6X30 W/LK&PL WASHER 		8-98057-965-0 04 1 0810- ● ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL 8-98043-124-0 01 1 0808-0809 ● ● ●
16 16.085 BRACKET; INST PNL
EXTEND CAB EXTRA LONG(TF**CK) 		8-98043-124-0 01 1 0808-0809 ●
16 16.085 BRACKET; INST PNL
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 		8-98043-124-0 01 1 0808-0809 ●
16 16.085 BRACKET; INST PNL 8-98043-124-0 01 1 0810- ● ● ● ● ● ● ●
18 16.085 BOLT; BRKT
AIR BAG DRIVER & PASSENGER(AK5) M6X18 W/LK&PL WASHER 		8-97353-832-0 02 1 0808-0809 ● ● ●
18 16.085 BOLT; BRKT
EXTEND CAB EXTRA LONG(TF**CK) AIR BAG DRIVER & PASSENGER(AK5) M6X18 W/LK&PL WASHER 		8-97353-832-0 02 1 0808-0809 ●
18 16.085 BOLT; BRKT
4X4 REGULAR CAB EXTRA LONG(TFS*SK) AIR BAG DRIVER & PASSENGER(AK5) M6X18 W/LK&PL WASHER 		8-97353-832-0 02 1 0808-0809 ●
18 16.085 BOLT; BRKT
AIR BAG DRIVER & PASSENGER(AK5) M6X18 W/LK&PL WASHER 		8-97353-832-0 02 1 0810- ● ● ● ● ● ● ●
42 16.100 BOX; GLOVE,INST PNL
DARK GRAY 		8-97415-658-0 01 1 0808-0809 ● ● ●
42 16.100 BOX; GLOVE,INST PNL
EXTEND CAB EXTRA LONG(TF**CK) DARK GRAY 		8-97415-658-0 01 1 0808-0809 ●
42 16.100 BOX; GLOVE,INST PNL
4X4 REGULAR CAB EXTRA LONG(TFS*SK) LOCK GLOVE BOX<A99> DARK GRAY 		8-97415-658-0 01 1 0808-0809 ●
42 16.100 BOX; GLOVE,INST PNL
LOCK GLOVE BOX<A99> DARK GRAY 		8-97415-658-0 01 1 0810-0912 ● ● ● ● ● ●
42 16.100 BOX; GLOVE,INST PNL
DARK GRAY 		8-97415-658-0 01 1 0810-0912 ●
42 16.100 BOX; GLOVE,INST PNL
LOCK GLOVE BOX<A99> DARK GRAY 		8-97415-658-0 01 1 1001- ● ● ● ● ● ● ●
42 16.100 BOX; GLOVE,INST PNL
4X4 REGULAR CAB EXTRA LONG(TFS*SK) EXC. LOCK GLOVE BOX<A99> DARK GRAY 		8-97415-660-0 01 1 0808-0809 ●
42 16.100 BOX; GLOVE,INST PNL
EXC. LOCK GLOVE BOX<A99> DARK GRAY 		8-97415-660-0 01 1 0810-0912 ● ● ● ● ● ●
42 16.100 BOX; GLOVE,INST PNL
EXC. LOCK GLOVE BOX<A99> DARK GRAY 		8-97415-660-0 01 1 1001- ● ● ● ● ● ● ●
61 16.100 SCREW; GLOVE BOX
09.744 M5X16 TAPPING 		8-98061-683-0 02 1 0808-0809 ● ● ● ● ●
61 16.100 SCREW; GLOVE BOX
09.744 M5X16 TAPPING 		8-98061-683-0 02 1 0810-1003 ● ● ● ● ● ● ●
61 16.100 SCREW; GLOVE BOX
M5X16 TAPPING 		8-98167-214-0 02 1 1004- ● ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) INST PANEL FOR DIN E SIZE AUDIO(7QL) PARKING BRAKE FLOOR<7XW> 		8-98110-191-0 01 1 0810-1007 ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
C24SE ENG(LG1),4JA1-T ENG(LP0) IMMOBILIZER SYSTEM<7KC> INST PANEL FOR DIN E SIZE AUDIO(7QL) PARKING BRAKE FLOOR<7XW> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98110-191-0 01 1 0810-1007 ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
INST PANEL FOR DIN E SIZE AUDIO(7QL) PARKING BRAKE FLOOR<7XW> 		8-98110-191-0 01 1 1008- ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
C24SE ENG(LG1),4JA1-T ENG(LP0) IMMOBILIZER SYSTEM<7KC> INST PANEL FOR DIN E SIZE AUDIO(7QL) PARKING BRAKE FLOOR<7XW> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98110-191-0 01 1 1008- ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) INST PANEL FOR DIN E SIZE AUDIO(7QL) PARKING BRAKE FLOOR<7XW> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98110-195-0 01 1 0810-1007 ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
INST PANEL FOR DIN E SIZE AUDIO(7QL) PARKING BRAKE FLOOR<7XW> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98110-195-0 01 1 1008- ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR BAG DRIVER & PASSENGER DELETE(AK6) IMMOBILIZER SYSTEM<7KC> INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. REMOTE CONT DOOR LOCK<AP5>, PARKING BRAKE FLOOR<7XW> 		8-98110-196-0 01 1 0810-1007 ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR BAG DRIVER & PASSENGER DELETE(AK6) IMMOBILIZER SYSTEM<7KC> INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. REMOTE CONT DOOR LOCK<AP5>, PARKING BRAKE FLOOR<7XW> 		8-98110-196-0 01 1 1008- ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
C24SE ENG(LG1),4JA1-T ENG(LP0) IMMOBILIZER SYSTEM<7KC> INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. REMOTE CONT DOOR LOCK<AP5>, PARKING BRAKE FLOOR<7XW> 		8-98110-190-0 01 1 0810- ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR BAG DRIVER & PASSENGER(AK5) REMOTE CONT DOOR LOCK<AP5> RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKER S(UN6),RADIO AM/FM STEREO,SEEK/SCAN, CD(UT3),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) PARKING BRAKE FLOOR<7XW> 		8-98110-168-0 01 1 0808-0809 ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
C24SE ENG(LG1),4JA1-T ENG(LP0) AIR BAG DRIVER & PASSENGER(AK5) RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKER S(UN6),RADIO AM/FM STEREO,SEEK/SCAN, CD(UT3),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) IMMOBILIZER SYSTEM<7KC> PARKING BRAKE FLOOR<7XW> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98110-168-0 01 1 0808-0809 ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR BAG DRIVER & PASSENGER(AK5) REMOTE CONT DOOR LOCK<AP5> RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKER S(UN6),RADIO AM/FM STEREO,SEEK/SCAN, CD(UT3),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) PARKING BRAKE FLOOR<7XW> 		8-98110-168-0 01 1 0810-0912 ● ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
C24SE ENG(LG1),4JA1-T ENG(LP0) AIR BAG DRIVER & PASSENGER(AK5) RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKER S(UN6),RADIO AM/FM STEREO,SEEK/SCAN, CD(UT3),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) IMMOBILIZER SYSTEM<7KC> PARKING BRAKE FLOOR<7XW> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98110-168-0 01 1 0810-0912 ● ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR BAG DRIVER & PASSENGER(AK5) REMOTE CONT DOOR LOCK<AP5> RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SC AN,CD(UT3),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) PARKING BRAKE FLOOR<7XW> 		8-98110-168-0 01 1 1001-1007 ● ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
C24SE ENG(LG1),4JA1-T ENG(LP0) AIR BAG DRIVER & PASSENGER(AK5) RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SC AN,CD(UT3),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) IMMOBILIZER SYSTEM<7KC> PARKING BRAKE FLOOR<7XW> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98110-168-0 01 1 1001-1007 ● ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
AIR BAG DRIVER & PASSENGER(AK5) REMOTE CONT DOOR LOCK<AP5> RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SC AN,CD(UT3),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) PARKING BRAKE FLOOR<7XW> 		8-98110-168-0 01 1 1008- ● ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
C24SE ENG(LG1),4JA1-T ENG(LP0) AIR BAG DRIVER & PASSENGER(AK5) RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SC AN,CD(UT3),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) IMMOBILIZER SYSTEM<7KC> PARKING BRAKE FLOOR<7XW> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98110-168-0 01 1 1008- ● ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR BAG DRIVER & PASSENGER DELETE(AK6) REMOTE CONT DOOR LOCK<AP5> RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKER S(UN6),RADIO AM/FM STEREO,SEEK/SCAN, CD(UT3),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) PARKING BRAKE FLOOR<7XW> 		8-98110-189-0 01 1 0808-0809 ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
C24SE ENG(LG1),4JA1-T ENG(LP0) AIR BAG DRIVER & PASSENGER DELETE(AK6) RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKER S(UN6),RADIO AM/FM STEREO,SEEK/SCAN, CD(UT3),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) IMMOBILIZER SYSTEM<7KC> PARKING BRAKE FLOOR<7XW> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98110-189-0 01 1 0808-0809 ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR BAG DRIVER & PASSENGER DELETE(AK6) REMOTE CONT DOOR LOCK<AP5> RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKER S(UN6),RADIO AM/FM STEREO,SEEK/SCAN, CD(UT3),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) PARKING BRAKE FLOOR<7XW> 		8-98110-189-0 01 1 0810-0912 ● ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
C24SE ENG(LG1),4JA1-T ENG(LP0) AIR BAG DRIVER & PASSENGER DELETE(AK6) RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKER S(UN6),RADIO AM/FM STEREO,SEEK/SCAN, CD(UT3),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) IMMOBILIZER SYSTEM<7KC> PARKING BRAKE FLOOR<7XW> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98110-189-0 01 1 0810-0912 ● ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR BAG DRIVER & PASSENGER DELETE(AK6) REMOTE CONT DOOR LOCK<AP5> RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SC AN,CD(UT3),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) PARKING BRAKE FLOOR<7XW> 		8-98110-189-0 01 1 1001-1007 ● ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
C24SE ENG(LG1),4JA1-T ENG(LP0) AIR BAG DRIVER & PASSENGER DELETE(AK6) RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SC AN,CD(UT3),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) IMMOBILIZER SYSTEM<7KC> PARKING BRAKE FLOOR<7XW> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98110-189-0 01 1 1001-1007 ● ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
AIR BAG DRIVER & PASSENGER DELETE(AK6) REMOTE CONT DOOR LOCK<AP5> RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SC AN,CD(UT3),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) PARKING BRAKE FLOOR<7XW> 		8-98110-189-0 01 1 1008- ● ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
C24SE ENG(LG1),4JA1-T ENG(LP0) AIR BAG DRIVER & PASSENGER DELETE(AK6) RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SC AN,CD(UT3),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) IMMOBILIZER SYSTEM<7KC> PARKING BRAKE FLOOR<7XW> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98110-189-0 01 1 1008- ● ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) REMOTE CONT DOOR LOCK<AP5> RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKER S(UN6),RADIO AM/FM STEREO,SEEK/SCAN, CD(UT3),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) EXC. PARKING BRAKE FLOOR<7XW> 		8-98110-170-0 01 1 0808-0809 ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
C24SE ENG(LG1),4JA1-T ENG(LP0) RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKER S(UN6),RADIO AM/FM STEREO,SEEK/SCAN, CD(UT3),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) IMMOBILIZER SYSTEM<7KC> EXC. REMOTE CONT DOOR LOCK<AP5>, PARKING BRAKE FLOOR<7XW> 		8-98110-170-0 01 1 0808-0809 ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) REMOTE CONT DOOR LOCK<AP5> RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKER S(UN6),RADIO AM/FM STEREO,SEEK/SCAN, CD(UT3),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) EXC. PARKING BRAKE FLOOR<7XW> 		8-98110-170-0 01 1 0810-0912 ● ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
C24SE ENG(LG1),4JA1-T ENG(LP0) RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKER S(UN6),RADIO AM/FM STEREO,SEEK/SCAN, CD(UT3),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) IMMOBILIZER SYSTEM<7KC> EXC. REMOTE CONT DOOR LOCK<AP5>, PARKING BRAKE FLOOR<7XW> 		8-98110-170-0 01 1 0810-0912 ● ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) REMOTE CONT DOOR LOCK<AP5> RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SC AN,CD(UT3),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) EXC. PARKING BRAKE FLOOR<7XW> 		8-98110-170-0 01 1 1001-1007 ● ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
C24SE ENG(LG1),4JA1-T ENG(LP0) RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SC AN,CD(UT3),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) IMMOBILIZER SYSTEM<7KC> EXC. REMOTE CONT DOOR LOCK<AP5>, PARKING BRAKE FLOOR<7XW> 		8-98110-170-0 01 1 1001-1007 ● ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
REMOTE CONT DOOR LOCK<AP5> RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SC AN,CD(UT3),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) EXC. PARKING BRAKE FLOOR<7XW> 		8-98110-170-0 01 1 1008- ● ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
C24SE ENG(LG1),4JA1-T ENG(LP0) RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SC AN,CD(UT3),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) IMMOBILIZER SYSTEM<7KC> EXC. REMOTE CONT DOOR LOCK<AP5>, PARKING BRAKE FLOOR<7XW> 		8-98110-170-0 01 1 1008- ● ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR BAG DRIVER & PASSENGER(AK5) RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) PARKING BRAKE FLOOR<7XW> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98110-177-0 01 1 0808-0809 ●
124 16.081 REINFORCEMENT; INST PNL,UPR
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR BAG DRIVER & PASSENGER(AK5) RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKER S(UN6),RADIO AM/FM STEREO,SEEK/SCAN, CD(UT3),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) PARKING BRAKE FLOOR<7XW> EXC. REMOTE CONT DOOR LOCK<AP5>, IMMOBILIZER SYSTEM<7KC> 		8-98110-177-0 01 1 0810-0912 ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR BAG DRIVER & PASSENGER(AK5) RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKER S(UN6),RADIO AM/FM STEREO,SEEK/SCAN, CD(UT3),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) IMMOBILIZER SYSTEM<7KC> PARKING BRAKE FLOOR<7XW> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98110-177-0 01 1 0810-0912 ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR BAG DRIVER & PASSENGER(AK5) RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SC AN,CD(UT3),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) PARKING BRAKE FLOOR<7XW> EXC. REMOTE CONT DOOR LOCK<AP5>, IMMOBILIZER SYSTEM<7KC> 		8-98110-177-0 01 1 1001-1007 ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR BAG DRIVER & PASSENGER(AK5) RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SC AN,CD(UT3),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) IMMOBILIZER SYSTEM<7KC> PARKING BRAKE FLOOR<7XW> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98110-177-0 01 1 1001-1007 ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
AIR BAG DRIVER & PASSENGER(AK5) RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SC AN,CD(UT3),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) PARKING BRAKE FLOOR<7XW> EXC. REMOTE CONT DOOR LOCK<AP5>, IMMOBILIZER SYSTEM<7KC> 		8-98110-177-0 01 1 1008- ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR BAG DRIVER & PASSENGER(AK5) RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SC AN,CD(UT3),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) IMMOBILIZER SYSTEM<7KC> PARKING BRAKE FLOOR<7XW> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98110-177-0 01 1 1008- ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR BAG DRIVER & PASSENGER(AK5) RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) EXC. REMOTE CONT DOOR LOCK<AP5>, PARKING BRAKE FLOOR<7XW> 		8-98110-176-0 01 1 0808-0809 ●
124 16.081 REINFORCEMENT; INST PNL,UPR
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR BAG DRIVER & PASSENGER(AK5) RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKER S(UN6),RADIO AM/FM STEREO,SEEK/SCAN, CD(UT3),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) IMMOBILIZER SYSTEM<7KC> EXC. REMOTE CONT DOOR LOCK<AP5>, PARKING BRAKE FLOOR<7XW> 		8-98110-176-0 01 1 0810-0912 ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR BAG DRIVER & PASSENGER(AK5) RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SC AN,CD(UT3),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) IMMOBILIZER SYSTEM<7KC> EXC. REMOTE CONT DOOR LOCK<AP5>, PARKING BRAKE FLOOR<7XW> 		8-98110-176-0 01 1 1001-1001 ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR BAG DRIVER & PASSENGER(AK5) RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SC AN,CD(UT3),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) IMMOBILIZER SYSTEM<7KC> EXC. REMOTE CONT DOOR LOCK<AP5>, PARKING BRAKE FLOOR<7XW> 		8-98110-176-0 01 1 1001-1007 ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR BAG DRIVER & PASSENGER(AK5) RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SC AN,CD(UT3),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) IMMOBILIZER SYSTEM<7KC> EXC. REMOTE CONT DOOR LOCK<AP5>, PARKING BRAKE FLOOR<7XW> 		8-98110-176-0 01 1 1008- ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR BAG DRIVER & PASSENGER DELETE(AK6) RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) PARKING BRAKE FLOOR<7XW> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98110-179-0 01 1 0808-0809 ●
124 16.081 REINFORCEMENT; INST PNL,UPR
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR BAG DRIVER & PASSENGER DELETE(AK6) RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKER S(UN6),RADIO AM/FM STEREO,SEEK/SCAN, CD(UT3),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) PARKING BRAKE FLOOR<7XW> EXC. REMOTE CONT DOOR LOCK<AP5>, IMMOBILIZER SYSTEM<7KC> 		8-98110-179-0 01 1 0810-0912 ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR BAG DRIVER & PASSENGER DELETE(AK6) RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKER S(UN6),RADIO AM/FM STEREO,SEEK/SCAN, CD(UT3),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) IMMOBILIZER SYSTEM<7KC> PARKING BRAKE FLOOR<7XW> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98110-179-0 01 1 0810-0912 ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR BAG DRIVER & PASSENGER DELETE(AK6) RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SC AN,CD(UT3),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) PARKING BRAKE FLOOR<7XW> EXC. REMOTE CONT DOOR LOCK<AP5>, IMMOBILIZER SYSTEM<7KC> 		8-98110-179-0 01 1 1001-1007 ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR BAG DRIVER & PASSENGER DELETE(AK6) RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SC AN,CD(UT3),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) IMMOBILIZER SYSTEM<7KC> PARKING BRAKE FLOOR<7XW> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98110-179-0 01 1 1001-1007 ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
AIR BAG DRIVER & PASSENGER DELETE(AK6) RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SC AN,CD(UT3),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) PARKING BRAKE FLOOR<7XW> EXC. REMOTE CONT DOOR LOCK<AP5>, IMMOBILIZER SYSTEM<7KC> 		8-98110-179-0 01 1 1008- ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR BAG DRIVER & PASSENGER DELETE(AK6) RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SC AN,CD(UT3),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) IMMOBILIZER SYSTEM<7KC> PARKING BRAKE FLOOR<7XW> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98110-179-0 01 1 1008- ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) AIR BAG DRIVER & PASSENGER DELETE(AK6) RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) EXC. REMOTE CONT DOOR LOCK<AP5>, PARKING BRAKE FLOOR<7XW> 		8-98110-178-0 01 1 0808-0809 ●
124 16.081 REINFORCEMENT; INST PNL,UPR
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR BAG DRIVER & PASSENGER DELETE(AK6) RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKER S(UN6),RADIO AM/FM STEREO,SEEK/SCAN, CD(UT3),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) EXC. REMOTE CONT DOOR LOCK<AP5>, IMMOBILIZER SYSTEM<7KC>,PARKING BRAKE FL OOR<7XW> 		8-98110-178-0 01 1 0810-0912 ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR BAG DRIVER & PASSENGER DELETE(AK6) RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKER S(UN6),RADIO AM/FM STEREO,SEEK/SCAN, CD(UT3),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) IMMOBILIZER SYSTEM<7KC> EXC. REMOTE CONT DOOR LOCK<AP5>, PARKING BRAKE FLOOR<7XW> 		8-98110-178-0 01 1 0810-0912 ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR BAG DRIVER & PASSENGER DELETE(AK6) RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SC AN,CD(UT3),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) EXC. REMOTE CONT DOOR LOCK<AP5>, IMMOBILIZER SYSTEM<7KC>,PARKING BRAKE FL OOR<7XW> 		8-98110-178-0 01 1 1001-1007 ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR BAG DRIVER & PASSENGER DELETE(AK6) RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SC AN,CD(UT3),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) IMMOBILIZER SYSTEM<7KC> EXC. REMOTE CONT DOOR LOCK<AP5>, PARKING BRAKE FLOOR<7XW> 		8-98110-178-0 01 1 1001-1007 ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
AIR BAG DRIVER & PASSENGER DELETE(AK6) RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SC AN,CD(UT3),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) EXC. REMOTE CONT DOOR LOCK<AP5>, IMMOBILIZER SYSTEM<7KC>,PARKING BRAKE FL OOR<7XW> 		8-98110-178-0 01 1 1008- ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR BAG DRIVER & PASSENGER DELETE(AK6) RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SC AN,CD(UT3),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) IMMOBILIZER SYSTEM<7KC> EXC. REMOTE CONT DOOR LOCK<AP5>, PARKING BRAKE FLOOR<7XW> 		8-98110-178-0 01 1 1008- ● ● ● ● ● ●
125 16.085 CLIP; INST PANEL 8-97310-401-0 01 1 0808-0809 ● ● ● ● ●
125 16.085 CLIP; INST PANEL 8-97310-401-0 01 1 0810- ● ● ● ● ● ● ●
136 16.085 CLIP; INST COVER
4JJ1-TCX ENG(LS0) 09.744 T=0.5 		8-98061-356-0 04 1 0808-0809 ● ● ●
136 16.085 CLIP; INST COVER
EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) 09.744 T=0.5 		8-98061-356-0 04 1 0808-0809 ●
136 16.085 CLIP; INST COVER
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) 09.744 T=0.5 		8-98061-356-0 04 1 0808-0809 ●
136 16.085 CLIP; INST COVER
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 09.744 T=0.5 		8-98061-356-0 04 1 0810-1007 ● ● ● ● ● ● ●
136 16.085 CLIP; INST COVER
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 09.744 T=0.5 		8-98061-356-0 04 1 1008- ● ● ● ● ● ● ●
178 16.085 NUT; INST PANEL
08.915 M6 FLANGE 		8-98055-704-0 03 1 0808-0809 ● ● ● ● ●
178 16.085 NUT; INST PANEL
08.915 M6 FLANGE 		8-98055-704-0 03 1 0810- ● ● ● ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
09.744 M6X20 W/WASHER 		8-98056-282-0 04 1 0808-0809 ● ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
09.744 M6X20 W/WASHER 		8-98056-282-0 04 1 0810- ● ● ● ● ● ● ●
247 16.080 COVER; HAND BRAKE LEVER,INST PAN
4JJ1-TCX ENG(LS0) EXC. PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97403-950-0 01 1 0808-0809 ● ●
247 16.080 COVER; HAND BRAKE LEVER,INST PAN
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) EXC. PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97403-950-0 01 1 0808-0809 ●
247 16.080 COVER; HAND BRAKE LEVER,INST PAN
4X4 CREW CAB LONG(TFS*WF) 4JJ1-TCX ENG(LS0) EXC. PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97403-950-0 01 1 0808-0809 ●
247 16.080 COVER; HAND BRAKE LEVER,INST PAN
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) EXC. PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97403-950-0 01 1 0810-1007 ● ● ● ● ● ● ●
247 16.080 COVER; HAND BRAKE LEVER,INST PAN
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97403-950-0 01 1 1008-1104 ● ● ● ● ● ● ●
247 16.080 COVER; HAND BRAKE LEVER,INST PAN
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. PARKING BRAKE FLOOR<7XW> BLACK 		8-97422-831-0 01 1 1105- ● ● ● ● ● ● ●
285 16.085 FINISHER; INST PANEL
16.550 L=175 SERVICED BY L=2040 		1-71997-513-1 01 1 0808-0809 ● ● ● ● ●
285 16.085 FINISHER; INST PANEL
16.550 L=175 SERVICED BY L=2040 		1-71997-513-1 01 1 0810-1007 ● ● ● ● ● ● ●
285 16.085 FINISHER; INST PANEL
02.559 L=175 SERVICED BY L=500 		1-79937-746-0 01 1 1008- ● ● ● ● ● ● ●
336 16.081 COVER; INST PANEL SIDE
4JJ1-TCX ENG(LS0) PARKING BRAKE FLOOR<7XW> (A) DARK GRAY 		8-97403-940-0 01 1 0808-0809 ● ●
336 16.081 COVER; INST PANEL SIDE
EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) (A) DARK GRAY 		8-97403-940-0 01 1 0808-0809 ●
336 16.081 COVER; INST PANEL SIDE
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) PARKING BRAKE FLOOR<7XW> (A) DARK GRAY 		8-97403-940-0 01 1 0808-0809 ●
336 16.081 COVER; INST PANEL SIDE
4X4 CREW CAB LONG(TFS*WF) 4JJ1-TCX ENG(LS0) PARKING BRAKE FLOOR<7XW> (A) DARK GRAY 		8-97403-940-0 01 1 0808-0809 ●
336 16.081 COVER; INST PANEL SIDE
CREW CAB EXTRA LONG(TF**WK) 4JJ1-TCX ENG(LS0) (A) DARK GRAY 		8-97403-940-0 01 1 0808-0809 ●
336 16.081 COVER; INST PANEL SIDE
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) PARKING BRAKE FLOOR<7XW> (A) DARK GRAY 		8-97403-940-0 01 1 0810-1007 ● ● ● ● ● ● ●
336 16.081 COVER; INST PANEL SIDE
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) PARKING BRAKE FLOOR<7XW> (A) DARK GRAY 		8-97403-940-0 01 1 1008-1104 ● ● ● ● ● ● ●
336 16.081 COVER; INST PANEL SIDE
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) PARKING BRAKE FLOOR<7XW> (A) BLACK 		8-97422-814-0 01 1 1105- ● ● ● ● ● ● ●
336 16.081 COVER; INST PANEL SIDE
4JJ1-TCX ENG(LS0) EXC. PARKING BRAKE FLOOR<7XW> (B) DARK GRAY 		8-97403-942-0 01 1 0808-0809 ● ●
336 16.081 COVER; INST PANEL SIDE
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) EXC. PARKING BRAKE FLOOR<7XW> (B) DARK GRAY 		8-97403-942-0 01 1 0808-0809 ●
336 16.081 COVER; INST PANEL SIDE
4X4 CREW CAB LONG(TFS*WF) 4JJ1-TCX ENG(LS0) EXC. PARKING BRAKE FLOOR<7XW> (B) DARK GRAY 		8-97403-942-0 01 1 0808-0809 ●
336 16.081 COVER; INST PANEL SIDE
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) EXC. PARKING BRAKE FLOOR<7XW> (B) DARK GRAY 		8-97403-942-0 01 1 0810-1007 ● ● ● ● ● ● ●
336 16.081 COVER; INST PANEL SIDE
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. PARKING BRAKE FLOOR<7XW> (B) DARK GRAY 		8-97403-942-0 01 1 1008-1104 ● ● ● ● ● ● ●
336 16.081 COVER; INST PANEL SIDE
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. PARKING BRAKE FLOOR<7XW> (B) BLACK 		8-97422-822-0 01 1 1105- ● ● ● ● ● ● ●
338 16.081 SCREW; COVER
09.744 M5X16 TAPPING 		8-98061-683-0 01 1 0808-0809 ● ● ● ● ●
338 16.081 SCREW; COVER
09.744 M5X16 TAPPING 		8-98061-683-0 01 1 0810-1003 ● ● ● ● ● ● ●
338 16.081 SCREW; COVER
16.100 M5X16 TAPPING 		8-98167-214-0 01 1 1004- ● ● ● ● ● ● ●
341 16.110 LID; FUSE BOX
(B) DARK GRAY 		8-97408-048-0 01 1 0808-0809 ● ● ● ● ●
341 16.110 LID; FUSE BOX
(B) DARK GRAY 		8-97408-048-1 01 1 0810- ● ● ● ● ● ● ●
341 16.110 LID; FUSE BOX
(B) DARK GRAY 		8-97408-049-0 01 1 0808-0809 ● ● ● ● ●
341 16.110 LID; FUSE BOX
(B) DARK GRAY 		8-97408-049-1 01 1 0810- ● ● ● ● ● ● ●
341 16.110 LID; FUSE BOX
4JJ1-TCX ENG(LS0) (A) DARK GRAY 		8-97403-945-0 01 1 0808-0809 ● ● ●
341 16.110 LID; FUSE BOX
EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) (A) DARK GRAY 		8-97403-945-0 01 1 0808-0809 ●
341 16.110 LID; FUSE BOX
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) (A) DARK GRAY 		8-97403-945-0 01 1 0808-0809 ●
341 16.110 LID; FUSE BOX
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) (A) DARK GRAY 		8-97403-945-0 01 1 0810-1007 ● ● ● ● ● ● ●
341 16.110 LID; FUSE BOX
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (A) DARK GRAY 		8-97403-945-0 01 1 1008-1104 ● ● ● ● ● ● ●
341 16.110 LID; FUSE BOX
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (A) BLACK 		8-97422-818-0 01 1 1105- ● ● ● ● ● ● ●
537 16.085 NUT; BRKT
AIR BAG DRIVER & PASSENGER(AK5) M6 W/DISHED WASHER 		8-98073-372-0 02 1 0808-0809 ● ● ●
537 16.085 NUT; BRKT
EXTEND CAB EXTRA LONG(TF**CK) AIR BAG DRIVER & PASSENGER(AK5) M6 W/DISHED WASHER 		8-98073-372-0 02 1 0808-0809 ●
537 16.085 NUT; BRKT
4X4 REGULAR CAB EXTRA LONG(TFS*SK) AIR BAG DRIVER & PASSENGER(AK5) M6 W/DISHED WASHER 		8-98073-372-0 02 1 0808-0809 ●
537 16.085 NUT; BRKT
AIR BAG DRIVER & PASSENGER(AK5) M6 W/DISHED WASHER 		8-98073-372-0 02 1 0810- ● ● ● ● ● ● ●
579 16.080 COVER; INST PNL
AIR BAG DRIVER & PASSENGER DELETE(AK6) RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SC AN,CD(UT3) DARK GRAY 		8-97405-961-0 01 1 0808-0809 ● ● ● ● ●
579 16.080 COVER; INST PNL
AIR BAG DRIVER & PASSENGER DELETE(AK6) DARK GRAY 		8-97405-961-1 01 1 0810- ● ● ● ● ● ● ●
622 16.100 BOX; IDLE CONT
4JJ1-TCX ENG(LS0) DARK GRAY 		8-97403-947-0 01 1 0808-0809 ● ● ●
622 16.100 BOX; IDLE CONT
EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) DARK GRAY 		8-97403-947-0 01 1 0808-0809 ●
622 16.100 BOX; IDLE CONT
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) DARK GRAY 		8-97403-947-0 01 1 0808-0809 ●
622 16.100 BOX; IDLE CONT
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) DARK GRAY 		8-97403-947-0 01 1 0810-1007 ● ● ● ● ● ● ●
622 16.100 BOX; IDLE CONT
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) DARK GRAY 		8-97403-947-0 01 1 1008-1104 ● ● ● ● ● ● ●
622 16.100 BOX; IDLE CONT
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) BLACK 		8-97422-820-0 01 1 1105- ● ● ● ● ● ● ●

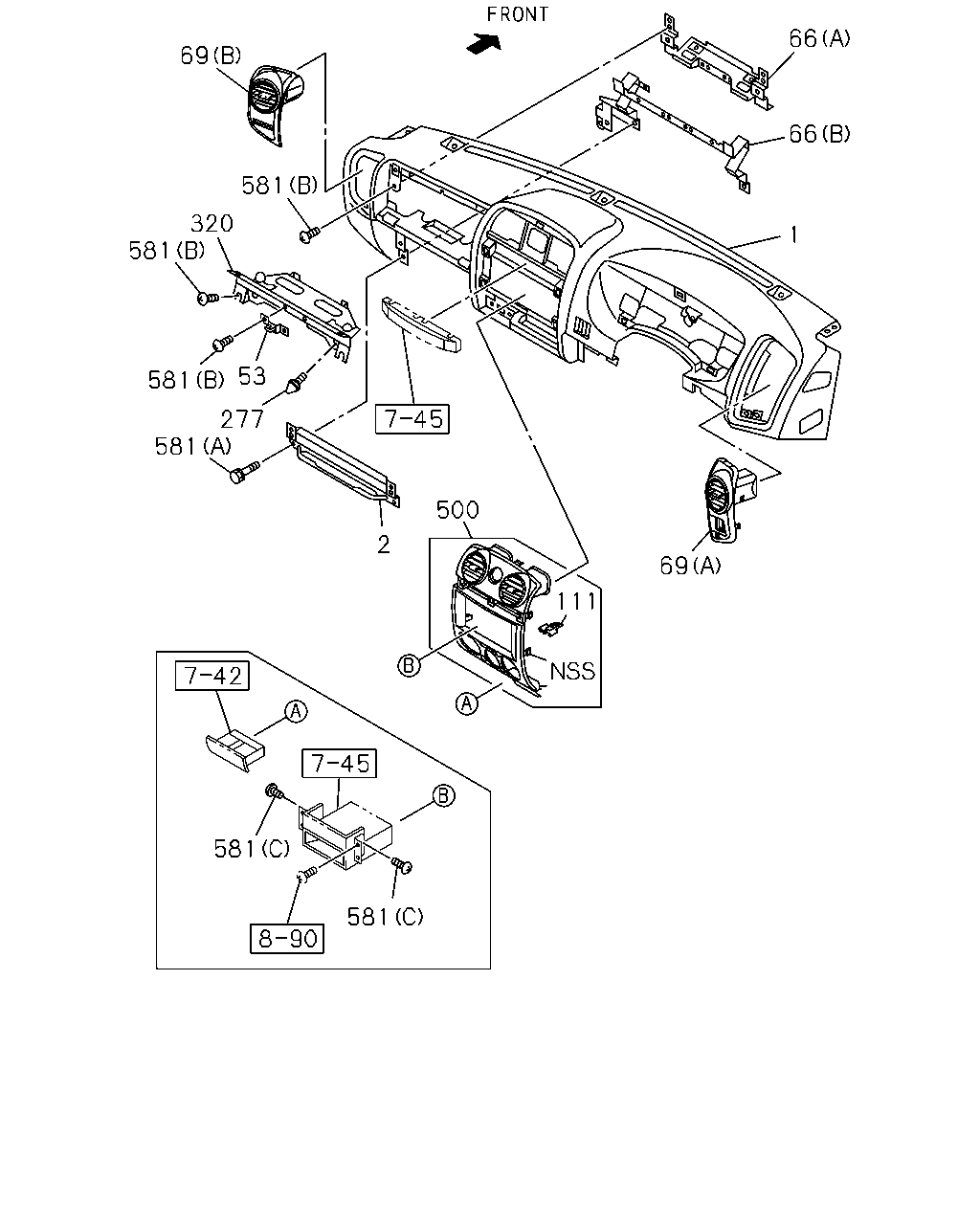

çizim 132938
66 69 66 581 320 581 1 53 581 277 581 500 2 69 111 581 581
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 16.080 PANEL; INST
EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY 		8-97405-962-0 01 1 0808-0809 ● ● ● ● ●
1 16.080 PANEL; INST
EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY 		8-97405-962-0 01 1 0810-1103 ● ● ● ● ● ● ●
1 16.080 PANEL; INST
INTERIOR SILVER BEZEL<BY9> DARK GRAY 		8-97405-969-0 01 1 0808-0809 ● ●
1 16.080 PANEL; INST
INTERIOR SILVER BEZEL<BY9> DARK GRAY 		8-97405-969-0 01 1 0810-1103 ● ● ● ● ● ●
1 16.080 PANEL; INST
DARK GRAY 		8-97405-969-1 01 1 1104- ● ● ● ● ● ● ●
2 16.081 REINFORCEMENT; INST PNL,LWR 8-97308-645-0 01 1 0808-0809 ● ● ● ● ●
2 16.081 REINFORCEMENT; INST PNL,LWR 8-97308-645-0 01 1 0810- ● ● ● ● ● ● ●
53 16.115 STRIKER; GLOVE BOX 8-97308-646-0 01 1 0808-0809 ● ● ● ● ●
53 16.115 STRIKER; GLOVE BOX 8-97308-646-0 01 1 0810- ● ● ● ● ● ● ●
66 16.085 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-97308-641-0 01 1 0808-0809 ● ● ● ● ●
66 16.085 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-97308-641-0 01 1 0810- ● ● ● ● ● ● ●
66 16.085 REINFORCEMENT; INST PANEL
(B) 		8-97308-643-0 01 1 0808-0809 ● ● ● ● ●
66 16.085 REINFORCEMENT; INST PANEL
(B) 		8-97308-643-0 01 1 0810- ● ● ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
(A) DARK GRAY 		8-97403-327-3 01 1 0808-0809 ●
69 09.264 GRILLE; SIDE,AIR OUTLET
EXC. INTERIOR SILVER BEZEL<BY9> (A) DARK GRAY 		8-97403-327-3 01 1 0808-0809 ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
EXC. INTERIOR SILVER BEZEL<BY9> (A) DARK GRAY 		8-97403-327-3 01 1 0810- ● ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
(A) DARK GRAY 		8-97403-327-3 01 1 0810- ●
69 09.264 GRILLE; SIDE,AIR OUTLET
INTERIOR SILVER BEZEL<BY9> (A) LIGHT GRAY 		8-97403-331-3 01 1 0808-0809 ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
INTERIOR SILVER BEZEL<BY9> (A) LIGHT GRAY 		8-97403-331-3 01 1 0810-1003 ● ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
INTERIOR SILVER BEZEL<BY9> (A) BLACK 		8-97418-546-3 01 1 1004- ● ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
EXC. INTERIOR SILVER BEZEL<BY9> (B) DARK GRAY 		8-97405-963-3 01 1 0808-0809 ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
EXC. INTERIOR SILVER BEZEL<BY9> (B) DARK GRAY 		8-97405-963-3 01 1 0810- ● ● ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
INTERIOR SILVER BEZEL<BY9> (B) LIGHT GRAY 		8-97405-970-3 01 1 0808-0809 ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
INTERIOR SILVER BEZEL<BY9> (B) LIGHT GRAY 		8-97405-970-3 01 1 0810-1003 ● ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
INTERIOR SILVER BEZEL<BY9> (B) BLACK 		8-97418-990-3 01 1 1004- ● ● ● ● ● ●
111 09.744 CLIP; CLUSTER PANEL,GRILLE
T=0.5 		8-98061-356-0 06 1 0808-0809 ● ● ● ● ●
111 09.744 CLIP; CLUSTER PANEL,GRILLE
T=0.5 		8-98061-356-0 06 1 0810- ● ● ● ● ● ● ●
277 16.081 RUBBER; STOPPER GLOVE LID 8-97308-650-0 03 1 0808-0809 ● ● ● ● ●
277 16.081 RUBBER; STOPPER GLOVE LID 8-97308-650-0 03 1 0810- ● ● ● ● ● ● ●
320 16.081 COVER; GLOVE BOX
DARK GRAY 		8-97405-960-1 01 1 0808-0809 ● ● ● ● ●
320 16.081 COVER; GLOVE BOX
DARK GRAY 		8-97405-960-2 01 1 0810- ● ● ● ● ● ● ●
500 16.081 CLUSTER; INST CENTER
INTERIOR SILVER BEZEL<BY9> INST PANEL FOR DIN E SIZE AUDIO(7QL) LIGHT GRAY 		8-97409-172-0 01 1 0810-1003 ● ● ● ●
500 16.081 CLUSTER; INST CENTER
INTERIOR SILVER BEZEL<BY9> INST PANEL FOR DIN E SIZE AUDIO(7QL) BLACK 		8-97419-441-0 01 1 1004- ● ● ● ●
500 16.081 CLUSTER; INST CENTER
INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY 		8-97409-171-0 01 1 0810- ● ● ● ●
500 16.081 CLUSTER; INST CENTER
RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY 		8-97409-173-0 01 1 0808-0809 ● ● ● ● ●
500 16.081 CLUSTER; INST CENTER
RADIO DELETE(UL5),AM/FM W/CASSETTE 2SPEAKERS(UN6),RADIO AM/FM STEREO,SE EK/SCAN,CD(UT3),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY 		8-97409-173-0 01 1 0810-0912 ● ● ● ● ● ● ●
500 16.081 CLUSTER; INST CENTER
RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3),RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C) EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY 		8-97409-173-0 01 1 1001- ● ● ● ● ● ● ●
500 16.081 CLUSTER; INST CENTER
INTERIOR SILVER BEZEL<BY9> RADIO AM/FM W/CD,W/MP3(ULA) LIGHT GRAY 		8-97409-176-0 01 1 0808-0809 ● ●
500 16.081 CLUSTER; INST CENTER
INTERIOR SILVER BEZEL<BY9> RADIO AM/FM W/CD,W/MP3(ULA) LIGHT GRAY 		8-97409-176-0 01 1 0810-1003 ● ● ● ● ● ●
500 16.081 CLUSTER; INST CENTER
INTERIOR SILVER BEZEL<BY9> RADIO AM/FM W/CD,W/MP3(ULA) BLACK 		8-97418-545-0 01 1 1004- ● ● ● ● ● ●
500 16.081 CLUSTER; INST CENTER
INTERIOR SILVER BEZEL<BY9> RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) LIGHT GRAY 		8-97409-174-0 01 1 0808-0809 ● ●
500 16.081 CLUSTER; INST CENTER
INTERIOR SILVER BEZEL<BY9> RADIO DELETE(UL5),AM/FM W/CASSETTE 2SPEAKERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD(UT3),RADIO AM/FM STEREO,S EEK/SCAN,CD,CLOCK(U1C) LIGHT GRAY 		8-97409-174-0 01 1 0810-0912 ● ● ● ● ● ●
500 16.081 CLUSTER; INST CENTER
INTERIOR SILVER BEZEL<BY9> RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3),RADIO AM/FM STERE O,SEEK/SCAN,CD,CLOCK(U1C) LIGHT GRAY 		8-97409-174-0 01 1 1001-1003 ● ● ● ● ● ●
500 16.081 CLUSTER; INST CENTER
INTERIOR SILVER BEZEL<BY9> RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3),RADIO AM/FM STERE O,SEEK/SCAN,CD,CLOCK(U1C) BLACK 		8-97418-544-0 01 1 1004- ● ● ● ● ● ●
581 09.744 SCREW
AIR BAG DRIVER & PASSENGER(AK5) (B) M5X16 TAPPING 		8-98061-683-0 11 1 0808-0809 ● ● ● ● ●
581 09.744 SCREW
AIR BAG DRIVER & PASSENGER(AK5) (B) M5X16 TAPPING 		8-98061-683-0 11 1 0810- ● ● ● ● ● ● ●
581 09.744 SCREW
AIR BAG DRIVER & PASSENGER DELETE(AK6) RADIO AM/FM W/CD,W/MP3(ULA),RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SC AN,CD(UT3) (B) M5X16 TAPPING 		8-98061-683-0 15 1 0808-0809 ● ● ● ● ●
581 09.744 SCREW
AIR BAG DRIVER & PASSENGER DELETE(AK6) (B) M5X16 TAPPING 		8-98061-683-0 15 1 0810- ● ● ● ● ● ● ●
581 09.744 SCREW
RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) 08.083 (C) M5X16 TAPPING 		8-98061-685-0 02 1 0808-0809 ● ● ●
581 09.744 SCREW
RADIO DELETE(UL5) 08.083 (C) M5X16 TAPPING 		8-98061-685-0 02 1 0808-0809 ● ● ●
581 09.744 SCREW
EXTEND CAB EXTRA LONG(TF**CK) RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) 08.083 (C) M5X16 TAPPING 		8-98061-685-0 02 1 0808-0809 ●
581 09.744 SCREW
EXTEND CAB EXTRA LONG(TF**CK) RADIO DELETE(UL5) 08.083 (C) M5X16 TAPPING 		8-98061-685-0 02 1 0808-0809 ●
581 09.744 SCREW
4X4 REGULAR CAB EXTRA LONG(TFS*SK) RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) 08.083 (C) M5X16 TAPPING 		8-98061-685-0 02 1 0808-0809 ●
581 09.744 SCREW
4X4 REGULAR CAB EXTRA LONG(TFS*SK) RADIO DELETE(UL5) 08.083 (C) M5X16 TAPPING 		8-98061-685-0 02 1 0808-0809 ●
581 09.744 SCREW
RADIO DELETE(UL5) 08.083 (C) M5X16 TAPPING 		8-98061-685-0 02 1 0810-0912 ● ● ● ● ● ● ●
581 09.744 SCREW
RADIO DELETE(UL5),AM/FM W/CASSETTE 2SPEAKERS(UN6),RADIO AM/FM STEREO,SE EK/SCAN,CD(UT3),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) 08.083 (C) M5X16 TAPPING 		8-98061-685-0 02 1 0810-0912 ● ● ● ● ● ● ●
581 09.744 SCREW
RADIO DELETE(UL5) 08.083 (C) M5X16 TAPPING 		8-98061-685-0 02 1 1001-1003 ● ● ● ● ● ● ●
581 09.744 SCREW
RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3),RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C) 08.083 (C) M5X16 TAPPING 		8-98061-685-0 02 1 1001-1003 ● ● ● ● ● ● ●
581 09.744 SCREW
RADIO DELETE(UL5) 08.083 (C) M5X16 TAPPING 		8-98167-449-0 02 1 1004- ● ● ● ● ● ● ●
581 09.744 SCREW
RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3),RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C) 08.083 (C) M5X16 TAPPING 		8-98167-449-0 02 1 1004- ● ● ● ● ● ● ●
581 09.744 SCREW
(A) M6X20 W/WASHER 		8-98056-282-0 03 1 0808-0809 ● ● ● ● ●
581 09.744 SCREW
(A) M6X20 W/WASHER 		8-98056-282-0 03 1 0810- ● ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
