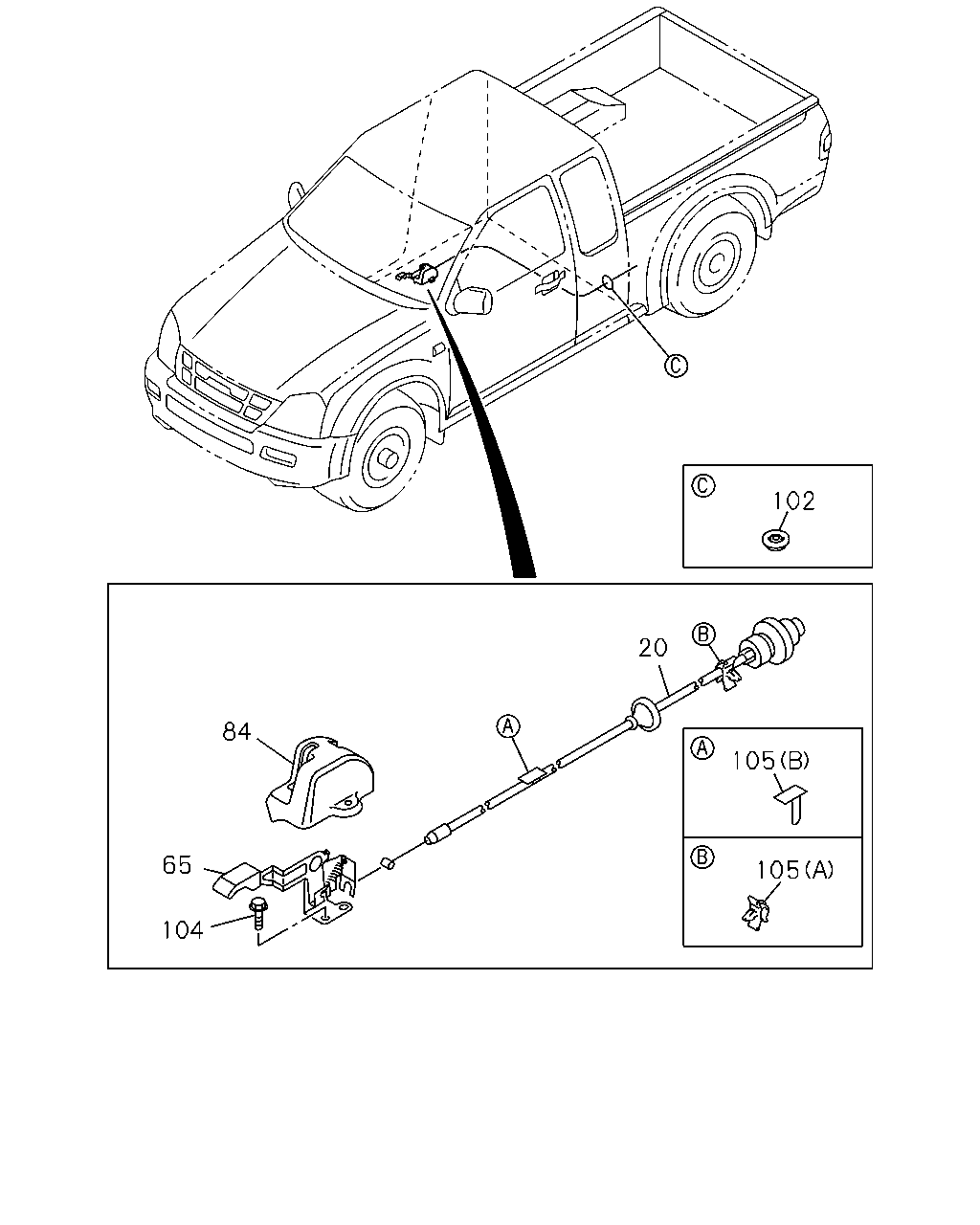

6-86 — TRUNK OPENER AND FUEL LID (#77084) — 29 parça

102 20 84 105 65 105 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
20	17.505 CABLE; TRUNK LID & FUEL FILLER FUEL LID OPENER<N08>	8-98072-757-0	01	1	0810-	●
20	17.505 CABLE; TRUNK LID & FUEL FILLER 4X4 EXTEND CAB LONG(TFS*CF) FUEL LID OPENER<N08>	8-98072-757-0	01	1	0810-		●
20	17.505 CABLE; TRUNK LID & FUEL FILLER FUEL LID OPENER<N08>	8-98072-755-0	01	1	0810-			●
20	17.505 CABLE; TRUNK LID & FUEL FILLER 4X4 REGULAR CAB LONG(TFS*SF) FUEL LID OPENER<N08>	8-98072-755-0	01	1	0810-				●
20	17.505 CABLE; TRUNK LID & FUEL FILLER FUEL LID OPENER<N08>	8-98072-759-0	01	1	0808-					●
20	17.505 CABLE; TRUNK LID & FUEL FILLER 4X4 CREW CAB LONG(TFS*WF) FUEL LID OPENER<N08>	8-98072-759-0	01	1	0808-						●
65	17.505 KNOB; FUEL FILLER DOOR FUEL LID OPENER<N08> DARK GRAY	8-97405-953-0	01	1	0808-0809					●
65	17.505 KNOB; FUEL FILLER DOOR 4X4 CREW CAB LONG(TFS*WF) FUEL LID OPENER<N08> DARK GRAY	8-97405-953-0	01	1	0808-0809						●
65	17.505 KNOB; FUEL FILLER DOOR FUEL LID OPENER<N08> DARK GRAY	8-97405-953-0	01	1	0810-	●	●	●	●	●	●
84	17.185 COVER; BRKT FUEL LID OPENER<N08> DARK GRAY	8-97403-681-2	01	1	0808-0809					●
84	17.185 COVER; BRKT 4X4 CREW CAB LONG(TFS*WF) FUEL LID OPENER<N08> DARK GRAY	8-97403-681-2	01	1	0808-0809						●
84	17.185 COVER; BRKT FUEL LID OPENER<N08> DARK GRAY	8-97403-681-2	01	1	0810-	●	●	●	●	●	●
102	17.505 GROMMET	8-97321-645-1	01	1	0808-0809							●
102	17.505 GROMMET EXC. FUEL LID OPENER<N08>	8-97321-645-1	01	1	0808-0809					●
102	17.505 GROMMET EXTEND CAB EXTRA LONG(TF**CK)	8-97321-645-1	01	1	0808-0809		●
102	17.505 GROMMET 4X4 REGULAR CAB EXTRA LONG(TFS*SK)	8-97321-645-1	01	1	0808-0809				●
102	17.505 GROMMET 4X4 CREW CAB LONG(TFS*WF) EXC. FUEL LID OPENER<N08>	8-97321-645-1	01	1	0808-0809						●
102	17.505 GROMMET CREW CAB EXTRA LONG(TF**WK)	8-97321-645-1	01	1	0808-0809						●
102	17.505 GROMMET EXC. FUEL LID OPENER<N08>	8-97321-645-1	01	1	0810-	●	●	●	●	●	●
102	17.505 GROMMET	8-97321-645-1	01	1	0810-							●
104	17.505 BOLT; KNOB FUEL LID OPENER<N08> 02.343 M6X16 FLANGE	0-28650-616-0	02	1	0808-0809					●
104	17.505 BOLT; KNOB 4X4 CREW CAB LONG(TFS*WF) FUEL LID OPENER<N08> 02.343 M6X16 FLANGE	0-28650-616-0	02	1	0808-0809						●
104	17.505 BOLT; KNOB FUEL LID OPENER<N08> 02.343 M6X16 FLANGE	0-28650-616-0	02	1	0810-	●	●	●	●	●	●
105	17.505 CLIP; CABLE,FUEL LID OPENER FUEL LID OPENER<N08> 02.559 (A) D=5.8	5-09709-081-0	02	1	0810-			●
105	17.505 CLIP; CABLE,FUEL LID OPENER 4X4 REGULAR CAB LONG(TFS*SF) FUEL LID OPENER<N08> 02.559 (A) D=5.8	5-09709-081-0	02	1	0810-				●
105	17.505 CLIP; CABLE,FUEL LID OPENER FUEL LID OPENER<N08> 16.065 (B) ID=7	1-09987-055-0	04	1	0808-0809					●
105	17.505 CLIP; CABLE,FUEL LID OPENER 4X4 CREW CAB LONG(TFS*WF) FUEL LID OPENER<N08> 16.065 (B) ID=7	1-09987-055-0	04	1	0808-0809						●
105	17.505 CLIP; CABLE,FUEL LID OPENER FUEL LID OPENER<N08> 16.065 (B) ID=7	1-09987-055-0	04	1	0810-1110	●	●	●	●	●	●
105	17.505 CLIP; CABLE,FUEL LID OPENER FUEL LID OPENER<N08> (B) ID=7	8-98158-303-0	04	1	1111-	●	●	●	●	●	●
