◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51194 - TFR/TFS-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-82 - BACK GLASS AND WEATHERSTRIP ▶
6-82 — BACK GLASS AND WEATHERSTRIP (#77082) — 39 parça

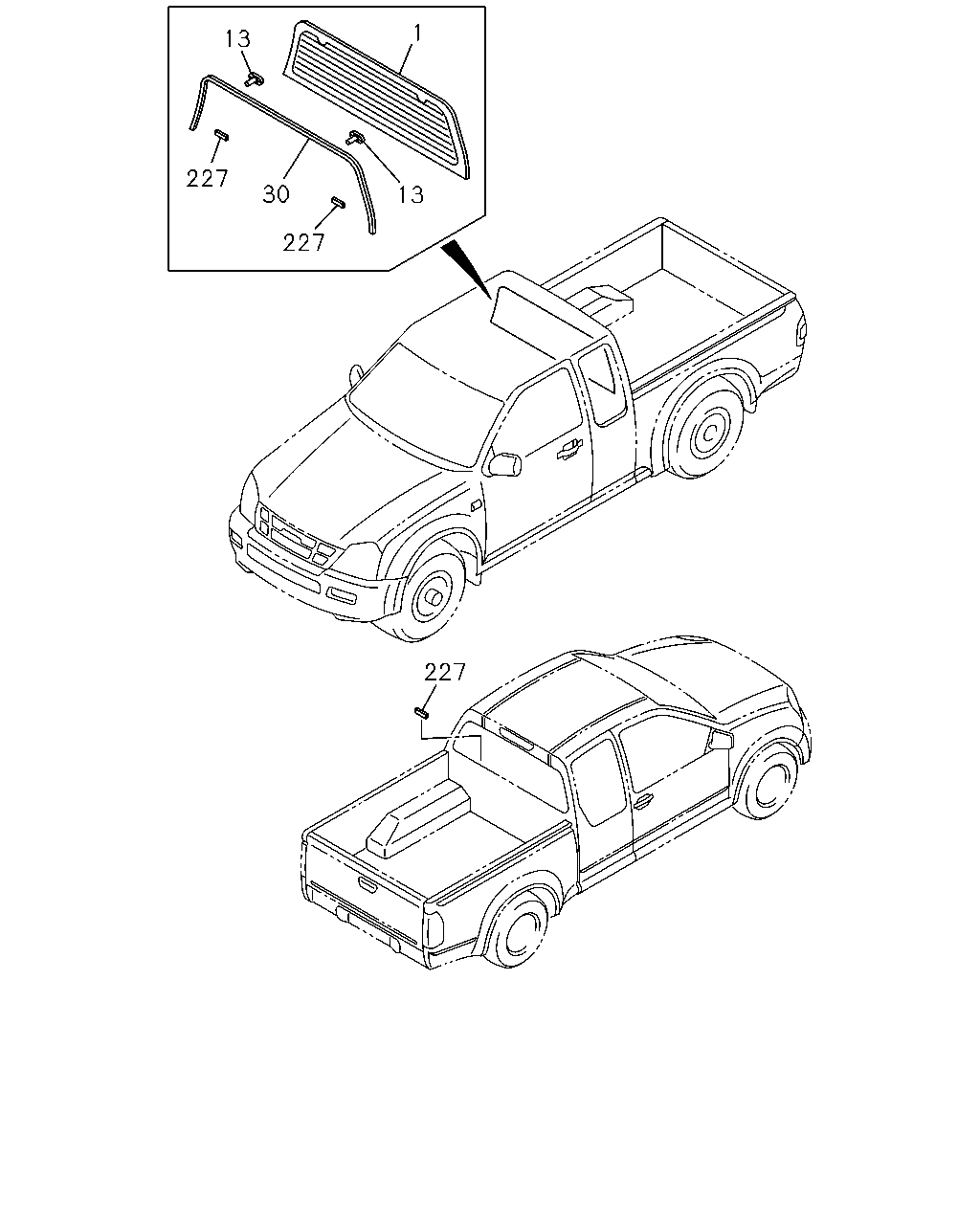

çizim 132242
1 13 227 30 13 227 227
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 16.464 GLASS; BACKLIGHT 8-97331-609-0 01 1 0808-0808 ●
1 16.464 GLASS; BACKLIGHT
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 		8-97331-609-0 01 1 0808-0808 ●
1 16.464 GLASS; BACKLIGHT 8-98134-281-0 01 1 0809-0809 ●
1 16.464 GLASS; BACKLIGHT
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 		8-98134-281-0 01 1 0809-0809 ●
1 16.464 GLASS; BACKLIGHT
EXC. REAR DEFOGGER<C49> 		8-98134-281-0 01 1 0810- ● ●
1 16.464 GLASS; BACKLIGHT 8-98134-281-0 01 1 0810- ● ● ●
1 16.464 GLASS; BACKLIGHT
4X4 EXTEND CAB LONG(TFS*CF) EXC. REAR DEFOGGER<C49> 		8-98134-281-0 01 1 0810- ●
1 16.464 GLASS; BACKLIGHT
4X4 CREW CAB LONG(TFS*WF) EXC. REAR DEFOGGER<C49> 		8-98134-281-0 01 1 0810- ●
1 16.464 GLASS; BACKLIGHT 8-97331-610-0 01 1 0808-0808 ● ●
1 16.464 GLASS; BACKLIGHT
EXTEND CAB EXTRA LONG(TF**CK) 		8-97331-610-0 01 1 0808-0808 ●
1 16.464 GLASS; BACKLIGHT 8-98134-282-0 01 1 0809-0809 ● ●
1 16.464 GLASS; BACKLIGHT
EXTEND CAB EXTRA LONG(TF**CK) 		8-98134-282-0 01 1 0809-0809 ●
1 16.464 GLASS; BACKLIGHT
REAR DEFOGGER<C49> 		8-98134-282-0 01 1 0810- ● ●
1 16.464 GLASS; BACKLIGHT
4X4 EXTEND CAB LONG(TFS*CF) REAR DEFOGGER<C49> 		8-98134-282-0 01 1 0810- ●
1 16.464 GLASS; BACKLIGHT
EXTEND CAB EXTRA LONG(TF**CK) 		8-98134-282-0 01 1 0810- ●
1 16.464 GLASS; BACKLIGHT
4X4 CREW CAB LONG(TFS*WF) REAR DEFOGGER<C49> 		8-98134-282-0 01 1 0810- ●
1 16.464 GLASS; BACKLIGHT
CREW CAB EXTRA LONG(TF**WK) 		8-98134-282-0 01 1 0810- ●
13 16.464 SUPPORT; BACKLIGHT GLASS 8-97244-819-0 02 1 0808-0809 ● ● ●
13 16.464 SUPPORT; BACKLIGHT GLASS
EXTEND CAB EXTRA LONG(TF**CK) 		8-97244-819-0 02 1 0808-0809 ●
13 16.464 SUPPORT; BACKLIGHT GLASS
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 		8-97244-819-0 02 1 0808-0809 ●
13 16.464 SUPPORT; BACKLIGHT GLASS 8-97244-819-0 02 1 0810- ● ● ● ● ● ● ●
30 16.475 SEAL; BACKLIGHT GLASS 8-97371-385-0 01 1 0808-0809 ● ● ●
30 16.475 SEAL; BACKLIGHT GLASS
EXTEND CAB EXTRA LONG(TF**CK) 		8-97371-385-0 01 1 0808-0809 ●
30 16.475 SEAL; BACKLIGHT GLASS
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 		8-97371-385-0 01 1 0808-0809 ●
30 16.475 SEAL; BACKLIGHT GLASS 8-97371-385-0 01 1 0810- ● ● ● ● ● ● ●
227 16.475 RETAINER; RR WINDOW 8-97362-301-0 02 1 0808-0809 ● ● ●
227 16.475 RETAINER; RR WINDOW 8-97362-301-0 02 1 0808-0809 ● ● ●
227 16.475 RETAINER; RR WINDOW
EXTEND CAB EXTRA LONG(TF**CK) 		8-97362-301-0 02 1 0808-0809 ●
227 16.475 RETAINER; RR WINDOW
EXTEND CAB EXTRA LONG(TF**CK) 		8-97362-301-0 02 1 0808-0809 ●
227 16.475 RETAINER; RR WINDOW
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 		8-97362-301-0 02 1 0808-0809 ●
227 16.475 RETAINER; RR WINDOW
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 		8-97362-301-0 02 1 0808-0809 ●
227 16.475 RETAINER; RR WINDOW 8-97362-301-0 02 1 0810-1101 ● ● ● ● ● ● ●
227 16.475 RETAINER; RR WINDOW 8-97362-301-0 02 1 0810-1101 ● ● ●
227 16.475 RETAINER; RR WINDOW
EXTEND CAB EXTRA LONG(TF**CK) 		8-97362-301-0 02 1 0810-1101 ●
227 16.475 RETAINER; RR WINDOW
CREW CAB EXTRA LONG(TF**WK) 		8-97362-301-0 02 1 0810-1101 ●
227 16.475 RETAINER; RR WINDOW
30X8 		8-98187-720-0 02 1 1102- ● ● ● ● ● ● ●
227 16.475 RETAINER; RR WINDOW
30X8 		8-98187-720-0 02 1 1102- ● ● ●
227 16.475 RETAINER; RR WINDOW
EXTEND CAB EXTRA LONG(TF**CK) 30X8 		8-98187-720-0 02 1 1102- ●
227 16.475 RETAINER; RR WINDOW
CREW CAB EXTRA LONG(TF**WK) 30X8 		8-98187-720-0 02 1 1102- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
