Isuzu WW
▶
PICKUP
▶
TFR
▶
51194 - TFR/TFS-RHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

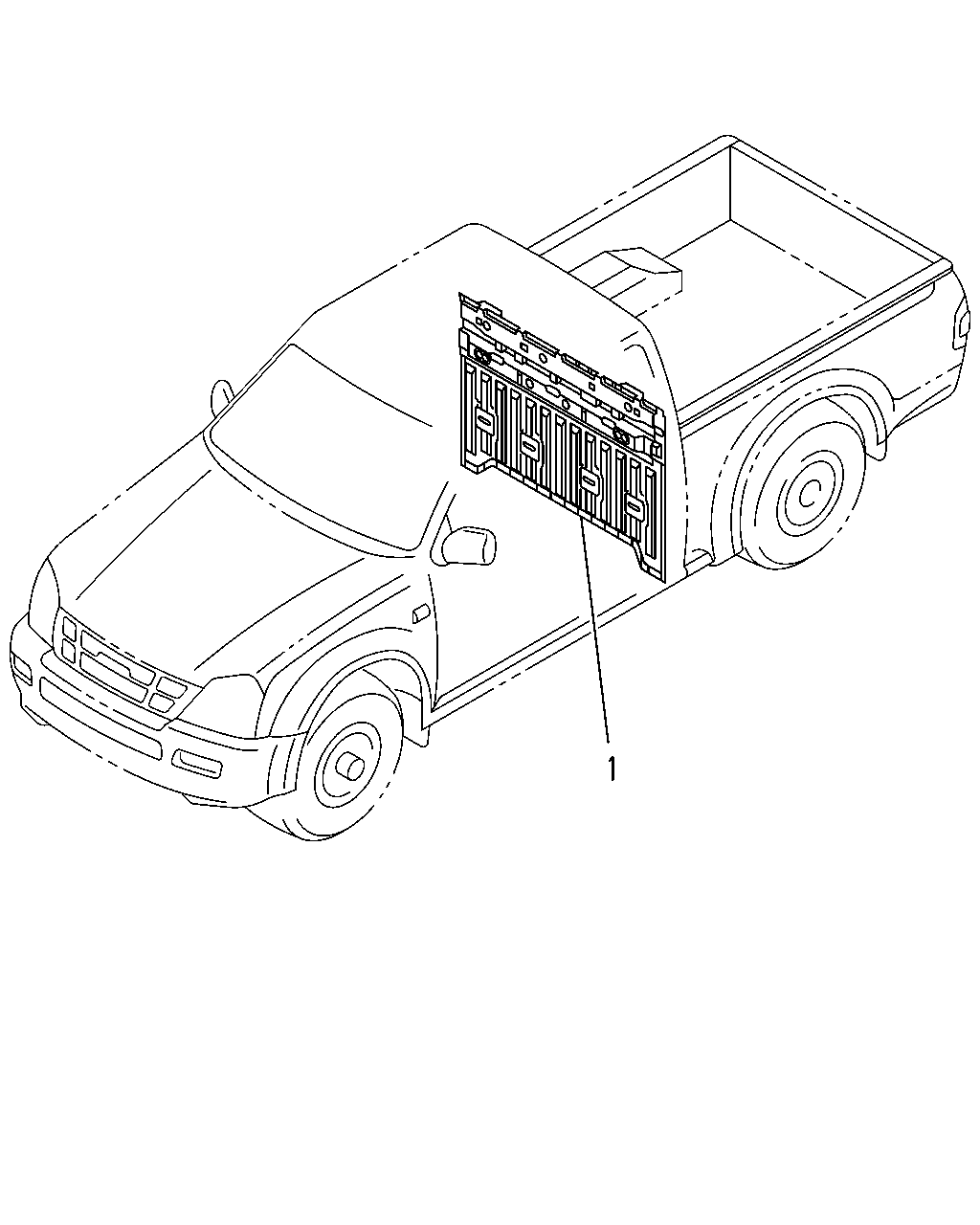

6-80 - BACK PANEL
▶
6-80 — BACK PANEL
(#77081) — 10 parça
Tümü
A - TFB5WF
B - TFS5W
C - TFB5SK
D - TFS5C
E - TFS5S
F - TFB5CF
G - TFB5SF
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
G
1
16.587 PANEL; BACK OUTER
EXC. AUSTRALIA EQUIPMENT(B13)
8-97361-864-0
01
1
0810-
●
1
16.587 PANEL; BACK OUTER
4X4 CREW CAB LONG(TFS*WF) EXC. AUSTRALIA EQUIPMENT(B13)
8-97361-864-0
01
1
0810-
●
1
16.587 PANEL; BACK OUTER
8-97366-521-0
01
1
0808-0809
●
1
16.587 PANEL; BACK OUTER
EXTEND CAB EXTRA LONG(TF**CK)
8-97366-521-0
01
1
0808-0809
●
1
16.587 PANEL; BACK OUTER
4X4 REGULAR CAB EXTRA LONG(TFS*SK)
8-97366-521-0
01
1
0808-0809
●
1
16.587 PANEL; BACK OUTER
8-97366-521-0
01
1
0810-
●
●
●
●
●
1
16.587 PANEL; BACK OUTER
8-98040-179-0
01
1
0808-0809
●
●
1
16.587 PANEL; BACK OUTER
AUSTRALIA EQUIPMENT(B13)
8-98040-179-0
01
1
0810-
●
1
16.587 PANEL; BACK OUTER
4X4 CREW CAB LONG(TFS*WF) AUSTRALIA EQUIPMENT(B13)
8-98040-179-0
01
1
0810-
●
1
16.587 PANEL; BACK OUTER
CREW CAB EXTRA LONG(TF**WK)
8-98040-179-0
01
1
0810-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
