Isuzu WW
▶
PICKUP
▶
TFR
▶
51194 - TFR/TFS-RHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

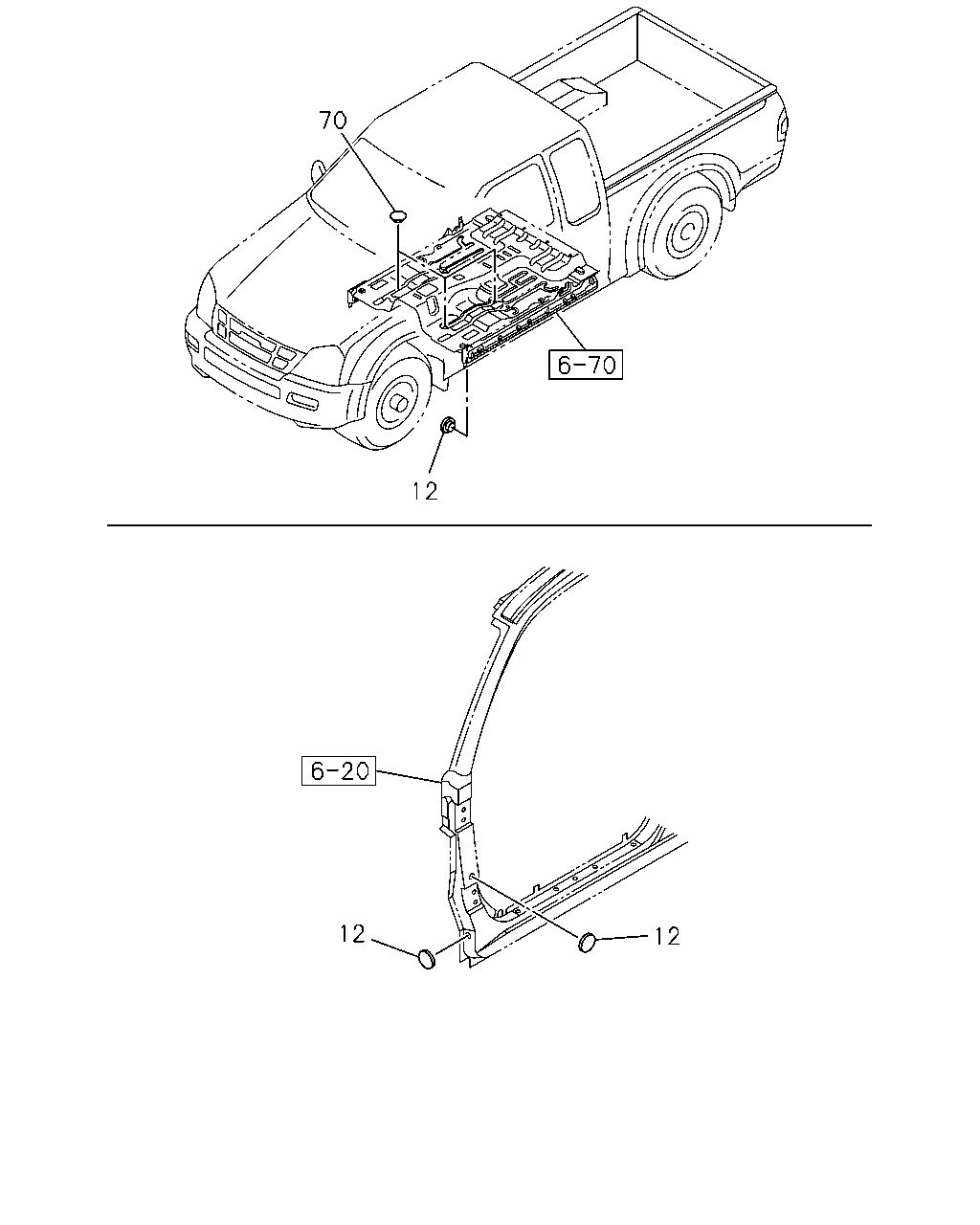

6-78 - FLOOR HOLE PLUG
▶
6-78 — FLOOR HOLE PLUG
(#77080) — 10 parça
Tümü
A - TFB5SK
B - TFB5WF
C - TFS5C
D - TFS5S
E - TFS5W
F - TFB5CF
G - TFB5SF
70
12
12
12
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
G
12
16.547 GROMMET; DRAIN HOLE,ROCKER RR
OD=35
8-97320-908-0
04
1
0808-0809
●
●
●
●
●
12
16.547 GROMMET; DRAIN HOLE,ROCKER RR
OD=35
8-97320-908-0
04
1
0810-
●
●
●
●
●
●
●
12
16.547 GROMMET; DRAIN HOLE,ROCKER RR
OD=35
8-97320-908-0
10
1
0808-0809
●
12
16.547 GROMMET; DRAIN HOLE,ROCKER RR
4X4 REGULAR CAB EXTRA LONG(TFS*SK) OD=35
8-97320-908-0
10
1
0808-0809
●
12
16.547 GROMMET; DRAIN HOLE,ROCKER RR
OD=35
8-97320-908-0
10
1
0810-
●
●
●
12
16.547 GROMMET; DRAIN HOLE,ROCKER RR
OD=35
8-97320-908-0
16
1
0808-
●
●
12
16.547 GROMMET; DRAIN HOLE,ROCKER RR
OD=35
8-97320-908-0
14
1
0808-0809
●
12
16.547 GROMMET; DRAIN HOLE,ROCKER RR
OD=35
8-97320-908-0
14
1
0810-
●
●
70
09.775 PLUG; METAL,FLOOR
8-97324-563-0
04
1
0808-0809
●
●
●
●
●
70
09.775 PLUG; METAL,FLOOR
8-97324-563-0
04
1
0810-
●
●
●
●
●
●
●
